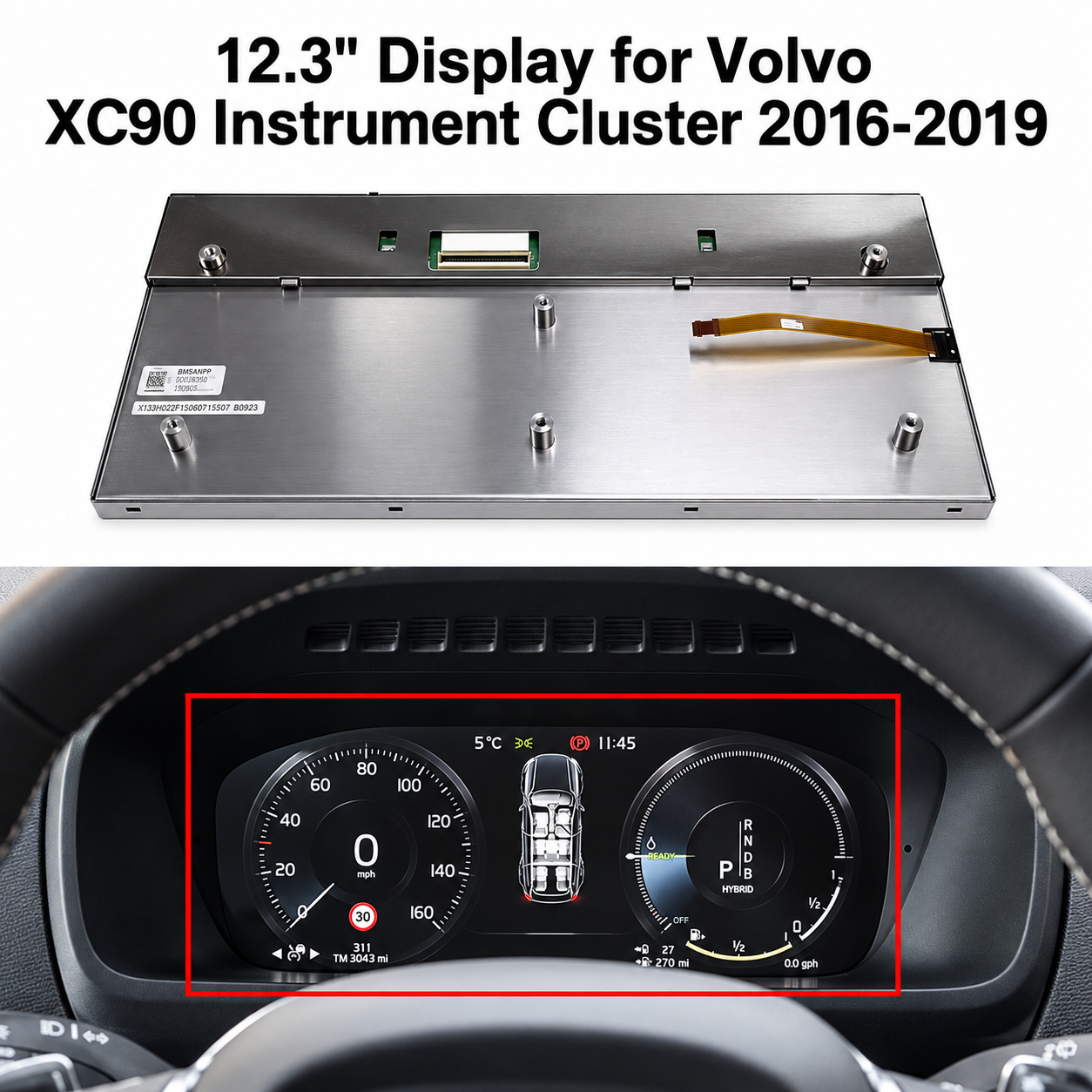

Volvo S60 S90 V60 V90 XC60 XC90 12.3" Cluster LCD LQ123B5RW01 36013031 OEM

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

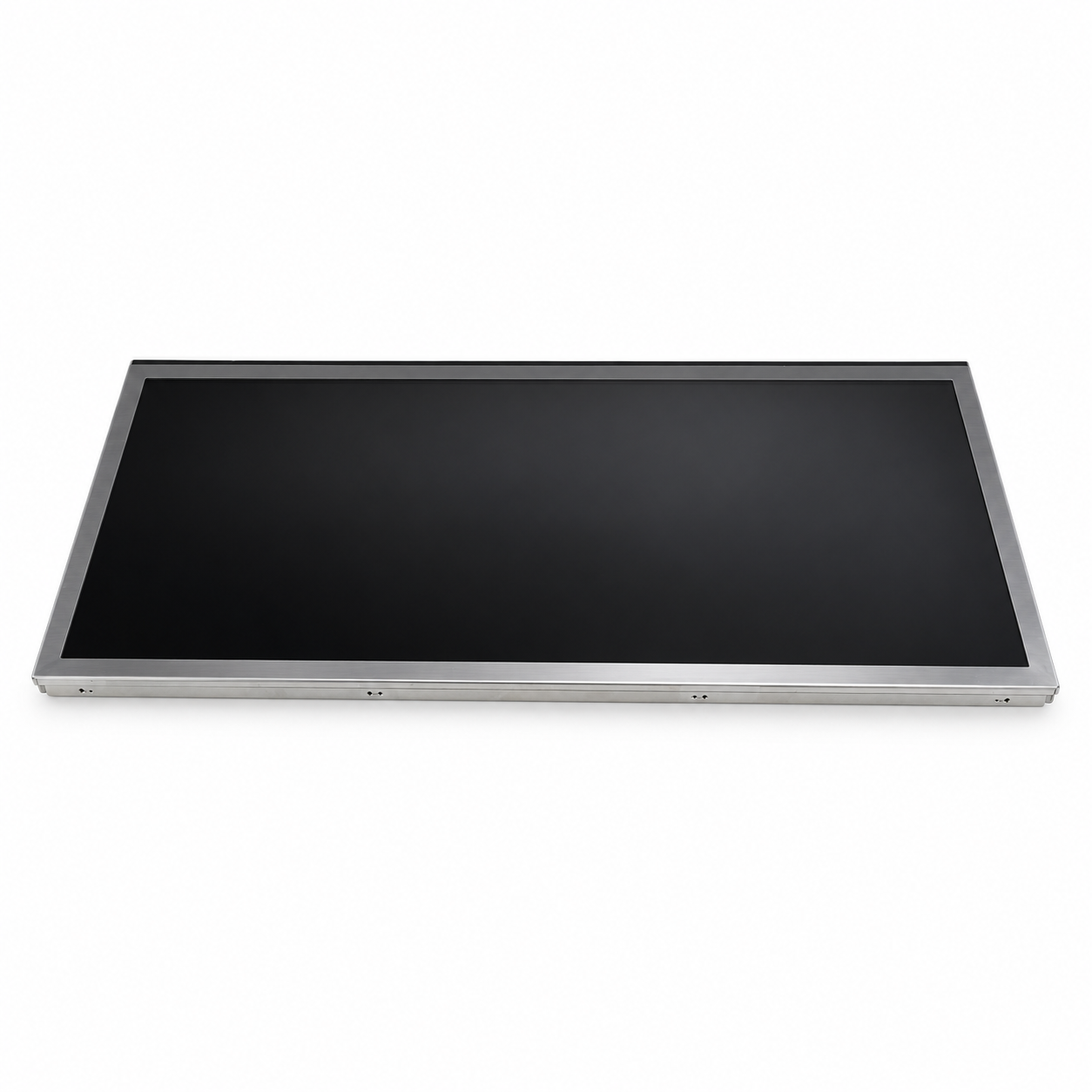

New replacement 12.3-inch TFT LCD panel for selected Volvo fully graphical digital instrument clusters. This panel replaces a damaged or malfunctioning display while retaining the vehicle’s original instrument-cluster housing, circuit board, programming and stored vehicle information.

This listing is for the internal LCD screen only. The complete instrument cluster, housing, lens, gauges and electronic control board are not included.

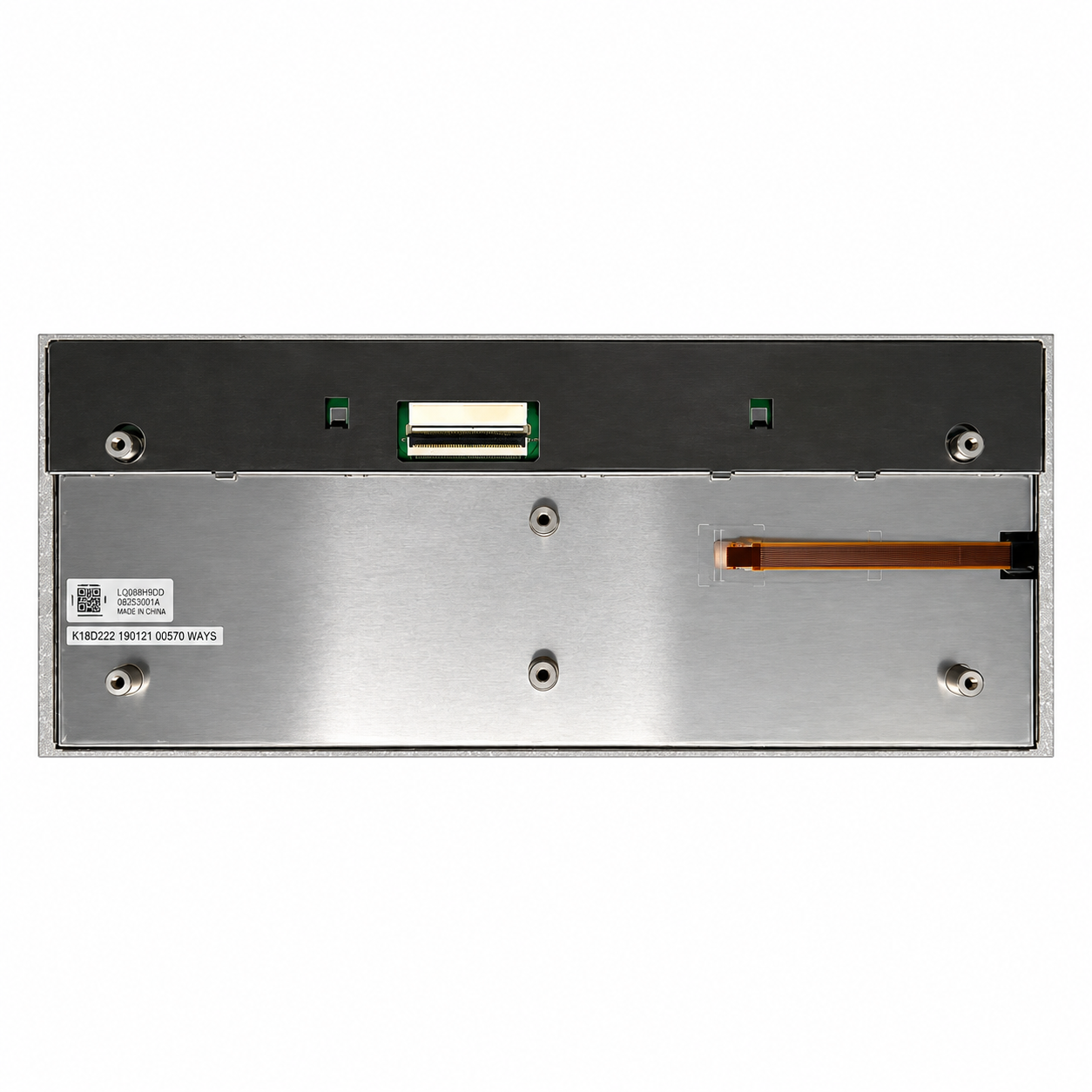

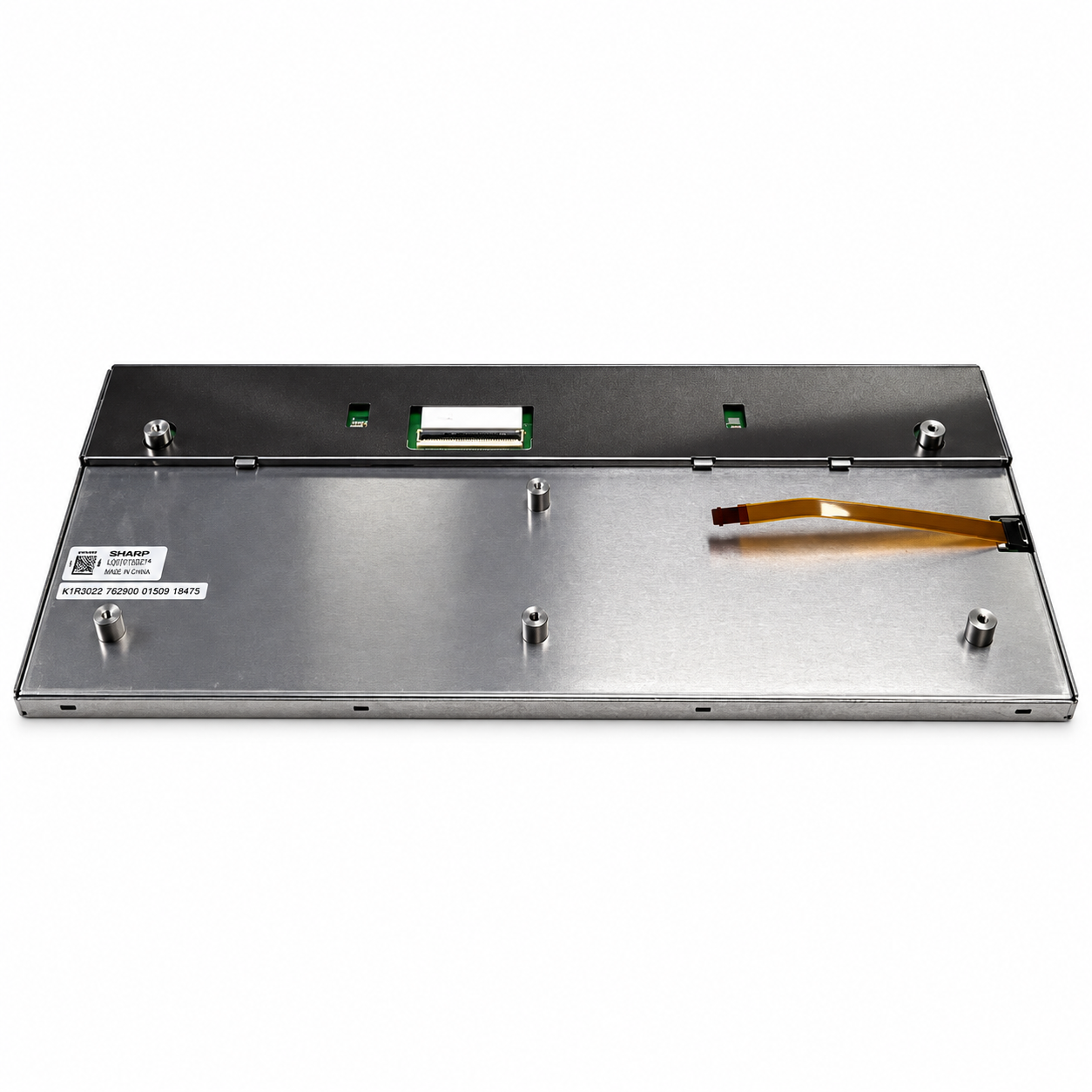

𝗣𝗮𝗻𝗲𝗹 𝗜𝗱𝗲𝗻𝘁𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻

• LCD model/interchange: LQ123B5RW01
• Screen size: 12.3 inches
• Display type: Automotive TFT-LCD
• Resolution: 1440 RGB × 540
• Aspect ratio: 8:3
• Backlight: White LED
• Interface: Single-channel RSDS
• Connector: 64-pin
• Typical brightness: 690 cd/m²
• Typical contrast ratio: 1700:1
• Viewing angle: 80° left, right, up and down
• Touchscreen: No
• Display configuration: Normally black, transmissive

𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲 𝗖𝗹𝘂𝘀𝘁𝗲𝗿 𝗡𝘂𝗺𝗯𝗲𝗿𝘀

This LCD may be found inside Volvo 12.3-inch instrument-cluster assemblies associated with the following numbers:

• 36013031
• 36010424
• 36010343
• 36012427
• 36003182
• 36003134

Important: These are complete Volvo instrument-cluster assembly references, not the manufacturer number of the LCD panel itself. Volvo 36013031 supersedes several of the earlier numbers listed above.

𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆

Potential applications include selected SPA-platform Volvo vehicles equipped from the factory with the 12.3-inch fully graphical driver display:

• Volvo XC90 II – approximately 2016–2019
• Volvo S90 II – approximately 2017–2019
• Volvo V90 II – approximately 2017–2019
• Volvo V90 Cross Country – approximately 2017–2019
• Volvo XC60 II – approximately 2018–2019
• Volvo S60 III – selected 2019 vehicles
• Volvo V60 II – selected 2019 vehicles

These model years are a general application guide only. Screen and instrument-cluster revisions can vary according to production date, chassis number, equipment package and market.

𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗩𝗲𝗿𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻

Before ordering, remove or inspect the original cluster and confirm all of the following:

• The existing screen is the 12.3-inch fully graphical version
• The original LCD label reads LQ123B5RW01
• The 64-pin connector, mounting points and overall panel dimensions match
• The cluster assembly number corresponds with one of the referenced numbers
• The vehicle does not use the smaller 8-inch driver display

Fitment should be determined by the number printed on the original screen rather than by model and year alone.

𝗣𝗿𝗼𝗯𝗹𝗲𝗺𝘀 𝗧𝗵𝗶𝘀 𝗣𝗮𝗻𝗲𝗹 𝗠𝗮𝘆 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

• Cracked or physically damaged LCD
• Blank display caused by a failed panel
• Vertical or horizontal lines
• Missing sections or distorted graphics
• Color distortion
• Dark, dim or uneven screen illumination
• Flickering caused by an internal panel fault

𝗧𝗵𝗶𝘀 𝗣𝗮𝗻𝗲𝗹 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

• Failed instrument-cluster circuit boards
• Vehicle power, fuse or ground problems
• CAN-bus or network communication faults
• Corrosion or liquid damage elsewhere in the cluster
• Software, configuration or vehicle-coding problems
• Damage to the cluster lens, housing or connectors
• Faults in a separate backlight driver or power-supply circuit

Correct diagnosis is strongly recommended before replacing the display.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

Professional installation is recommended. Replacing the panel requires removal and disassembly of the instrument cluster and careful handling of the display connector and internal components.

Because the original cluster electronics are retained, screen-only replacement normally does not require VIN or odometer programming. Programming may still be necessary if the complete cluster electronics are replaced or if another fault is present.

Disconnect vehicle power according to the manufacturer’s service procedure before beginning installation. Avoid touching the display surface or connector contacts, and test the panel before removing any protective film.

𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻

• New replacement LCD display
• Protective surface film may be present
• Inspect and test before final installation

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀

• One 12.3-inch LQ123B5RW01-compatible LCD display panel

Complete instrument cluster, housing, front lens, circuit board, cables, tools and installation service are not included.
