USB AUX Input Socket Cable for BMW E87 E90 F10 F12 E70 84109237653

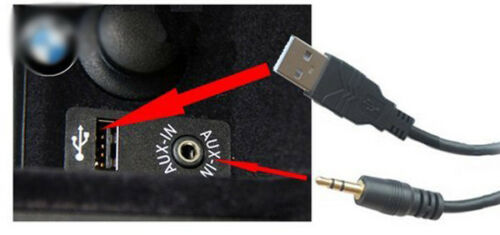

Replace or retrofit the combined USB and 3.5 mm auxiliary input connection in a compatible BMW with a socket and separate USB/AUX cable set.

Product Details

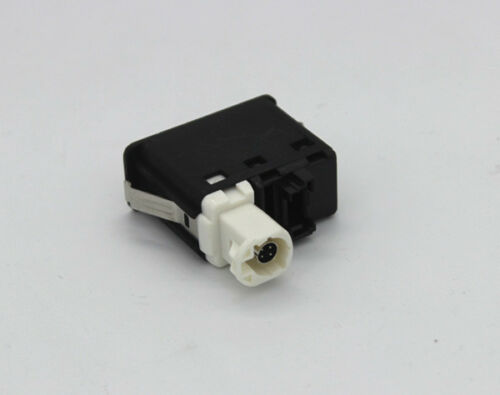

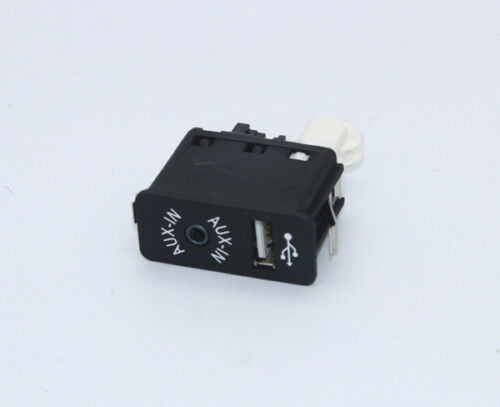

• Combined USB and AUX input socket
• USB cable length approximately 90 cm
• AUX cable length approximately 100 cm
• Socket dimensions approximately 4 x 1.8 cm
• New aftermarket replacement/retrofit component

Fitment and Compatibility

For select BMW E87 LCI, E88, E90/E90 LCI, E91/E91 LCI, E92/E92 LCI, E93/E93 LCI, F07 GT, F10, F11, F18, F12, F13, F01, F02, F03, F04 ActiveHybrid, F25, E70 LCI, E71, E72 ActiveHybrid, and E89 applications with the matching special-hole socket and compatible factory media system. Verify the original socket shape, connector keys, installed head unit, and vehicle equipment before ordering.

Part Number Information

Reference part number: 84 10 9 237 653 / 84109237653. Part numbers can be superseded; match the physical socket and cable connections to the original component.

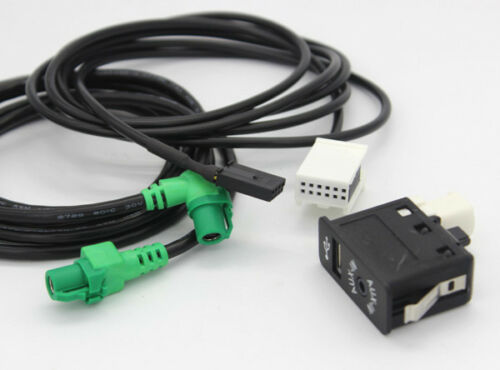

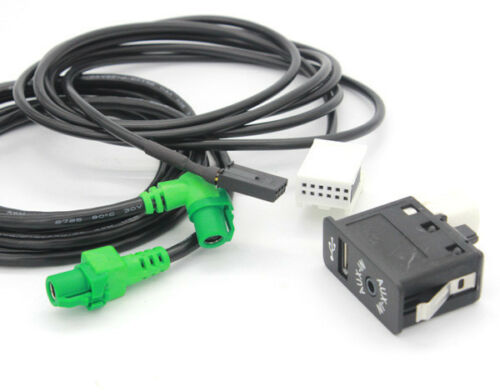

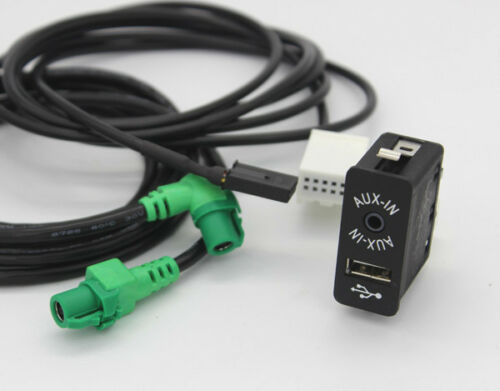

Package Contents

• 1 USB/AUX input socket
• 1 USB connection cable
• 1 AUX connection cable

Installation Notes

This component does not add USB/AUX functionality to a vehicle that lacks the necessary factory head unit, control module, wiring, coding, or media option. Retrofit applications may require additional parts and programming. Professional installation is recommended.
