7-Inch Touchscreen Digitizer for 2018-2019 Nissan Frontier 28021-9BS0C
. Restore accurate touch operation on a compatible factory radio without replacing the complete unit. This new aftermarket digitizer replaces only the touch-sensitive glass over the original LCD.
Product Details

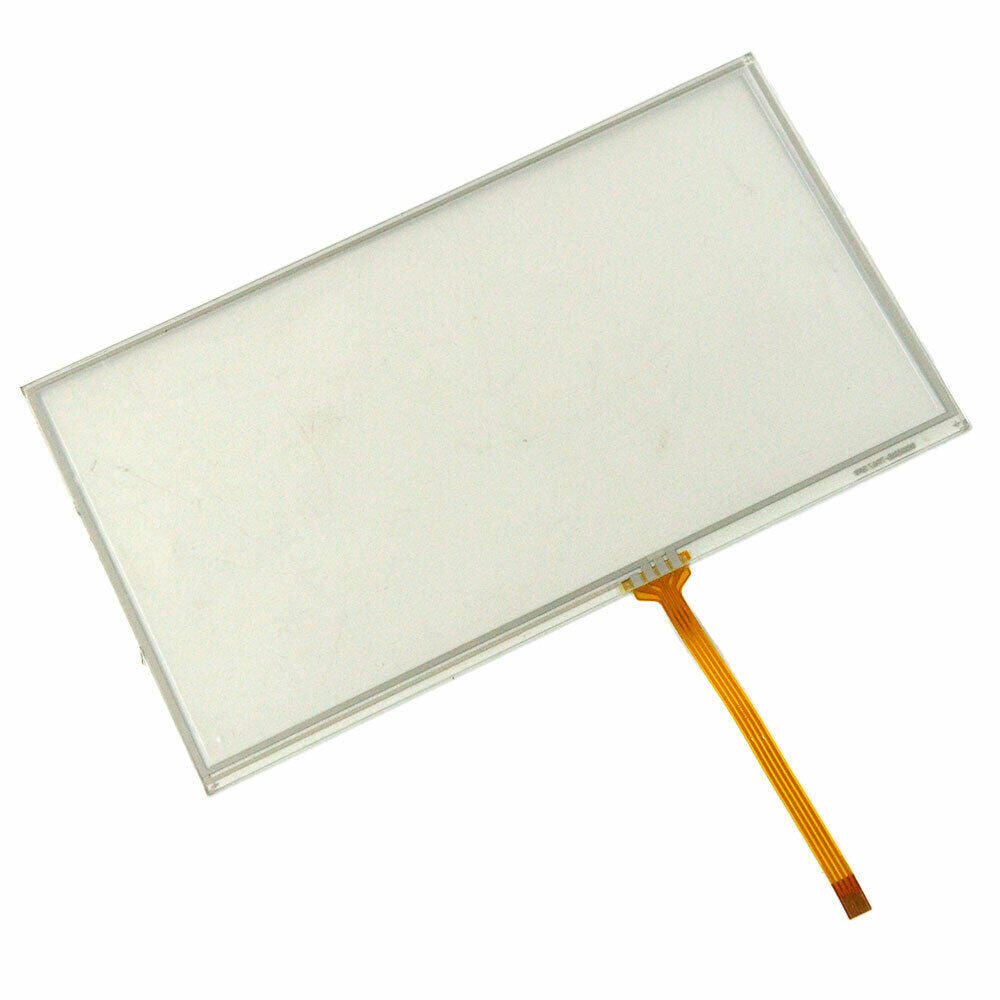

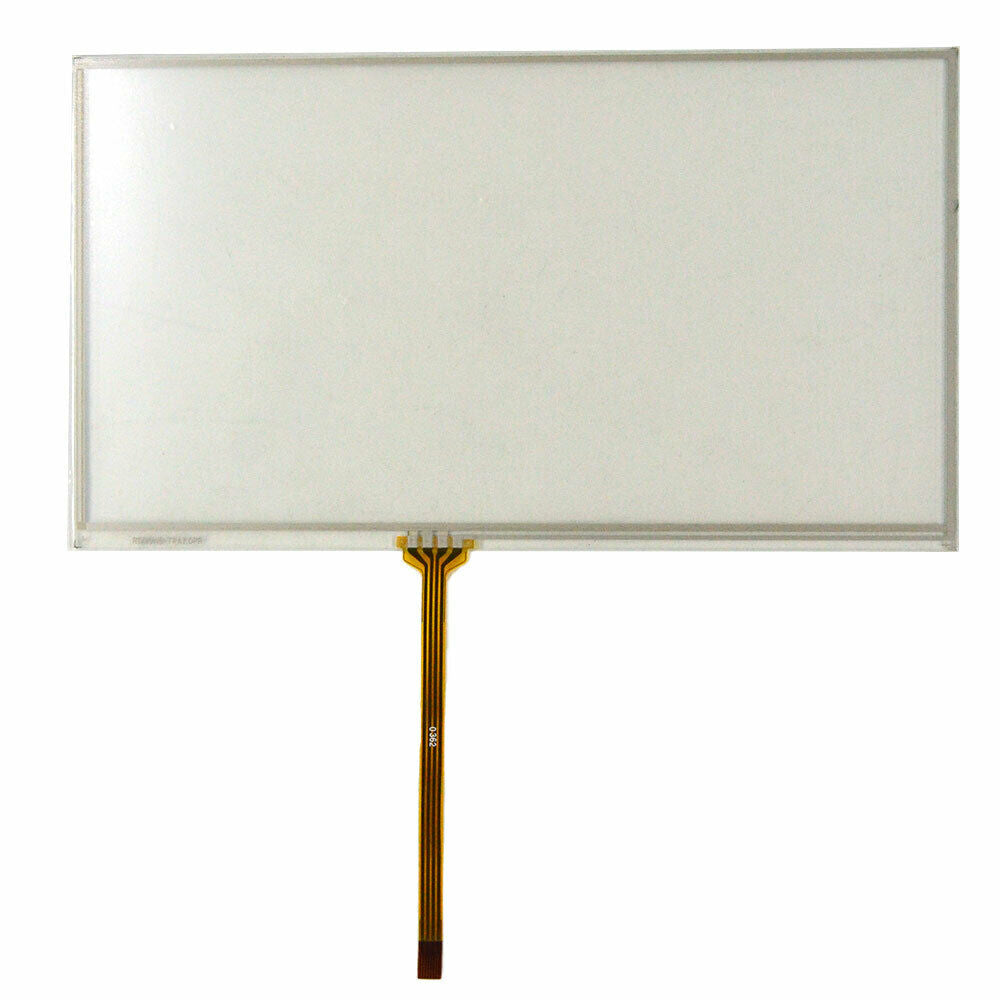

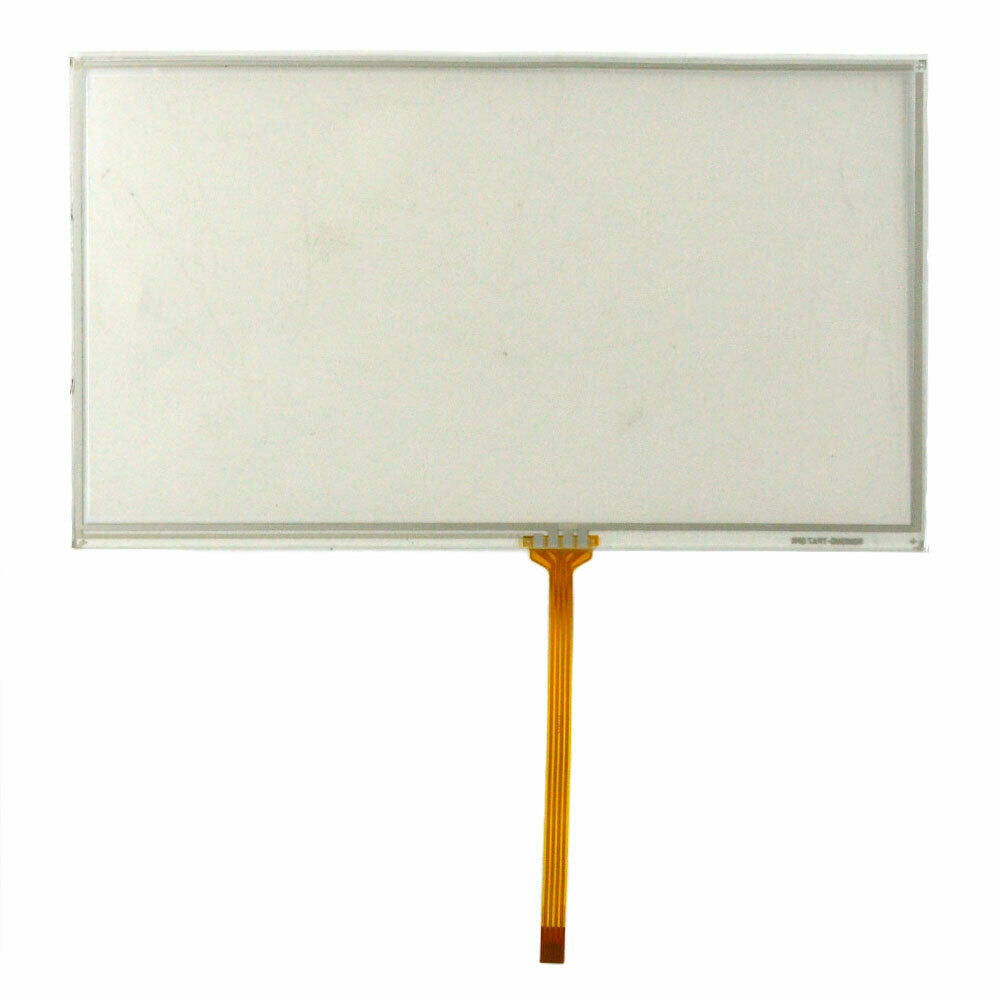

- 7-inch resistive touchscreen glass
- Approximate dimensions: 162 x 92 mm

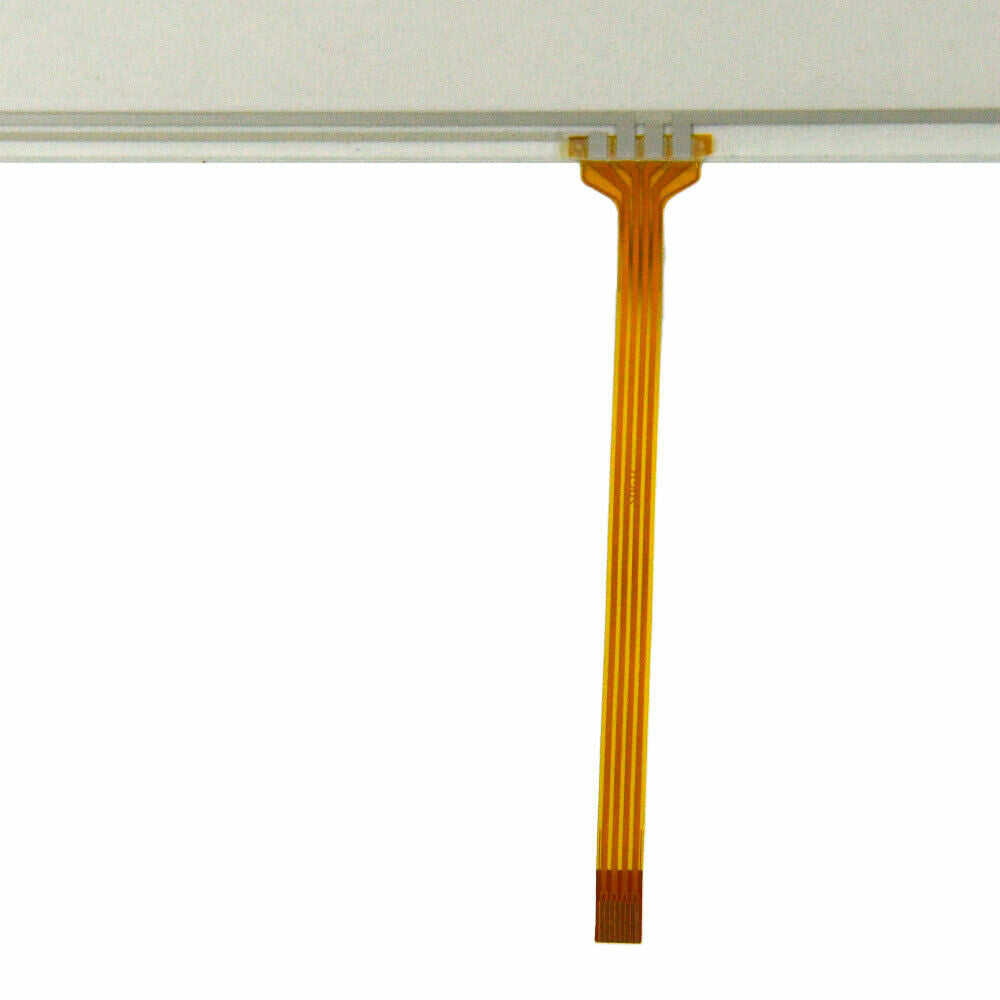

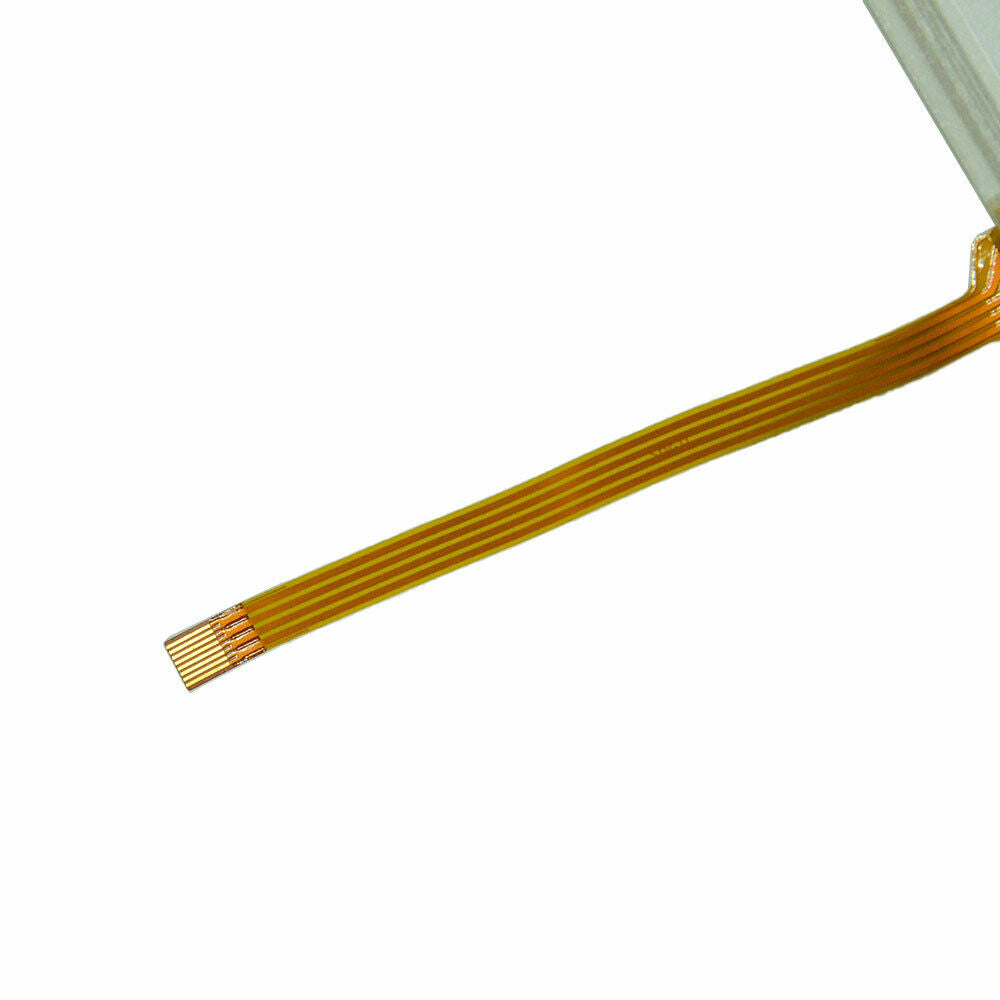

- 8-pin ribbon cable approximately 80 mm long
- 5V operating design
- For inaccurate, intermittent, phantom or non-responsive touch faults when the LCD image remains normal
Fitment and Compatibility
Nissan: 2018-2019 Frontier with Panasonic factory radio 28021-9BS0C and matching 7-inch screen layout. Source catalog data associates this radio with select S and SV configurations, but the radio number is more reliable than trim level.
Additional application: certain 2014-2017 Toyota Avalon Panasonic 7-inch radios with the same 8-pin digitizer, dimensions and cable position. Toyota used multiple radio versions, so physical comparison is required.
Part Number Information
Compatible Nissan radio number: 28021-9BS0C / 280219BS0C.
Associated LCD reference: LA070WV1(TD)(08) / LA070WV1-TD08.
The LCD reference identifies the screen beneath the digitizer; the LCD itself is not included.
Package Contents
One 7-inch touchscreen glass digitizer. LCD, radio, bezel, adhesive and tools are not included.
Installation Notes
Radio disassembly and separation of the original touch layer are required. Confirm that the LCD image is good before ordering, test the digitizer before final bonding and use professional installation if you are not experienced with display repair.
