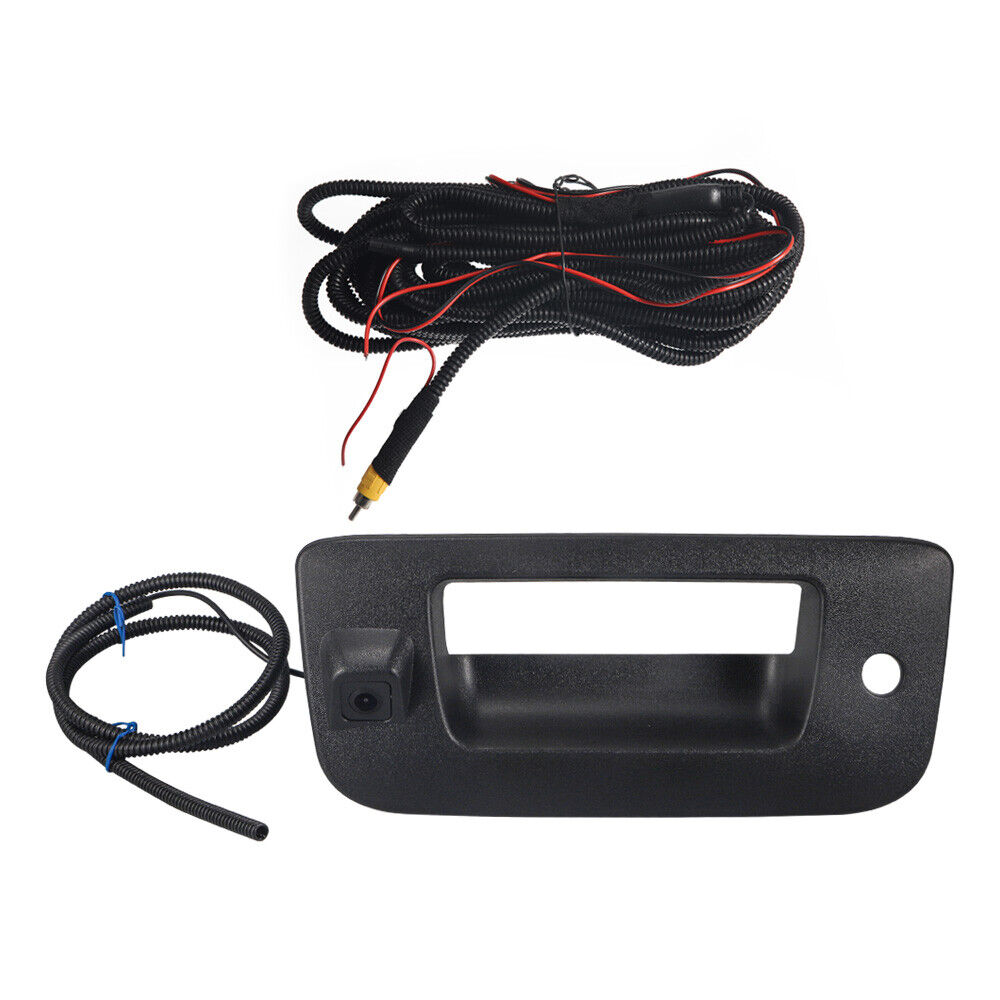

Tailgate Handle Backup Rear View Camera For Chevy Silverado GMC Sierra Bj.2007-2013

Specification:

Image sensor: HD CCD

TV system: NTSC/PAL optional

Effective pixels: 682*504 pixels

Horizontal resolution: 600TVL

Induction area: 3.6mm*2.7mm

Shutter Speed: 1/50, 1/60-1/10000

Minimum illumination: 0.1Lux/F=1.2

Video output: 1.0v P-P at 75ohm

Power supply: DC 12V

Lens angle: 170° (diagonal)

Waterproof: IP69K

White Balance: Auto

Operating temperature: -45℃ ~85℃, RH95% MAX

Operating temperature: -35℃~ 75℃, RH95% MAX

This product does not include a keyhole cover.

Fit for:

For 2008-13 Chevrolet Silverado 1500 Upgraded Rear View Camera Kit

For 2007 Chevrolet Silverado 1500 w/ New Body Style Upgraded Rear View Camera Kit

For 2008-14 Chevrolet Silverado 2500 HD Upgrade Rear View Camera Kit

For 2007 Chevrolet Silverado 2500 HD w/ New Body Style Upgraded Rear View Camera Kit

For 2008-14 Chevrolet Silverado 3500 HD Upgrade Rear View Camera Kit

For 2007 Chevrolet Silverado 3500 HD w/ New Body Style Upgraded Rear View Camera Kit

For 2008-13 GMC Sierra 1500 Upgraded Rear View Camera Kit

For 2007 GMC Sierra 1500 w/ New Body Style Upgraded Rear View Camera Kit

For 2008-14 GMC Sierra 2500 HD Upgraded Rear View Camera Kit

For 2007 GMC Sierra 2500 HD w/ New Body Style Upgraded Rear View Camera Kit

For 2008-14 GMC Sierra 3500 HD Upgraded Rear View Camera Kit

For 2007 GMC Sierra 3500 HD w/ New Body Style Upgraded Rear View Camera Kit

Installation guide:

Remove the truck handle from the rear of the car.

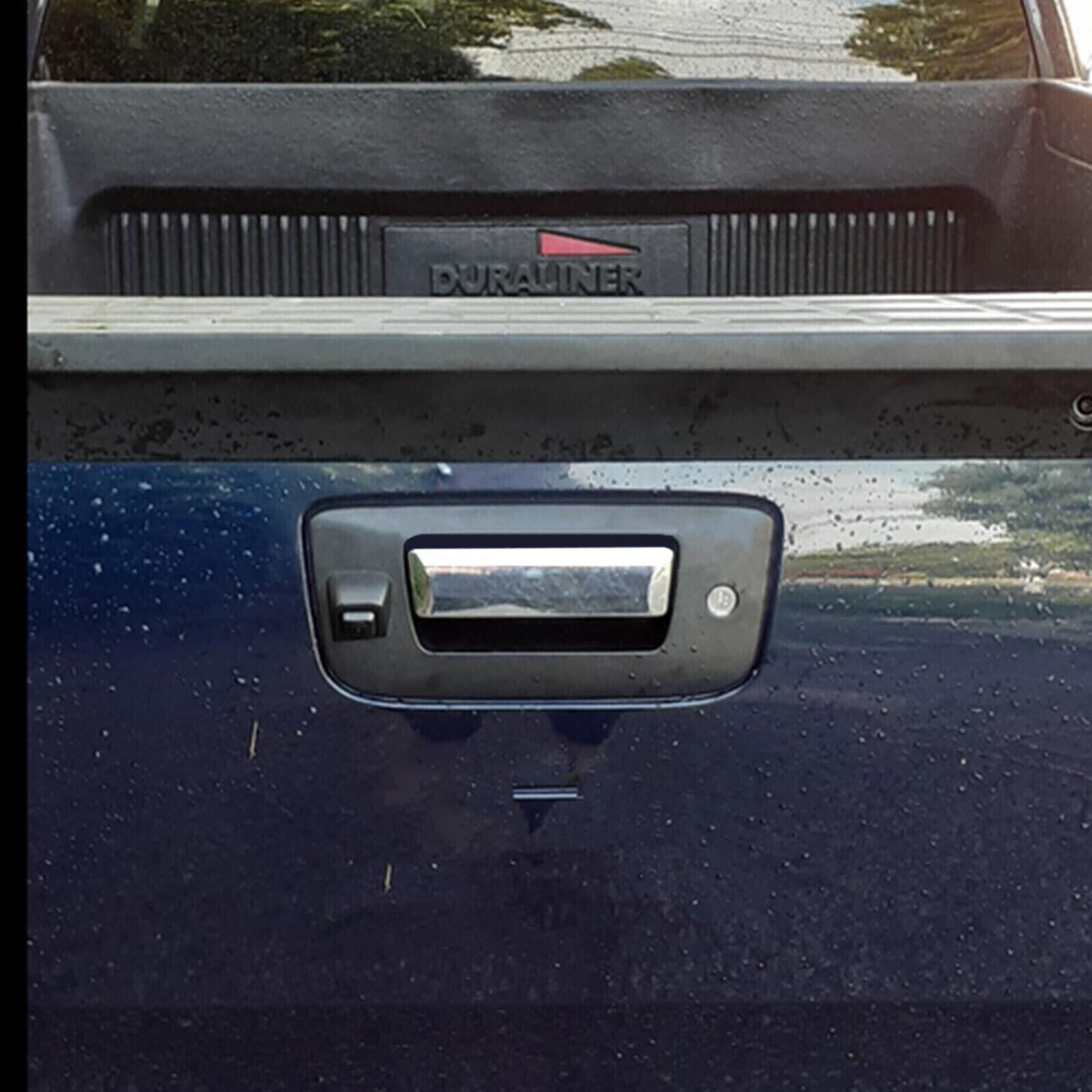

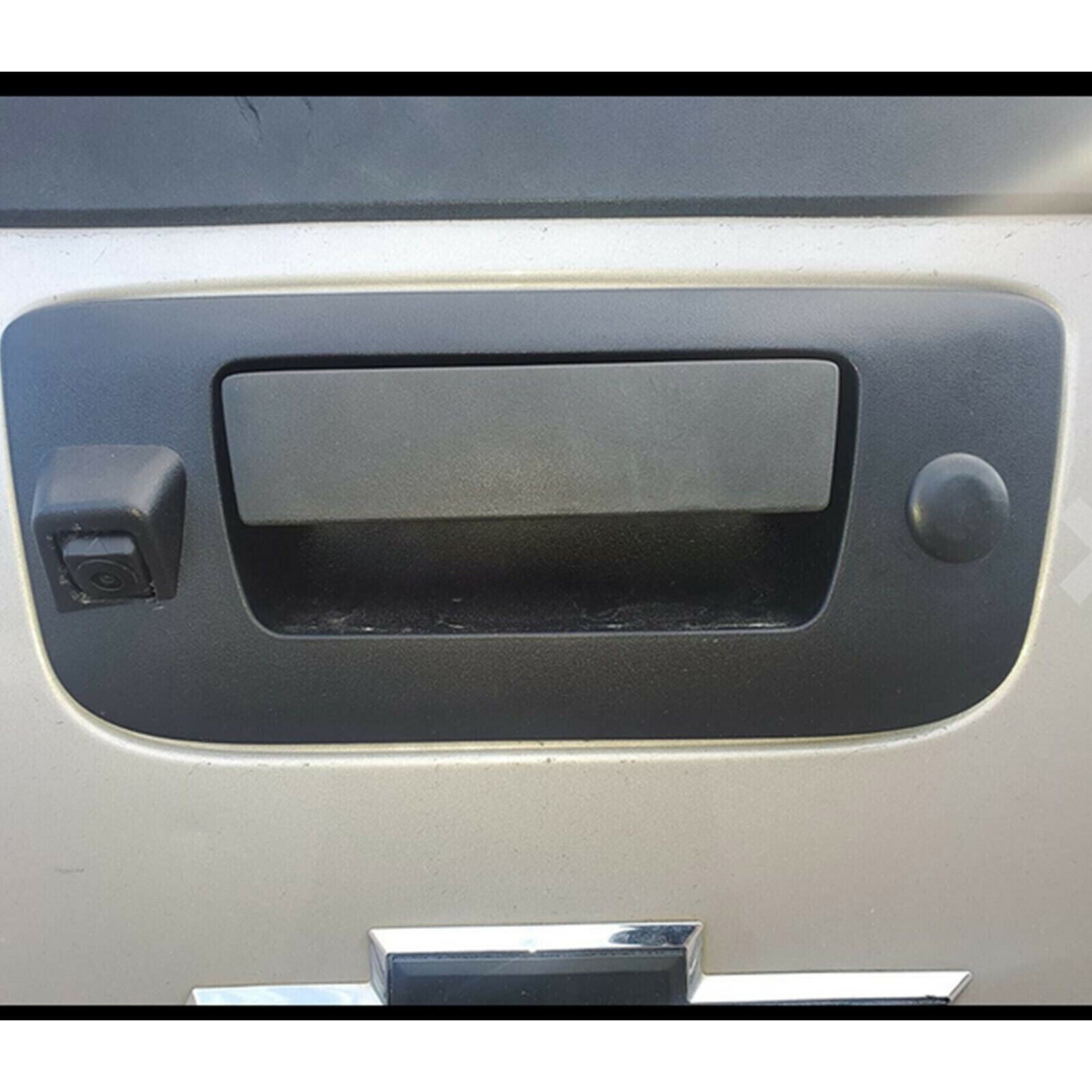

Fix the camera to where the car's truck handle is

Connect the camera's power supply to your car's reversing lights - the red wire goes to positive and the black wire goes to negative.

Connect the video cable of the camera to the extension cable.

Connect the extension cable to your car monitor.

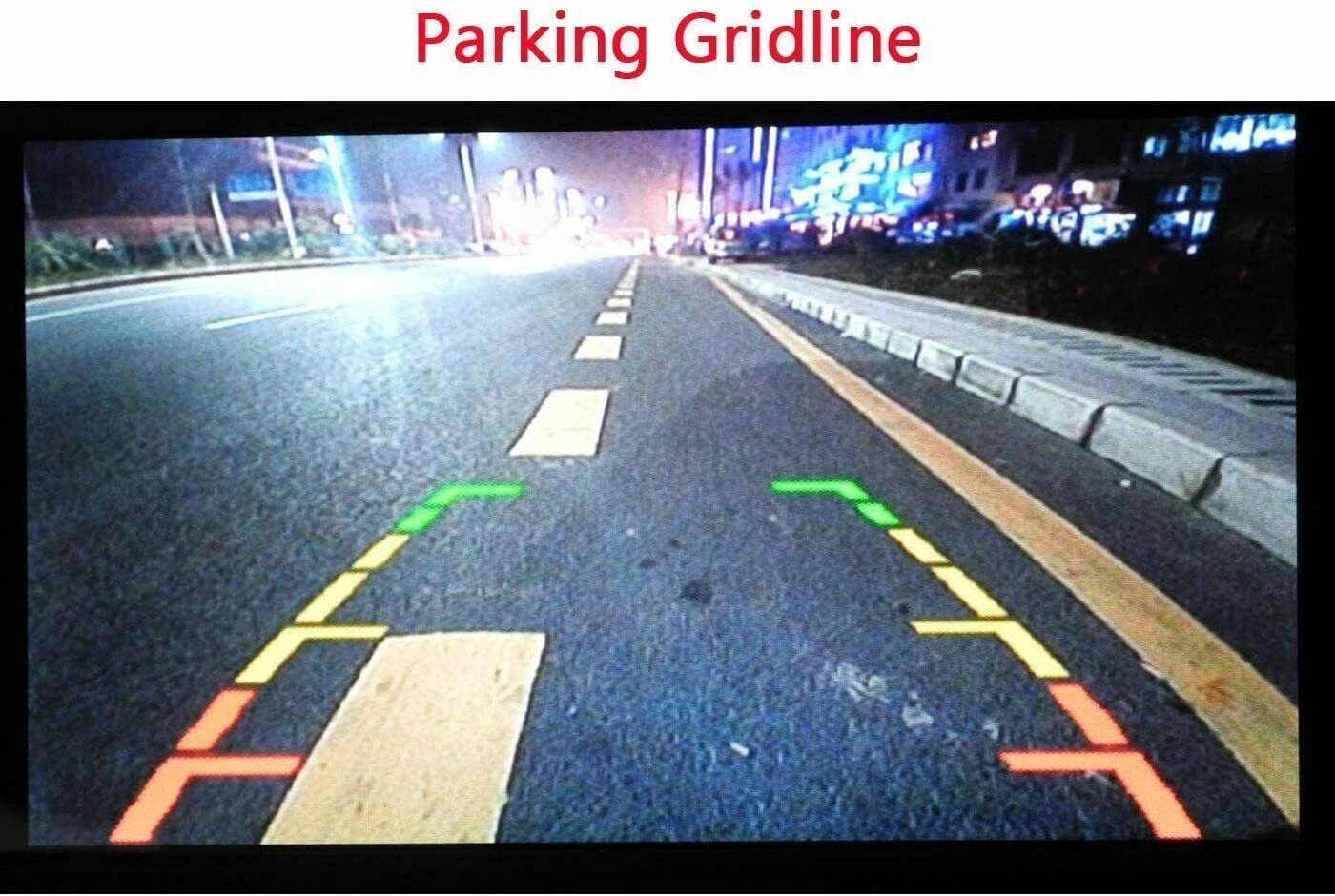

You see these images when your car is in reverse gear.

Feature:
0.1 lux sensitivity for improved nighttime visibility
150 degree peripheral view

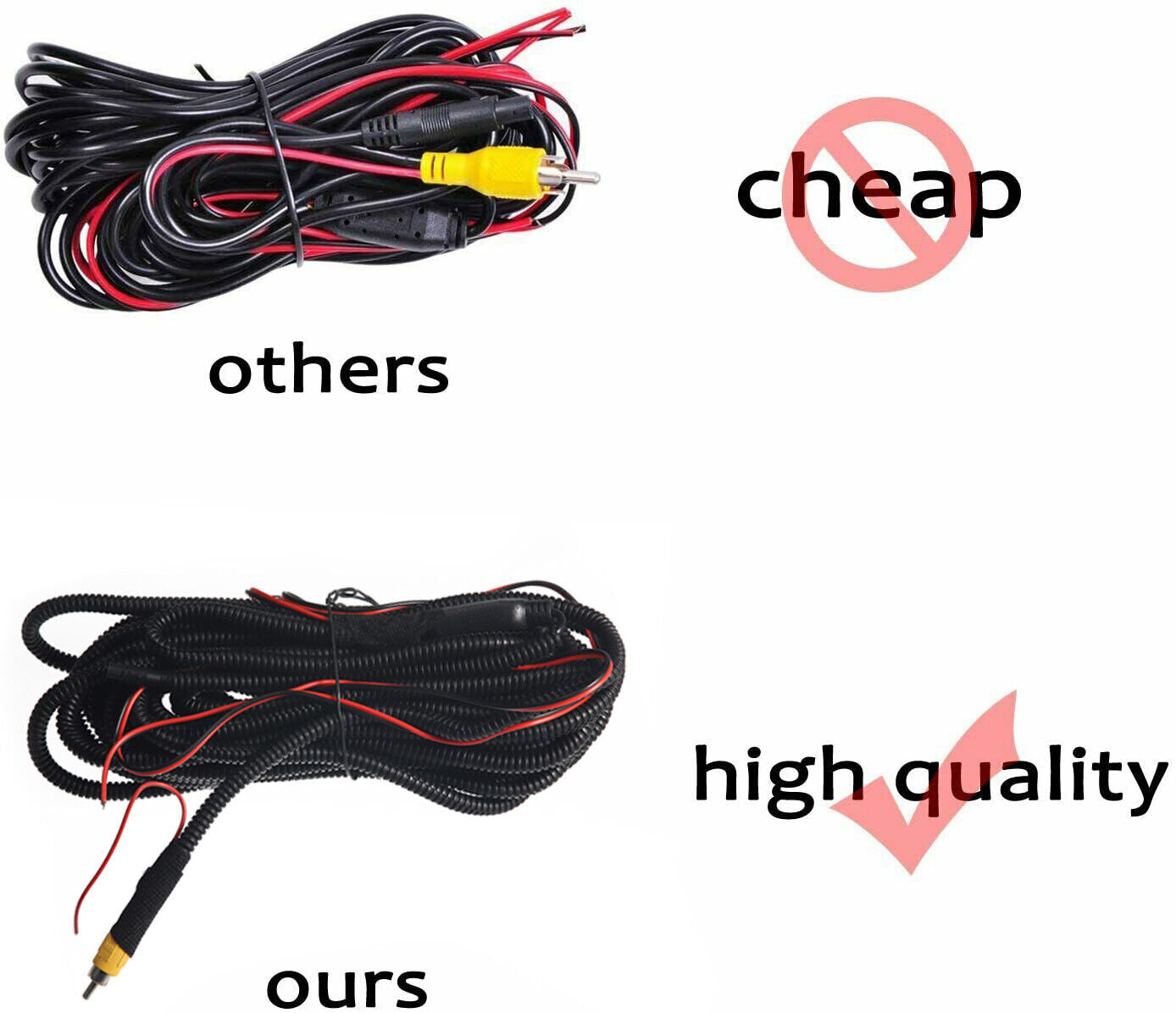

high quality connectors
Waterproof case with anti-fog lens
RCA video output plugs into the NTSC video input of most aftermarket mirrors/video receivers

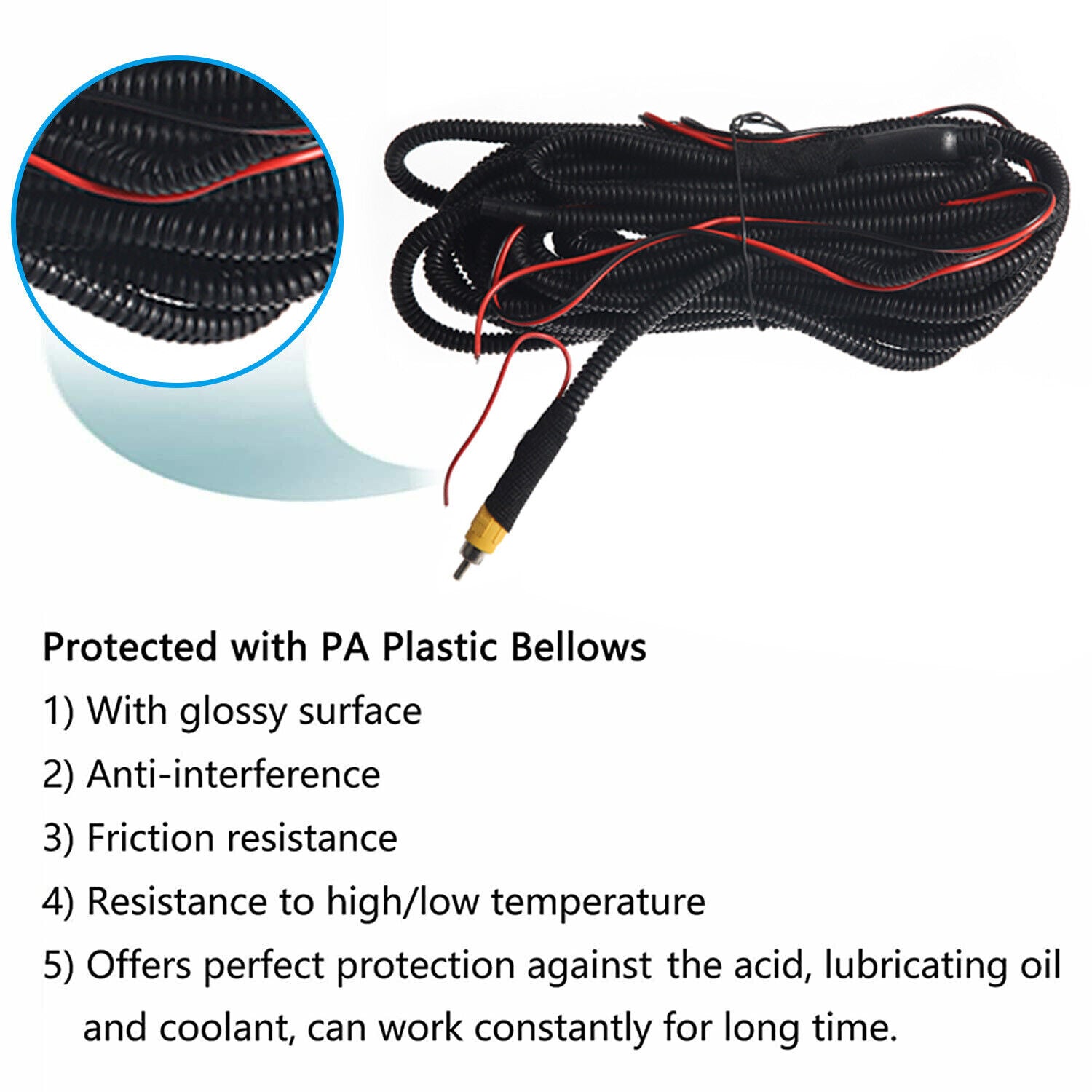

Includes waterproof 28ft extension harness with a heavy duty 8. working sealed connector on the tailgate, and RCA connections for video output inside the vehicle

Notes:

This part is designed to be upgraded from the factory. We recommend professional installation as modifications are required to your vehicle and instructions are not included.

Packing include:

1 Dodge Ram Tailgate Handle Camera

1x Power and Video Cable (6M)
