Repair Kit for Volkswagen VW Passat B6 CC Steering Lock Module Relays + Micro Switch 3C0905864
REPAIR KIT VW Passat B6 CC Steering Wheel Lock Module

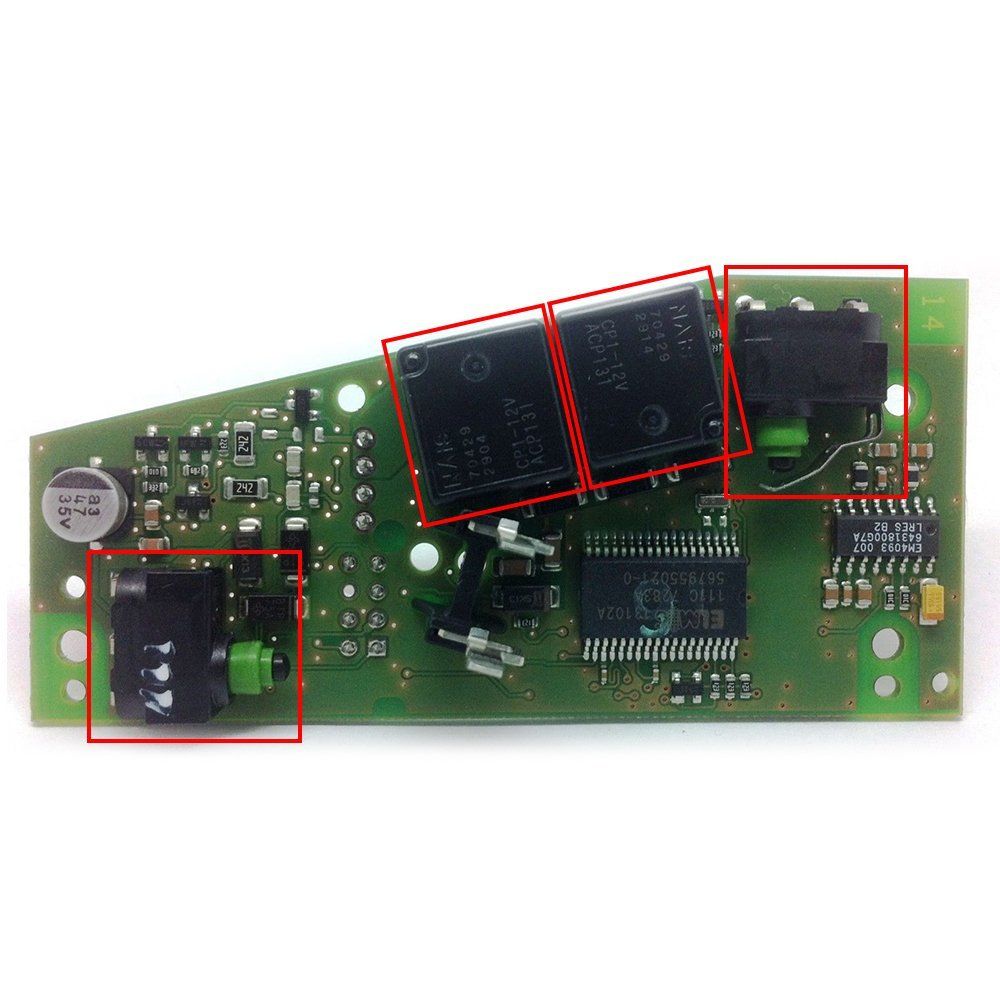

Fixing VW Passat & CC Steering Module PCB.
We send you the same component parts as originally fitted. We can repair for you! Contact us if you have any questions
- Passat B6 2006-2015
- Passat CC 2009-2012
- CC 2012-2017
- All parts are guaranteed for 12 months.

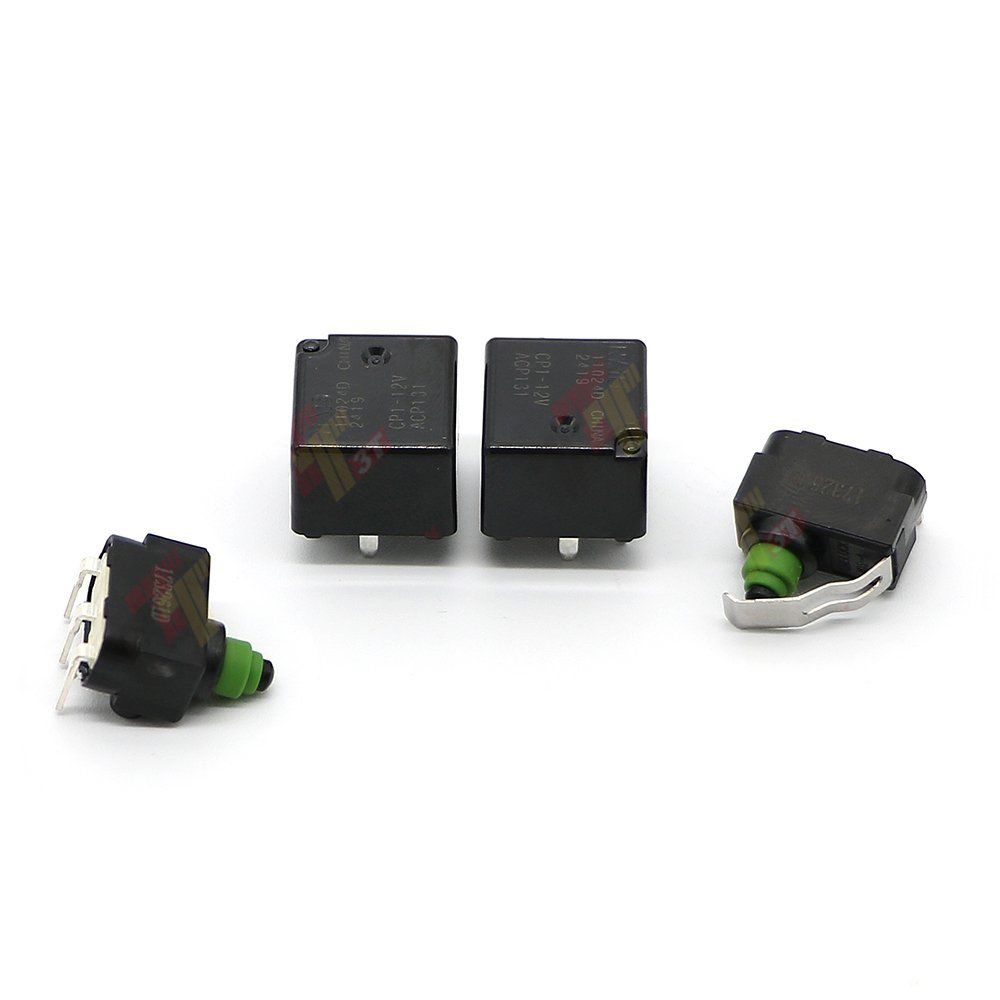

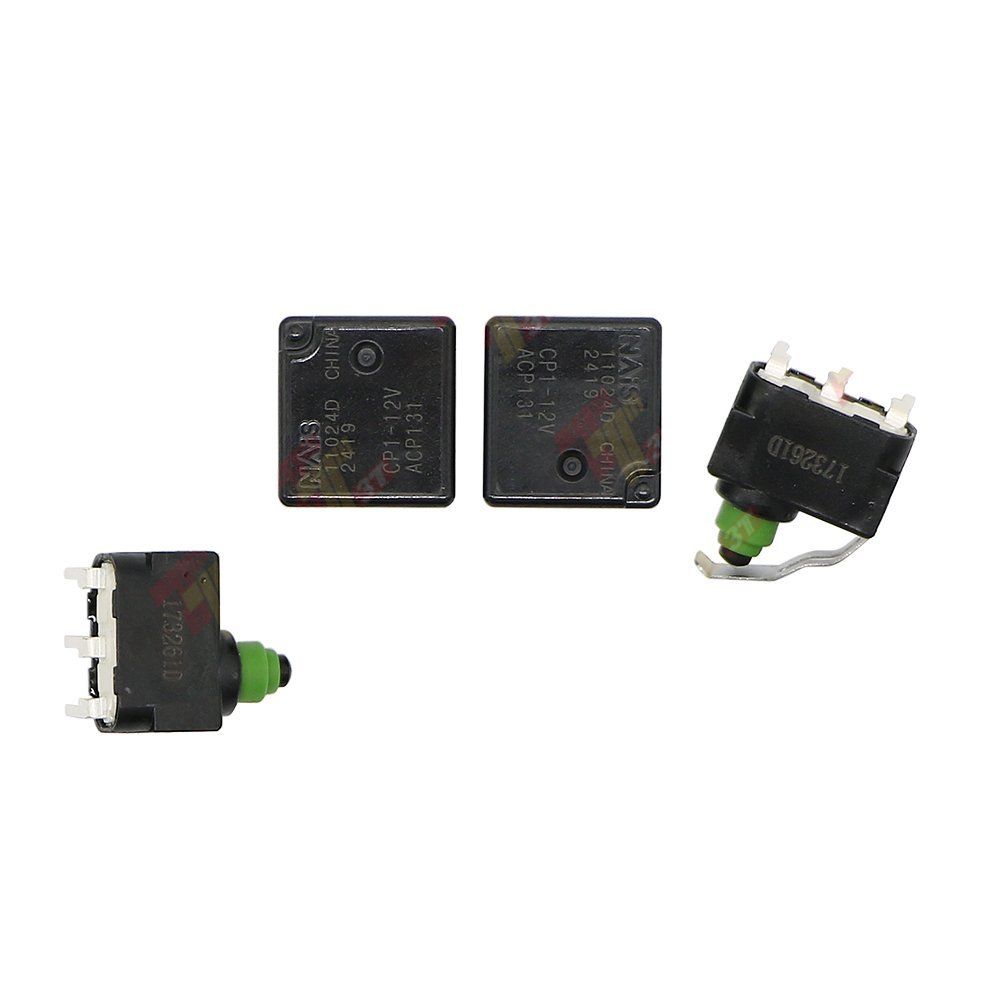

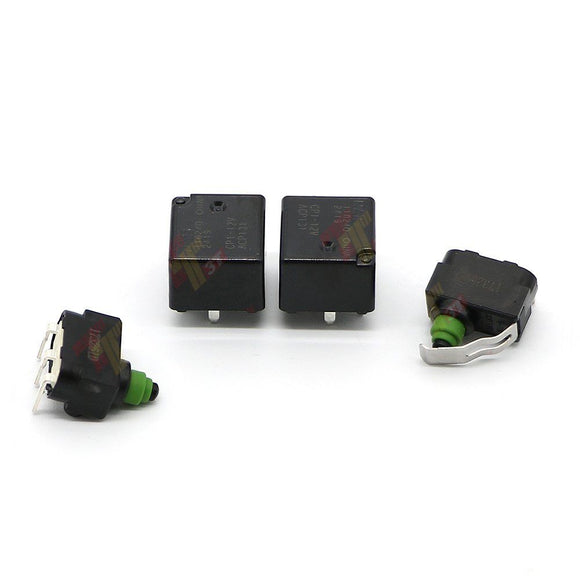

Parts you will receive.
- (2) micro switches
- (2) relay Nʌis CP1-12V ACP131
- as shown in picture 1
How do I know if my module is faulty....?
A faulty micro switch or relay can cause one or more of these symptoms:
- Takes several attempts before car will start
- Steering Lock fault message or code
- Steering Wheel warning shows orange or red
- Clicking noise when key inserted
- Will not start
- Vehicle immobilized
Do I have to get my car reprogrammed?
If you are still able to start the car (even though it may take several attempts),
then no recoding / reprogramming is required.
You just fit the module back in. This is an advantage over fitting a replacement new or used module.

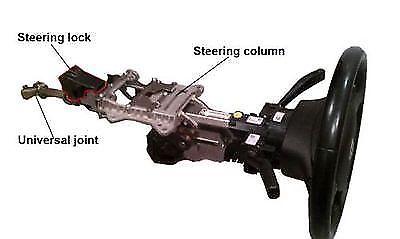

Where is the Module Located......?
On the lower half of the steering column in a black box.
(see picture #3)
To remove the module, simply prise off the plastic cover and remove 3 torx screws.
There is no need to remove the whole steering lock.
Reference OE/OEM Number:
3C0905864A, 3C0905864B, 3C0905864C, 3C0905864D, 3C0905864E, 3C0905864F, 3C0905864G, 3C0905864H, 3C0905864J, 3C0905864I
Disconnect the battery and wait 10 minutes before removing the module or disconnecting any wiring.
