Rear Wheel Hub Bearing Pair for 2003-2008 Toyota Corolla Matrix, 2004-2009 Prius & Pontiac Vibe FWD 512217

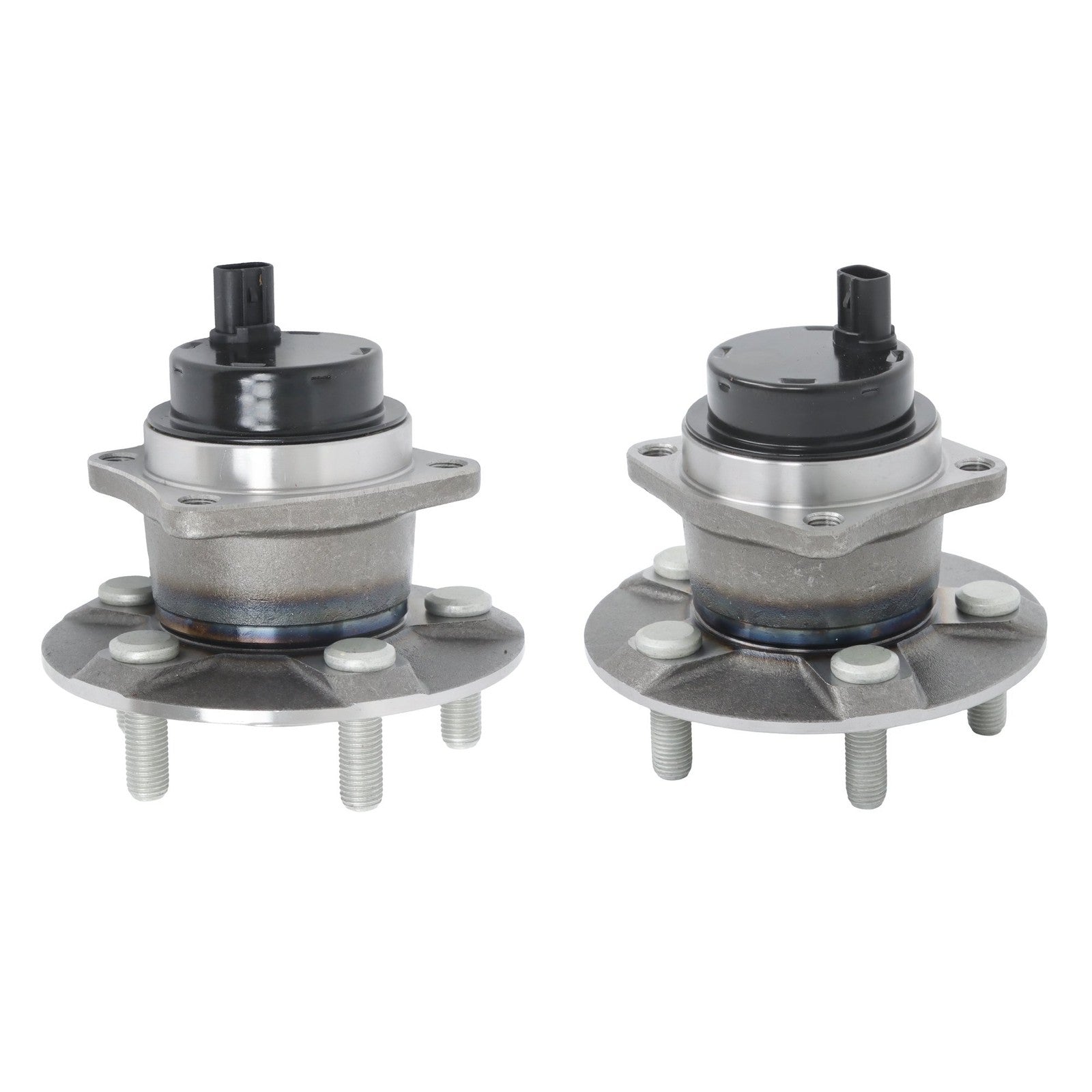

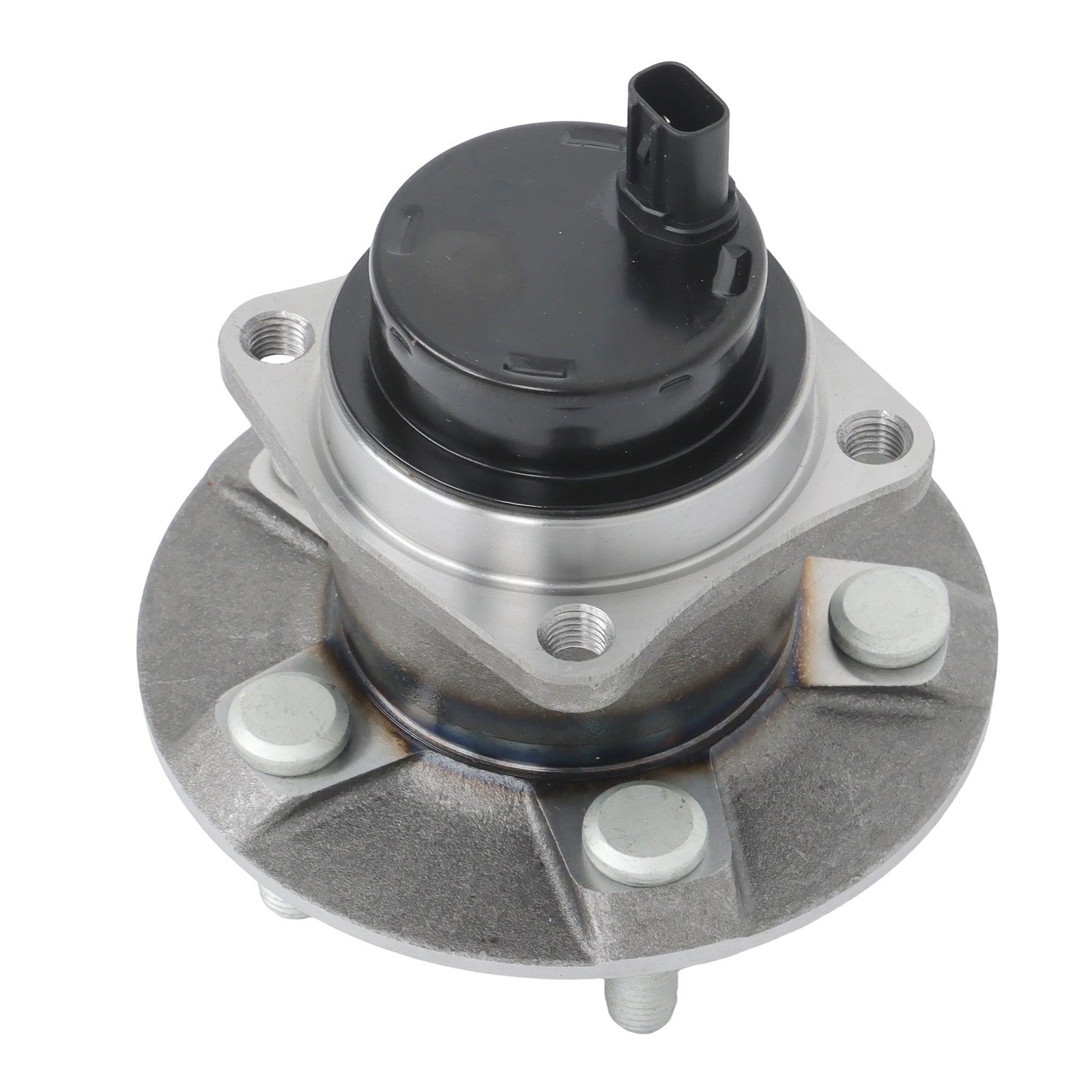

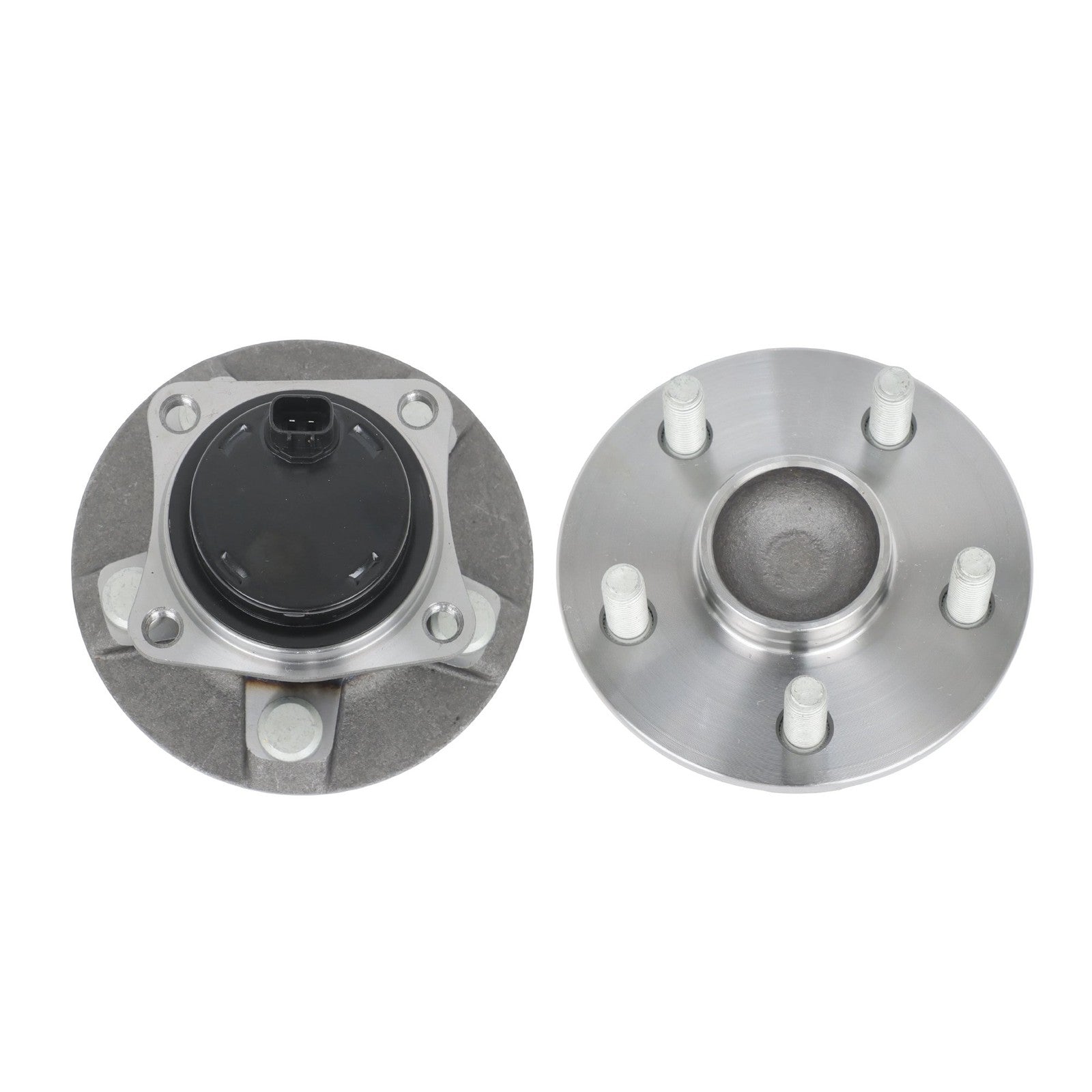

Pair of rear wheel hub and bearing assemblies with integrated ABS sensor for FWD Toyota Corolla, Matrix, Prius and Pontiac Vibe.
4-lug, 100 mm bolt circle.
Product details
- Product: Rear wheel hub and bearing pair
- Condition: New aftermarket replacement
- Manufacturer part number: 512217
- Country of origin: United States
Specifications
- Placement: Left, Rear, Right, (Rear Driver Or Passenger Side)
- Type: Wheel Hub & Bearing Assembly
- ABS Sensor: Has ABS with tegral Sensor
- Bolt Circle Diameter: 3.94 in. / 100 mm
- Brake Pilot Diameter: 2.17 in. / 55 mm
- Hub Pilot Diameter: 2.91 in. / 74 mm
- Flange Offset: 2.15 in. / 54.5 mm
- Wheel Stud Quantity: 5
- Flange Bolt Hole Quantity: 4
- Flange Diameter: 5.31 in. / 135 mm
Reference and interchange numbers
- 512217
- 4245001010
- 4245001020
- 4245002070
- 88970098
Reference numbers are provided for identification. Compare the original part number, connectors, mounting points and installation position before ordering.
Fitment and compatibility
| Years | Make | Model | Engine | Trim / submodel |
|---|---|---|---|---|
| 2003-2008 | Pontiac | Vibe | 1.8L L4 | Base, GT |
| 2003-2008 | Toyota | Corolla | 1.8L L4 | CE, LE, S, Sport, XRS |
| 2003-2008 | Toyota | Matrix | 1.8L L4 | Base, XR, XRS |
| 2004-2009 | Toyota | Prius | Electric | Base, Touring |
Application notes
- FWD models only.
Package contents
- Two rear hub assemblies
Professional installation is recommended.
