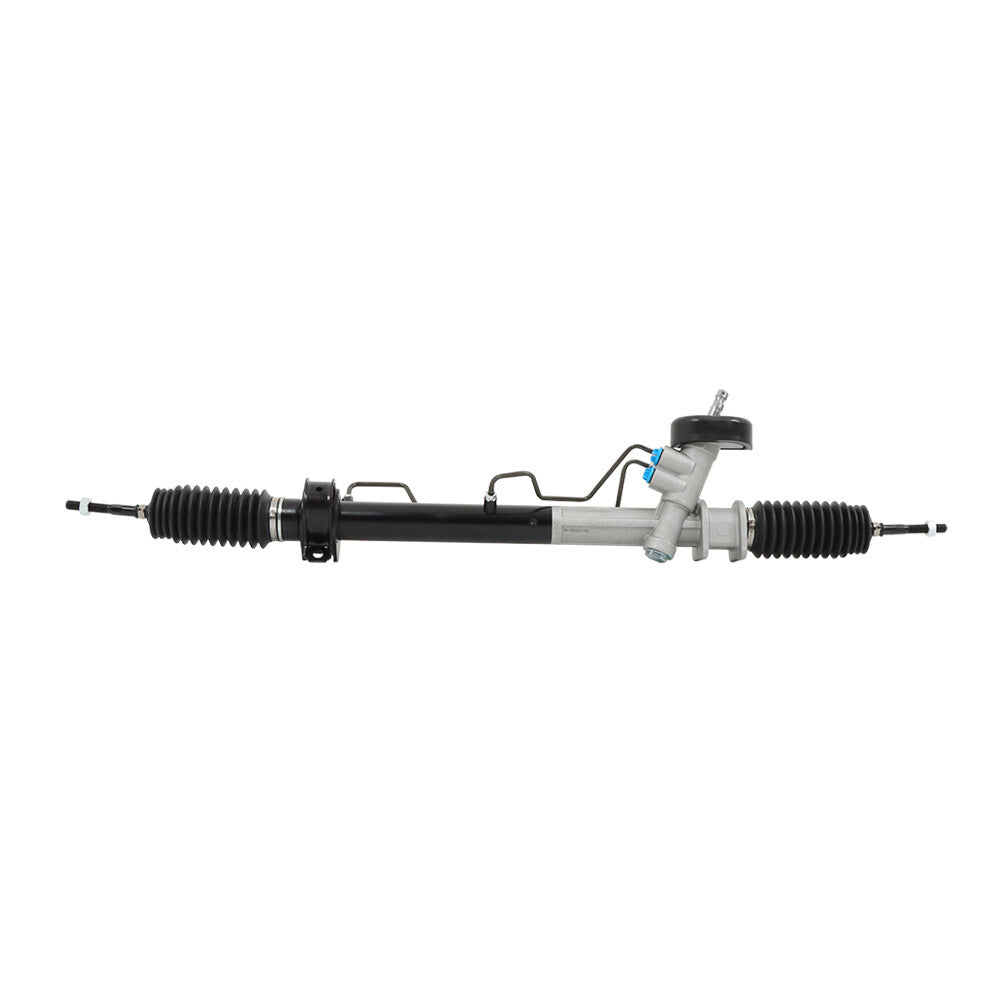

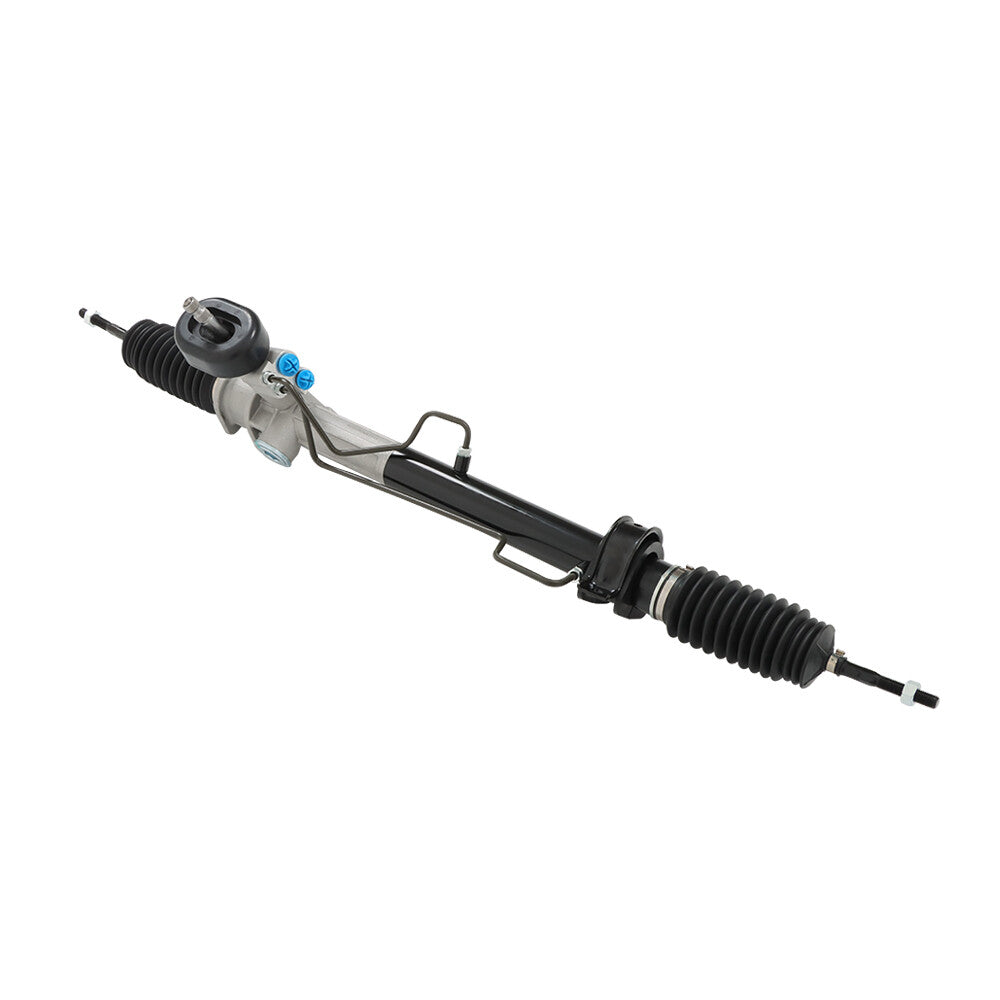

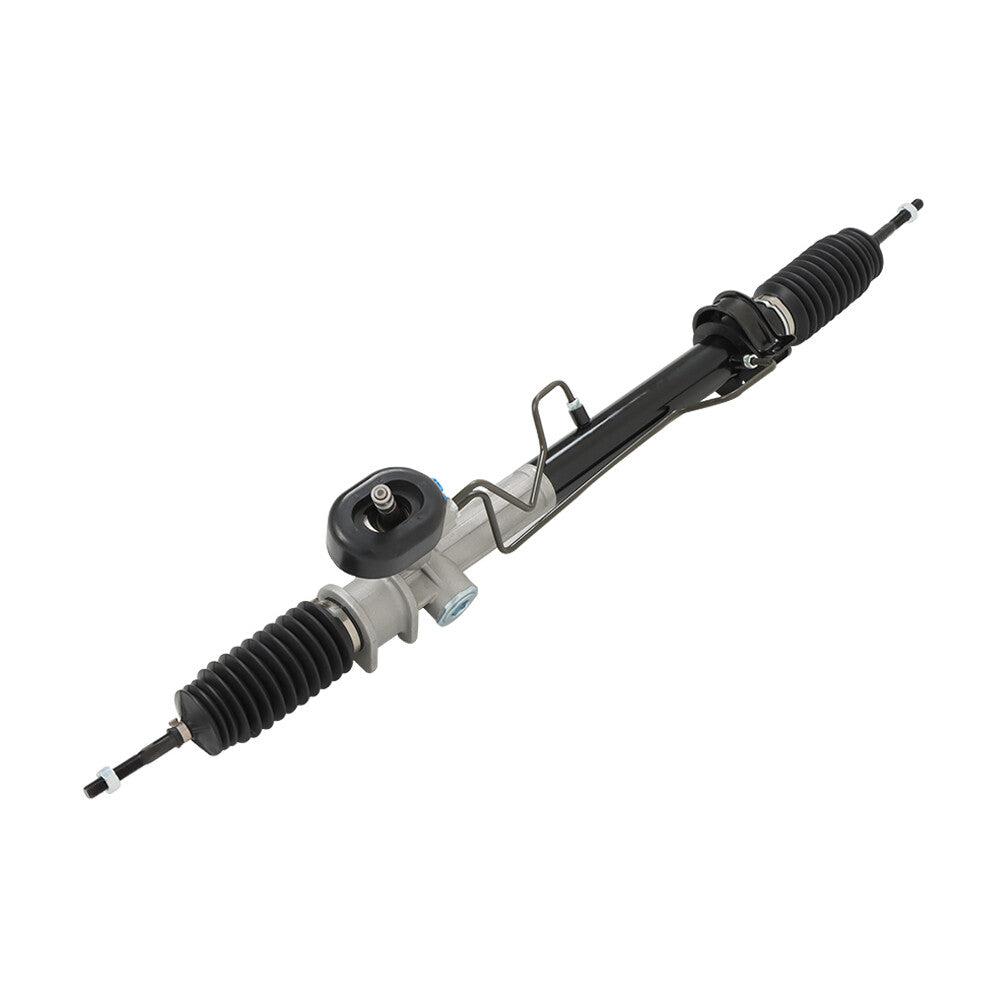

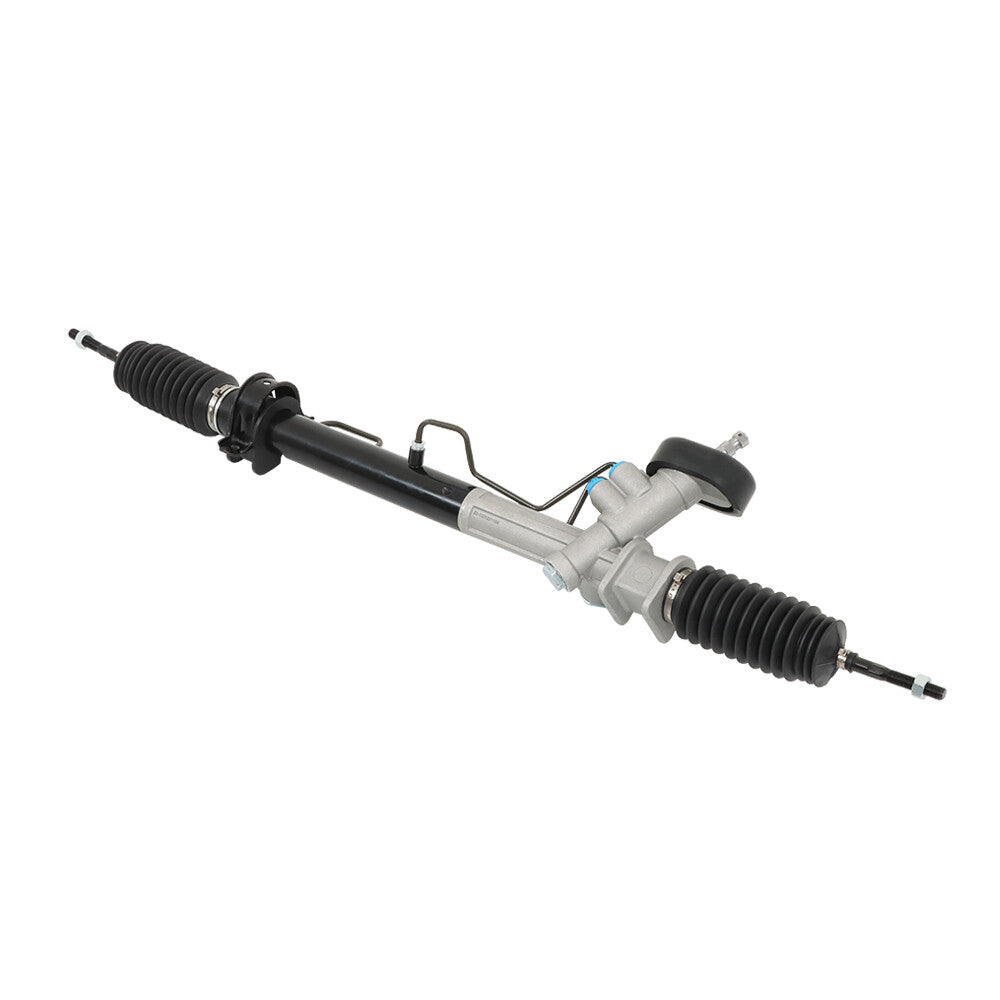

Power Steering Rack and Pinion for 2004-2011 Chevrolet Aveo Aveo5 Pontiac G3 26-2039
Power steering rack and pinion assembly for the 2004-2011 Chevrolet Aveo and Aveo5, Pontiac G3 and Wave, and Suzuki Swift+.
O-ring hose ports.
Product details
- Product: Power steering rack and pinion assembly
- Condition: New aftermarket replacement
- Manufacturer part number: 26-2039
- Country of origin: United States
Specifications
- Type: Rack & Pinion
- Casting Material: Steel/Aluminum
- Hose Port Type: O-Ring
- Input Shaft Length (MM): 60.33
- Pressure Port Thread Size: M18 x 1.5
- Rack Length (IN): 41.06
- Rack Length (MM): 1043
- Thread Length (IN): 1.82
- Thread Length (MM): 46.15
- Tie Rod Ends Included: Inner
Reference and interchange numbers
- 26-2039
- 96425093
- 96535298
- 96806653
- 96897655
Reference numbers are provided for identification. Compare the original part number, connectors, mounting points and installation position before ordering.
Fitment and compatibility
| Years | Make | Model | Engine | Trim / submodel |
|---|---|---|---|---|
| 2004-2011 | Chevrolet | Aveo | 1.6L L4 | Base, LS, LT, Special Value |
| 2006-2011 | Chevrolet | Aveo5 | 1.6L L4 | LS, LT, Special Value |
| 2007-2010 | Pontiac | G3 | 1.6L L4 | Base |
| 2009 | Pontiac | G3 Wave | 1.6L L4 | Base |
| 2005-2008 | Pontiac | Wave | 1.6L L4 | Base, SE |
| 2005-2007 | Pontiac | Wave5 | 1.6L L4 | Base |
| 2004-2010 | Suzuki | Swift+ | 1.6L L4 | Base, S |
Package contents
- One rack and pinion assembly
Professional installation is recommended.
