Instrument Cluster Needle Backlight Board Set for 1994-1996 Lexus SC300 SC400

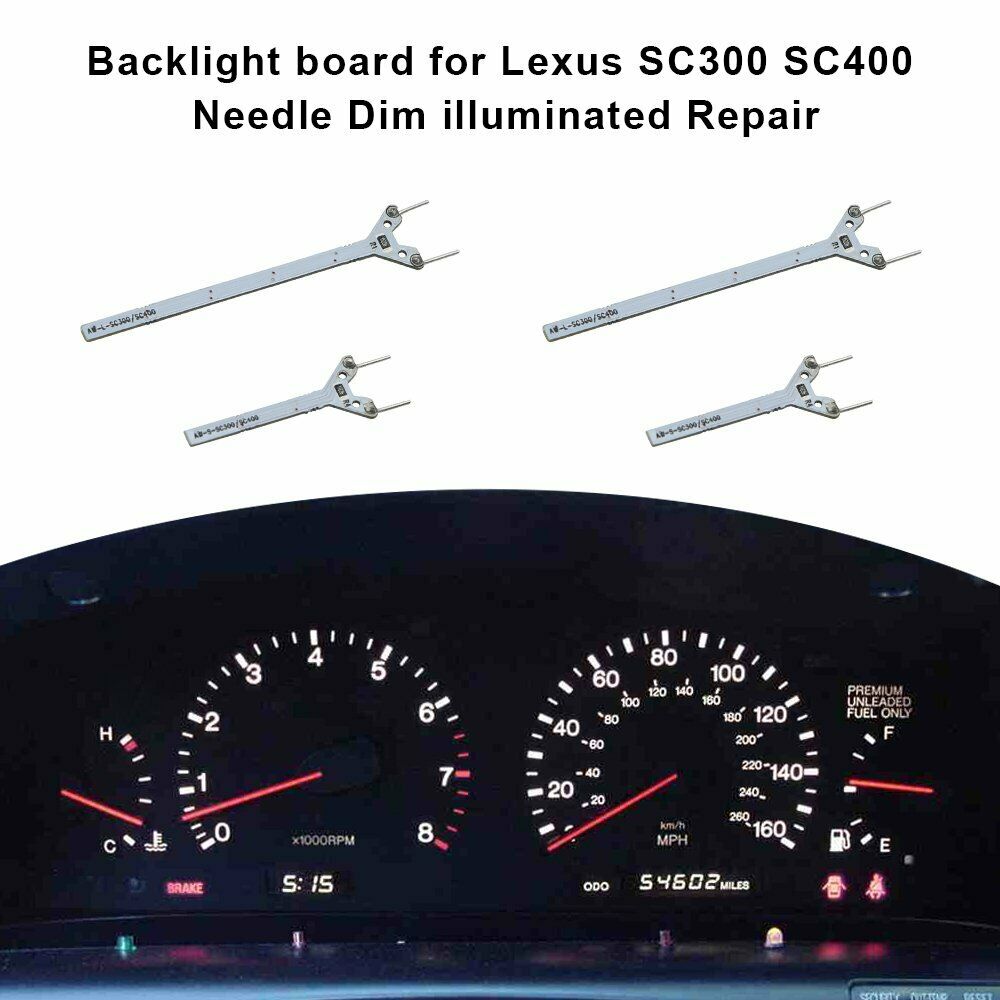

Red LED backlight board set designed to restore dim or failed gauge-pointer illumination in compatible 1994-1996 Lexus SC300 and SC400 instrument clusters.

Product Details

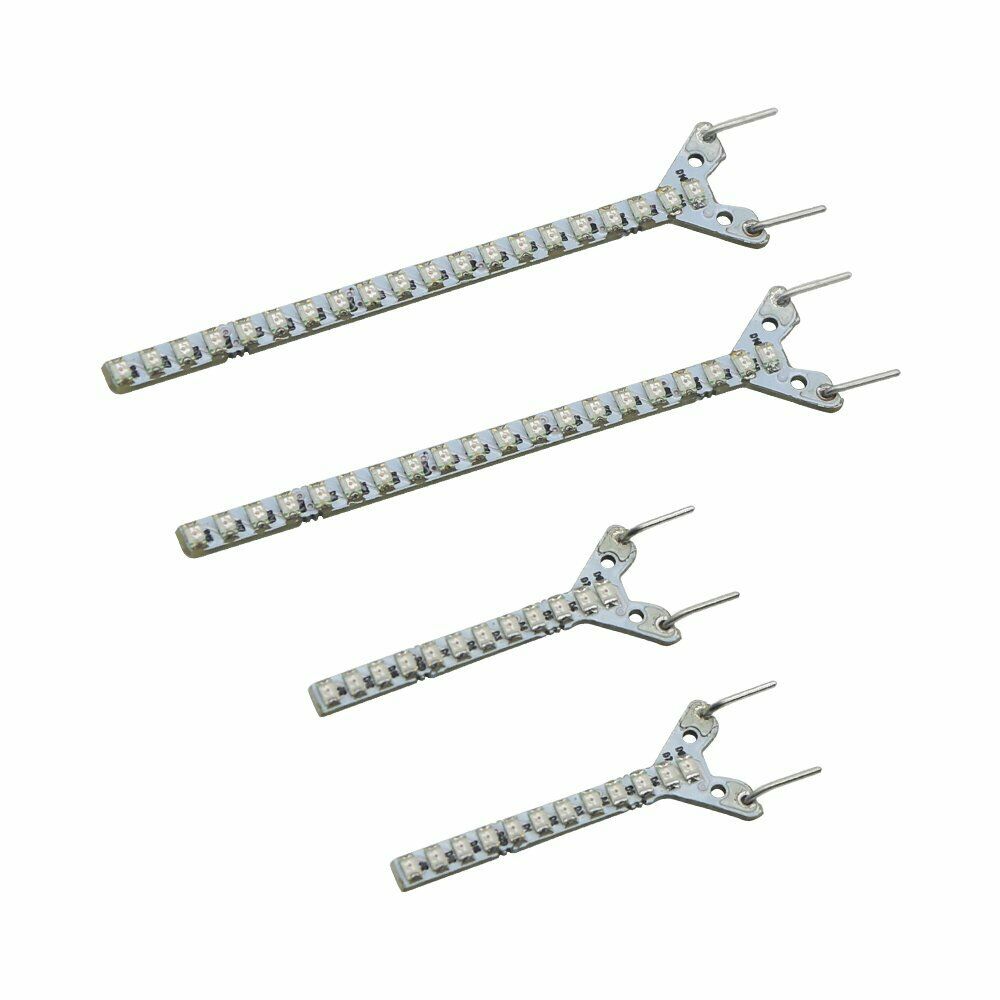

• Four-board set for the speedometer, tachometer, fuel and temperature pointers
• Two long and two short boards
• Designed to seat in the original pointer positioning channels
• Red illumination for the red-tinted original 1994-1996 SC needles
• Optional installation tool is included only with the corresponding variant

Fitment and Compatibility

For compatible 1994-1996 Lexus SC300 and SC400 instrument clusters. This board set is not designed as a direct-fit part for 1993-1997 GS300 clusters because the electrical polarity is reversed. Compare the original cluster number, board polarity and needle construction before ordering.

Part Number Information

Compatible cluster references include: 83010-24475, 83010-24471, 83010-24470, 83010-24480, 257410-2030 and 257410-0027.

These are instrument-cluster application references; the aftermarket LED boards do not carry separate Lexus OE part numbers.

Package Contents

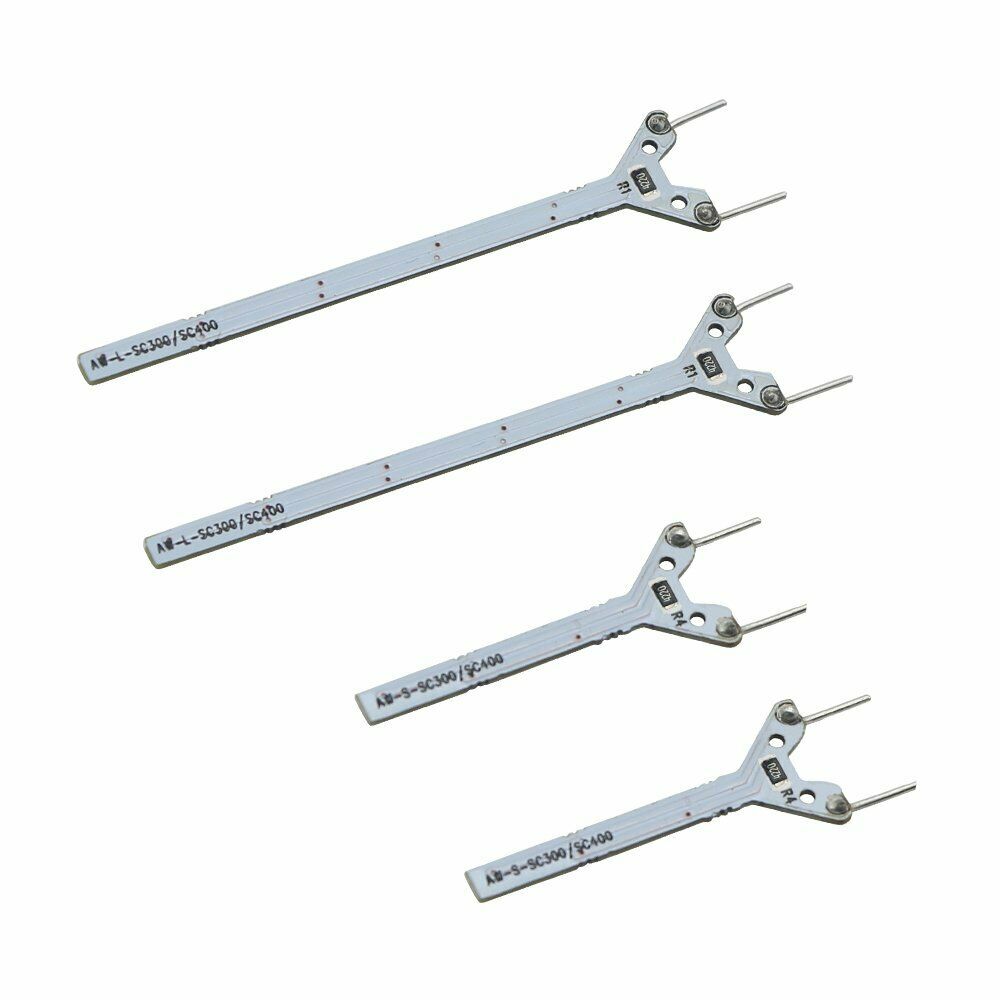

• 2 long LED backlight boards for speedometer and tachometer
• 2 short LED backlight boards for fuel and temperature gauges
• Installation tool only when the tool variant is selected

Installation Notes

Instrument-cluster disassembly, soldering and correct polarity are required. Record pointer rest positions before removal, avoid stressing the stepper motors and test all four boards before final reassembly. Professional cluster repair is recommended.
