NEXAS HD Universal Heavy Duty Diesel Truck Diagnostic Scanner Tool Code Reader

  • $ 199.95

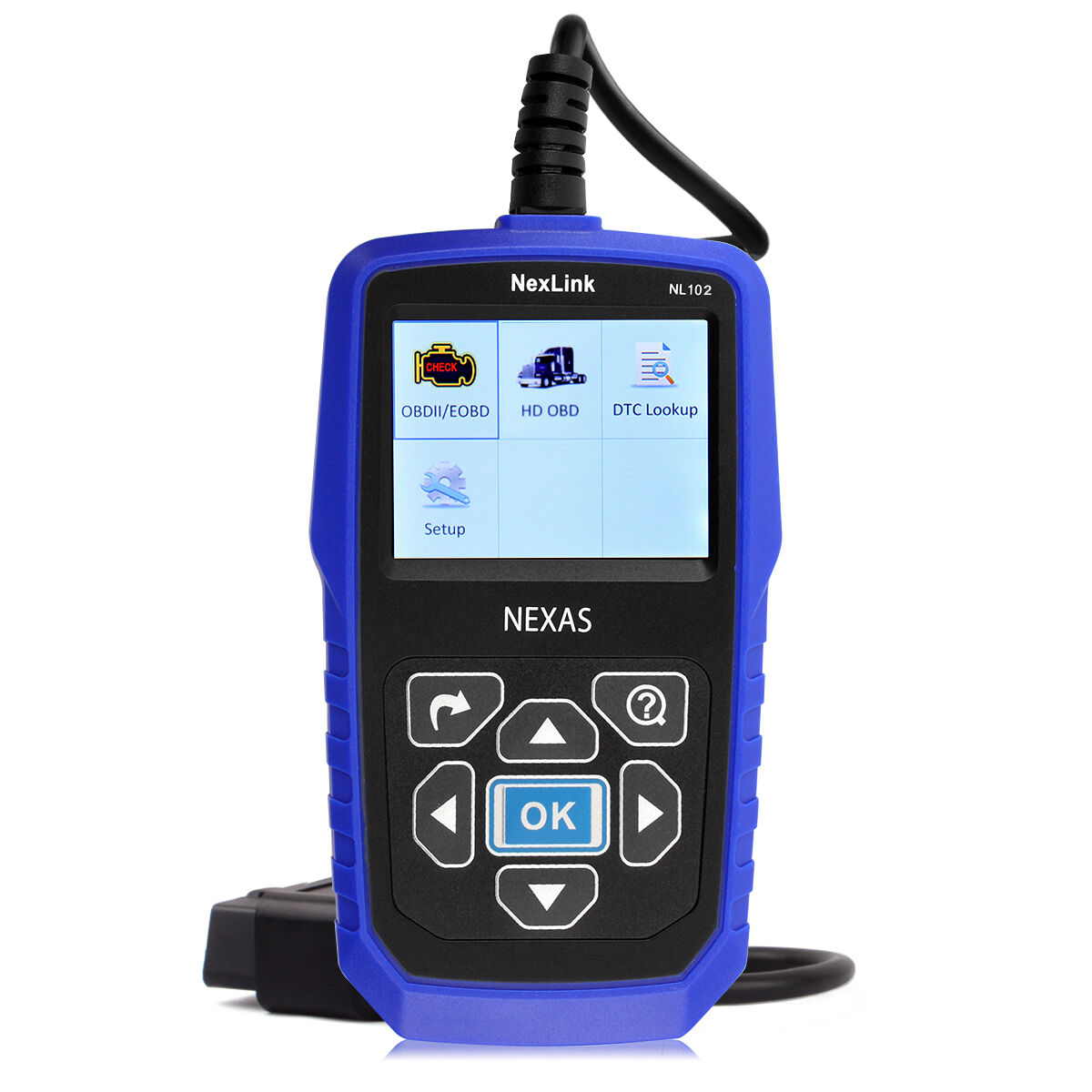

Nexas Nexlink NL102
Heavy Duty Scanner

The NL102 is a professional fault diagnosis tool designed specifically for Heavy Duty vehicles. The NL102 is an easy to use, stand alone unit that will have you scanning your vehicle within minutes. Simply plug it in and the device will boot up with step-by-step instructions. This scanner has a large, easy to read 3 inch color display accompanied by a user friendly interface that requires no additional software. As an added bonus, the scanner is equipped with full OBDII capabilities that allows you to scan all engine readings and related trouble codes  (check engine light) on ANY vehicle make/model 1996 and newer.

NEXLINK NL102 Demonstration

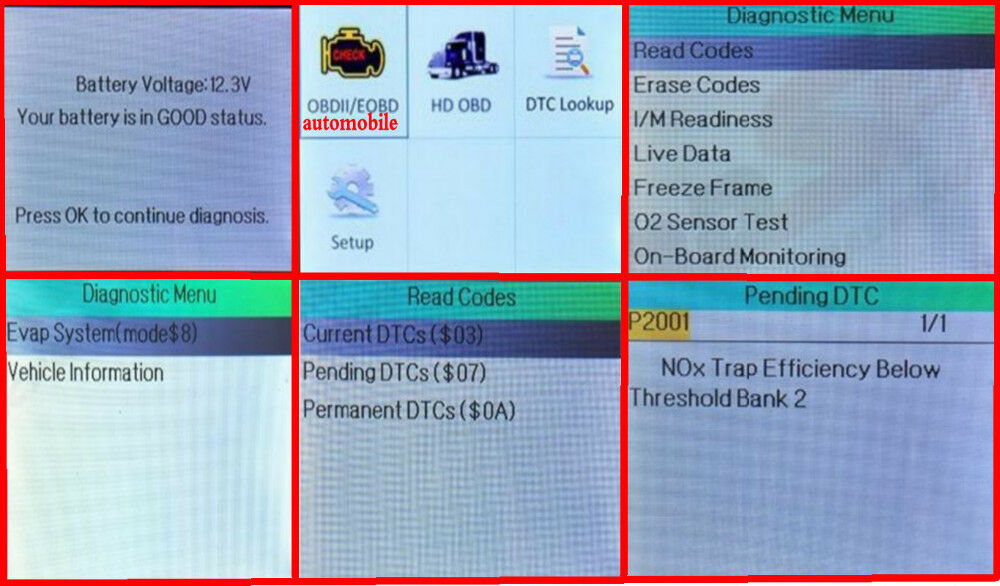

1. Car Scan Module

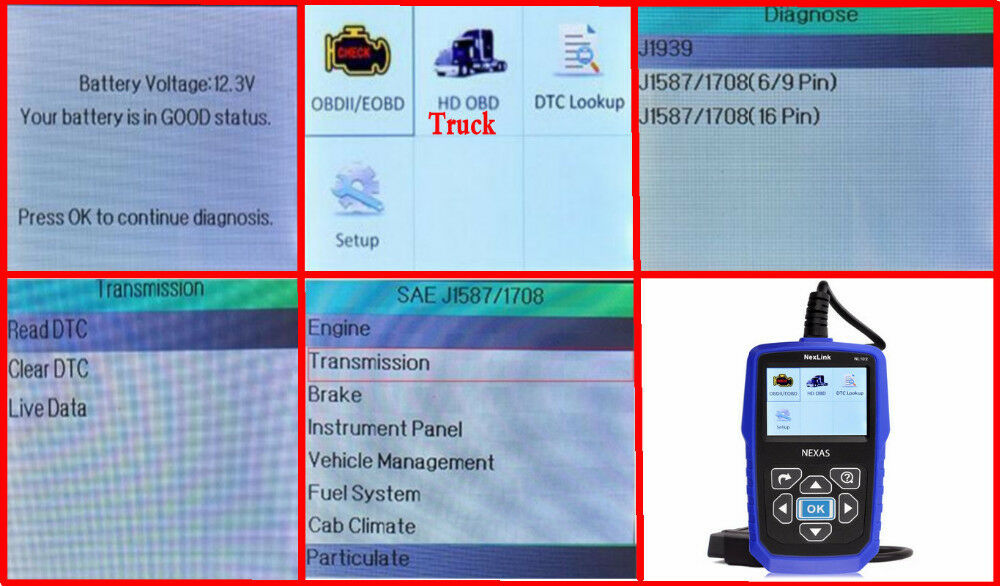

2. Truck Scan Module

3. Special Features: Troubleshooting tips guide

  • Vehicles Coverage: Cummings, Detroit, Caterpillar, Freightliner, International, Kenworth, John Deere, Peterbilt, Sterling, Mack, Paccar, Westernstar, Mecedes Benz, Volvo, Scania, Man, Renault, ERF, Foden, Seddon-Atkinson, Iveco, DAF, SISU, STEYR, ISUZU; Cars /min vans / light duty from 1996

  • Supported ECUs: engine, transmission, instrument panel, drivetrain, braking system, suspension, ABS, ESP, EPS, fuel system and etc

  • Support all heavy duty trucks in compliance with standard protocols ( J1587, J1939 and J1708)

  • Work on all cars, mini vans and light duty vehicles (OBDII & CAN) from 1996 on and latest – European, American and Asian

  • Support all OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000

  • Uniquely featured with battery power monitor function

  • Troubleshooting tips guide technicians to the root of problems faster, saving diagnosis and repair time

  • Read and erase generic codes (P0, P2, P3 and U0), manufacturer specific  codes(P1, P3 and U1) and pending codes

  • Easily determine the cause of the Check Engine Light(MIL) and turn off Check Engine Light (MIL), clear troubles codes and reset monitors

  • Display DTC definition, freeze frame data, monitor and I/M readiness status (emissions) and vehicle information (VIN, CIN and CVN)

  • Read live O2 sensor test data

  • Read  PCM live data stream with graphic data Display

  • Enhanced OBDII Mode 6

  • Multilingual menu and DTC definitions – English, Spanish and French, etc.

  • Software upgrade via internet

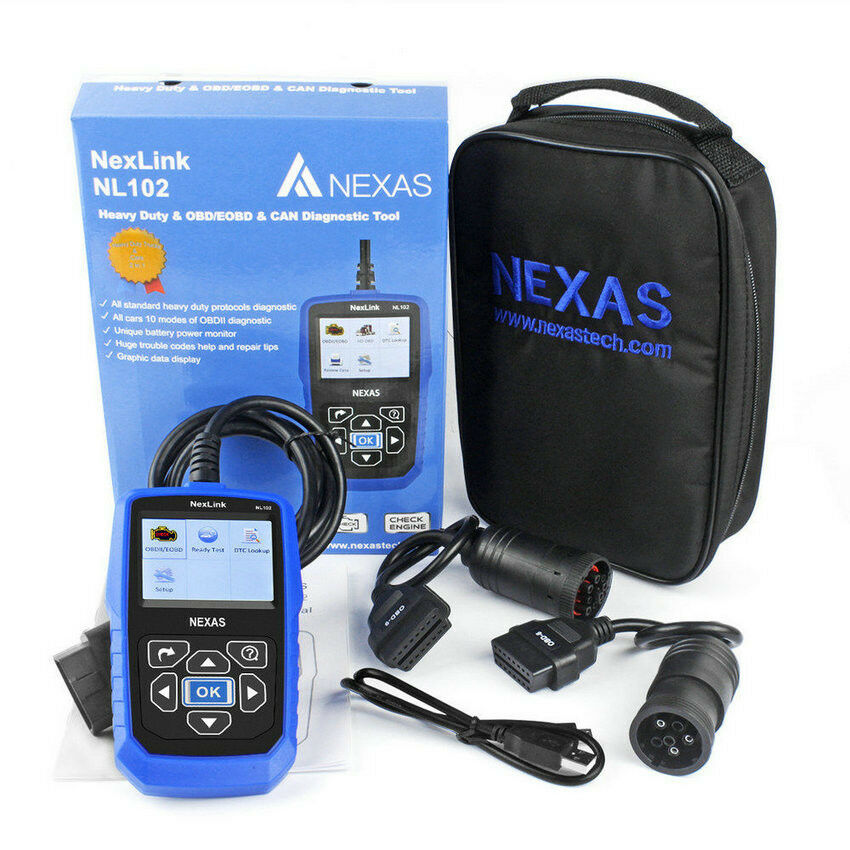

Package Contents:

  • NL102 Main Unit
  • User Manual
  • USB Cable
  • 9PIN Connector
  • 6PIN Connector
  • Protective Nylon Case
