LS Swap Retrofit Low Profile Oil Pan Kit for GM LS1 LS2 LS3 Engines 302-1 KIT09

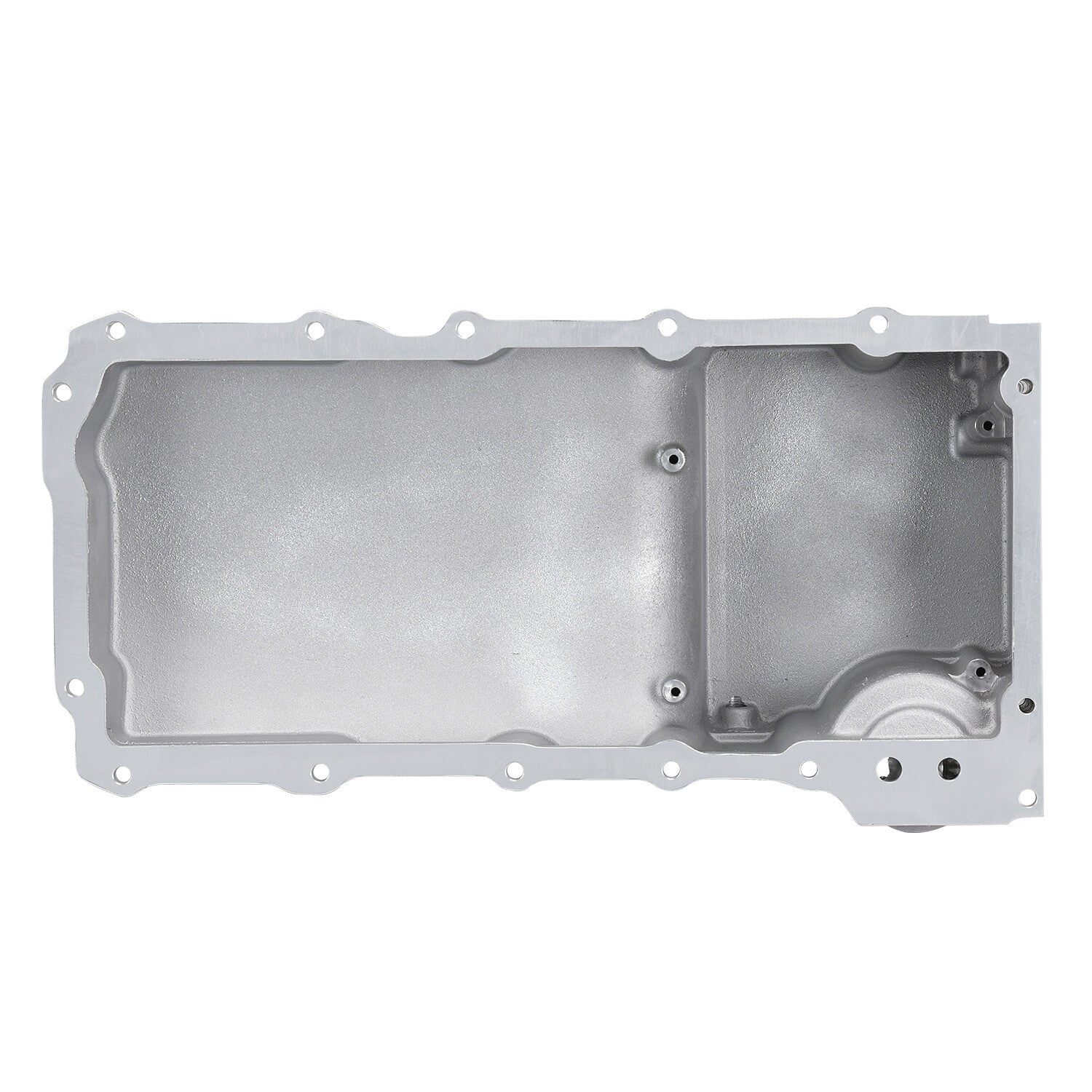

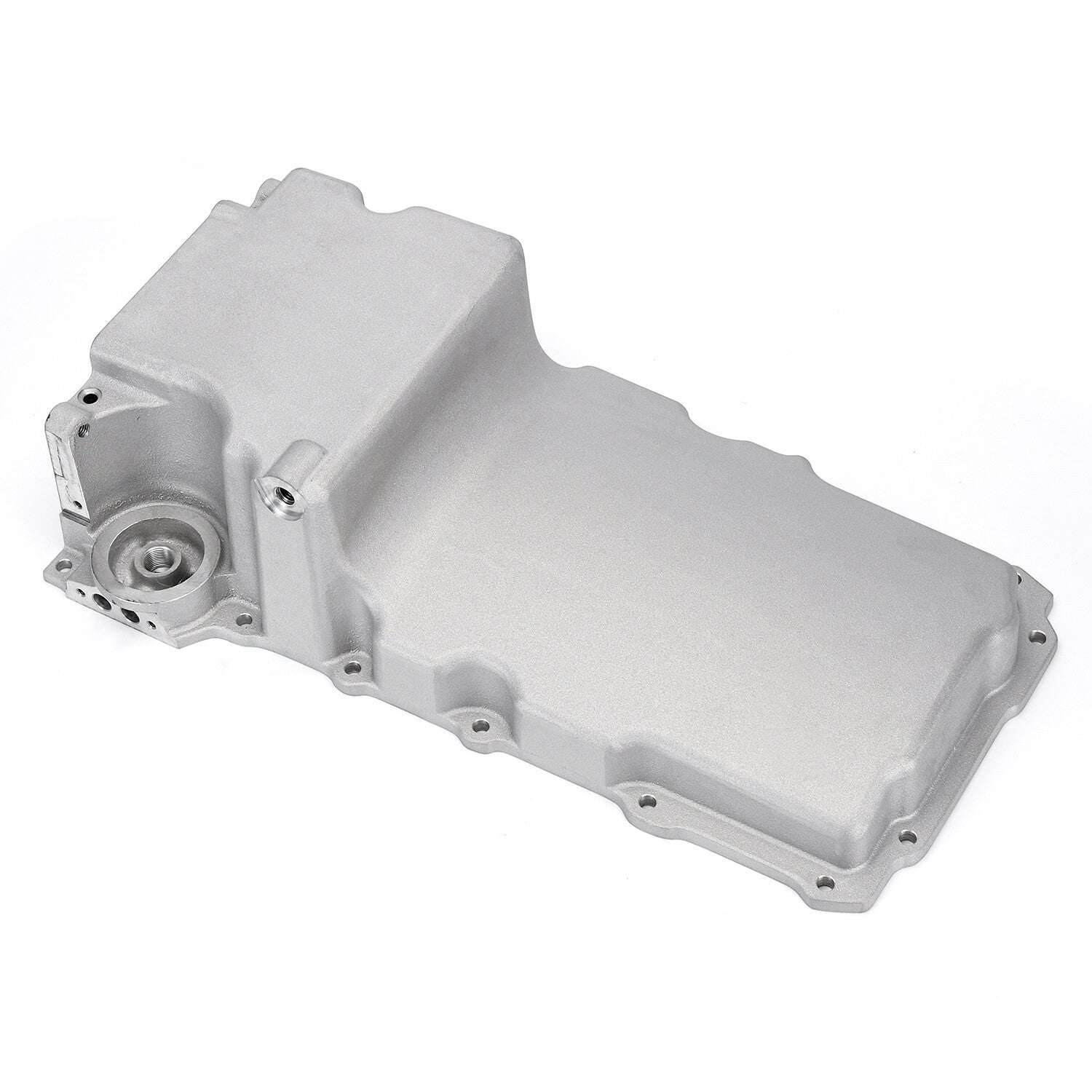

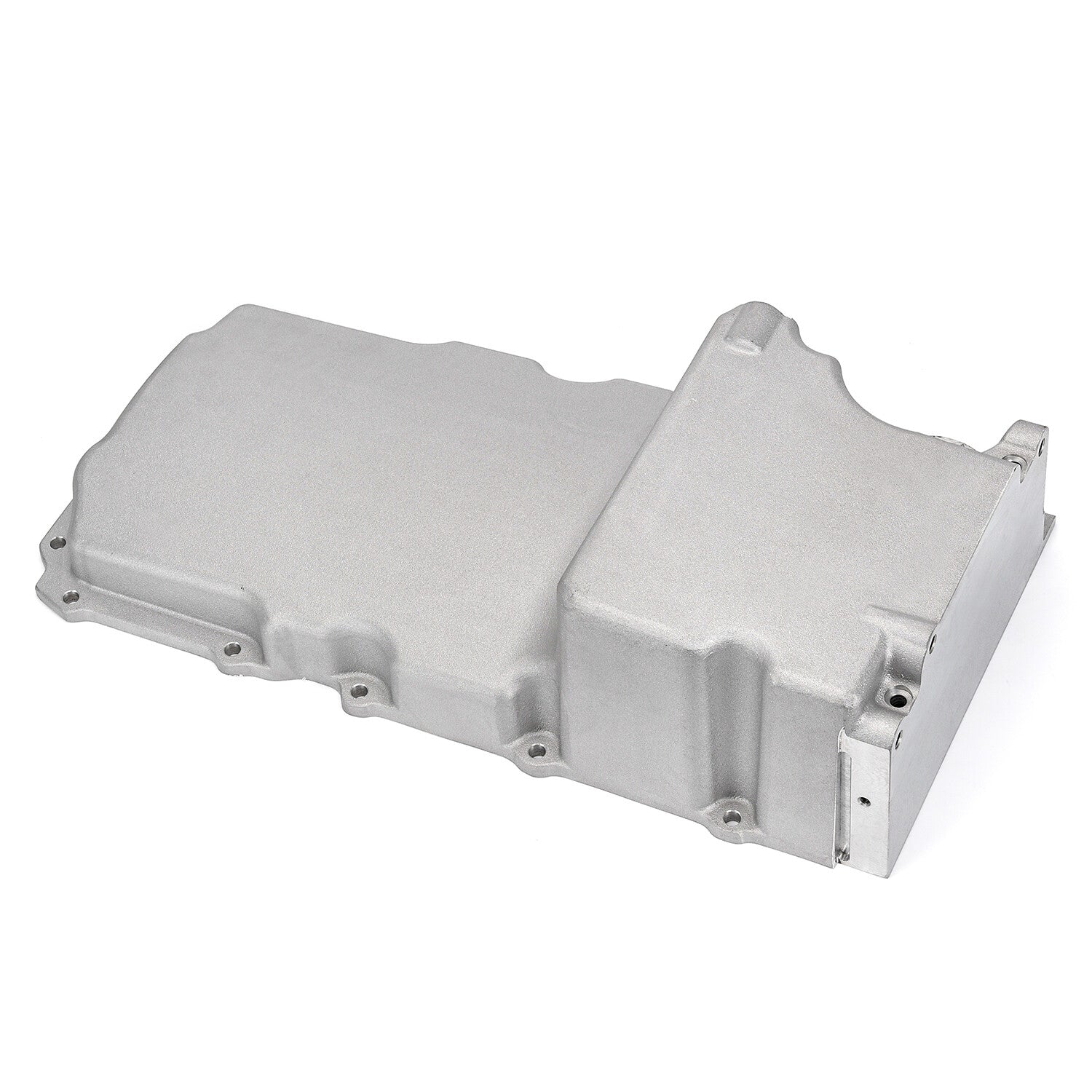

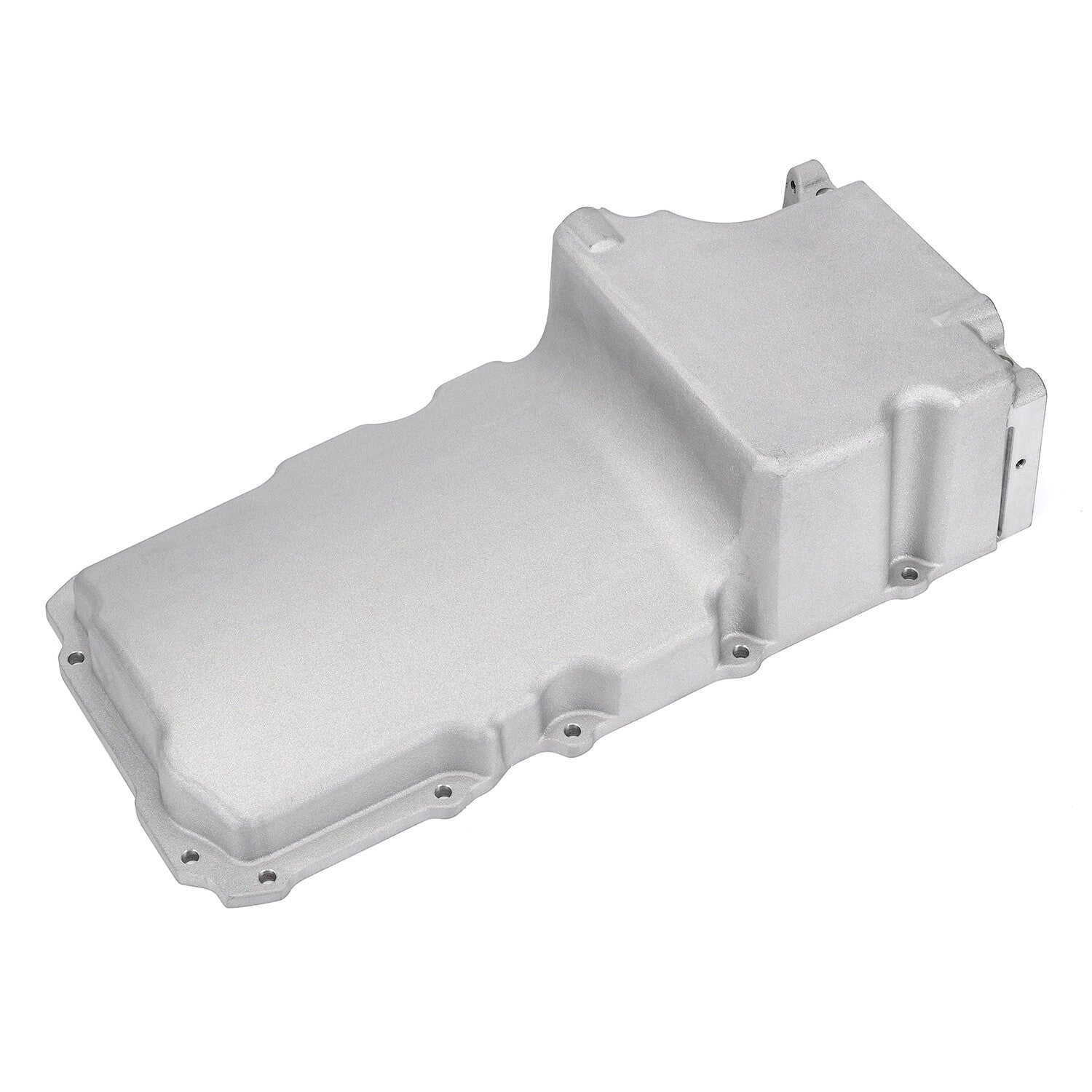

Cast aluminum low-profile retrofit oil pan kit for LS engine swaps into older GM chassis, giving maximum chassis and ground clearance.

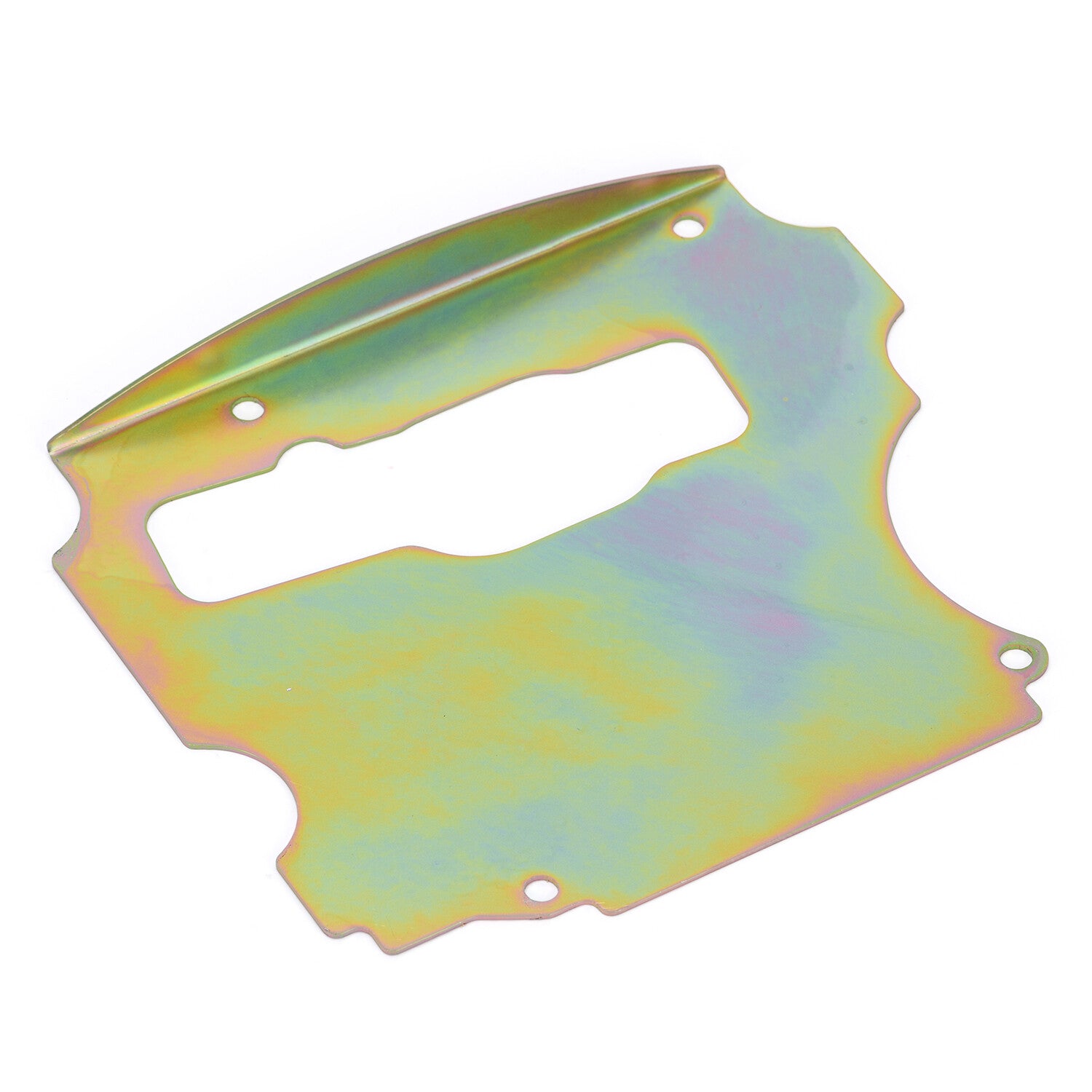

5.5-quart sump (6 quarts with stock filter), clears up to a 4.25-inch stroke; includes gasket, sump baffle and pickup components as pictured.
Product details
- Product: LS swap retrofit low-profile oil pan kit
- Condition: New aftermarket replacement
- Manufacturer part number: KIT09
- Country of origin: China
Specifications
- Type: Oil Pan
- Material: Aluminum Alloy
- Color: Silver
- Finish: Matte
Fitment and compatibility
Engine-swap part: for installing GM LS-family V8 engines (4.8L, 5.3L, 5.7L, 6.0L, 6.2L) into the vehicles listed below. Engine position may need to be adjusted up/down or fore/aft.
| Years | Make | Model | Notes |
|---|---|---|---|
| 1973-1974 | Buick | Apollo | For LS Conversions |
| 1964-1972 | Buick | Skylark | For LS Conversions |
| 1967-1969 | Chevrolet | Camaro | For LS Conversions |
| 1967-1972 | Chevrolet | Chevelle | For LS Conversions |
| 1964-1972 | Chevrolet | El Camino | For LS Conversions |
| 1969-1974 | Chevrolet | Nova | For LS Conversions |
| 1967-1969 | Pontiac | Firebird | For LS Conversions |
Application notes

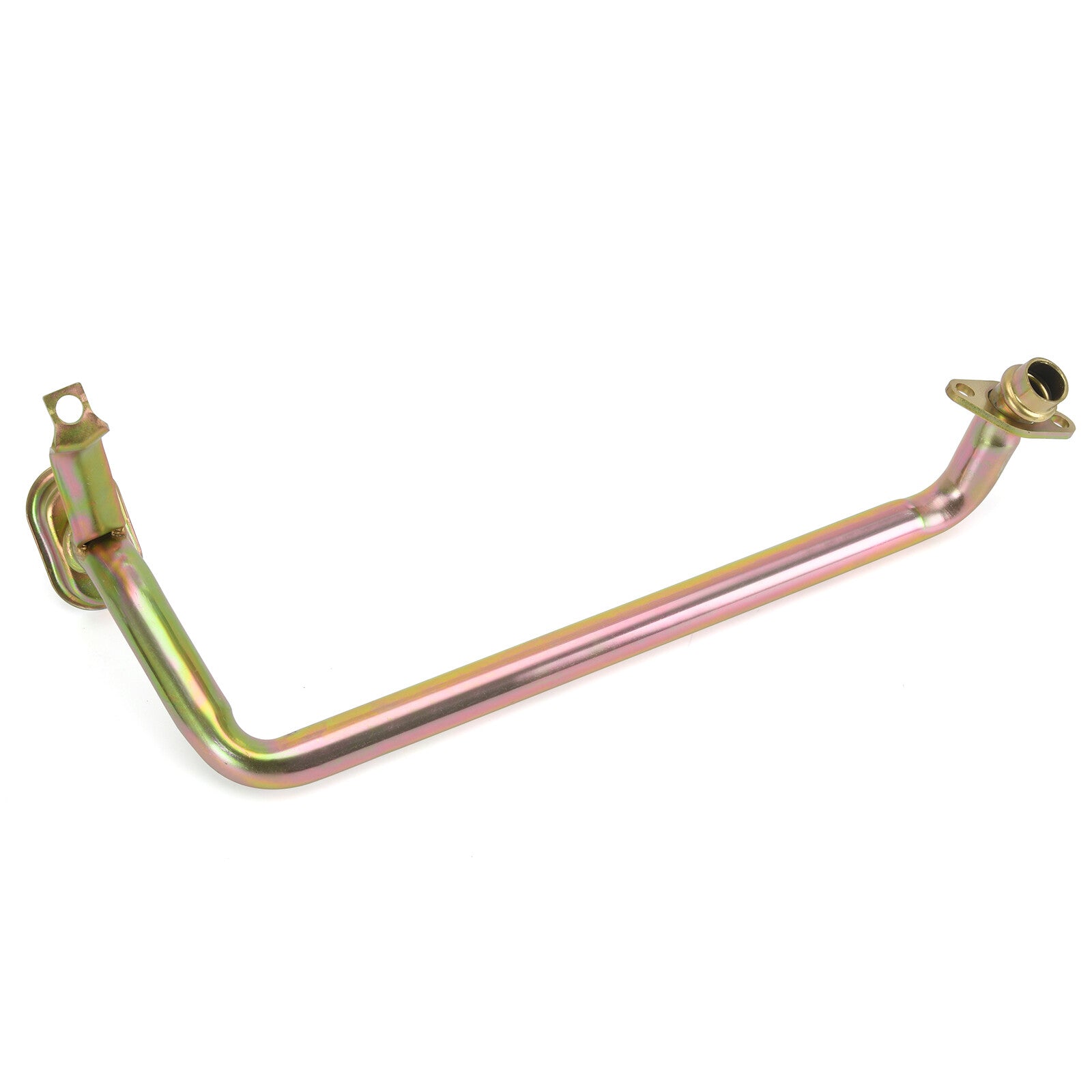

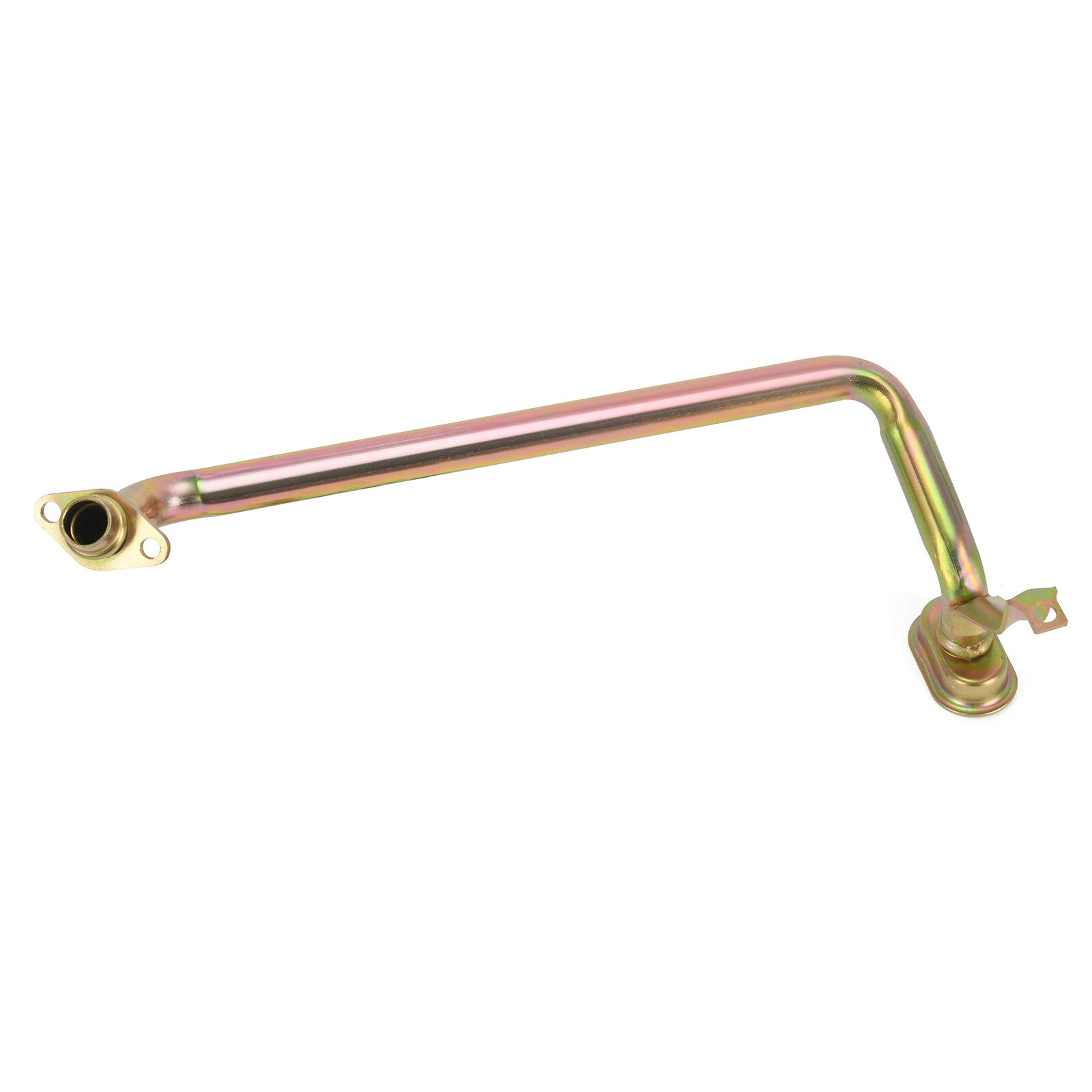

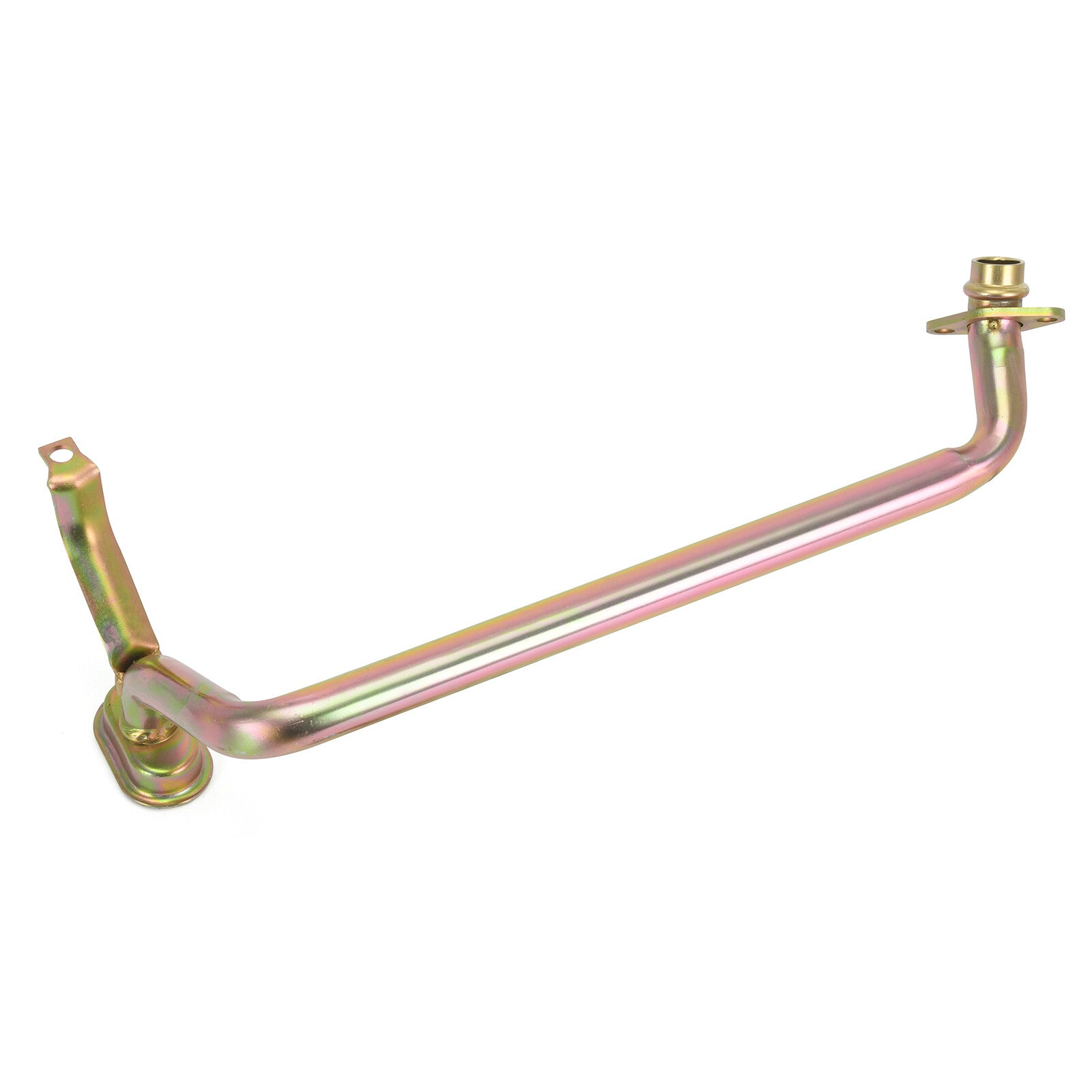

- Slight modification of the oil deflector may be required for the pickup screen to sit flush.
Package contents

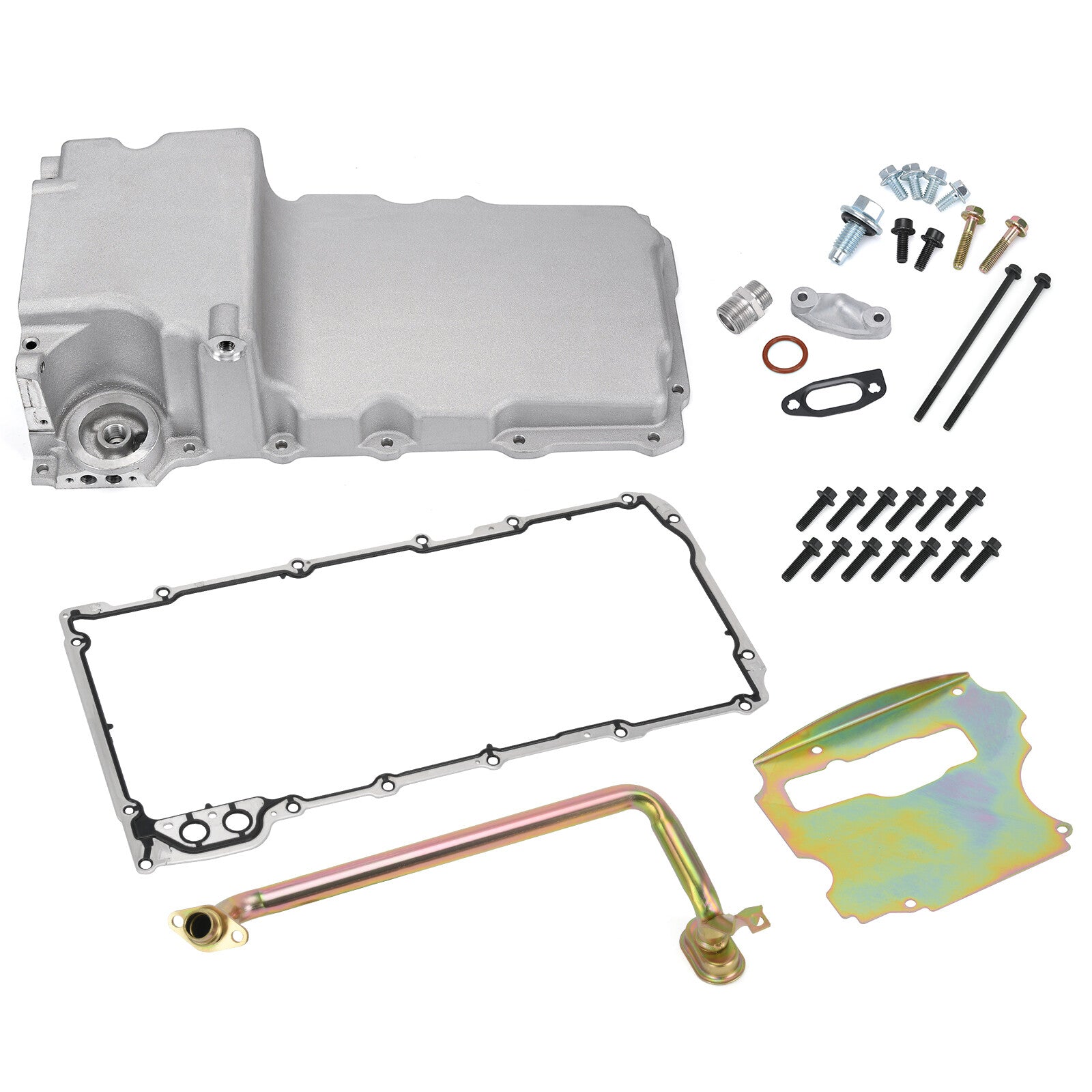

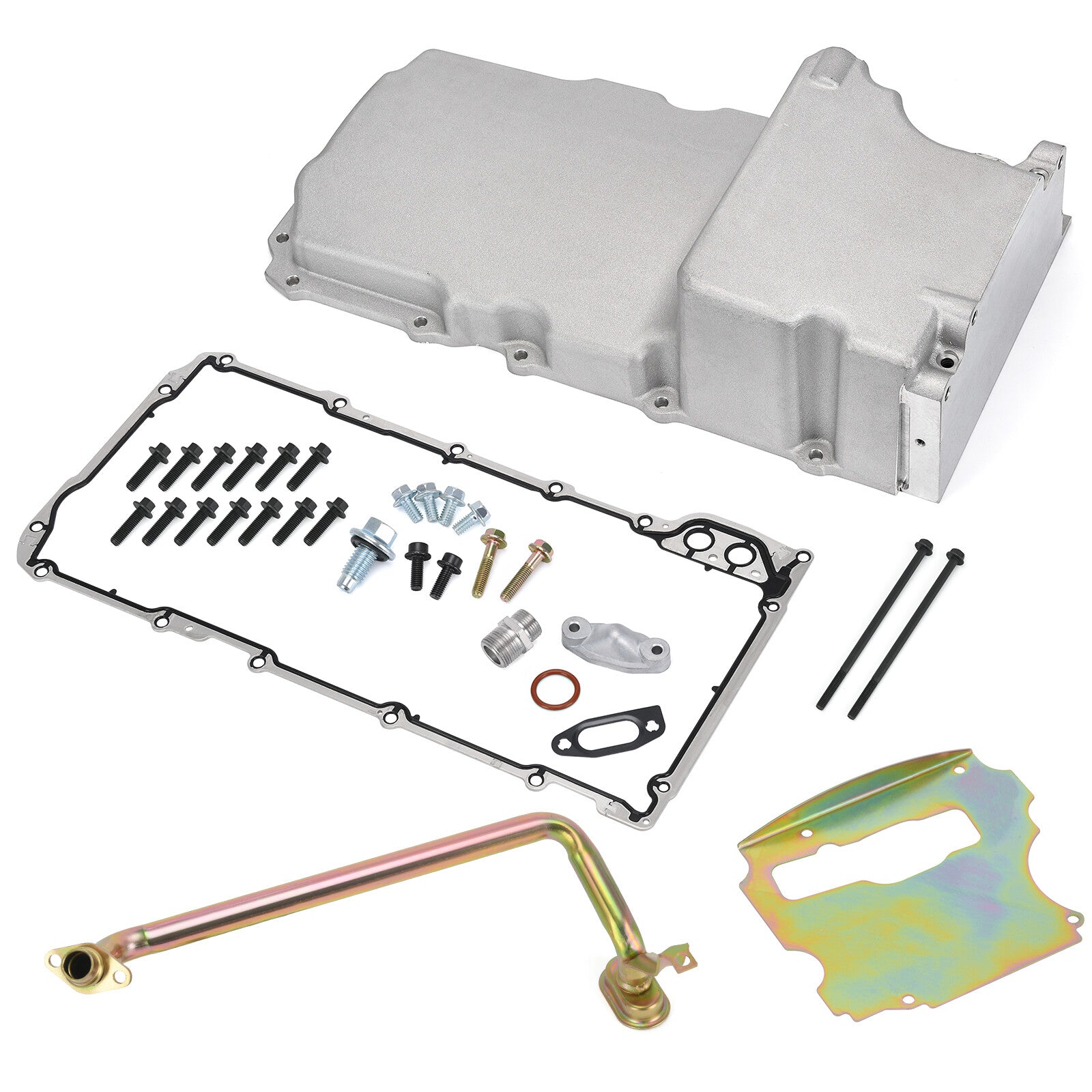

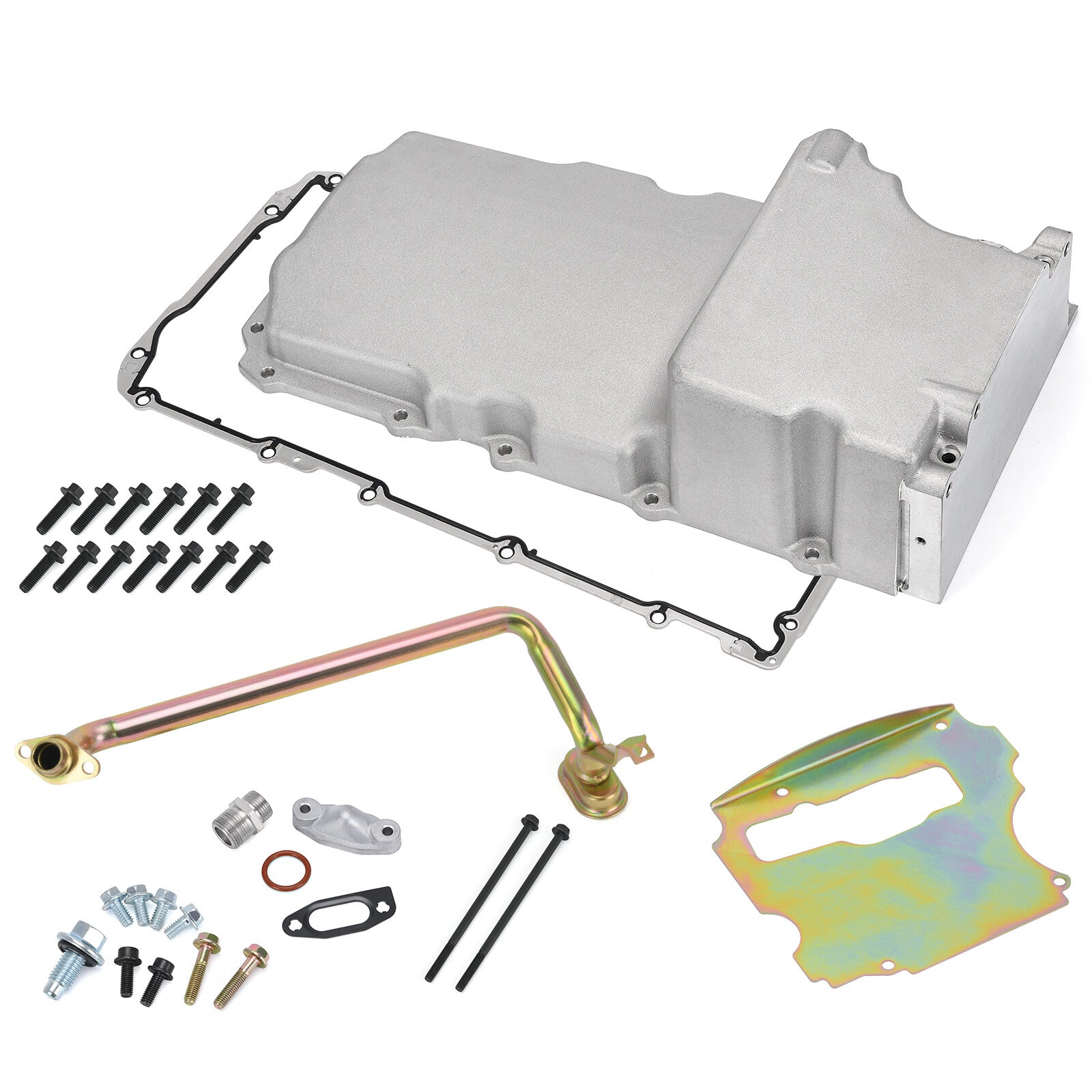

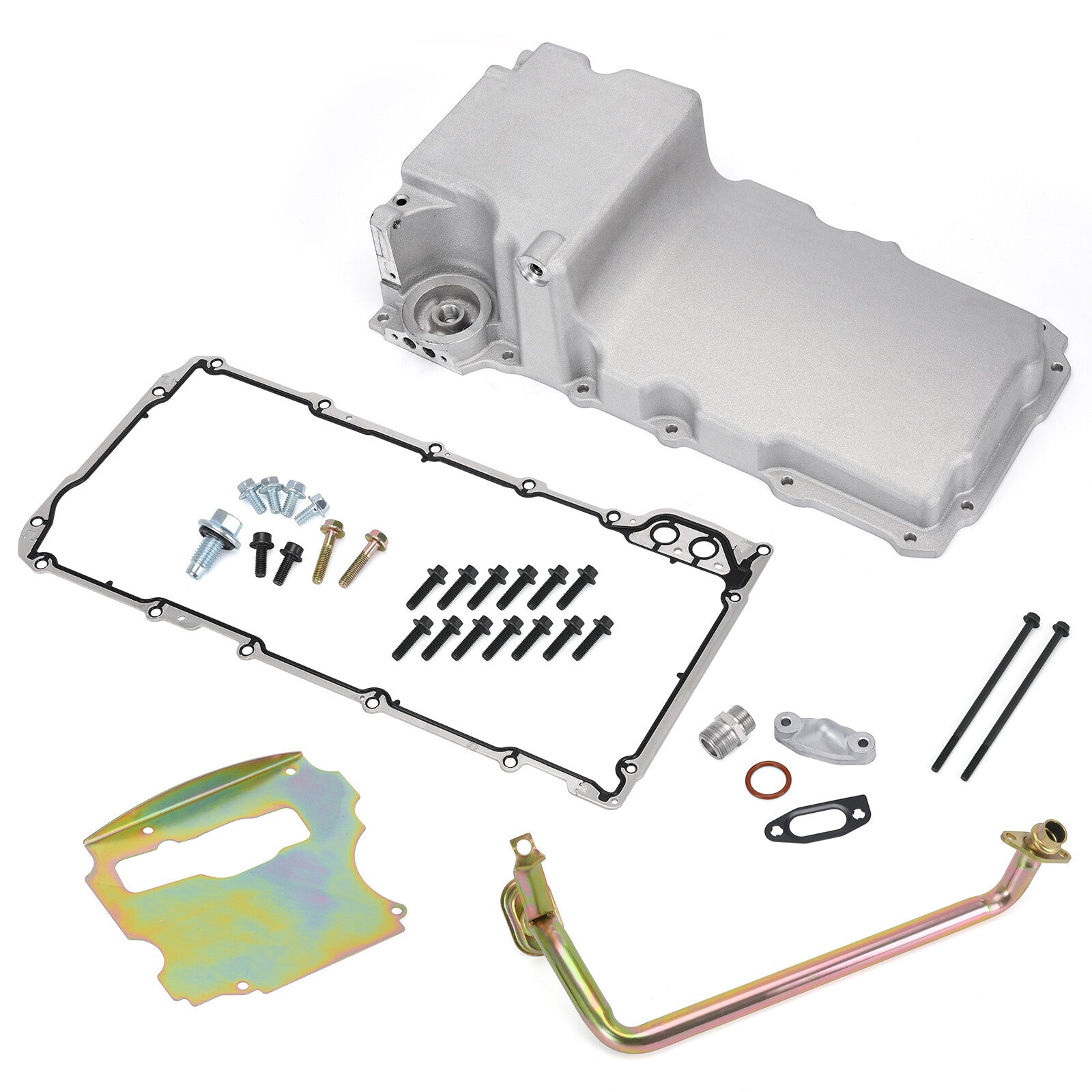

- Oil pan, pickup, baffle and gaskets as pictured
Professional installation is recommended.
