LG 5.8" LCD Screen LA058WQ1-SD01 for Mercedes-Benz W204 W212 X204 NTG4

Product details

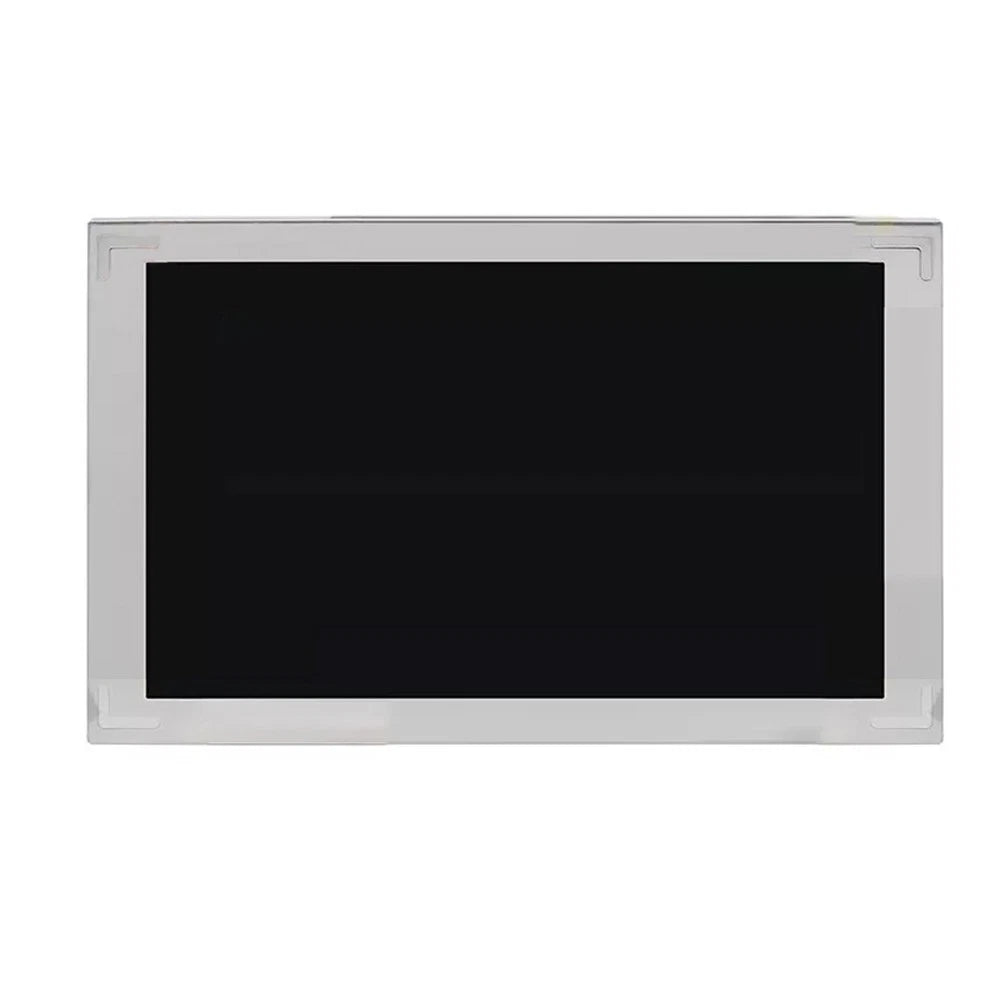

Brand-new 5.8-inch LG Display internal TFT LCD replacement panel for select Mercedes-Benz Audio 20 and COMAND dashboard monitors. This component is intended to repair an existing display with a damaged or defective LCD while retaining the original monitor housing and electronics.

LCD part number

• LA058WQ1(SD)(01)

• LA058WQ1-SD01

The number printed on the original LCD must match before ordering.

Display specifications

• Manufacturer: LG Display

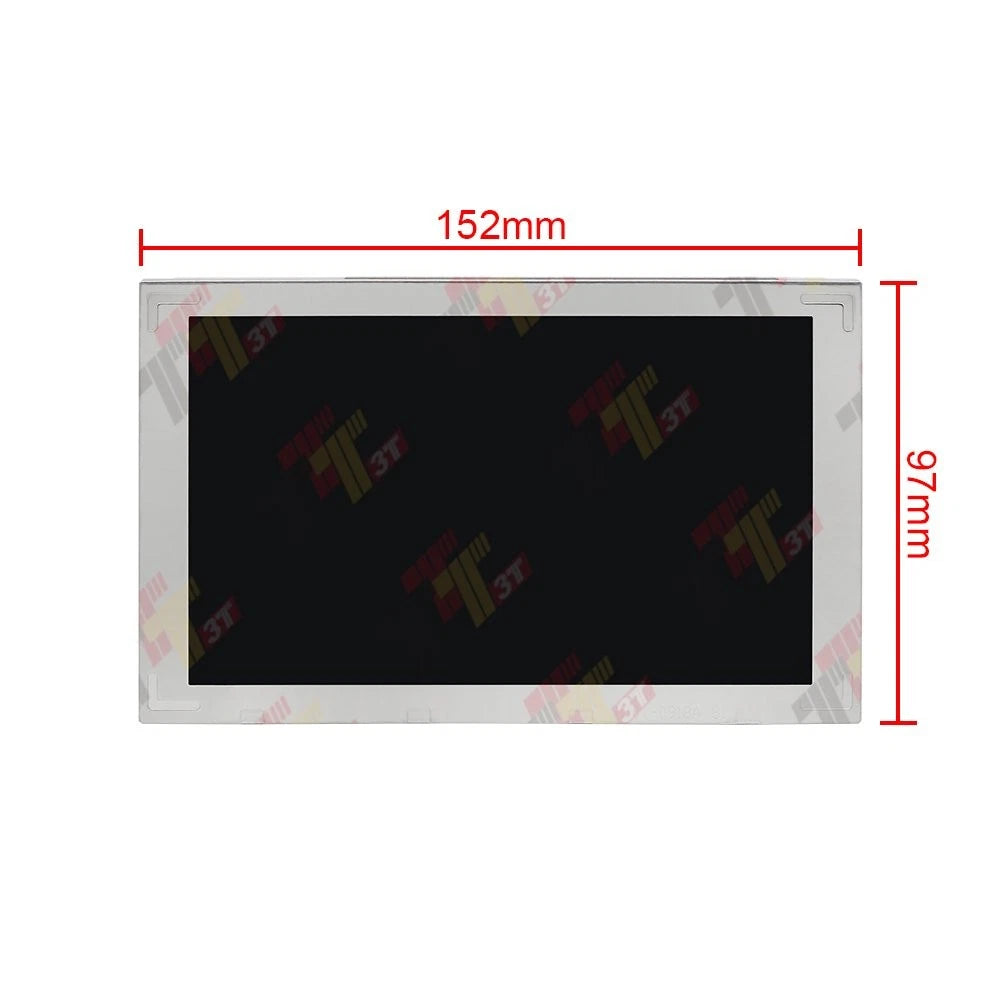

• Screen size: 5.8 inches

• Resolution: 400 × 240 WQVGA

• Aspect ratio: 15:9

• Backlight: WLED

• Surface: Matte/anti-glare

• Interface: 40-pin FPC

• Typical operating voltage: 3.3V

• Touchscreen: No

Compatibility

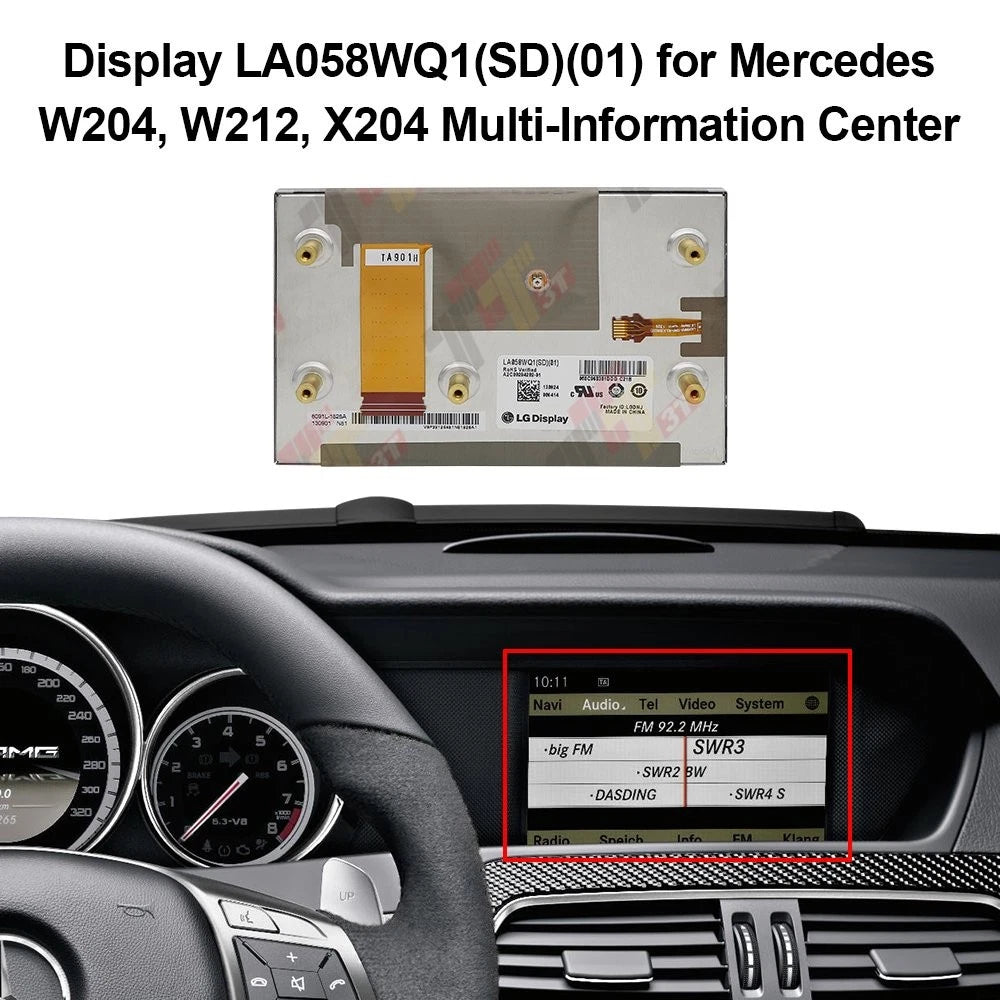

Used in select Mercedes-Benz NTG4 and related Audio 20/COMAND display assemblies, including certain:

• Mercedes-Benz C-Class W204: approximately 2011–2015

• Mercedes-Benz E-Class W212: approximately 2012–2013

• Mercedes-Benz CLS-Class C218/X218: approximately 2012–2014

• Mercedes-Benz GLK-Class X204: approximately 2013–2014

• Mercedes-Benz SLK-Class R172: approximately 2011–2016

Production dates, radio options and display sizes vary within the same model year. Compatibility cannot be determined from the vehicle model alone.

Important compatibility requirements

Before purchasing, remove the original display and confirm all of the following:

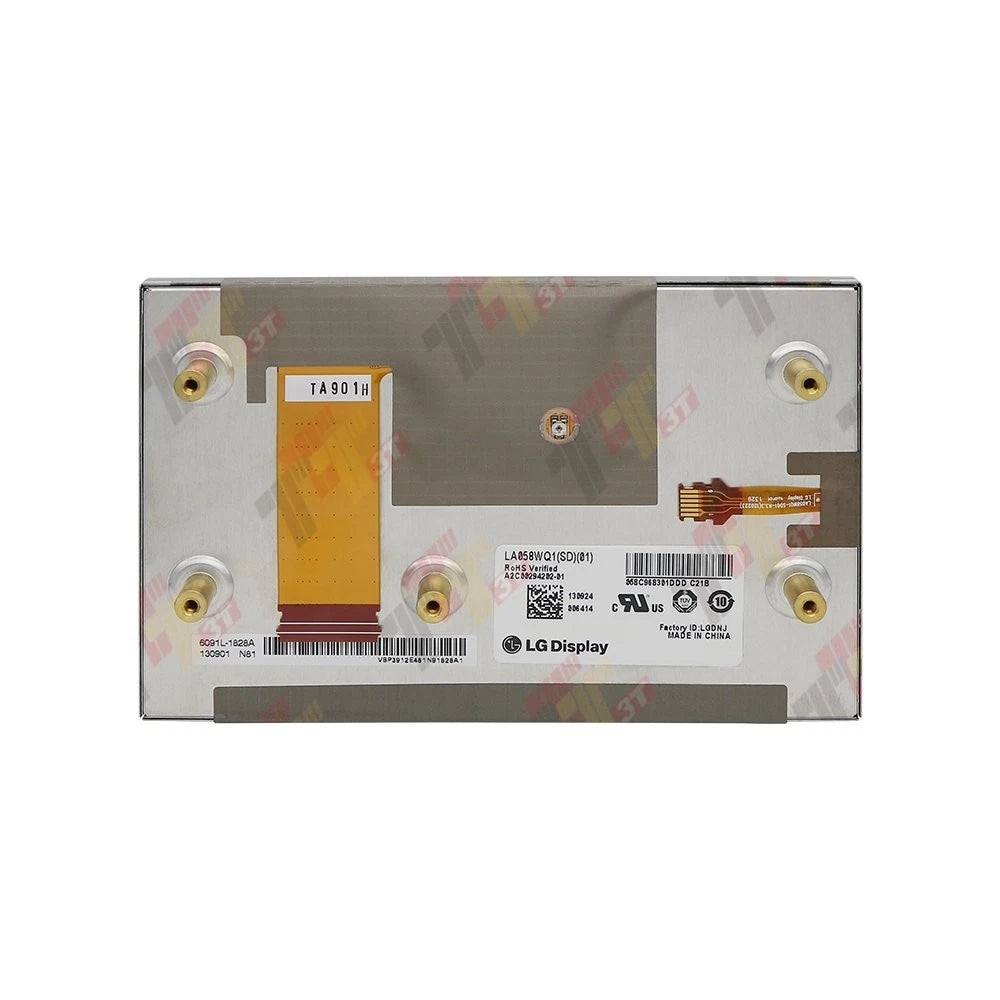

• The LCD label reads LA058WQ1(SD)(01) or LA058WQ1-SD01.

• The original screen measures approximately 5.8 inches.

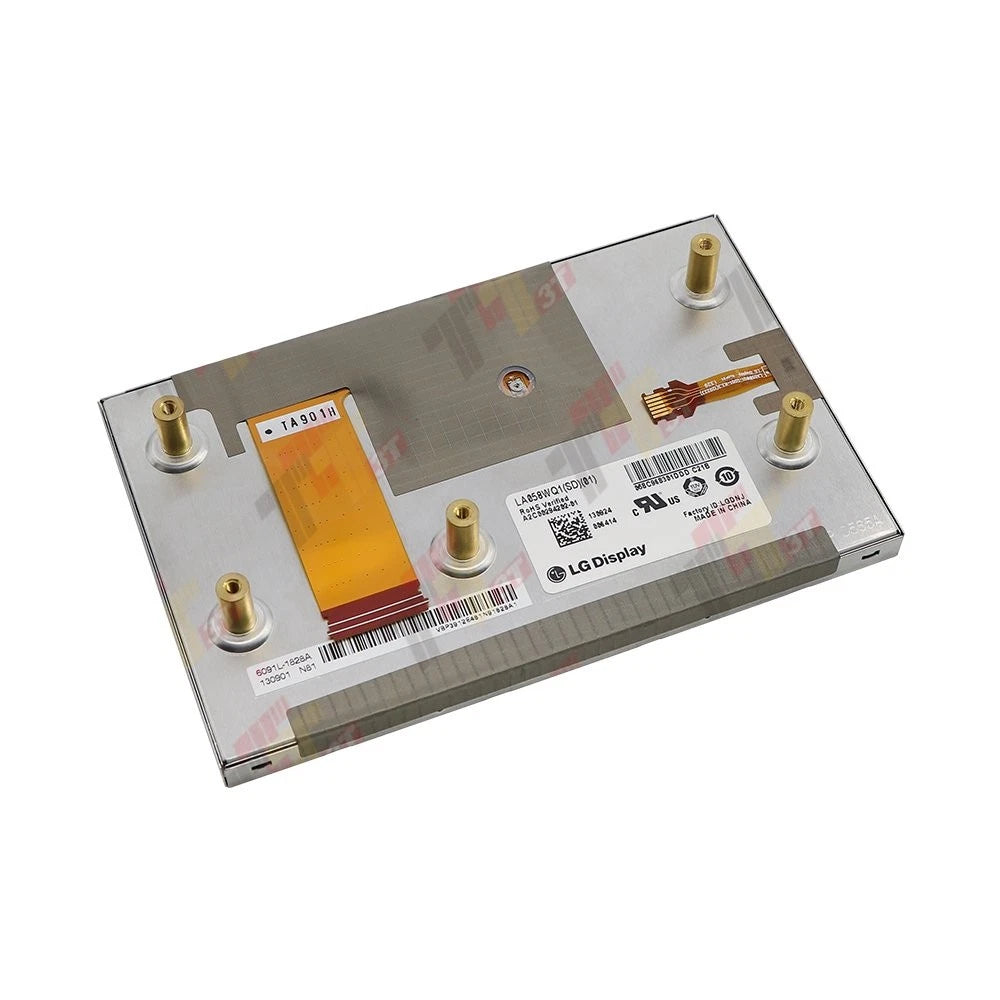

• The connector location, 40-pin ribbon interface and mounting dimensions match the photographs.

• The vehicle does not have a 7-inch, 8-inch or larger factory display.

Some Mercedes parts catalogs associate the surrounding monitor assemblies with numbers such as A2129004407, A2129018103, A2129023703 and A2129018105. These are complete-monitor reference numbers and do not guarantee that the internal LCD is identical.

A2129002213 should not be used by itself to confirm compatibility because it is also cataloged as a complete 7-inch COMAND monitor.

Common repair applications

This LCD may correct problems caused by a defective internal display panel, including:

• Blank or unreadable screen

• Missing pixels or vertical lines

• Low contrast or faded picture

• Distorted or tilted image

• Uneven or failed illumination

• Cracked or physically damaged LCD

It will not repair faults caused by the radio head unit, navigation computer, wiring, power supply, controller board or other monitor electronics.

Not compatible with

• 7-inch, 8-inch or larger Mercedes displays

• NTG5, MBUX or widescreen systems

• Displays with a different LCD part number

• Applications requiring a touchscreen or digitizer

• LA058WQ1 revisions other than SD01 unless independently verified

Package contents

• One 5.8-inch LA058WQ1-SD01 LCD panel

Monitor housing, circuit board, radio, navigation unit, cables and installation tools are not included.

Installation

Professional installation is strongly recommended. Replacement requires disassembly of the original dashboard monitor and careful handling of the ribbon connector. Use appropriate electrostatic-discharge precautions and compare the replacement panel with the original before installation.
