LCD Display Screen for Raymarine Autopilot SmartPilot ST6001 E12098 E12100

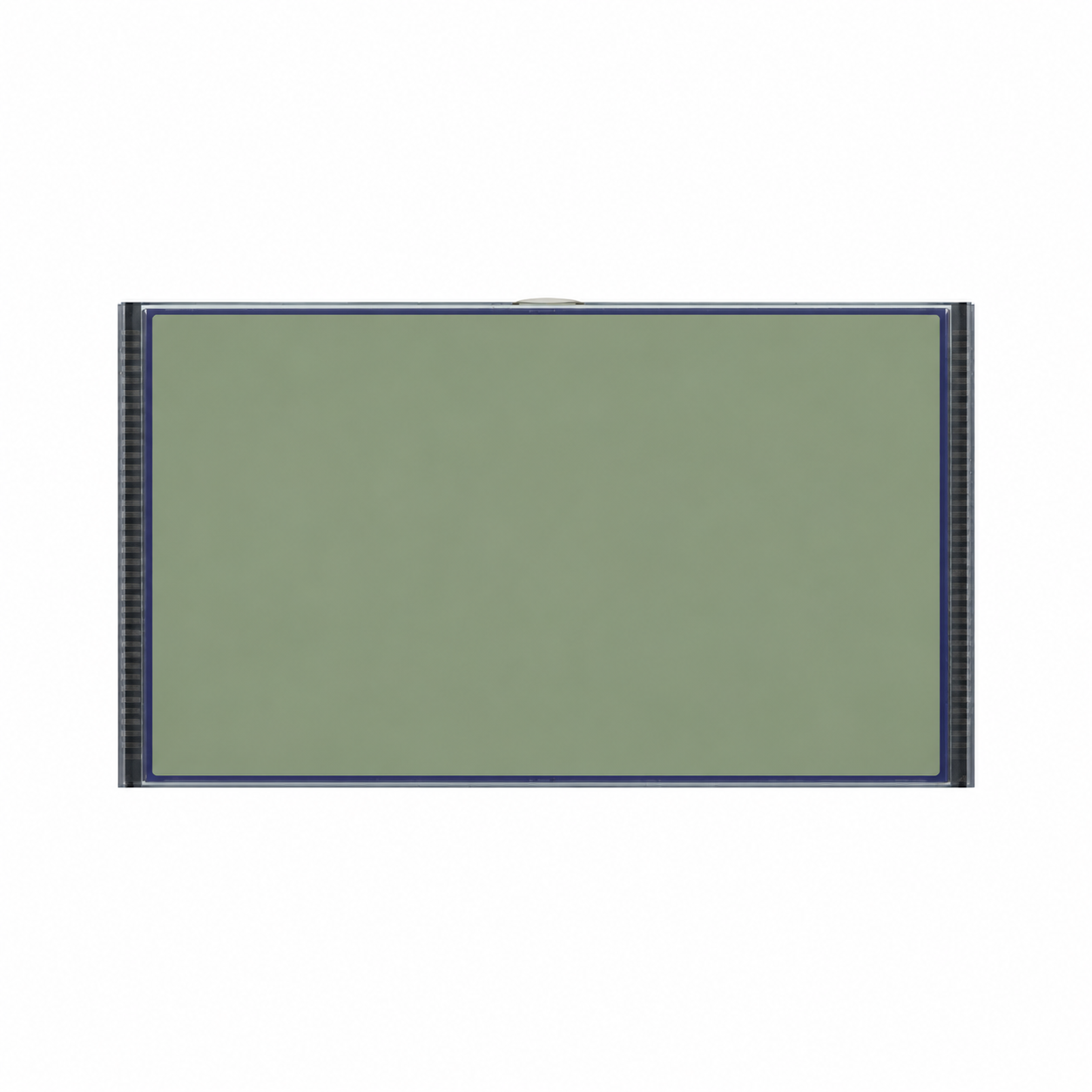

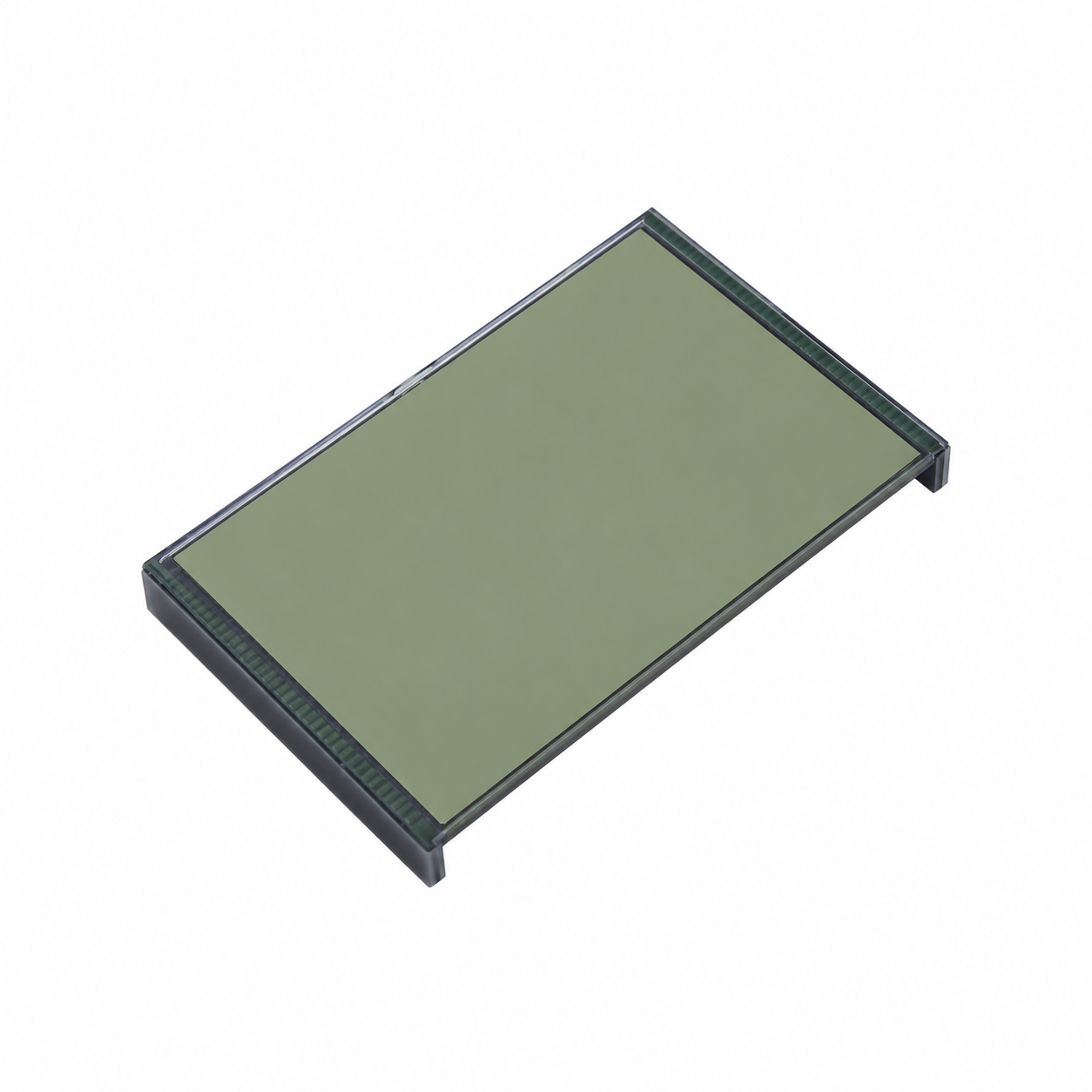

Restore a faded, damaged, or unreadable autopilot display with this replacement LCD screen for compatible Raymarine, Raytheon, and Autohelm ST6001 control heads.
This listing is for the internal LCD screen and two conductive strips only. It is not a complete autopilot control head or autopilot system.
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฎ๐ถ๐น๐
โข Product type: Replacement autopilot LCD screen ย
โข Application: Marine autopilot control-head repair ย
โข Display type: Monochrome segmented LCD ย
โข Connection method: Conductive elastomer strips ย
โข Condition: New ย
โข Installation position: Inside the ST6001 control head ย
โข Brand: Aftermarket replacement component ย
โข Soldering: Normally not required for the LCD connection ย
โข Instructions: Seller states that an English replacement guide is available after purchase ย
๐๐ถ๐๐บ๐ฒ๐ป๐ ๐๐ป๐ฑ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐ถ๐น๐ถ๐๐
Designed for compatible versions of:

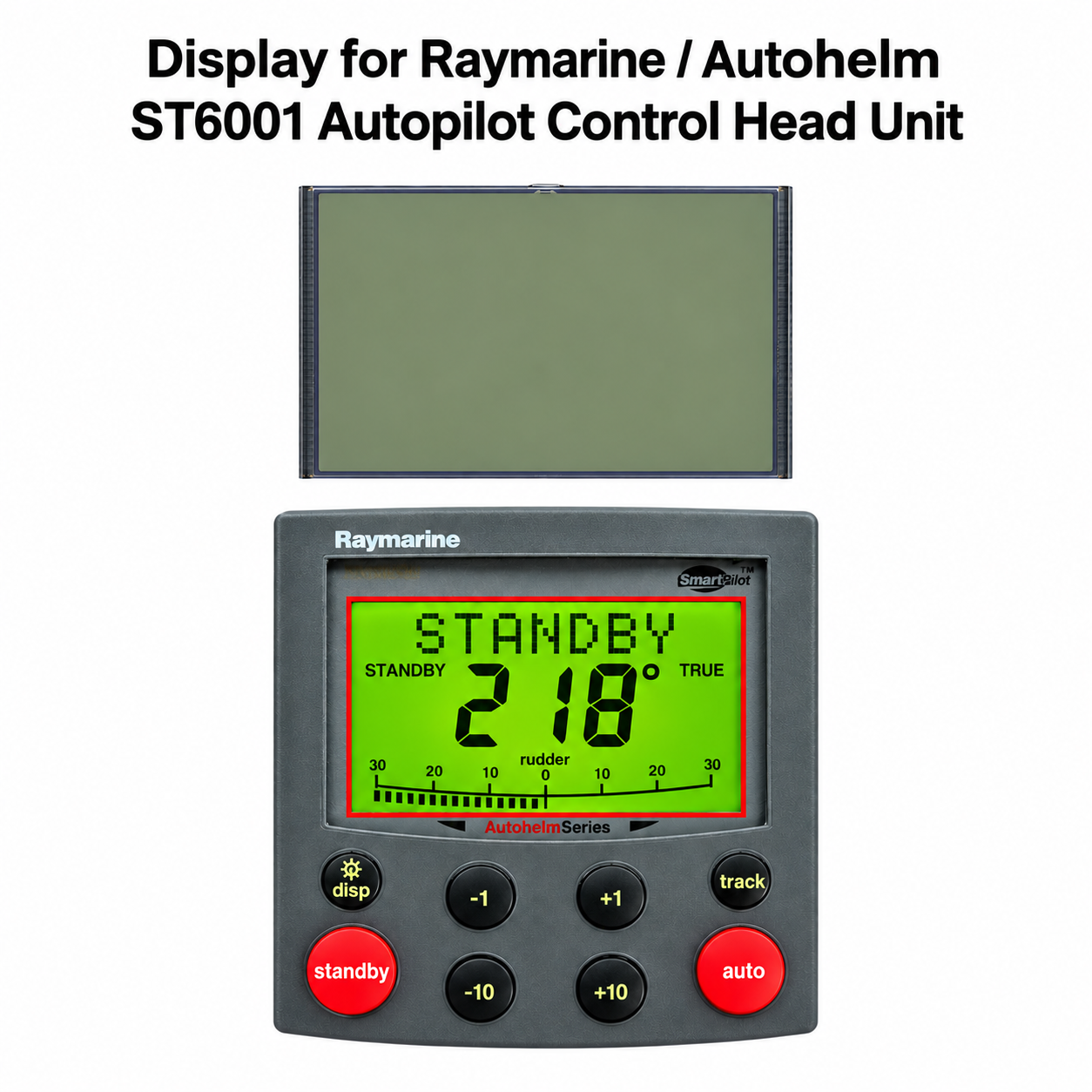

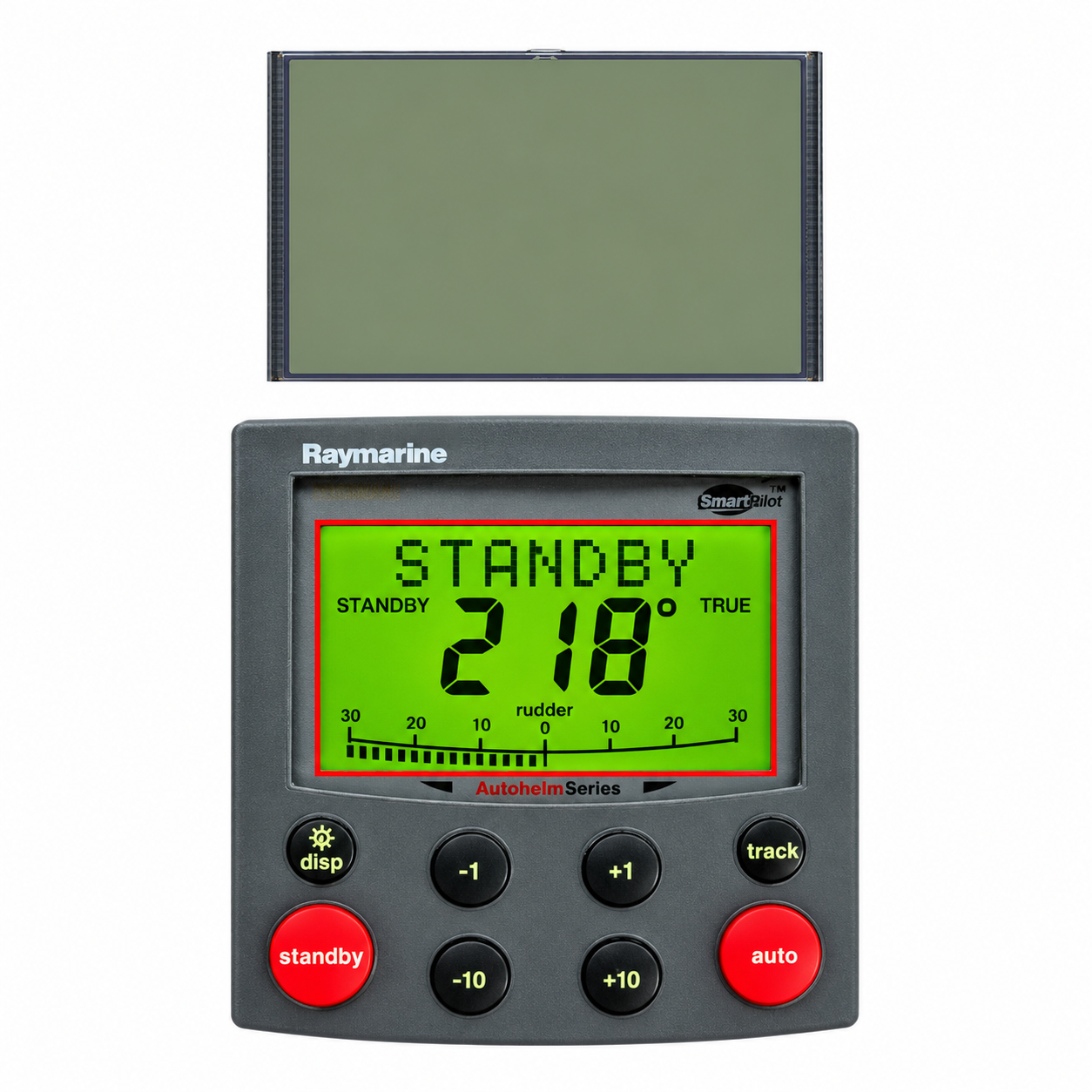

โข Raymarine ST6001 autopilot control head ย
โข Raytheon ST6001 autopilot control head ย
โข Autohelm ST6001 autopilot control head ย
โข Surface-mounted ST6001 control head E12098 ย
โข Flush-mounted ST6001 control head E12100 ย
Compatibility is determined by the control-head model and internal LCD configurationโnot the vesselโs year, make, or model.
๐ฅ๐ฒ๐ณ๐ฒ๐ฟ๐ฒ๐ป๐ฐ๐ฒ ๐ก๐๐บ๐ฏ๐ฒ๐ฟ๐
โข E12098 โ ST6001 surface-mount control head ย
โข E12100 โ ST6001 flush-mount control head ย
โข E12107 โ Complete SmartPilot S1 hydraulic outboard system originally supplied with an ST6001 control head ย
E12107 identifies a complete autopilot package rather than the LCD or individual control head.
๐ฅ๐ฒ๐น๐ฎ๐๐ฒ๐ฑ ๐ฆ๐๐๐๐ฒ๐บ ๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ๐
The ST6001 control head was also included in several other Raymarine SmartPilot packages, including:
โข E12106 โ S1 hydraulic inboard system with ST6001 ย
โข E12107 โ S1 hydraulic outboard system with ST6001 ย
โข E12108 โ S1 linear-drive system with ST6001 ย
โข E12120 โ S1G hydraulic inboard system with ST6001 ย
โข E12122 โ S1G hydraulic outboard system with ST6001 ย
โข E12124 โ S1G linear-drive system with ST6001 ย
These package numbers are provided only as identification references. Confirm that the installed controller is an ST6001 with the correct internal display before ordering.
๐ก๐ผ๐ ๐๐ผ๐ป๐ณ๐ถ๐ฟ๐บ๐ฒ๐ฑ ๐๐ผ๐ฟ
โข ST6000 control head ย
โข ST6000+ control head ย
โข ST6001+ control head ย
โข ST6002 control head ย
โข ST7000, ST7001, or ST7002 control heads ย
โข ST8001 or ST8002 rotary control heads ย
โข ST70, p70, or p70s controllers ย
โข Any unit with a different LCD contact or segment arrangement ย
The seller offers a separate replacement display for ST6000+ and ST6001+ units. Do not assume that the plus and non-plus displays are interchangeable.
๐๐บ๐ฝ๐ผ๐ฟ๐๐ฎ๐ป๐ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐ถ๐น๐ถ๐๐ ๐๐ต๐ฒ๐ฐ๐ธ
Before ordering, open the original control head and compare:

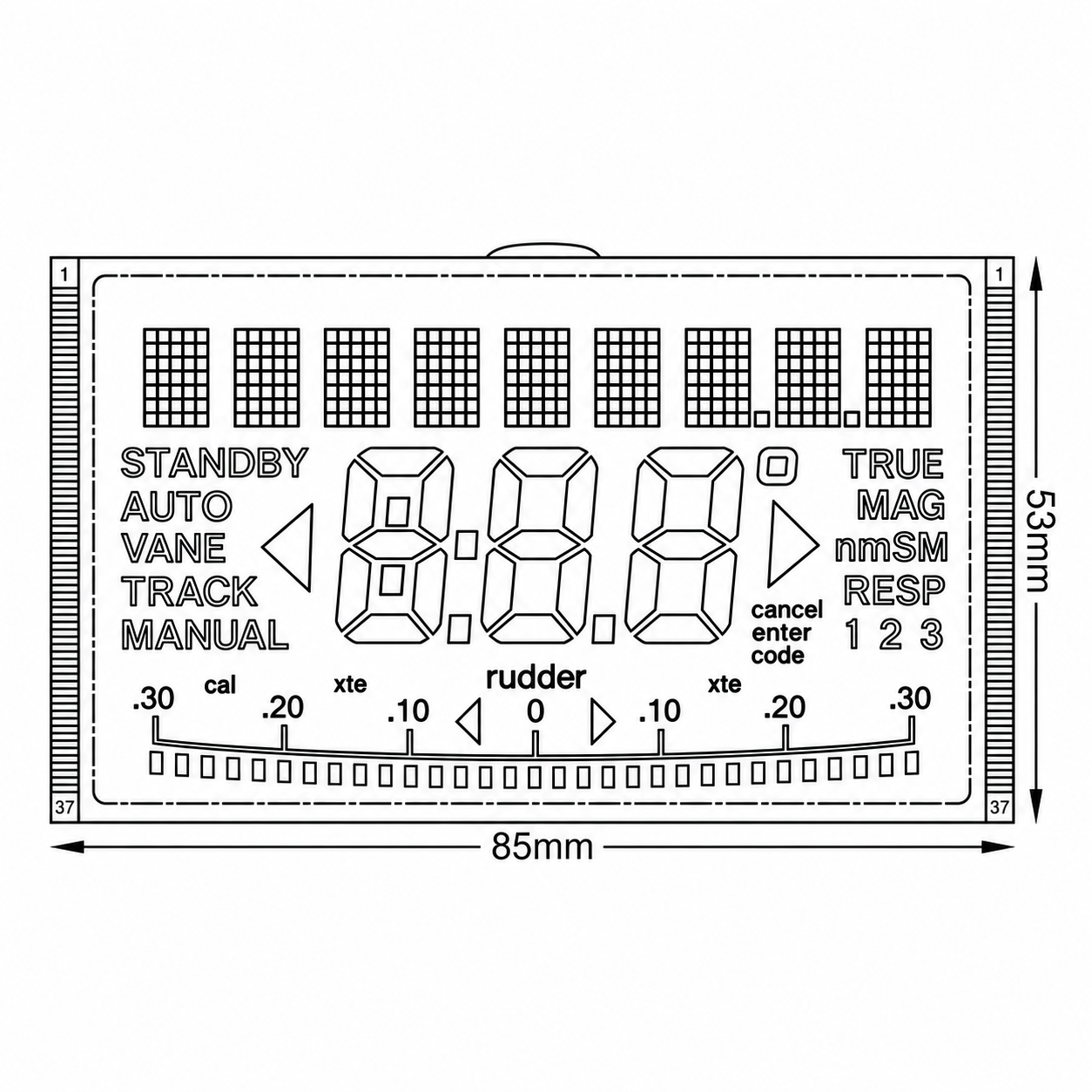

โข LCD shape and dimensions ย
โข Display-segment and icon arrangement ย
โข Contact locations ย
โข Conductive-strip positions ย
โข Internal reflector and surround design ย
โข Model and product number on the rear identification label ย
Do not order solely from the appearance of the front panel. Similar Raymarine control heads can use different internal displays.
๐๐ผ๐บ๐บ๐ผ๐ป ๐ฃ๐ฟ๐ผ๐ฏ๐น๐ฒ๐บ๐ ๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ ๐ฎ๐ ๐ฅ๐ฒ๐ฝ๐ฎ๐ถ๐ฟ

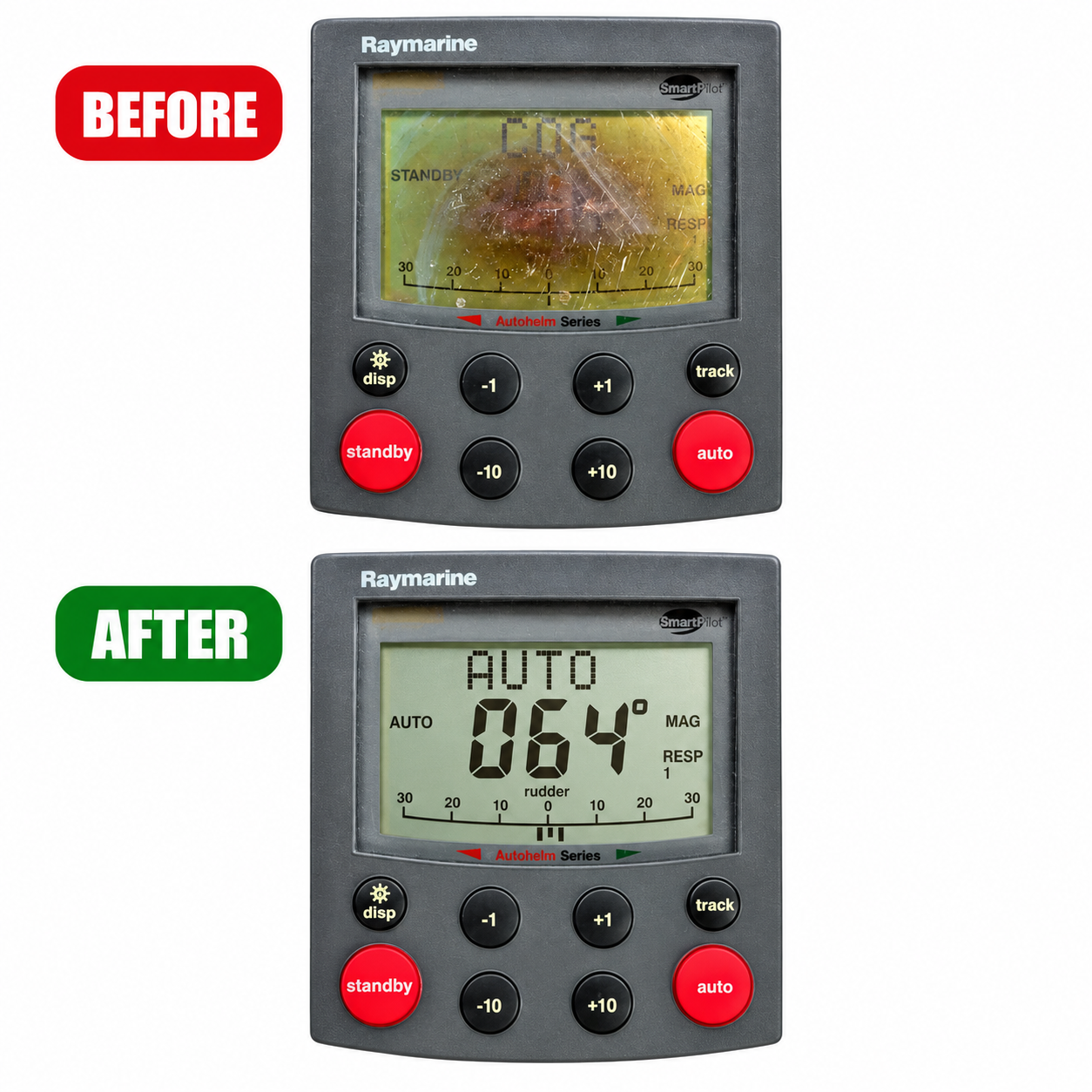

โข Faded or unreadable characters ย
โข Missing display segments caused by LCD failure ย
โข Intermittent segments caused by deteriorated conductive strips ย
โข Darkened or discolored LCD ย
โข Sun and heat damage ย
โข Delaminated display layers ย
โข Internal bubbles, wrinkles, or blotches ย
โข Cracked LCD glass ย
โข Poor contrast that remains after adjustment ย
๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ช๐ถ๐น๐น ๐ก๐ผ๐ ๐ฅ๐ฒ๐ฝ๐ฎ๐ถ๐ฟ
โข A control head that does not power on ย
โข Failed circuit board or power-supply components ย
โข Defective keypad or buttons ย
โข Failed illumination or backlighting ย
โข SeaTalk or NMEA communication problems ย
โข Course-computer or software faults ย
โข Defective compass, rudder sensor, or drive unit ย
โข Water-damaged or corroded electronics ย
โข Damaged external wiring or connectors ย
Missing or intermittent segments can also result from contaminated contacts, incorrectly positioned conductive strips, inadequate assembly pressure, or PCB damage. Diagnose the original control head before ordering.
๐๐ป๐๐๐ฎ๐น๐น๐ฎ๐๐ถ๐ผ๐ป
Installation requires disassembling the control head and accurately positioning the replacement LCD and conductive strips.
โข Disconnect vessel power before servicing ย
โข Use electrostatic-discharge protection ย
โข Photograph the original component positions ย
โข Avoid touching the LCD contact surfaces ย
โข Clean the contact areas using an electronics-safe method ย
โข Align both conductive strips evenly ย
โข Confirm correct placement of the reflector and display surround ย
โข Tighten the housing evenly without overtightening ย
โข Inspect the case seal and mounting gasket ย
โข Test every display segment and control function before final installation ย
Opening the control head may compromise its weather seal. Replace deteriorated sealing components and ensure the housing is properly sealed before returning the unit to marine service.
Professional installation is recommended if you are unfamiliar with marine instrument repair.
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ป๐ฐ๐น๐๐ฑ๐ฒ๐

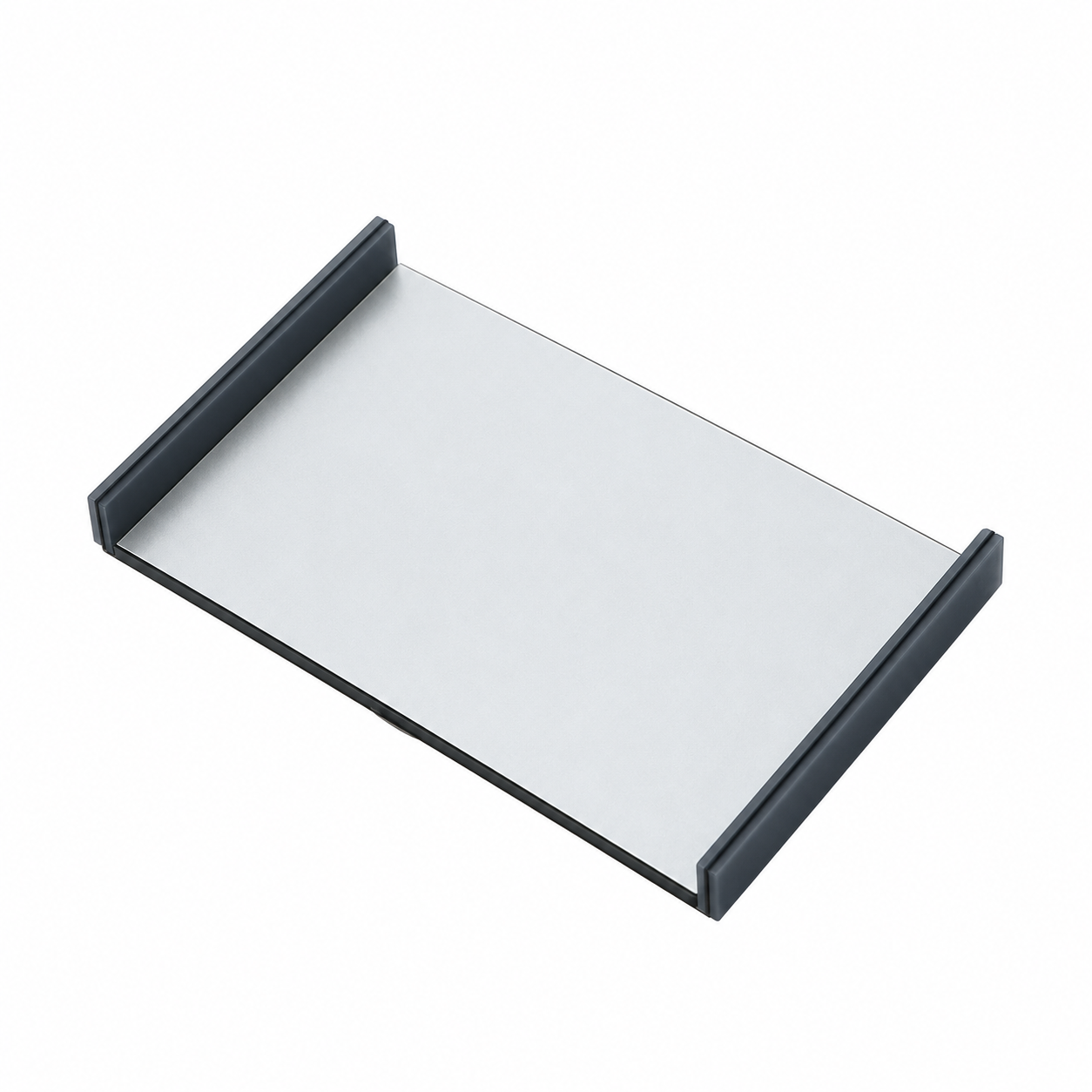

โข One replacement LCD screen ย

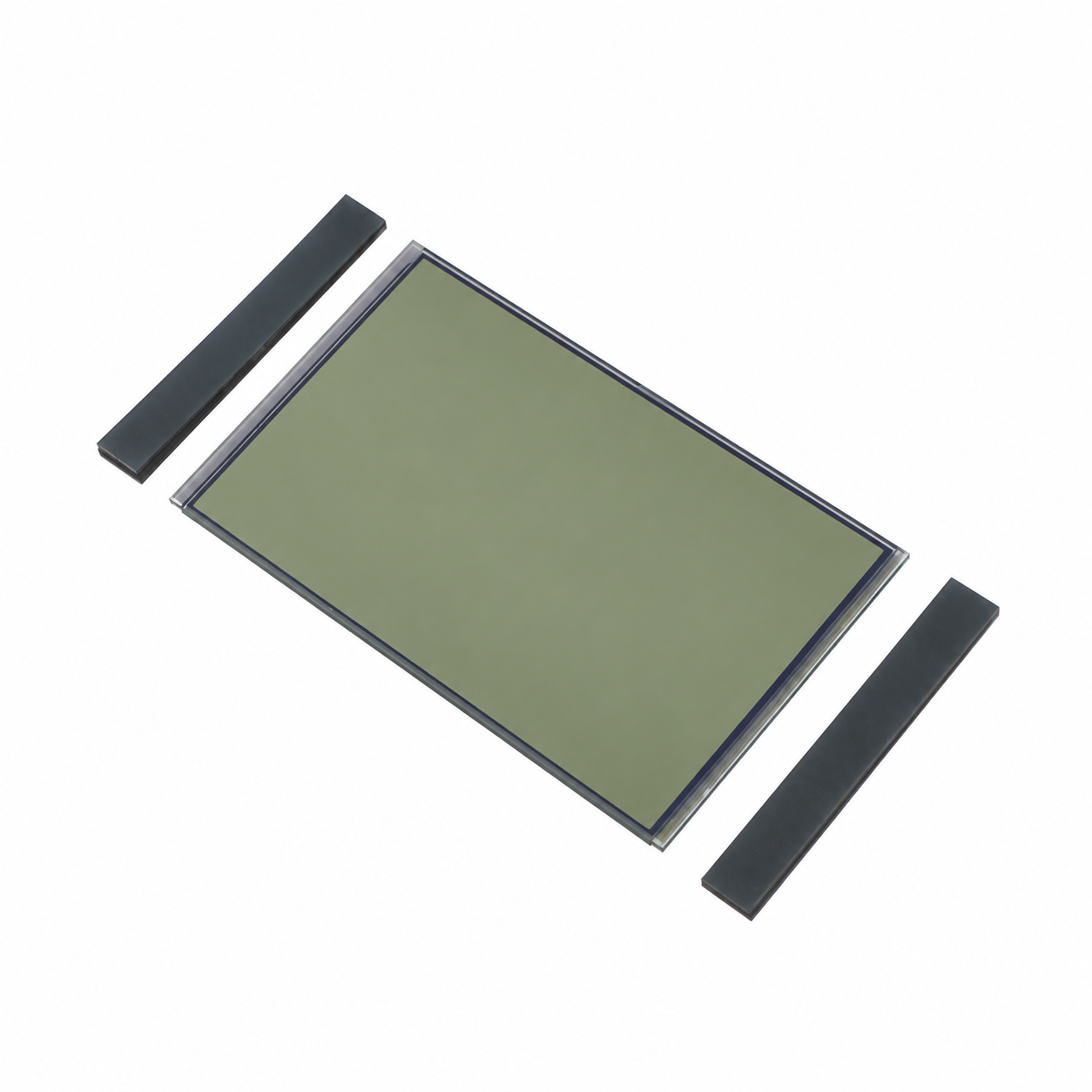

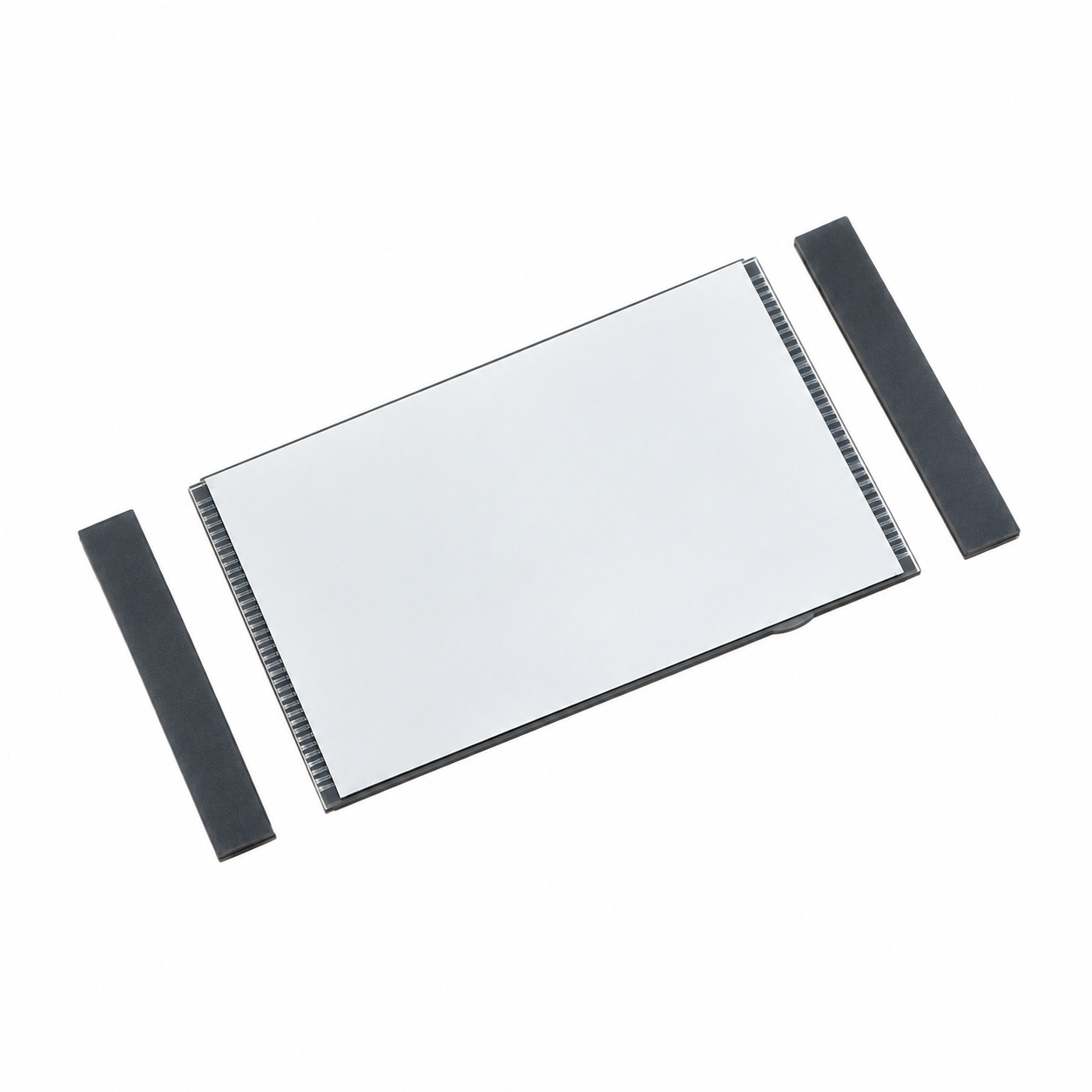

โข Two conductive elastomer strips ย
๐ก๐ผ๐ ๐๐ป๐ฐ๐น๐๐ฑ๐ฒ๐ฑ
โข Complete ST6001 control head ย
โข Front fascia, keypad, or housing ย
โข Reflector, diffuser, or LCD surround ย
โข Main circuit board ย
โข Illumination or backlight components ย
โข Case seal or mounting gasket ย
โข Course computer, compass, rudder sensor, or drive unit ย
โข SeaTalk cables, mounting hardware, or tools ย
๐ฆ๐ฎ๐ณ๐ฒ๐๐ ๐ก๐ผ๐๐ถ๐ฐ๐ฒ
An autopilot is a navigation aid and must not replace attentive supervision at the helm. After repair, test the display, buttons, alarms, standby function, course-change controls, and steering response before returning the autopilot to normal service.
