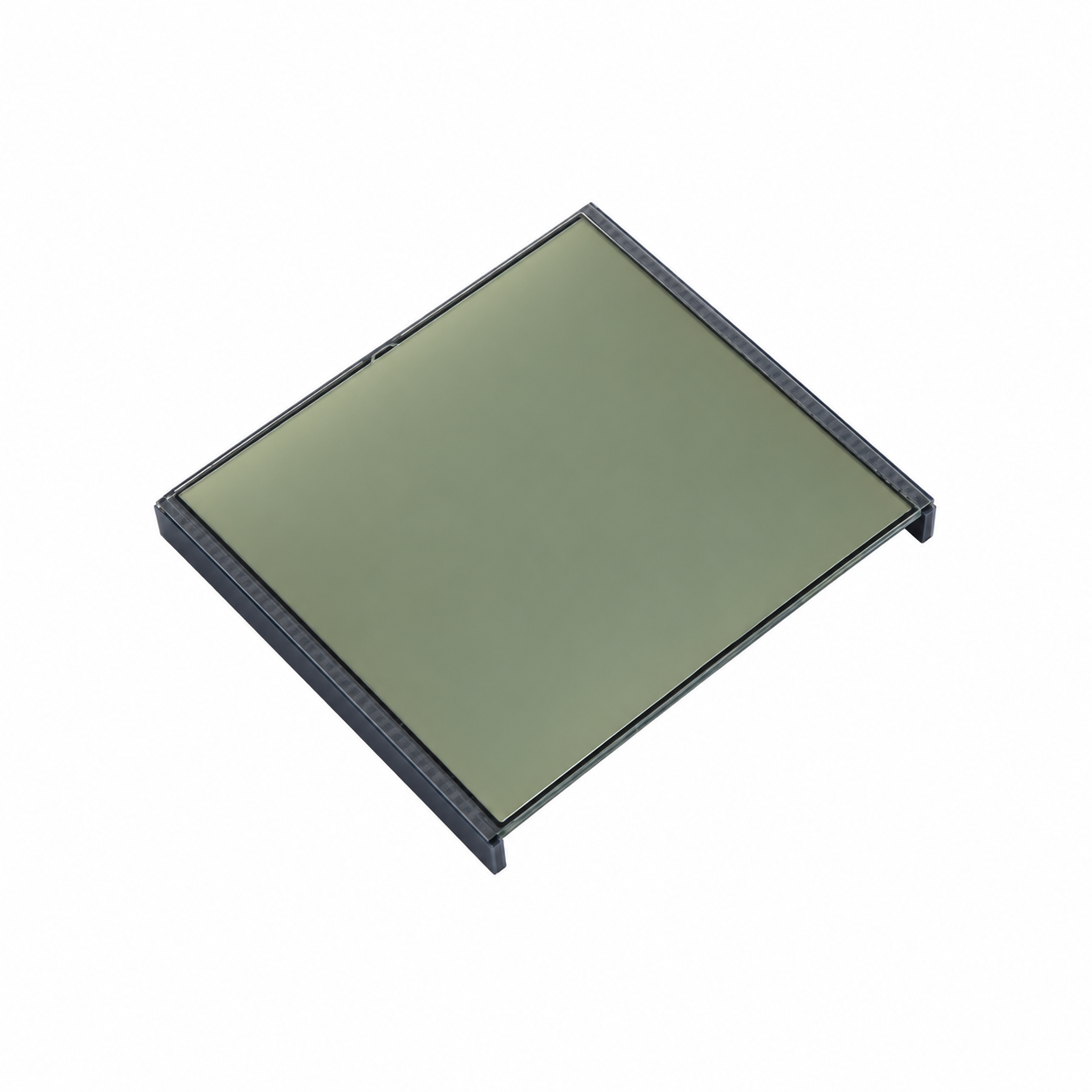

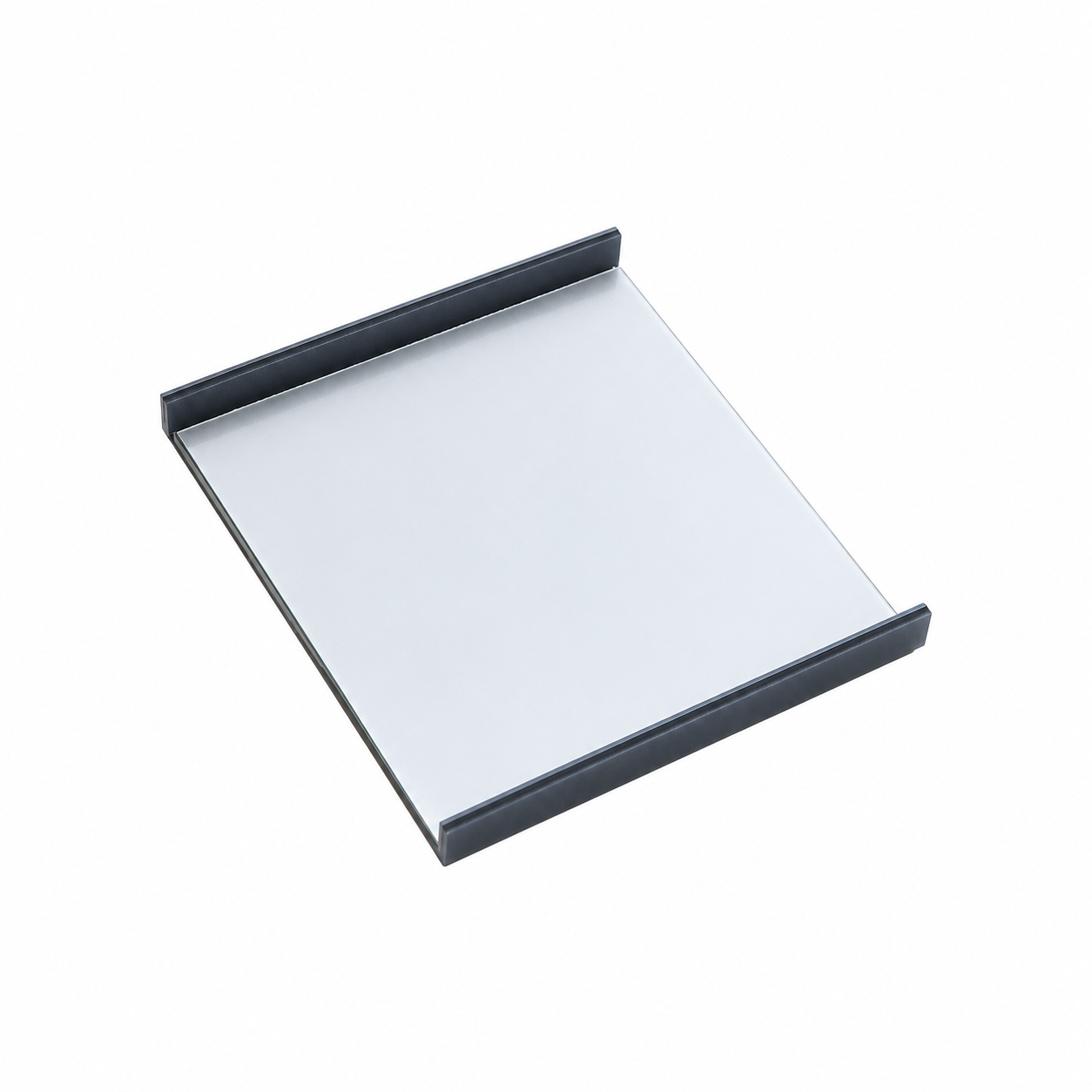

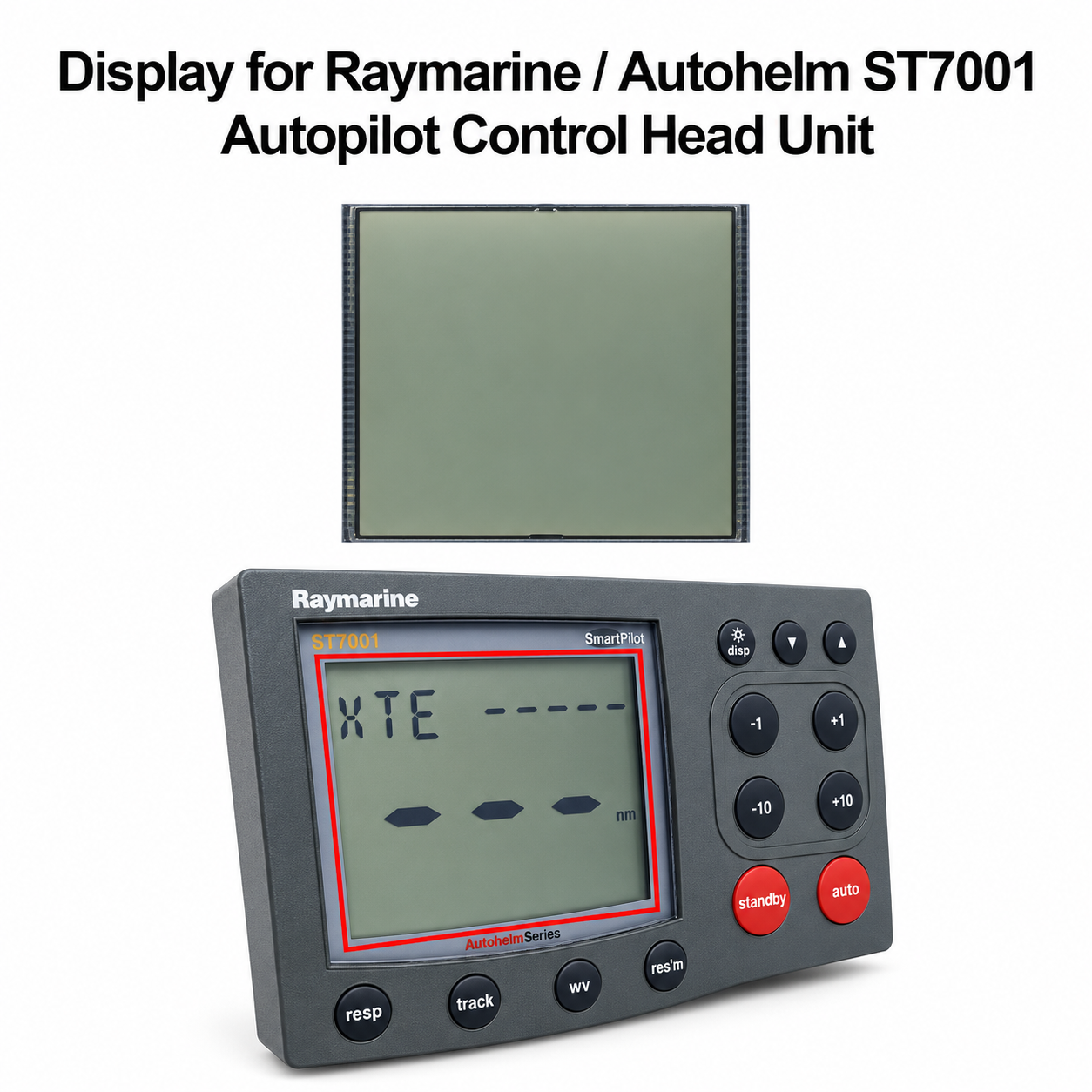

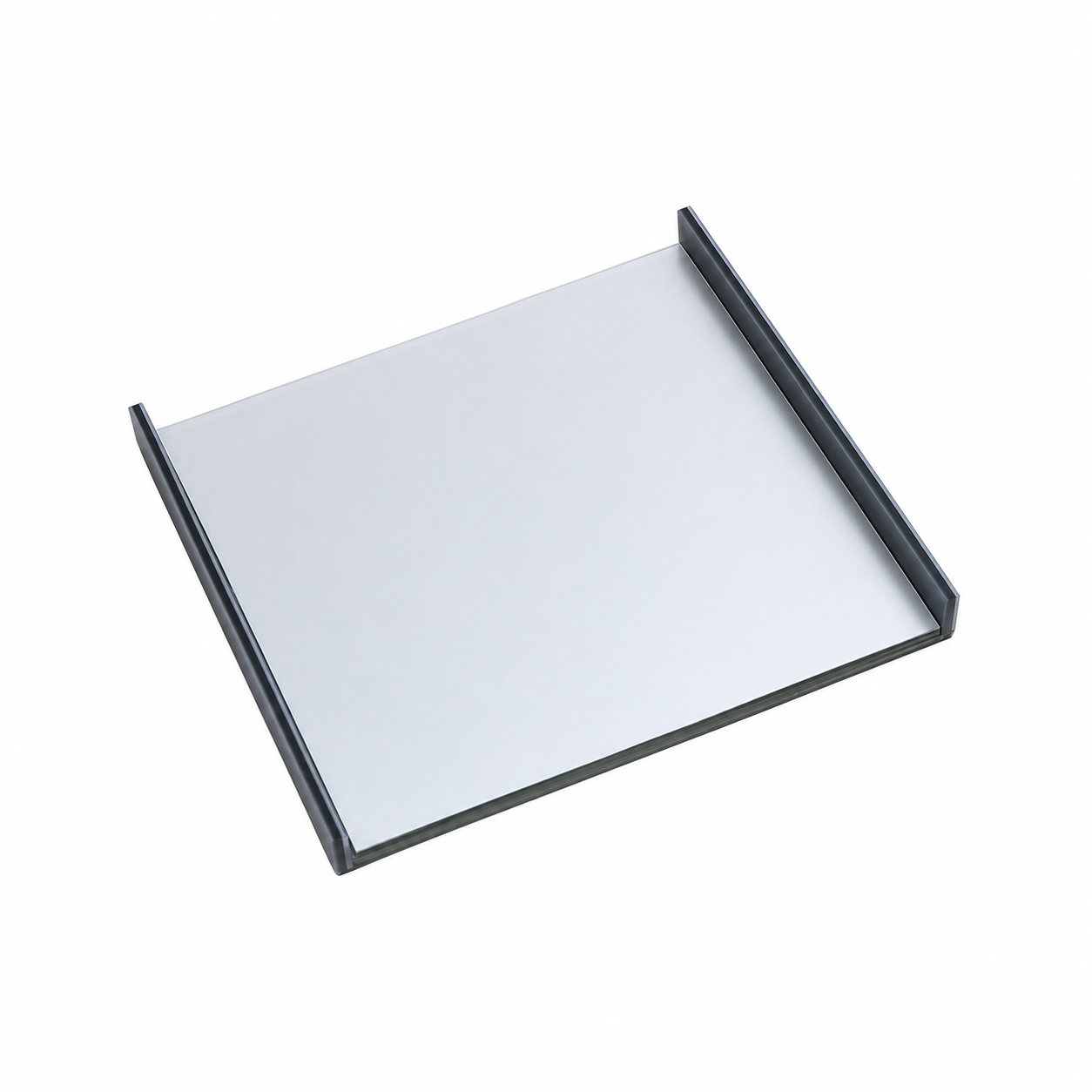

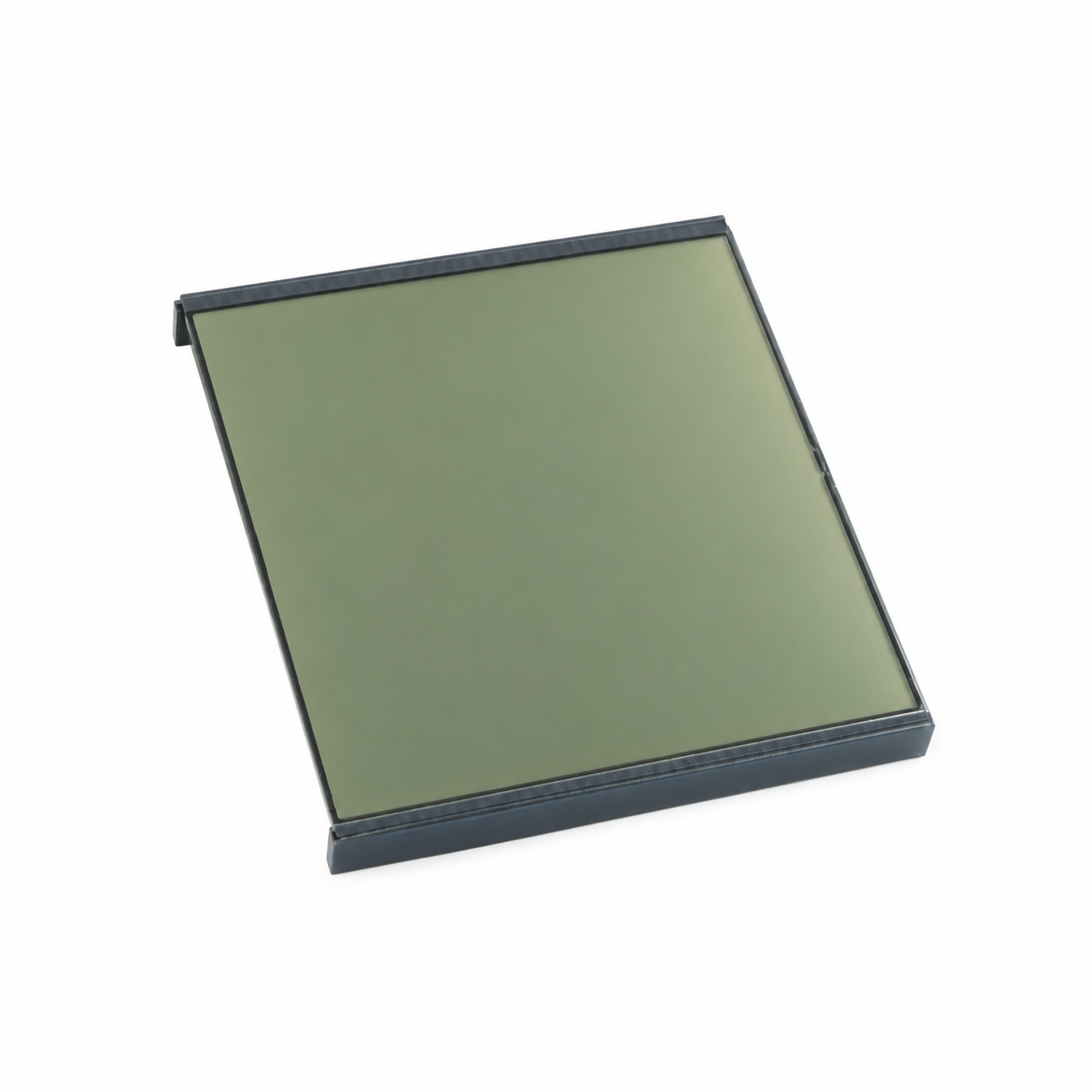

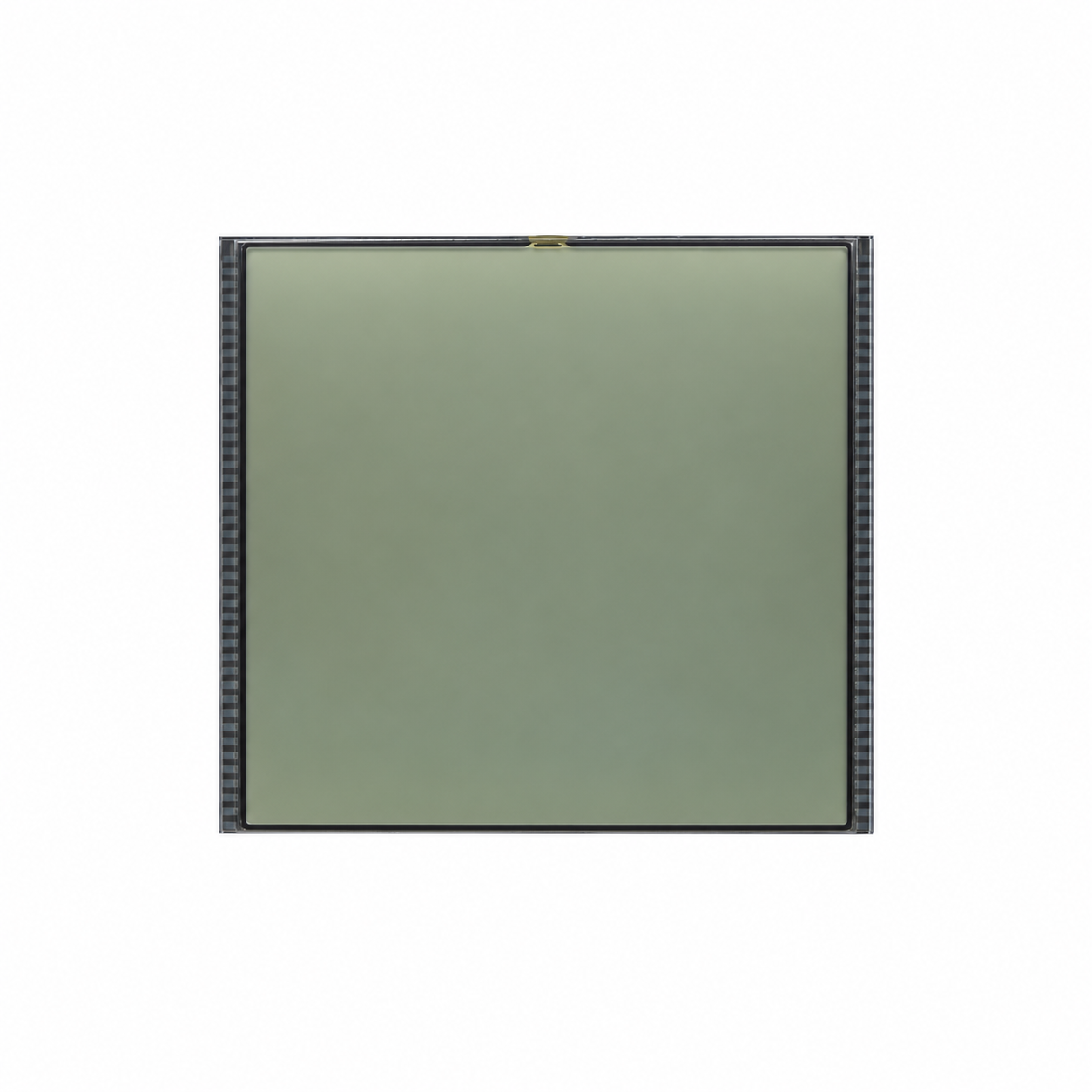

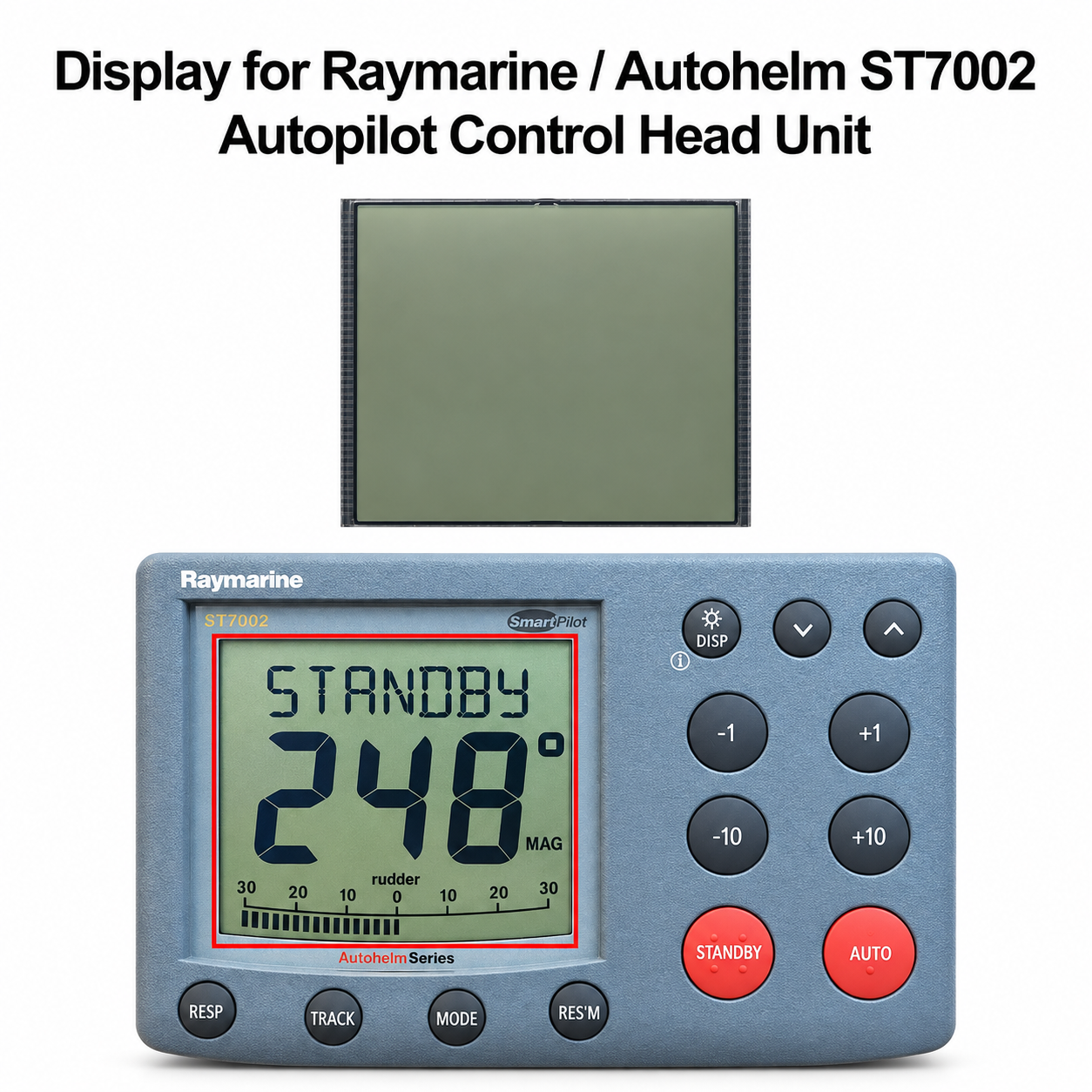

LCD Display Screen for Raymarine Autohelm SmartPilot ST7001 ST7002 E12099 E12099-P
Restore a faded, sun-damaged, cracked, or unreadable autopilot display with this replacement LCD screen for compatible Raymarine, Raytheon, and Autohelm ST7001 and ST7002 control heads.
This listing is for the internal LCD screen and two conductive strips only. It is not a complete autopilot control head.
𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀
• Product type: Replacement autopilot LCD screen
• Application: Marine autopilot control-head repair
• Screen dimensions: Approximately 85 × 76 mm
• Display type: Monochrome segmented LCD
• Connection method: Conductive elastomer strips
• Condition: New
• Installation position: Inside the autopilot control head
• Brand: Aftermarket replacement component
• Soldering: Normally not required for the LCD connection
𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗔𝗻𝗱 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆
Designed for compatible versions of:
• Raymarine ST7001 autopilot control head
• Raytheon ST7001 autopilot control head
• Autohelm ST7001 autopilot control head
• Raymarine ST7002 autopilot control head
• Raytheon ST7002 autopilot control head
• Autohelm ST7002 autopilot control head
𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲 𝗡𝘂𝗺𝗯𝗲𝗿𝘀
• E12099 – ST7001 surface-mount control head
• E12099-P – ST7002 surface-mount control head
These numbers identify the complete autopilot control heads, not the replacement LCD itself.
𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗖𝗵𝗲𝗰𝗸
Before ordering, open the original control head and compare:
• Overall LCD dimensions
• Display-segment and icon arrangement
• Contact locations
• Conductive-strip positions
• Internal reflector and LCD-surround design
• Model and product number on the rear identification label
Do not purchase from the front-panel appearance alone. Raymarine produced several similar-looking control heads with different internal LCD configurations.
𝗡𝗼𝘁 𝗖𝗼𝗻𝗳𝗶𝗿𝗺𝗲𝗱 𝗙𝗼𝗿
• ST7000 or ST7000+ control heads
• ST6000, ST6001, or ST6002 control heads
• ST8001 or ST8002 rotary control heads
• ST70, p70, or p70s controllers
• Any control head with different LCD dimensions, contacts, or segment layout
The ST7001 and ST7002 designations shown on the original control head should match before purchase.
𝗖𝗼𝗺𝗺𝗼𝗻 𝗣𝗿𝗼𝗯𝗹𝗲𝗺𝘀 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗠𝗮𝘆 𝗥𝗲𝗽𝗮𝗶𝗿
• Yellowed or darkened LCD
• Sun and heat damage
• Delaminated display layers
• Bubbles, wrinkles, or internal blotches
• Cracked LCD glass
• Faded or unreadable characters
• Missing segments caused by LCD failure
• Poor contrast that remains after adjustment
• Intermittent segments caused by deteriorated conductive strips
𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿
• A control head that does not power on
• Failed circuit board or power-supply components
• Defective keypad or control buttons
• Failed illumination or backlighting
• SeaTalk or NMEA communication problems
• Course-computer or software faults
• Defective compass, rudder sensor, or drive unit
• Water-damaged or corroded electronics
• Damaged external wiring or connectors
Missing segments can also be caused by contaminated contacts, incorrectly positioned conductive strips, inadequate assembly pressure, or PCB damage. Diagnose the original unit before ordering.
𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻
Installation requires disassembling the control head and accurately positioning the replacement LCD and conductive strips.
• Disconnect vessel power before servicing
• Use electrostatic-discharge protection
• Photograph the original component positions
• Avoid touching the LCD contact surfaces
• Clean the contact areas using an electronics-safe method
• Position both conductive strips evenly
• Confirm correct reflector and surround alignment
• Tighten the housing evenly without overtightening
• Inspect the case seal and mounting gasket
• Test every display segment and control-head function before final installation
Opening the control head may compromise its weather seal. Replace deteriorated sealing components and ensure the housing is properly sealed before reinstalling it aboard the vessel.
Professional marine-electronics installation is recommended if you are unfamiliar with instrument-panel repair.

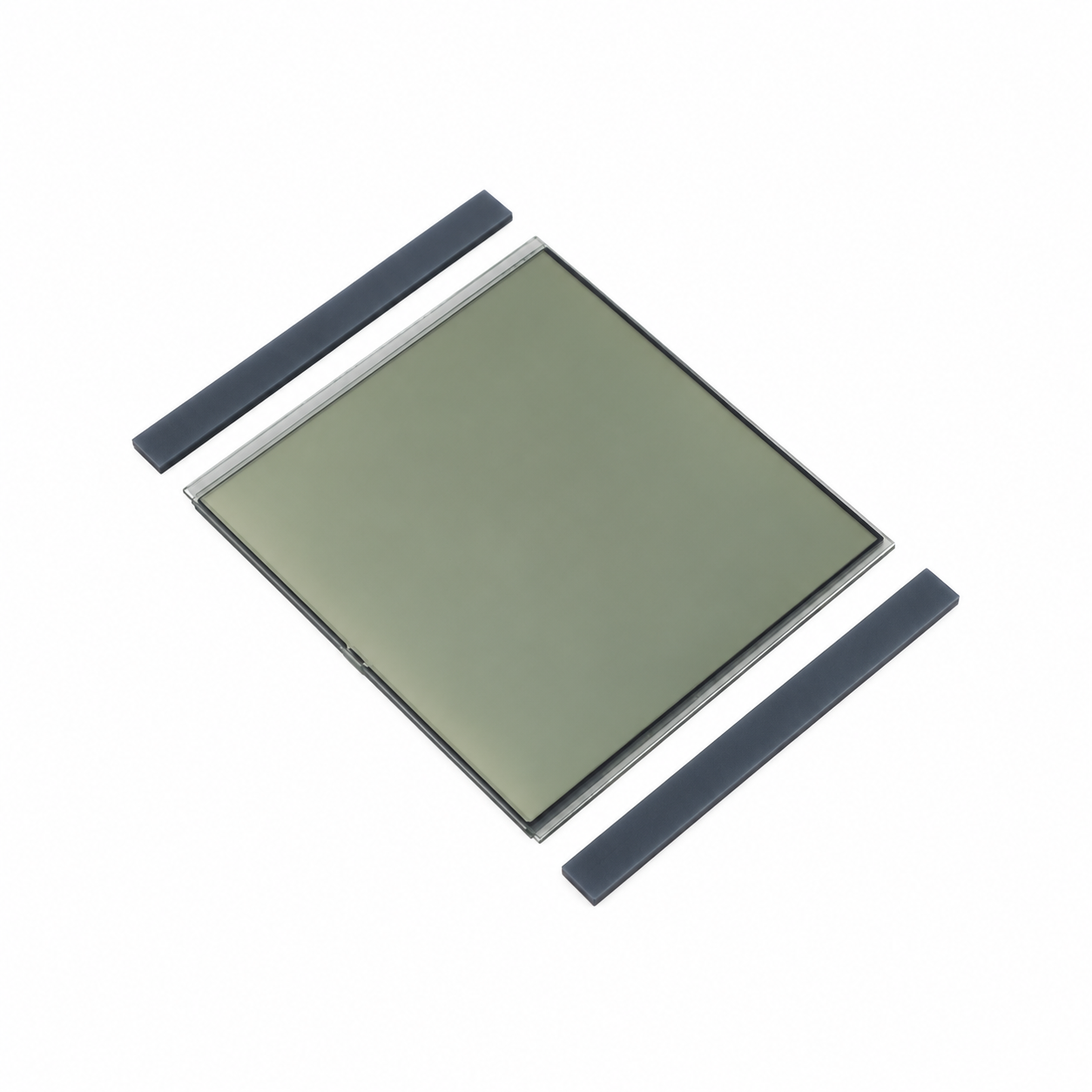

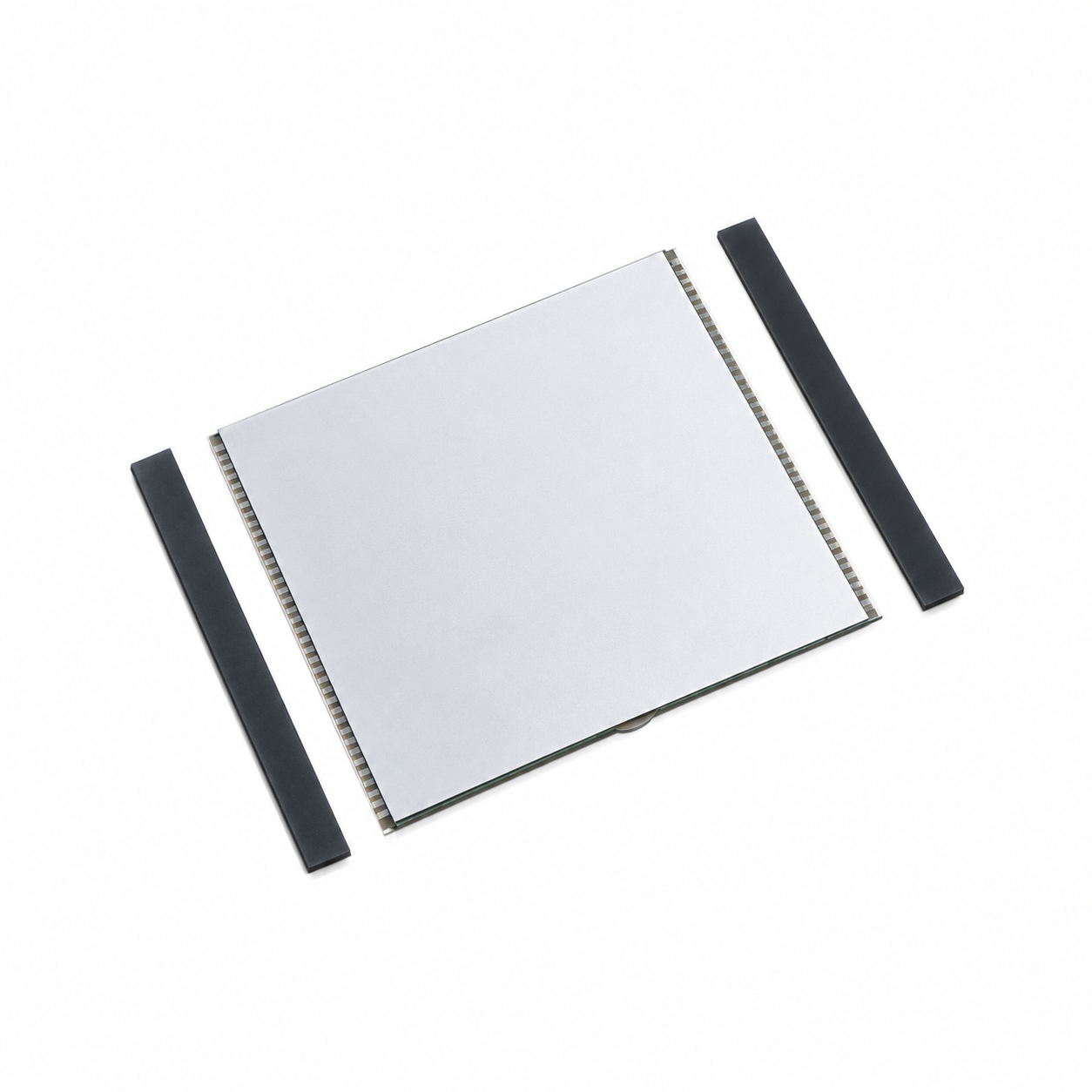

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀
• One replacement LCD screen
• Two conductive elastomer strips
𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱
• Complete ST7001 or ST7002 control head
• Front fascia, keypad, or housing
• Reflector, diffuser, or LCD surround
• Main circuit board
• Illumination or backlight components
• Case seal or mounting gasket
• Course computer, compass, rudder sensor, or drive unit
• SeaTalk cables, mounting hardware, tools, or instructions
𝗦𝗮𝗳𝗲𝘁𝘆 𝗡𝗼𝘁𝗶𝗰𝗲
An autopilot is a navigation aid and must not replace attentive supervision at the helm. After completing the repair, test the display, keypad, alarms, standby function, course-change controls, and steering response before returning the autopilot to normal service.
