8.4" Mitsubishi LCD Display for Raymarine C80 Classic Chartplotter AA084VC03

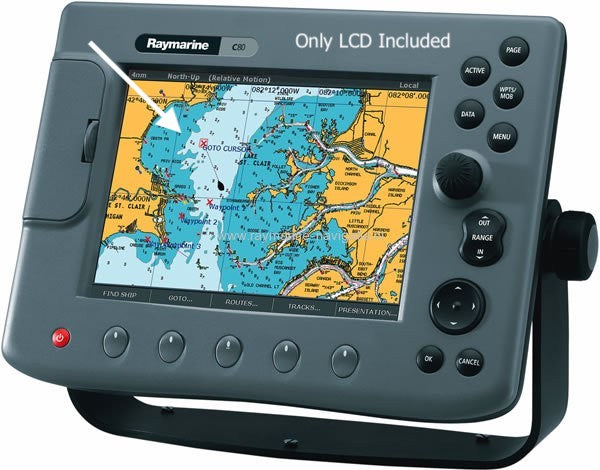

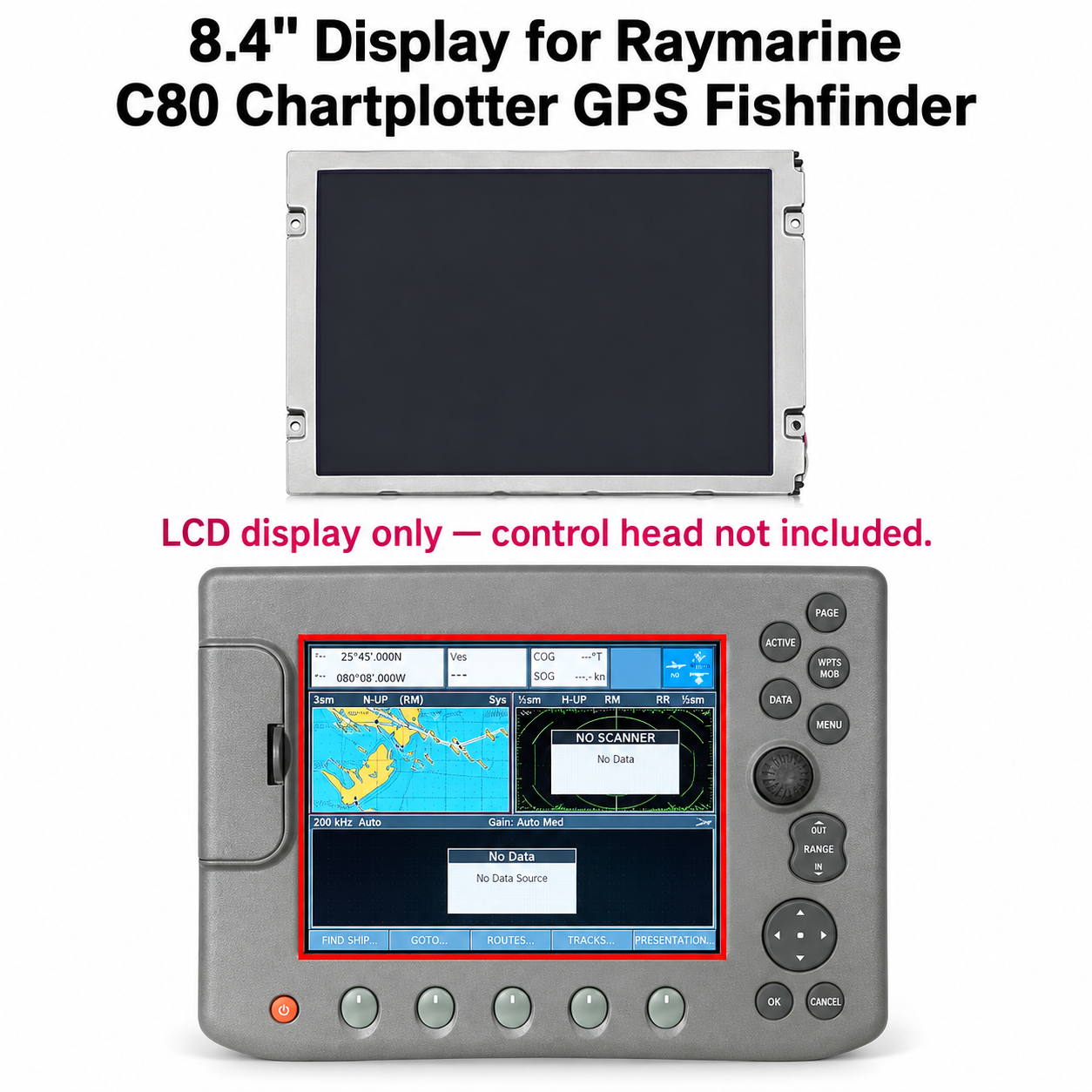

Restore the display in a compatible Raymarine C80 Classic Chartplotter with this replacement Mitsubishi 8.4-inch TFT LCD module. This listing is for the internal LCD screen onlyโnot a complete chartplotter, front panel, or navigation system.
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฎ๐ถ๐น๐

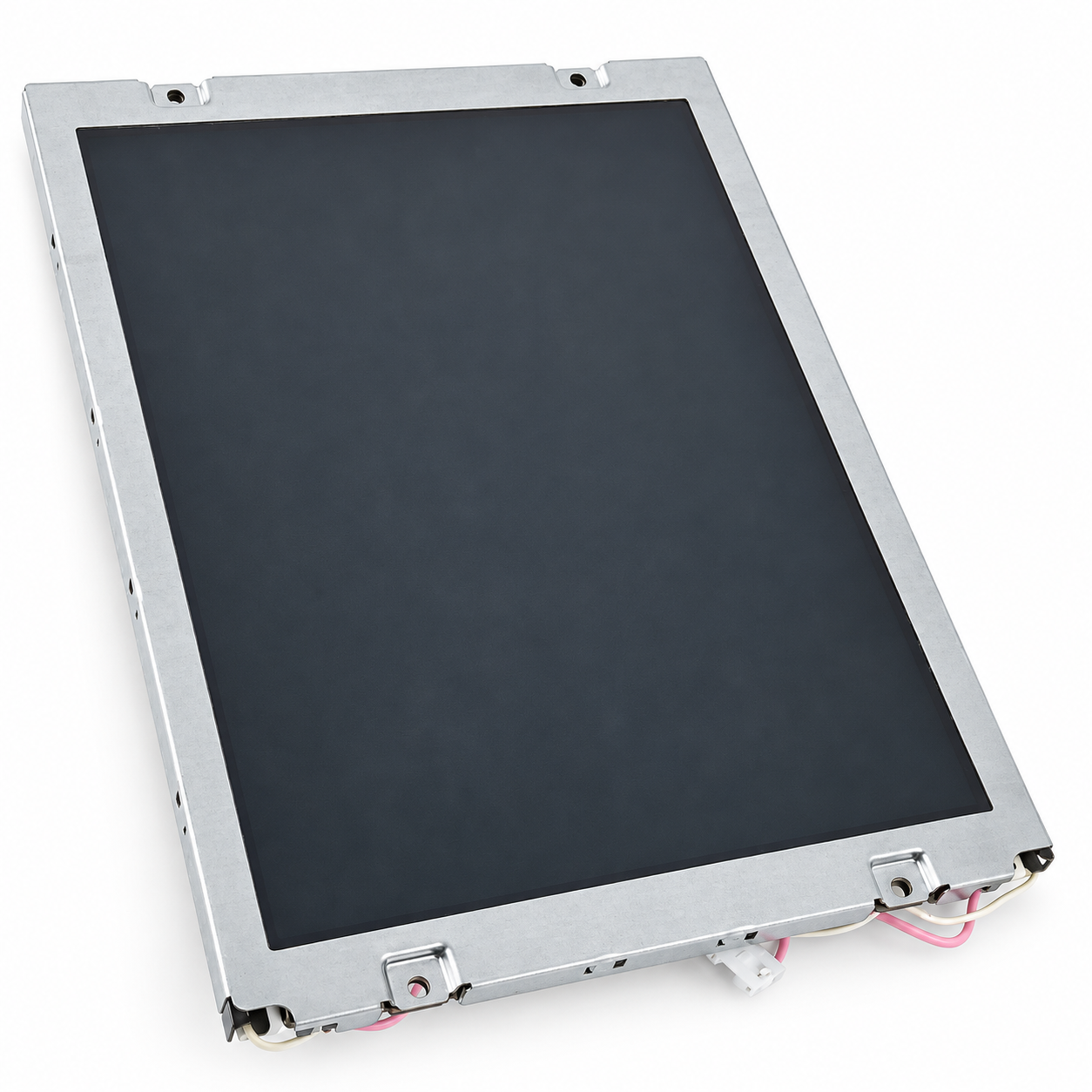

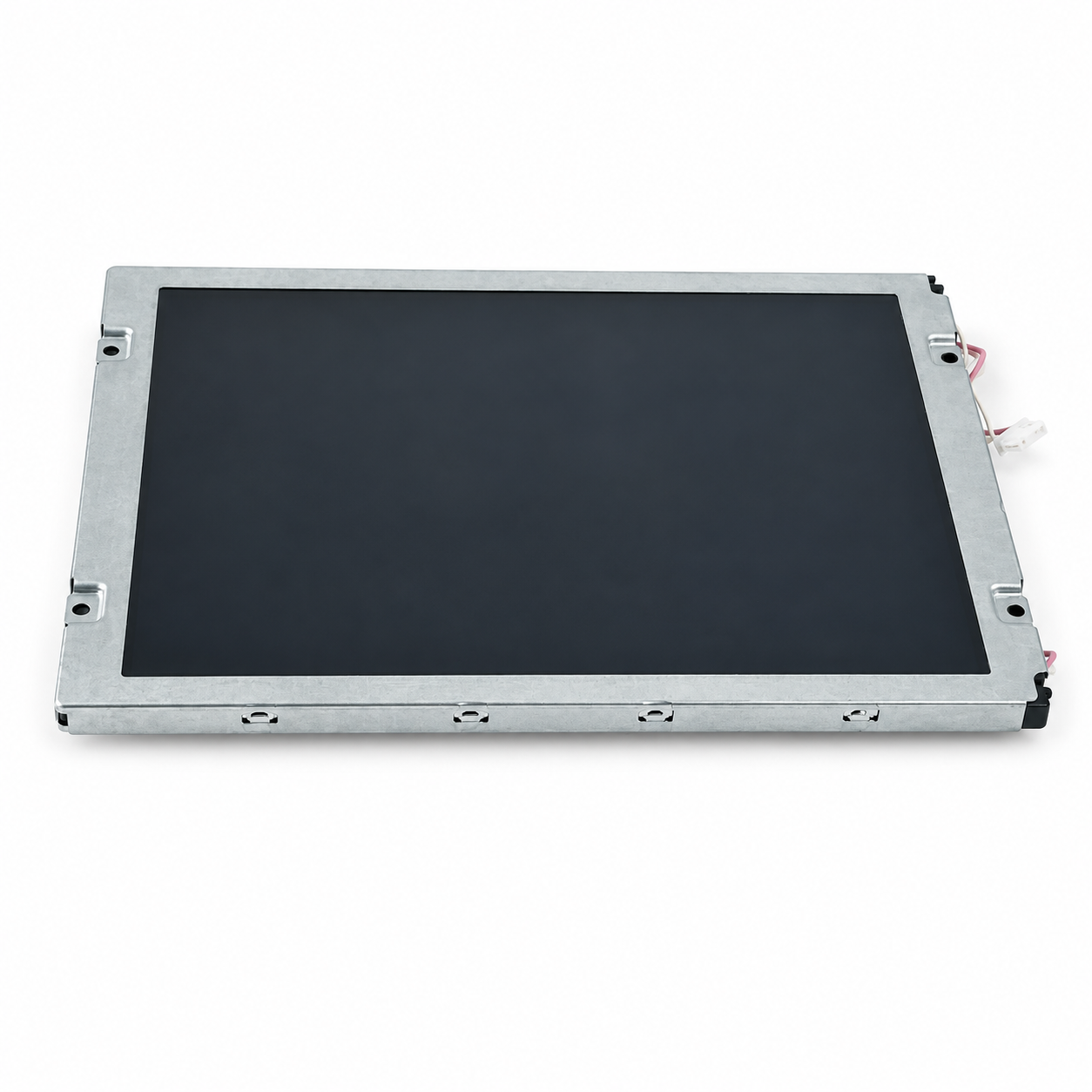

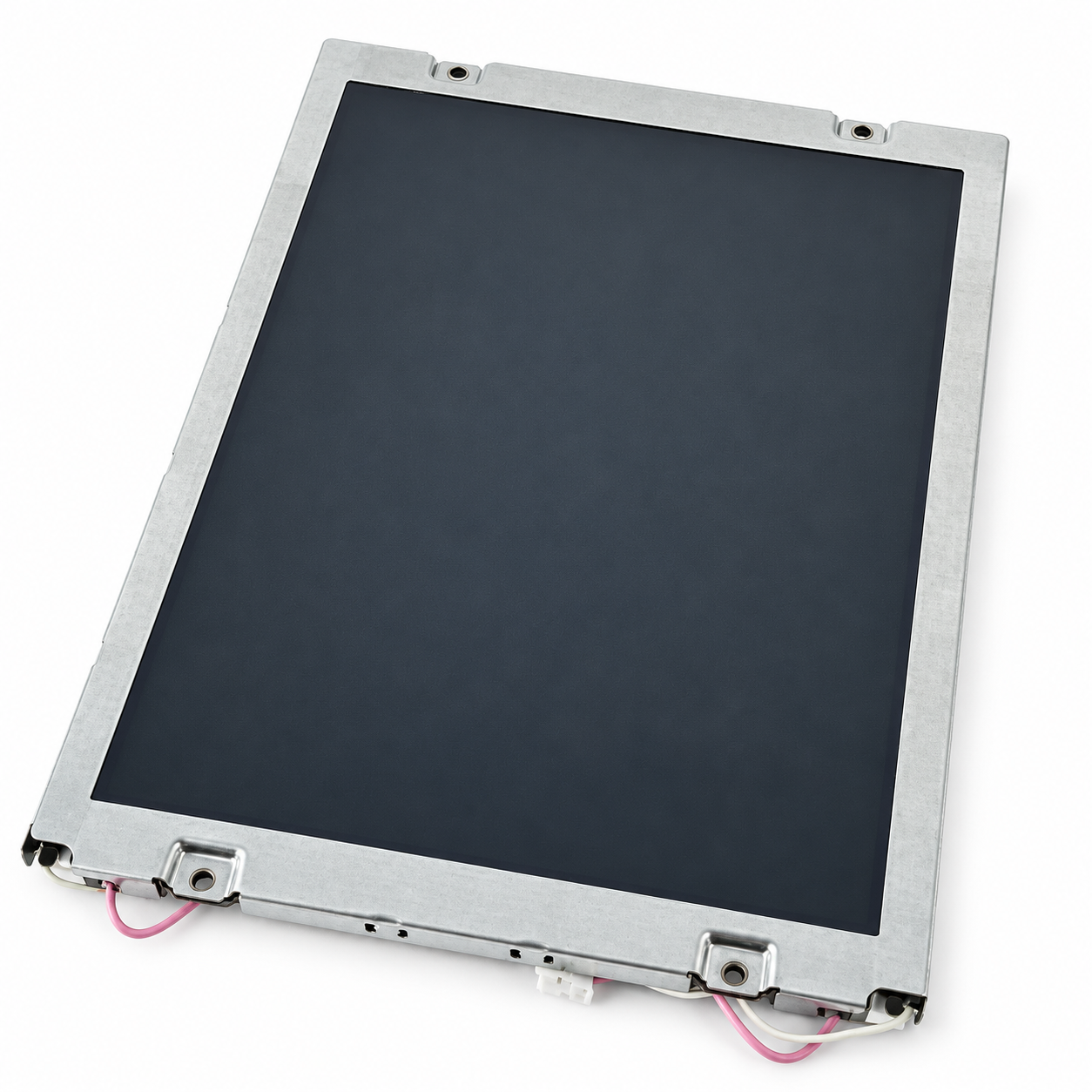

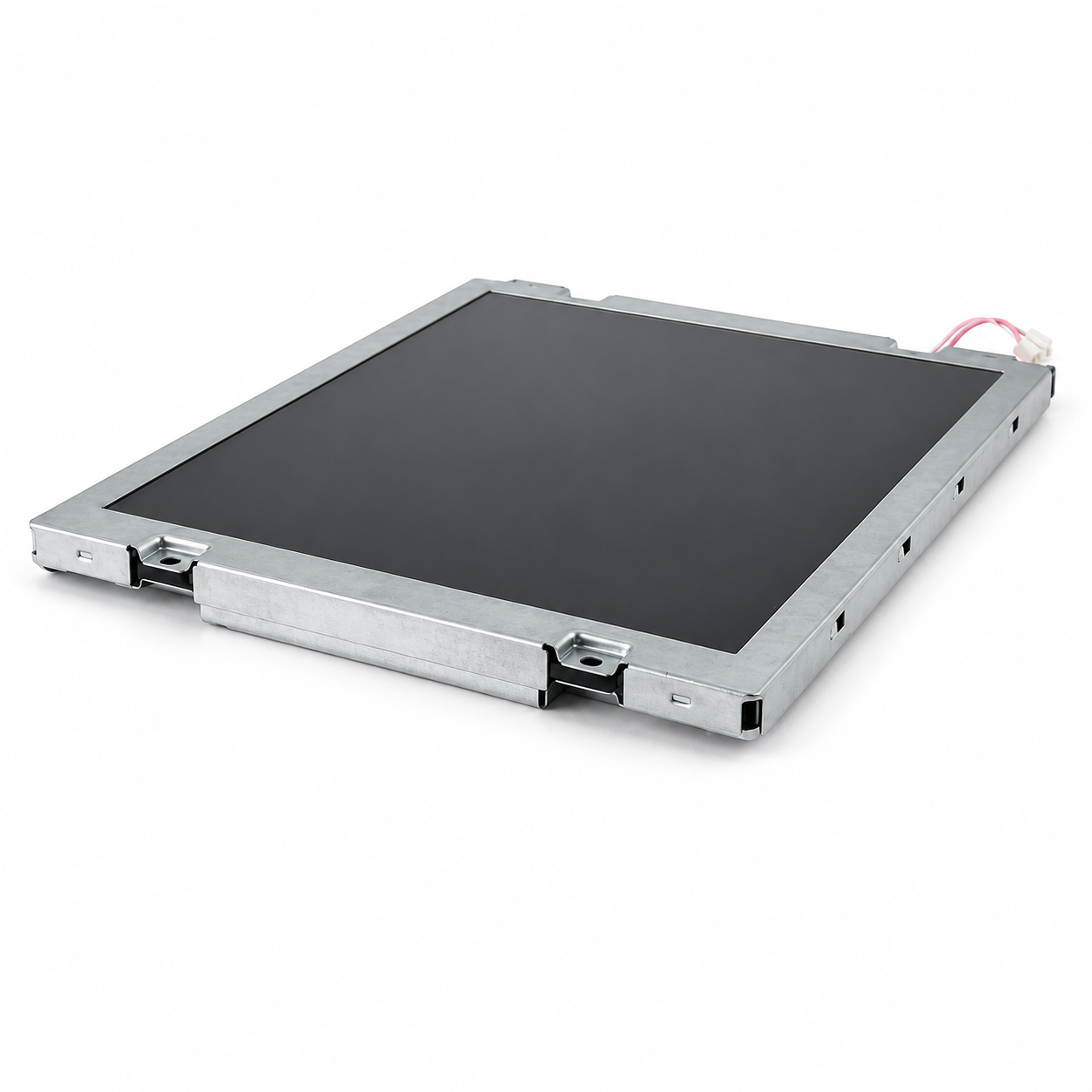

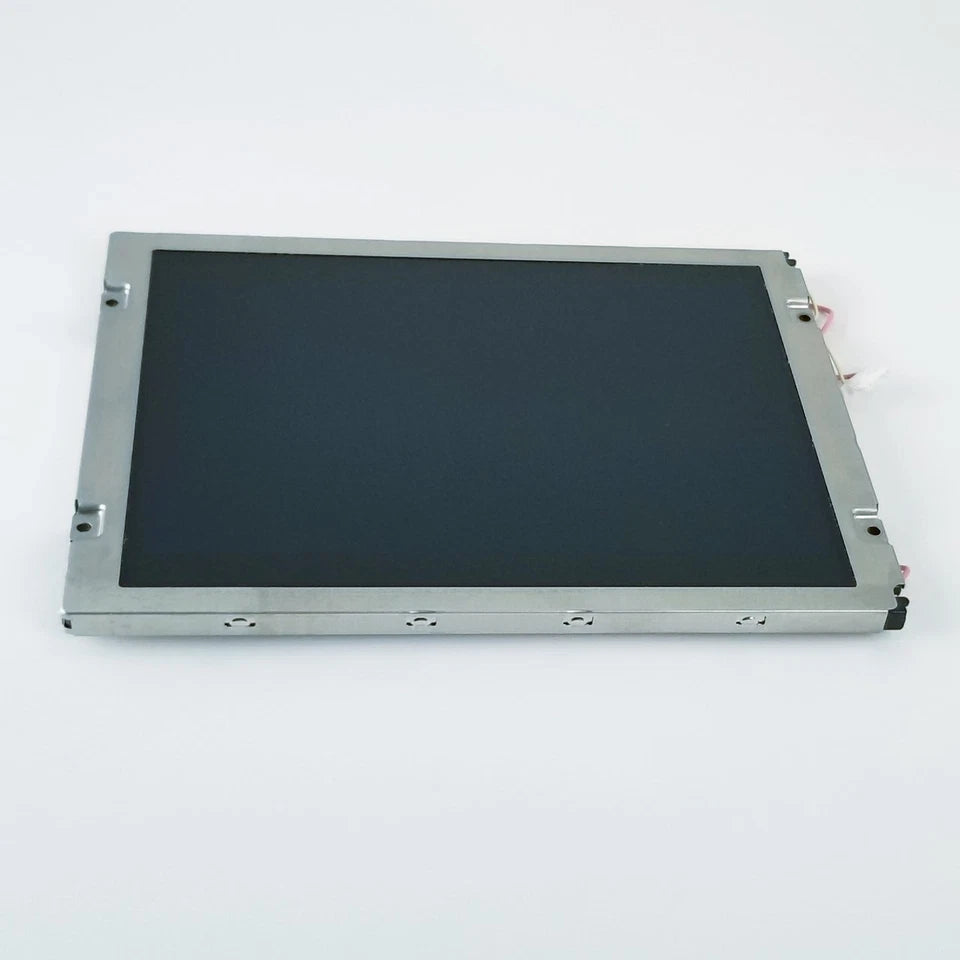

โข Product type: Internal TFT LCD display module ย
โข Manufacturer: Mitsubishi Electric ย
โข LCD part number: AA084VC03 ย
โข Screen size: 8.4 inches ย
โข Resolution: 640 ร 480 VGA ย
โข Color depth: 262,144 colors ย
โข Display mode: Normally white ย
โข Active display area: Approximately 170.9 ร 128.2 mm ย
โข Module dimensions: Approximately 199.5 ร 149 ร 11.5 mm ย
โข LCD supply voltage: 3.3V ย
โข Backlighting: Dual CCFL ย
โข Interface: 31-pin digital interface ย
โข Touchscreen: No ย
โข Installation position: Inside the chartplotter display assembly ย
๐๐ถ๐๐บ๐ฒ๐ป๐ ๐๐ป๐ฑ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐ถ๐น๐ถ๐๐
Designed for:
โข Raymarine C80 C-Series Classic multifunction chartplotter ย
โข Raymarine product number E02020 ย
โข Units originally equipped with Mitsubishi LCD part number AA084VC03 ย
Marine-electronics compatibility is determined by the equipment model and original screen number rather than the vesselโs year, make, or model.
๐ก๐ผ๐ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐น๐ฒ ๐ช๐ถ๐๐ต
โข Raymarine C70 Classic ย
โข Raymarine C120 Classic ย
โข Raymarine C80W widescreen ย
โข Raymarine E80 or E120 ย
โข Displays using a different LCD part number, connector, pin configuration, or mounting arrangement ย
โข AA084VC01, AA084VC02, AA084VC04, or AA084VC05 unless interchangeability has been independently confirmed ย
๐๐บ๐ฝ๐ผ๐ฟ๐๐ฎ๐ป๐ ๐ฉ๐ฒ๐ฟ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป
Open the original unit and confirm that the existing LCD is marked AA084VC03. Screen size and resolution alone do not guarantee compatibility. Compare the part number, connector, mounting points, dimensions, and backlight connections before ordering.
๐๐ผ๐บ๐บ๐ผ๐ป ๐ฃ๐ฟ๐ผ๐ฏ๐น๐ฒ๐บ๐ ๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ ๐ฎ๐ ๐ฅ๐ฒ๐ฝ๐ฎ๐ถ๐ฟ
โข Cracked or physically damaged LCD ย
โข Black spots or liquid-crystal bleeding ย
โข Missing sections of the image ย
โข Permanent vertical or horizontal lines caused by LCD failure ย
โข Distorted or unreadable graphics caused by a defective panel ย
๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ช๐ถ๐น๐น ๐ก๐ผ๐ ๐ฅ๐ฒ๐ฝ๐ฎ๐ถ๐ฟ
โข A chartplotter that does not power on ย
โข Failed mainboard or power-supply circuitry ย
โข Failed backlight inverter ย
โข Keypad or control-button problems ย
โข Damaged front lens, bezel, or housing ย
โข GPS, radar, sonar, chart-card, SeaTalk, or NMEA communication faults ย
โข Wiring, antenna, scanner, transducer, or external sensor problems ย
A dark or extremely dim picture may be caused by the CCFL backlight, inverter, power circuit, or LCD. Proper diagnosis is recommended before ordering.
๐๐ผ๐ป๐ฑ๐ถ๐๐ถ๐ผ๐ป
The original listing categorizes this item as New โ Open Box. However, the sellerโs description also states that some discontinued original screens may be supplied as tested used components. Please confirm the condition of the exact screen being shipped if an unused panel is required.
๐๐ป๐๐๐ฎ๐น๐น๐ฎ๐๐ถ๐ผ๐ป
This is an internal repair component requiring complete disassembly of the chartplotter. Installation instructions are not included. Professional electronics installation is strongly recommended.
Disconnect vessel power before servicing. Use electrostatic-discharge protection, handle the ribbon cable and CCFL connections carefully, and inspect the housing gasket and seals before reassembly. Test the display before completely closing and reinstalling the unit.
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ป๐ฐ๐น๐๐ฑ๐ฒ๐
โข One Mitsubishi AA084VC03 8.4-inch LCD module ย
๐ก๐ผ๐ ๐๐ป๐ฐ๐น๐๐ฑ๐ฒ๐ฑ
โข Complete Raymarine C80 chartplotter ย
โข Front lens, bezel, buttons, or housing ย
โข Main circuit board or backlight inverter ย
โข Mounting bracket or sun cover ย
โข Power/data cables ย
โข Chart card, GPS antenna, radar scanner, sonar module, or transducer ย
โข Installation tools or instructions
