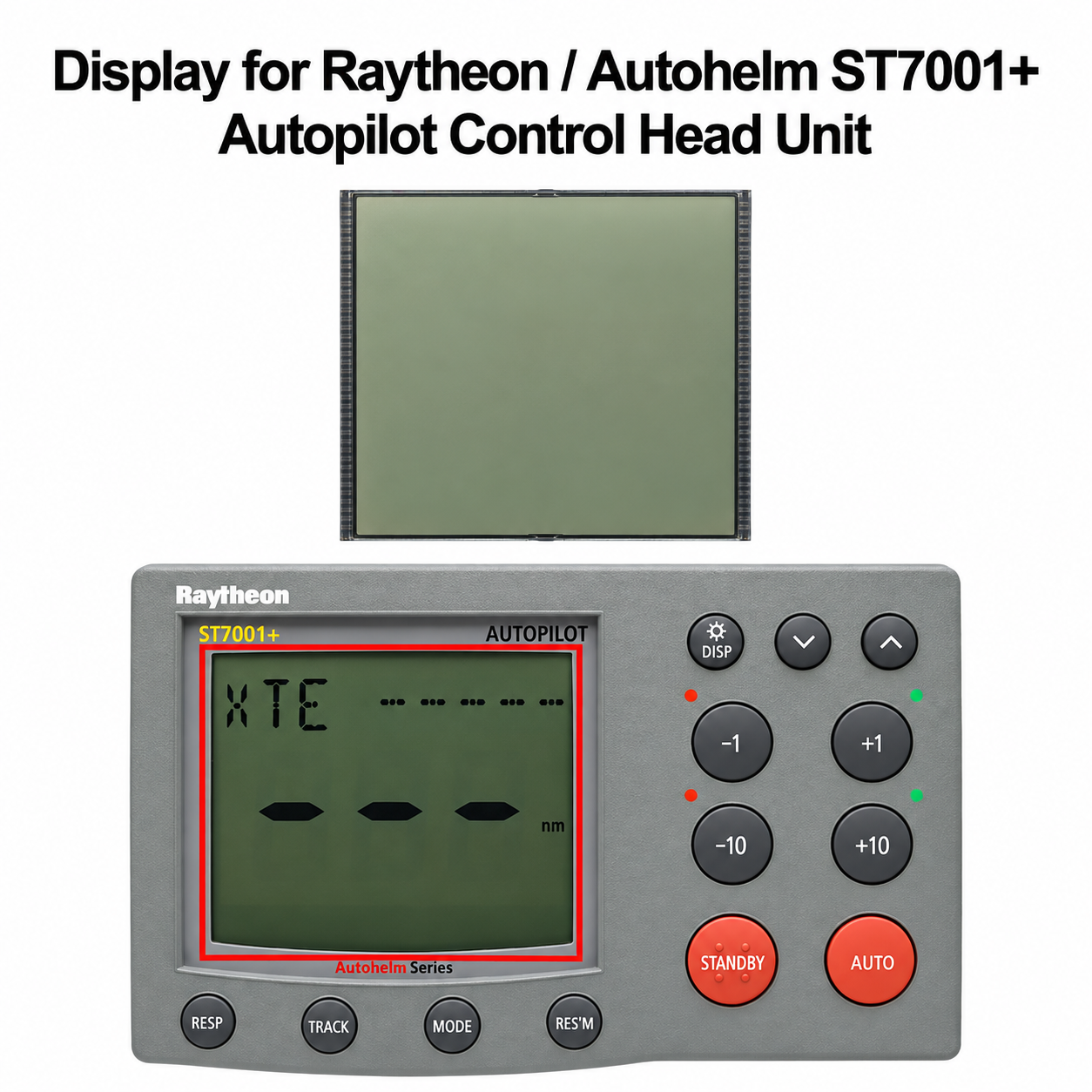

Autopilot LCD Screen for Raymarine ST7000+ ST7001+ ST7002+ E12099 A12001
Restore a faded, sun-damaged, cracked, or unreadable autopilot display with this replacement LCD screen for compatible Raymarine, Raytheon, and Autohelm ST7000-series control heads.
This is an internal repair component supplied with two conductive elastomer strips. It is not a complete autopilot control head.
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฎ๐ถ๐น๐
โข Product type: Replacement autopilot LCD screen ย
โข Application: Marine autopilot control-head repair ย

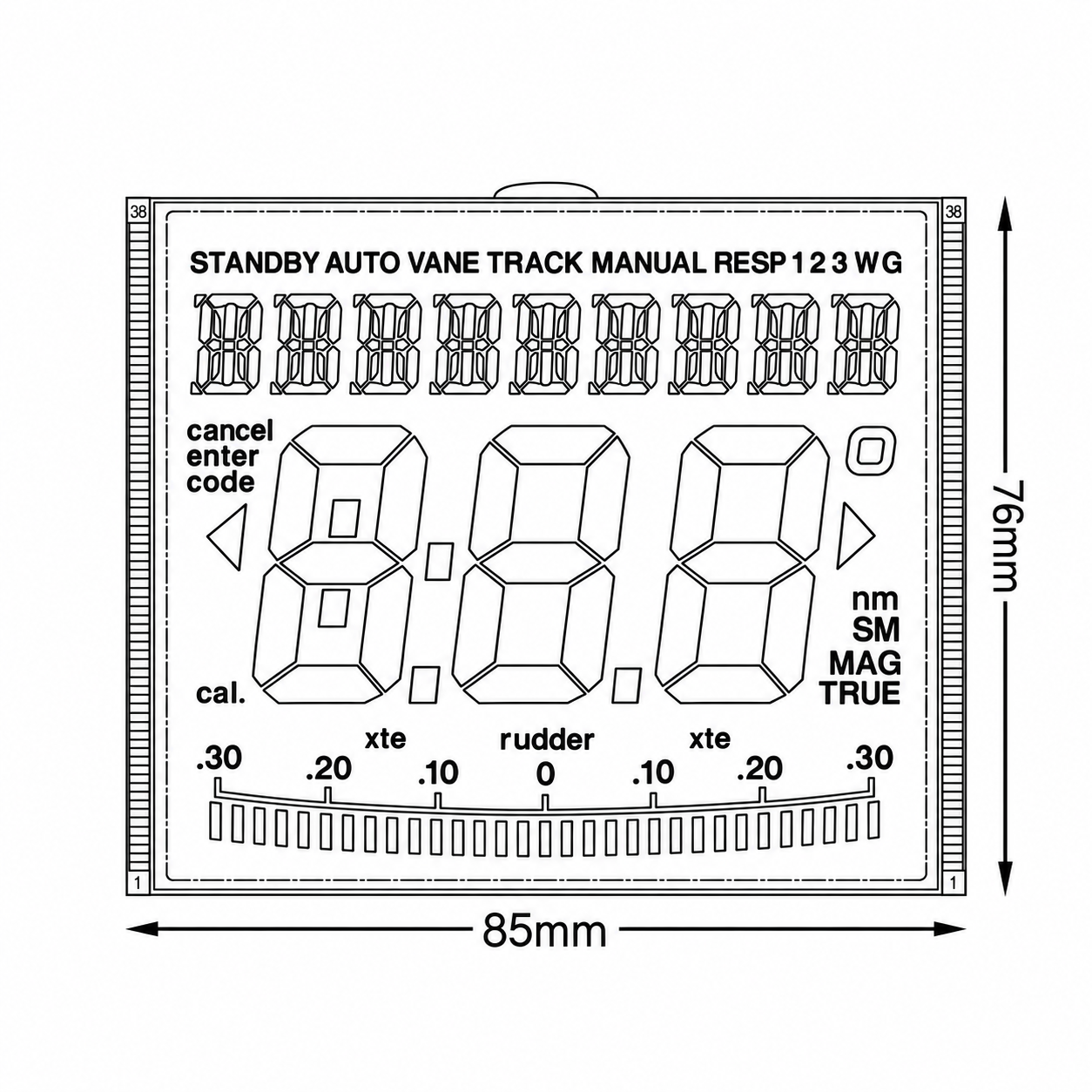

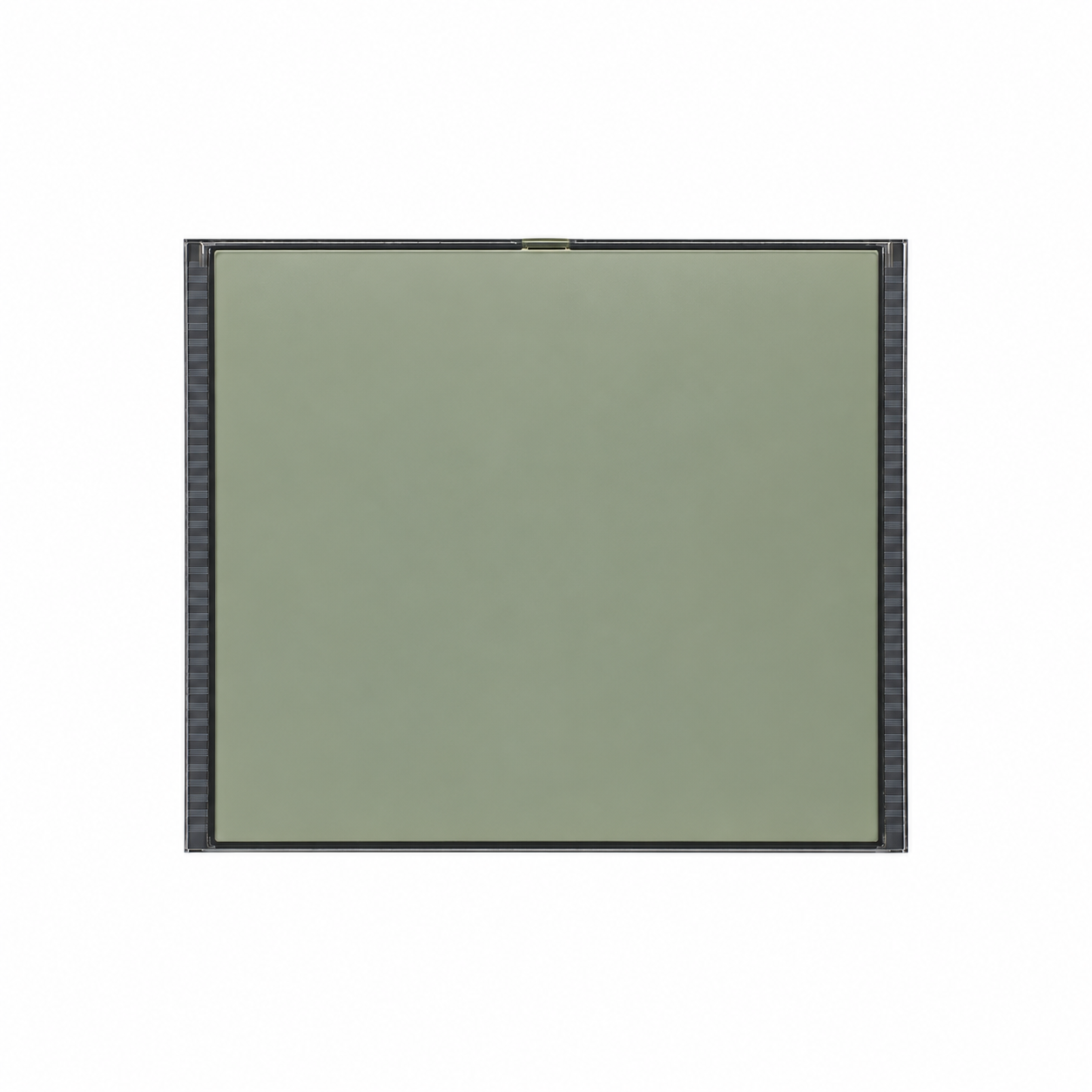

โข Screen dimensions: Approximately 85 ร 76 mm ย
โข Display type: Monochrome segmented LCD ย

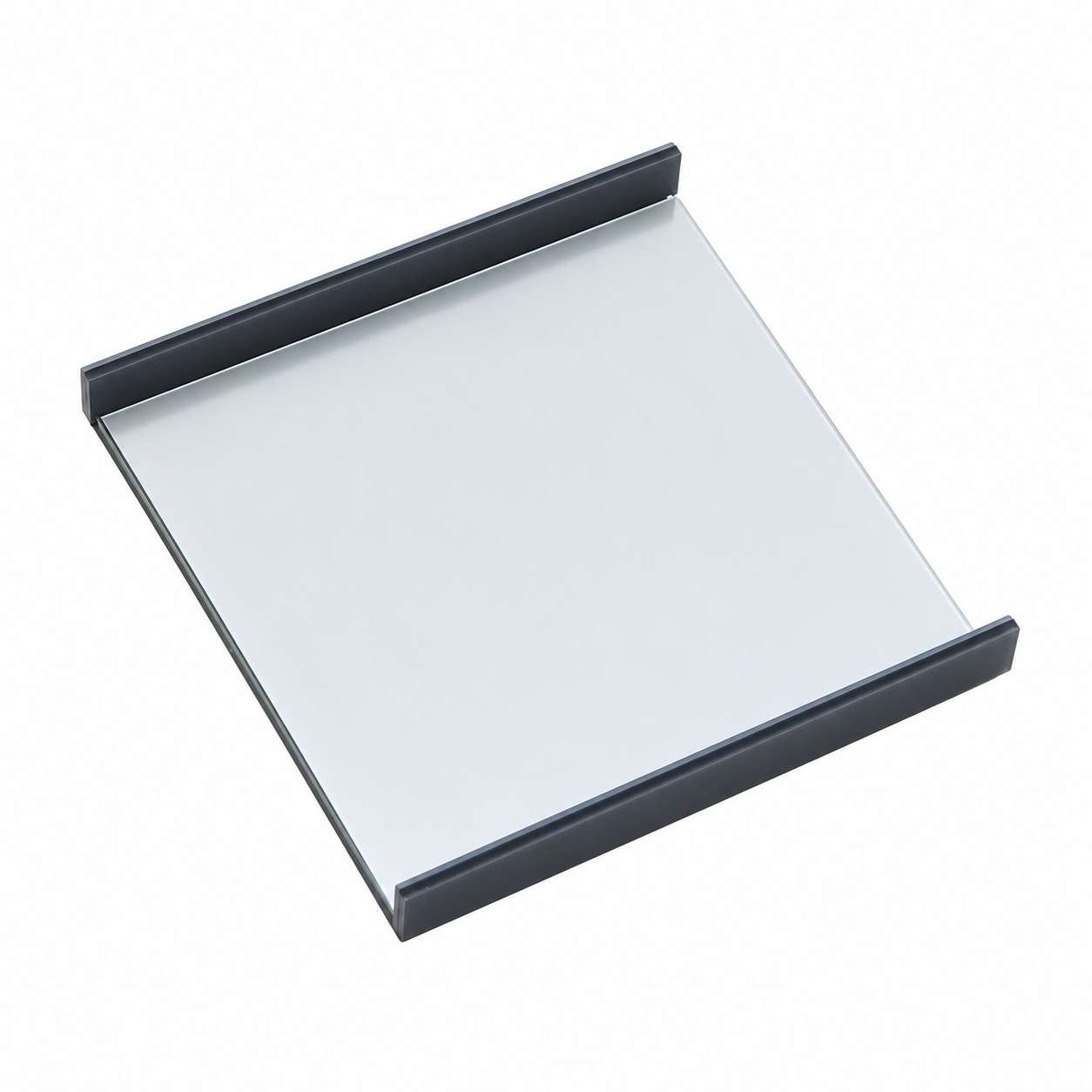

โข Connection method: Conductive elastomer strips ย
โข Condition: New ย
โข Quantity: One LCD screen ย
โข Installation location: Inside the autopilot control head ย
โข Brand: Aftermarket replacement component ย
๐๐ถ๐๐บ๐ฒ๐ป๐ ๐๐ป๐ฑ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐ถ๐น๐ถ๐๐
Designed for compatible versions of:
โข Raymarine ST7000+ autopilot control head ย
โข Raytheon ST7000+ autopilot control head ย
โข Autohelm ST7000+ autopilot control head ย
โข Raymarine ST7001+ autopilot control head ย
โข Raymarine ST7002+ autopilot control head ย
๐ฅ๐ฒ๐ณ๐ฒ๐ฟ๐ฒ๐ป๐ฐ๐ฒ ๐ก๐๐บ๐ฏ๐ฒ๐ฟ๐
โข A12001 โ ST7000+ control-head reference ย
โข E12099 / E12099-P โ ST7001+ or ST7002+ surface-mount control-head reference, depending on production generation and branding ย
โข A18004 โ Original ST7000+ display-kit reference; supplied by Raymarine as a larger kit containing multiple display components ย
These numbers identify the associated control head or original repair kit. They are not necessarily printed on the aftermarket replacement LCD.
๐๐บ๐ฝ๐ผ๐ฟ๐๐ฎ๐ป๐ ๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐ถ๐น๐ถ๐๐ ๐๐ต๐ฒ๐ฐ๐ธ
Raymarine used similar-looking control heads across several generations. Before ordering, open the control head and compare:
โข LCD dimensions ย
โข Segment and icon arrangement ย
โข Contact locations ย
โข Conductive-strip positions ย
โข Internal housing and reflector design ย
โข Model and product number on the rear identification label ย
Do not order solely from the appearance of the front panel. ST7000 models without the plus symbol may use a different display.
๐๐ผ๐บ๐บ๐ผ๐ป ๐ฃ๐ฟ๐ผ๐ฏ๐น๐ฒ๐บ๐ ๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ ๐ฎ๐ ๐ฅ๐ฒ๐ฝ๐ฎ๐ถ๐ฟ
โข Yellowed or darkened LCD ย
โข Sun or heat damage ย
โข Delaminated display layers ย
โข Bubbles, wrinkles, or blotches inside the screen ย
โข Cracked LCD glass ย
โข Faded or unreadable characters ย
โข Missing display segments caused by a defective LCD or deteriorated conductive strips ย
โข Poor contrast that remains after adjustment ย
๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ช๐ถ๐น๐น ๐ก๐ผ๐ ๐ฅ๐ฒ๐ฝ๐ฎ๐ถ๐ฟ
โข A control head that does not power on ย
โข Failed PCB or internal power-supply components ย
โข Defective illumination lamps or backlighting ย
โข Damaged keypad or buttons ย
โข SeaTalk or NMEA communication faults ย
โข Course-computer, compass, rudder-reference, or drive-unit problems ย
โข Water-damaged electronics ย
โข Corroded wiring or external connectors ย
Diagnose the control head before ordering. Missing segments can also result from dirty contacts, incorrect assembly pressure, PCB damage, or improperly positioned conductive strips.
๐๐ป๐๐๐ฎ๐น๐น๐ฎ๐๐ถ๐ผ๐ป
Installation requires disassembling the autopilot control head and correctly aligning the LCD, reflector, surround, and conductive strips. Soldering is not normally required for the LCD connection, but careful handling and accurate reassembly are essential.
โข Disconnect vessel power before beginning ย
โข Use electrostatic-discharge protection ย
โข Photograph the original component positions before removal ย
โข Do not touch the LCD contact edges with bare fingers ย
โข Clean contact areas with an electronics-safe method ย
โข Align both conductive strips evenly ย
โข Tighten the housing uniformly without overtightening ย
โข Inspect the case seal and bulkhead gasket before reassembly ย
โข Test every display segment and control-head function before returning the vessel to service ย
Raymarineโs ST7000+ service information recommends replacing the case seal during reassembly. Maintaining the unitโs weather resistance is especially important in a marine installation.
Professional marine-electronics installation is recommended if you are not experienced with instrument-panel repairs.
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ป๐ฐ๐น๐๐ฑ๐ฒ๐

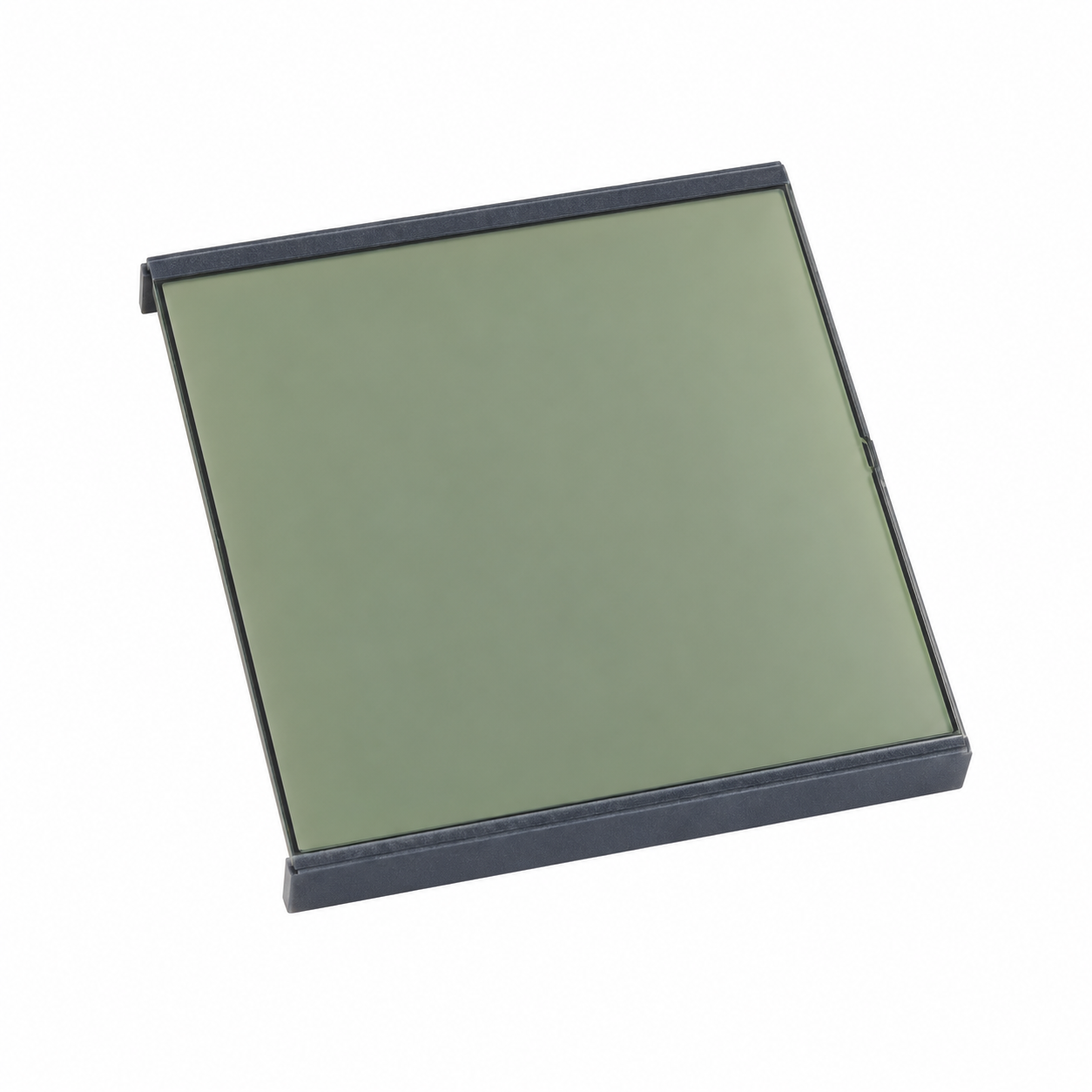

โข One replacement LCD screen ย
โข Two conductive elastomer strips ย
๐ก๐ผ๐ ๐๐ป๐ฐ๐น๐๐ฑ๐ฒ๐ฑ
โข Complete Raymarine autopilot control head ย
โข Front fascia, keypad, LCD surround, reflector, or diffuser ย
โข PCB or rear housing ย
โข Case seal or bulkhead gasket ย
โข Backlight components ย
โข Course computer, compass, drive unit, or rudder sensor ย
โข Cables, mounting hardware, tools, or installation instructions ย
๐ฆ๐ฎ๐ณ๐ฒ๐๐ ๐ก๐ผ๐๐ถ๐ฐ๐ฒ
An autopilot is a navigation aid and must not replace attentive manual supervision. After installation, thoroughly test the control head, alarms, steering response, standby function, and autopilot operation before normal use.
