LCD Display Screen for 2000-2002 Honda Rancher 350 TRX350TE 37200-HN4-U11
Restore a faded, cracked, or unreadable digital meter with this replacement LCD screen for compatible 2000–2002 Honda FourTrax Rancher 350 TRX350TE Electric Shift ATVs.

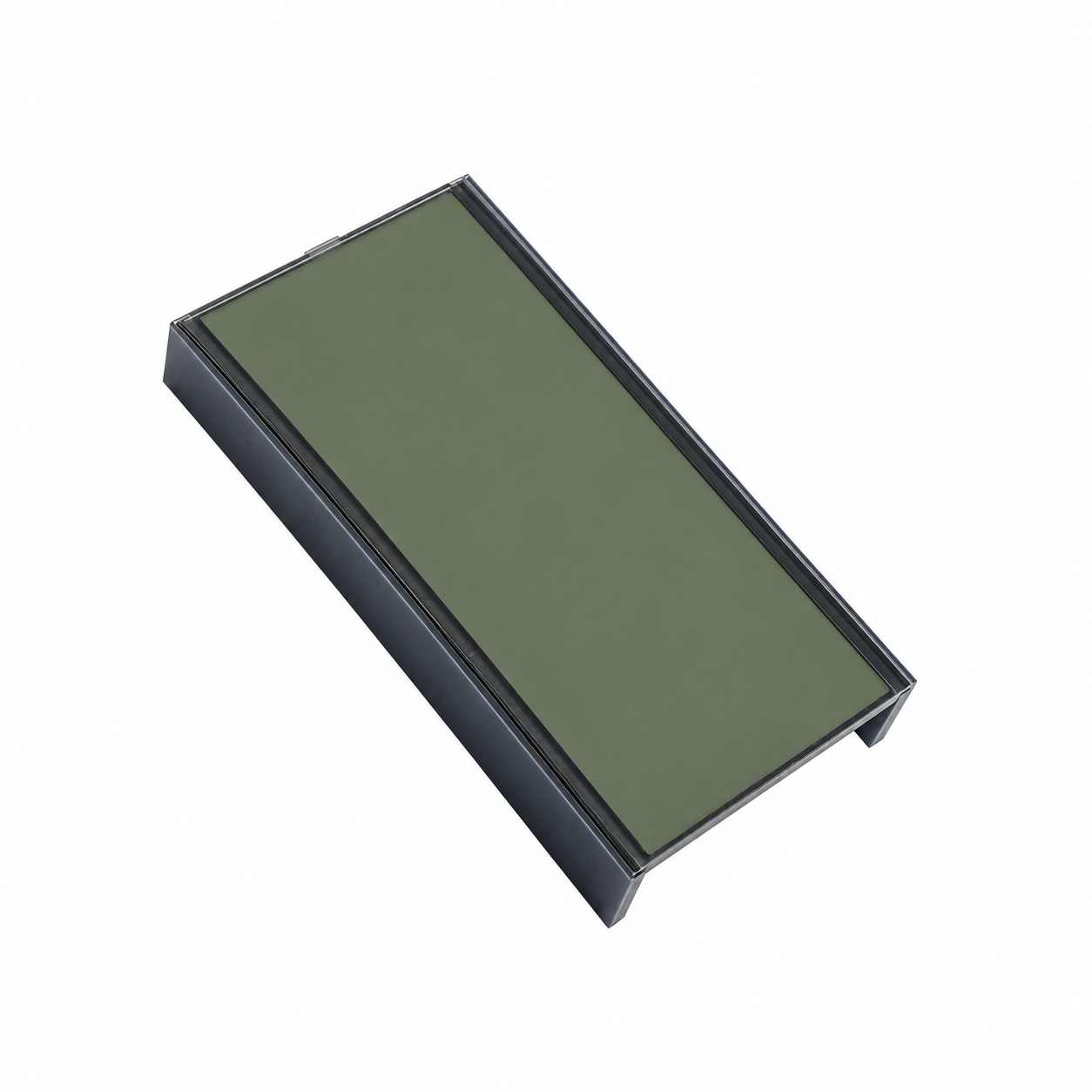

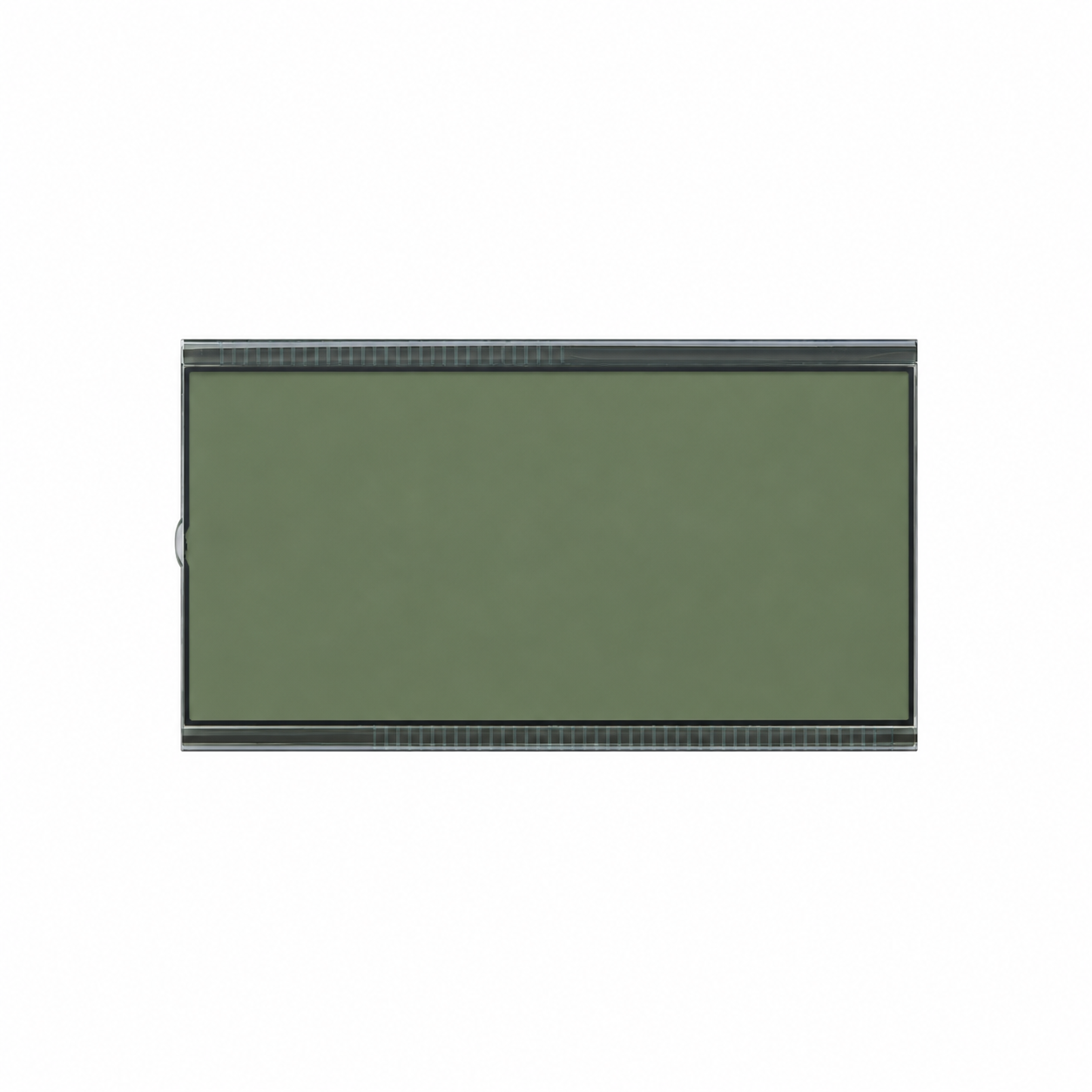

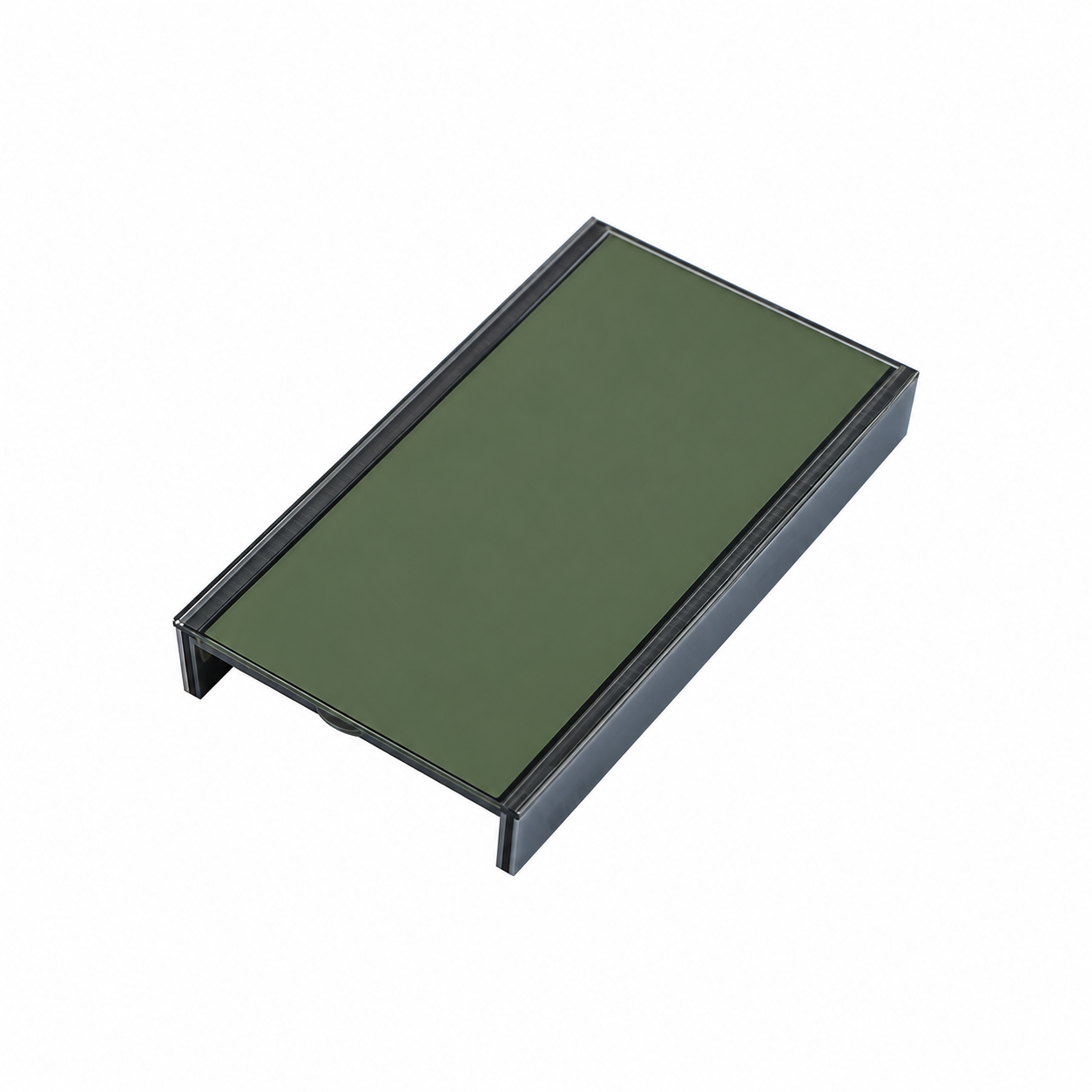

This listing is for the internal LCD screen and two conductive strips only. It is not a complete speedometer, combination meter, or instrument cluster.
𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀
• Product type: Replacement combination-meter LCD screen
• Application: ATV digital speedometer and information-display repair

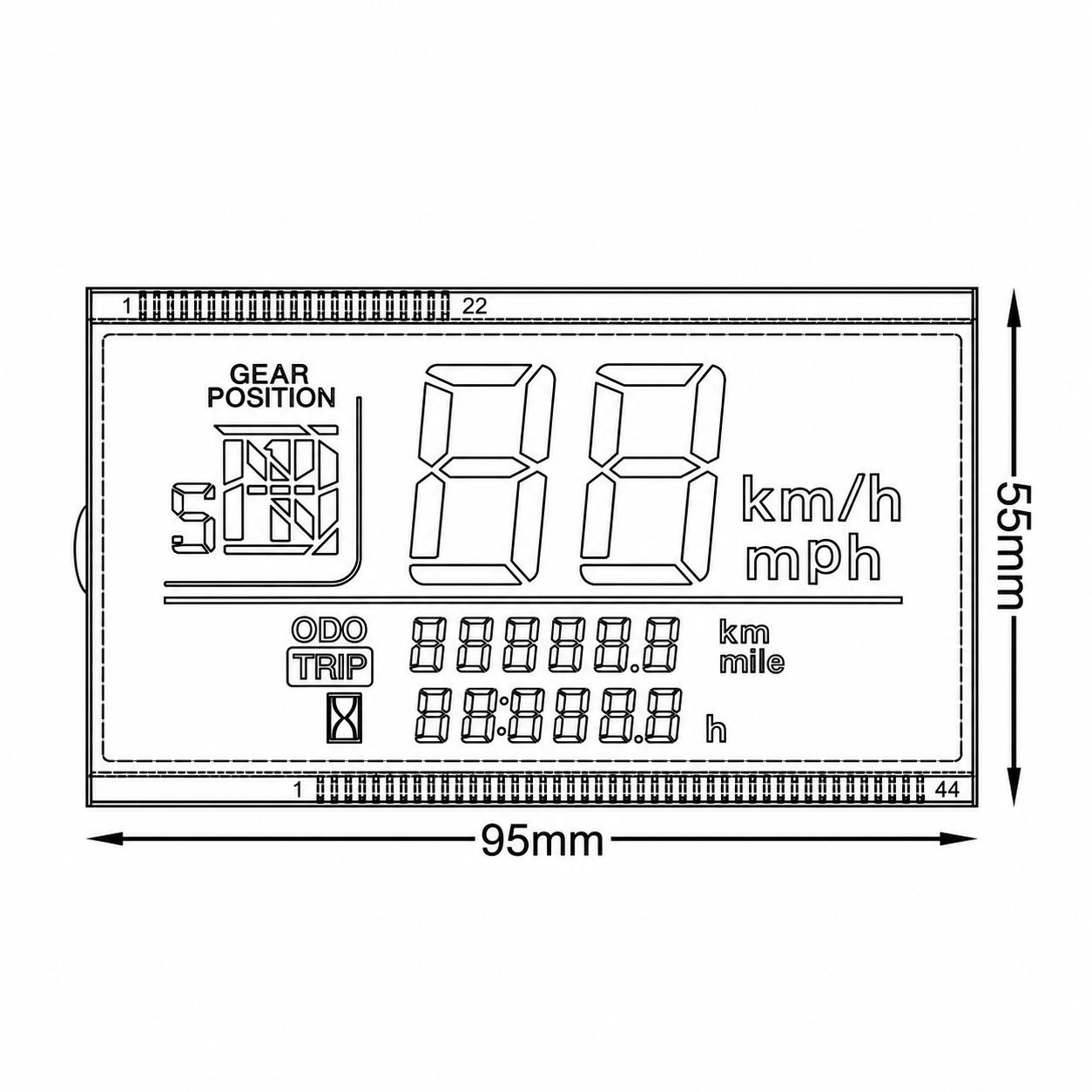

• Display dimensions: Approximately 95 × 55 mm
• Display type: Monochrome segmented LCD

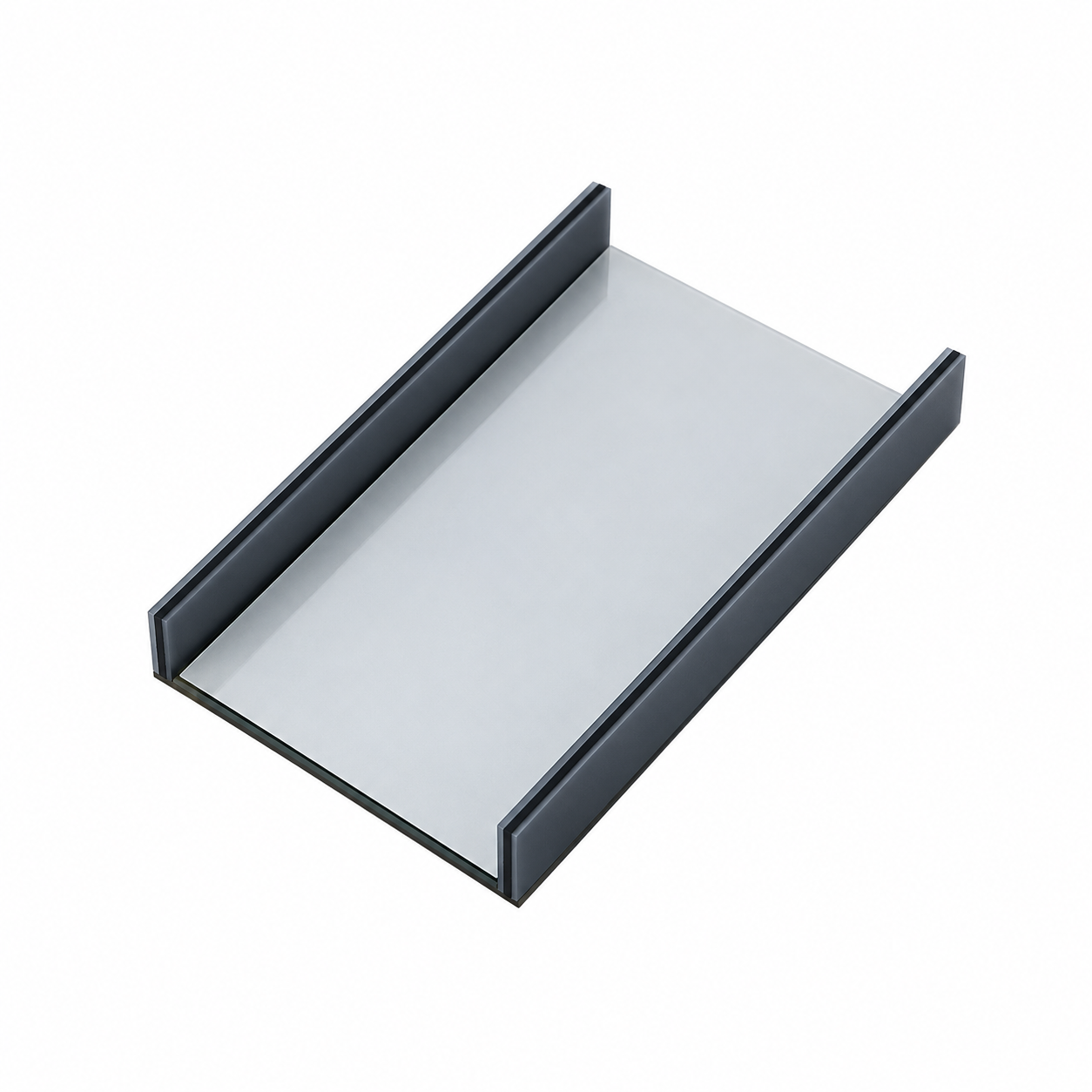

• Connection method: Conductive elastomer strips
• Condition: New
• Brand: Aftermarket replacement component
• Compatible display scales: Seller states both mph and km/h versions
• Installation position: Inside the original combination-meter assembly
𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗔𝗻𝗱 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆
• 2000 Honda FourTrax Rancher 350 TRX350TE 2×4 ES
• 2001 Honda FourTrax Rancher 350 TRX350TE 2×4 ES
• 2002 Honda FourTrax Rancher 350 TRX350TE 2×4 ES
TRX350TE identifies the two-wheel-drive Rancher equipped with Honda’s Electric Shift Program.
𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲 𝗣𝗮𝗿𝘁 𝗡𝘂𝗺𝗯𝗲𝗿
• 37200-HN4-U11 – Honda combination-meter assembly reference used on certain 2000–2002 TRX350TE applications and markets
This number identifies the complete Honda meter assembly, not the aftermarket LCD screen by itself.
Some North American parts catalogs show 37200-HN4-A11 instead of 37200-HN4-U11. Because meter numbers can vary by country, speed scale, and production specification, compare the original meter before ordering.
𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗖𝗵𝗲𝗰𝗸
Before ordering, verify all of the following:
• Model code is TRX350TE
• ATV uses the Electric Shift system
• Model year is 2000, 2001, or 2002
• LCD measures approximately 95 × 55 mm
• Display symbols and segment arrangement match the listing photos
• Conductive-strip positions match the original screen
• Original meter housing and circuit board are reusable
The displayed units may vary between mph and km/h versions. Confirm that the symbols and scale arrangement match your original meter.
𝗡𝗼𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗹𝗲 𝗪𝗶𝘁𝗵
• TRX350TM 2×4 manual-shift models
• TRX350FM 4×4 manual-shift models
• TRX350FE 4×4 Electric Shift models unless the original LCD has been directly compared
• 2003–2006 TRX350TE meters using a different display or meter assembly
• TRX300, TRX400, TRX420, or TRX450 models
• Analog-only speedometers
• Any meter with a different LCD shape, segment layout, or contact arrangement

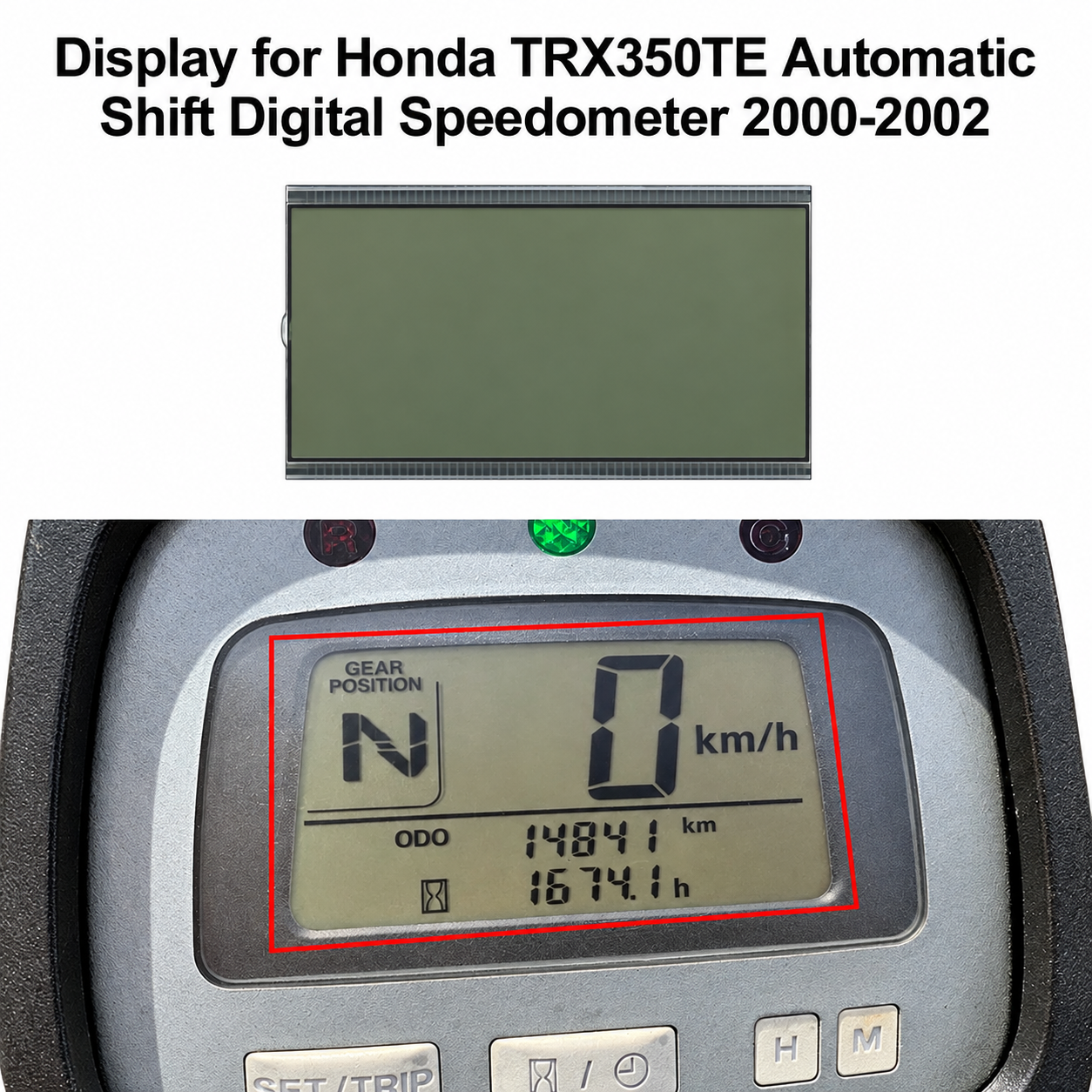

The complete meter shown in the product photos is used only to demonstrate the application and is not included.
𝗘𝗯𝗮𝘆 𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗖𝗼𝗿𝗿𝗲𝗰𝘁𝗶𝗼𝗻
The original eBay compatibility table includes TRX350FE, TRX350FM, and TRX350TM models. That table conflicts with the seller’s detailed product description, which specifies the 2000–2002 TRX350TE Electric Shift application.
The manual-shift FM and TM models should be removed from the compatibility table. Compatibility with the FE 4×4 Electric Shift meter should not be claimed for this specific LCD without direct dimensional and segment-layout verification.

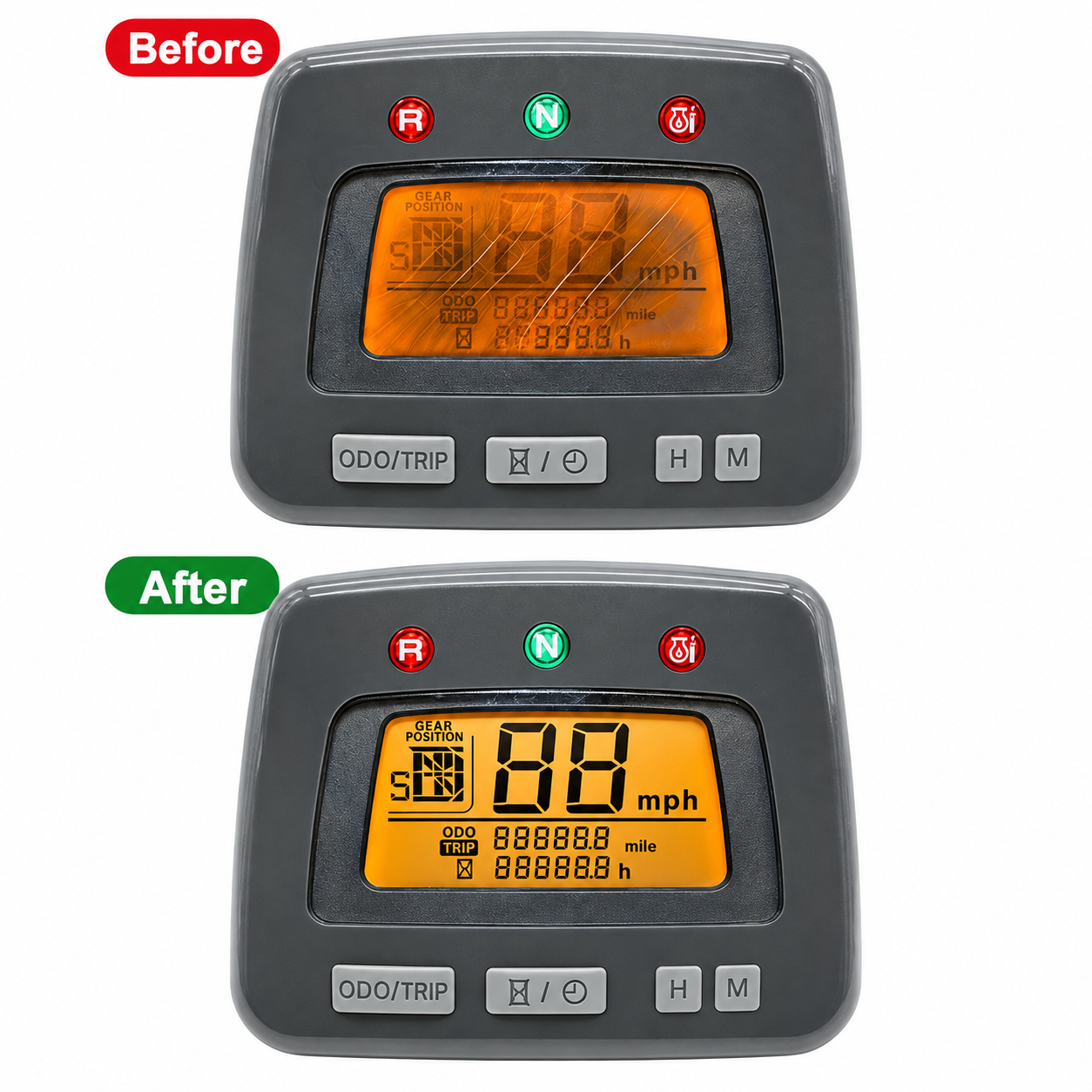

𝗖𝗼𝗺𝗺𝗼𝗻 𝗣𝗿𝗼𝗯𝗹𝗲𝗺𝘀 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗠𝗮𝘆 𝗥𝗲𝗽𝗮𝗶𝗿
• Sun-faded or unreadable LCD
• Cracked LCD glass
• Black spots or liquid-crystal bleeding
• Missing display areas caused by internal LCD failure
• Damaged or delaminated polarizer layers
• Intermittent segments caused by deteriorated conductive strips
• Display remains too dark or light despite otherwise functional electronics
𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿
• Combination meter does not receive power
• Damaged meter circuit board
• Failed speed sensor
• Incorrect or missing speed reading caused by wiring
• Electric Shift system faults
• Gear-position or shift-control problems
• Failed backlighting or illumination circuitry
• Corroded connectors or wiring harness
• Water-damaged electronics
• Cracked housing or clear outer lens
Missing segments can also result from contaminated contacts, incorrectly positioned conductive strips, insufficient assembly pressure, or circuit-board damage. Diagnose the original meter before ordering.
𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻
Installation requires removing and disassembling the original combination meter.
• Disconnect the battery before removing the meter
• Clean the exterior before opening the housing
• Photograph the original component positions
• Use electrostatic-discharge protection
• Avoid touching the LCD contact edges
• Clean the contact surfaces using an electronics-safe method
• Position both conductive strips evenly
• Do not force the LCD into the carrier
• Compare the replacement with the original before trimming or modifying anything
• Inspect the housing seal before reassembly
• Test every display segment before permanently closing the housing
Some installations may require minor adjustment or trimming of the internal plastic carrier. Carefully compare both screens before making any permanent modification. Professional installation is recommended if you are unfamiliar with sealed instrument-cluster repairs.

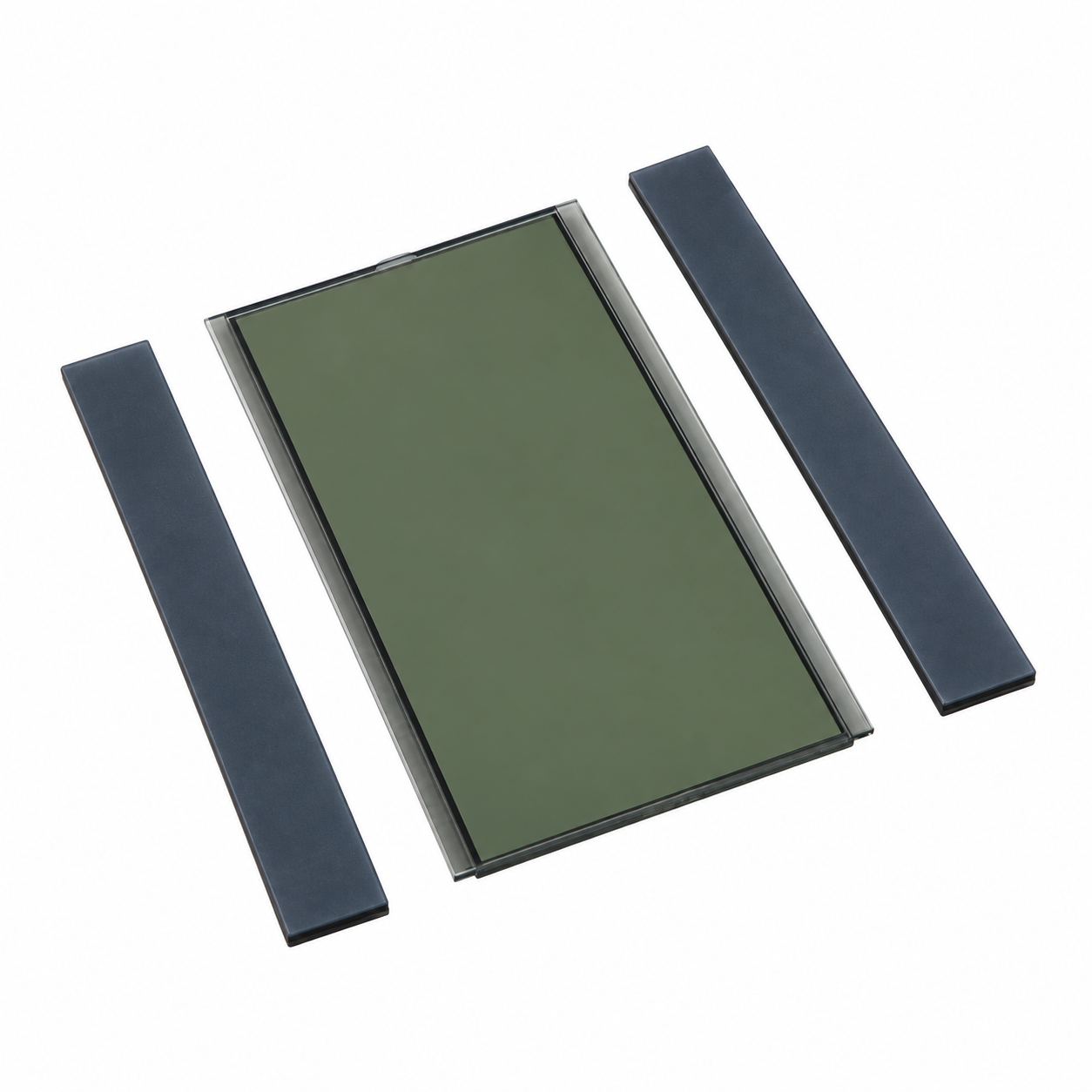

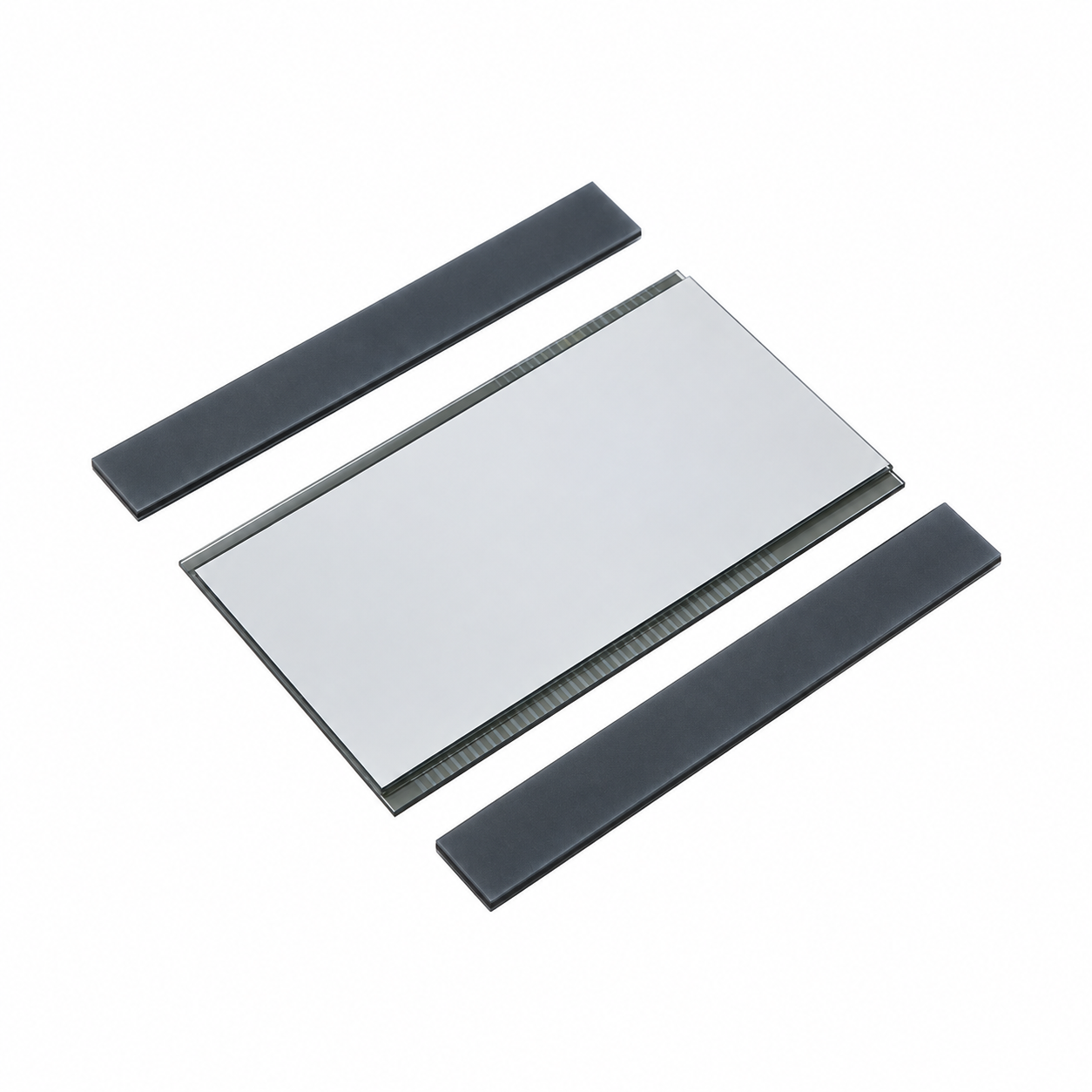

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝘀
• One replacement LCD screen
• Two conductive elastomer strips
𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱
• Complete speedometer or combination meter
• Circuit board
• Meter housing or clear lens
• Indicator needle or analog gauge components
• Backlight or illumination components
• Wiring harness or connectors
• Speed sensor
• Mounting hardware, tools, or installation service
