LCD Display Repair Service for Raymarine RL70C Plus Pathfinder 7-inch Radar Display E52033

$ 199.95

If you are experiencing a Damaged, Discolored or Unreadable Display on your Raymarine RL70C Plus Pathfinder radar display, it is time to restore a clear, readable screen! This listing is for the purchase of (1) LCD REPLACEMENT REPAIR SERVICE for your original compatible display. You must mail your complete display to us for repair. A replacement radar display is not included.

We replace the defective internal 7-inch color LCD panel while retaining your original housing, controls and electronics. The replacement panel must match the LCD installed in your unit. This service restores the visual display; it does not add chartplotter, GPS, radar or sonar capability.

Typical Problems That Require Our Service:

Sunburned, washed-out or discolored image caused by internal LCD failure
Black spots, liquid-crystal bleeding or cracked LCD glass
Permanent vertical or horizontal lines caused by panel failure
Missing image sections, dead pixels or stuck pixels caused by a defective panel

Note: LCD replacement only. Damage to the outer front lens or anti-glare surface requires separate assessment and is not included. Mainboard, power-supply, backlight/inverter, wiring, corrosion, water-damaged electronics, bezel, keypad and trackpad faults are not included. Radar scanner, SeaTalk, NMEA, HSB², software and communication faults are not included. A blank or flickering image may require diagnosis of connections or electronics.

Service is for the Following Models:

Raymarine RL70C Plus Pathfinder — standard-brightness 7-inch color radar display
Display reference: E52033
LCD specification: 7-inch color TFT, 640 × 480, subject to verification of the installed panel and physical fitment

Confirm the original LCD label, ribbon connectors, mounting points and backlight connections before repair acceptance. E52033 identifies the complete display, not the LCD panel. This service does not automatically cover the E52033HB high-brightness version, RL70CRC radar/chartplotter displays, monochrome RL70/RL70RC, RL80, C-Series, E-Series or Axiom displays. RL70C Plus E52033 does not have the chart-card reader of the RL70CRC.

HOW DOES THIS SERVICE WORK?

1.. Use Add To Cart to purchase the service.

2.. Disconnect vessel power and carefully remove the RL70C Plus display following the manufacturer's instructions. Professional marine-electronics removal is recommended.

3.. Label and disconnect the cables, then securely package the complete display for mailing. Protect the screen, bezel and controls. Do not send the radar scanner, antenna, external modules or vessel wiring.

You will receive mailing instructions via email after purchase. Use FedEx, UPS, DHL, US Postal Service or another suitable carrier. Include your order number, a short list of symptoms and your return mailing address.

Note: Follow the emailed mailing instructions before shipping.

Mailing Address

German Audio Tech

Attn: Repair Dept.

65 Pine Ave., #337

Long Beach, CA 90802

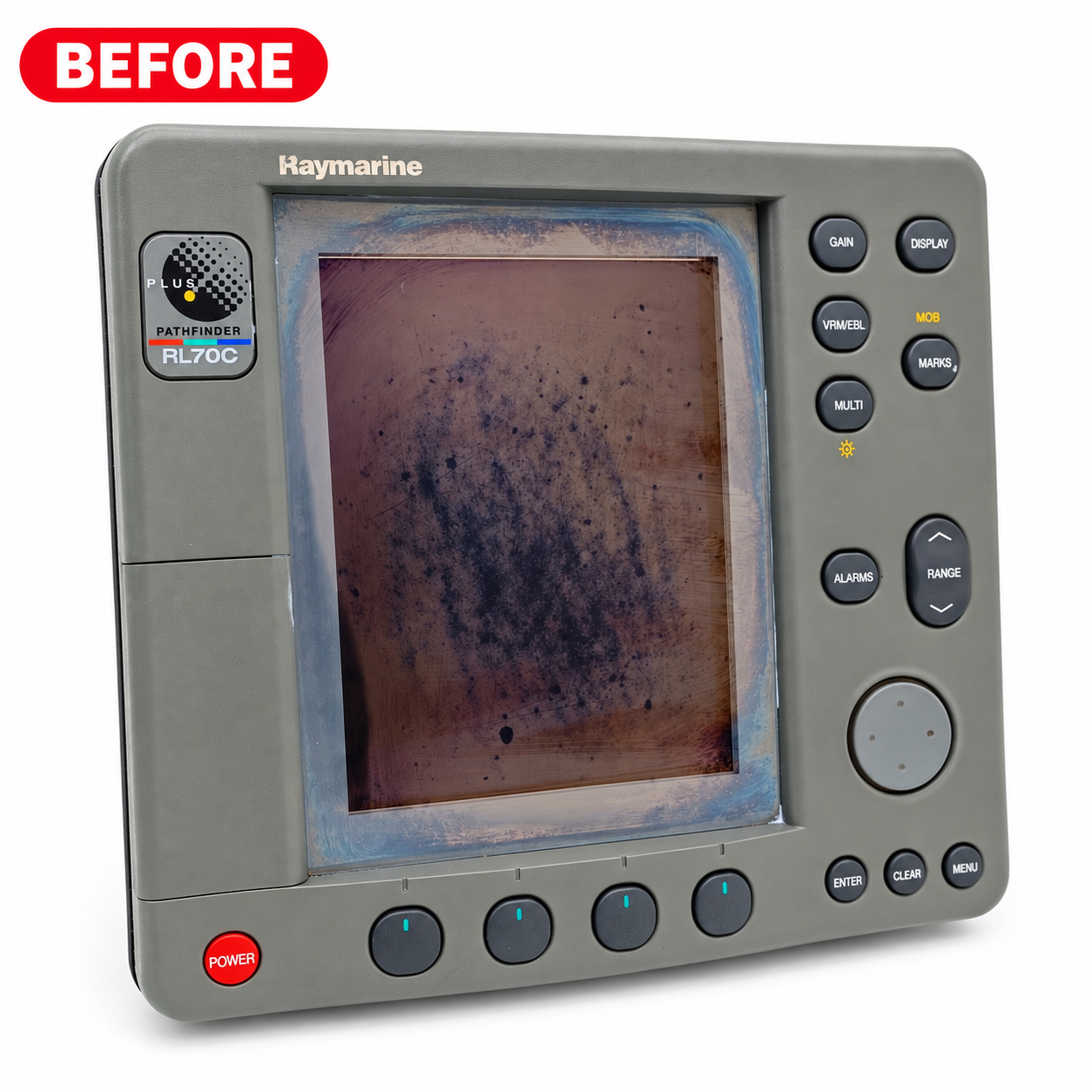

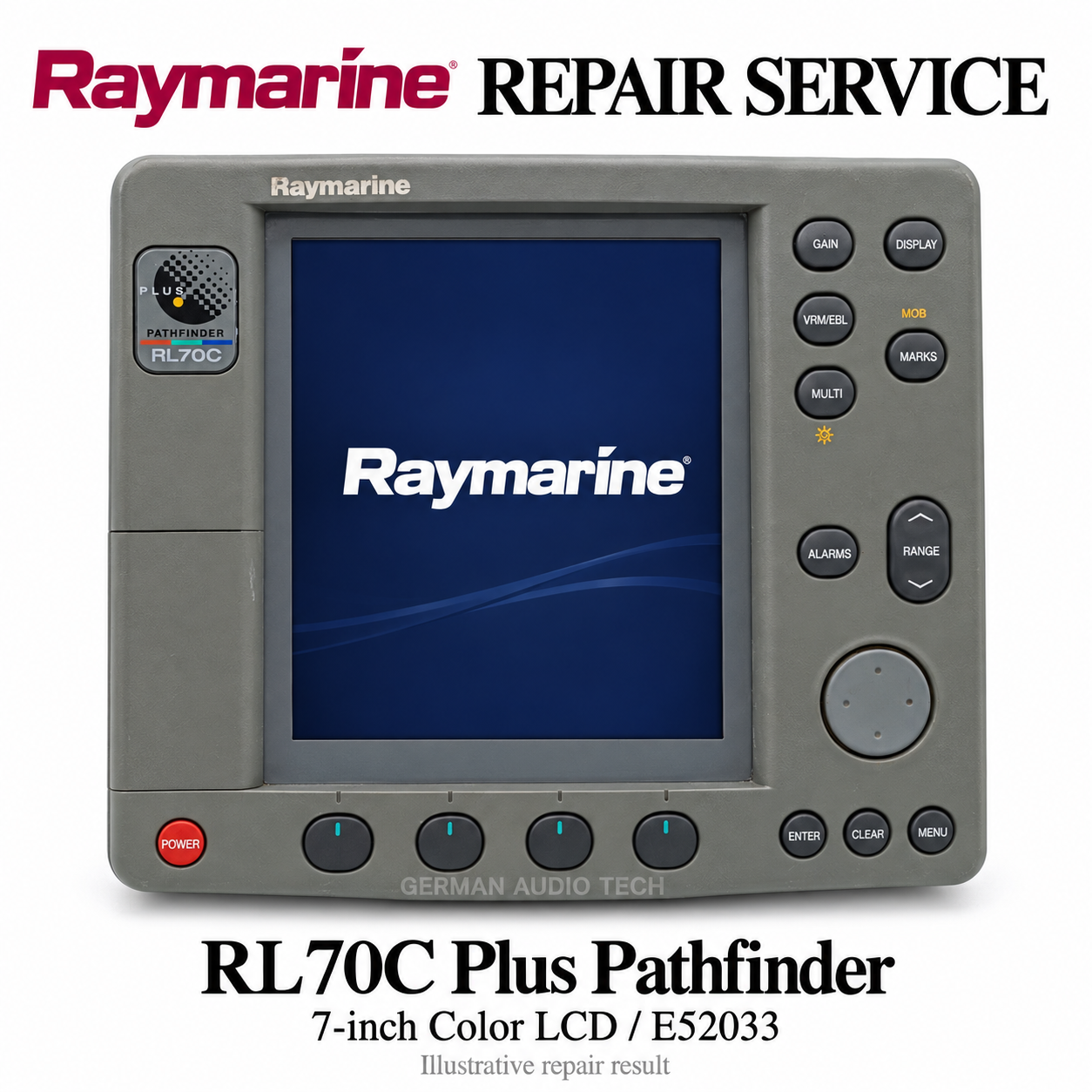

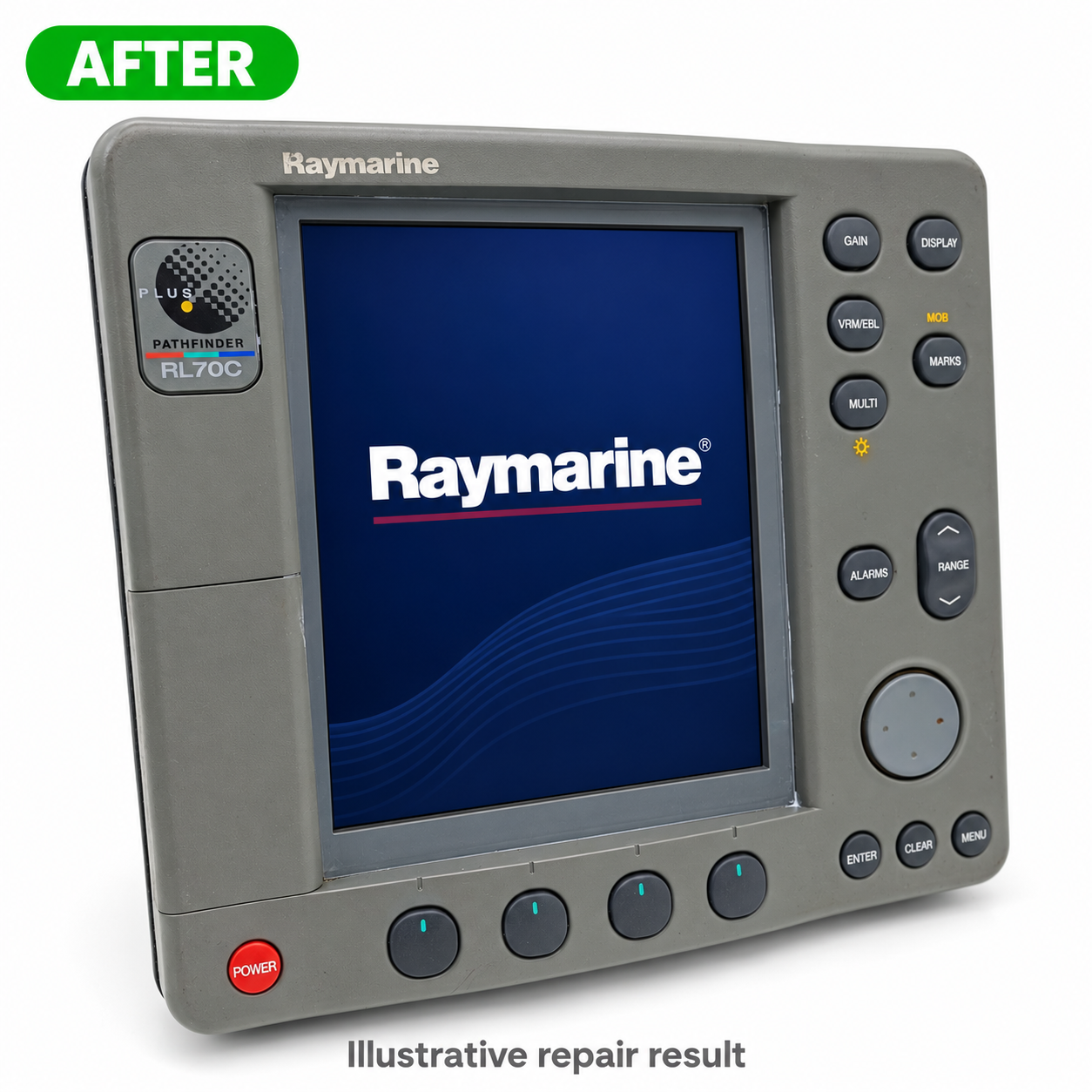

The Before image is based on a defective display. The After and Repair Service images are digitally rendered illustrations of a clear display, not photographs of a completed repair. Actual results depend on diagnosis and the condition of your unit.
