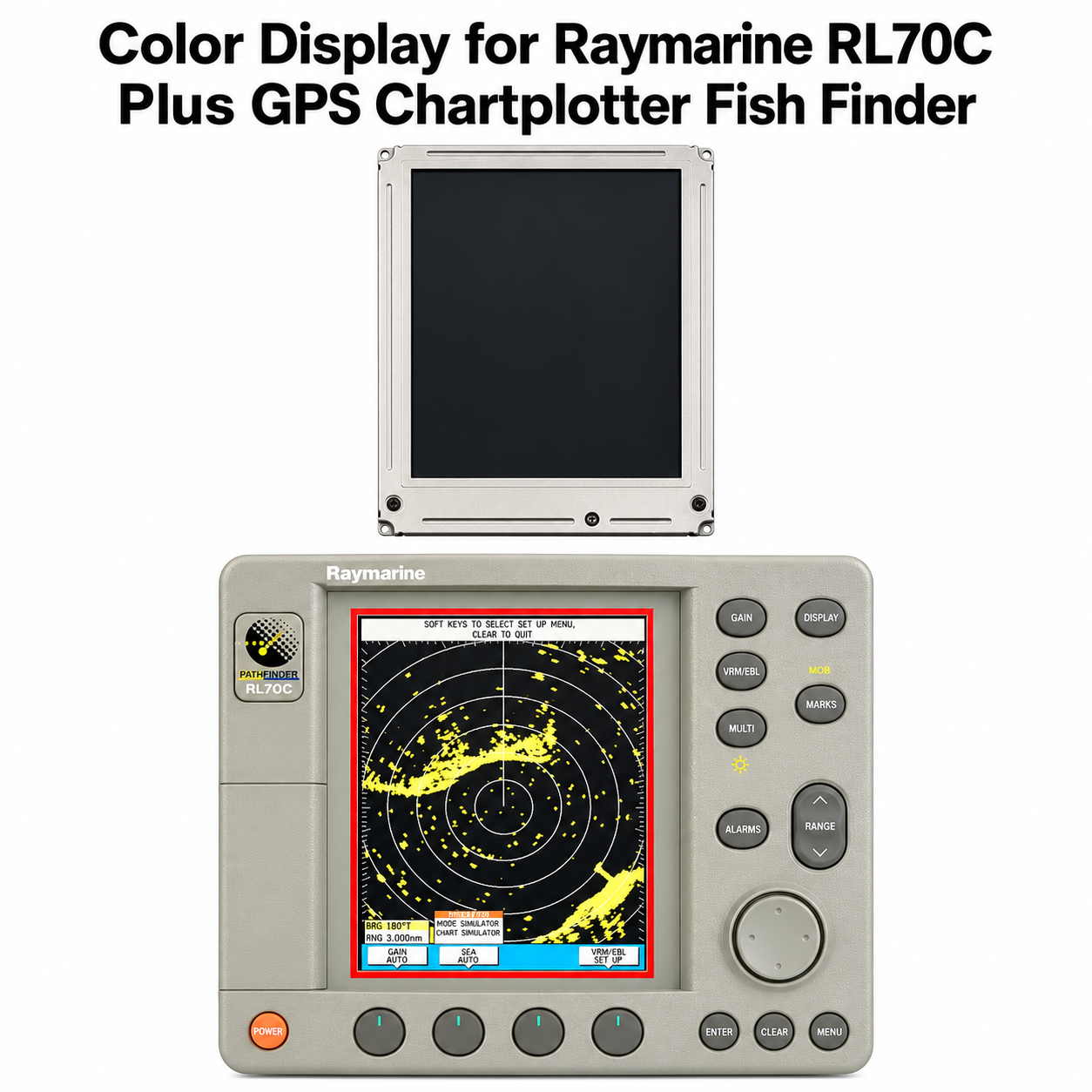

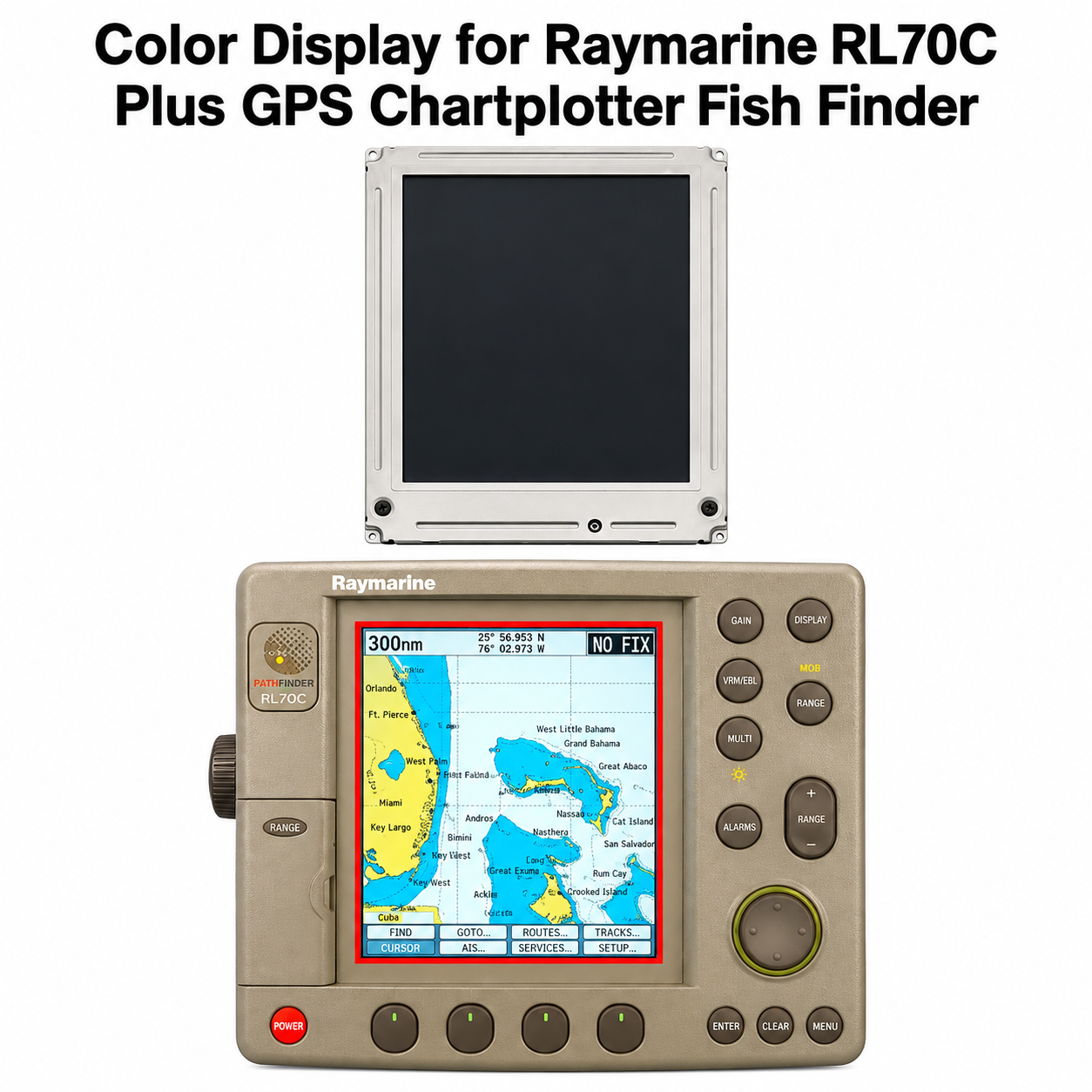

7" Color LCD Display Screen for Raymarine RL70C Plus Radar Display E52033

Replace a damaged or failed color LCD in a compatible Raymarine RL70C Plus Pathfinder radar display with this seller-refurbished replacement screen.

This listing is for the internal color LCD screen only. It is not a complete Raymarine radar display, chartplotter, radar scanner or repair service.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

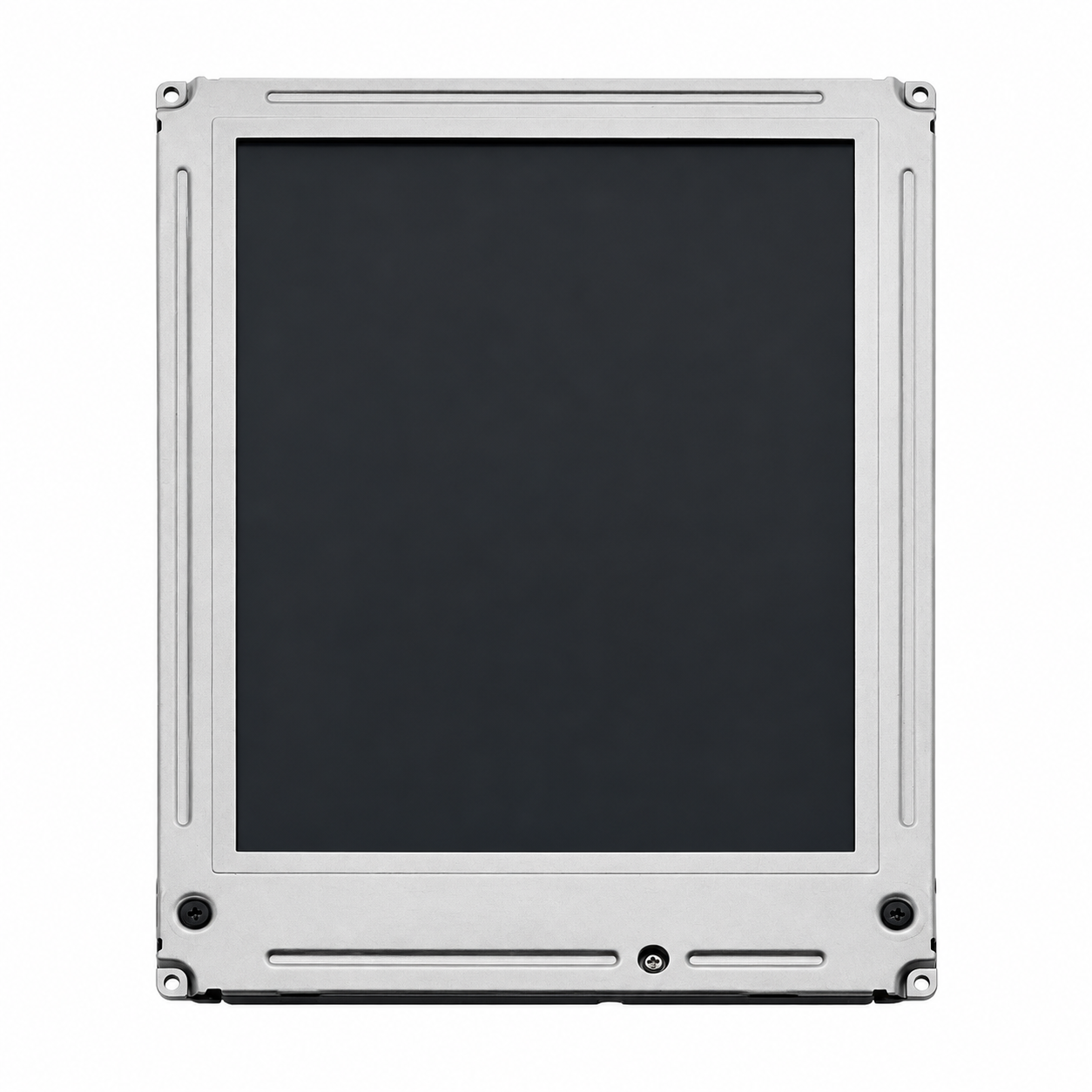

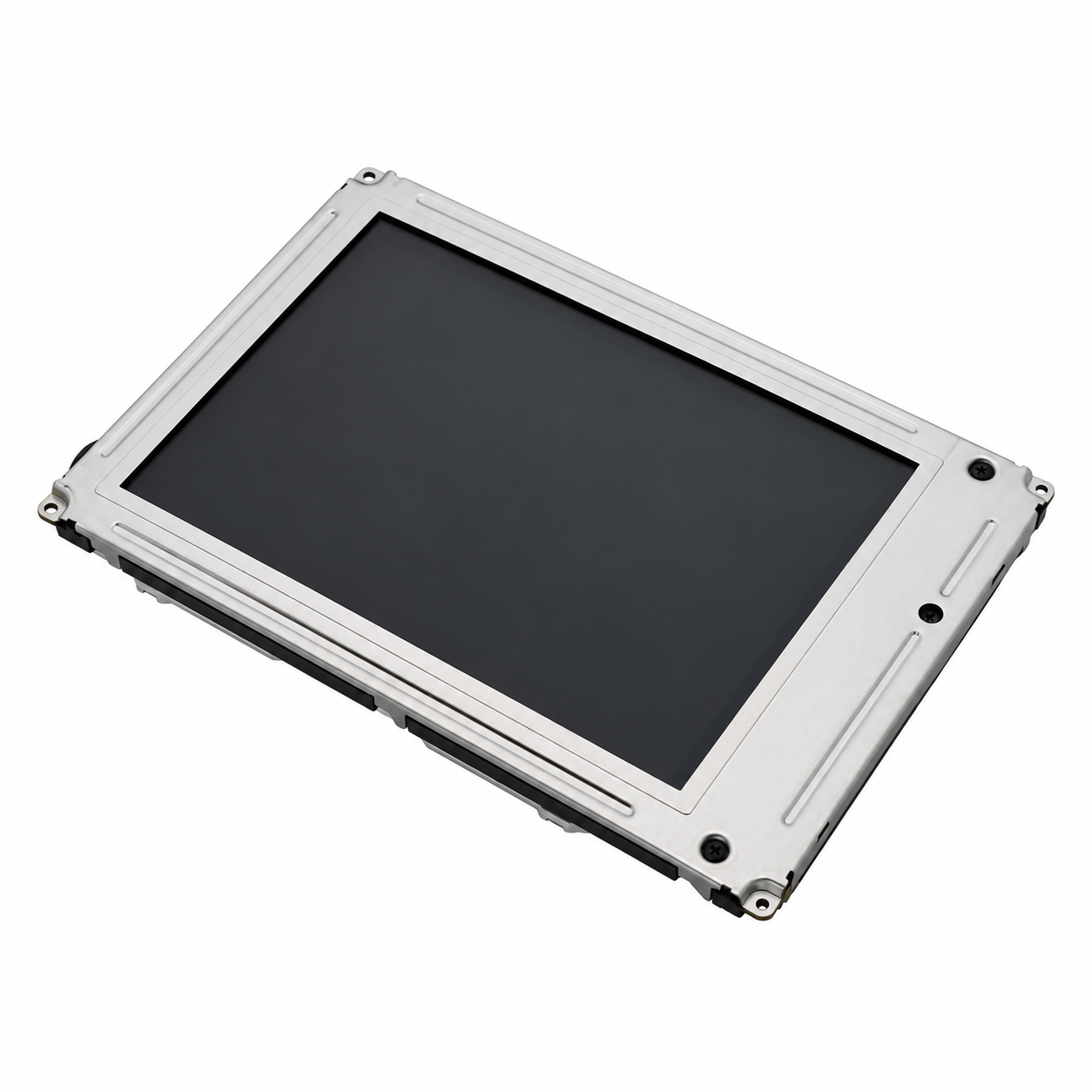

• Product type: Replacement color TFT LCD screen
• Primary application: Raymarine RL70C Plus Pathfinder radar display
• Raymarine display reference: E52033
• Screen size: 7 inches
• Resolution: 640 × 480 pixels
• Display type: Color TFT LCD
• Viewing area: Approximately 136 × 100 mm
• Touchscreen: No
• Condition: Seller refurbished
• Testing: Seller states that the screen was professionally tested
• Warranty: Seller advertises a one-year warranty
• Installation type: Internal electronic replacement component

𝗖𝗼𝗻𝗳𝗶𝗿𝗺𝗲𝗱 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻

• Raymarine RL70C color radar display
• Raymarine RL70C Plus Pathfinder radar display
• Raymarine RL70C Plus standard-brightness display E52033

The RL70C Plus is a radar display equipped with a 7-inch color LCD and HSB² networking. It does not contain the chart-card reader fitted to the RL70CRC Plus combination radar/chartplotter.

𝗣𝗮𝗿𝘁 𝗡𝘂𝗺𝗯𝗲𝗿 𝗜𝗻𝗳𝗼𝗿𝗺𝗮𝘁𝗶𝗼𝗻

• E52033 identifies the complete RL70C Plus standard-brightness display—not the individual LCD panel.
• E52033HB identifies the high-brightness RL70C Plus display.
• E52034 identifies the standard-brightness RL70CRC Plus radar/chartplotter.
• E52034HB identifies the high-brightness RL70CRC Plus radar/chartplotter.
• The eBay Item Specifics incorrectly use “Raymarine RL70C” as the manufacturer part number. This is a model name, not the internal LCD’s manufacturer number.

Before publishing the listing, inspect the rear of the replacement LCD for its manufacturer and panel number. Add that number to the title and Item Specifics if it is available.

𝗥𝗲𝗹𝗮𝘁𝗲𝗱 𝟳-𝗜𝗻𝗰𝗵 𝗖𝗼𝗹𝗼𝗿 𝗗𝗶𝘀𝗽𝗹𝗮𝘆𝘀

Raymarine documentation lists several 7-inch color Pathfinder displays:

• RL70C Plus E52033 – Radar display
• RL70C Plus E52033HB – High-brightness radar display
• RL70CRC Plus E52034 – Radar and chartplotter display
• RL70CRC Plus E52034HB – High-brightness radar and chartplotter display
• RC530 Plus E32035 – Chartplotter display
• SL70C Plus E52045 or E52045HB – Color radar display
• SL70CRC Plus E52046 or E52046HB – Color radar and chartplotter display

These units are related by screen size and product generation, but that does not prove that every internal LCD is interchangeable. Connector type, mounting tabs, backlight system, electronics and brightness version must be compared before advertising compatibility.

𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗥𝗲𝗾𝘂𝗶𝗿𝗲𝗺𝗲𝗻𝘁𝘀

Select this replacement by the original LCD manufacturer number and physical configuration—not solely by the Raymarine model name.

Confirm all of the following before ordering:

• Original unit is a color RL70C or RL70C Plus
• Rear product label matches the intended application
• Original LCD measures 7 inches diagonally
• Resolution is 640 × 480
• Signal ribbon or connector matches
• Backlight connectors match
• Mounting tabs and dimensions match
• Circuit-board and rear housing arrangement match
• Standard- or high-brightness configuration has been identified

Request photographs and dimensions from the seller if the replacement panel’s rear label is not shown.

𝗦𝘁𝗮𝗻𝗱𝗮𝗿𝗱 𝗩𝘀. 𝗛𝗶𝗴𝗵-𝗕𝗿𝗶𝗴𝗵𝘁𝗻𝗲𝘀𝘀

Raymarine offered standard and HB high-brightness versions of its 7-inch color displays. The HB suffix indicates a higher-brightness configuration intended to improve daylight visibility.

Do not assume that a standard E52033 screen and an E52033HB screen are electrically or mechanically interchangeable. Verify the internal panel and backlight configuration before installation.

𝗡𝗼𝘁 𝗖𝗼𝗻𝗳𝗶𝗿𝗺𝗲𝗱 𝗙𝗼𝗿

• RL70 or RL70 Plus monochrome displays
• RL70RC or RL70RC Plus monochrome chart displays
• RL70CRC Plus unless the original LCD and connectors match
• RC530 Plus unless the original LCD and connectors match
• SL70C or SL70CRC Plus unless positively matched
• RL80C or RL80CRC 10.4-inch displays
• C70, C80 or C120 C-Series Classic displays
• E-Series Classic, Widescreen or Axiom displays
• Any unit with a different LCD manufacturer or panel number

The exterior housings of related Pathfinder displays can look similar while using different internal components.

𝗦𝘆𝗺𝗽𝘁𝗼𝗺𝘀 𝗧𝗵𝗶𝘀 𝗦𝗰𝗿𝗲𝗲𝗻 𝗠𝗮𝘆 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

• Permanent vertical or horizontal colored lines caused by LCD failure
• Gray or washed-out screen caused by a failed panel
• Black spots or liquid-crystal bleeding
• Cracked or impact-damaged LCD
• Missing image sections
• Excessive dead or stuck pixels
• Internal discoloration that cannot be corrected by replacing the polarizer

𝗧𝗵𝗶𝘀 𝗦𝗰𝗿𝗲𝗲𝗻 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿

• A display that does not power on
• Failed LCD backlight or inverter circuitry
• Burned, corroded or damaged circuit boards
• Loose or contaminated ribbon-cable connections
• Water intrusion inside the display
• Damaged front lens or anti-glare surface
• Faulty keypad buttons or trackpad
• Radar-scanner or inter-unit communication faults
• HSB, SeaTalk, NMEA or power-cable problems
• Missing chartplotter hardware in an RL70C radar-only unit

A blank, flickering or intermittent image may be caused by a loose or corroded internal connection rather than the LCD itself. Diagnose the equipment before ordering.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻 𝗡𝗼𝘁𝗲𝘀

Replacing the internal LCD requires disassembly of the Raymarine display and should be completed by someone experienced with marine electronics.

• Disconnect vessel power before removing the display.
• Use appropriate electrostatic-discharge protection.
• Photograph all connectors, shielding and hardware before disassembly.
• Handle ribbon cables by their reinforced ends.
• Do not bend, twist or apply pressure to the LCD.
• Inspect all connectors for corrosion before installing the replacement.
• Examine the housing gasket and replace it if damaged.
• Test the screen before completing final reassembly.
• Confirm that the housing remains properly sealed before returning the unit to marine service.

Improper installation can damage the replacement LCD, backlight system, connectors or main circuit board.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

• 1 replacement color LCD screen for the specified application

𝗡𝗼𝘁 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱

• Complete RL70C or RL70C Plus display
• Front lens, bezel or housing
• Keypad or trackpad
• Main circuit board
• Backlight inverter unless physically attached and pictured
• Internal cables not shown in the listing
• Radar scanner or antenna
• Chart-card reader
• C-MAP chart card
• Power or networking cables
• Mounting bracket, knobs or sun cover
• Installation or repair service

𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻 𝗡𝗼𝘁𝗲

The screen is listed as seller refurbished. Clearly disclose whether it is a tested used original panel, a refurbished original panel or a new aftermarket replacement. Include photographs of the actual LCD, its rear label, connectors and any cosmetic marks.

𝗕𝗲𝗳𝗼𝗿𝗲 𝗢𝗿𝗱𝗲𝗿𝗶𝗻𝗴

Remove the original LCD and compare its manufacturer number, dimensions, connectors, mounting points and backlight configuration with the replacement. Do not purchase using only the RL70C model name or 7-inch screen size.
