LCD Display Repair Service for Raymarine C120 Classic 12.1-inch GPS Chartplotter E02022
If you are experiencing a Damaged, Discolored or Unreadable Display on your Raymarine C120 Classic multifunction navigation display, it is time to restore a clear, readable screen! This listing is for the purchase of (1) LCD REPLACEMENT REPAIR SERVICE for your original compatible C120. You must mail your complete display to us for repair. A replacement chartplotter is not included.
We replace the defective internal 12.1-inch LCD panel while retaining your original housing, controls and electronics. The replacement panel must match the LCD installed in your unit. This service restores the visual display; it does not add GPS, radar or sonar capability.

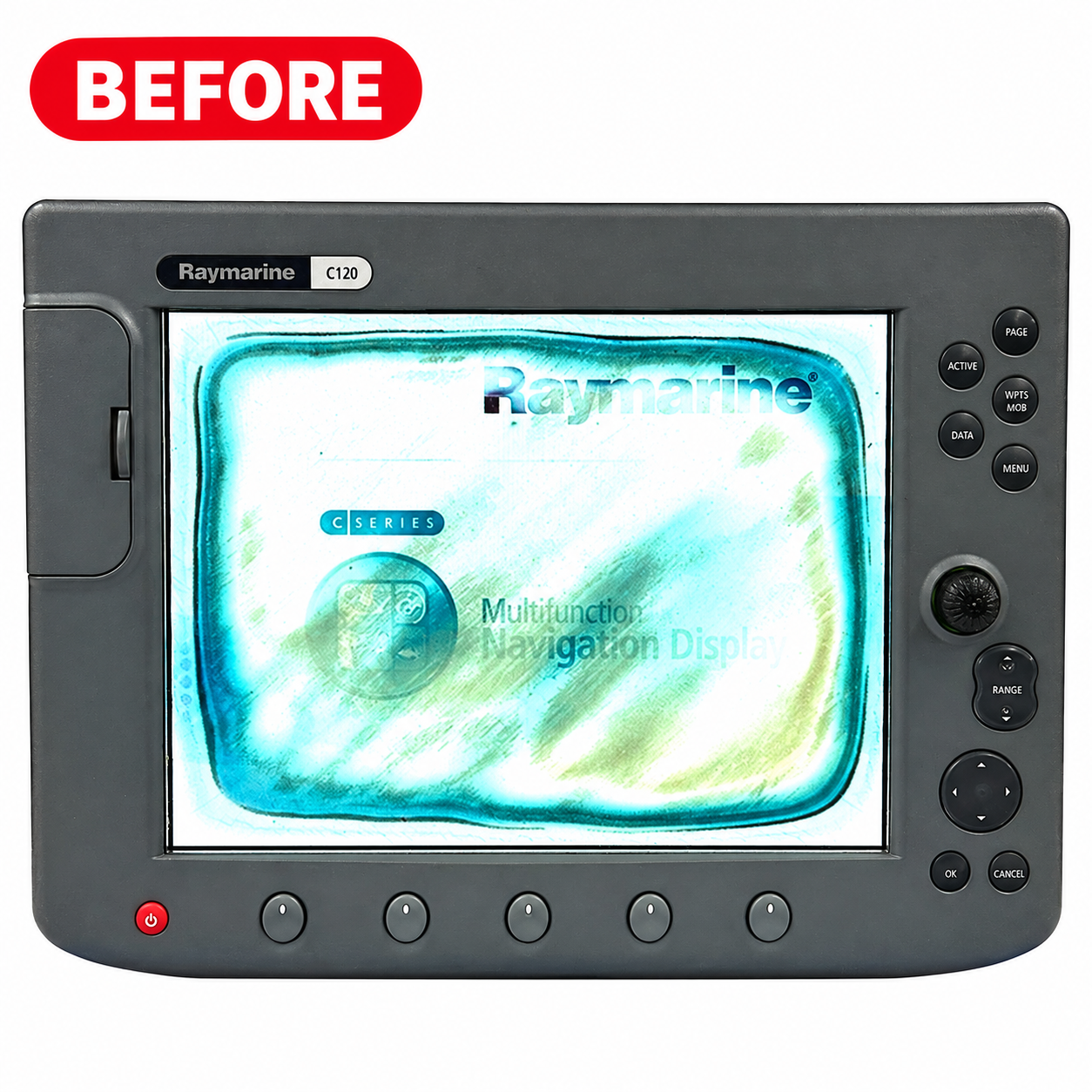

Typical Problems That Require Our Service:
- Distorted or unreadable image caused by a failed LCD
- Internal discoloration, black spots or liquid-crystal bleeding
- Cracked or physically damaged LCD glass
- Permanent vertical or horizontal lines caused by panel failure
- Missing image sections, dead pixels or stuck pixels caused by a defective panel
- Note: LCD replacement only. Mainboard, power-supply, backlight-inverter, wiring, corrosion, water-damaged electronics, front-lens, bezel, keypad, trackpad and rotary-control faults are not included. GPS, radar, sonar, SeaTalk, NMEA, software, chart-card and data faults are not included.
Service is for the Following Models:
- Raymarine C120 Classic - 12.1-inch C-Series Classic multifunction display
- Display reference: E02022
- LCD reference: Mitsubishi AA121SL02, subject to verification of the installed panel and physical fitment
The source LCD listing contains conflicting AA121SL02, AA121SL07 and AA121SL01 references. These are not assumed interchangeable. Confirm the original panel label, connectors, mounting points and backlight connections before repair acceptance. This service does not cover C120W, E120, E120W, C70, C80, Axiom or later c/e-Series displays.
HOW DOES THIS SERVICE WORK?
1.. Use Add To Cart to purchase the service.
2.. Disconnect vessel power and carefully remove the C120 display following the manufacturer's instructions. Professional marine-electronics removal is recommended.
3.. Label and disconnect the cables, then securely package the complete display for mailing. Protect the screen, bezel and controls. Do not send the GPS antenna, radar scanner, sounder module, transducers or vessel wiring. Remove your chart card and retain it.
You will receive mailing instructions via email after purchase. Use FedEx, UPS, DHL, US Postal Service or another suitable carrier. Include your order number, a short list of symptoms and your return mailing address.
Note: Do not rely on the removed or defective display for vessel navigation. Follow the emailed mailing instructions before shipping.
Mailing Address
German Audio Tech
Attn: Repair Dept.
65 Pine Ave., #337
Long Beach, CA 90802

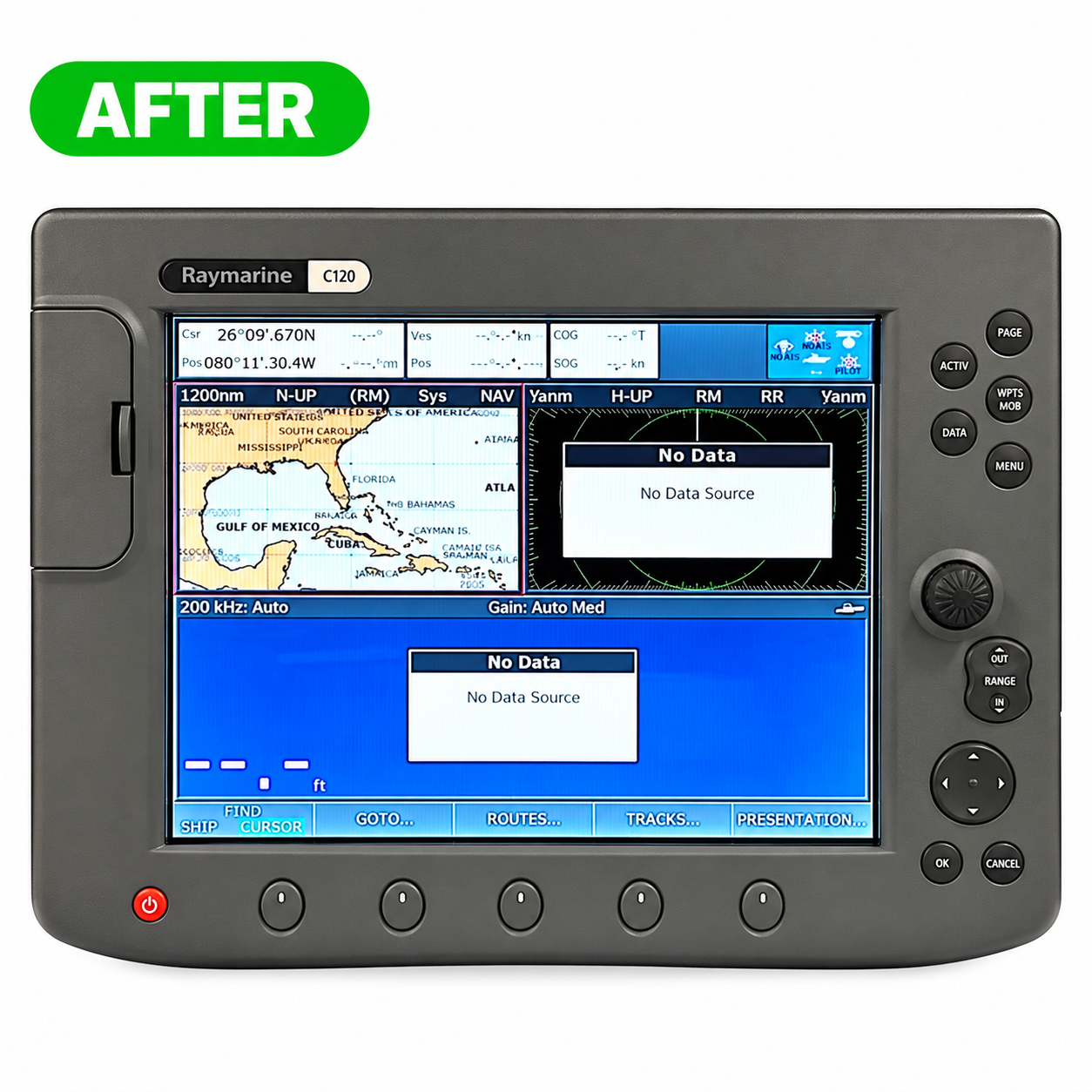

The clear display in the after photo shows “No Data” messages because external data sources are not connected. These messages are not LCD faults.
