LCD Display Repair Service for Raymarine Autohelm ST60 ST60+ Depth A22002 A22010 A22010-P

$ 199.95

If you are experiencing a Damaged, Faded or Unreadable Display on your Raymarine, Raytheon or Autohelm ST60 / ST60+ Depth instrument, it is time to restore a clear, readable screen! This listing is for the purchase of (1) LCD REPLACEMENT REPAIR SERVICE for your original compatible instrument. You must mail your complete depth instrument to us for repair. A replacement instrument or transducer is not included.

We replace the defective internal monochrome segmented LCD while retaining your original housing, controls and electronics. The installed LCD configuration must be verified for compatibility.

Typical Problems That Require Our Service:

Sun-damaged, discolored or permanently faded LCD
Cracked LCD glass, black blotches or liquid-crystal bleeding
Missing display areas or characters caused by internal LCD failure
Delaminated or deteriorated LCD layers
Unreadable display with otherwise functional electronics

Note: LCD replacement only. Missing or faint segments may also be caused by solder joints, LCD pin connections or circuit-board faults and require diagnosis. No-power, backlight, keypad, corrosion, water damage, housing, front-lens, wiring, transducer, incorrect depth data and SeaTalk faults are not included.

Service is for the Following Models:

ST60 Depth: A22002 display / A22010 system
ST60+ Depth: A22002-P display / A22010-P system
Compatible Raymarine, Raytheon and Autohelm-branded versions, subject to original LCD and instrument verification

These references identify complete instruments or systems, not the replacement LCD. Confirm the rear model label, display segment layout, pin spacing and internal configuration. ST60 Speed, Multi, Tridata, Wind, Compass, ST40, i-Series and autopilot control heads are not included in this service.

HOW DOES THIS SERVICE WORK?

1.. Use Add To Cart to purchase the service.

2.. Disconnect vessel power and carefully remove the ST60 / ST60+ Depth instrument following the manufacturer's instructions.

3.. Label and disconnect the cables, then securely package the complete instrument for mailing. Protect the screen, housing and controls. Do not send the transducer, vessel wiring or external SeaTalk equipment.

You will receive mailing instructions via email after purchase. Use FedEx, UPS, DHL, US Postal Service or another suitable carrier. Include your order number, a short list of symptoms and your return mailing address.

Note: Follow the emailed mailing instructions before shipping.

Mailing Address

German Audio Tech

Attn: Repair Dept.

65 Pine Ave., #337

Long Beach, CA 90802

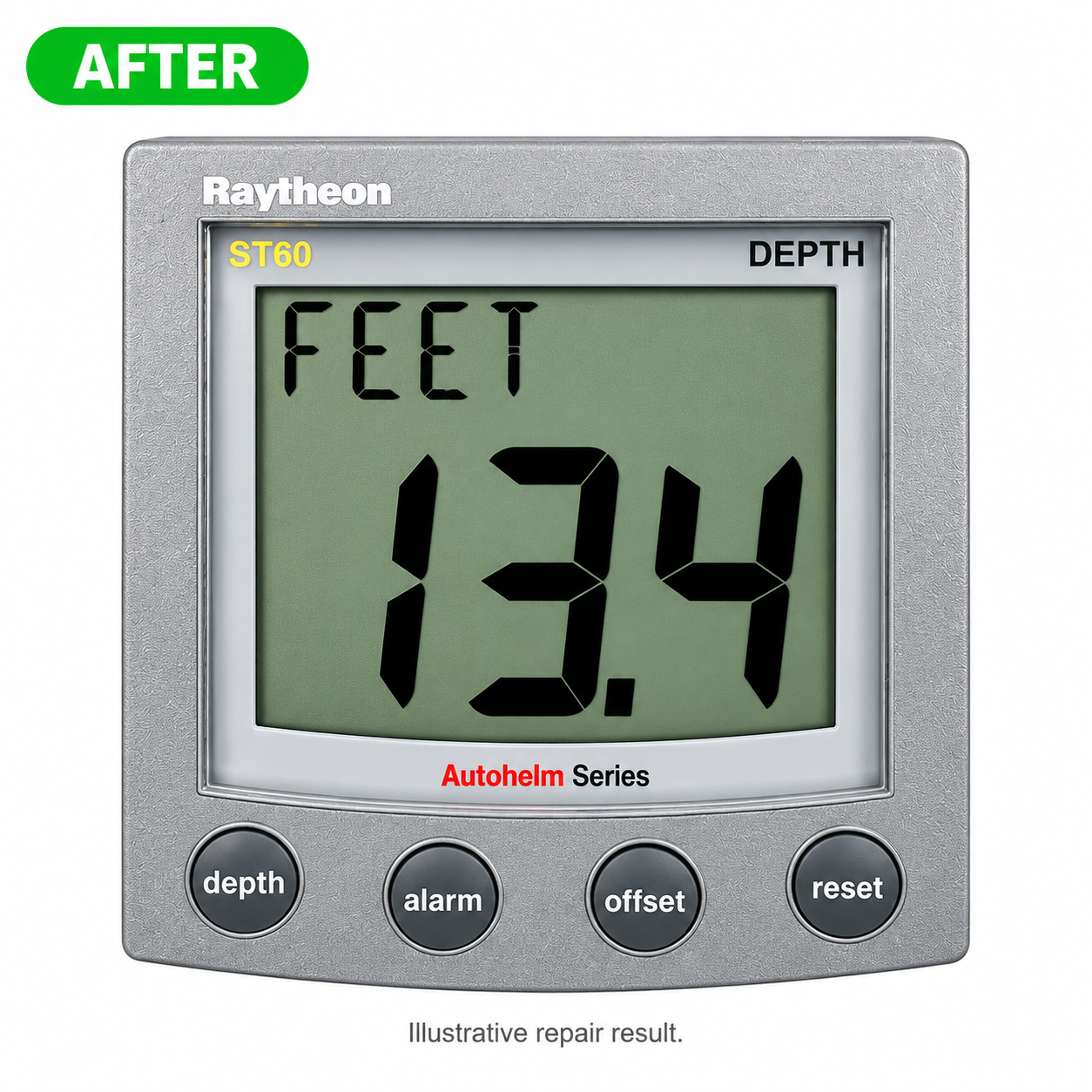

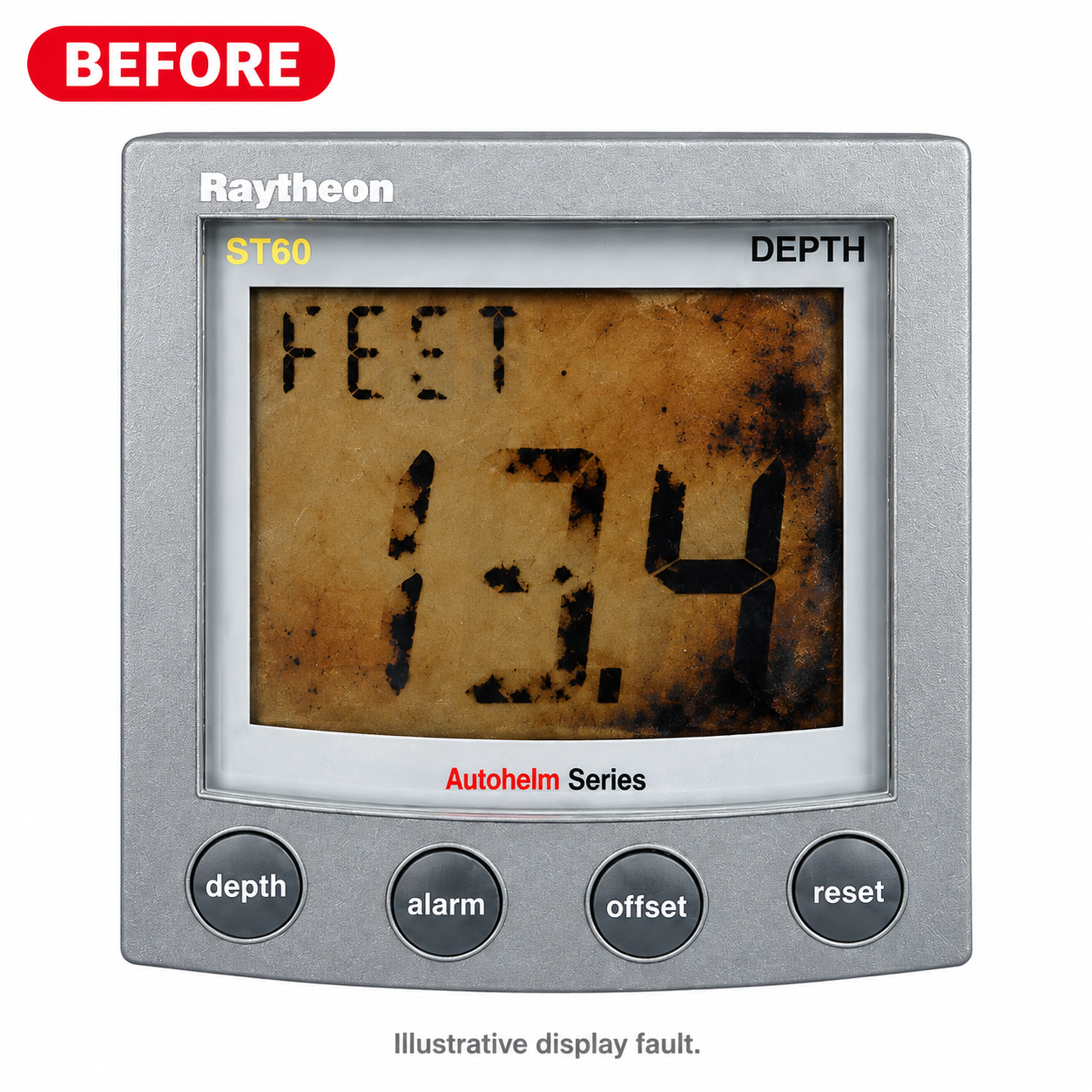

Before, After and Repair Service images are digitally rendered illustrations, not photographs of a completed repair. Actual results depend on diagnosis and the condition of your instrument.
