LCD Display for 2013-16 Honda SH125i SH150i & 2011-14 SH300i HP0886002

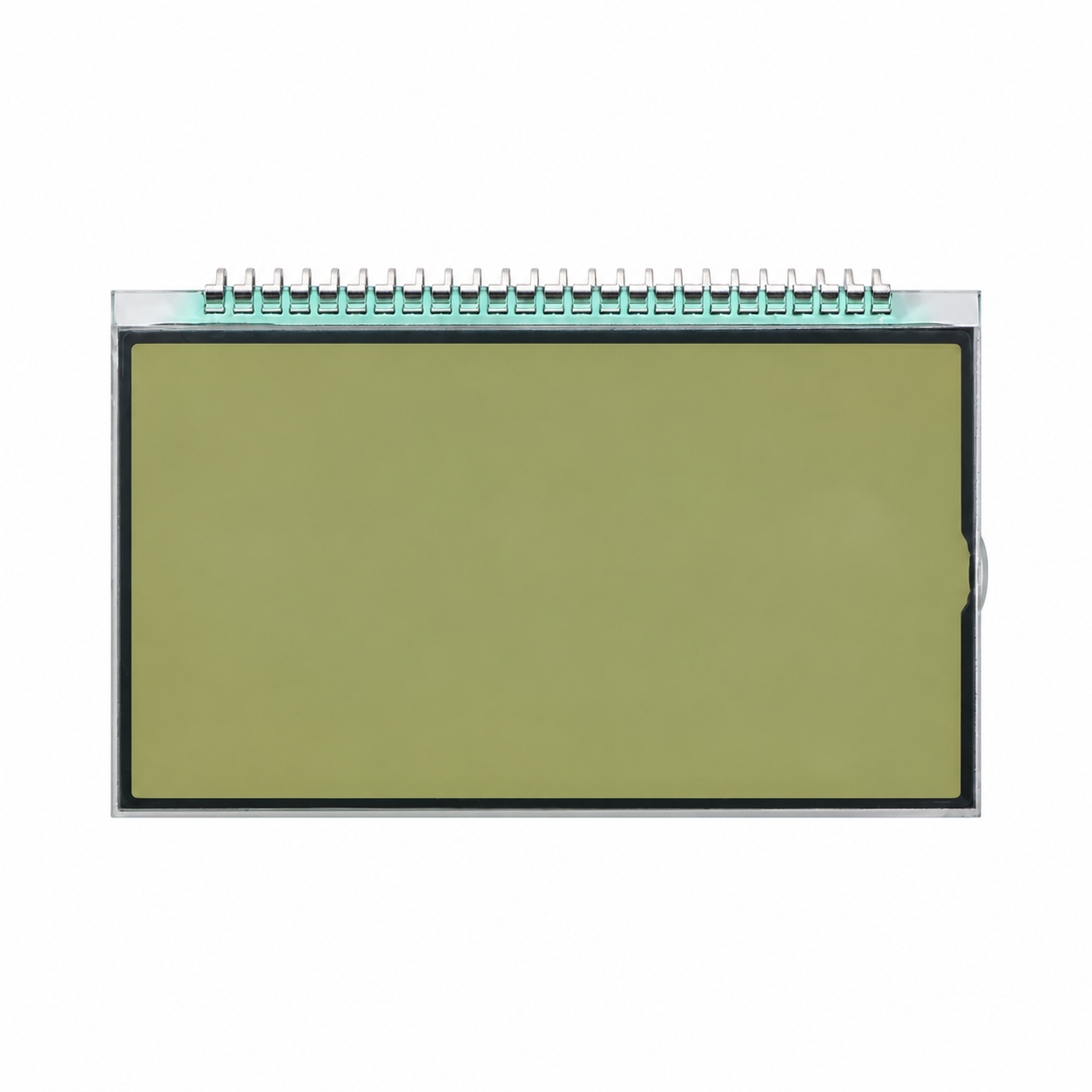

Replace a damaged or unreadable instrument-cluster LCD without purchasing an entire meter assembly. This new 24-pin display is designed for compatible Honda SH-series Nippon Seiki instrument clusters.
๐ฃ๐ฟ๐ผ๐ฑ๐๐ฐ๐ ๐๐ฒ๐๐ฎ๐ถ๐น๐
โข Product type: Instrument-cluster LCD display ย
โข Display type: Monochrome segmented LCD ย

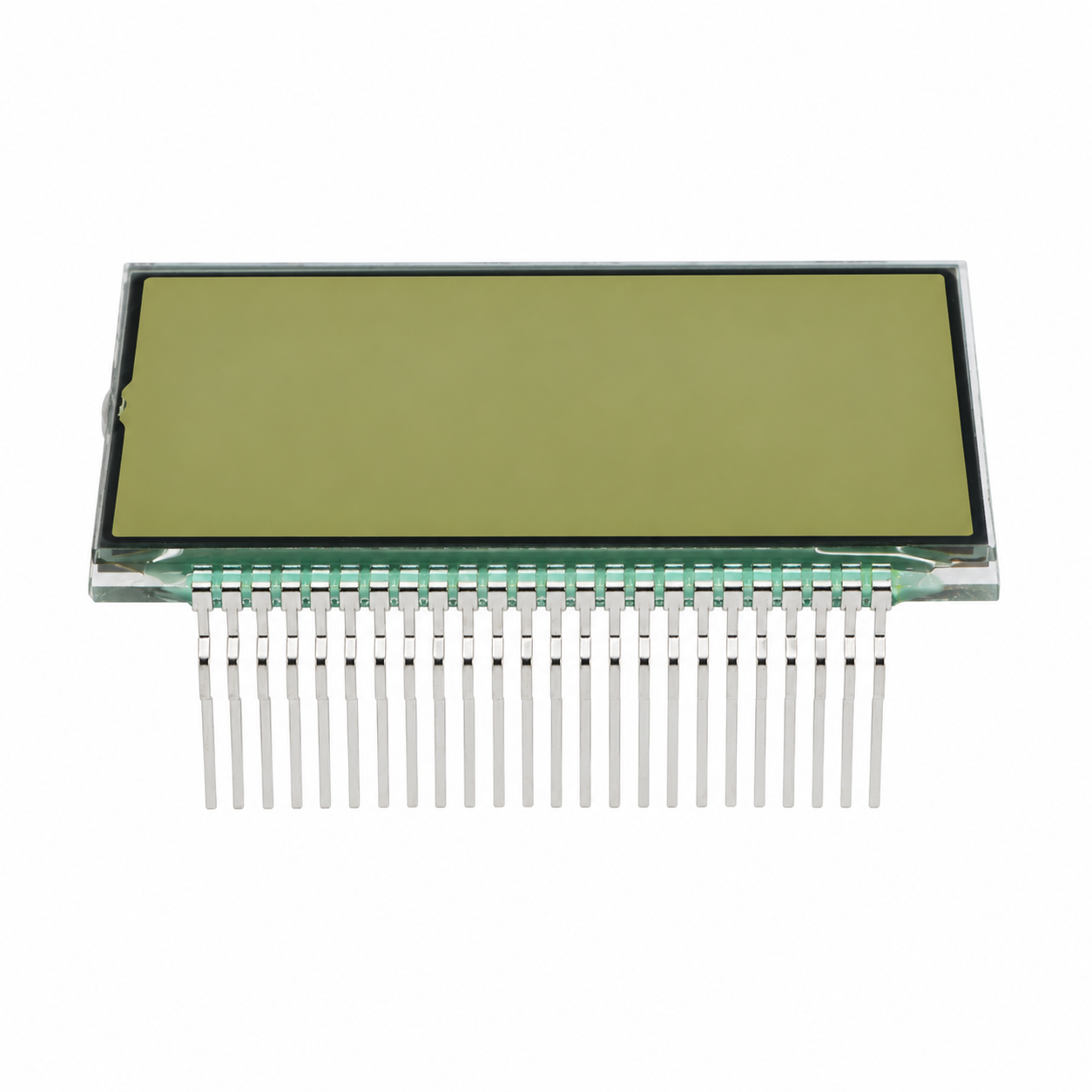

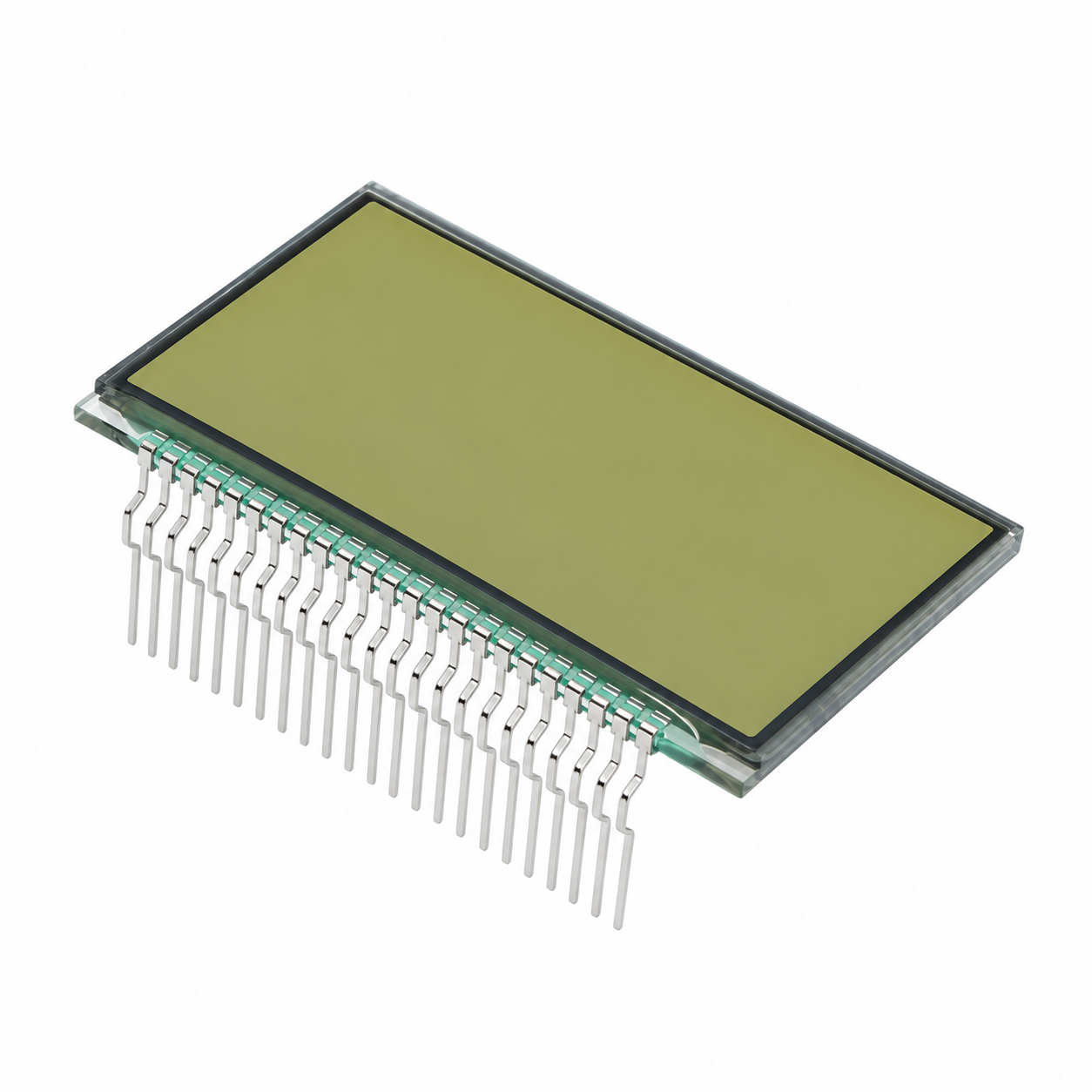

โข Connection: 24 solder pins ย

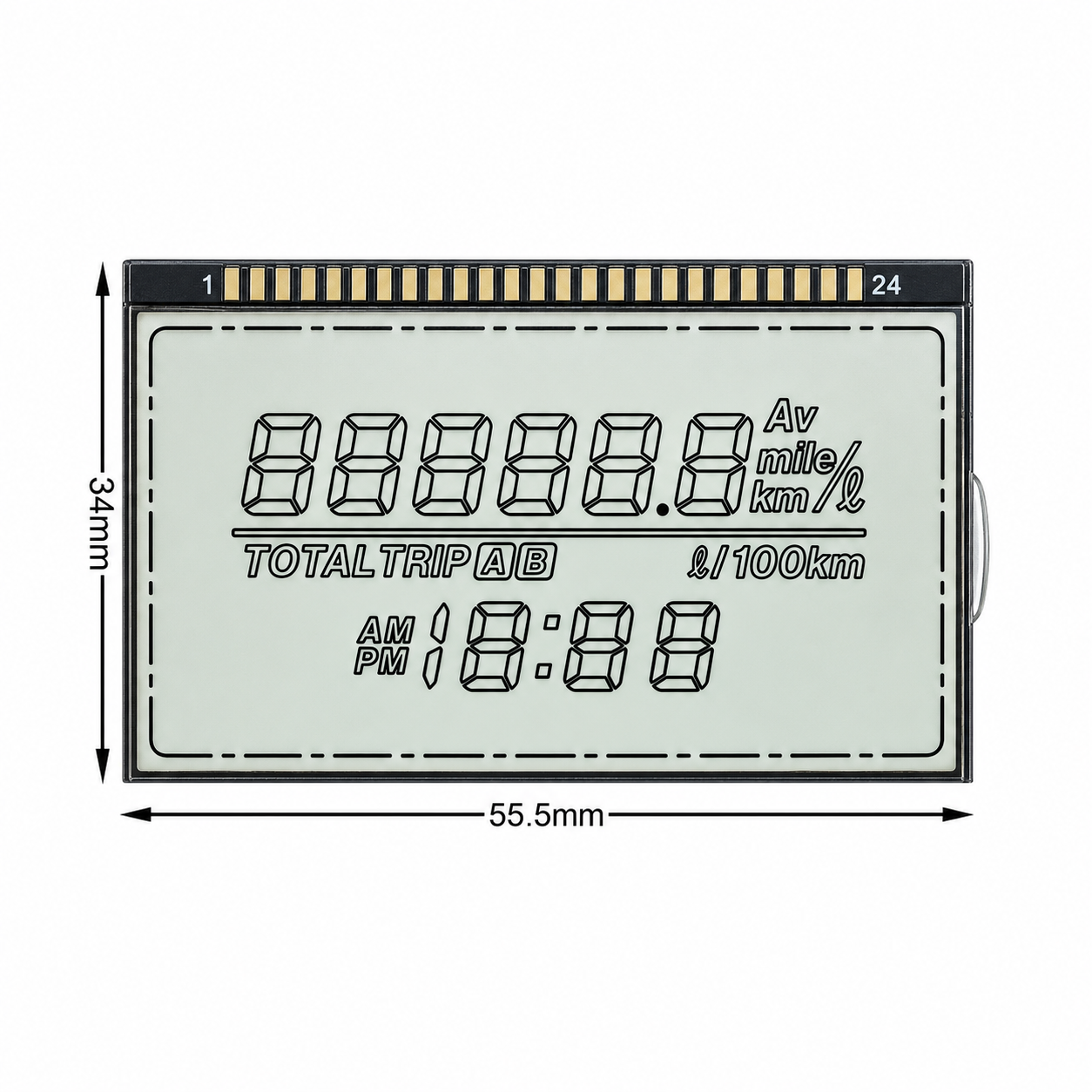

โข Approximate dimensions: 55.3 ร 34 mm ย
โข Instrument manufacturer: Nippon Seiki ย
โข Installation type: Internal component replacement ย
โข Condition: New aftermarket replacement part ย
โข Warranty: 1 year ย
๐๐ถ๐๐ฝ๐น๐ฎ๐ ๐ฅ๐ฒ๐ณ๐ฒ๐ฟ๐ฒ๐ป๐ฐ๐ฒ๐
โข HP 0886 002 ย
โข HP 0886 003 ย
โข HP 0886 004 ย
โข HP0886002 ย
โข HP0886003 ย
โข HP0886004 ย
โข Specialist replacement reference: SEP-RD0102A ย
These are display or interchange references. They should not be confused with Honda part numbers for a complete instrument cluster.
๐ฉ๐ฒ๐ฟ๐ถ๐ณ๐ถ๐ฒ๐ฑ ๐๐ถ๐๐บ๐ฒ๐ป๐

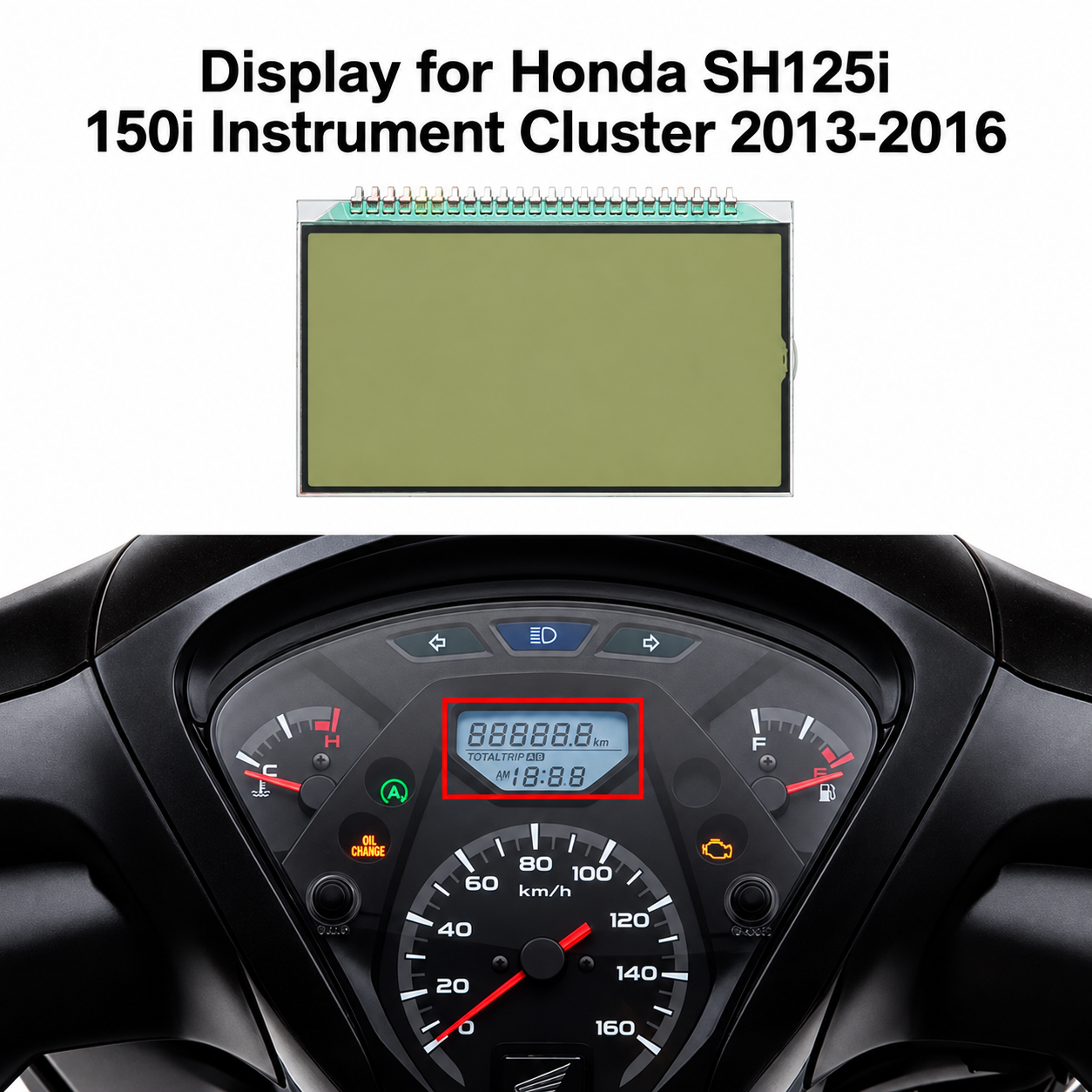

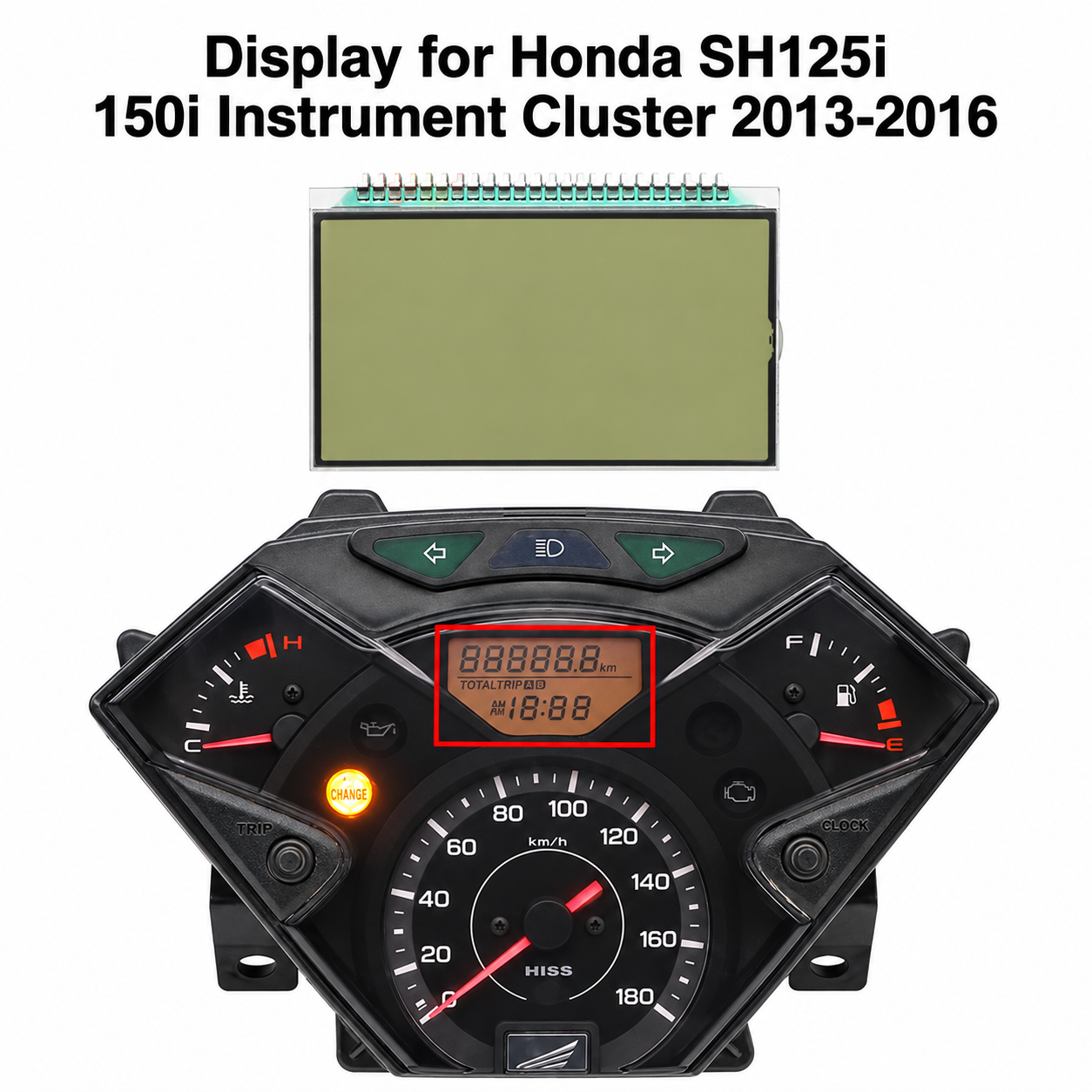

โข 2013โ2016 Honda SH150i โ including ABS-equipped versions ย
โข 2011โ2014 Honda SH300i โ including ABS and non-ABS versions ย
๐๐ฑ๐ฑ๐ถ๐๐ถ๐ผ๐ป๐ฎ๐น ๐๐ถ๐๐๐ฒ๐ฑ ๐๐ฝ๐ฝ๐น๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป
โข 2013โ2016 Honda SH125i ย
SH125i compatibility is listed by the seller but was not independently confirmed by the specialist LCD reference located during research. SH125i owners must compare the original displayโs dimensions, 24-pin layout and printed reference before ordering.
๐๐ผ๐บ๐ฝ๐ฎ๐๐ถ๐ฏ๐น๐ฒ ๐ฆ๐๐ฏ๐ฌ๐ฌ๐ถ ๐๐น๐๐๐๐ฒ๐ฟ ๐ฅ๐ฒ๐ณ๐ฒ๐ฟ๐ฒ๐ป๐ฐ๐ฒ๐
โข 37100-KTW-A11 โ commonly associated with ABS-equipped SH300i applications ย
โข 37100-KTW-B01 โ commonly associated with non-ABS SH300i applications ย
These Honda numbers identify complete meter assemblies, not the loose LCD panel. Always confirm the number printed on the original cluster and compare the LCD before purchasing.
๐๐ผ๐บ๐บ๐ผ๐ป ๐ฆ๐๐บ๐ฝ๐๐ผ๐บ๐ ๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ ๐ฎ๐ ๐ฅ๐ฒ๐ฝ๐ฎ๐ถ๐ฟ
โข Missing or incomplete display segments ย
โข Cracked LCD glass ย
โข Black spots, ink bleeding or internal staining ย
โข Permanently faded or unreadable odometer information ย
โข Damaged fuel, temperature, trip or mileage display segments ย
๐ง๐ต๐ถ๐ ๐ฃ๐ฎ๐ฟ๐ ๐ช๐ถ๐น๐น ๐ก๐ผ๐ ๐ฅ๐ฒ๐ฝ๐ฎ๐ถ๐ฟ
โข Failed backlighting or illumination LEDs ย
โข Damaged needles, gauges or stepper motors ย
โข Loss of power or ground to the instrument cluster ย
โข Corroded or damaged circuit boards ย
โข Wiring or connector problems ย
โข Immobilizer, coding or mileage-storage faults ย
โข Intermittent segments caused only by cracked solder joints elsewhere in the cluster ย
Proper diagnosis is recommended before replacing the display.
๐๐ป๐๐๐ฎ๐น๐น๐ฎ๐๐ถ๐ผ๐ป
The instrument cluster must be removed, opened and disassembled. The original 24-pin LCD must then be desoldered from the circuit board and the replacement installed in the correct orientation.
Installation requires:
โข A temperature-controlled soldering station ย
โข Appropriate desoldering equipment ย
โข Electronics-repair and fine-soldering experience ย
โข ESD protection and careful handling of the circuit board ย
Professional installation is strongly recommended. Excessive heat or force can lift circuit-board pads and permanently damage the cluster.
Replacing the LCD alone does not change the vehicleโs stored mileage because mileage information remains within the instrument-cluster electronics.
๐๐ผ๐ป๐ฑ๐ถ๐๐ถ๐ผ๐ป
New aftermarket replacement LCD. This is an internal repair component and not a complete Honda instrument cluster.
๐ฃ๐ฎ๐ฐ๐ธ๐ฎ๐ด๐ฒ ๐๐ผ๐ป๐๐ฒ๐ป๐๐
โข 1qtyย 24-pin instrument-cluster LCD display ย
Instrument cluster, housing, circuit board, gauges, needles, illumination components and installation service are not included.
๐๐บ๐ฝ๐ผ๐ฟ๐๐ฎ๐ป๐ ๐๐๐๐ฒ๐ฟ ๐ฉ๐ฒ๐ฟ๐ถ๐ณ๐ถ๐ฐ๐ฎ๐๐ถ๐ผ๐ป
Honda used different instrument-cluster versions depending on model year, market and equipment. Before ordering, compare the original LCDโs dimensions, pin count, connector layout and printed reference with the listing photographs. Compatibility should not be determined solely by the scooterโs model and year.
