Jynxbox Ultra HD V20 Factory Firmware Recovery BIOS SPI Chip MX25L3206EM2I

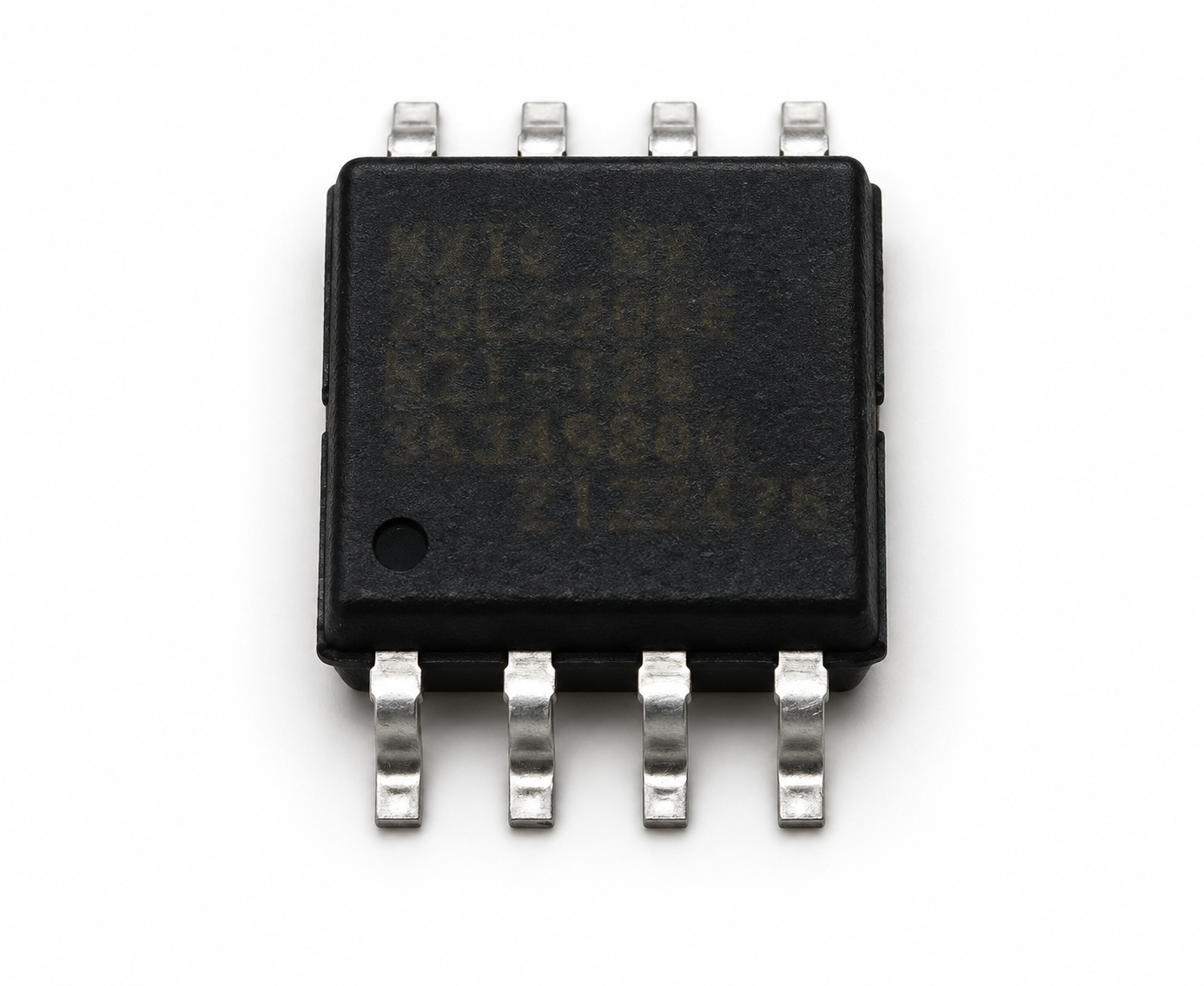

One new Macronix SPI flash-memory chip, pre-programmed with factory firmware for the Jynxbox Ultra HD V20 satellite receiver.

Part and technical information:

• Chip number: MX25L3206EM2I

• Chip family: MX25L3206E

• Memory type: Serial NOR flash

• Capacity: 32 Mbit / 4 MB

• Interface: SPI

• Operating voltage: 2.7–3.6V

• Package: 8-pin SOP surface-mount IC

• Firmware application: Jynxbox Ultra HD V20 factory firmware

Compatibility:

• Compatible only with the Jynxbox Ultra HD V20 receiver

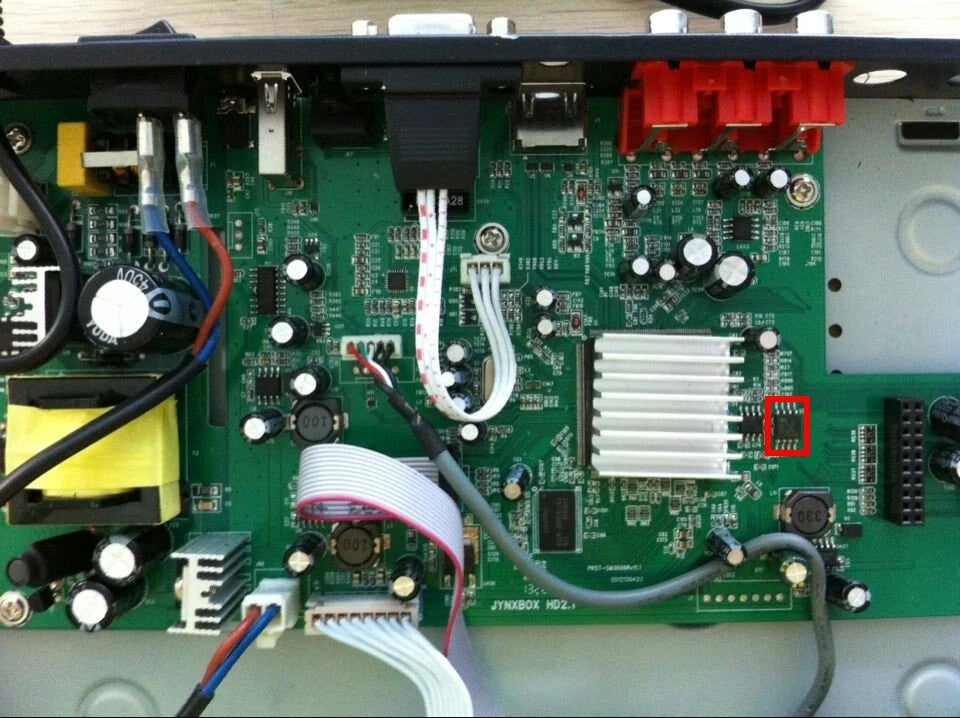

• The receiver’s circuit board and original flash-chip location must match the unit shown in the photos

• Not intended for Jynxbox V21, V30, V8, U7, V2/V500, clone models, or other receiver versions

• Check the exact receiver model and original chip before ordering

Intended use:

This replacement chip may help recover a Jynxbox Ultra HD V20 that became unresponsive after an incorrect or corrupted firmware update, particularly when normal serial or software recovery is unavailable. It will not repair failures caused by a defective power supply, processor, tuner, damaged circuit board, or other hardware problem.

Installation information:

Professional electronic-repair experience is strongly recommended. The original surface-mount chip must be desoldered and the replacement installed with the correct pin-one orientation. Improper removal, excessive heat, incorrect orientation, or solder bridges can permanently damage the chip or receiver circuit board.

Package includes:

• One new MX25L3206EM2I chip programmed for the Jynxbox Ultra HD V20

Receiver, circuit board, tools, instructions, cables, and other accessories are not included.
