J2534 Diagnostic Cable Support ELM327 Diagnose J1979 for Toyota/Honda/Audi/GM

$ 74.95

J2534 Diagnostic Cable Support J2534&ELM327 Diagnose J1979 For Toyota/Honda Etc

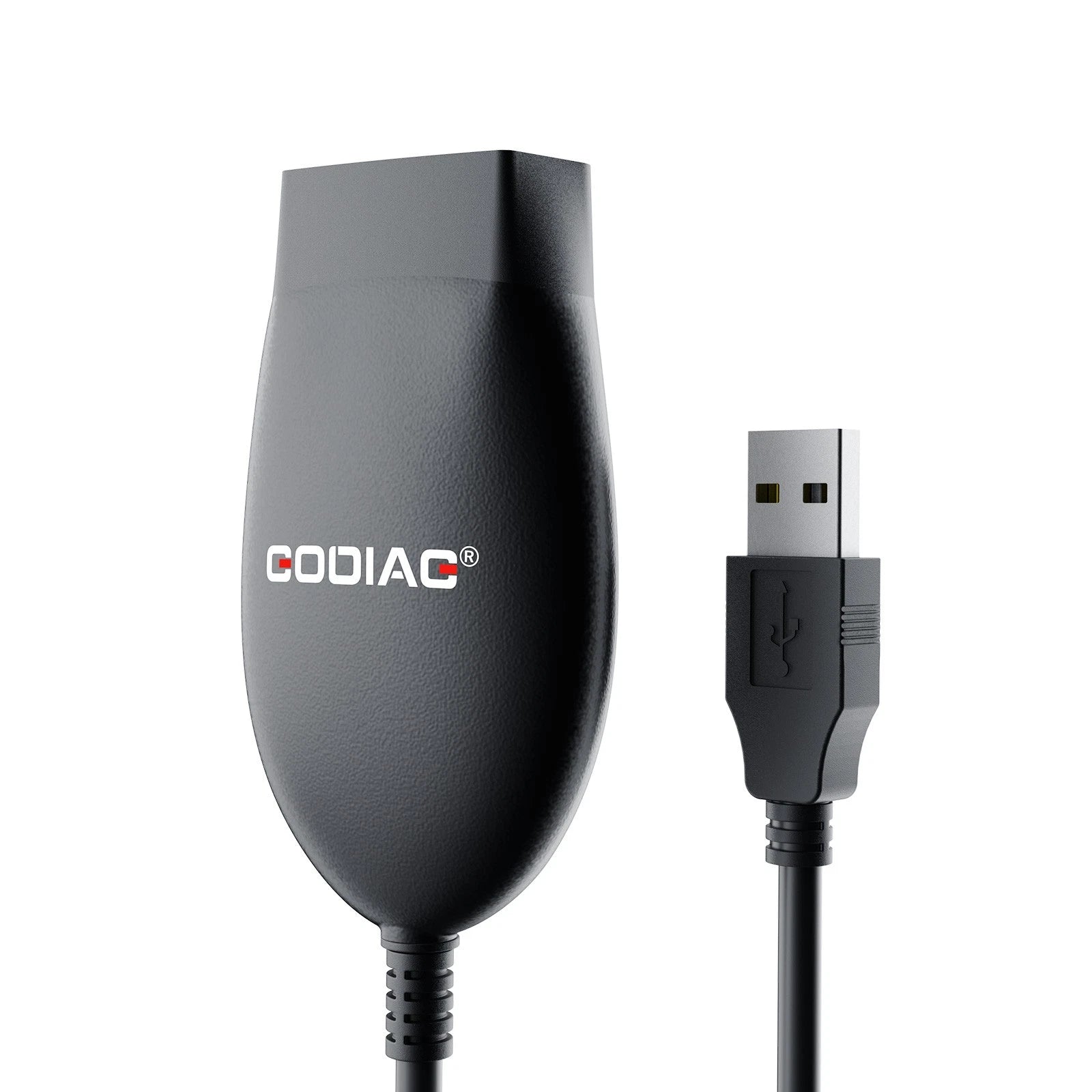

GODIAG J2534 Fit For J2534 Passthru & ELM327 Diagnose J1979 Compatible Vehicles Switch Mode Automatically

When downloading and installing software, please turn off antivirus software and firewall.

If you want to use the programmer function, it is not recommended to use this device

Please note that the device is compatible with J2534. Not all cars with the J2534 protocol can support it!

Note: The device does not support Volvo! Does not support techwin, for GM only supports gds2 software!

Product Functions:

1. Support most all of J2534 compatible software(H-D-S, T-I-S, O-D-I-S, JLR S-D-D).

2. Support most all of ELM327 software(ELMConfig, Forscan, ScanMaster...).

3. Supply free software for diagnosing J1979 compatible vehicles.

4. Support Windows 8/10/11, 64bit

6. Supported languages:

odis: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese
For Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
For honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
For jlr sdd: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

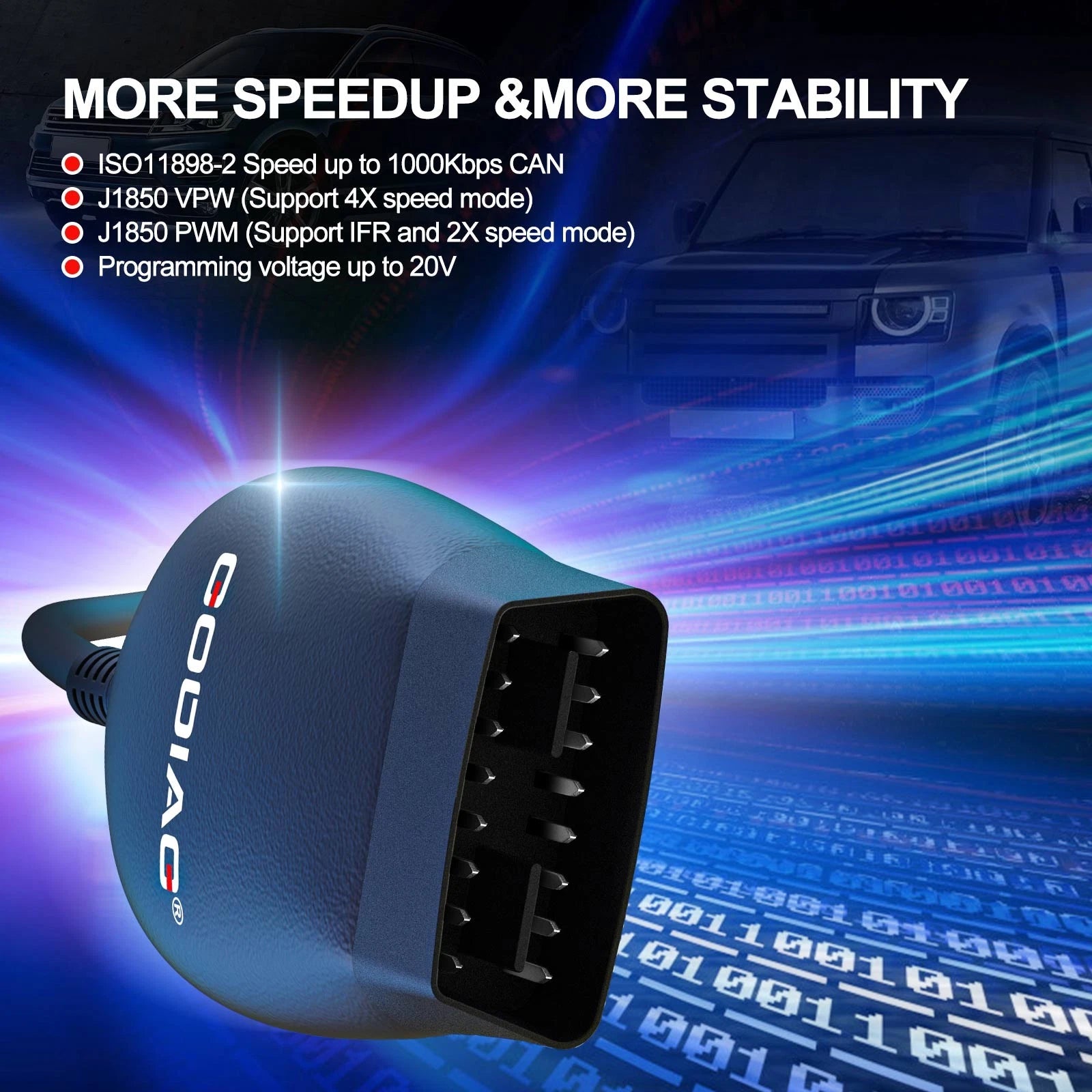

Product Highlights:

1. Support J2534 and ELM327 mode in one device. Switch mode automatically.

2. More speedup. Faster communication and reprogarmming.

3. More stability. Never let you down while reprogarmming.

4. Portable and convenient. Small package and easy to carry.

GODIAG J2534 protocol configuration:

1. ISO15765 (Standard/Extended frame).

2. ISO9141.

3. ISO14230.

4. J1850 PWM (Support IFR and 2X speed mode).

5. J1850 VPW (Support 4X speed mode).

6. Progarmming voltage.

7. Short to ground.

8. ELM327 with command set version 1.3a

Notice :

Can't support MS-CAN

Can't work with passthrough xentry software

GODIAG J2534 hardware configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).

2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).

3. J1850 PWM (OBDII PIN 2 and PIN 10).

4. J1850 VPW (OBDII PIN 2).

5. Progarmming voltage (OBDII PIN 12 or PIN 13. Progarmming voltage up to 20V).

6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).

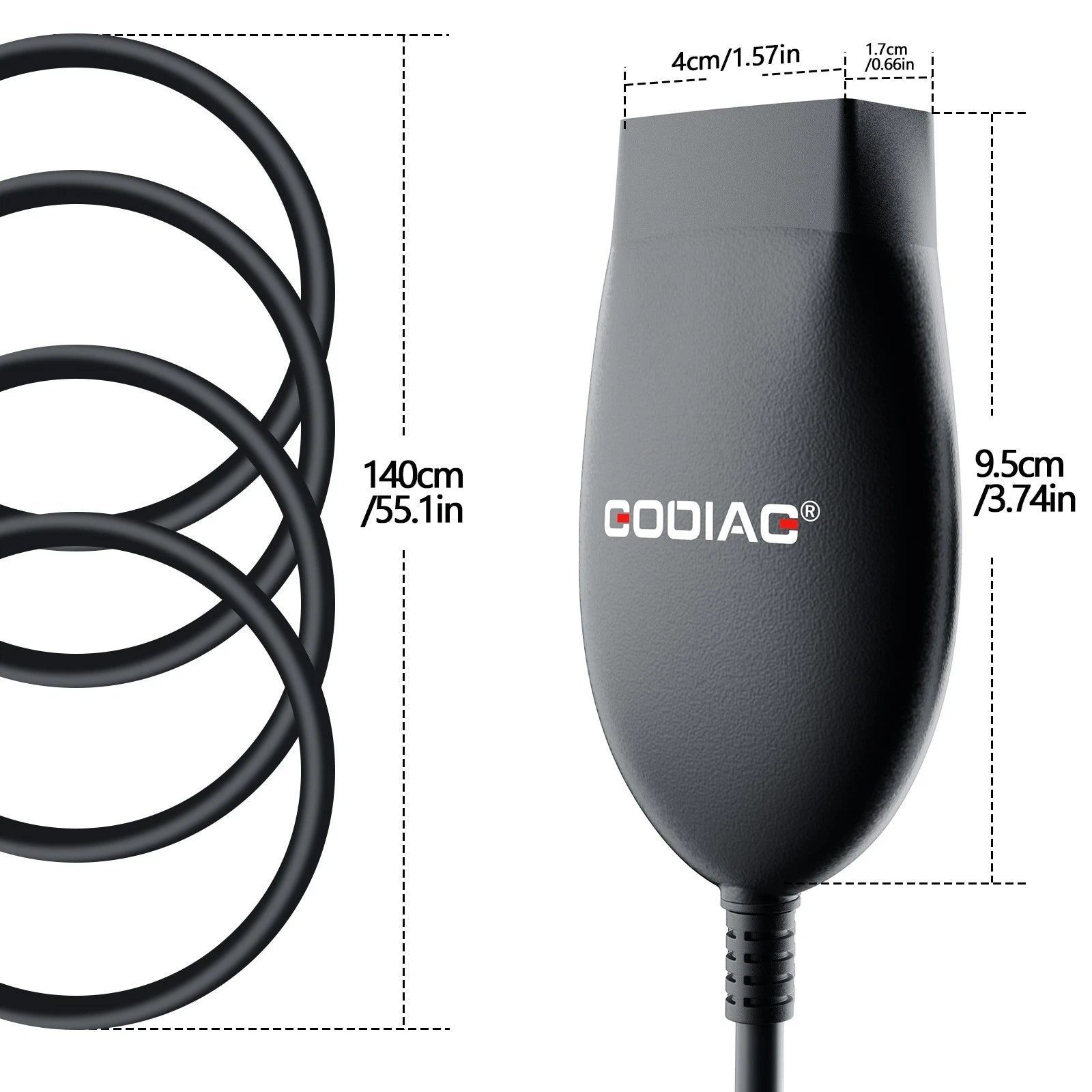

7. Dimension(L*W*H): 95mm*55mm*23mm

8. Environmental:-20℃-45℃(-4℉-113℉)

9. Vehicle voltage requirements: 8-18V DC

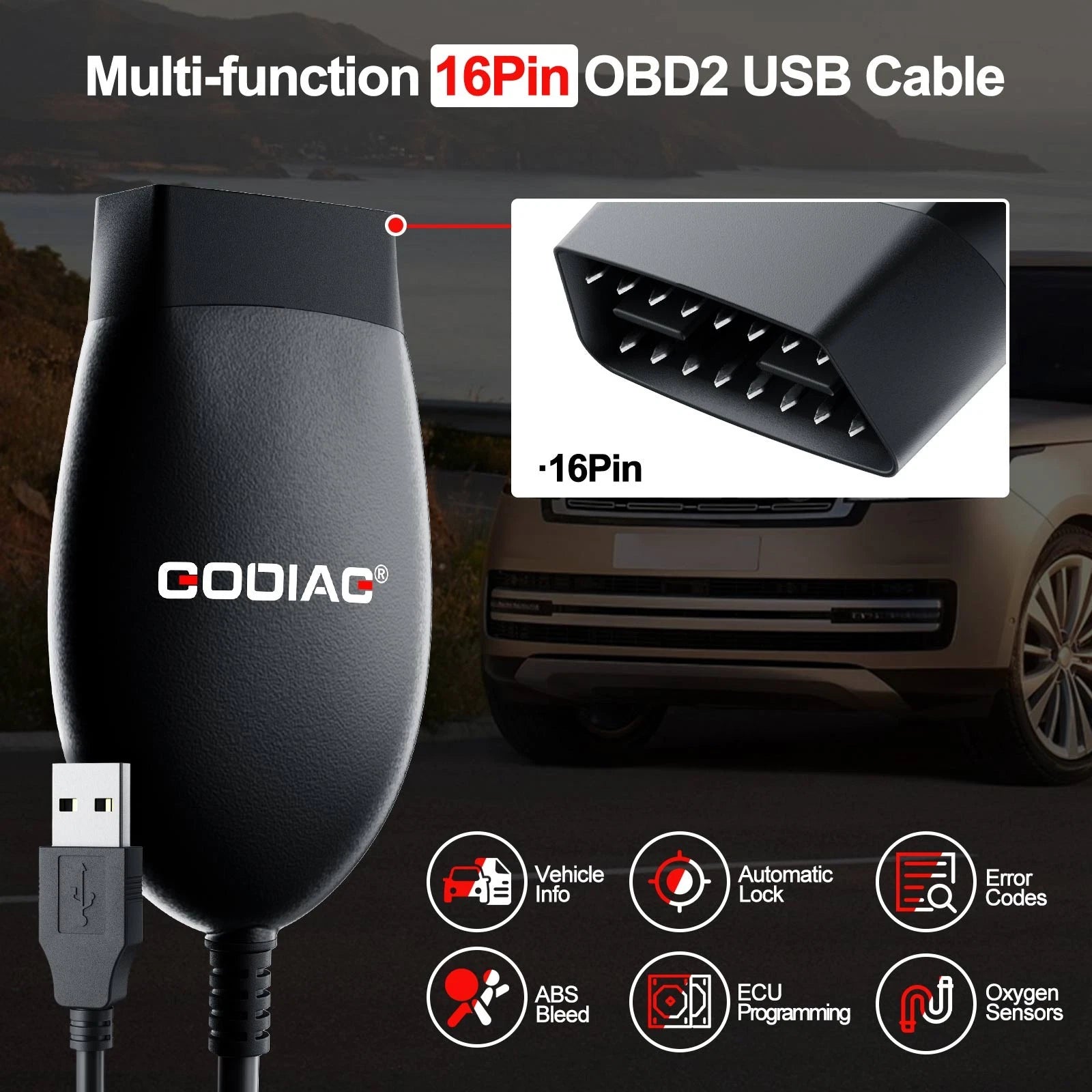

10. Vehicle connection: Molded DLC3(OBDII-16)

11. Host connection: USB 2.0

GODIAG GD101 J2534 Supported Car Models:

1.For JLR SDD Software for Land Rover/Jaguar

Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines.

Support for X100, X150, X202, X250, X350, X351, X400 Jaguar vehicle lines.

2. H-DS Software for Honda

Support for Accord, Civic, Crv, City, et al.

3. For Toyota

Support for Camry, Rav4, Carolina, Prius, Lexus

4. For ODIS V-A-G

Support for V-w, Audi, Seat, Skoda

5. For GM GDS2 Software

Support for Buick, Chevrolet, Cadillac, etc.

Notice:

1. Software Free Download:
Free Download Godiag J2534 Software
For Honda H-D-S 3.104.024, T-e-c-h-s-te-am V17.30.011, JLR S-D-D V163, F-o-r-scan 2.3.48, Scanmaster v2.1 and V-A-G O-D-IS 9.1.0, please contact us.

2. Not Support Win7 System

GODIAG J2534 Software Firmware Upgrade Notice（March 31, 2023）

1. Software upgrade to 2.1

2. Firmware upgrade to 1.8

Solve the following problems：

1. In J2534 mode, the sending length of J1850VPW is extended to 4128

2. PyOBD software cannot be connected in ELM327 mode

3. ELM327 mode cannot read ISO9141 VIN

GODIAG GD101 J2534 PCB Display:

Open the startup software, connect the device, and click upgrade firmware.

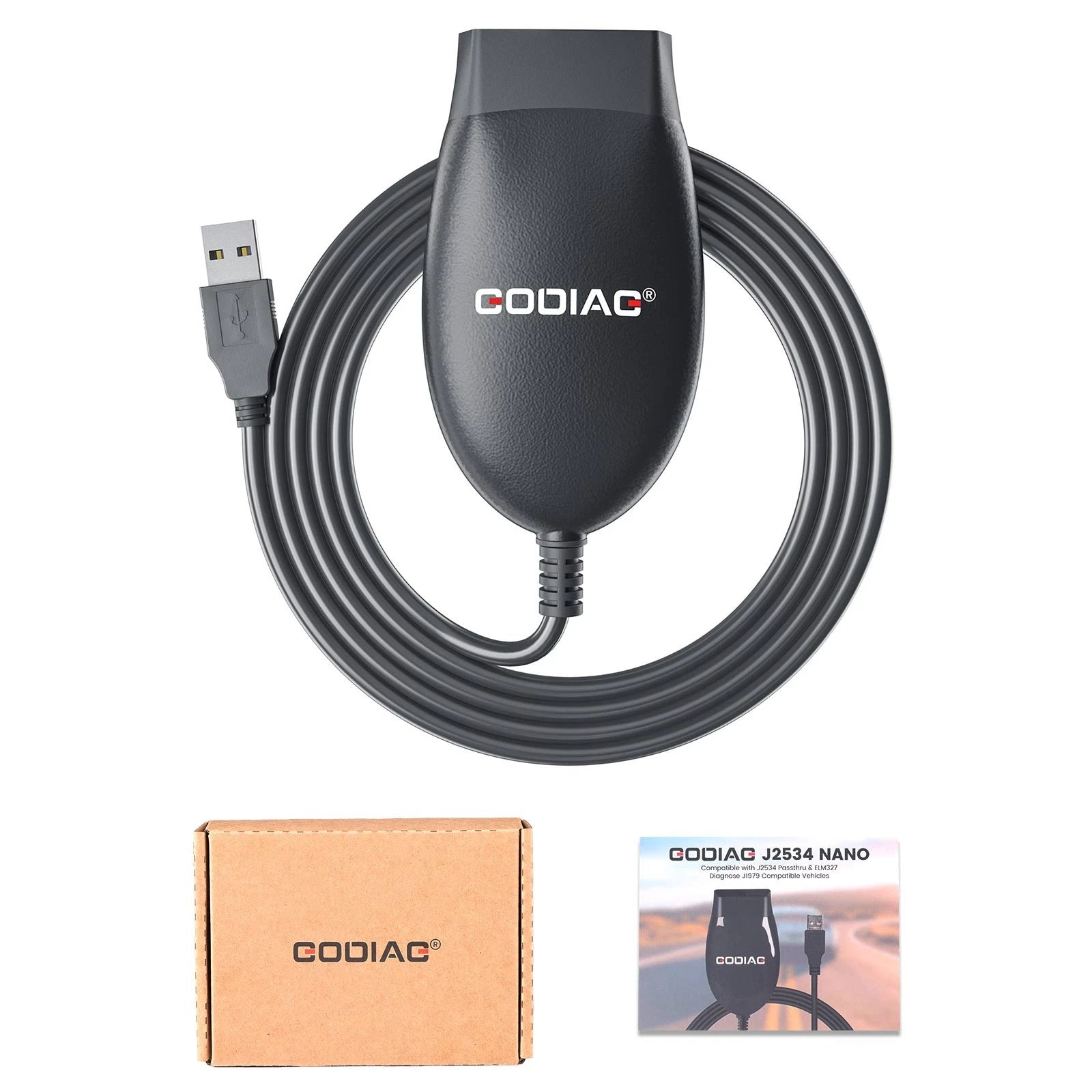

Package Includes:

1pc x GODIAG J2534
