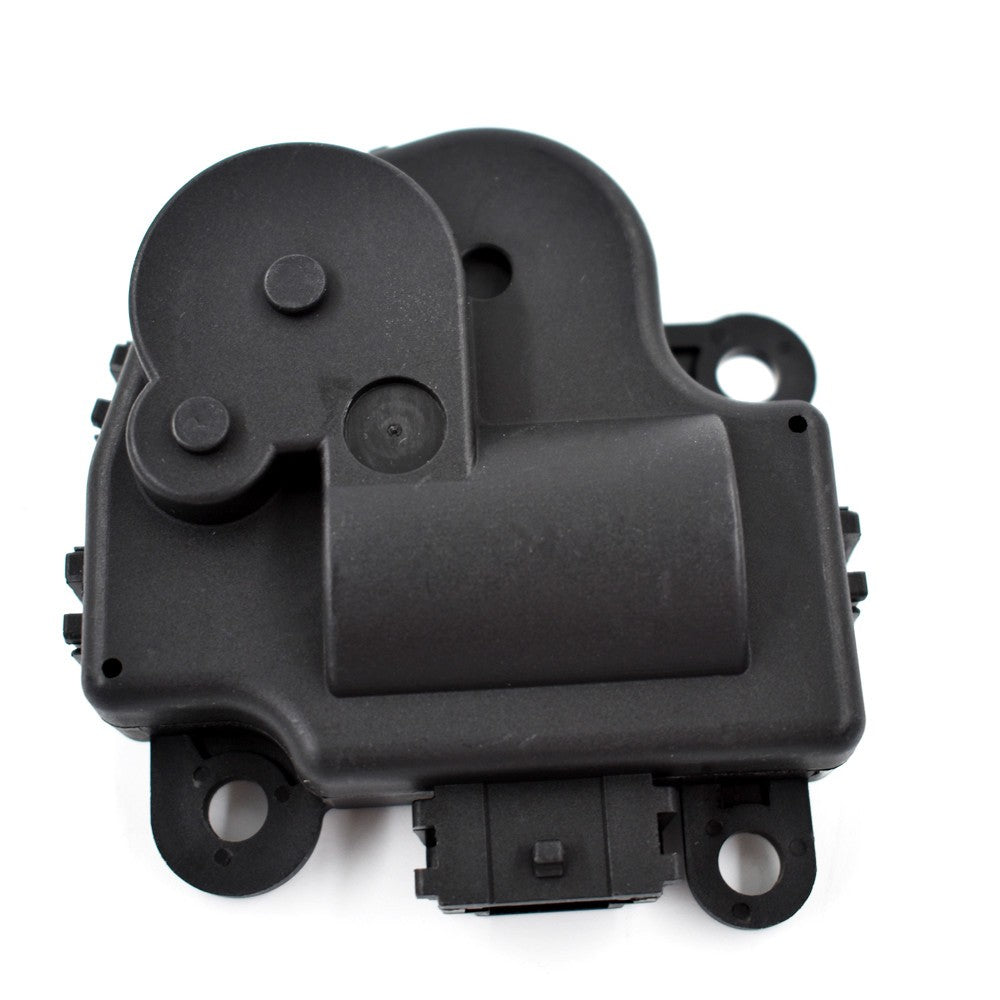

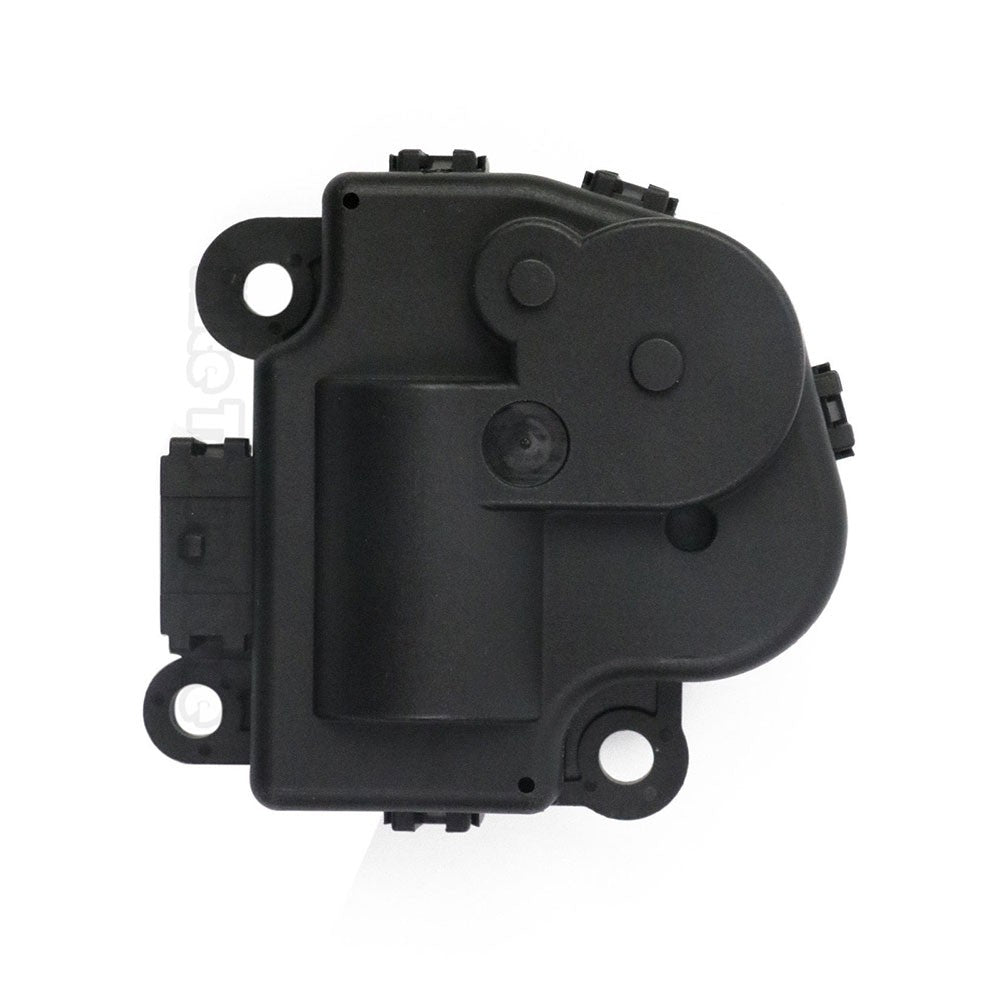

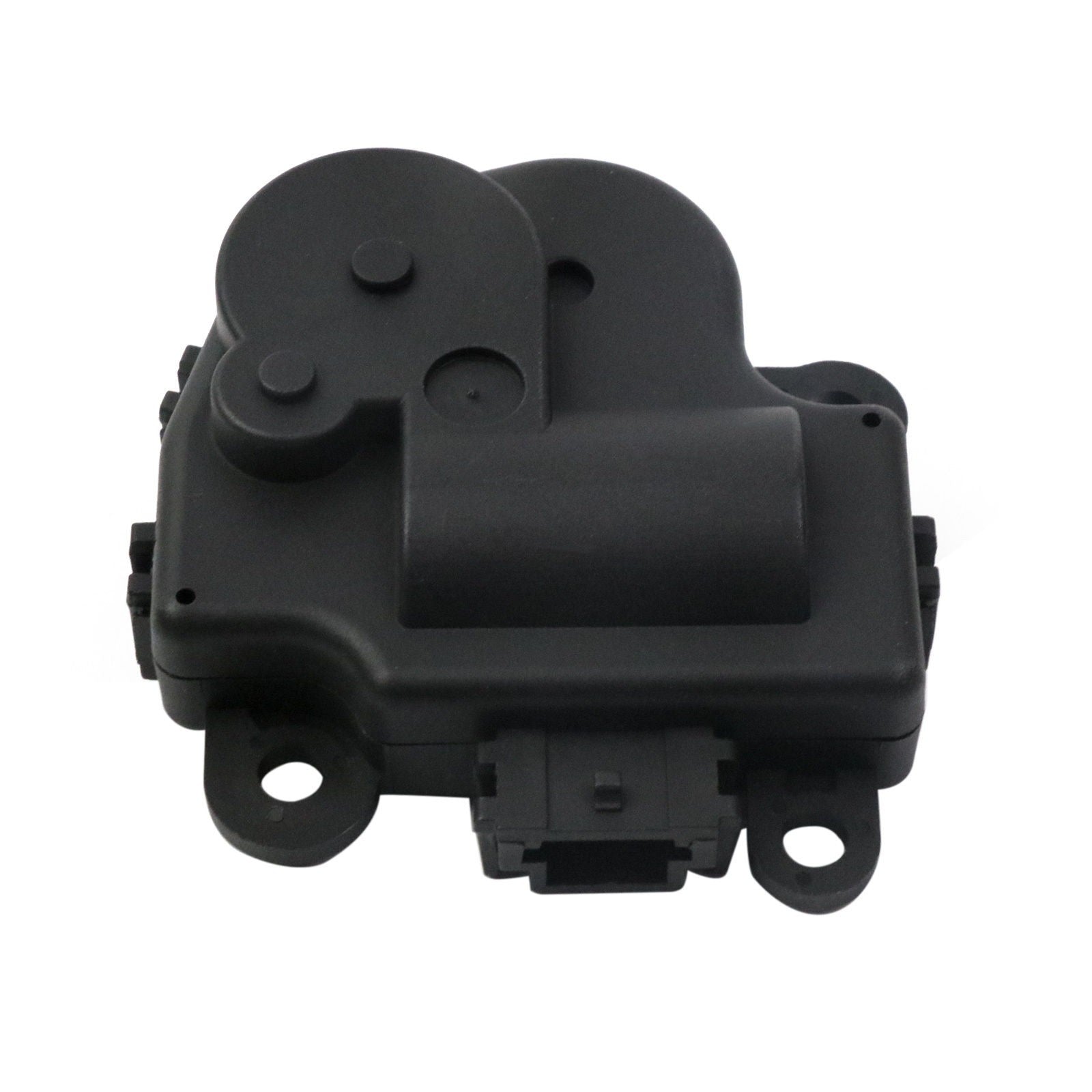

Heater Air Blend Door Actuator for 2004-2011 Chevrolet Impala 2006-2013 Corvette 15844096
Replacement heater air blend door actuator for 2004-2011 Chevrolet Impala, 2006-2013 Corvette, 2004-2007 Monte Carlo, 2005-2009 Buick LaCrosse and Allure and Pontiac Grand Prix.
This blend door actuator replaces a clicking or failed original, restoring proper temperature control from the heater and A/C system. It mounts and plugs in at the factory location.
Product details
- Product: Heater Air Blend Door Actuator
- Condition: New aftermarket replacement
- Manufacturer part number: 15844096
- Country of origin: United States
Specifications
- Activation Type: Electrical
- Finish: Black, Rust Protected, Coated
- Color: Black
- Material: Plastic, Metal, etc
Reference and interchange numbers
- 22754988
- F04008
- 1573517
- 1574122
- 1575517
- 604-108
- 604108
- 15-73517
- 15-74122
- 15-75517
Reference numbers are provided for identification. Compare the original part number, connectors, mounting points and installation position before ordering.
Fitment and compatibility
| Years | Make | Model | Engine | Trim / submodel |
|---|---|---|---|---|
| 2005-2009 | Buick | Allure | 3.8L V6 | CXL, CX |
| 2008-2009 | Buick | Allure | 5.3L V8 | Super |
| 2005-2009 | Buick | LaCrosse | 3.8L V6 | CXL, CX |
| 2008-2009 | Buick | LaCrosse | 5.3L V8 | Super |
| 2004-2009 | Cadillac | XLR | 4.6L V8 | Platinum, Base |
| 2006-2009 | Cadillac | XLR | 4.4L V8 | V |
| 2006-2007 | Chevrolet | Corvette | 6.0L V8 | Base |
| 2008-2013 | Chevrolet | Corvette | 6.2L V8 | Base, Grand Sport |
| 2013 | Chevrolet | Corvette | 7.0L V8 | 427 |
| 2004-2005 | Chevrolet | Impala | 3.4L V6 | Base |
| 2004-2005 | Chevrolet | Impala | 3.8L V6 | Base, LS, SS |
| 2006-2011 | Chevrolet | Impala | 3.5L V6 | LS, LT, 50th Anniversary Edition |
| 2006-2011 | Chevrolet | Impala | 3.9L V6 | LS, LTZ, LT, Police |
| 2006-2009 | Chevrolet | Impala | 5.3L V8 | SS |
| 2004-2008 | Chevrolet | Malibu | 2.2L L4 | Classic LS, LS, LT, Base |
| 2004-2008 | Chevrolet | Malibu | 3.5L V6 | Classic LS, Classic LT, Base, LS, LT, LTZ, Maxx LS, Maxx LT and more |
| 2006-2007 | Chevrolet | Malibu | 3.9L V6 | Maxx SS, SS |
| 2004-2005 | Chevrolet | Monte Carlo | 3.4L V6 | LS |
| 2004-2005 | Chevrolet | Monte Carlo | 3.8L V6 | LT, SS |
| 2006-2007 | Chevrolet | Monte Carlo | 3.5L V6 | LS, LT |
| 2006-2007 | Chevrolet | Monte Carlo | 5.3L V8 | SS |
| 2006 | Chevrolet | Monte Carlo | 3.9L V6 | LT, LTZ |
| 2004-2008 | Pontiac | Grand Prix | 3.8L V6 | Base, GT, GTP, GT1, GT2 |
| 2005-2008 | Pontiac | Grand Prix | 5.3L V8 | GXP |
Package contents
- One heater air blend door actuator
Professional installation is recommended.
