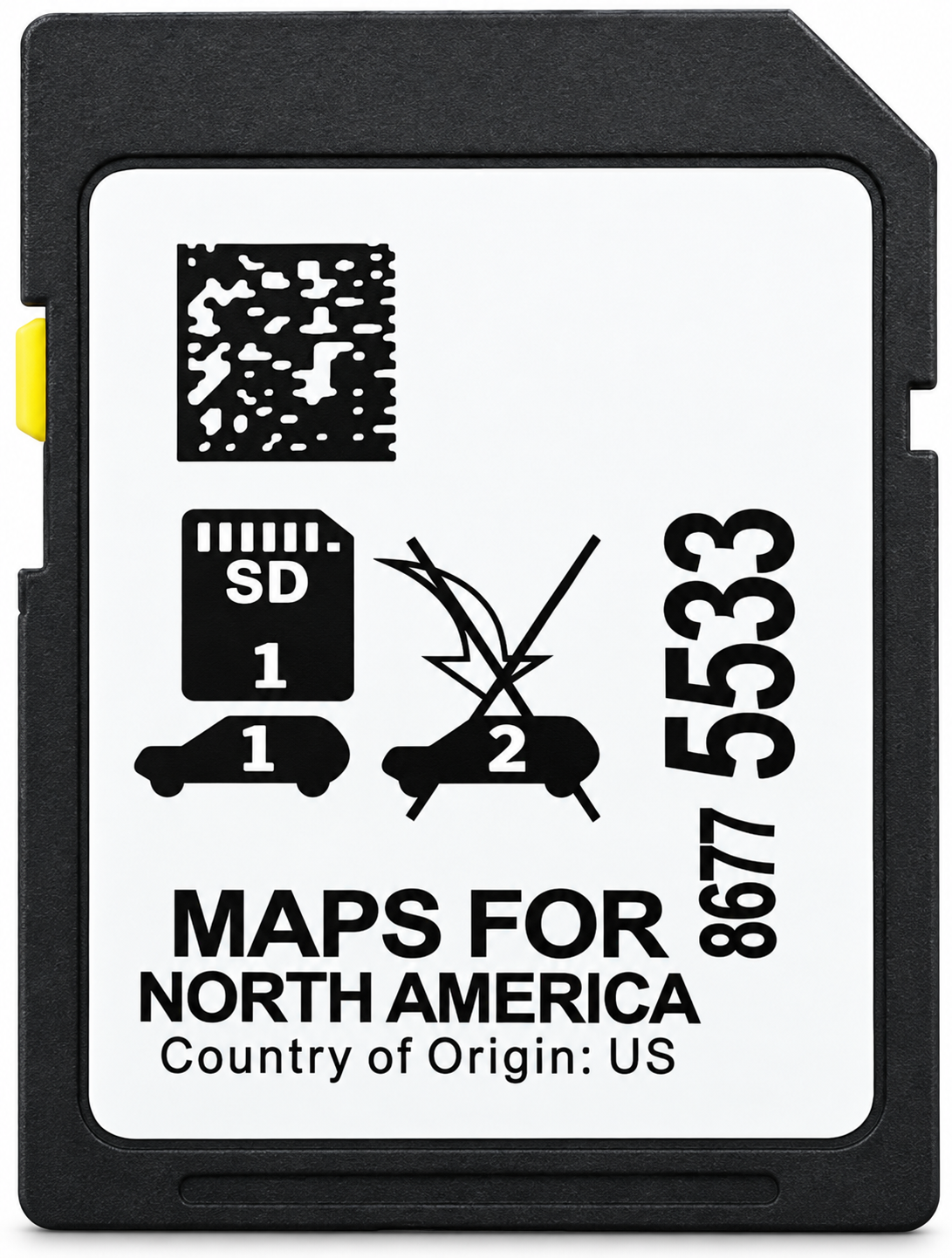

Genuine GM 86775533 OEM Navigation Data SD Card Chevy GMC Buick Cadillac
GM navigation data SD card for compatible factory-equipped General Motors navigation systems.
Product information:
-
Brand: GM Genuine Parts
-
GM part number: 86775533
-
Product type: Navigation data/map SD card
-
Map coverage: North America
-
Condition: New
-
Fitment type: Direct replacement
-
Quantity: One navigation data card
-
GM classification: Original Equipment
Supersedes these GM part numbers:
-
84250952
-
84471303
-
84832854
-
84954482
Verified primary applications:
Buick:
-
Enclave: 2020–2021
-
Encore GX: 2020
Cadillac:
-
XT4: 2020
-
XT5: 2020
-
XT6: 2020
Chevrolet:
-
Blazer: 2020
-
Camaro: 2020
-
Silverado 1500: 2020
-
Silverado 2500 HD: 2020
-
Silverado 3500 HD: 2020
-
Traverse: 2020–2021
GMC:
-
Acadia: 2020
-
Sierra 1500: 2020
-
Sierra 2500 HD: 2020
-
Sierra 3500 HD: 2020
Additional applications:
GM service-parts catalogs show part number 86775533 in certain later Cadillac XT6, Chevrolet Silverado and GMC Sierra applications. Some catalogs identify the overall service-part range as 2020–2025. Compatibility on these later vehicles depends on the exact factory navigation system, infotainment RPO code, map-data configuration, trim and build date.
Important fitment requirements:
-
The vehicle must already have compatible factory-installed GM navigation.
-
This card will not add navigation to a vehicle that was not originally equipped with it.
-
Part number 86775533 or one of the superseded numbers should match the original application.
-
Vehicles with the same year and model can use different navigation cards.
-
Verification by VIN through a GM dealer or GM parts catalog is strongly recommended before ordering.
VIN-lock notice:
GM navigation SD cards can become permanently associated with the first vehicle’s VIN during initialization. Once initialized, the card cannot normally be transferred to another vehicle. Confirm that the card is new and has never been initialized before installation.
Basic installation:
-
Turn the vehicle completely off and allow the infotainment system to power down.
-
Remove the existing navigation card.
-
Insert the new card firmly into the factory SD-card slot.
-
Turn the ignition and infotainment system on.
-
Open the Navigation application and follow the on-screen prompts.
The navigation system operates directly from the SD card; the data is not permanently downloaded to the radio. Keep the card installed during use.
Package includes one GM 86775533 navigation data card only. Vehicle, SD-card reader, installation tools and other accessories are not included.
