General Module Relay Pair for BMW E38 E39 E46 GM3 GM4 V23072-C1062-A303
. Product Details
Pair of TE Connectivity automotive PCB relays for repairing compatible BMW GM III and GM IV general modules. These relays are commonly used in central-locking and door-lock circuit repairs when the module fault has been correctly diagnosed.
- Quantity: two relays
- 24VDC coil
- 1 Form C / SPDT contact configuration
- 15A contact rating
- PCB-mount terminals
- Approximate dimensions: 15 x 13 x 17.5 mm
Fitment and Compatibility
For compatible BMW GM3/GM4 general modules used in select E38, E39 and E46 vehicles. Module construction and relay specification can vary. Open the original module and match the full relay number, pin layout and electrical rating before ordering. These components will not correct wiring, actuator or unrelated module faults.
Part Number Information

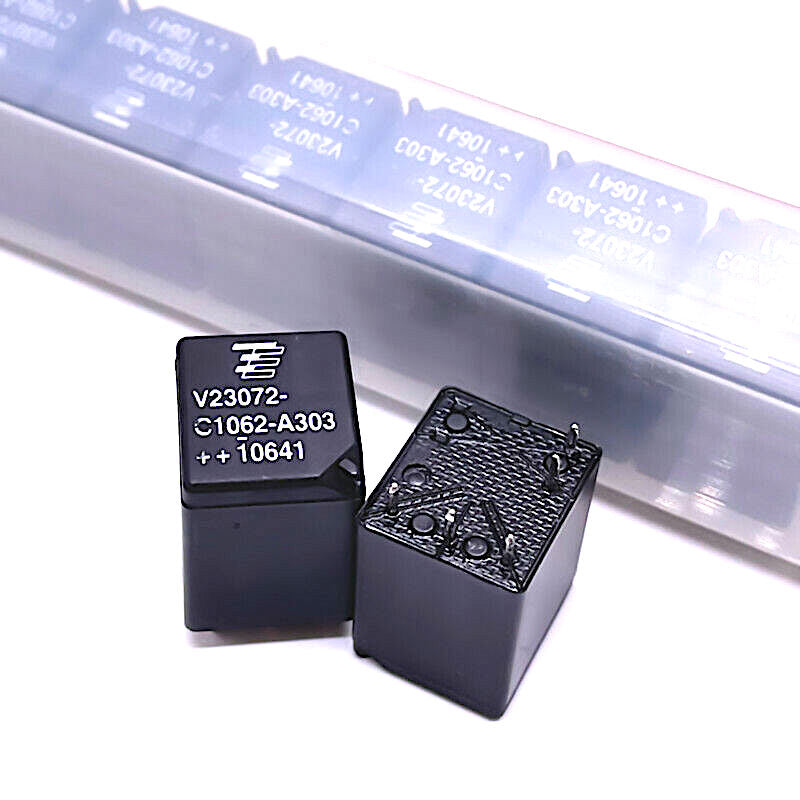

TE Connectivity part number: V23072-C1062-A303
Manufacturer number: V23072C1062A303
Alias: 7-1393273-8
Do not substitute V23072-C1061-A303 unless its electrical specifications and application have been independently confirmed.
Package Contents
Two new automotive relays.
Installation Notes
General-module disassembly and precision soldering are required. Installation should be performed by an experienced electronics technician using ESD-safe tools and appropriate desoldering equipment.
