Front Wheel Hub Bearing Assembly for 2004-2005 Mazda 3 with ABS 513211

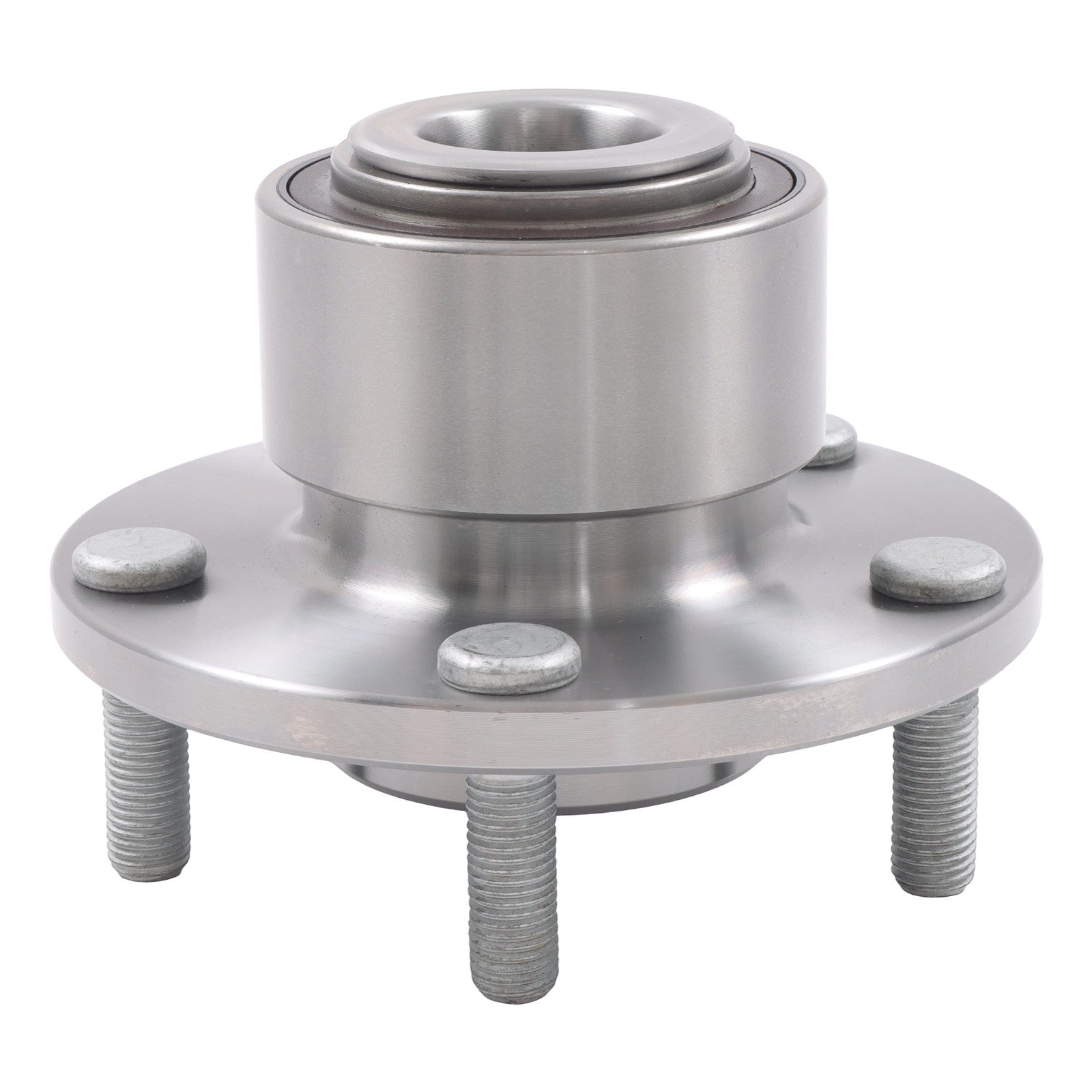

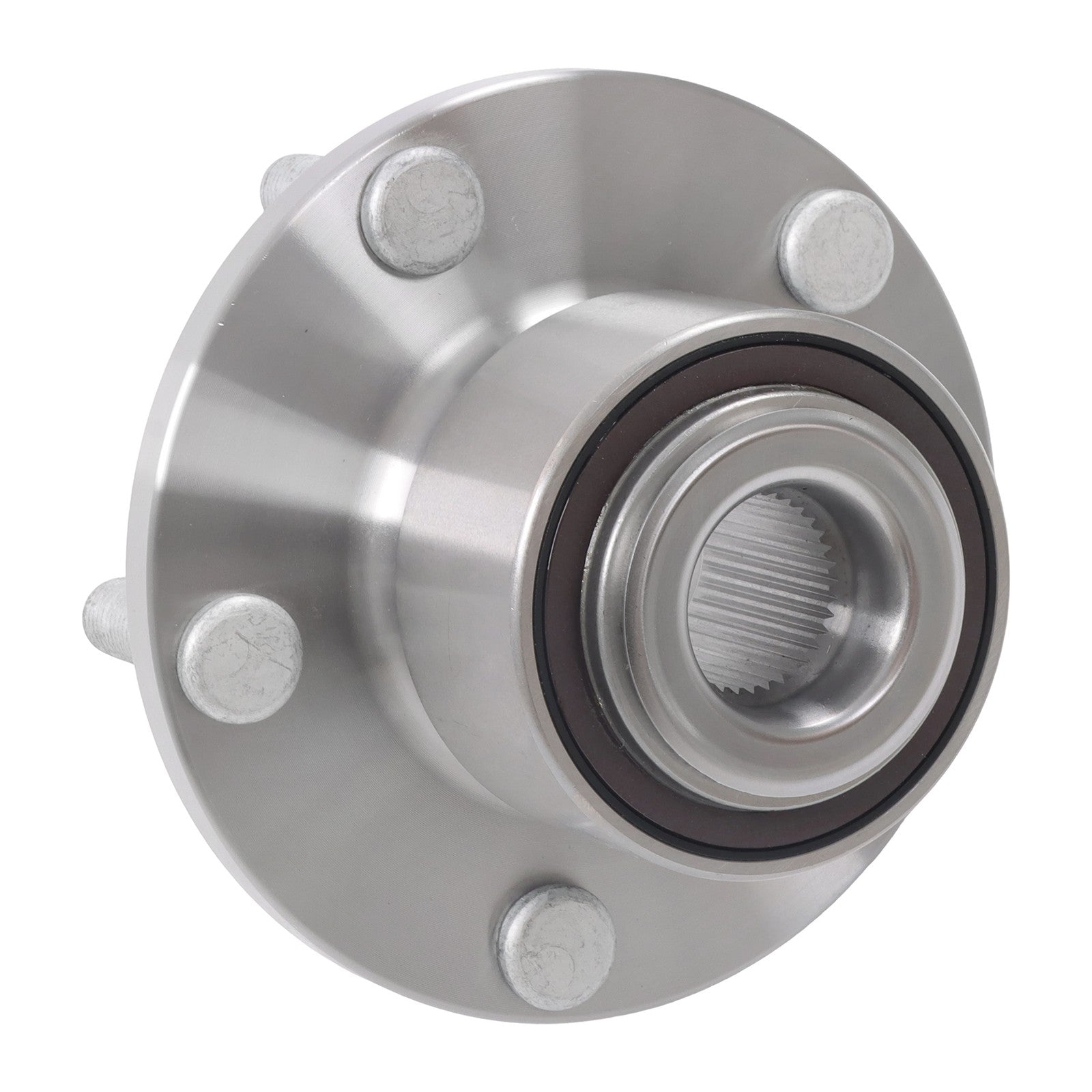

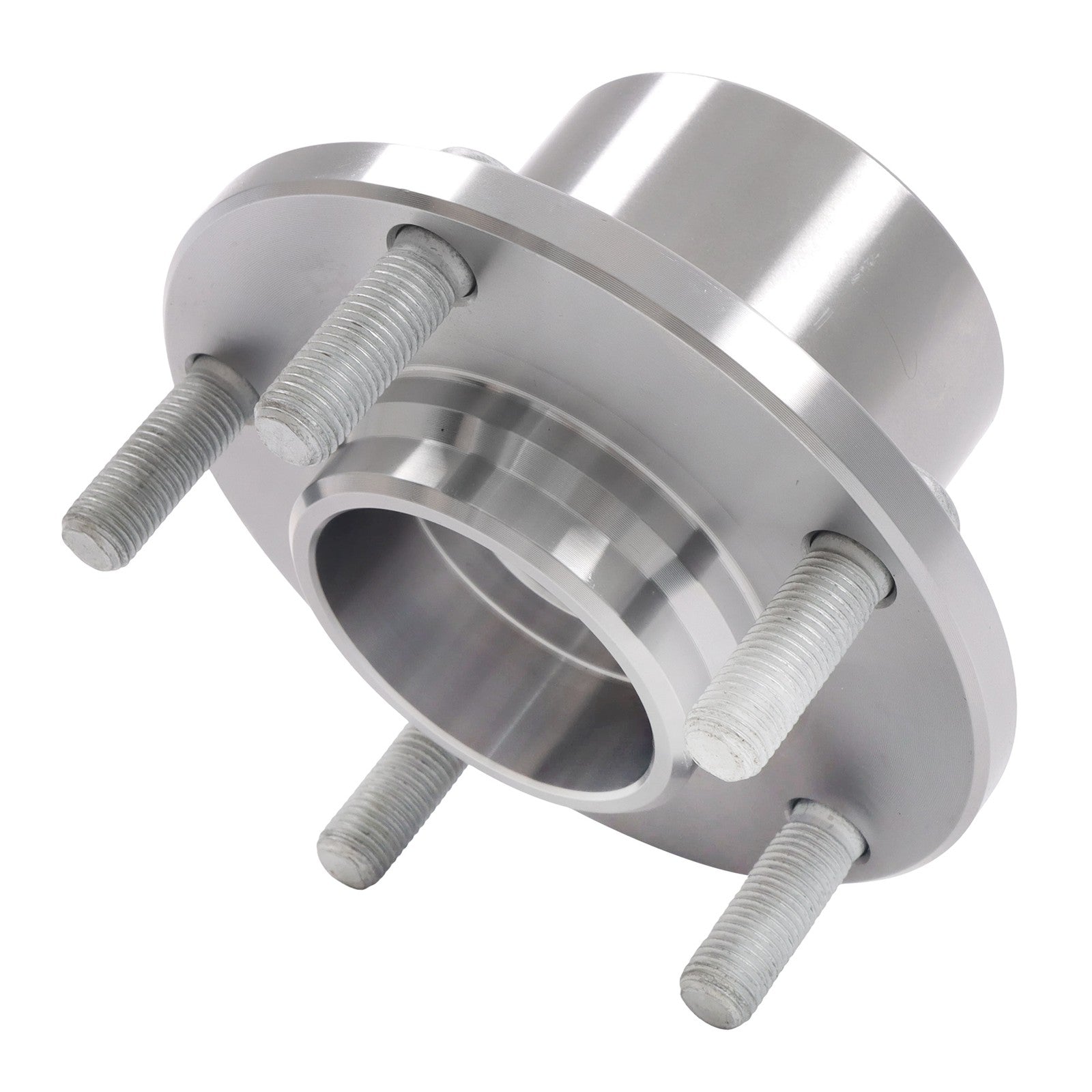

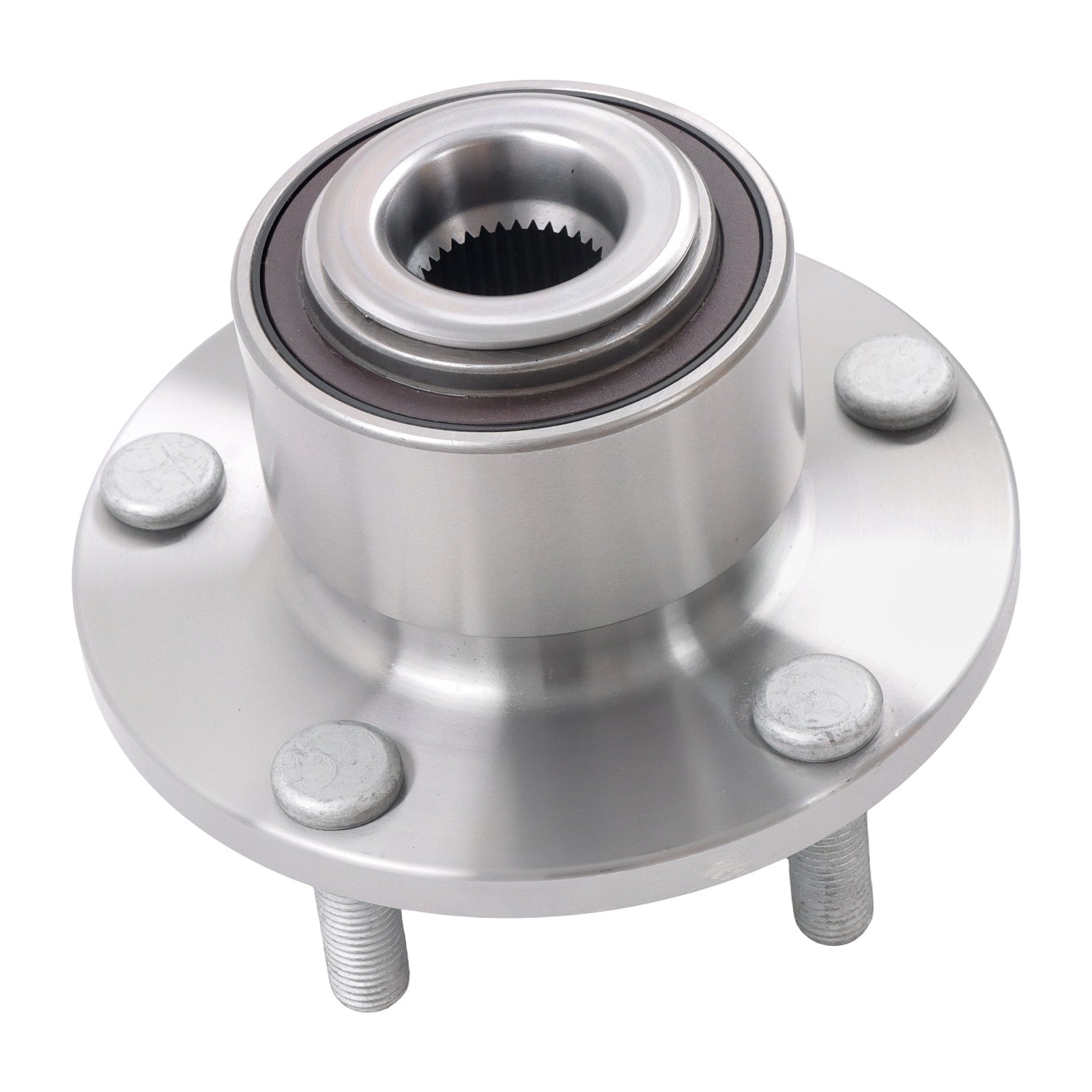

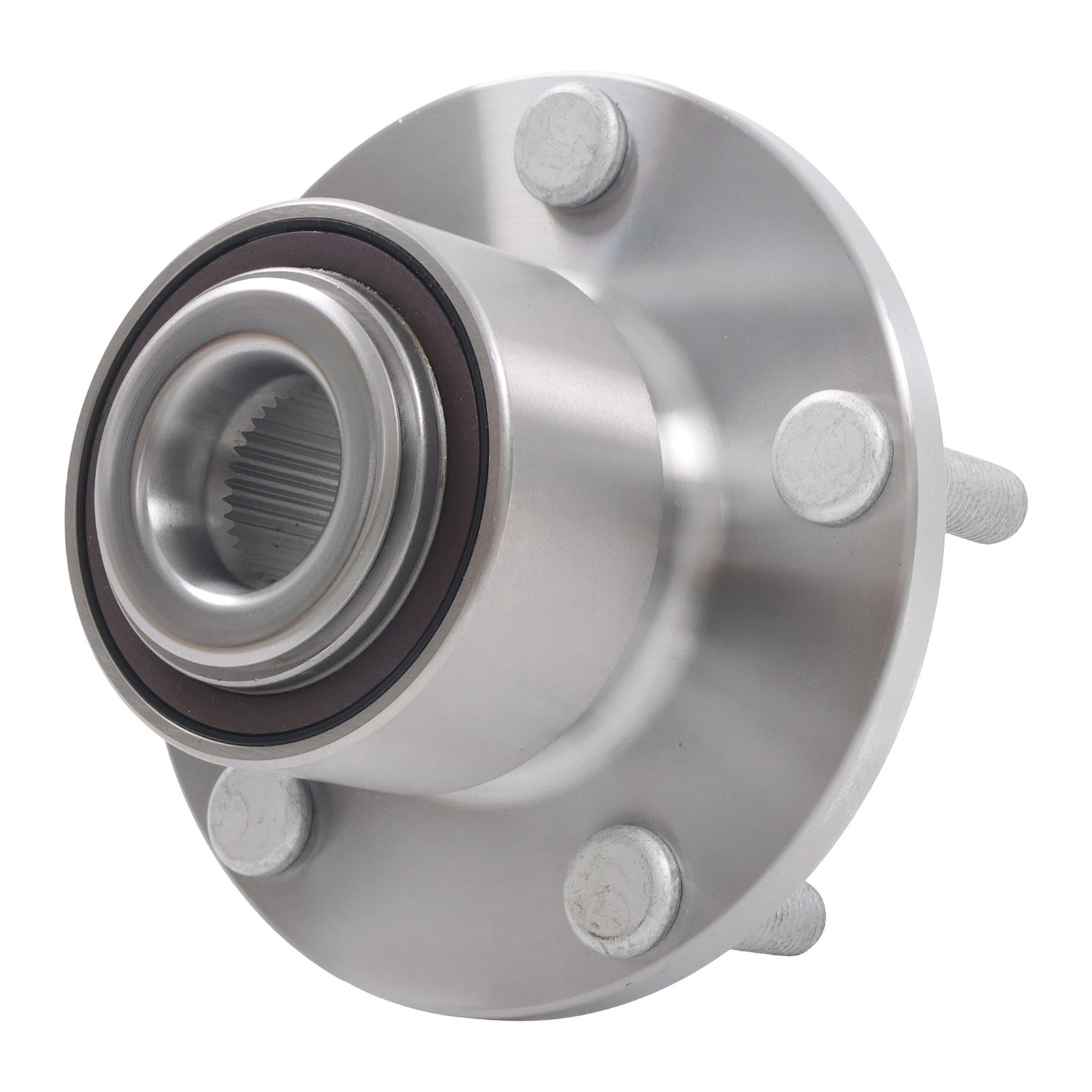

Front wheel hub and bearing assembly with ABS tone ring for the 2004-2005 Mazda 3 with 4-wheel ABS.
5-lug, 4.5 in (114.3 mm) bolt circle.
Product details
- Product: Front wheel hub and bearing assembly
- Condition: New aftermarket replacement
- Manufacturer part number: 513211
- Country of origin: United States
Specifications
- Placement: Front, Left, Right
- Type: Wheel Hub & Bearing Assembly
- Material: Steel
- Bolt Circle Diameter: 4.5 in. / 114.3 mm
- Hub Pilot Diameter: 3.07 in. / 78 mm
- Flange Offset: 2.42 in. / 61.5 mm
- Brake Pilot Diameter: 2.83 in. / 72 mm
- Flange Diameter: 5.43 in. / 138 mm
- Wheel Pilot Diameter: 2.64 in. / 67 mm
- Drive Type: FWD
Reference and interchange numbers
- 513211
- 29513211
- WA513211
- WB513211
Reference numbers are provided for identification. Compare the original part number, connectors, mounting points and installation position before ordering.
Fitment and compatibility
| Years | Make | Model | Engine | Trim / submodel |
|---|---|---|---|---|
| 2004-2005 | Mazda | 3 | 2.0L L4 | GS, GX, i |
| 2004-2005 | Mazda | 3 | 2.3L L4 | GT, S, SP23 |
Application notes
- For vehicles built before 01/01/2005 with 4-wheel ABS.
Package contents
- One wheel hub assembly
Professional installation is recommended.
