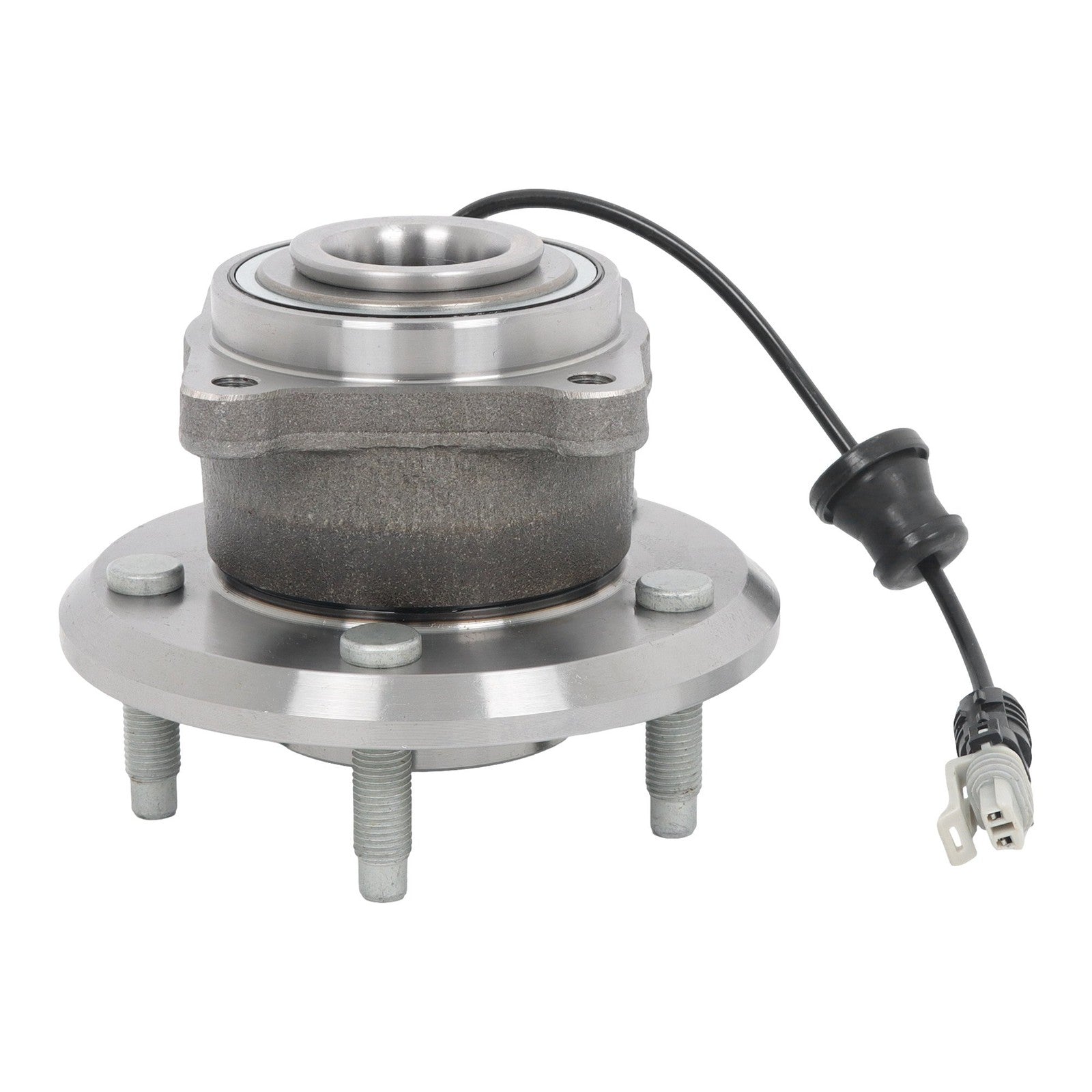

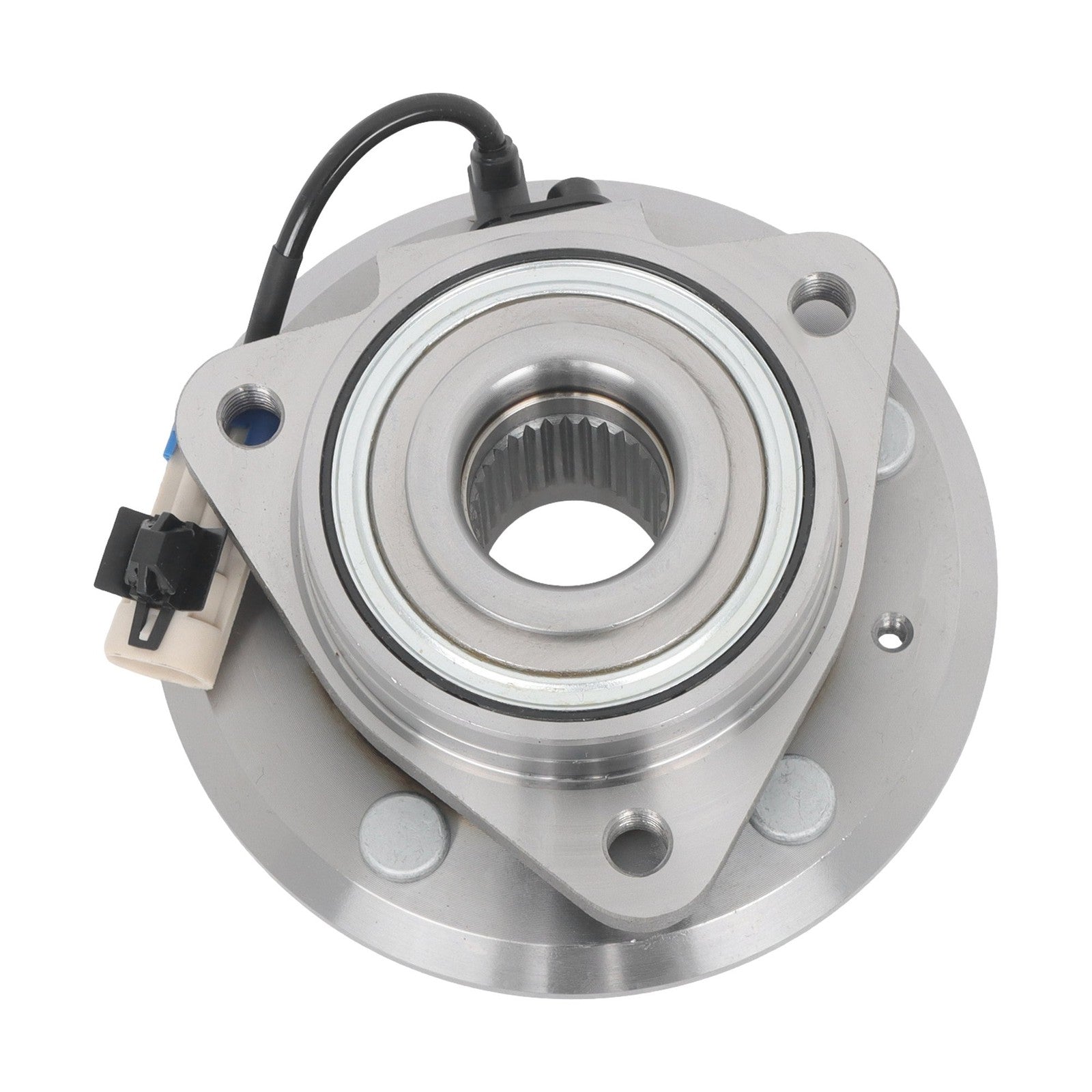

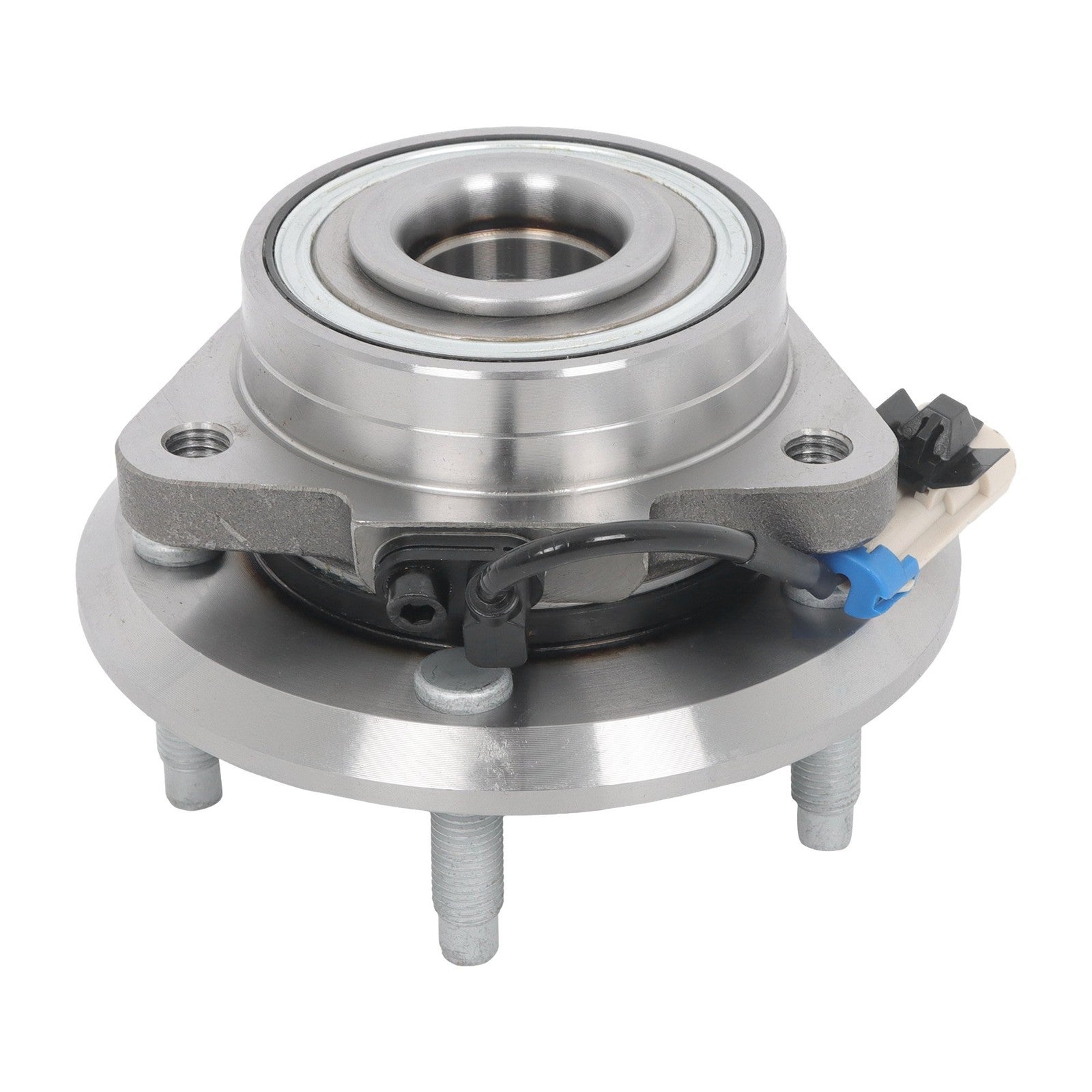

Front and Rear Wheel Hub Bearing Kit for 2007-2009 Chevrolet Equinox Saturn Vue 513276 512358
Set of four wheel hub and bearing assemblies covering both front and rear wheels, with integrated ABS sensors.
5 x 115 mm bolt pattern.
Product details

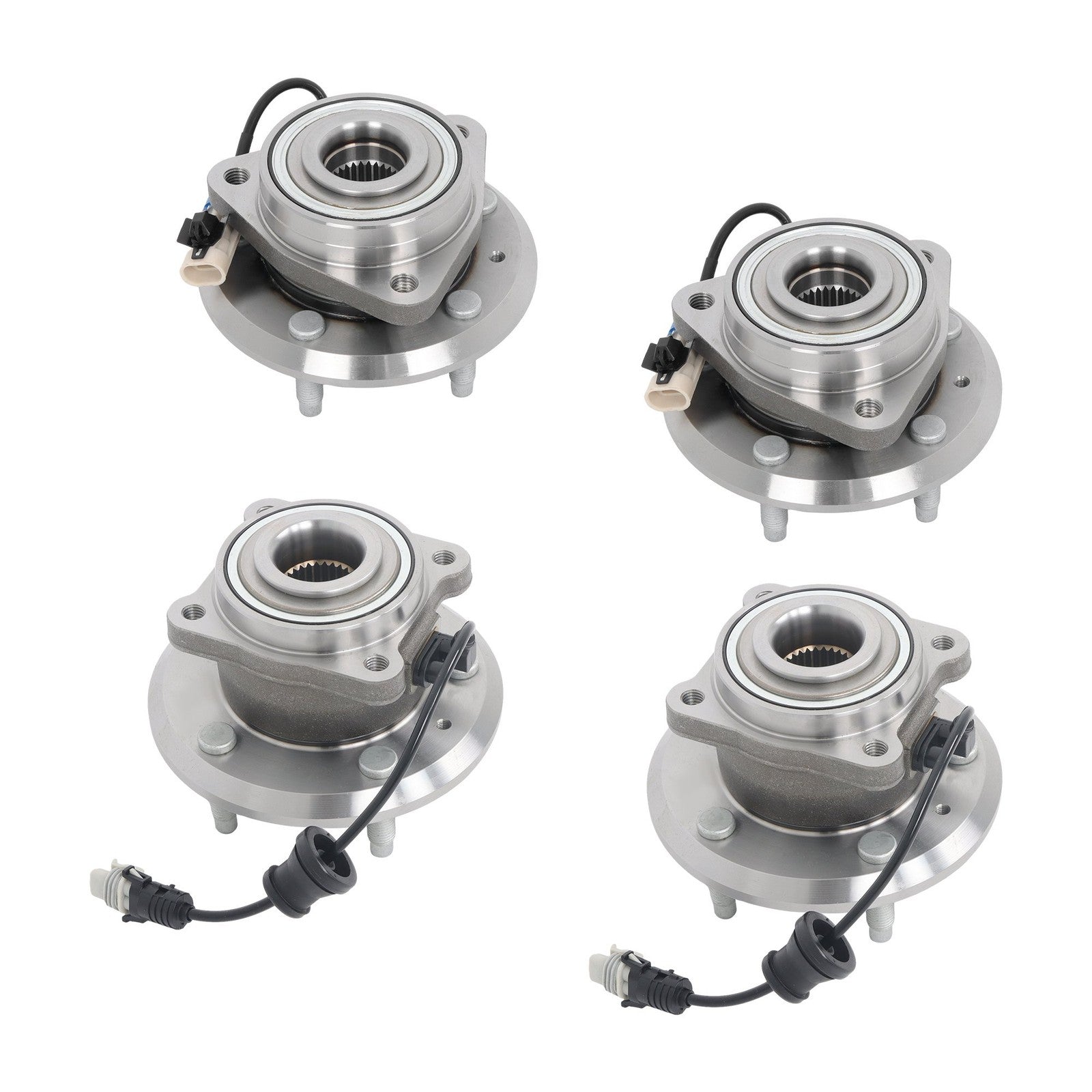

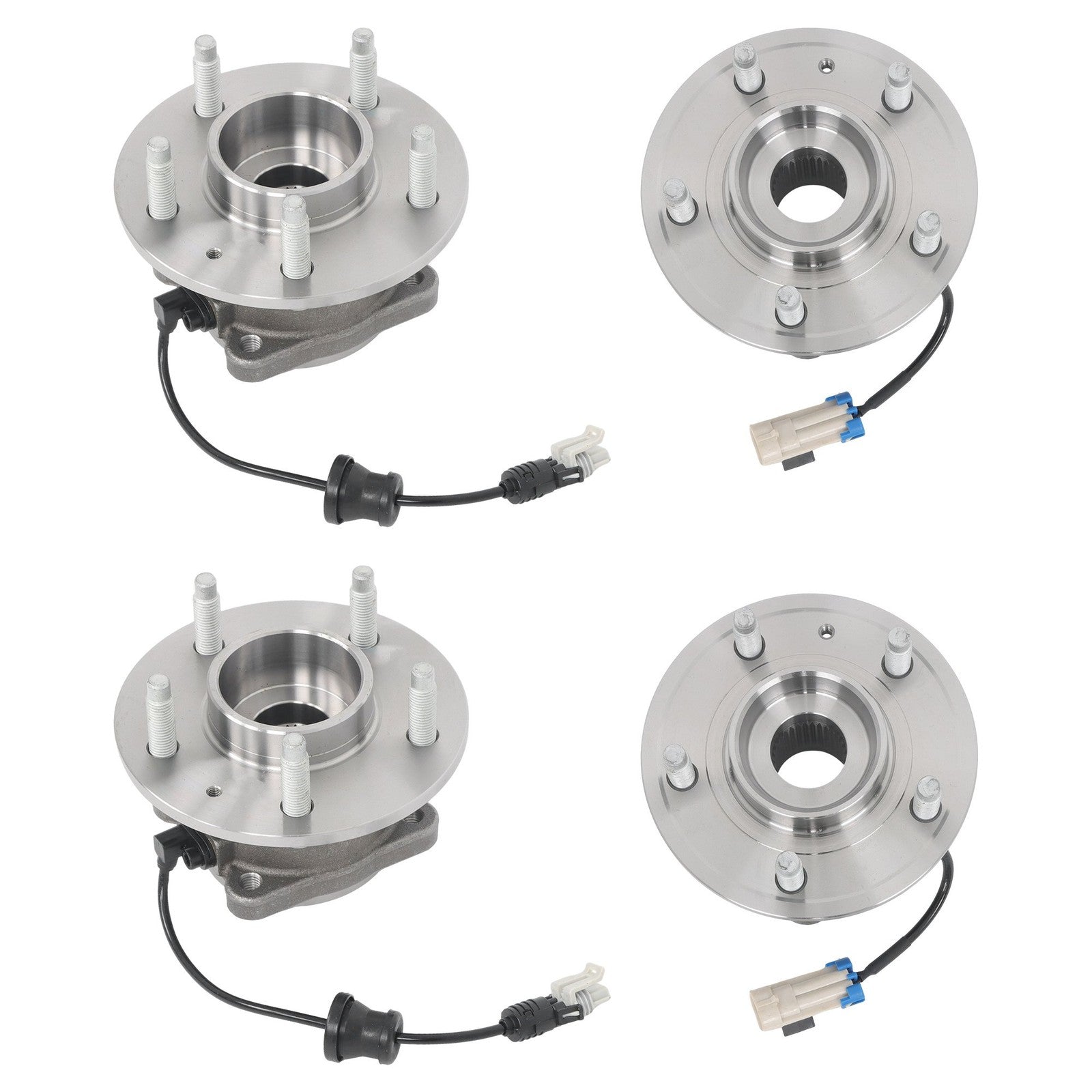

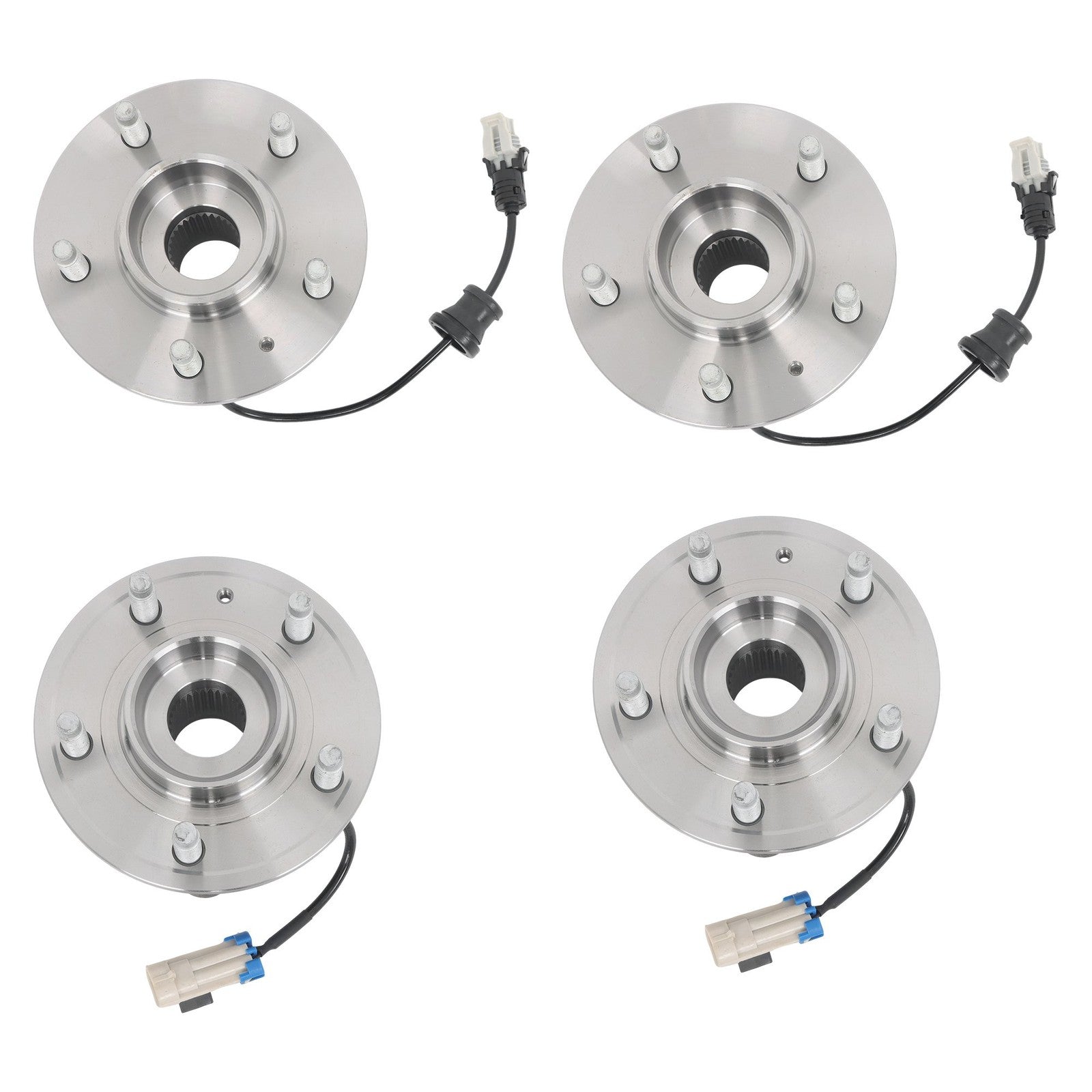

- Product: Front and rear wheel hub and bearing assembly kit, 4 pieces
- Condition: New aftermarket replacement
- Country of origin: United States
Specifications
- Placement: Front, Rear, Left, Right
- Type: Wheel Hub & Bearing Assembly
- Flange Diameter: 5.94 in. / 151 mm
- Knuckle Bolt Hole Size: M12x1.75 (Front); M10x1.5 (Rear)
- Package: 4Pc Wheel Hub Bearings
- ABS Sensor: Has ABS with tegral Sensor
- Bolt Circle Diameter: 4.53 in. / 115 mm
- Wheel Pilot Diameter: 2.76 in. / 70.1 mm
- Brake Pilot Diameter: 2.78 in. / 70.6 mm
- Bearing Type: Ball Bearing
Reference and interchange numbers
- 513276
- 512358
Reference numbers are provided for identification. Compare the original part number, connectors, mounting points and installation position before ordering.
Fitment and compatibility
| Years | Make | Model | Engine | Trim / submodel |
|---|---|---|---|---|
| 2012-2015 | Chevrolet | Captiva Sport | 2.4L L4 | LS, LT, LTZ |
| 2012-2015 | Chevrolet | Captiva Sport | 3.0L V6 | LT, LTZ |
| 2014 | Chevrolet | Captiva Sport | 3.0L L6 | LT |
| 2007-2009 | Chevrolet | Equinox | 3.4L V6 | LS, LT, LTZ |
| 2008-2009 | Chevrolet | Equinox | 3.6L V6 | Sport |
| 2007-2009 | Pontiac | Torrent | 3.4L V6 | Base, GT, LS, LT, Sport |
| 2008-2009 | Pontiac | Torrent | 3.6L V6 | GXP |
| 2008-2010 | Saturn | Vue | 2.4L L4 | XE, XR |
| 2008-2010 | Saturn | Vue | 3.5L V6 | XE |
| 2008-2010 | Saturn | Vue | 3.6L V6 | XR, Red Line |
| 2008-2009 | Saturn | Vue | Electric | Hybrid, Green Line |
| 2007-2009 | Suzuki | XL-7 | 3.2L V6 | GLS, GL |
| 2007-2009 | Suzuki | XL-7 | 3.6L V6 | JLX, Limited, Luxury, Premium, Base, JX |
Package contents
- Two front wheel hub and bearing assemblies
- Two rear wheel hub and bearing assemblies
Professional installation is recommended.
