10.1" QLED 6+64 Android Car Radio for GMC Sierra Wireless CarPlay GPS Navigation

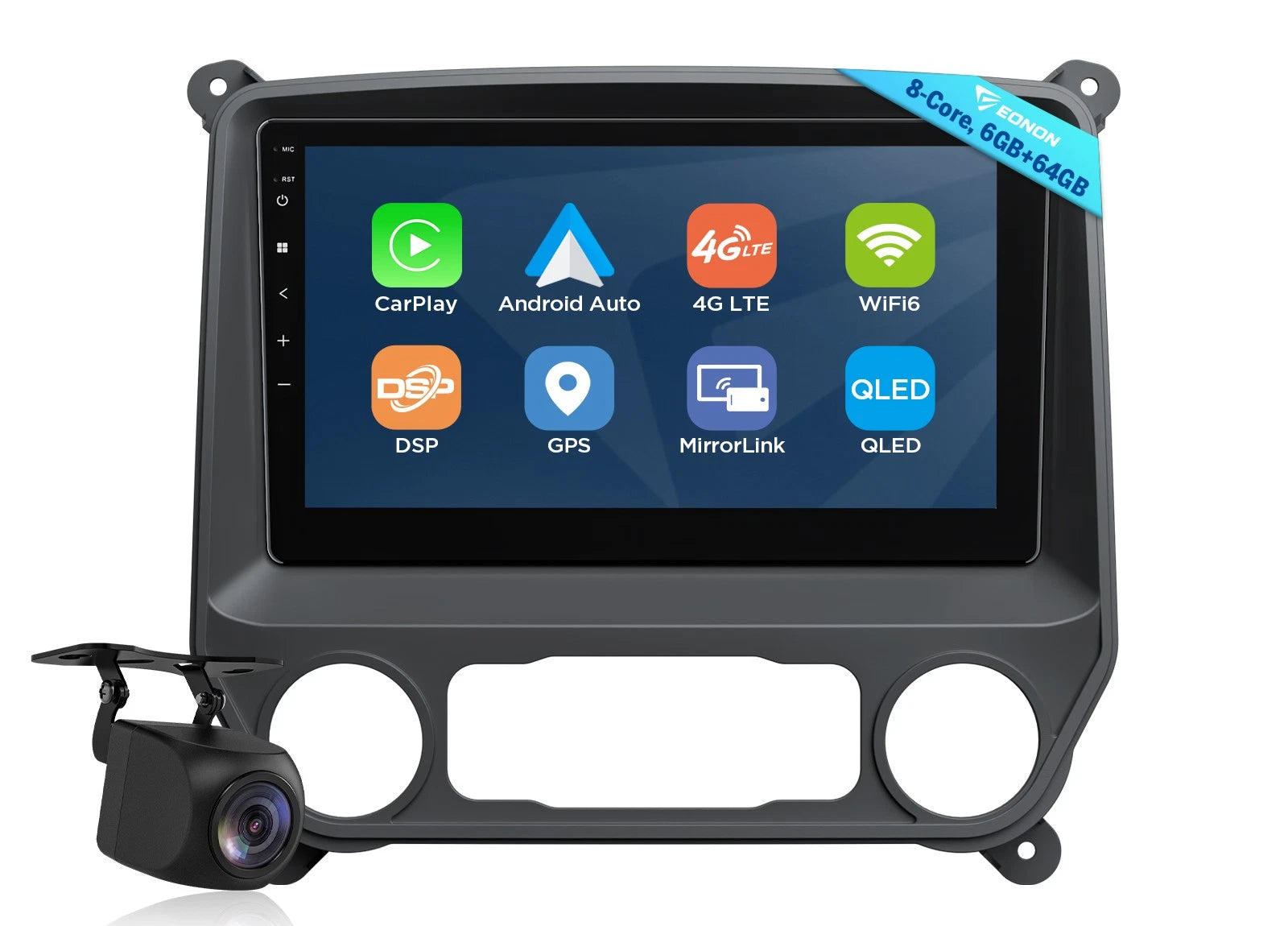

🚘 Eonon GMSX6S2 Android 13 Car Stereo for Chevrolet Silverado / GMC Sierra 2014–2018

10.1" QLED | Qualcomm 6nm 8-Core | 6GB+64GB | Wireless CarPlay & Android Auto | DSP | 4G LTE | GPS | Wi-Fi 6

Modern Connectivity for Your Silverado or Sierra

Upgrade your compatible 2014–2018 Chevrolet Silverado or GMC Sierra with a larger 10.1" touchscreen, wireless smartphone connectivity, built-in navigation and more flexible audio control.

The Eonon GMSX6S2 combines Android 13, Qualcomm 6nm performance, Wireless Apple CarPlay & Android Auto, built-in 4G LTE and 48-band DSP in a vehicle-specific system designed to retain selected original truck functions.

Key Upgrades

• Silverado / Sierra-Specific Design – built for compatible 2014–2018 dashboard configurations
• Android 13 + Qualcomm 6nm 8-Core – responsive navigation, apps and multitasking
• 6GB RAM + 64GB Storage – smooth everyday operation with room for apps and media
• 10.1" QLED 1280×720 Display – larger interface for maps, media and vehicle information
• Wireless & Wired CarPlay / Android Auto – easy access to navigation, calls, messages and music
• 48-Band DSP – detailed sound adjustment with analogue and digital audio outputs
• Built-in GPS + 4G LTE + Wi-Fi 6 – flexible online and offline connectivity
• Factory Function Integration – supports compatible SWC, OnStar, A/C information and parking functions
• Factory Backup Camera Support – retains compatible original reversing-camera functionality

Vehicle Compatibility

For Chevrolet:

• 2014–2018 Silverado 1500

• 2014–2018 Silverado 2500 / 2500 HD

• 2015–2018 Silverado 3500

• 2014–2018 Silverado 3500 HD

For GMC:

• 2014–2018 Sierra / Sierra 1500

• 2014–2018 Sierra 2500 HD

• 2014–2018 Sierra 3500 HD

⚠️ Check Your Dashboard Before Ordering

The GMSX6S2 is designed for compatible Chevrolet Silverado and GMC Sierra models from 2014–2018, but not every dashboard configuration used during these years is suitable.

Please compare your original centre console with the Suitable / Not Suitable examples shown in the listing images.

The dashboard style marked Not Suitable is not compatible with this stereo.

Do not purchase based on vehicle year alone. Original dashboard, audio and equipment configurations must also be checked.

⚠️ BOSE-Equipped Vehicles Require an Additional Decoder

If your Silverado or Sierra has the factory BOSE sound system, an additional BOSE decoder is required for audio output.

Choose one compatible decoder:

• Eonon A508X

A508X are sold separately unless specifically included in your selected package.

Without the required decoder, a BOSE-equipped vehicle will have no sound after installation.

If your truck does not have the factory BOSE audio system, this additional BOSE decoder is not required.

Keep Supported Factory Truck Features

The vehicle-specific interface is designed to retain selected original Chevrolet / GMC functions on compatible configurations.

Depending on your truck equipment, supported functions include:

• Steering wheel controls*
• OnStar
• Door-open information
• A/C information
• Parking sensor information
• Reversing guidelines
• CANBUS vehicle data
• Compatible factory backup camera

*The original voice recognition steering-wheel button is not supported.

Factory equipment varies between Silverado and Sierra configurations, so individual retained functions depend on the original vehicle.

Keep the Compatible Factory Backup Camera

Already have an original reversing camera?

On compatible Silverado and Sierra configurations, the GMSX6S2 is designed to retain the factory backup camera when replacing the original radio.

The reversing image can be displayed through the new 10.1" screen when the vehicle is placed in reverse.

This allows you to upgrade the infotainment system without automatically giving up a useful original parking feature.

Factory camera configuration can vary, so please check the compatibility information before installation.

Android 13 + Qualcomm Performance

Powered by the Qualcomm QCM6225-AD 6nm platform, the GMSX6S2 provides the performance needed for navigation, music and compatible Android apps.

• 8-Core CPU: 4×A73 up to 2.8GHz + 4×A53 up to 1.9GHz
• 6GB RAM
• 64GB internal storage
• 1-second fast boot supported
• OTA firmware updates
• Split-screen multitasking

Run compatible functions such as navigation and music side by side without constantly switching screens.

Wireless Apple CarPlay & Android Auto

Connect your compatible smartphone and access commonly used functions directly from the stereo.

Use compatible:

• Navigation
• Music
• Calls
• Messages
• Siri
• Google Assistant

Both wired and wireless Apple CarPlay and Android Auto are supported, so you can choose between cable-free convenience and a wired connection.

10.1" QLED HD Touchscreen

The 10.1-inch QLED touchscreen gives maps, media, vehicle information and compatible camera images significantly more viewing space than the original radio interface.

• 1280×720 HD resolution
• 178° wide viewing angle
• Anti-glare design
• Capacitive touchscreen
• Day / night brightness adjustment

The larger display provides a substantial infotainment upgrade while integrating into compatible Silverado and Sierra dashboards.

48-Band DSP Audio Control

Fine-tune your truck's audio around your speakers, cabin and listening preferences.

Audio features include:

• Built-in DSP
• 48-band EQ
• Time alignment
• Multiple EQ presets
• Subwoofer control
• 25W RMS manufacturer-rated power
• Up to 4×48W amplifier output
• 5-channel preamp output
• 1.8V preamp voltage

For upgraded systems, the GMSX6S2 also provides 4 RCA outputs plus optical and coaxial digital outputs, offering more flexibility when connecting compatible aftermarket amplifiers or subwoofers.

Built-In GPS Navigation

Use the built-in GPS receiver and external GPS antenna with compatible offline maps, or connect to the internet for supported navigation services such as Google Maps and Waze.

Offline navigation allows route guidance without continuous mobile data, while an internet connection enables supported online traffic and connected services.

4G LTE + Wi-Fi 6 Connectivity

Insert a compatible SIM card to give the stereo its own mobile data connection for supported navigation, streaming and Android applications.

Connectivity includes:

• Built-in 4G LTE
• 2.4GHz / 5GHz Wi-Fi
• Wi-Fi 6 ready
• Bluetooth 5.1
• Split-screen multitasking

A SIM card is not required for Apple CarPlay, Android Auto, Bluetooth, AM/FM radio or GPS reception.

4G compatibility depends on the regional version, mobile carrier and supported LTE bands.

Wireless Screen Mirroring

The GMSX6S2 supports wireless screen mirroring with compatible iPhone and Android devices.

This allows supported smartphone content to be displayed on the 10.1" QLED screen.

Availability depends on the phone, operating system and app.

DRM-protected services may restrict video playback or mirroring.

Camera, Radio & Media Support

In addition to compatible factory backup-camera retention, the GMSX6S2 supports useful parking and media functions including:

• Compatible reversing camera input
• Automatic reverse display
• Parking guidelines
• AHD-compatible camera support
• AM/FM radio with RDS
• 3 USB inputs
• USB media playback
• Up to 1080P video decoding

Common audio formats including MP3, WMA, WAV, AAC, FLAC and APE are supported.

Optional Eonon Accessories

A508X BOSE Decoder
Required for compatible Silverado / Sierra vehicles equipped with the factory BOSE sound system. Choose one compatible decoder.

A100 Dash Camera
Add compatible front driving recording.

A0125 / A0127 Camera
Add compatible parking or reversing-camera functionality.

V0056 Bluetooth OBD2 Scanner
View supported vehicle diagnostic information through compatible Android apps.

A503 / DX2 / DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.

A304 DSP Digital Amplifier
Add further amplification for compatible upgraded audio systems.

Optional accessories are sold separately unless specifically included with your selected package.

Frequently Asked Questions

Will the GMSX6S2 fit every 2014–2018 Chevrolet Silverado or GMC Sierra?
No. It is designed for compatible dashboard configurations within these model years. Please compare your original dashboard with the Suitable / Not Suitable images before ordering.

My truck has factory BOSE. Can I use this stereo?
Yes, but a compatible A508X BOSE decoder is required. Choose one decoder according to the supported installation configuration.

What happens if I install it in a BOSE truck without the decoder?
There will be no audio output, so the required BOSE decoder must be installed.

Will my original backup camera still work?
Compatible factory backup-camera configurations are supported, allowing the original reversing image to be retained through the new stereo.

Will OnStar still work?
Compatible factory OnStar functionality is supported through the vehicle interface.

Are steering wheel controls retained?
Compatible steering wheel controls are supported, except for the original voice recognition button.

Will A/C information still be displayed?
Supported A/C information can be displayed through the new system on compatible vehicle configurations.

Does it support Wireless CarPlay and Android Auto?
Yes. Both wired and wireless Apple CarPlay and Android Auto are supported.

Can GPS work without internet?
Yes. The built-in GPS supports compatible offline navigation maps. Internet access is required for online traffic and other connected services.

Do I need a SIM card?
Only if you want to use the stereo's built-in 4G LTE mobile data connection. CarPlay, Android Auto, Bluetooth, AM/FM radio and GPS reception do not require a SIM card.

Does it support wireless screen mirroring?
Yes. Wireless screen mirroring is supported with compatible iPhone and Android devices. DRM restrictions may apply to some apps.

Can I connect an aftermarket amplifier or subwoofer?
Yes. RCA, subwoofer, optical and coaxial outputs are available for compatible aftermarket audio equipment.

Modernise Your Silverado or Sierra

The Eonon GMSX6S2 Chevrolet Silverado / GMC Sierra Android car stereo combines Android 13, Qualcomm 6nm performance, Wireless Apple CarPlay and Android Auto, built-in GPS, 4G LTE, Wi-Fi 6 and 48-band DSP audio control in a vehicle-specific 10.1" QLED system.

For compatible 2014–2018 Chevrolet Silverado and GMC Sierra trucks, it provides a practical way to upgrade navigation, entertainment and smartphone connectivity while retaining supported functions such as OnStar, steering wheel controls, A/C information, parking sensor information and the compatible factory backup camera.

Before purchasing, compare your dashboard with the compatibility images and confirm whether your truck has the factory BOSE sound system. BOSE-equipped vehicles require an A508X decoder for audio output.

⭐ Parameter

• Operation system: Android 13
• Processor: Qualcomm QCM6225-AD
• CPU Architecture: 8-core (4×A73@2.8GHz + 4×A53@1.9GHz)
• RAM: 6GB
• Storage: 64GB
• Display: 10.1" QLED Touchscreen
• Resolution: 1280*720
• Operating voltage: DC12V
• CarPlay: Wired & Wireless
• Android Auto: Wired & Wireless
• Split-screen multitasking: Yes
• Screen mirroring: Yes
• 1s fast boot: Yes
• Steering wheel controls: Yes(except voice recognition button)
• Key button color: Variable
• Wi-Fi: Support 2.4G/5G & Wi-Fi 6 ready
• 4G Feature: Built-in 4G module
• Custom boot logo & changeable wallpapers: Yes
• Built-in UI themes: 6
• Compatible with Bose system: Yes
• Built-in DSP: Yes
• Built-in power amplifier: 4-channel audio output and one subwoofer audio output
• EQ bands: 48
• EQ modes: User Standard Rock POP Classical Jazz Gentle CINEMA Hall
• HPF/LPF adjustment: NO
• Video input: 1
• Video output: NO
• Audio input: 2
• Audio output: 4 RCA + 1 Optical + 1 Coaxial
• AUX input: NO
• USB input: 3
• RMS power (manufacturer): 25W
• Max amplifier output: 4*48W
• Preamp outputs: 5-channel
• Sub preamp outputs: Yes
• Preamp voltage: 1.8V
• Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
• Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
• Image Formats: Supports JPEG, BMP, PNG, and more
