9" IPS Android 14 4+64G Car Stereo Touchscreen CarPlay WiFi BT for BMW E46 AM FM

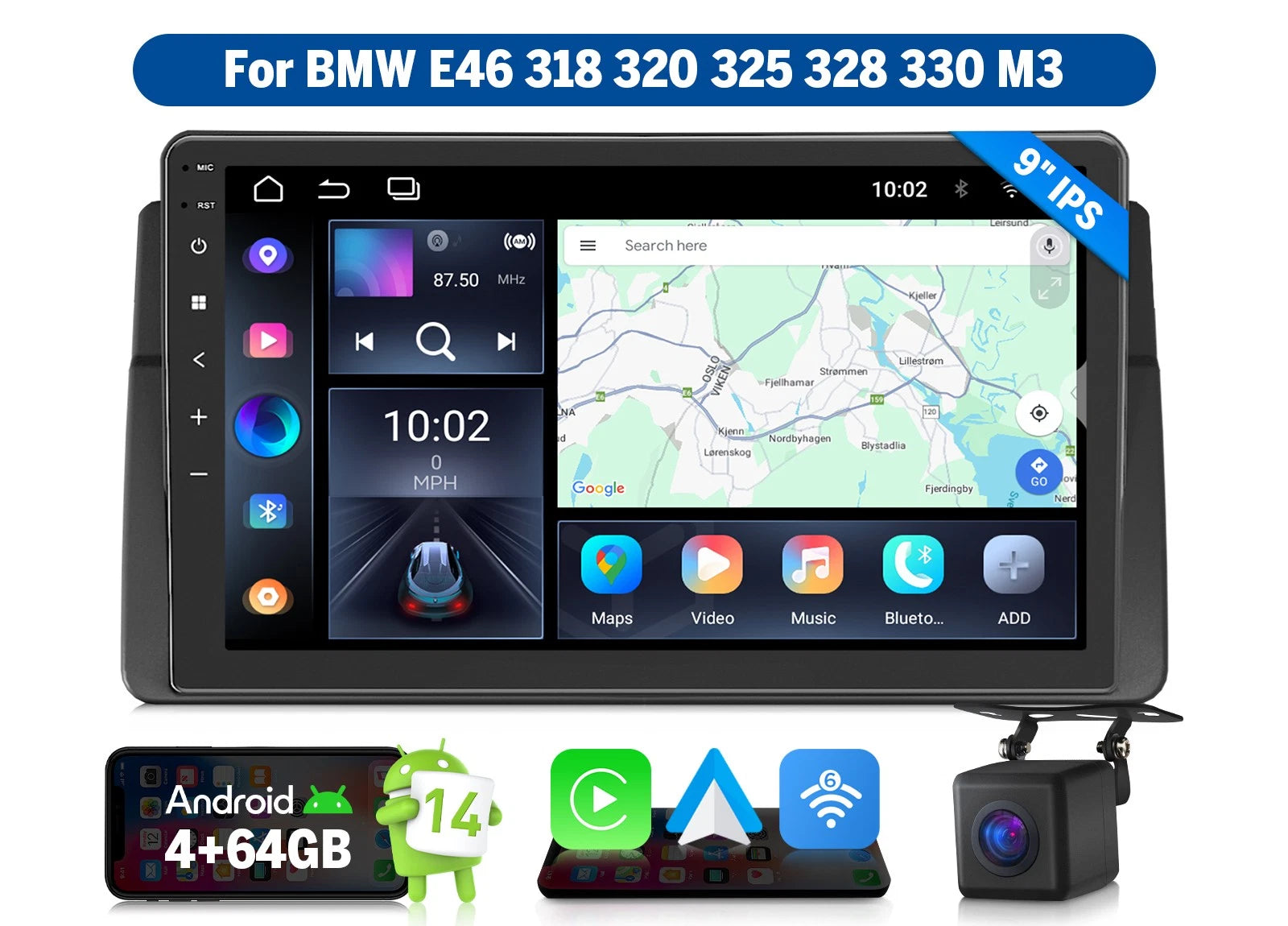

🚗 Eonon E46X7A Android 14 Car Stereo for BMW E46 3 Series & M3

9" IPS Touchscreen | Wireless Apple CarPlay & Android Auto | GPS Navigation | WiFi 6 | Bluetooth 5.4 | 48-Band DSP

Modern Technology for the Classic BMW E46

Upgrade a compatible BMW E46 3 Series or E46 M3 with the Eonon E46X7A, a vehicle-specific Android 14 car stereo designed to bring modern connectivity, navigation and detailed audio control into the classic E46 interior.

With a 9" IPS HD touchscreen, wireless Apple CarPlay and Android Auto, built-in GPS, WiFi 6 and 48-band DSP, the E46X7A adds the everyday technology of a modern infotainment system while retaining supported BMW functions.

Key Upgrade Highlights

• Designed for compatible BMW E46 3 Series & M3
• 9" IPS HD touchscreen, 1280 × 720
• Wireless & wired Apple CarPlay / Android Auto
• Android 14 + RK3562 quad-core processor
• 4GB RAM + 64GB storage
• Built-in GPS navigation
• WiFi 6 + Bluetooth 5.4
• 48-band DSP with HPF / LPF adjustment
• Harman Kardon audio support
• Steering wheel control integration
• Parking sensor & driving data support
• Vehicle-specific installation

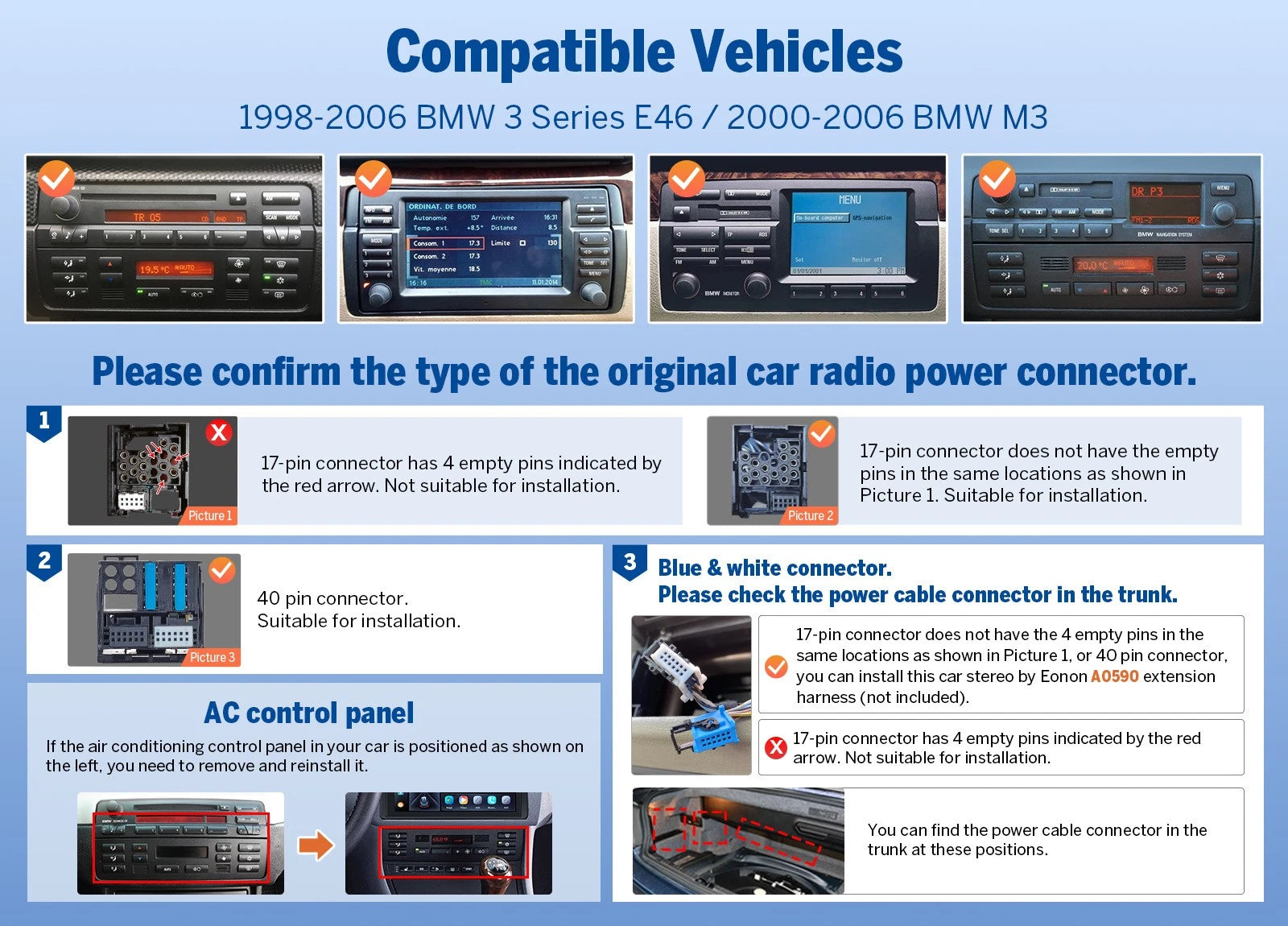

⚠️ Important: Check Your Original Radio Connector

Vehicle model and year alone are not enough to confirm compatibility.

Before ordering, please check the original BMW radio power connector.

Compatible:

• 17-pin connector without the 4 empty pin positions shown in the compatibility image
• 40-pin connector

Not Compatible:

• 17-pin connector with 4 empty pins in the positions indicated in the product image

If your 17-pin connector has these four empty positions, the E46X7A is not suitable for installation.

Please compare the connector carefully with the product images before purchase.

⚠️ See a Blue & White Connector Behind the Dashboard?

If the connector behind your factory radio is the blue and white connector shown in the product image, you need to check the main radio power connector in the trunk before ordering.

If the trunk connector is:

• Compatible 17-pin without the four empty positions → E46X7A compatible + A0590 required
• 40-pin connector → E46X7A compatible + A0590 required
• 17-pin with the four empty positions shown in Picture 1 → Not compatible

The Eonon A0590 extension harness is sold separately.

The blue and white dashboard connector therefore does not by itself confirm compatibility — the trunk power connector must also be checked.

A/C Control Panel Installation

Depending on your original dashboard layout, the factory air-conditioning control panel may need to be removed from its original position and reinstalled below the new stereo.

This is part of the installation layout for applicable E46 dashboards.

Please check the installation example in the product images before purchase.

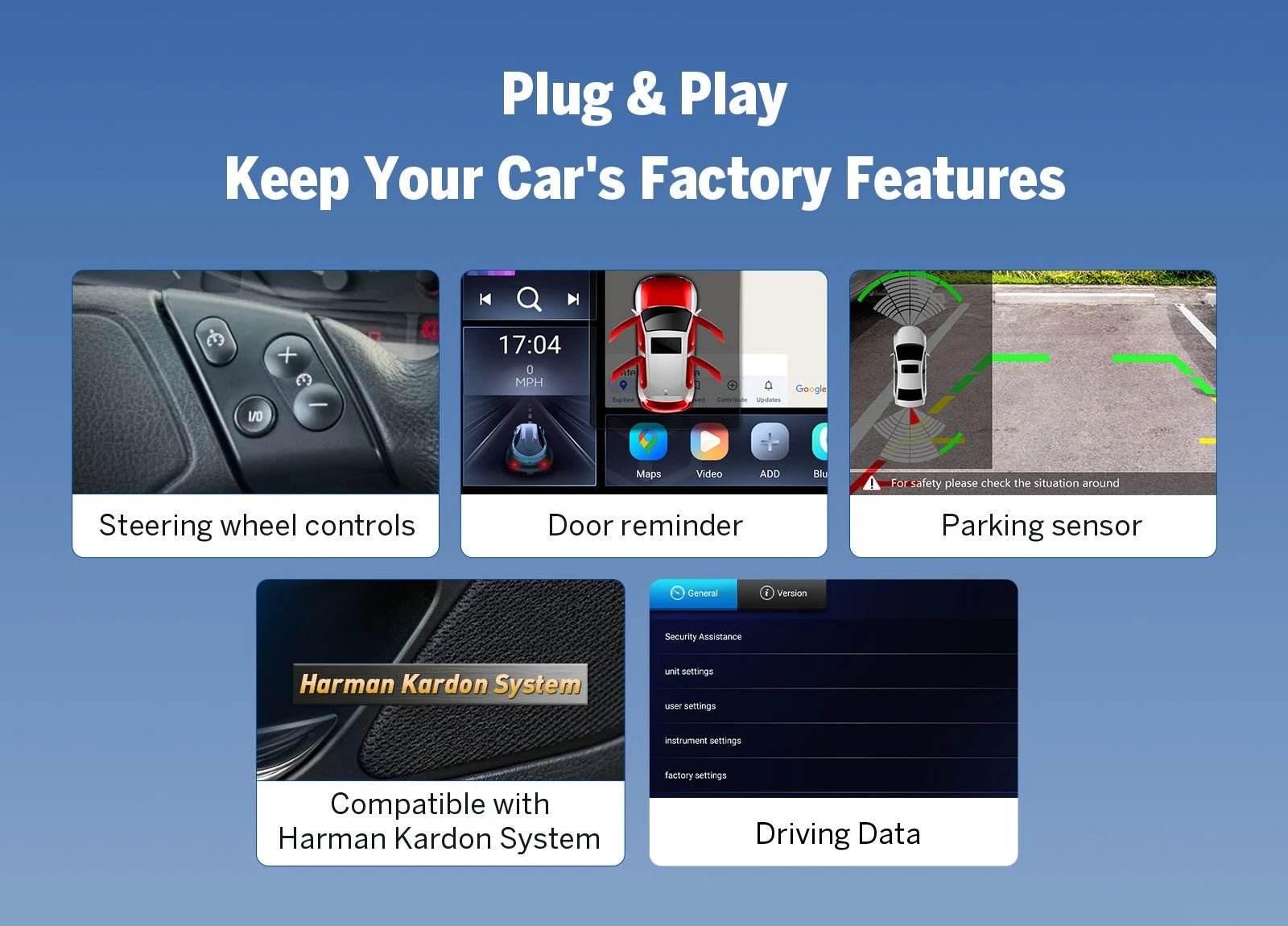

Keep Supported BMW Factory Functions

The E46X7A is designed to integrate with a range of useful original BMW functions.

Supported features include:

• Steering wheel controls*
• Harman Kardon audio system
• Parking sensor information
• Door reminder information
• Driving data

*Steering wheel voice recognition button is not supported.

Feature availability may vary depending on vehicle equipment and original configuration.

Harman Kardon Audio Support

Compatible E46 vehicles equipped with the factory Harman Kardon sound system are supported.

This allows HK-equipped owners to modernise the head unit while retaining supported integration with the original audio system.

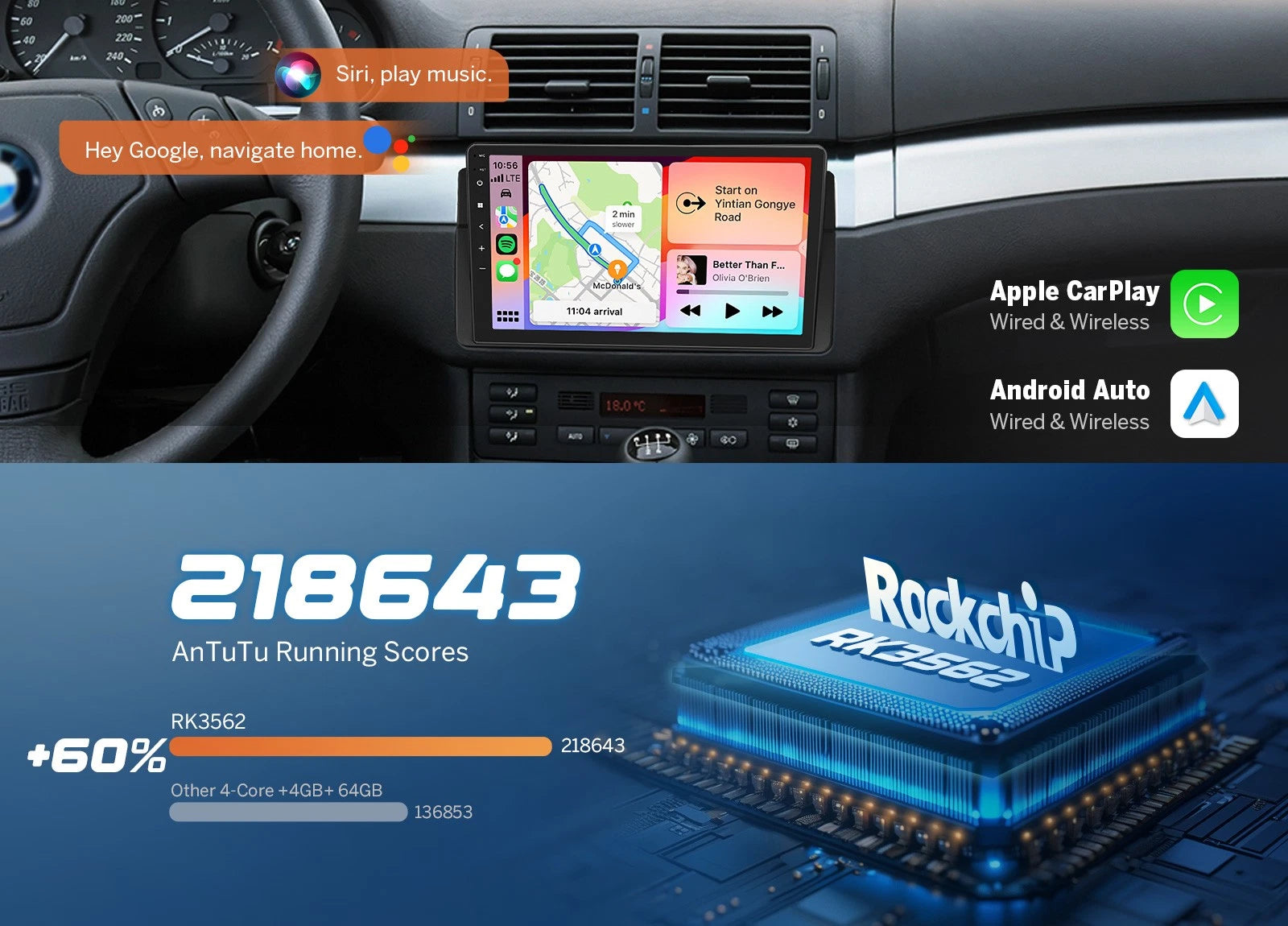

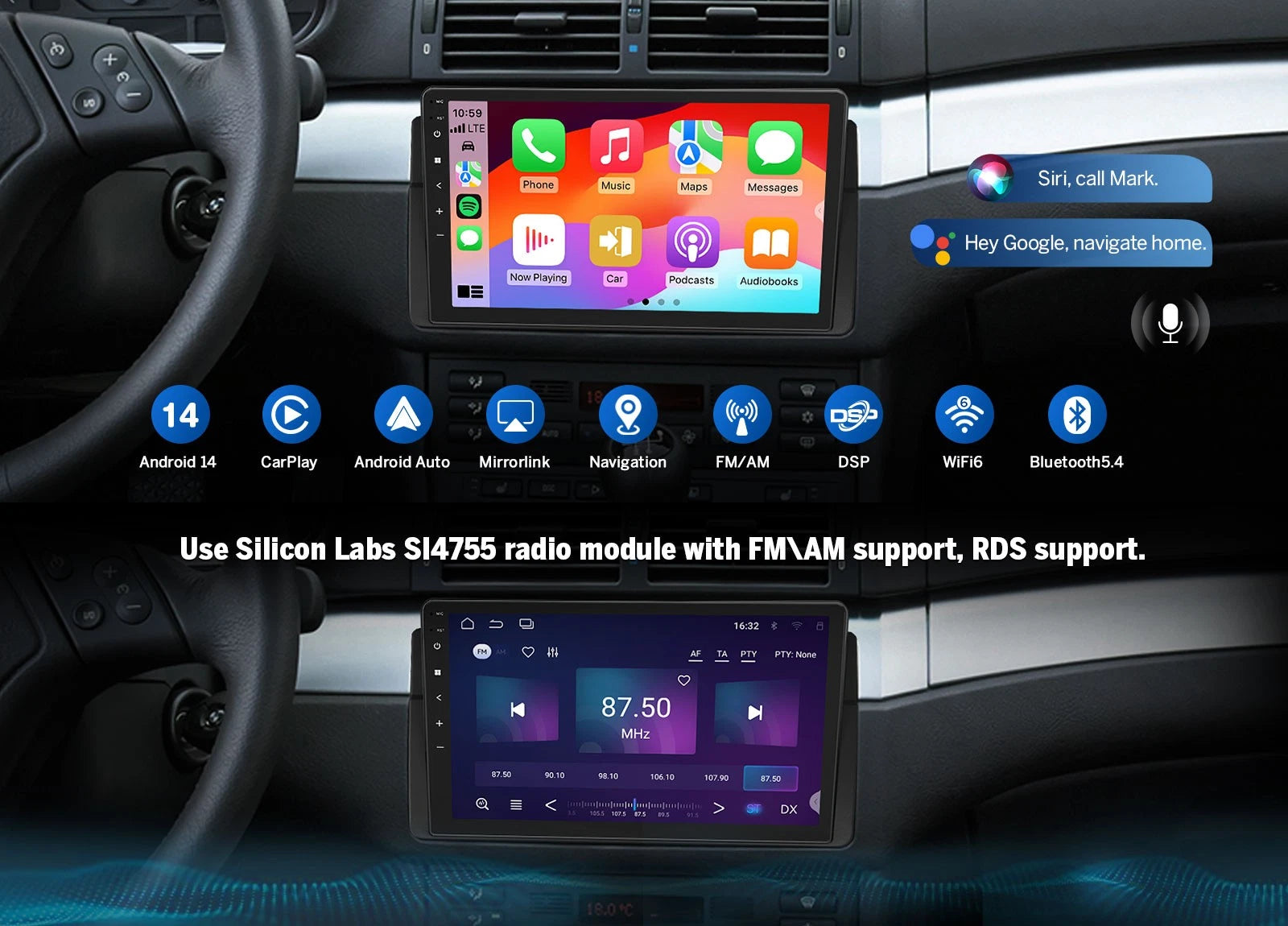

Wireless Apple CarPlay & Android Auto

Bring modern smartphone connectivity to your E46 without changing what makes the car enjoyable to drive.

Both wireless and wired Apple CarPlay / Android Auto are supported, giving you access to compatible:

• Google Maps and navigation apps
• Music and podcasts
• Hands-free calls
• Messages
• Siri
• Google Assistant

With wireless connectivity, your phone can connect without plugging in a cable for every journey.

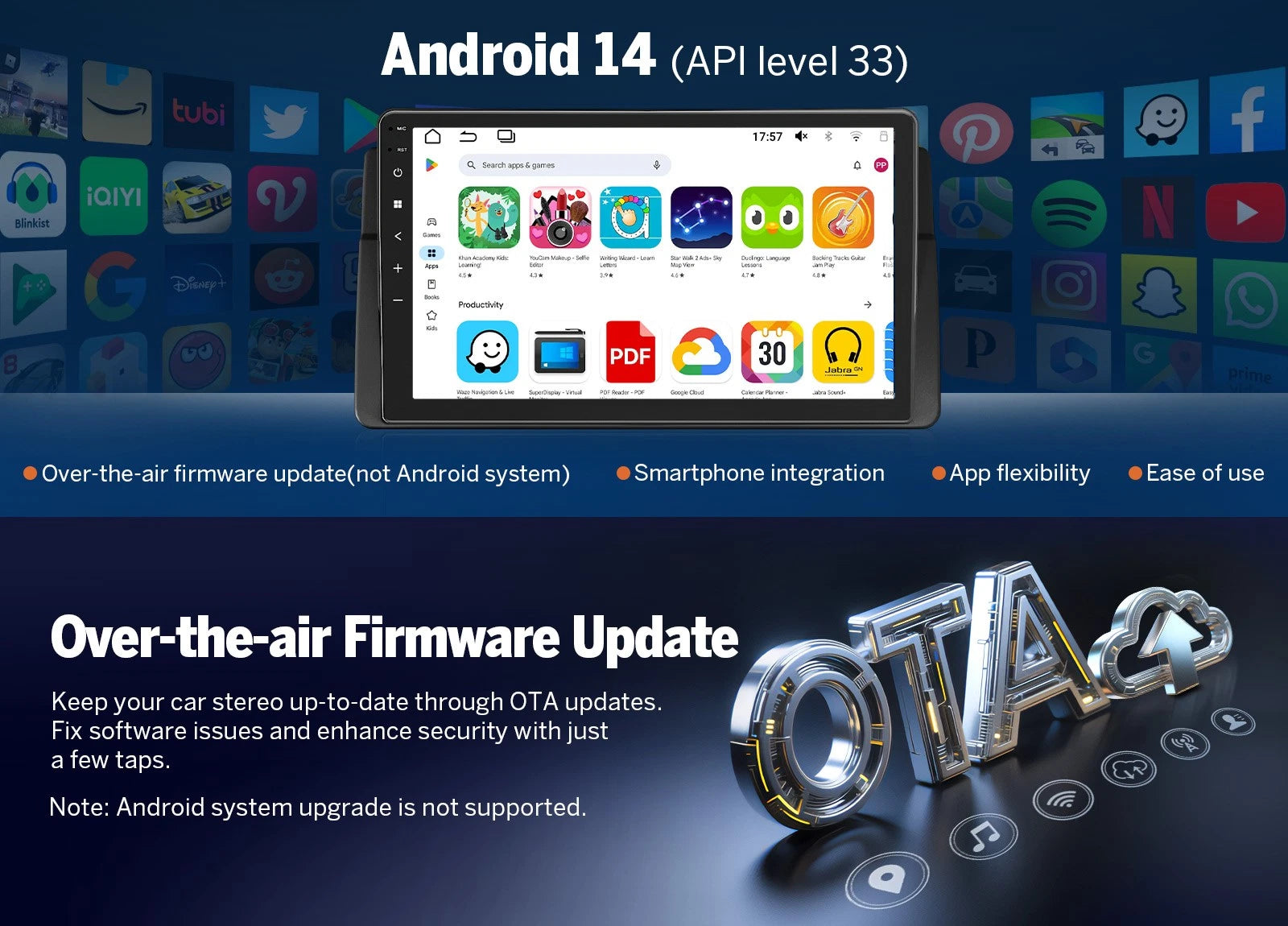

Android 14 + 4GB RAM / 64GB Storage

The E46X7A runs Android 14 on an RK3562 quad-core processor (4 × Cortex-A53 up to 2.0GHz) with 4GB RAM and 64GB internal storage.

Use compatible Android apps directly from the head unit for navigation, music and other in-car functions.

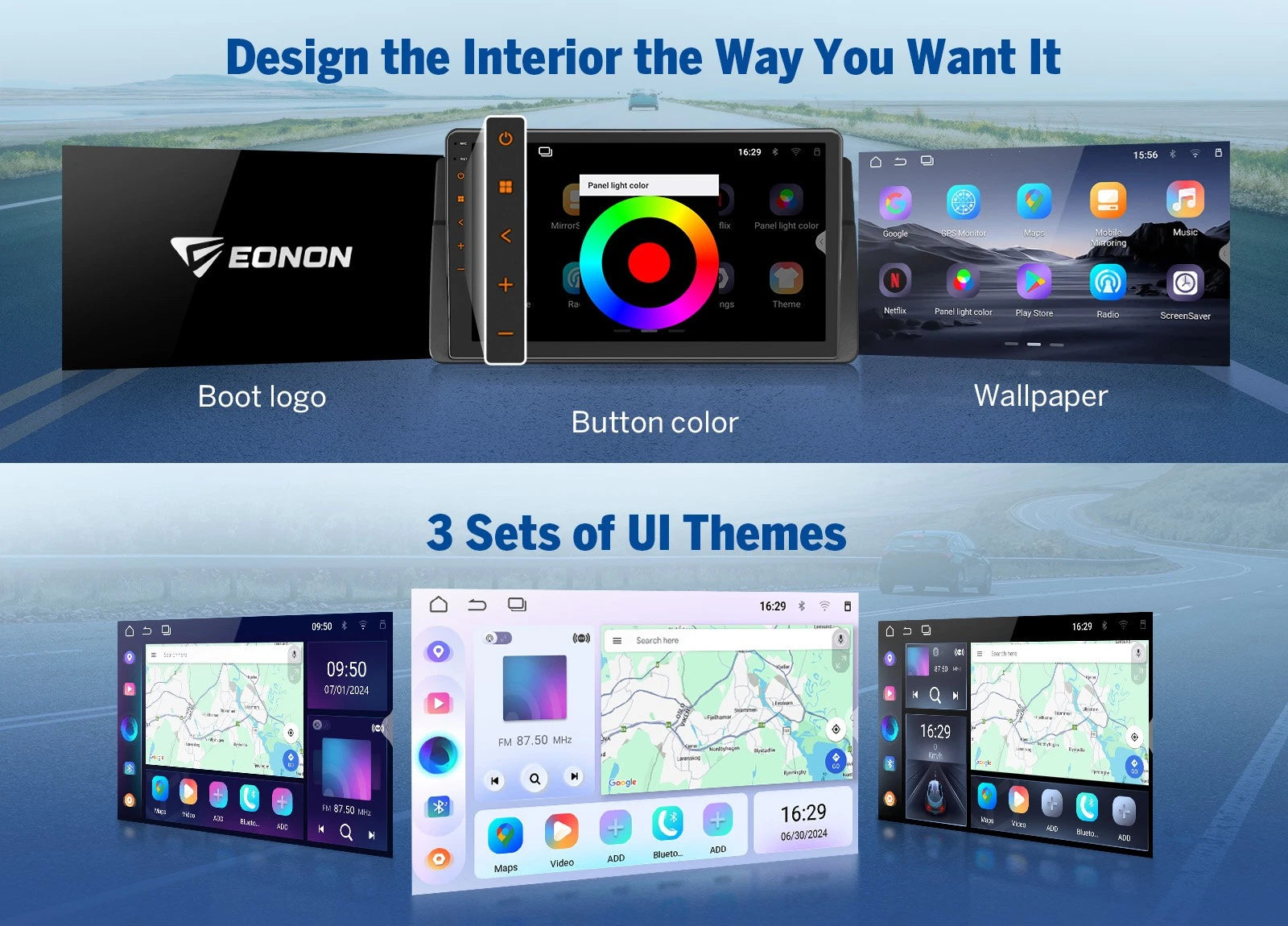

Also supported:

• Split-screen multitasking
• OTA firmware updates
• Custom boot logo
• Changeable wallpapers
• 3 built-in UI themes
• 1-second fast boot support

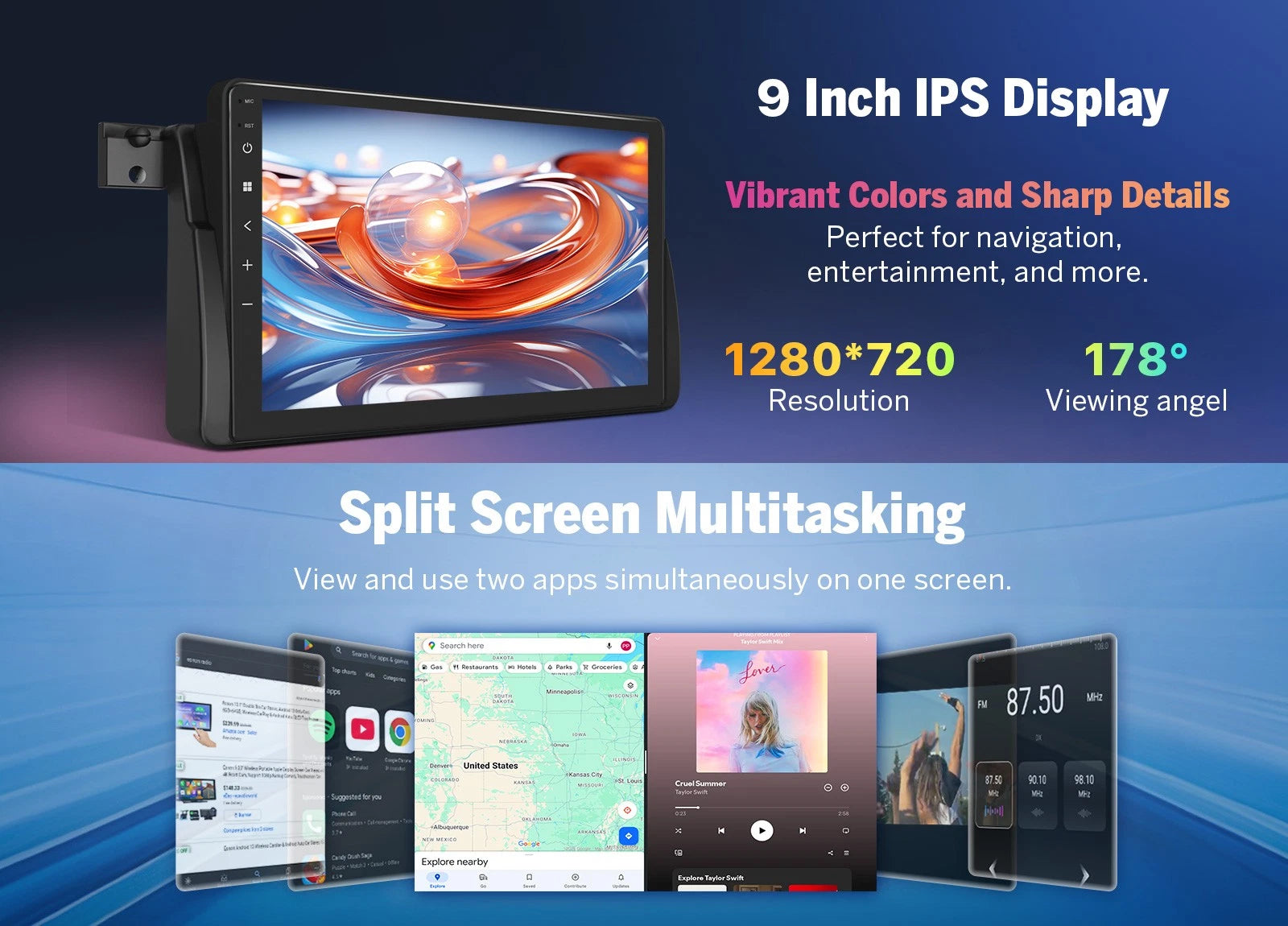

9" IPS HD Touchscreen

The 9" 1280 × 720 IPS touchscreen replaces the older radio interface with a much larger display for maps, music and Android apps.

Wide viewing angles and a clear touchscreen layout make frequently used functions easier to see and access while maintaining a vehicle-specific fit for the E46 dashboard.

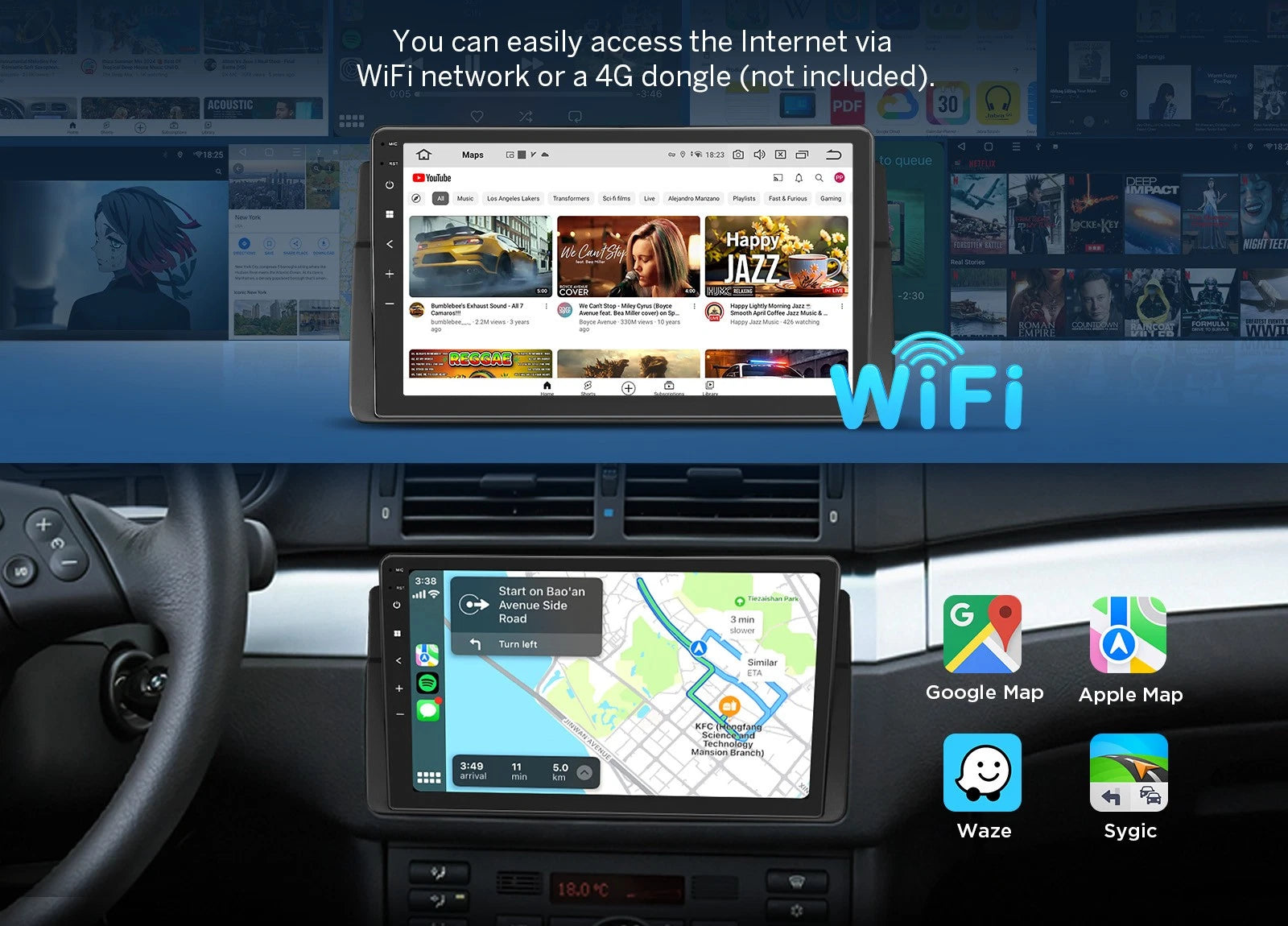

WiFi 6 + Bluetooth 5.4

Built-in WiFi 6 supports both 2.4GHz and 5GHz networks, allowing the stereo to connect to a smartphone hotspot or other available Wi-Fi connection.

Bluetooth 5.4 supports compatible phone and wireless audio connections.

Please note: Built-in 4G LTE is not included. Mobile-network access requires a compatible external 4G dongle.

Built-In GPS Navigation

The integrated GPS receiver allows compatible navigation apps to run directly on the stereo.

You can use:

• Online navigation
• Compatible offline maps
• Navigation while playing music
• Split-screen navigation and media

Downloaded offline maps can continue to provide navigation without an active mobile-data connection.

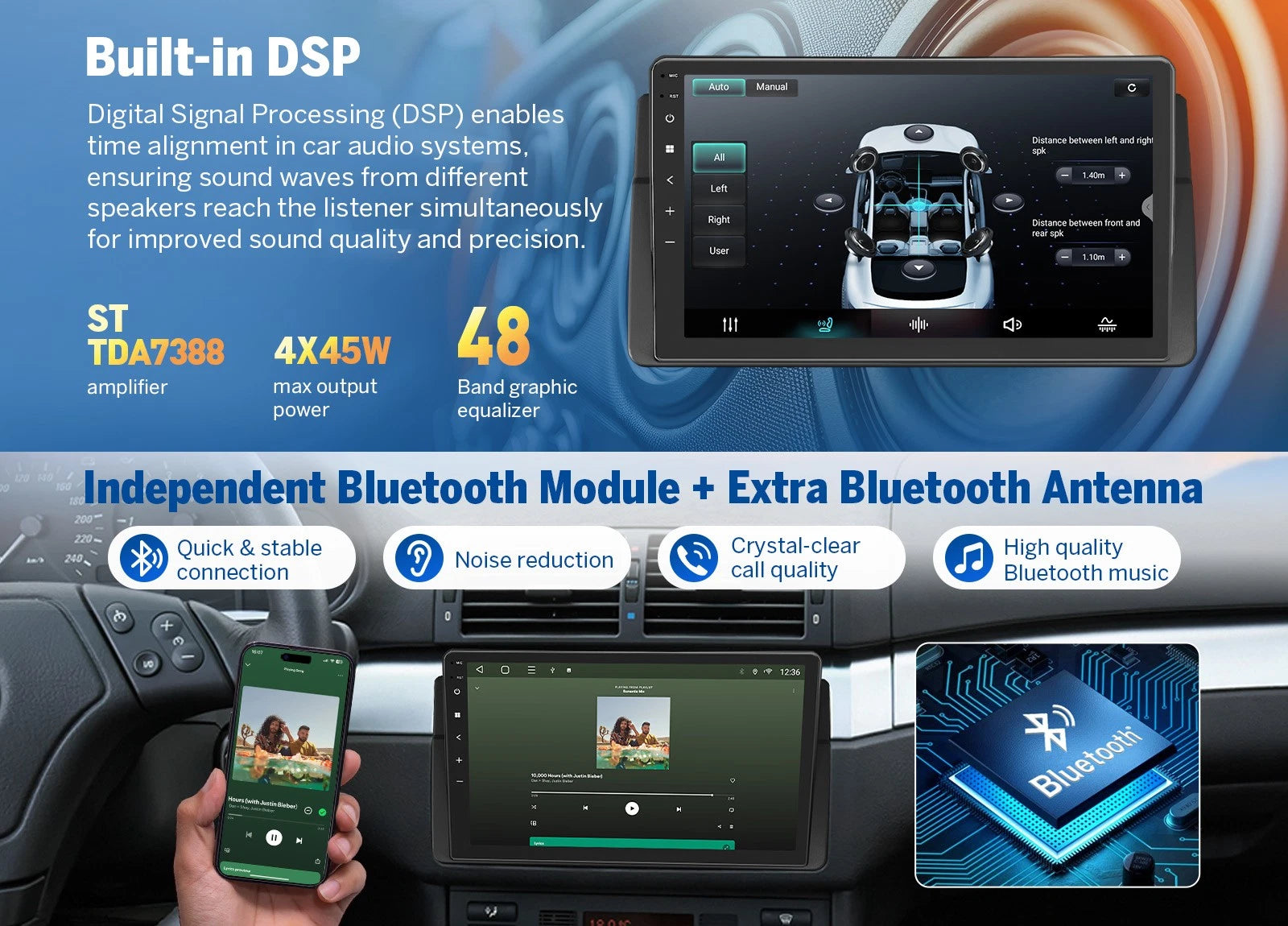

48-Band DSP Audio Control

The built-in DSP gives you detailed control over how your E46 audio system is tuned.

Features include:

• 48-band equalizer
• Custom and preset EQ modes
• HPF / LPF adjustment
• Time alignment
• Subwoofer output
• 5-channel preamp outputs
• 4 RCA audio outputs
• ST TDA7388 amplifier
• 25W RMS manufacturer-rated power
• Up to 4 × 45W maximum amplifier output

Adjust bass, frequency balance and speaker output to suit your audio system and listening preferences.

For additional amplification and tuning, the optional Eonon A304 DSP Amplifier is available separately.

Camera & Parking Support

The E46X7A supports compatible camera equipment for additional visibility when reversing or parking.

Supported functions include:

• Front camera input
• Rear-view camera input
• Automatic reverse display
• Parking guidelines
• Supported factory parking sensor information

Camera functionality depends on the original vehicle and camera configuration.

Split Screen & Wireless Screen Mirroring

Split-screen multitasking allows compatible functions such as navigation and music to remain visible together.

Wireless screen mirroring is also supported for compatible iOS and Android devices.

Note: Some DRM-protected streaming content may not support screen mirroring.

AM/FM Radio & Optional DAB+

The built-in radio supports AM/FM reception with RDS, allowing you to listen to local stations without using mobile data.

For supported regions, DAB+ digital radio can be added with an optional compatible Eonon DAB+ module.

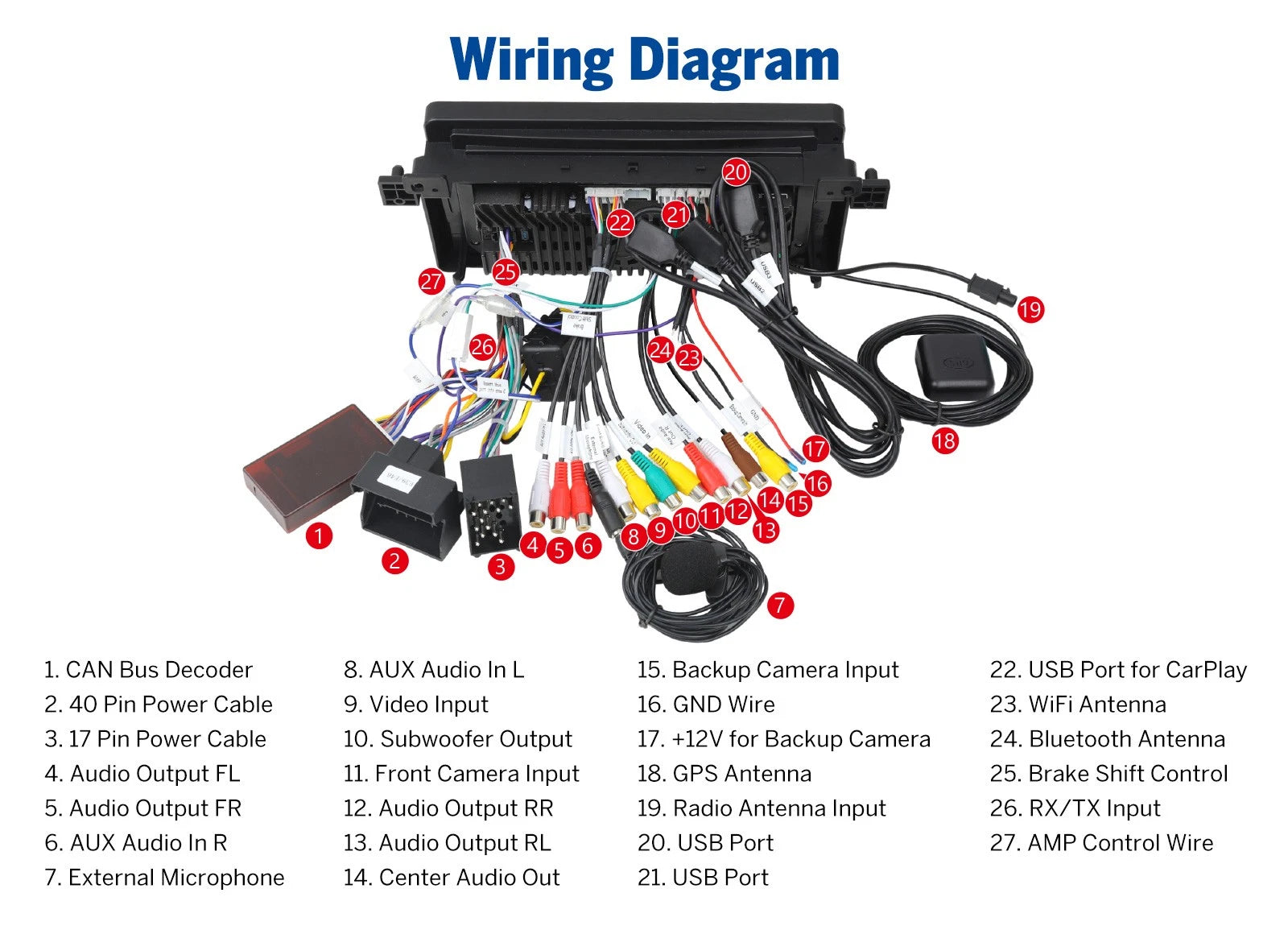

Media & Connections

Supported connections include:

• 3 × USB inputs
• 2 × audio inputs
• 4 × RCA audio outputs
• 5-channel preamp output
• Dedicated subwoofer preamp output
• 1 × video input
• No AUX input
• No video output

The system supports common formats including MP3, FLAC, AAC, MP4, MKV, JPEG and PNG, with up to 1080P video decoding.

Optional Eonon Accessories

A0590 BMW Extension Harness

For compatible trunk-mounted radio connectors

A100 Dash Camera
Add compatible front driving recording.

A0125 / A0127 Cameras
Add compatible parking or reversing camera functionality.

V0056 Bluetooth OBD2 Scanner
View supported real-time vehicle diagnostic information through compatible Android apps.

A0593/A503/DX2/DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.

A304 DSP Digital Amplifier
Additional amplification and tuning for compatible upgraded audio systems.

Optional accessories are sold separately unless included in the selected package.

Why Upgrade to the E46X7A?

The E46X7A is designed for BMW E46 owners who want modern infotainment without turning the dashboard into a generic aftermarket setup.

It combines wireless CarPlay and Android Auto, Android 14 apps, GPS navigation, WiFi 6, a 9" IPS touchscreen and detailed DSP sound adjustment with vehicle-specific integration.

Supported original features such as Harman Kardon audio, steering wheel controls, parking sensor information, door reminders and driving data can remain part of the upgraded E46 experience.

Before Ordering, Please Check

1. Confirm your BMW is a compatible E46 3 Series or E46 M3.
2. Compare your factory dashboard with the compatible / incompatible examples shown.
3. Check your original radio power connector: compatible 17-pin or 40-pin configurations are supported.
4. A 17-pin connector with the four empty pin positions shown in Picture 1 is NOT compatible.
5. If you see the blue and white connector behind the dashboard, check the main power connector in the trunk. A compatible trunk-mounted 17-pin / 40-pin setup requires the separately sold A0590 extension harness.
6. Check whether your A/C control panel needs to be relocated below the new stereo.

For the E46X7A, checking the original radio connector before purchase is the most important compatibility step.

⭐ Vehicle Compatibility

• E46 4-door Sedan/Saloon (1998-2005),
• E46 2-door Coupé/Coupe (1999-2006),
• E46 2-door Convertible (1999-2006),
• E46 5-door Wagon/Estate (marketed as 3 Series Touring) (1999-2005),
• E46 3-door Hatchback (marketed as 3 Series Compact) (2000- 2004),
• E46 M3 (2000-2006)

Model: 316Ci, 316i, 316ti, 318Ci, 318d, 318i, 318is, 318td, 318ti, 320Cd, 320Ci, 320d, 320i, 320td, 323Ci, 323i, 323is, 323ti, 325Ci, 325i, 325ti, 325xi, 328Ci, 328i, 328is, 328xi, 330Cd, 330Ci, 330d, 330i, 330xd, 330xi, M3, M3 CSL

Year: 1998 1999 2000 2001 2002 2003 2004 2005 2006

⭐ Specification

• Operation system: Android 14
• OTA Firmware Update: Yes
• Processor: RK3562
• CPU Architecture: 4-core(4×A53@2.0GHz)
• RAM: 4GB
• Storage: 64GB
• Touchscreen: 9" IPS
• Resolution: 1280*720
• Operating voltage: DC12V
• CarPlay: Wired & Wireless
• Android Auto: Wired & Wireless
• Split-screen multitasking: Yes
• Screen mirroring: Yes
• 1s fast boot: Yes
• Steering wheel controls: Yes(except voice recognition button)
• Key button color: Variable
• Wi-Fi: Support 2.4G/5G
• 4G Feature: No, 4G dongle needed
• Custom boot logo & changeable wallpapers: Yes
• Built-in UI themes: 3
• Compatible with Harman Kardon: Yes
• Built-in DSP: Yes
• Built-in power amplifier: 4-channel audio output and one subwoofer audio output
• EQ bands: 48
• EQ modes: Custom Standard Popular Rock Classical Jazz
• HPF/LPF adjustment: Yes
• Video input: 1
• Video output: No
• Audio input: 2
• Audio output: 4 RCA
• AUX input: No
• USB input: 3
• RMS power (manufacturer): 25W
• Max amplifier output: 4*45W
• Preamp outputs: 5-channel
• Sub preamp outputs: Yes
• Preamp voltage: 1.0V
• Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
• Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
• Image Formats: Supports JPEG, BMP, PNG, and more
