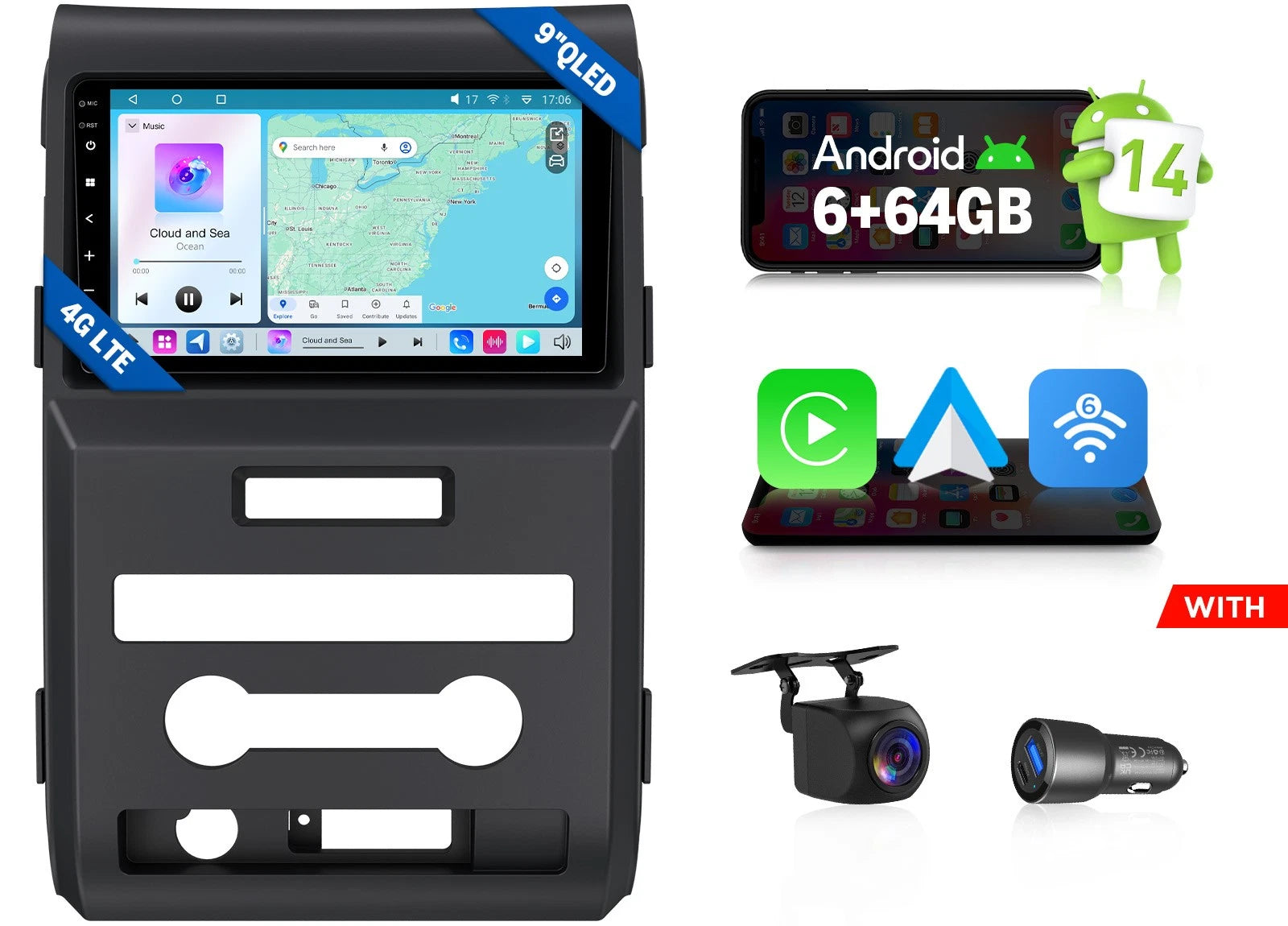

For Ford F-150 Android Auto 9" QLED 6+64GB Car Stereo Receiver Wireless CarPlay

$ 349.95

🚘 Eonon FDF1X7S Android 14 Car Stereo for Ford F-150 2009–2014

Smarter Technology for Your Ford F-150

Upgrade your compatible 2009–2014 Ford F-150 with a larger 9" touchscreen, wireless smartphone connectivity, built-in navigation and more flexible audio control.

The Eonon FDF1X7S combines Android 14, Qualcomm 8-core performance, Wireless Apple CarPlay & Android Auto, 4G LTE and 48-band DSP in a vehicle-specific system designed to integrate with supported factory functions.

Key Upgrades

Android 14 + Qualcomm 6nm 8-Core – responsive navigation, apps and multitasking
6GB RAM + 64GB Storage – smooth everyday operation with space for apps and media
Wireless & Wired CarPlay / Android Auto – easier access to maps, calls, messages and music
9" QLED 1280×720 Display – larger, clear anti-glare touchscreen
48-Band DSP + DTS – detailed sound tuning with amplifier and subwoofer connectivity
Built-in GPS + 4G LTE + Wi-Fi 6 – flexible online and offline connectivity
F-150-Specific Integration – retains supported factory functions through the vehicle interface

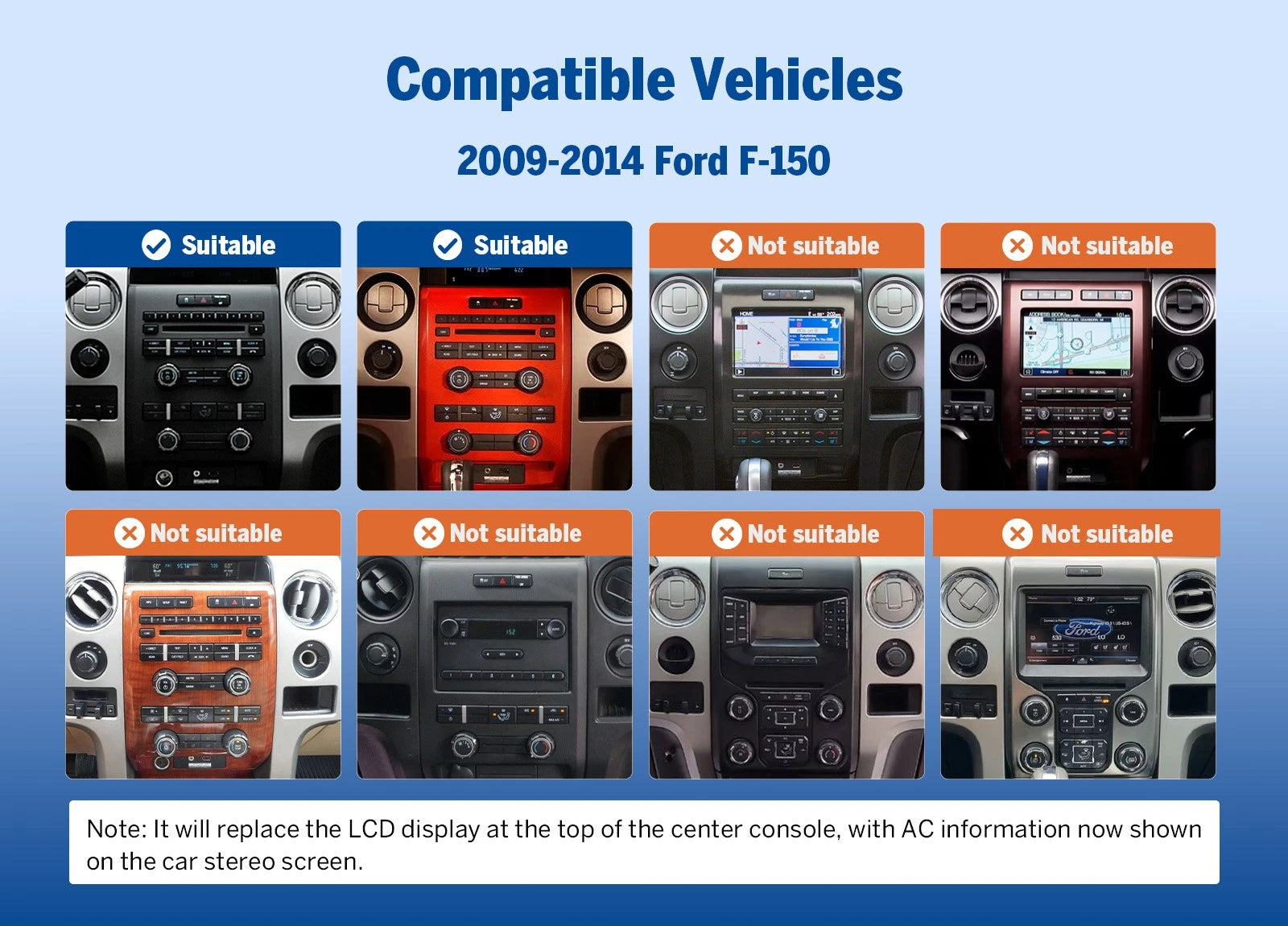

⚠️ Check Your Dashboard Before Ordering

The FDF1X7S is designed for compatible Ford F-150 models from 2009–2014, but compatibility depends on the original dashboard and radio configuration.

It is not suitable for every factory radio style used during these model years.

Please compare your original centre console with the compatible dashboard examples shown in the listing images before purchasing.

Important: On compatible vehicles equipped with the upper factory LCD display, installation replaces this display. Supported A/C information is then shown on the new stereo screen.

Factory equipment and retained functions may vary depending on vehicle configuration.

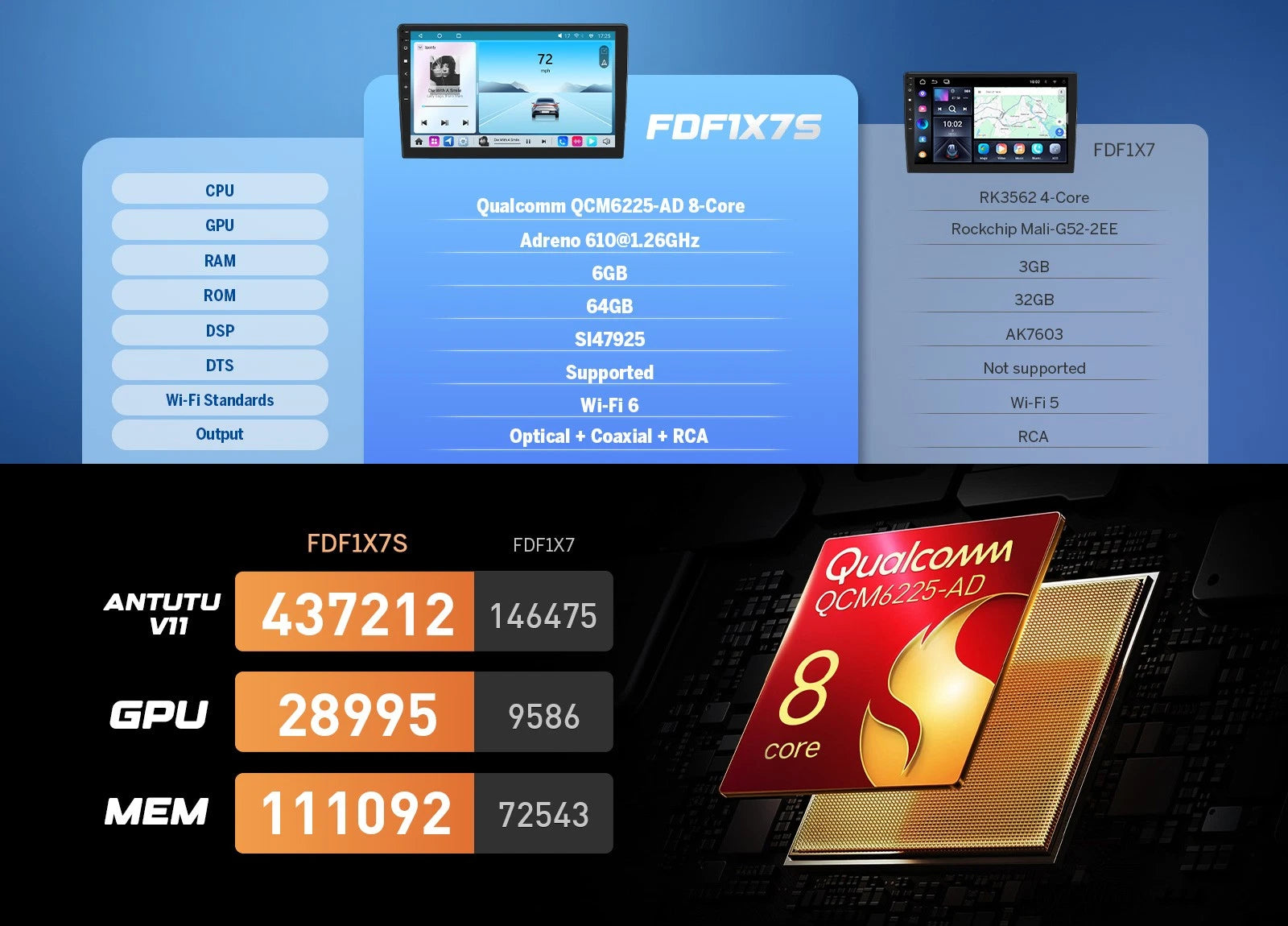

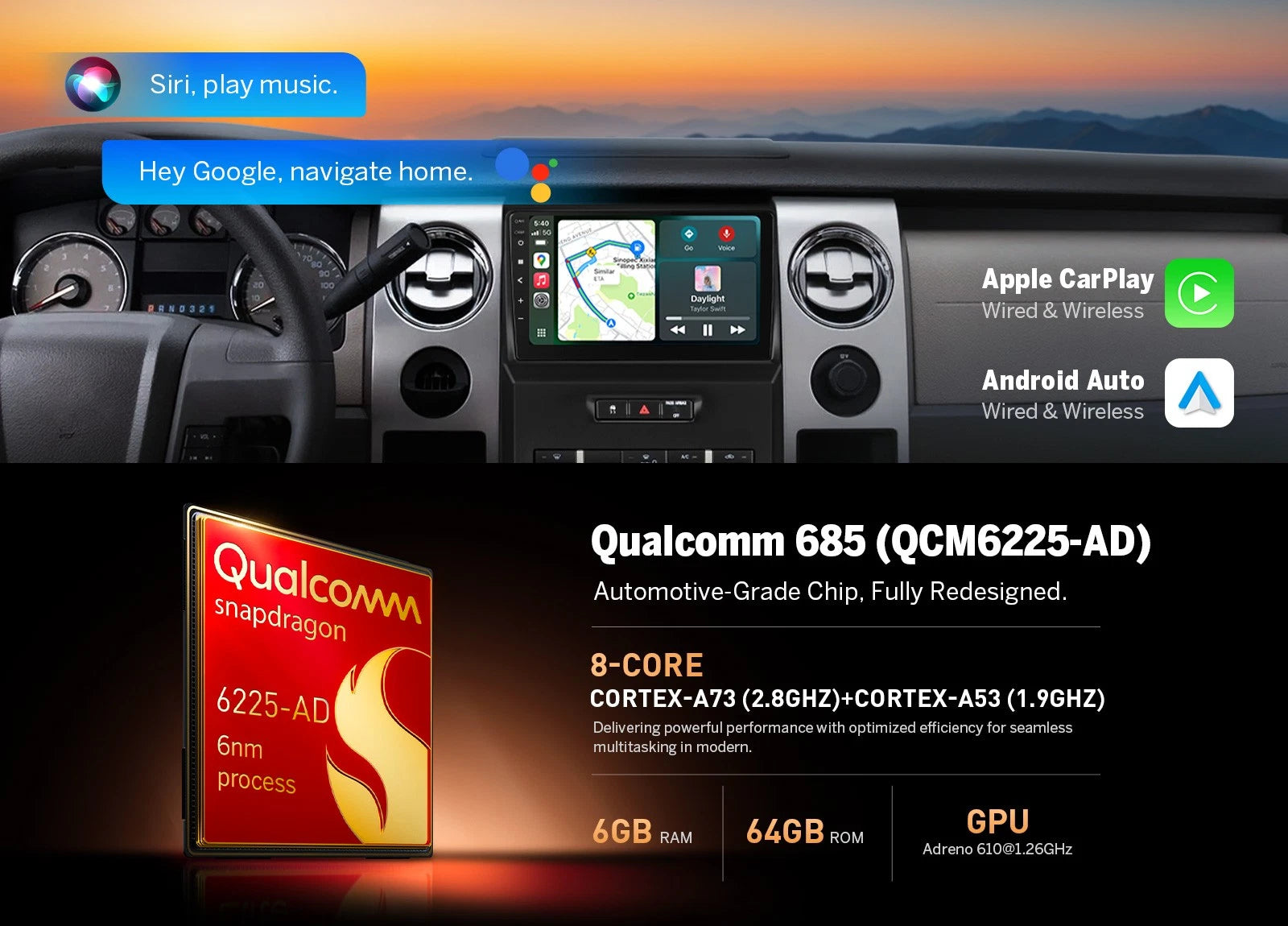

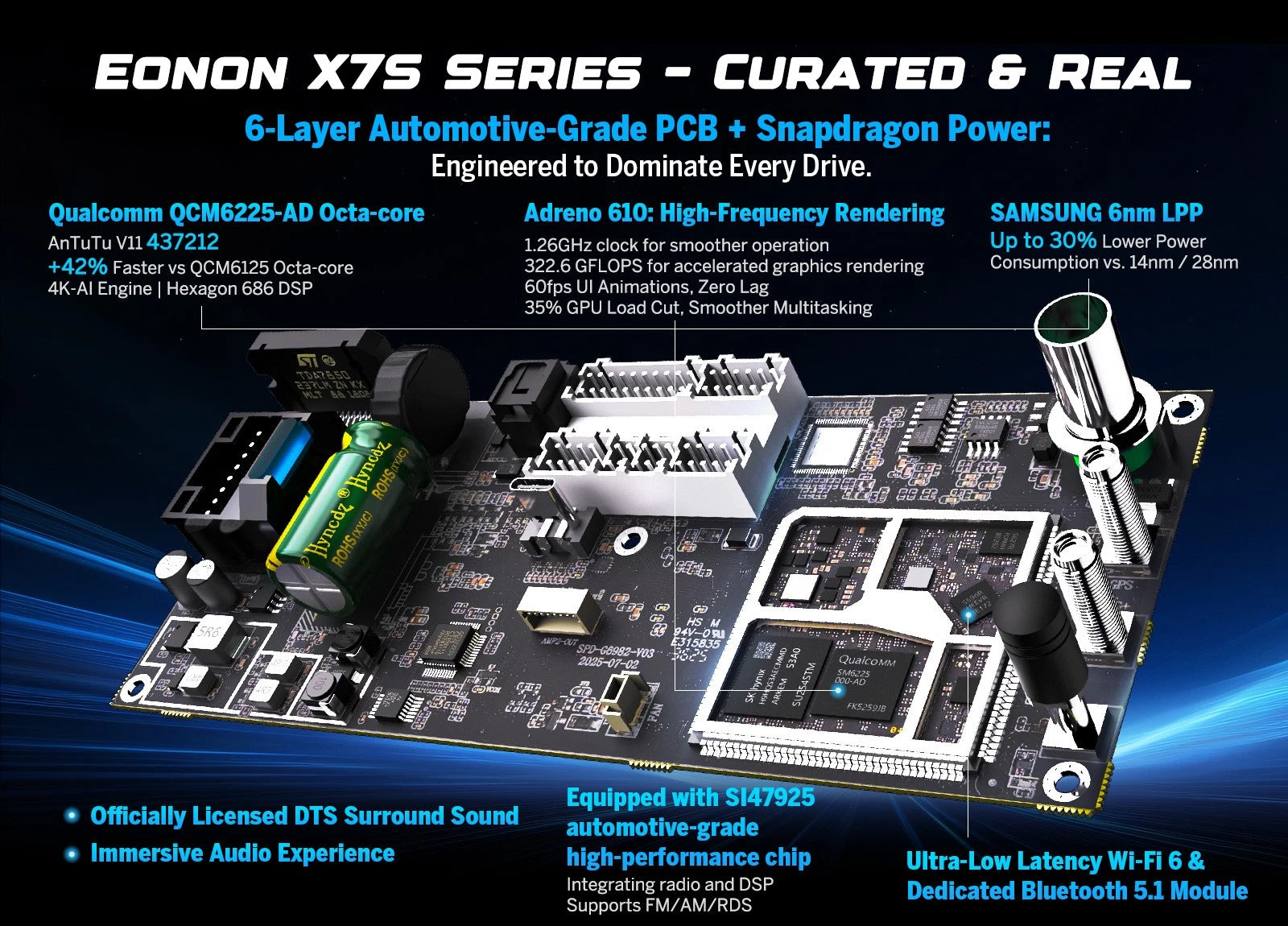

Android 14 + Qualcomm 8-Core Performance

Powered by the Qualcomm QCM6225-AD 6nm platform, the FDF1X7S provides the performance needed for navigation, music and compatible Android apps.

8-Core CPU: 4×A73 up to 2.8GHz + 4×A53 up to 1.9GHz
6GB RAM + 64GB storage
Adreno 610 GPU
1-second fast boot supported
OTA firmware updates
Split-screen multitasking

Run compatible functions such as navigation and music side by side without constantly switching screens.

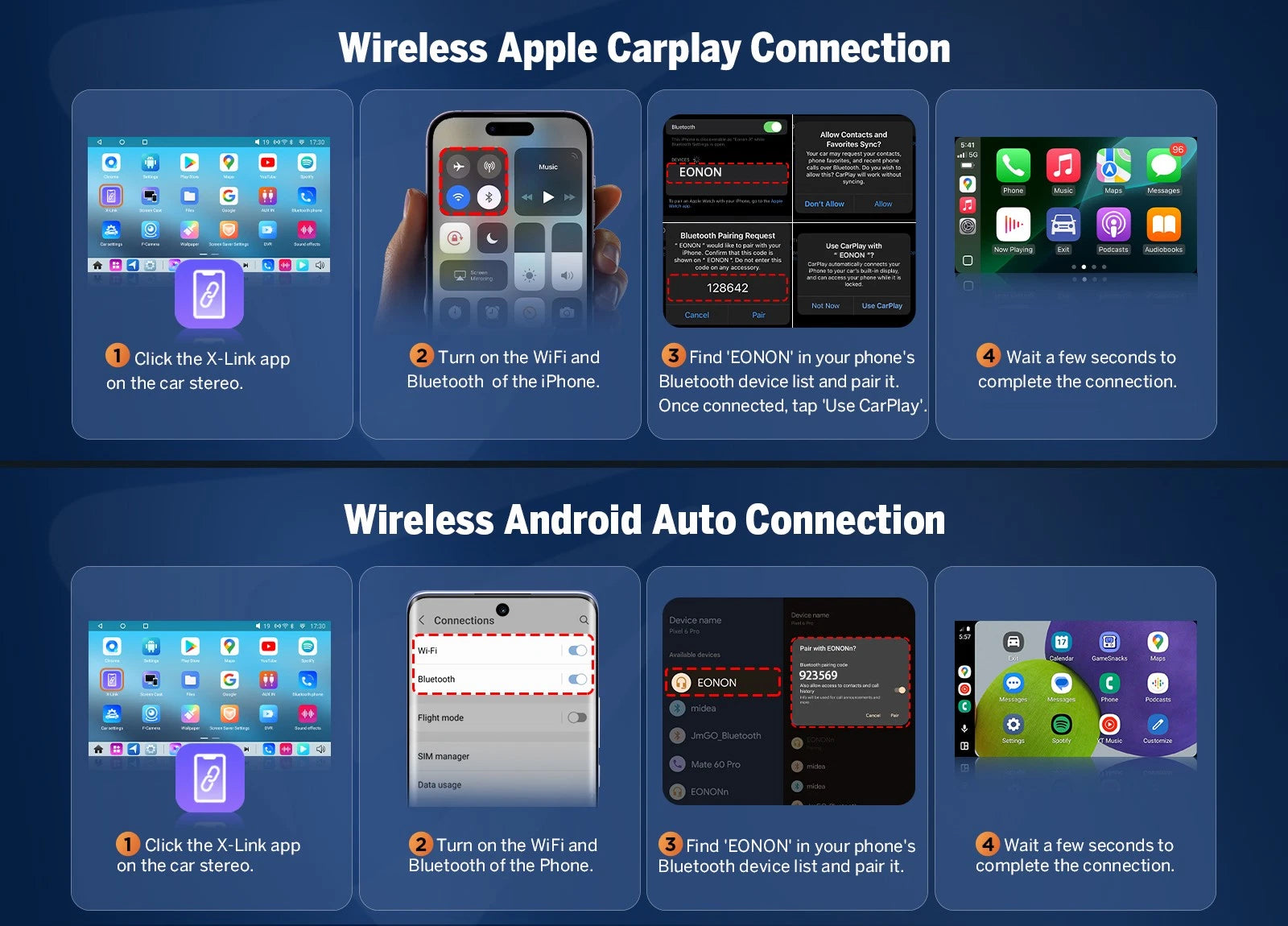

Wireless Apple CarPlay & Android Auto

Connect your compatible smartphone and bring the functions you use most onto the 9" display.

Access compatible:

Navigation
Music
Calls
Messages
Siri / Google Assistant voice functions

Both wired and wireless Apple CarPlay and Android Auto are supported, giving you the choice between cable-free convenience and a wired connection.

Note: Full phone screen mirroring is not supported.

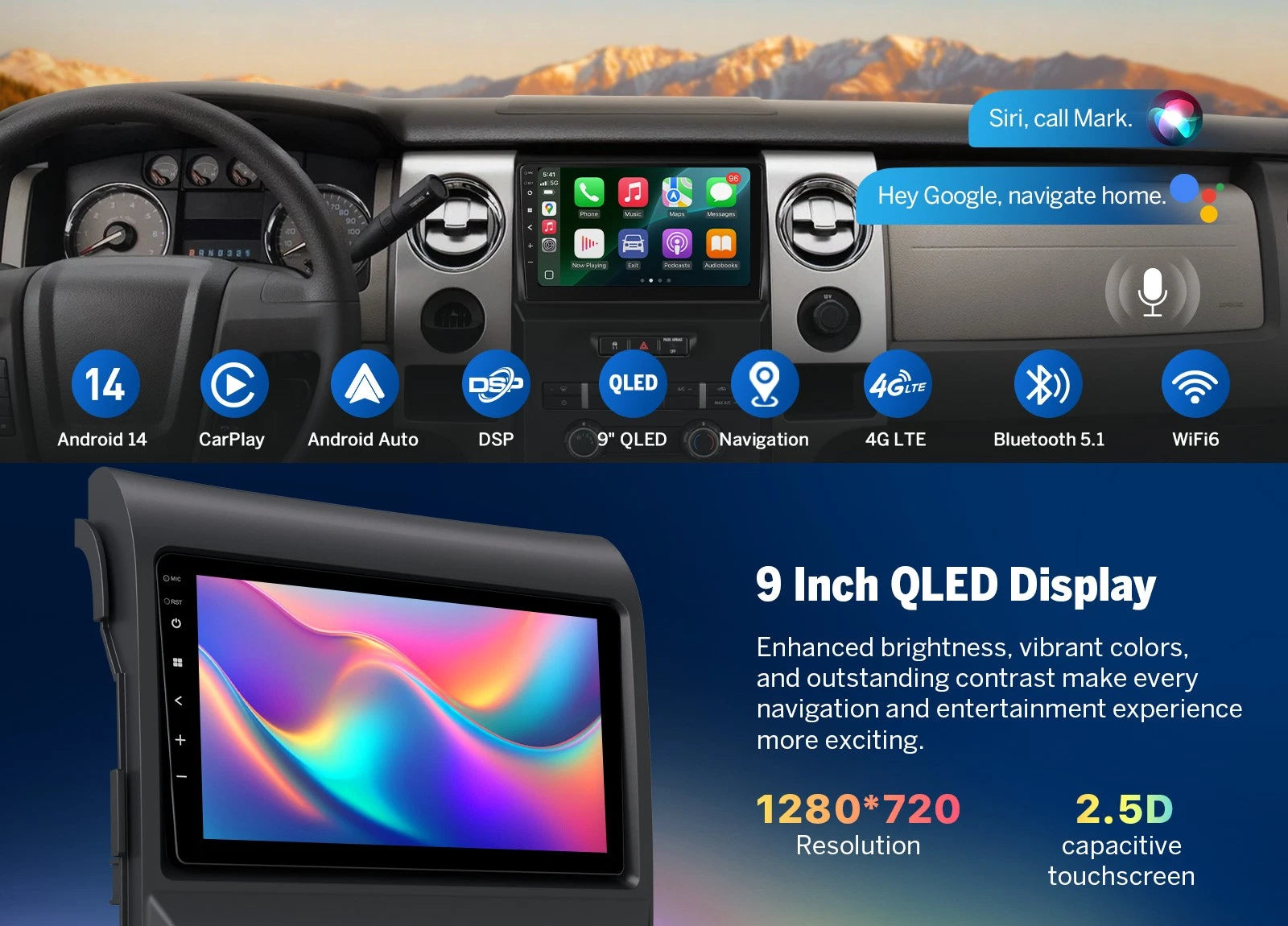

9" QLED HD Touchscreen

The 9-inch QLED display gives maps, media and vehicle information more viewing space than a conventional factory radio display.

1280×720 HD resolution
Anti-glare design
178° wide viewing angle
Capacitive touchscreen

The larger display makes navigation, menus and compatible reversing-camera images easier to view during everyday driving.

48-Band DSP + DTS Audio Control

Fine-tune the sound to suit your F-150's cabin, speakers and listening preferences.

The built-in audio system includes:

48-band EQ
DTS audio processing
Time alignment
HPF / LPF adjustment
Subwoofer control
30W RMS manufacturer-rated power
Up to 4×50W amplifier output
4.0V preamp output

For upgraded audio systems, the FDF1X7S also provides 4 RCA outputs plus optical and coaxial digital audio outputs, giving you more flexibility when connecting compatible aftermarket amplifiers or subwoofers.

Built-In GPS Navigation

Use the built-in GPS receiver with compatible offline navigation maps, or connect to the internet for supported online navigation services such as Google Maps and Waze.

Offline navigation is useful when mobile data is unavailable, while an internet connection enables supported online traffic and connected services.

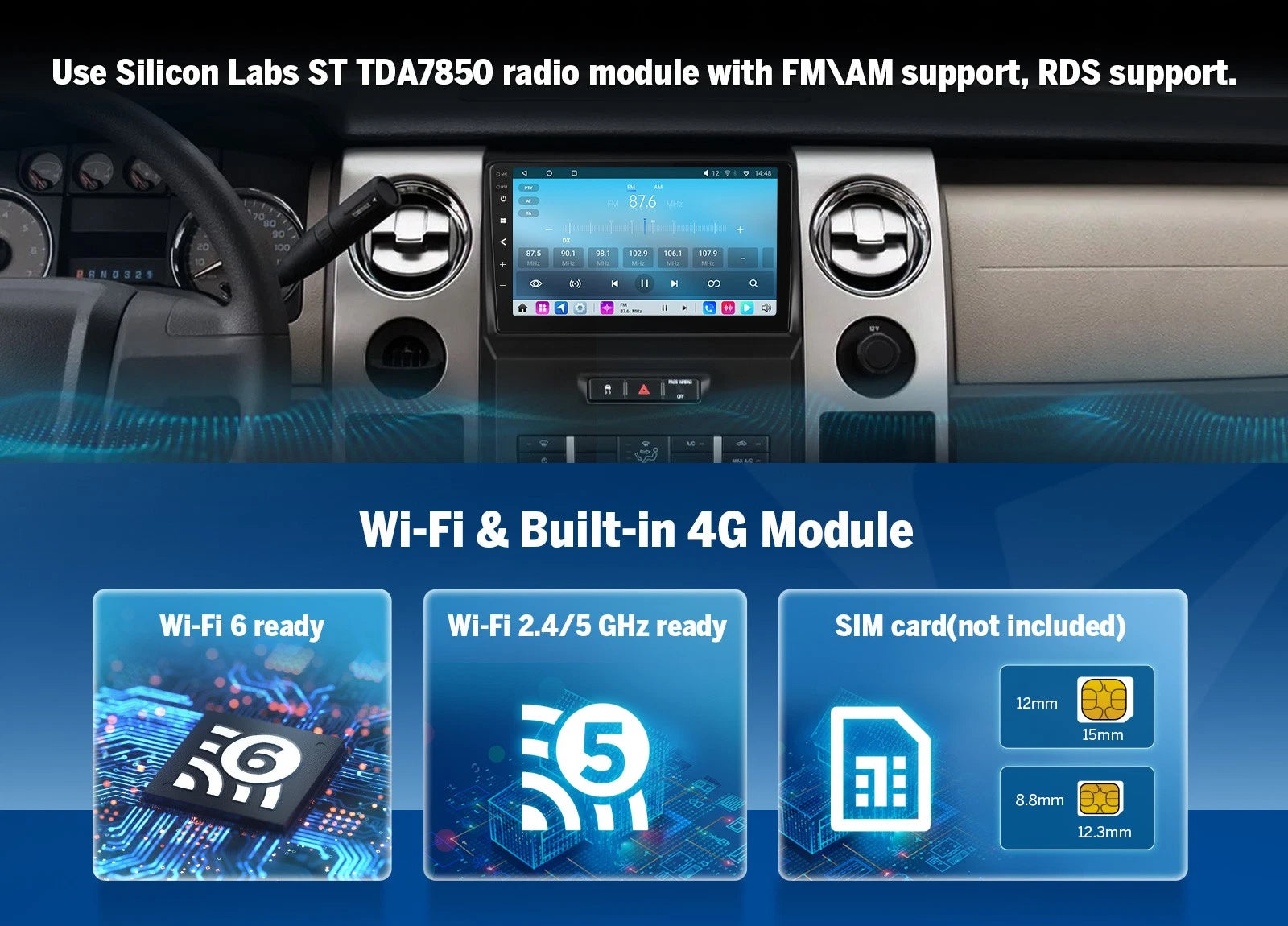

Built-In 4G LTE + Wi-Fi 6

Insert a compatible SIM card to give the stereo its own mobile data connection for supported online navigation, streaming and Android apps.

You can also connect through:

2.4GHz / 5GHz Wi-Fi
Wi-Fi 6 ready connection

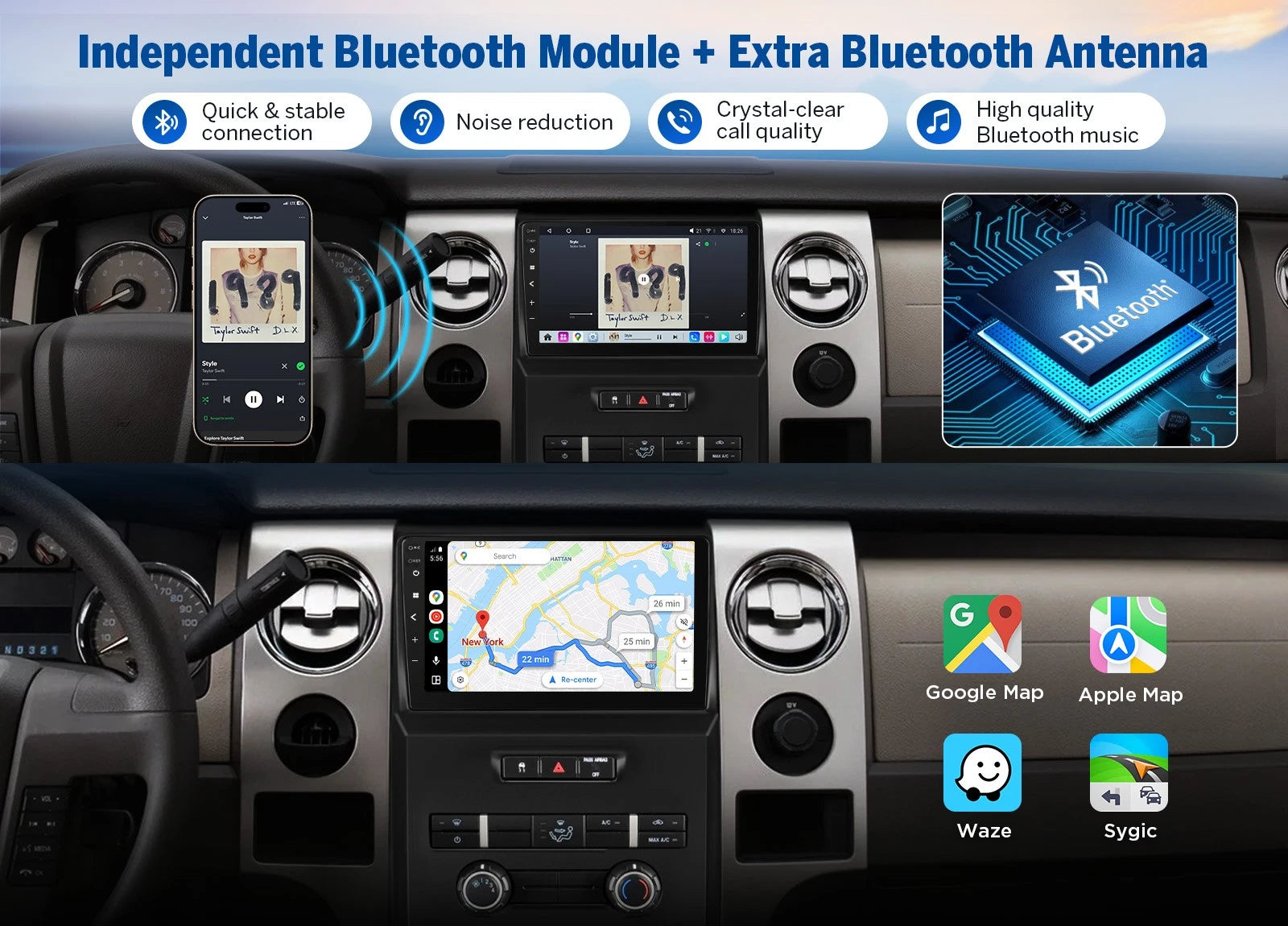

Bluetooth 5.1 with external antenna

A SIM card is not required for CarPlay, Android Auto, Bluetooth, AM/FM radio or GPS reception.

4G network compatibility depends on the regional version, carrier and supported LTE bands.

Keep Supported Factory Functions

The vehicle-specific interface is designed to integrate the FDF1X7S with compatible Ford F-150 factory systems.

Depending on your original vehicle configuration, supported functions include:

Steering wheel controls
Compatible factory amplifier
A/C control
A/C information display
Door-open reminder
CANBUS vehicle information

The supplied vehicle-specific wiring also helps reduce the need for cutting or splicing during a compatible installation.

Factory equipment varies between F-150 configurations. Please check compatibility before ordering if retaining a specific original feature is important to you.

Camera, Radio & Media Support

Connect a compatible reversing camera for additional visibility while parking or reversing.

Supported features include:

Reversing camera input
Automatic reverse display
Parking guidelines
AM/FM radio with RDS
3 USB inputs
USB media playback
1080P video decoding

Common audio formats including MP3, WMA, WAV, AAC, FLAC and APE are supported.

Optional Eonon Accessories

Expand your system with compatible accessories:

A100 Dash Camera
Add front driving recording.

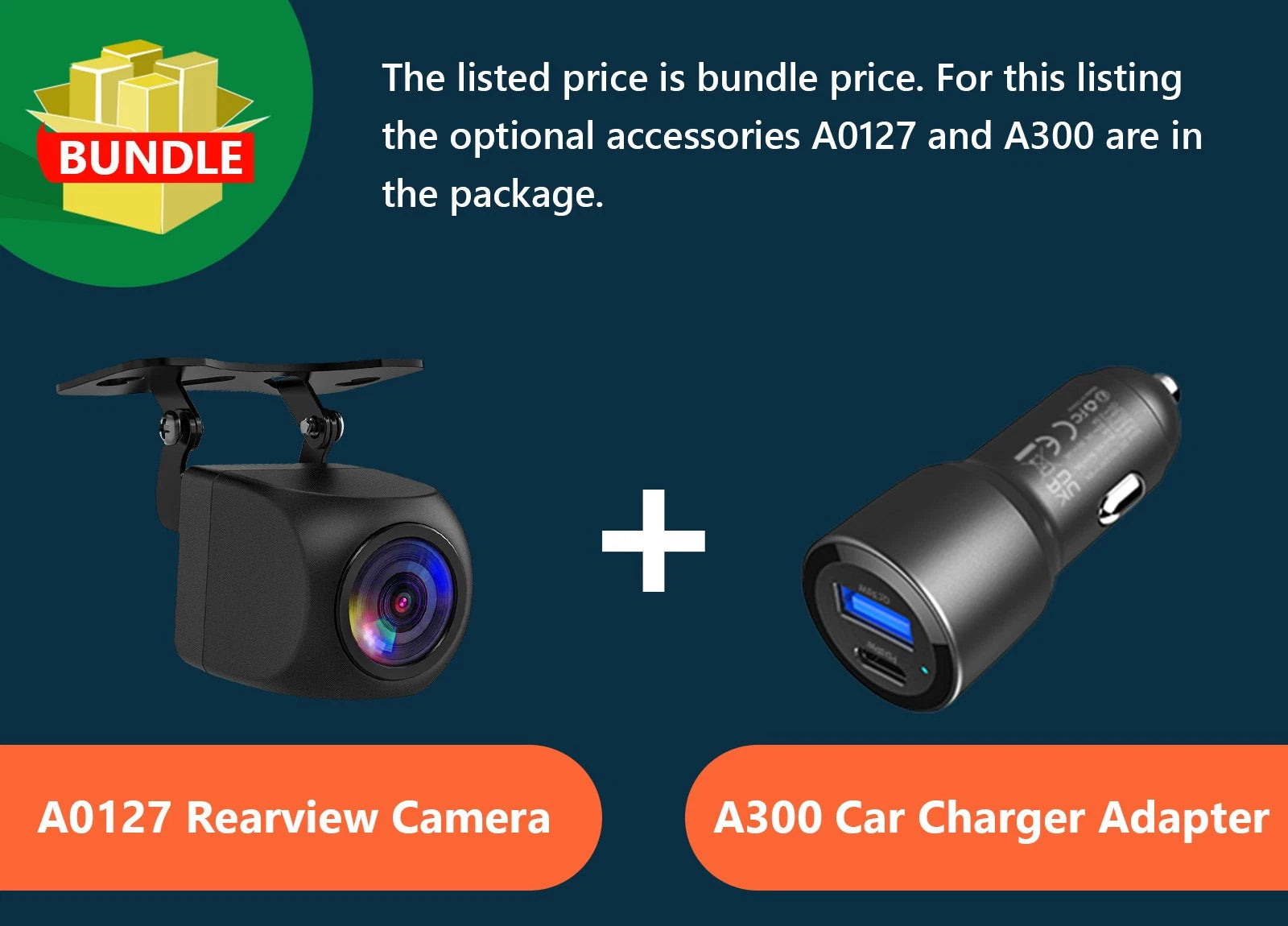

A0125 / A0127 Camera
Add compatible parking or reversing-camera functionality.

V0056 Bluetooth OBD2 Scanner
View supported real-time vehicle diagnostic information through compatible Android apps.

A503 / DX2 / DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.

A304 DSP Digital Amplifier
Add further amplification and audio tuning for compatible upgraded sound systems.

Optional accessories are sold separately unless specifically included with your selected package.

❓ Frequently Asked Questions

Will it fit every 2009–2014 Ford F-150?
No. It is designed for compatible F-150 models within these years, but factory dashboard and radio configurations vary. Please compare your original centre console with the compatibility images before ordering.

Does it support Wireless CarPlay and Android Auto?
Yes. Both wired and wireless Apple CarPlay and Android Auto are supported.

Can I use navigation without internet?
Yes. The built-in GPS supports compatible offline navigation. Internet access is required for online traffic and other connected services.

Do I need a SIM card?
Only if you want to use the stereo's built-in 4G mobile data connection. CarPlay, Android Auto, Bluetooth, radio and GPS reception do not require a SIM card.

Are steering wheel controls supported?
Yes, compatible factory steering wheel controls are supported through the vehicle interface.

Does it work with the factory amplifier?
Compatible factory amplifier systems are supported. Compatibility depends on the original vehicle/audio configuration.

Can I connect an aftermarket amplifier or subwoofer?
Yes. RCA, subwoofer, optical and coaxial outputs are available for compatible aftermarket audio equipment.

Does it support phone screen mirroring?
No. Full phone screen mirroring is not supported on this model.

Upgrade Your F-150 Without Giving Up Everyday Convenience

The Eonon FDF1X7S Ford F-150 Android car stereo combines a 9" QLED touchscreen, Android 14, Wireless Apple CarPlay and Android Auto, GPS navigation, 4G LTE and advanced DSP audio control in one vehicle-specific system.

For compatible 2009–2014 Ford F-150 trucks, it is a practical way to modernise navigation, entertainment and smartphone connectivity while retaining supported factory controls and vehicle information.

Please check your original dashboard/radio configuration against the compatibility images before purchasing.

⭐ Vehicle Compatibility

Designed for 2009 Ford F-150, 2010 Ford F-150, 2011 Ford F-150, 2012 Ford F-150, 2013 Ford F-150, 2014 Ford F-150, Ford F150. Plug & play.

⭐ Specification

Operation system: Android 14
OTA Firmware Update: Yes
Processor: Qualcomm QCM6225-AD
CPU Architecture: 8-core(4xA73@2.8GHz + 4xA53@1.9GHz)
RAM: 6GB
Storage: 64GB
Display: 9" QLED
Resolution: 1280*720
Operating voltage: DC12V
Physical button/knob: No
CarPlay: Wired & Wireless
Android Auto: Wired & Wireless
Screen mirroring: No
Steering wheel controls: Yes
Independent Bluetooth module: Yes
Extra Bluetooth antenna: Yes
Custom boot logo: Yes
changeable button color: Yes
changeable wallpapers: Yes
Wi-Fi: Support 2.4G/5G & Wi-Fi 6 ready
4G Feature: Built-in 4G module
1s fast boot: Yes
Built-in UI themes: 1
Split-screen multitasking: Yes
Built-in DSP: Yes
Built-in power amplifier: 4-channel audio output and 2 subwoofer audio output
EQ bands: 48
EQ modes: User Standard Rock POP Classical Jazz Gentle CINEMA Hall
HPF/LPF adjustment: Yes
Video input: 1
Video output: No
Audio input: 2
Audio output: 4 RCA + 1 Optical + 1 Coaxial
AUX input: No
USB input: 3
RMS power (manufacturer): 30W
Max amplifier output: 4*50W
Preamp outputs: 5-channel
Sub preamp outputs: Yes
Preamp voltage: 4.0V
Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
Image Formats: Supports JPEG, BMP, PNG, and more
