10.1 inch QLED 6+64G Double 2 DIN Car Stereo Android Auto DSP Audio GPS Headunit

$ 349.95

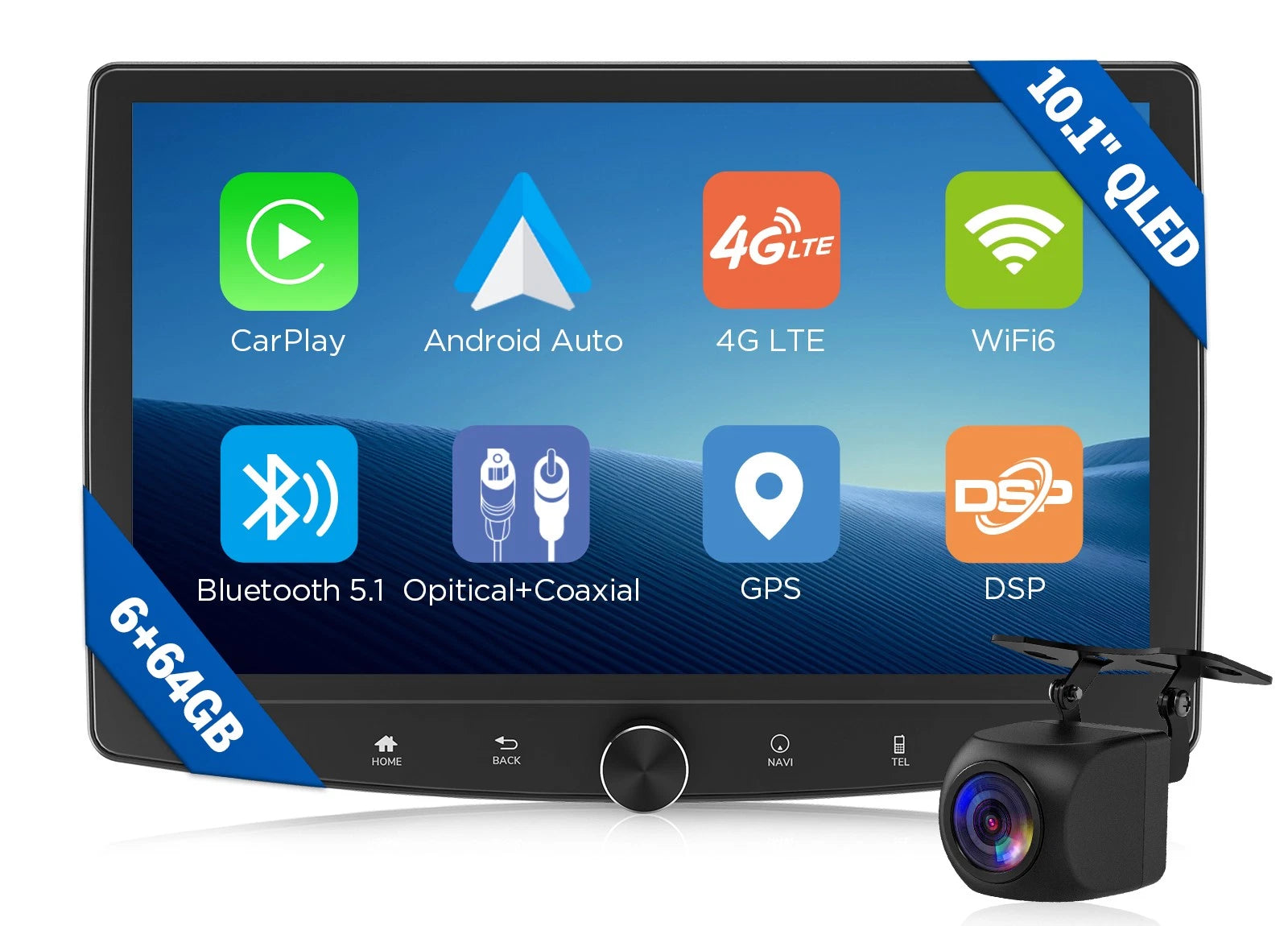

🚗 Eonon UX6SK2 Plus 10.1" QLED Android 13 Double DIN Car Stereo

A Bigger, More Flexible Double DIN Upgrade

Upgrade a compatible Double DIN dashboard with a large adjustable touchscreen, wireless smartphone connectivity, built-in navigation and more flexible audio control.

The Eonon UX6SK2 Plus combines Android 13, Qualcomm 6nm performance, Wireless Apple CarPlay & Android Auto, built-in 4G LTE, Wi-Fi 6 and ROHM 48-band DSP in a universal Double DIN head unit designed for drivers who want more screen space without moving to a vehicle-specific stereo.

Key Upgrades

10.1" Adjustable QLED Display – larger 1280×720 touchscreen for navigation, media and cameras
Qualcomm 6nm 8-Core + 6GB/64GB – responsive everyday performance and multitasking
Wireless & Wired CarPlay / Android Auto – convenient access to maps, calls, messages and music
ROHM 48-Band DSP + ST TDA7851 – detailed sound tuning with analogue and digital outputs
Built-in GPS + 4G LTE + Wi-Fi 6 – flexible online and offline connectivity
Wireless Screen Mirroring – supported with compatible iPhone and Android devices
Physical Control Knob – quick access to volume, mute and power
A0127 Rear Camera Included – add reversing visibility without purchasing a separate rear camera

⚠️ Check Installation Size Before Ordering

The UX6SK2 Plus is a universal Double DIN car stereo, not a vehicle-specific head unit.

Do not purchase based on vehicle make, model or year alone.

Main Dimensions

Required dashboard opening: 178 × 100mm
Double DIN chassis: 178 × 100mm
Chassis depth: approx. 80mm
Screen size: approx. 247 × 162mm

Your vehicle must have enough space for both the Double DIN chassis and the larger 10.1" display.

Not a Direct Fit for Single DIN Dashboards

If your vehicle has a standard 178 × 50mm Single DIN radio opening, the UX6SK2 Plus is not a direct replacement.

A suitable dashboard conversion would be required, otherwise a Single DIN stereo is the more appropriate option.

Additional Installation Parts May Be Required

Even if your vehicle can accommodate a Double DIN stereo, some dashboards require extra installation hardware.

Depending on your vehicle, you may need:

Vehicle-specific fascia / dash kit
ISO wiring harness
Antenna adapter
Steering wheel control adapter
CANBUS interface

These vehicle-specific parts are not included unless specifically stated in your selected package.

Check the Factory Wiring

The stereo is designed around a compatible ISO-standard radio connection.

If your vehicle does not use the required ISO interface, a suitable vehicle-specific ISO wiring harness or adapter will be required.

Before ordering, check both:

Dashboard size + original radio wiring

10.1" Adjustable QLED Touchscreen

The 10.1-inch QLED display gives maps, media, reversing views and split-screen functions much more viewing space than a conventional fixed Double DIN screen.

1280×720 HD resolution
QLED touchscreen
Wide viewing angle
Day / night brightness adjustment
Adjustable viewing angle
Adjustable screen position

The screen can be tilted and repositioned to better suit different dashboard layouts and driving positions.

Because the display measures approximately 247 × 162mm, please check the surrounding clearance before purchase.

Make sure the screen will not obstruct:

Air vents
Climate controls
Hazard switch
Dashboard buttons
Other frequently used vehicle controls

Physical Knob for Everyday Control

The UX6SK2 Plus includes a practical physical control knob for functions you may want to access quickly.

Use it to:

Adjust volume
Short press for mute on/off
Long press for power on/off

This gives you an alternative to touchscreen-only control for common everyday adjustments.

Android 13 + Qualcomm Performance

Powered by the Qualcomm QCM6225-AD 6nm platform, the UX6SK2 Plus provides the performance needed for navigation, music and compatible Android apps.

8-Core CPU: 4×A73 up to 2.8GHz + 4×A53 up to 1.9GHz
Adreno 610 GPU
6GB RAM
64GB internal storage
1-second fast boot supported
OTA firmware updates
Split-screen multitasking

Run compatible functions such as navigation and music side by side without constantly switching screens.

Wireless Apple CarPlay & Android Auto

Connect your compatible smartphone and access familiar functions directly from the 10.1" display.

Use compatible:

Navigation
Music
Calls
Messages
Siri
Google Assistant

Both wired and wireless Apple CarPlay and Android Auto are supported, so you can choose between cable-free convenience and a wired connection.

ROHM 48-Band DSP + ST TDA7851 Amplifier

The UX6SK2 Plus combines ROHM digital signal processing with an ST TDA7851 amplifier for detailed audio adjustment and flexible system expansion.

Audio features include:

ROHM DSP
48-band EQ
Time alignment
Multiple EQ presets
Subwoofer control
ST TDA7851 amplifier
25W RMS manufacturer-rated power
Up to 4×48W amplifier output
5-channel preamp output

For upgraded sound systems, the stereo also provides 4 RCA outputs plus optical and coaxial digital outputs for compatible aftermarket amplifiers and subwoofers.

Built-In GPS Navigation

The built-in GPS receiver and external GPS antenna support compatible offline navigation maps as well as online navigation apps.

Use supported services such as Google Maps and Waze when connected to the internet, or download compatible offline maps for areas with limited mobile coverage.

Offline navigation does not require a SIM card.

4G LTE + Wi-Fi 6 Connectivity

Insert a compatible SIM card to give the stereo its own mobile data connection for supported navigation, streaming and Android apps.

Connectivity includes:

Built-in 4G LTE module
2.4GHz / 5GHz Wi-Fi
Wi-Fi 6 ready
Bluetooth 5.1
External Bluetooth antenna
Split-screen multitasking

A SIM card is not required for Apple CarPlay, Android Auto, Bluetooth, AM/FM radio, USB playback or GPS reception.

4G compatibility depends on the regional version, mobile carrier and supported LTE bands.

Wireless Screen Mirroring

The UX6SK2 Plus supports wireless screen mirroring with compatible iPhone and Android devices.

Supported phone content can be displayed on the larger QLED screen.

Availability depends on the phone, operating system and individual app.

DRM-protected services may restrict mirrored video playback.

Steering Wheel Control Support

Compatible analogue steering wheel controls are supported.

Vehicles using digital or CANBUS-based steering wheel controls may require a suitable vehicle-specific adapter.

Because steering wheel control systems vary between vehicles, please check your original wiring before purchasing.

Rear Camera Included + Camera Support

An Eonon A0127 rear camera is included with the UX6SK2 Plus.

Once correctly installed, the stereo can automatically switch to the rear-camera image when reverse gear is selected.

Supported camera functions include:

Rear camera input
Automatic reverse display
Parking guidelines
Front camera support
Rear camera support

Camera installation requirements can vary by vehicle.

AM/FM Radio & Media Support

The UX6SK2 Plus also supports everyday radio and media playback.

AM/FM radio
RDS
3 USB inputs
USB media playback

For digital radio in supported regions, compatible Eonon A503 / DX2 / DX1 DAB+ modules can be added separately.

Optional Eonon Accessories

A100 Dash Camera
Add compatible front driving recording.

A0125 Camera
Add compatible camera functionality where required.

V0056 Bluetooth OBD2 Scanner
View supported vehicle diagnostic information through compatible Android apps.

A503 / DX2 / DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.

A304 DSP Digital Amplifier
Add further amplification for compatible upgraded audio systems.

A0127 Rear Camera is included with this model. Other optional accessories are sold separately unless specifically included with your selected package.

Frequently Asked Questions

Will the UX6SK2 Plus fit my car?
It can be installed in many vehicles that can accommodate a 178 × 100mm Double DIN chassis, but fitment also depends on dashboard shape, wiring and clearance for the approximately 247 × 162mm display.

My dashboard opening is not exactly 178 × 100mm. Can I still install it?
Some vehicles can use a vehicle-specific fascia or installation kit. The required kit is not included and must be selected according to your vehicle.

My car has a Single DIN factory radio. Will it fit?
It is not a direct replacement for a standard 178 × 50mm Single DIN opening. A suitable dashboard conversion would be required.

Do I need an ISO wiring harness?
If your vehicle does not already have the compatible ISO-standard connection required by the stereo, a vehicle-specific ISO wiring adapter will be needed.

Will the large screen block my air vents or dashboard controls?
This depends on your dashboard layout. The screen measures approximately 247 × 162mm, so please measure the available space before ordering.

Can the screen position be adjusted?
Yes. The viewing angle and screen position can be adjusted to better suit compatible dashboard layouts.

Does it have a physical volume knob?
Yes. The knob supports volume adjustment, mute and power functions.

Is a reversing camera included?
Yes. An Eonon A0127 rear camera is included with the UX6SK2 Plus.

Does it support Wireless CarPlay and Android Auto?
Yes. Both wired and wireless Apple CarPlay and Android Auto are supported.

Can GPS work without internet?
Yes. Built-in GPS supports compatible offline navigation maps.

Do I need a SIM card?
Only if you want to use the stereo's built-in 4G LTE mobile data connection. CarPlay, Android Auto, Bluetooth, radio, USB playback and GPS reception do not require a SIM card.

Will my steering wheel controls work?
Compatible analogue steering wheel controls are supported. Digital or CANBUS-based systems may require a vehicle-specific adapter.

Does it support wireless screen mirroring?
Yes. Wireless screen mirroring is supported with compatible iPhone and Android devices. DRM restrictions may apply to some apps.

A Larger, More Flexible Double DIN Upgrade

The Eonon UX6SK2 Plus Android Double DIN car stereo combines Android 13, Qualcomm 6nm performance, Wireless Apple CarPlay and Android Auto, a large adjustable 10.1" QLED display, built-in GPS, 4G LTE, Wi-Fi 6 and ROHM DSP audio control in one versatile system.

Its 178 × 100mm Double DIN chassis, adjustable screen, physical control knob and included A0127 rear camera make it a practical option for drivers who want a larger infotainment display with more connectivity and audio flexibility than a conventional fixed-screen radio.

Before purchasing, measure your dashboard opening and screen clearance, and check whether your vehicle requires a fascia kit, ISO wiring harness or steering wheel control adapter.

Technical Specifications

Operation system: Android 13
OTA Firmware Update: Yes
Processor: Qualcomm QCM6225-AD
CPU Architecture: 8-core(4×A73@2.8GHz + 4×A53@1.9GHz)
RAM: 6GB
Storage: 64GB
Display: 10.1" QLED Touchscreen
Resolution: 1280*720
Operating voltage: DC12V
Physical button/knob: Yes
CarPlay: Wired & Wireless
Android Auto: Wired & Wireless
Split-screen multitasking: Yes
Adjustable viewing angle: Yes
Screen mirroring: Yes
1s fast boot: Yes
Steering wheel controls: Yes
Key button color: Variable
Wi-Fi: Support 2.4G/5G & Wi-Fi 6 ready
4G feature: Built-in 4G module
Custom boot logo & changeable wallpapers: Yes
Built-in UI themes: 4
Built-in DSP: Yes
Built-in power amplifier: 4-channel audio output and one subwoofer audio output
EQ bands: 48
EQ modes: User Standard Rock POP Classical Jazz Gentle CINEMA Hall
HPF/LPF adjustment: No
Video input: 1
Video output: No
Audio input: 2
Audio output: 4 RCA + 1 Optical + 1 Coaxial
AUX input: No
USB input: 3
RMS power (manufacturer): 25W
Max amplifier output: 4*48W
Preamp outputs: 5-channel
Sub preamp outputs: Yes
