9"Android 14 for RAM 1500 Classic 2019-2024 Car Radio Head Unit Wireless CarPlay

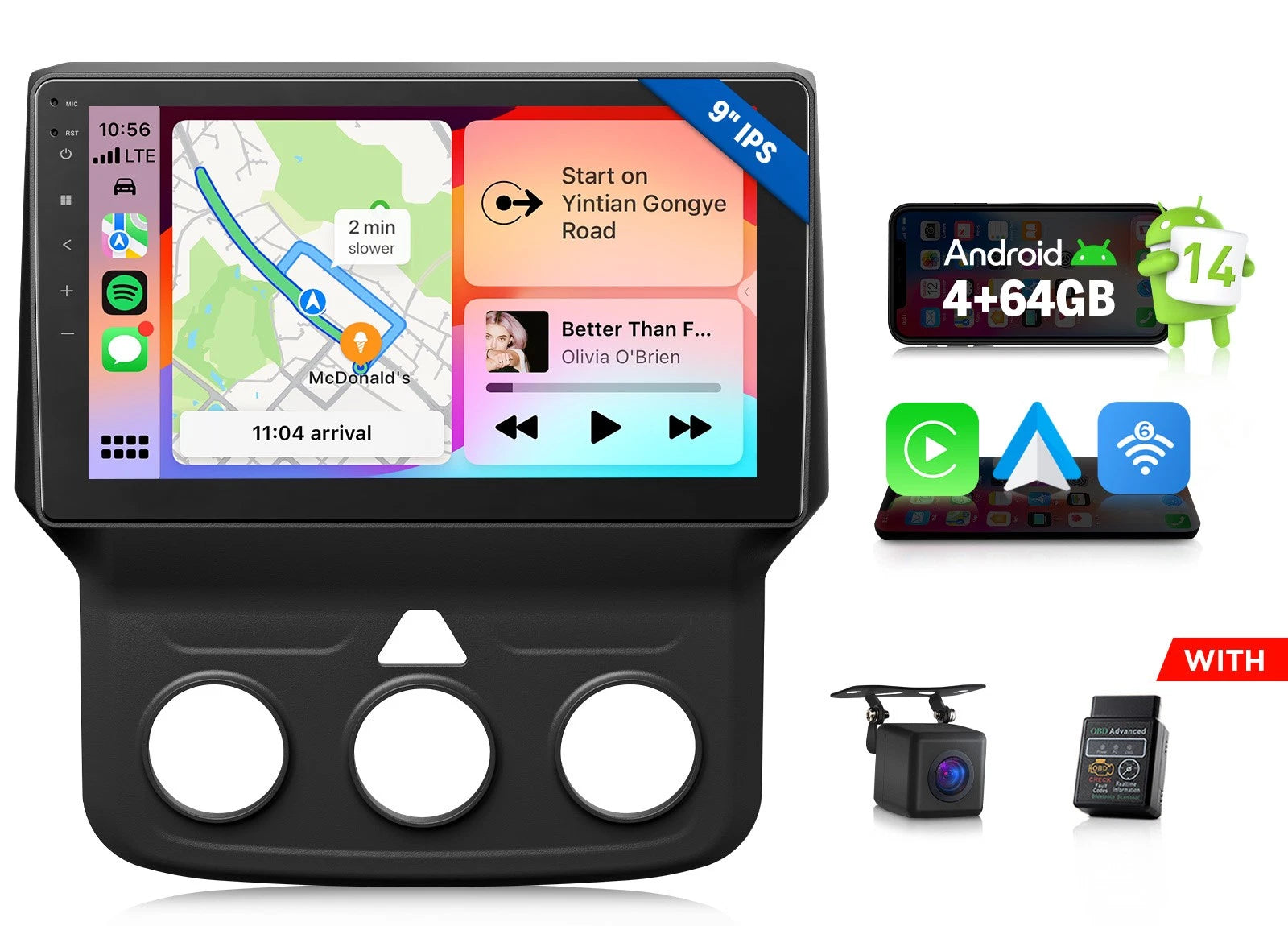

🚗 Eonon DGRMX7A Android 14 Car Stereo for Dodge RAM 1500 / 2500 / 3500 & RAM 1500 Classic

9" IPS Touchscreen | Wireless Apple CarPlay & Android Auto | GPS Navigation | 48-Band DSP | Bluetooth 5.4 | Vehicle-Specific Installation

Upgrade Your RAM Without Giving Up the Features You Use

The Eonon DGRMX7A is a vehicle-specific Android 14 car stereo designed for compatible Dodge RAM 1500, 2500 and 3500 (2013–2018) and RAM 1500 Classic (2019–2024) trucks with manual A/C.

It combines a large 9" IPS touchscreen, wireless Apple CarPlay and Android Auto, built-in GPS, Android apps and advanced DSP audio control while supporting key factory functions through CANBUS integration.

Key Reasons to Upgrade

• Wireless & wired Apple CarPlay / Android Auto
• 9" IPS HD touchscreen, 1280 × 720
• Android 14 + RK3562 quad-core processor
• 4GB RAM + 64GB storage
• Built-in GPS navigation
• 48-band DSP with HPF/LPF & subwoofer control
• Bluetooth 5.4 + dual-band 2.4GHz/5GHz Wi-Fi
• Bose system support
• Vehicle-specific wiring & CANBUS integration

⚠️ Important: Check Compatibility Before Purchase

Compatible vehicles:

• RAM 1500 — 2013–2018
• RAM 2500 — 2013–2018
• RAM 3500 — 2013–2018
• RAM 1500 Classic — 2019–2024

For manual A/C models only.

This stereo is not designed for RAM trucks with the incompatible climate-control layouts shown in the product images. Please compare your factory dashboard and climate controls with our compatibility images before ordering.

Vehicle-Specific RAM Installation

Unlike a universal double-DIN radio, the DGRMX7A is designed around compatible RAM dashboards and uses vehicle-specific wiring for a cleaner installation.

CANBUS integration helps retain supported factory functions, including:

• Steering wheel controls*
• Factory Bose amplifier
• Factory backup camera
• Parking sensor information
• A/C information
• Door reminder information

*Steering wheel voice recognition button is not supported.

Factory feature retention may vary depending on vehicle trim, configuration and original equipment.

Wireless Apple CarPlay & Android Auto

Bring the apps you use every day onto the stereo without having to plug in your phone every time you drive.

The DGRMX7A supports both wireless and wired Apple CarPlay and Android Auto, giving you convenient access to compatible:

• Navigation apps
• Music and podcasts
• Hands-free calls
• Messages
• Siri / Google Assistant

Whether you're commuting, travelling or using your RAM for work, your essential phone functions stay within easy reach.

Android 14 + 4GB RAM / 64GB Storage

Powered by an RK3562 quad-core processor (4 × Cortex-A53 up to 2.0GHz), the DGRMX7A provides a responsive platform for everyday in-car use.

With 4GB RAM and 64GB storage, you can run compatible Android apps, navigation and media directly from the head unit.

Also supported:

• Split-screen multitasking
• OTA updates via Wi-Fi
• Custom wallpapers
• Custom boot logo
• 3 built-in UI themes

9" IPS HD Touchscreen

The 9" 1280 × 720 IPS display gives your RAM a larger, more modern interface for navigation, music and vehicle information.

Its wide viewing angles and clear layout make commonly used controls easier to see and operate from the driver's seat.

Built-In GPS Navigation

Use the stereo as a standalone navigation system instead of relying only on your phone.

The built-in GPS works with the included external GPS antenna and supports compatible online and offline navigation apps.

With split-screen mode, you can keep your route visible while controlling music or other compatible functions at the same time.

48-Band DSP Audio Control

The DGRMX7A gives you much more control over how your RAM sounds.

The built-in DSP provides:

• 48-band EQ
• Custom & preset EQ modes
• HPF / LPF adjustment
• Subwoofer output
• 5-channel preamp outputs
• 4 RCA audio outputs
• ST TDA7388 amplifier
• 25W RMS manufacturer-rated power
• Up to 4 × 45W amplifier output

Fine-tune vocals, bass and frequency balance to suit your speakers and listening preferences.

For drivers looking for an additional audio upgrade, the Eonon A304 DSP amplifier is available separately.

Cameras & Parking Support

Connect compatible camera equipment for added visibility around your truck.

Supports:

• Factory backup camera*
• Aftermarket rear-view camera
• Front camera input
• Automatic reversing display
• Parking guidelines
• Supported parking sensor information

*Factory camera compatibility depends on the original vehicle configuration.

WiFi 6 + Bluetooth 5.4

Built-in WiFi 6 supports 2.4GHz and 5GHz connections for accessing online services through an available Wi-Fi network or smartphone hotspot.

Bluetooth 5.4 handles compatible phone and audio connections for everyday wireless use.

Please note: Built-in 4G LTE is not included. Mobile-network access requires a compatible external 4G dongle.

AM/FM Radio with RDS

Prefer traditional radio? The built-in Silicon Labs SI4755 tuner provides AM/FM reception with RDS support, so you can listen without using mobile data.

For regions where DAB+ is available, compatible Eonon A503 / DX2 / DX1 DAB+ modules can be added separately.

Screen Mirroring & Media

Wireless screen mirroring is supported for compatible iOS and Android devices.

The stereo also supports common audio, video and image formats, including MP3, FLAC, AAC, MP4, MKV, JPEG and PNG, with support for up to 1080P video decoding.

Note: Some copyrighted streaming content cannot be mirrored due to DRM restrictions.

Optional Eonon Accessories

A100 Dash Camera
Add compatible front driving recording.

A0125 / A0127 Cameras
Add compatible parking or reversing camera functionality.

V0056 Bluetooth OBD2 Scanner
View supported real-time vehicle diagnostic information through compatible Android apps.

A503/DX2/DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.

A304 DSP Digital Amplifier
Additional amplification and tuning for compatible upgraded audio systems.

Optional accessories are sold separately unless included in the selected package.

Why Choose the DGRMX7A for Your RAM?

The DGRMX7A is more than a larger screen. It brings together the upgrades RAM owners are most likely to use every day: wireless CarPlay and Android Auto, Android 14 apps, GPS navigation, detailed DSP sound tuning and vehicle-specific integration.

If your compatible RAM has manual A/C and you're looking to modernise the factory infotainment system without moving to a generic universal radio, the DGRMX7A provides a practical, truck-specific upgrade.

Please confirm your vehicle year, dashboard and manual A/C configuration against the product compatibility images before purchase.

⭐ Vehicle Compatibility

Designed for 2013 Dodge RAM 1500, 2013 Dodge RAM 2500, 2013 Dodge RAM 3500, 2014 Dodge RAM 1500, 2014 Dodge RAM 2500, 2014 Dodge RAM 3500, 2015 Dodge RAM 1500, 2015 Dodge RAM 2500, 2015 Dodge RAM 3500, 2016 Dodge RAM 1500, 2016 Dodge RAM 2500, 2016 Dodge RAM 3500, 2017 Dodge RAM 1500, 2017 Dodge RAM 2500, 2017 Dodge RAM 3500, 2018 Dodge RAM 1500, 2018 Dodge RAM 2500, 2018 Dodge RAM 3500, 2019 Dodge RAM 1500 Classic, 2020 Dodge RAM 1500 Classic, 2021 Dodge RAM 1500 Classic, 2022 Dodge RAM 1500 Classic, 2023 Dodge RAM 1500 Classic, 2024 Dodge RAM 1500 Classic

⭐ Specification

• Operation system: Android 14
• Processor: RK3562
• CPU Architecture: 4-core(4xA53@2.0GHz)
• RAM: 4GB
• Storage: 64GB
• Display: 9" IPS
• Resolution: 1280*720
• Operating voltage: DC12V
• CarPlay: Wired & Wireless
• Android Auto: Wired & Wireless
• Split-screen multitasking: Yes
• Screen mirroring: Yes
• 1s fast boot: Yes
• Steering wheel controls: Yes(except voice recognition button)
• Key button color: Variable
• Wi-Fi: Support 2.4G/5G
• 4G Feature: No, 4G dongle needed
• Custom boot logo & changeable wallpapers: Yes
• Built-in UI themes: 3
• Compatible with Bose system: Yes
• Built-in DSP: Yes
• Built-in power amplifier: 4-channel audio output and one subwoofer audio output
• EQ bands: 48
• EQ modes: Custom Standard Popular Rock Classical Jazz
• HPF/LPF adjustment: Yes
• Video input: 1
• Video output: No
• Audio input: 2
• Audio output: 4 RCA
• AUX input: No
• USB input: 3
• RMS power (manufacturer): 25W
• Max amplifier output: 4*45W
• Preamp outputs: 5-channel
• Sub preamp outputs: Yes
• Preamp voltage: 1.0V​
• Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
• Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
• Image Formats: Supports JPEG, BMP, PNG, and more
