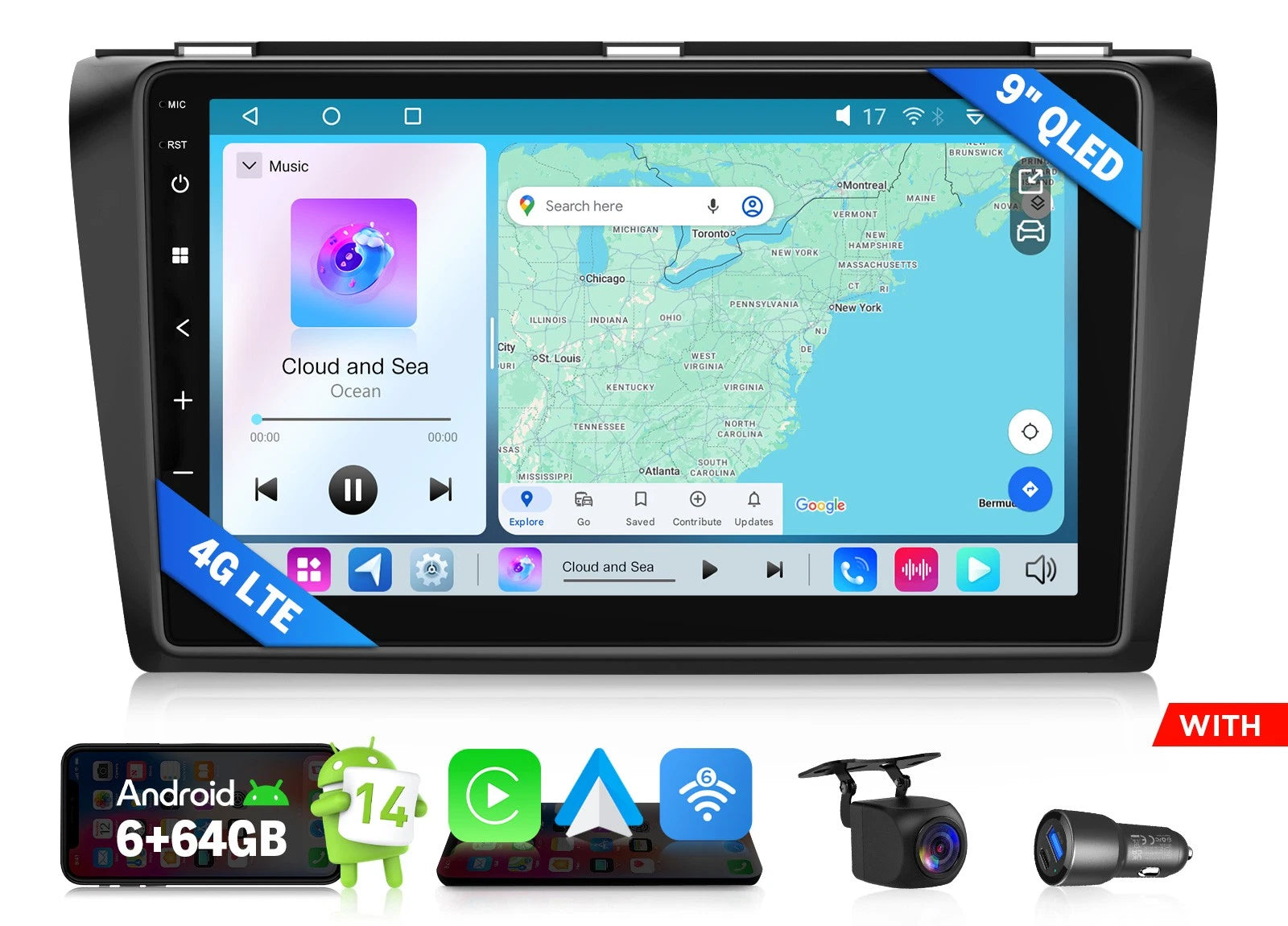

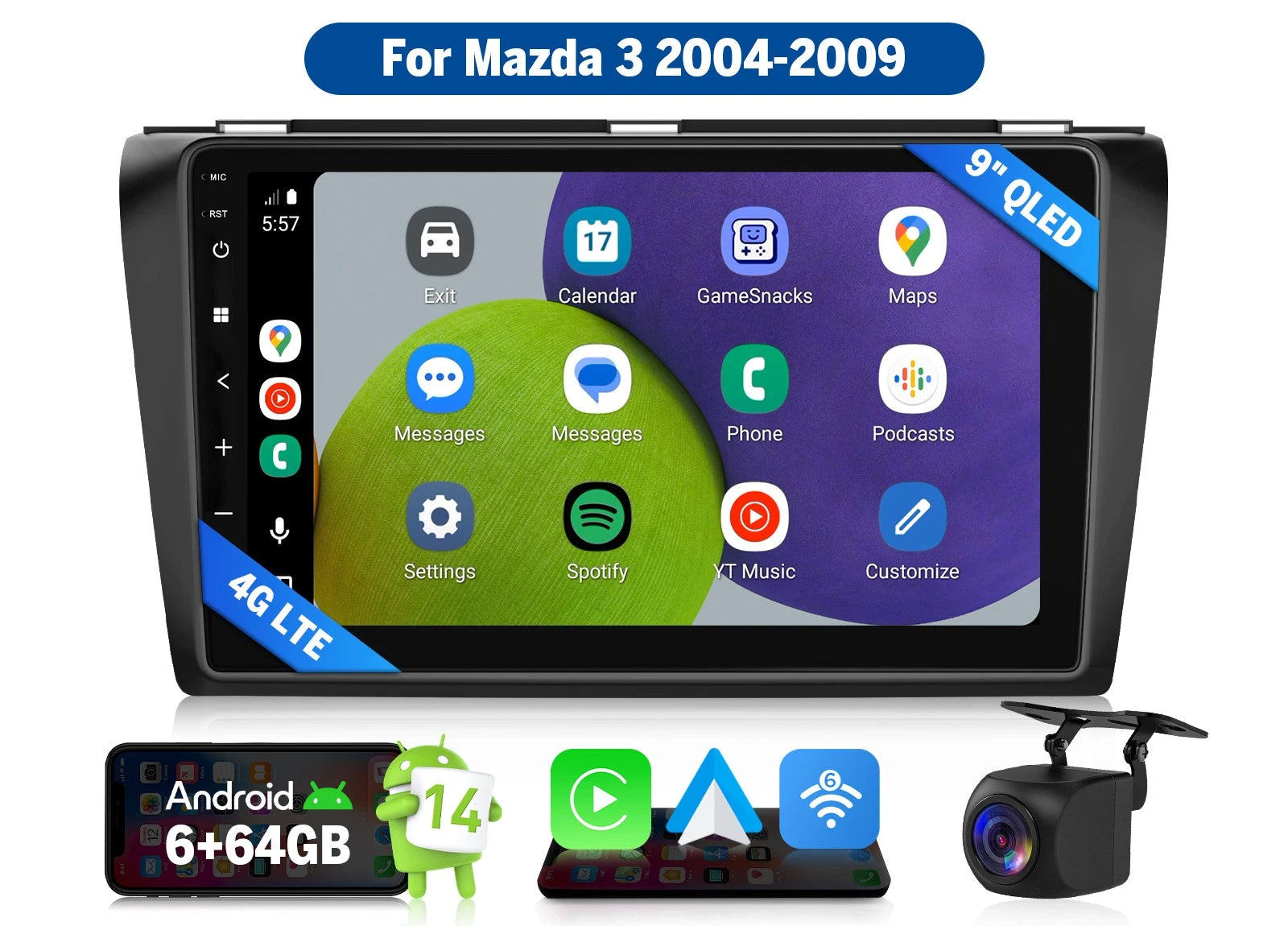

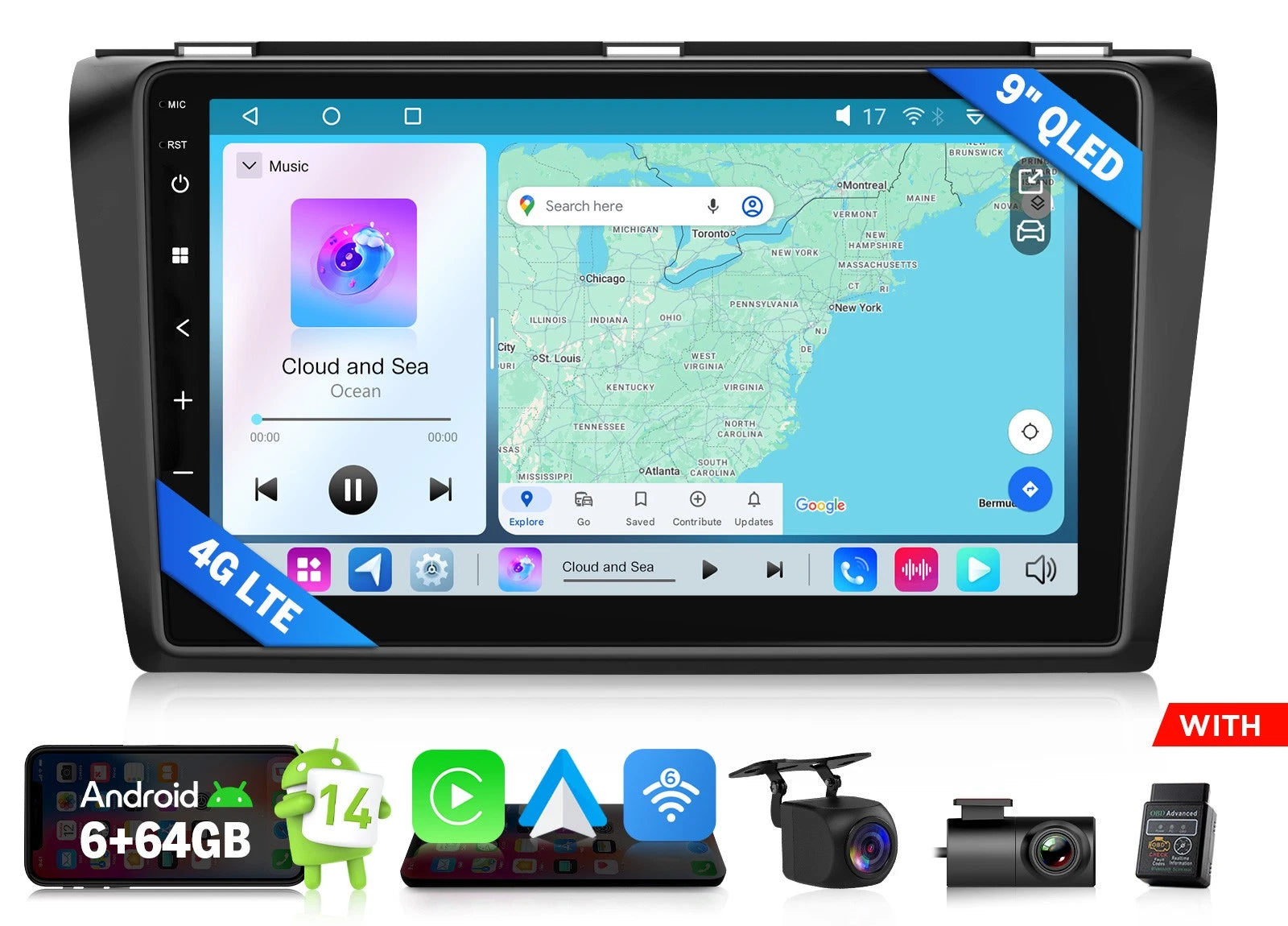

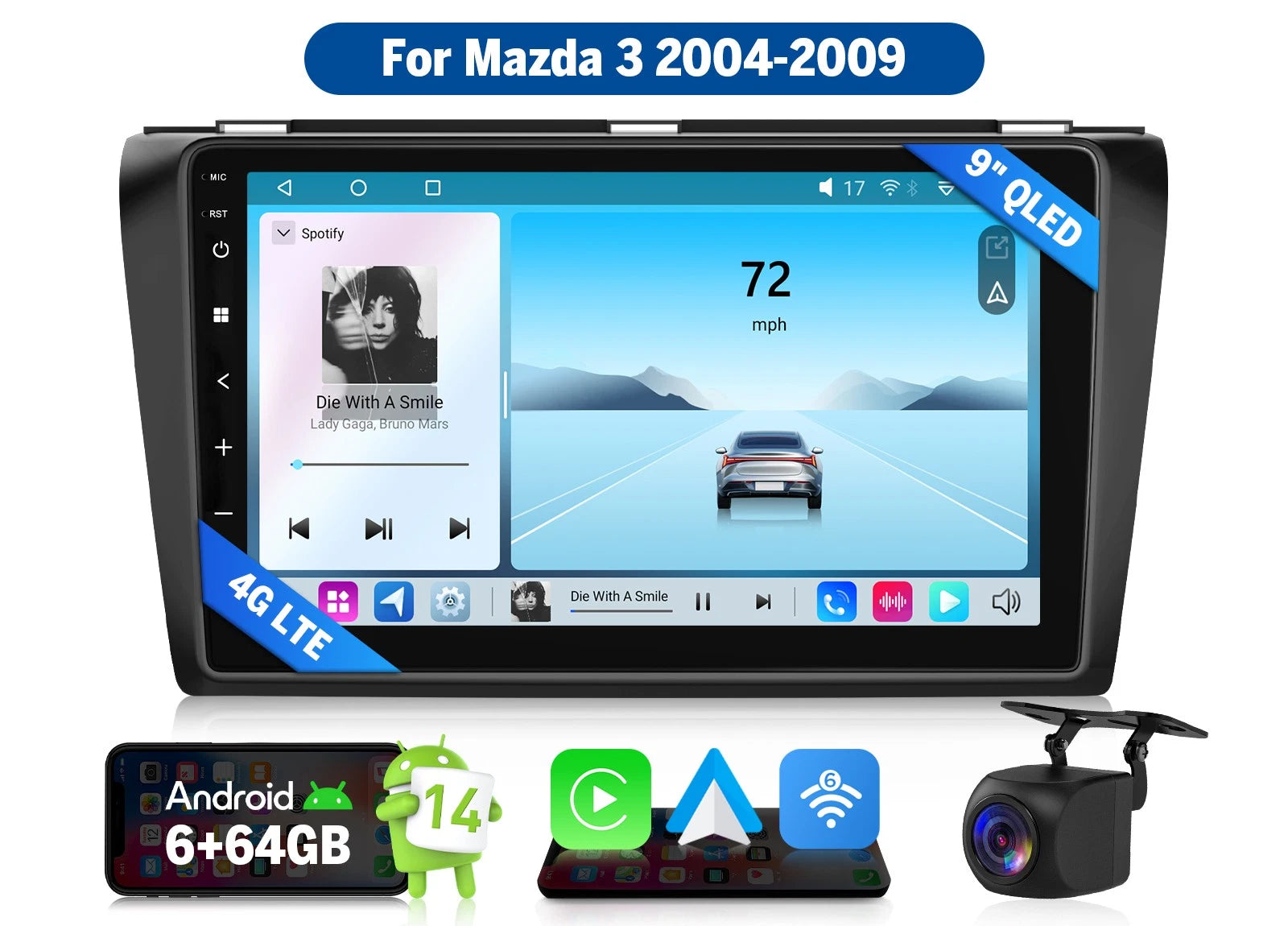

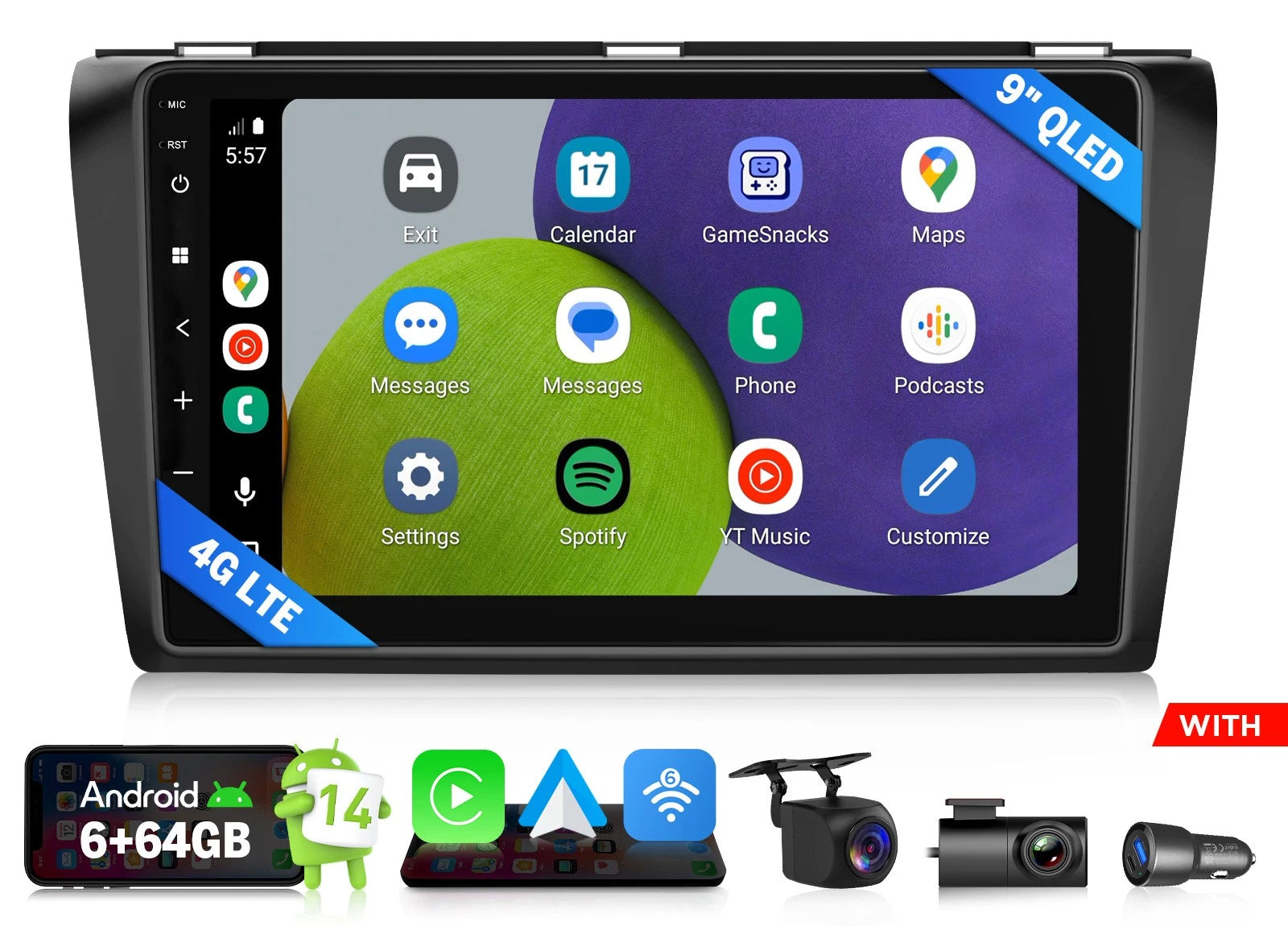

🚗 Eonon M3BKX7S Android 14 Car Stereo for Mazda 3 2004–2009

9" QLED | Qualcomm 6nm 8-Core | 6GB+64GB | Wireless CarPlay & Android Auto | DSP + DTS | 4G LTE | GPS | Wi-Fi 6

Modern Connectivity for Your Mazda 3

Upgrade your compatible 2004–2009 Mazda 3 with a larger 9" QLED touchscreen, wireless smartphone connectivity, built-in navigation and more flexible audio control.

The Eonon M3BKX7S combines Android 14, Qualcomm 8-core performance, Wireless Apple CarPlay & Android Auto, 4G LTE and 48-band DSP in a vehicle-specific Mazda 3 head unit designed to integrate with supported factory features.

Key Upgrades

• Android 14 + Qualcomm 6nm 8-Core – responsive apps, navigation and multitasking
• 6GB RAM + 64GB Storage – smooth everyday operation with room for apps and media
• Wireless & Wired CarPlay / Android Auto – easier access to maps, calls, messages and music
• 9" QLED 1280×720 Display – larger anti-glare touchscreen for maps and media
• 48-Band DSP + DTS – detailed sound adjustment with flexible amplifier outputs
• Built-in GPS + 4G LTE + Wi-Fi 6 – flexible online and offline connectivity
• Compatible with Supported Bose Systems – retain integration with compatible factory audio
• Mazda 3-Specific Design – cleaner installation than a universal head unit

⚠️ Check Your Dashboard Before Ordering

The M3BKX7S is designed for compatible Mazda 3 models from 2004–2009 with the dashboard style shown in the compatible example image.

Important compatibility points:

• The compatible dashboard style shown in the listing is suitable for 2004–2009 Mazda 3.
• On some 2004–2005 Mazda 3 models equipped with the factory upper LCD screen, the M3BKX7S can still be installed and operated normally, but the original factory LCD screen will no longer function after installation.
• If your dashboard matches the later-style centre console shown in the incompatible example image, please check the corresponding Eonon Mazda 3 2010–2013 car stereo instead.
• Please compare your original dashboard, radio and connectors with the listing images before ordering.

Factory equipment and retained functions may vary depending on vehicle configuration.

Android 14 + Qualcomm Performance

Powered by the Qualcomm QCM6225-AD 6nm platform, the M3BKX7S has the processing power needed for navigation, music and compatible Android apps.

• 8-Core CPU: 4×A73 up to 2.8GHz + 4×A53 up to 1.9GHz
• 6GB RAM + 64GB storage
• 1-second fast boot supported
• OTA firmware updates
• Split-screen multitasking

Run compatible functions such as navigation and music side by side without constantly changing screens.

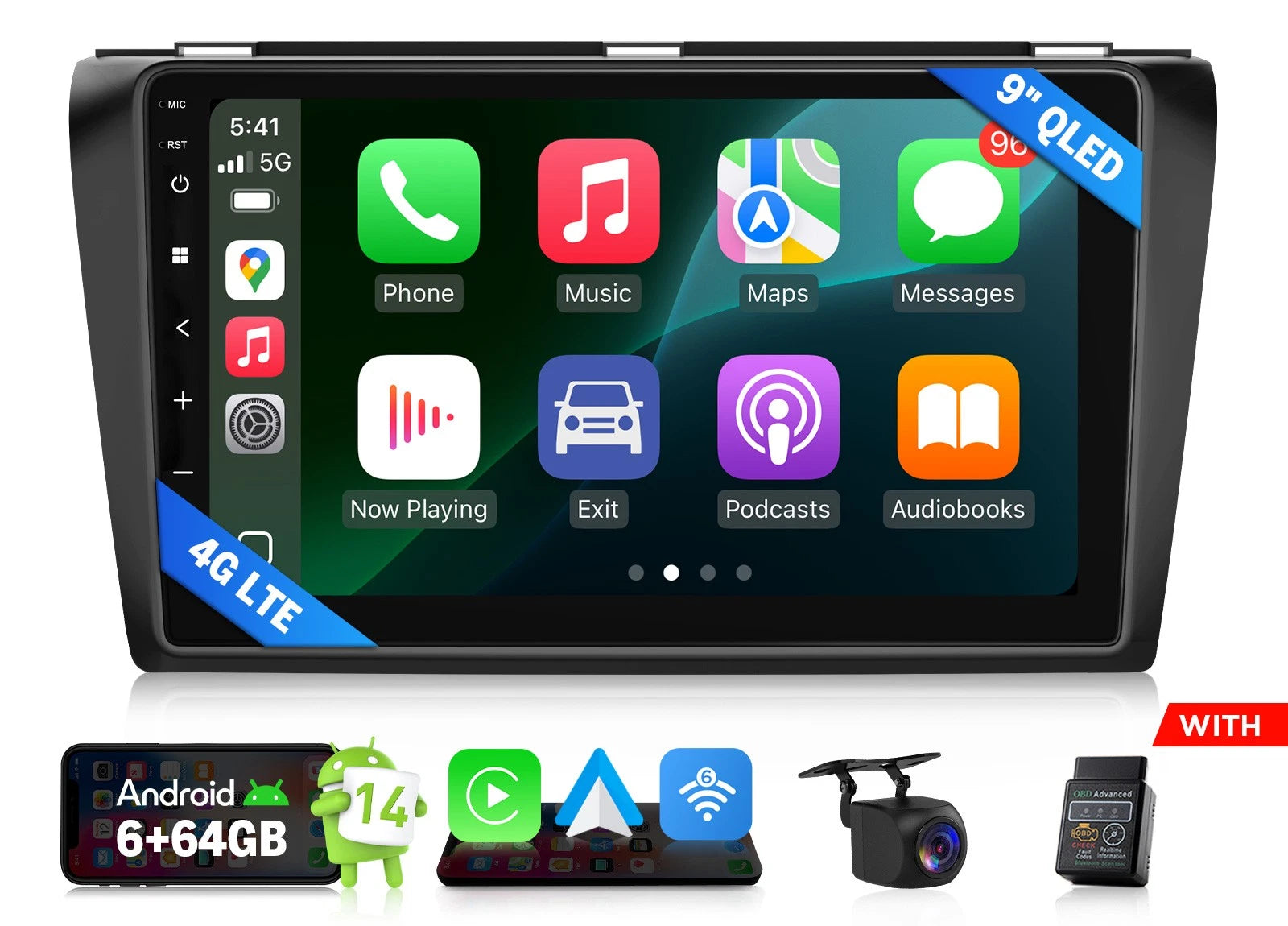

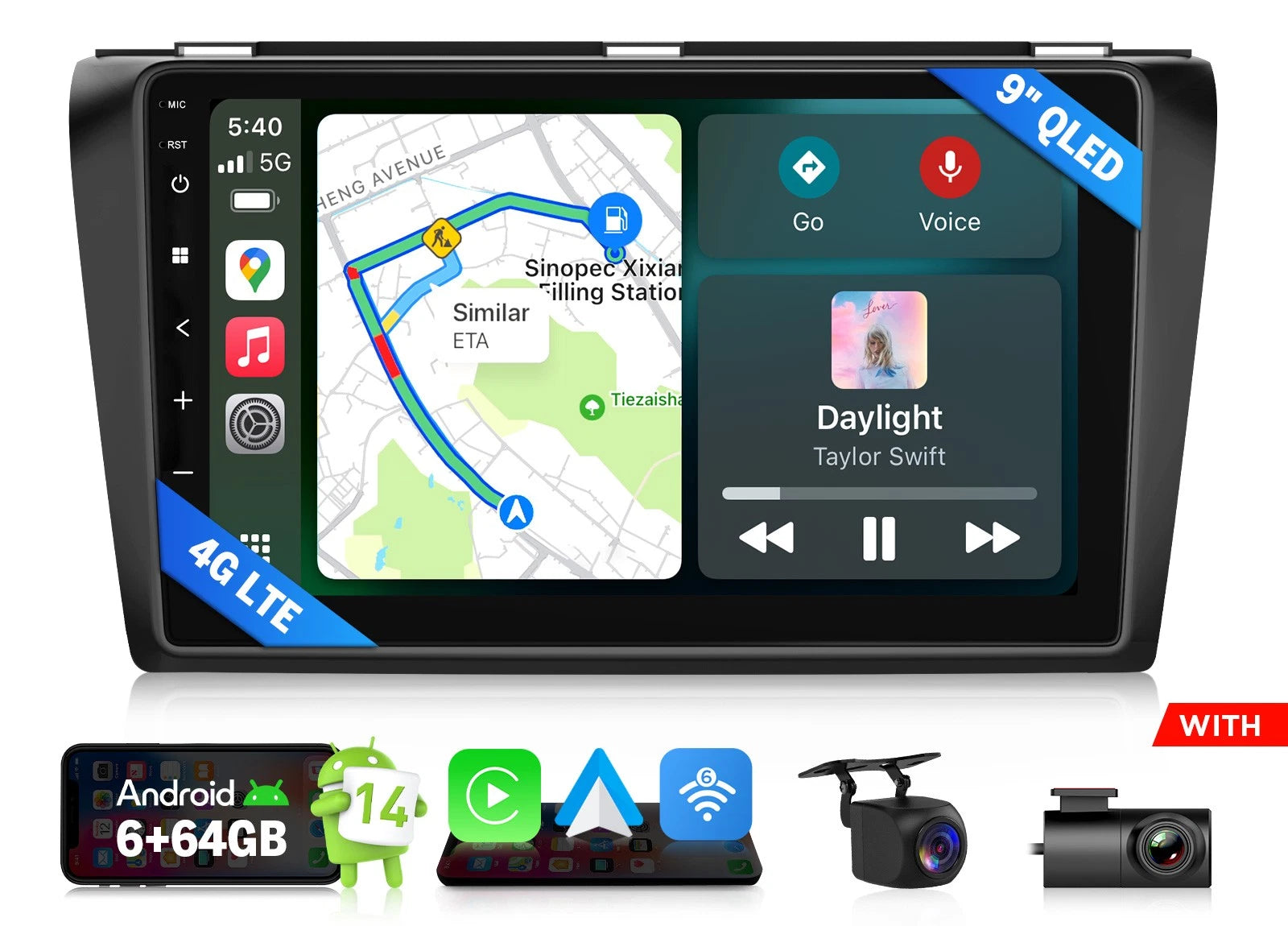

Wireless Apple CarPlay & Android Auto

Connect your compatible smartphone and access everyday functions directly from the 9" display.

Use compatible:

• Navigation
• Music
• Calls
• Messages
• Siri / Google Assistant voice functions

Both wired and wireless Apple CarPlay and Android Auto are supported, so you can choose between cable-free convenience and a wired connection.

Note: Full phone screen mirroring is not supported.

9" QLED HD Touchscreen

The 9-inch QLED display gives navigation, media and everyday controls more viewing space than the original radio interface.

• 1280×720 HD resolution
• Anti-glare design
• 178° wide viewing angle
• Capacitive touchscreen

The vehicle-specific fascia integrates the larger screen into compatible Mazda 3 dashboards without relying on a generic universal-radio installation.

48-Band DSP + DTS Audio Control

Adjust the sound around your speakers, cabin and listening preferences rather than relying on basic bass and treble controls.

Audio features include:

• 48-band EQ
• DTS audio processing
• Time alignment
• HPF / LPF adjustment
• Subwoofer control
• 30W RMS manufacturer-rated power
• Up to 4×50W amplifier output
• 4.0V preamp output

For upgraded sound systems, the M3BKX7S also provides 4 RCA outputs plus optical and coaxial digital outputs, giving you more flexibility when adding compatible aftermarket amplifiers or subwoofers.

Compatible with Supported Mazda Bose Systems

The M3BKX7S supports compatible factory Bose audio systems, allowing suitably equipped Mazda 3 owners to upgrade the head unit while retaining integration with the original amplifier system.

Because Bose configurations can vary, please check your original audio system and connectors before purchasing.

Built-In GPS Navigation

Use the built-in GPS receiver with compatible offline navigation maps, or connect to the internet for supported services such as Google Maps and Waze.

Offline navigation gives you route guidance without relying on continuous mobile data, while an internet connection enables supported online traffic and connected services.

4G LTE + Wi-Fi 6

Insert a compatible SIM card to give the stereo its own mobile data connection for supported online navigation, streaming and Android apps.

Connectivity includes:

• Built-in 4G LTE
• 2.4GHz / 5GHz Wi-Fi
• Wi-Fi 6 ready
• Bluetooth 5.1
• Split-screen multitasking

A SIM card is not required for CarPlay, Android Auto, Bluetooth, AM/FM radio or GPS reception.

4G network compatibility depends on the regional version, mobile carrier and supported LTE bands.

Keep Supported Mazda Factory Features

The vehicle-specific interface is designed to retain selected original functions on compatible Mazda 3 configurations.

Supported functions include:

• Steering wheel audio controls*
• Compatible Bose audio system
• CANBUS vehicle integration

* Factory voice recognition and phone control buttons are not supported.

2004–2005 factory LCD note:
If your vehicle is equipped with the original upper LCD display, the M3BKX7S itself will operate normally after installation, but that factory LCD display will no longer function.

Please note that factory equipment differs between vehicles, so retention of individual functions depends on the original configuration.

Camera, Radio & Media Support

Connect a compatible reversing camera to add extra visibility while parking or reversing.

Supported features include:

• Reversing camera input
• Automatic reverse display
• Parking guidelines
• AM/FM radio with RDS
• 3 USB inputs
• USB media playback
• Up to 2K video decoding

Common audio formats including MP3, WMA, WAV, AAC, FLAC and APE are supported.

Optional Eonon Accessories

A100 Dash Camera
Add compatible front driving recording.

A0125 / A0127 Camera
Add compatible parking or reversing-camera functionality.

V0056 Bluetooth OBD2 Scanner
View supported real-time vehicle diagnostic information through compatible Android apps.

A503 / DX2 / DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.

A304 DSP Digital Amplifier
Add further amplification and tuning for compatible upgraded audio systems.

Optional accessories are sold separately unless specifically included with your selected package.

Frequently Asked Questions

Will the M3BKX7S fit every 2004–2009 Mazda 3?
It is designed for compatible 2004–2009 Mazda 3 models with the dashboard style shown in the listing. If your dashboard matches the later-style centre console shown in the incompatible example image, please check the corresponding 2010–2013 Mazda 3 stereo instead.

What happens to the factory LCD screen on 2004–2005 Mazda 3 models?
If your 2004–2005 Mazda 3 has the original upper LCD screen, the M3BKX7S can still be installed and used normally. However, the original factory LCD screen will no longer function after installation.

Is it compatible with the factory Bose system?
Compatible Mazda Bose audio systems are supported. Installation requirements depend on the original audio configuration.

Does it support Wireless CarPlay and Android Auto?
Yes. Both wired and wireless Apple CarPlay and Android Auto are supported.

Can GPS work without internet?
Yes. The built-in GPS supports compatible offline navigation maps. Internet access is required for online traffic and other connected services.

Do I need a SIM card?
Only if you want to use the stereo's built-in 4G mobile data connection. CarPlay, Android Auto, Bluetooth, radio and GPS reception do not require a SIM card.

Are steering wheel controls supported?
Compatible steering wheel audio controls are supported, but the original voice recognition and phone control buttons are not supported.

Can I connect an aftermarket amplifier or subwoofer?
Yes. RCA, subwoofer, optical and coaxial outputs are available for compatible aftermarket audio equipment.

Does it support phone screen mirroring?
No. Full phone screen mirroring is not supported on this model.

Modernise Your Mazda 3

The Eonon M3BKX7S Mazda 3 Android car stereo combines a 9" QLED touchscreen, Android 14, Wireless Apple CarPlay and Android Auto, GPS navigation, built-in 4G LTE and advanced DSP audio control in one vehicle-specific system.

For compatible 2004–2009 Mazda 3 models, it provides a practical way to upgrade navigation, entertainment, smartphone connectivity and sound control while retaining supported Mazda factory functions.

Please check your original dashboard, factory LCD configuration and audio system against the compatibility images before purchasing.

⭐ Vehicle Compatibility

Designed for 2004 Mazda 3, 2005 Mazda 3, 2006 Mazda 3, 2007 Mazda 3, 2008 Mazda 3, 2009 Mazda 3. Plug & play.

⭐ Specification

• Operation system: Android 14
• CPU: Octa-core (Qualcomm QCM6225-AD) (4×A73@2.8GHz + 4×A53@1.9GHz)
• RAM: 6GB
• Storage: 64GB
• Display: 9" QLED
• Resolution: 1280*720
• Operating voltage: DC12V
• CarPlay: Wired & Wireless
• Android Auto: Wired & Wireless
• Split-screen multitasking: Yes
• Screen mirroring: No
• 1s fast boot: Yes
• Steering wheel controls: Yes(except voice recognition button and phone control button)
• Key button color: Variable
• Wi-Fi: Support 2.4G/5G & Wi-Fi 6 ready
• 4G Feature: Built-in 4G module
• Custom boot logo & changeable wallpapers: Yes
• Built-in UI themes: 1
• Compatible with Bose System: Yes
• Built-in DSP: Yes
• Built-in power amplifier: 4-channel audio output and 2 subwoofer audio output
• EQ bands: 48
• EQ modes: User Standard Rock POP Classical Jazz Gentle CINEMA Hall
• HPF/LPF adjustment: Yes
• Video input: 1
• Video output: NO
• Audio input: 2
• Audio output: 4 RCA + 1 Optical + 1 Coaxial
• AUX input: NO
• USB input: 3
• RMS power (manufacturer): 30W
• Max amplifier output: 4*50W
• Preamp outputs: 5-channel
• Sub preamp outputs: Yes
• Preamp voltage: 4.0V​
• Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 2K video decoding
• Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
• Image Formats: Supports JPEG, BMP, PNG, and more
