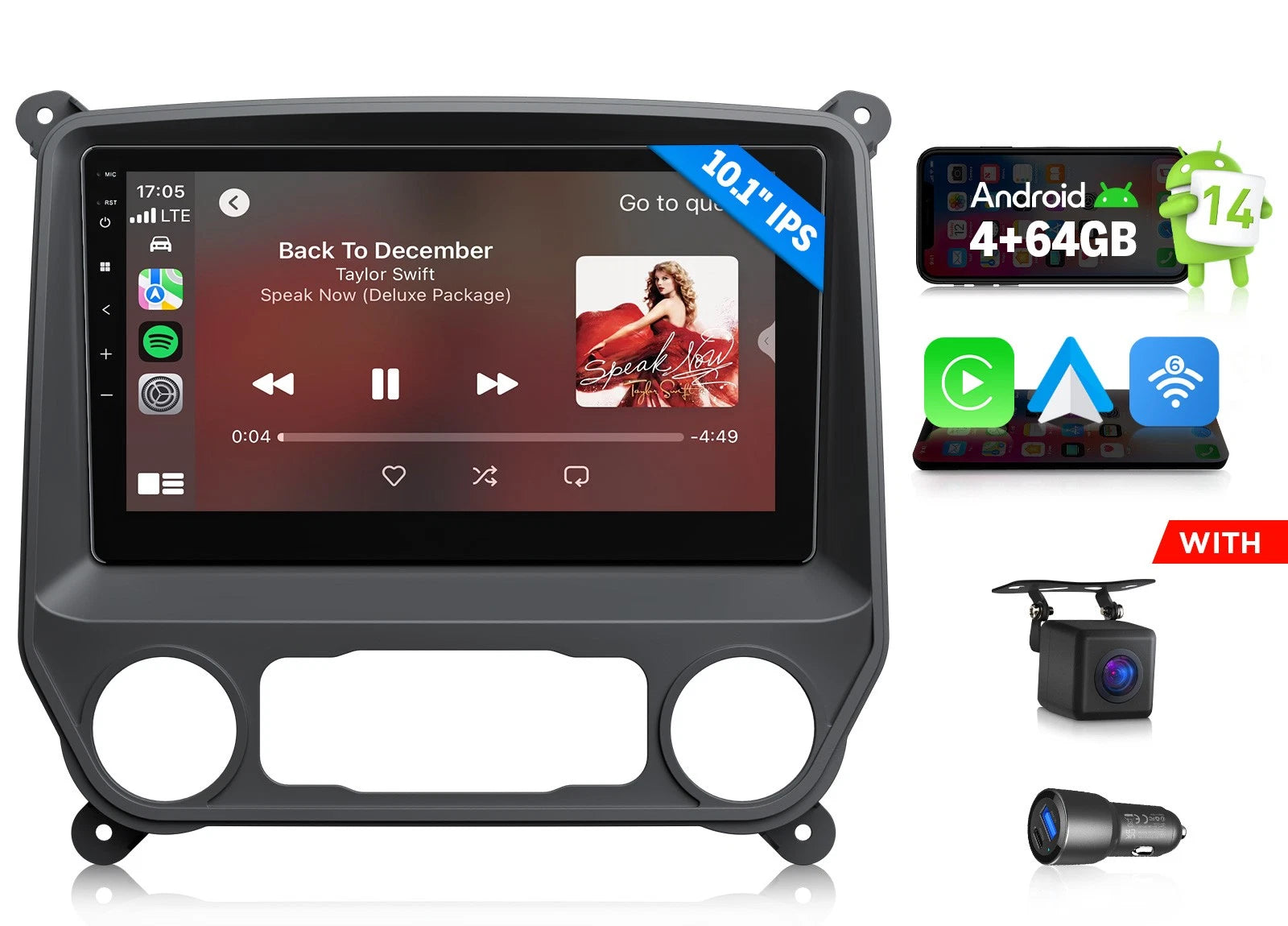

Android 14 Car Stereo Eonon GMSX7A CarPlay PlugPlay for Silverado Sierra 2014-18

🚗 Eonon GMSX7A 10.1" Android 14 Car Stereo for Chevy Silverado / GMC Sierra 2014–2018

Vehicle-Specific Upgrade | Wireless Apple CarPlay & Android Auto | GPS Navigation | 48-Band DSP | WiFi 6 | Bluetooth 5.4

Modern Infotainment Built for Your Silverado or Sierra

Upgrade your 2014–2018 Chevrolet Silverado or GMC Sierra with the Eonon GMSX7A, a vehicle-specific Android 14 car stereo designed to add modern connectivity, navigation and audio control while retaining supported factory functions.

The large 10.1" IPS touchscreen, wireless Apple CarPlay and Android Auto, built-in GPS, WiFi 6 and 48-band DSP give you the features of a modern infotainment system in a solution designed around compatible Silverado and Sierra dashboards.

Key Upgrade Highlights

• 10.1" IPS HD touchscreen, 1280 × 720
• Wireless & wired Apple CarPlay / Android Auto
• Android 14 + RK3562 quad-core processor
• 4GB RAM + 64GB storage
• Built-in GPS navigation
• WiFi 6 + Bluetooth 5.4
• 48-band DSP with HPF/LPF control
• Vehicle-specific wiring & CANBUS integration
• Supported factory feature retention
• BOSE compatibility with optional A508X decoder

⚠️ Check Your Dashboard Before Purchase

Vehicle Compatibility

For Chevrolet:

• 2014–2018 Silverado 1500

• 2014–2018 Silverado 2500 / 2500 HD

• 2015–2018 Silverado 3500

• 2014–2018 Silverado 3500 HD

For GMC:

• 2014–2018 Sierra / Sierra 1500

• 2014–2018 Sierra 2500 HD

• 2014–2018 Sierra 3500 HD

Not every factory dashboard configuration from these model years is compatible.

Please compare your original radio and climate-control panel with the compatibility images before ordering.

⚠️ Important BOSE System Notice

If your truck has the factory BOSE sound system, an additional Eonon A508X BOSE decoder is required and sold separately.

Only the A508X is recommended for use with the GMSX7A. The A508 is not recommended.

Without the required BOSE decoder, vehicles equipped with the factory BOSE system may have no audio output.

Please check for the BOSE logo on your factory speakers before purchase.

Keep Supported Factory Truck Features

Through CANBUS integration, the GMSX7A is designed to retain a range of useful factory functions on compatible vehicles, including:

• Steering wheel controls*
• OnStar functions
• Factory backup camera
• Parking sensor information
• A/C information display
• Door reminder information

*Steering wheel voice recognition button is not supported.

Factory feature retention may vary depending on trim level, original equipment and vehicle configuration.

Wireless Apple CarPlay & Android Auto

Connect your smartphone wirelessly and bring the functions you use most onto the 10.1" display.

Both wireless and wired Apple CarPlay / Android Auto are supported, giving you convenient access to compatible:

• Navigation apps
• Music and podcasts
• Hands-free calls
• Messages
• Siri and Google Assistant

There is no need to connect a cable every time you get into your truck when using the wireless connection.

Android 14 + 4GB RAM / 64GB Storage

The GMSX7A runs Android 14 on an RK3562 quad-core processor with 4GB RAM and 64GB internal storage.

This gives you a flexible in-car platform for navigation, music and compatible Android apps.

Also supported:

• Split-screen multitasking
• OTA software updates
• Custom boot logo
• Changeable wallpapers
• 3 built-in UI themes
• 1-second fast boot support

10.1" IPS HD Touchscreen

The large 10.1" 1280 × 720 IPS display gives navigation, media and vehicle information more room to breathe than a typical factory radio screen.

Wide viewing angles and a clear interface make frequently used functions easier to view and operate during everyday driving.

WiFi 6 + Bluetooth 5.4

Built-in WiFi 6 supports 2.4GHz and 5GHz connections for accessing online services through an available Wi-Fi network or smartphone hotspot.

Bluetooth 5.4 handles compatible phone and audio connections for everyday wireless use.

Please note: Built-in 4G LTE is not included. Mobile-network access requires a compatible external 4G dongle.

Built-In GPS Navigation

With its integrated GPS receiver and external GPS antenna, the GMSX7A can run compatible navigation apps directly from the stereo.

You can use:

• Online navigation
• Compatible offline maps
• Navigation while listening to music
• Split-screen navigation and media

Offline navigation is particularly useful when travelling through areas with limited mobile coverage.

48-Band DSP Audio Control

The built-in DSP gives you more control over the way your truck's audio system sounds.

Audio adjustment includes:

• 48-band EQ
• Custom and preset EQ modes
• HPF / LPF adjustment
• Subwoofer output
• 5-channel preamp outputs
• 4 RCA audio outputs
• 25W RMS manufacturer-rated power
• Up to 4 × 45W amplifier output

Fine-tune frequency balance, bass and speaker output to better suit your music and speaker setup.

For additional amplification and sound tuning, the Eonon A304 DSP Amplifier is available separately.

Factory & Aftermarket Camera Support

The GMSX7A supports camera integration to help improve visibility when parking and reversing.

Supported functions include:

• Factory backup camera on compatible vehicles
• Aftermarket rear-view camera
• Front camera input
• Automatic reversing display
• Parking guidelines
• Supported parking sensor information

Camera functionality can vary depending on the original vehicle setup.

Split Screen & Wireless Screen Mirroring

Split-screen mode lets you display two compatible functions together, such as navigation and music.

Wireless screen mirroring is also available for compatible iOS and Android devices.

Note: Some copyrighted video and streaming services may block screen mirroring due to DRM restrictions.

Media & Connections

The GMSX7A supports common audio, video and image formats, including MP3, FLAC, AAC, MP4, MKV, JPEG and PNG, with support for up to 1080P video decoding.

Optional Eonon Accessories

A508X BOSE Decoder

Required for factory BOSE systems

A100 Dash Camera
Add compatible front driving recording.

A0125 / A0127 Cameras
Add compatible parking or reversing camera functionality.

V0056 Bluetooth OBD2 Scanner
View supported real-time vehicle diagnostic information through compatible Android apps.

A503/DX2/DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.

A304 DSP Digital Amplifier
Additional amplification and tuning for compatible upgraded audio systems.

Optional accessories are sold separately unless included in the selected package.

Why Upgrade to the GMSX7A?

The GMSX7A is designed for Silverado and Sierra owners who want more than a basic radio replacement.

It combines wireless CarPlay and Android Auto, Android 14 apps, GPS navigation, WiFi 6, detailed DSP sound adjustment and supported factory-function integration in a vehicle-specific 10.1" touchscreen system.

Before ordering, please check:

1. Your vehicle is a 2014–2018 Chevrolet Silverado or GMC Sierra.
2. Your factory dashboard matches one of the compatible layouts shown in the product images.
3. If your truck has BOSE audio, add the separately sold A508X BOSE decoder.

Checking these details before purchase helps ensure you choose the correct configuration for your truck.

⭐ Parameter

• Operation system: Android 14
• Processor: RK3562
• CPU Architecture: 4-core(4×A53@2.0GHz)
• RAM: 4GB
• Storage: 64GB
• Display: 10.1" IPS Touchscreen
• Resolution: 1280*720
• Operating voltage: DC12V
• CarPlay: Wired & Wireless
• Android Auto: Wired & Wireless
• Split-screen multitasking: Yes
• Screen mirroring: Yes
• 1s fast boot: Yes
• Steering wheel controls: Yes(except voice recognition button)
• Key button color: Variable
• Wi-Fi: Support 2.4G/5G
• 4G Feature: No, 4G dongle needed
• Custom boot logo & changeable wallpapers: Yes
• Built-in UI themes: 3
• Compatible with Bose system: Yes
• Built-in DSP: Yes
• Built-in power amplifier: 4-channel audio output and one subwoofer audio output
• EQ bands: 48
• EQ modes: Custom Standard Popular Rock Classical Jazz
• HPF/LPF adjustment: Yes
• Video input: 1
• Video output: No
• Audio input: 2
• Audio output: 4 RCA
• AUX input: No
• USB input: 3
• RMS power (manufacturer): 25W
• Max amplifier output: 4*45W
• Preamp outputs: 5-channel
• Sub preamp outputs: Yes
• Preamp voltage: 1.0V
• Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
• Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
• Image Formats: Supports JPEG, BMP, PNG, and more
