CAM+For BMW E90-E93 Eonon E90X7A 9"Android 14 Car Radio GPS Stereo CarPlay Audio

🚗 Eonon E90X7A Android 14 Car Stereo for BMW 3 Series E90 / E91 / E92 / E93

9" IPS Touchscreen | Wireless Apple CarPlay & Android Auto | GPS Navigation | WiFi 6 | Bluetooth 5.4 | 48-Band DSP

Modern Infotainment for Your BMW 3 Series

Upgrade a compatible BMW 3 Series E90 / E91 / E92 / E93 with the Eonon E90X7A, a vehicle-specific Android 14 car stereo designed to bring modern smartphone connectivity, navigation and detailed audio control to the BMW dashboard.

With a 9" IPS HD touchscreen, wireless Apple CarPlay and Android Auto, built-in GPS, WiFi 6 and 48-band DSP, the E90X7A adds the everyday convenience of a modern infotainment system while retaining supported BMW vehicle functions.

Key Upgrade Highlights

• Designed for compatible BMW E90 / E91 / E92 / E93
• 9" IPS HD touchscreen, 1280 × 720
• Wireless & wired Apple CarPlay / Android Auto
• Android 14 + RK3562 quad-core processor
• 4GB RAM + 64GB storage
• Built-in GPS navigation
• WiFi 6 + Bluetooth 5.4
• 48-band DSP with HPF / LPF adjustment
• Harman Kardon audio support
• Steering wheel control integration
• Parking sensor, driving data & heated seat integration
• Vehicle-specific wiring

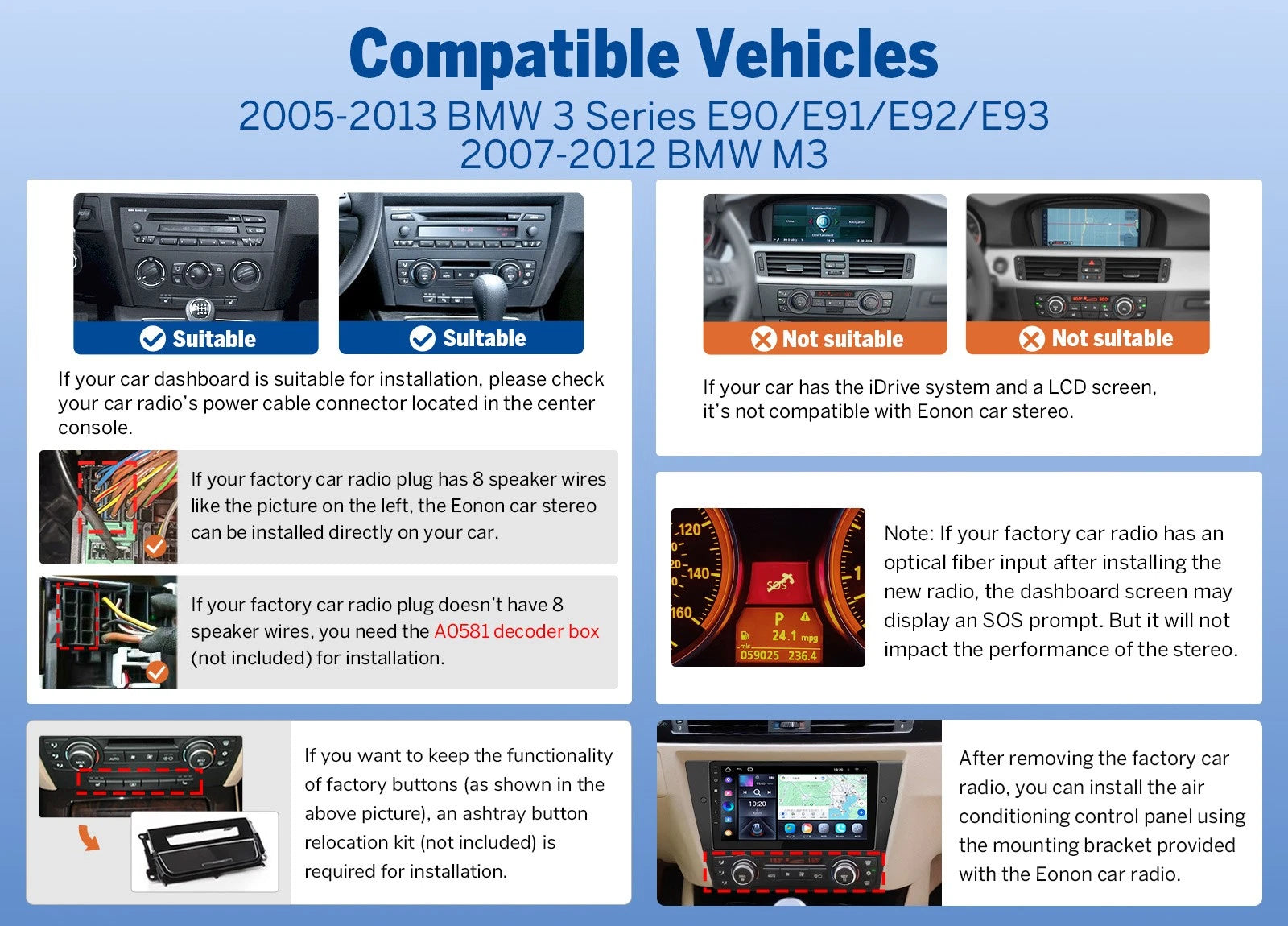

⚠️ IMPORTANT: Not for Factory iDrive + LCD Screen

The E90X7A is designed for compatible BMW models without the factory iDrive system and original dashboard LCD/navigation screen.

Not compatible with vehicles equipped with:

• Factory iDrive
• Original dashboard LCD/navigation display
• Factory iDrive navigation configuration shown in the product images

If your BMW has the factory iDrive controller and LCD screen, do not select this stereo.

Please compare your dashboard with the Suitable / Not Suitable examples before ordering.

⚠️ Check Your Factory Radio Wiring

Even on a compatible non-iDrive dashboard, the original radio connector should be checked before installation.

If the factory radio plug has 8 speaker wires as shown in the product image:

The E90X7A can be connected using the supplied vehicle-specific installation solution.

If the factory radio plug does NOT have 8 speaker wires:

An Eonon A0581 decoder box is required.

The A0581 is sold separately.

Checking the factory connector before purchase helps determine whether this additional adapter is needed.

Optical Fiber / SOS Warning Notice

Some BMW factory audio configurations use an optical fiber connection.

After replacing the original radio, vehicles with this configuration may display an SOS warning/prompt on the instrument cluster.

According to the supported installation configuration, this warning does not affect operation of the E90X7A itself.

Please check your original audio system before installation if your BMW uses optical fiber.

Factory Button Retention

Some E90-series dashboards have factory buttons located below the original radio.

If you want to retain the functionality of these buttons after installing the E90X7A, an ashtray button relocation kit is required.

The relocation kit is not included.

Please check the factory-button layout shown in the compatibility image.

A/C Control Panel Relocation

After removing the original radio, the factory air-conditioning control panel is installed below the E90X7A using the mounting bracket supplied with the stereo.

This is part of the intended vehicle-specific installation layout and allows the climate-control panel to remain accessible after the head unit upgrade.

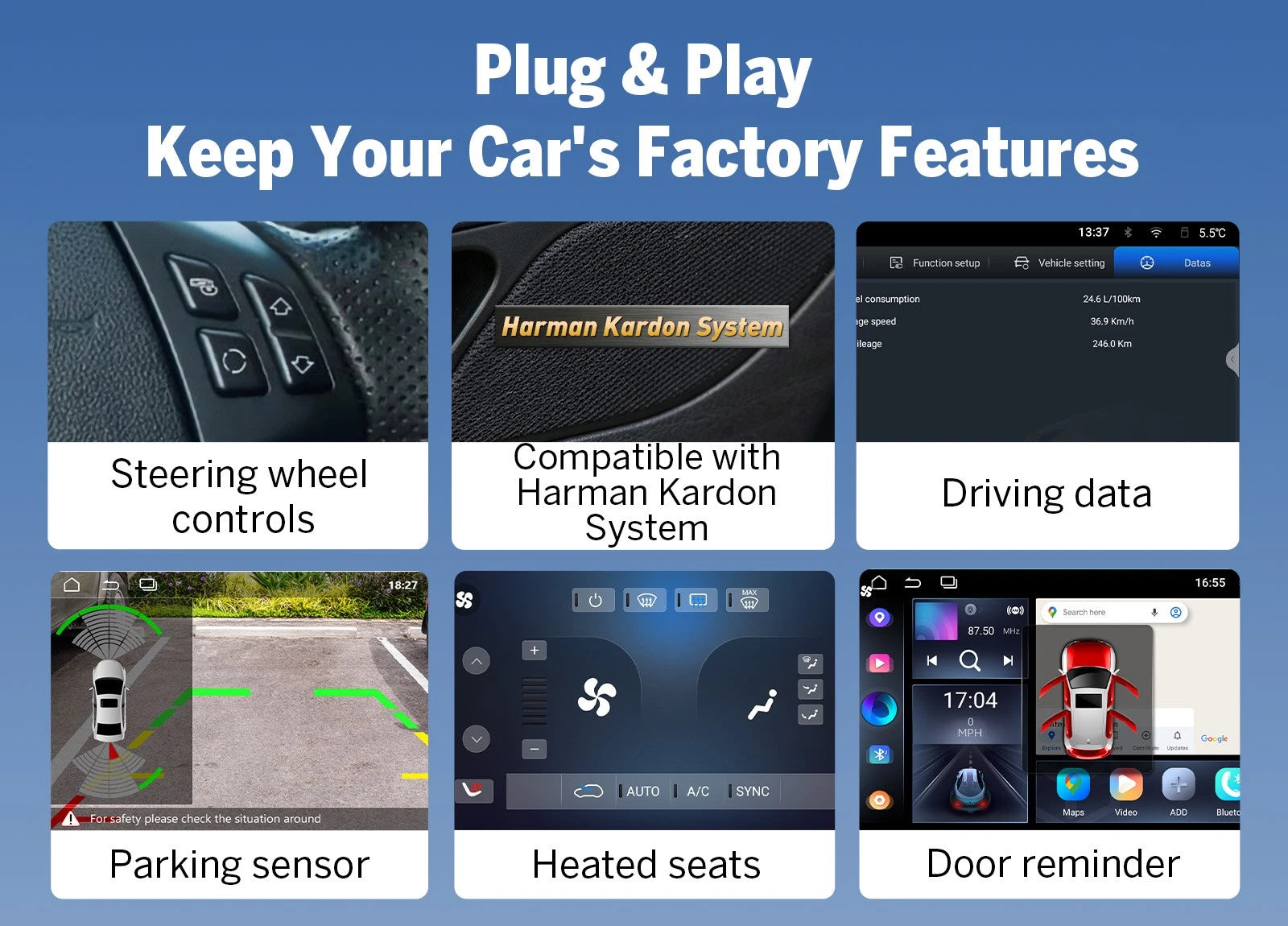

Keep Supported BMW Functions

The E90X7A integrates with a range of original BMW features on compatible vehicles.

Supported functions include:

• Steering wheel controls*
• Harman Kardon audio system
• Parking sensor information
• Driving data
• Heated seat functions
• Door reminder information

*Steering wheel voice recognition button is not supported.

Function availability may vary depending on vehicle trim and original equipment.

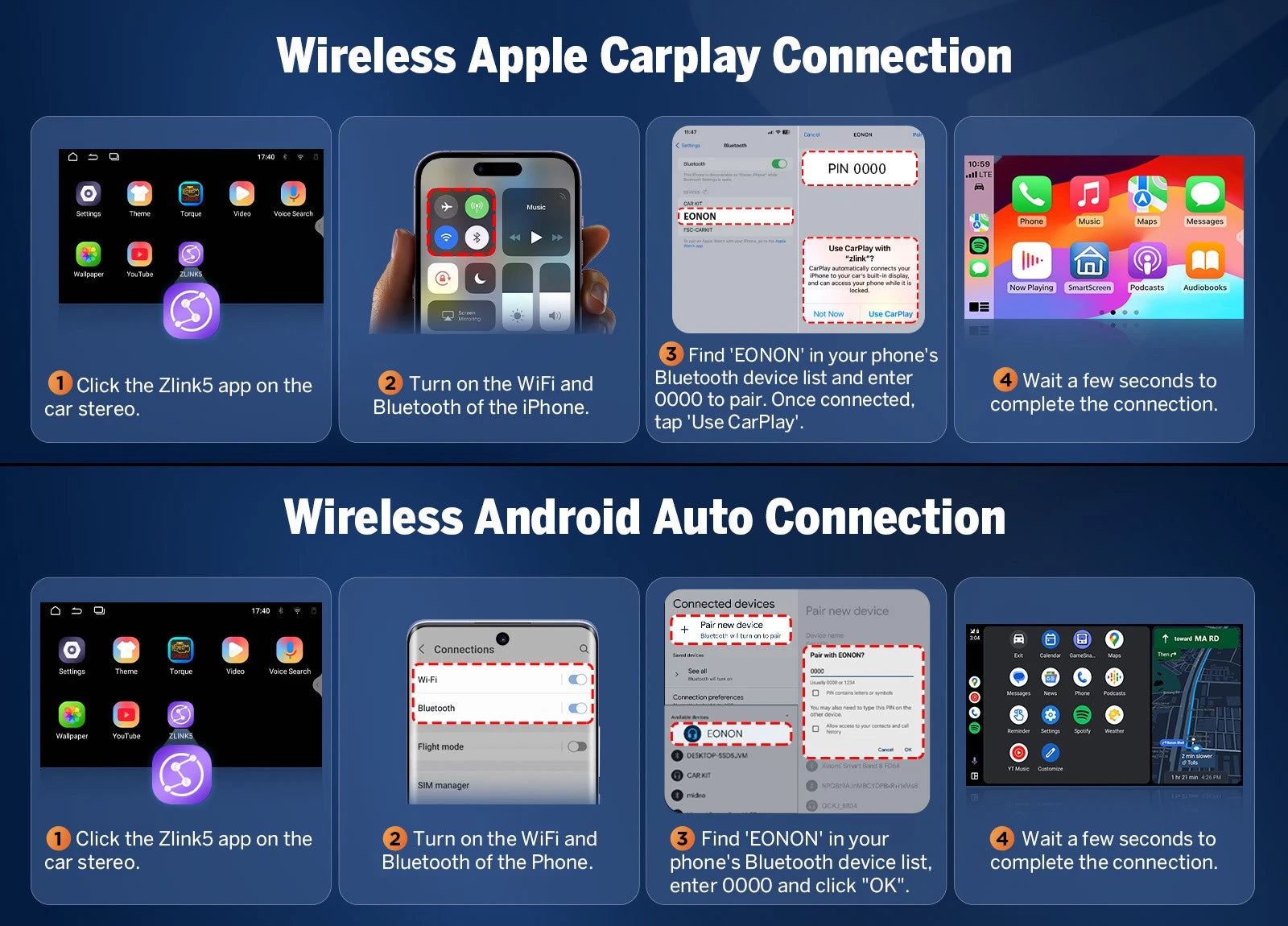

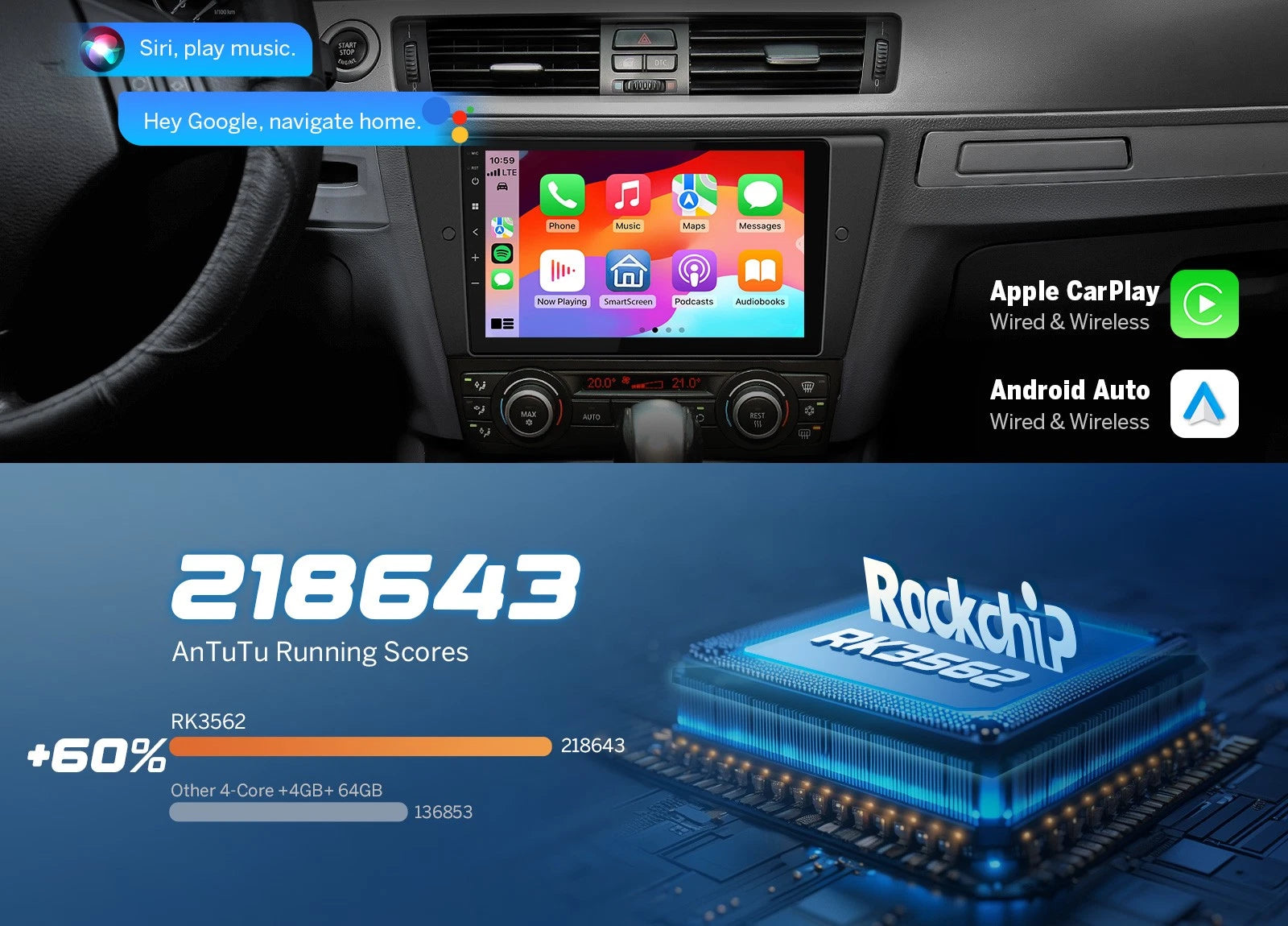

Wireless Apple CarPlay & Android Auto

Connect a compatible smartphone wirelessly and bring the functions you use every day onto the 9" display.

Both wireless and wired Apple CarPlay / Android Auto are supported for compatible:

• Google Maps and navigation apps
• Music and podcasts
• Hands-free calls
• Messages
• Siri
• Google Assistant

Wireless connectivity means you can use CarPlay or Android Auto without plugging in your phone every time you drive.

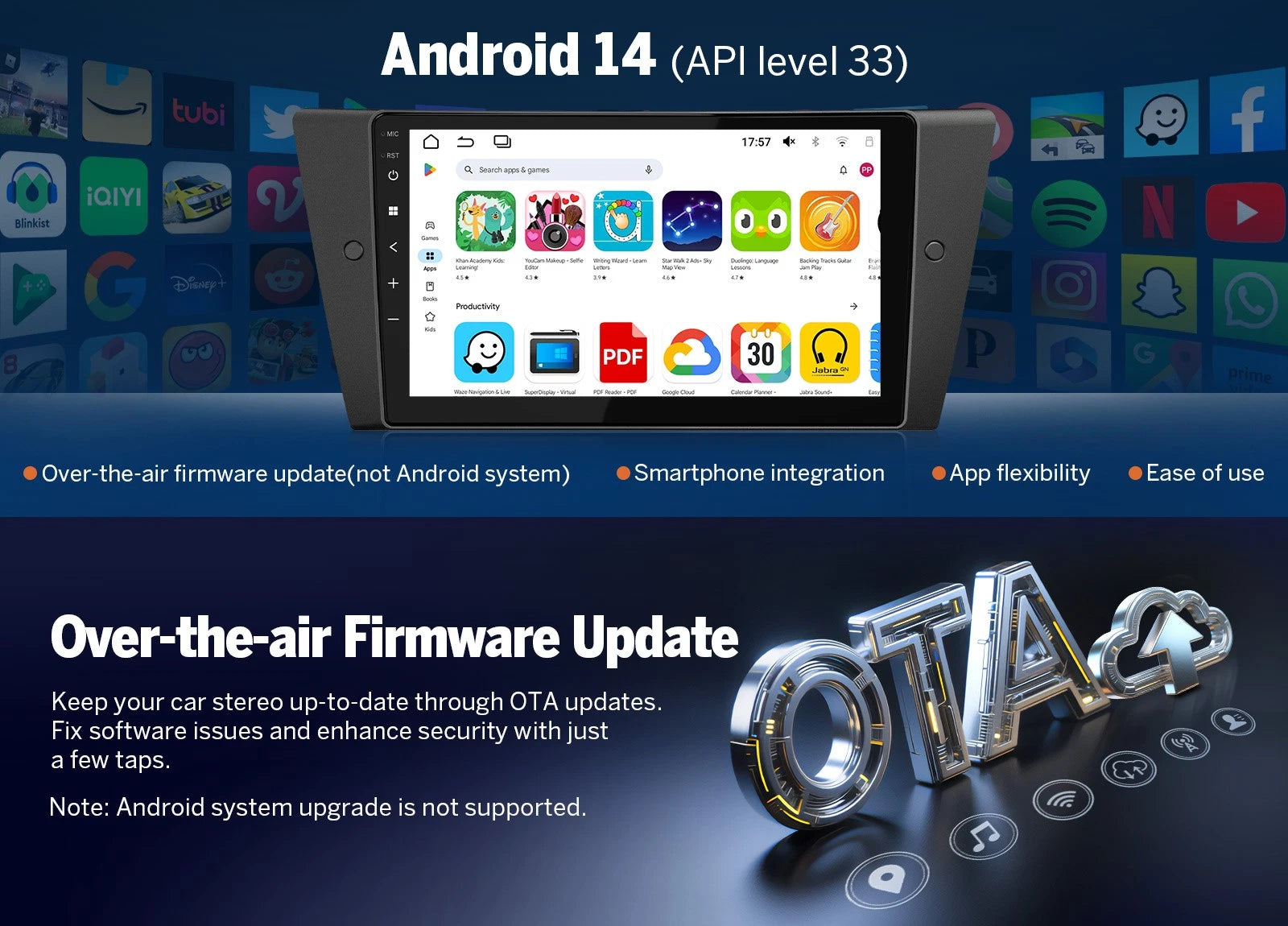

Android 14 + 4GB RAM / 64GB Storage

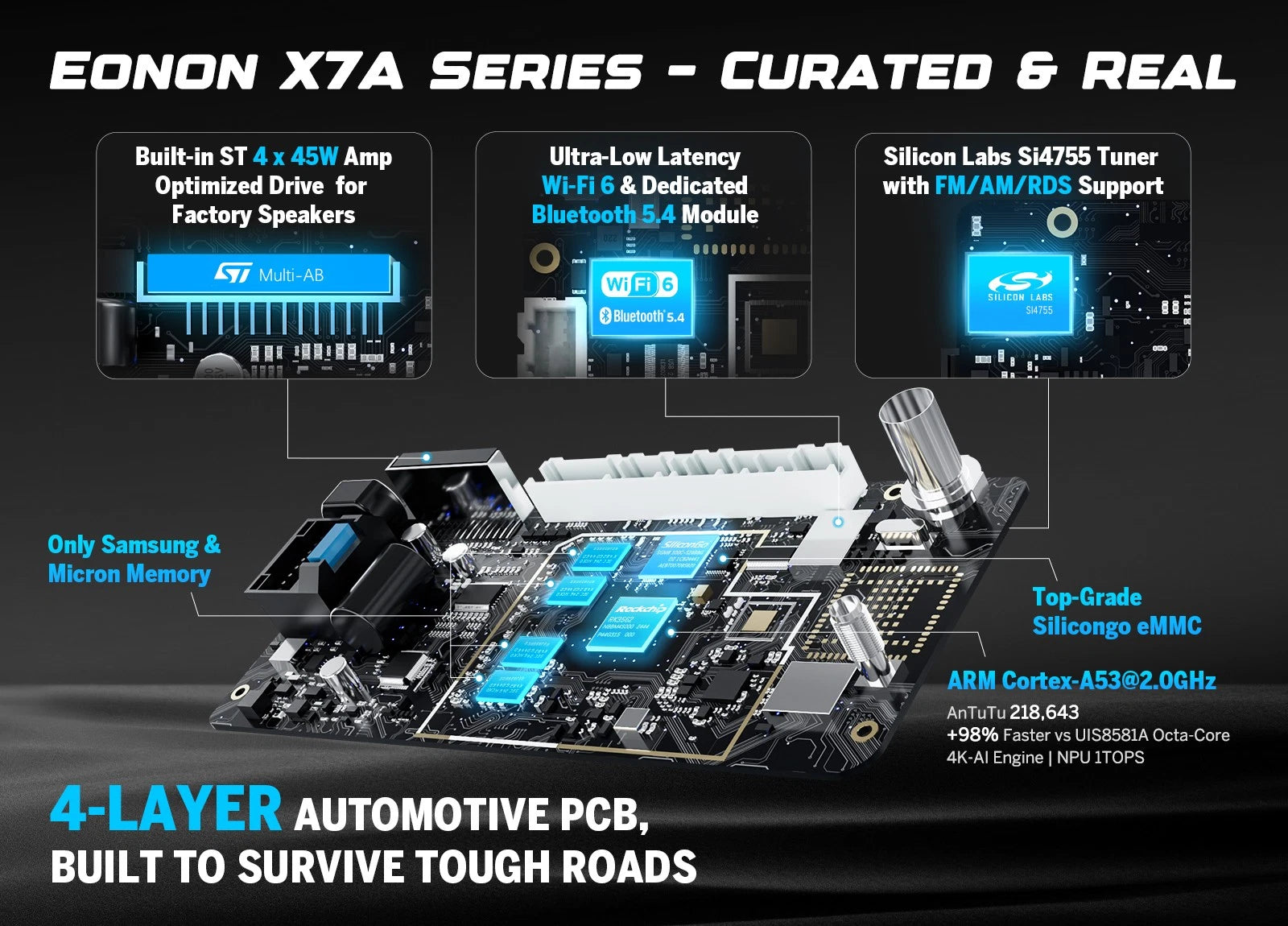

The E90X7A runs Android 14 on an RK3562 quad-core processor (4 × Cortex-A53 up to 2.0GHz) with 4GB RAM and 64GB internal storage.

Use compatible Android apps directly from the stereo for navigation, media and other in-car functions.

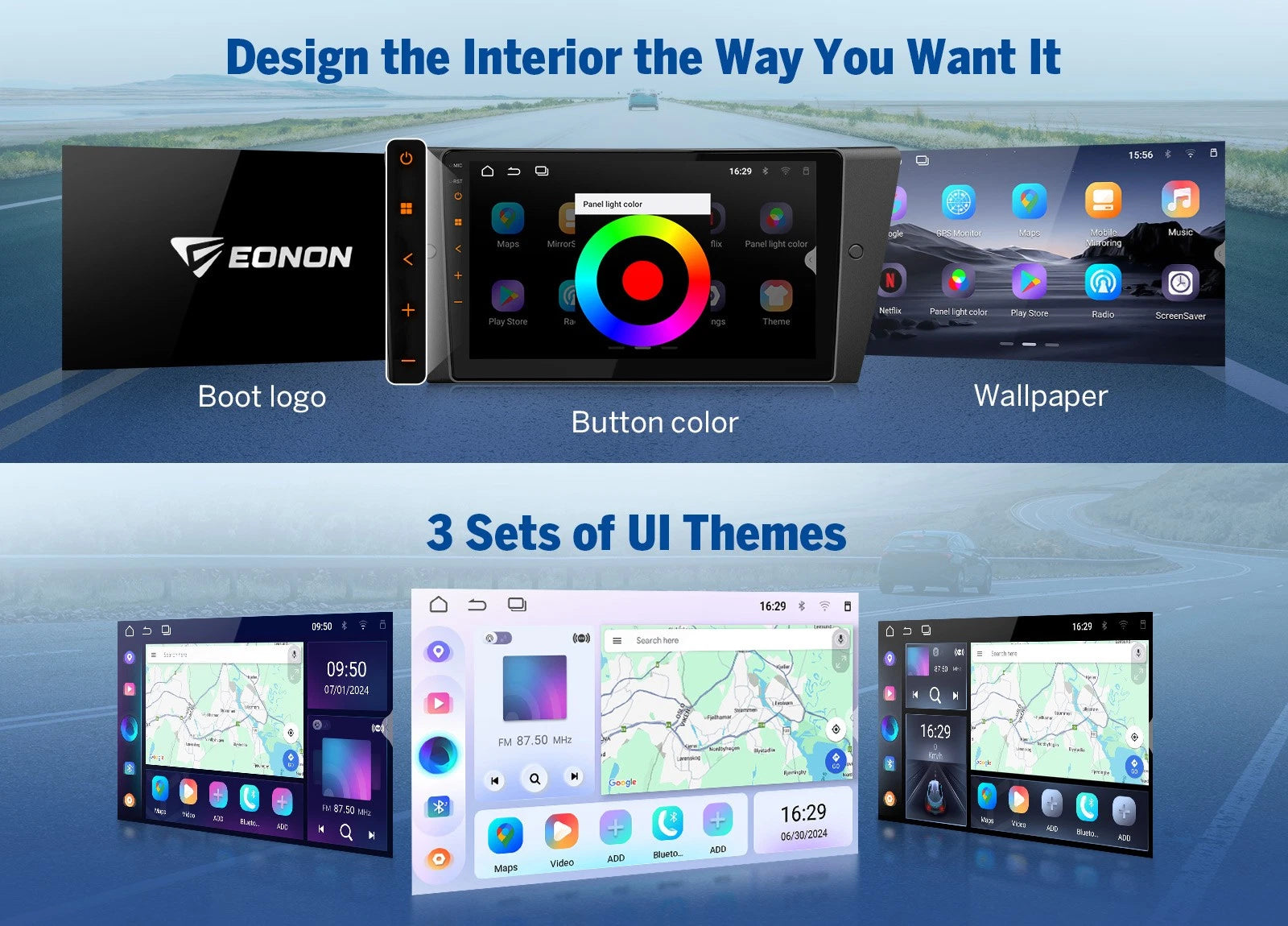

Also supported:

• Split-screen multitasking
• Custom boot logo
• Changeable wallpapers
• 3 built-in UI themes
• 1-second fast boot support

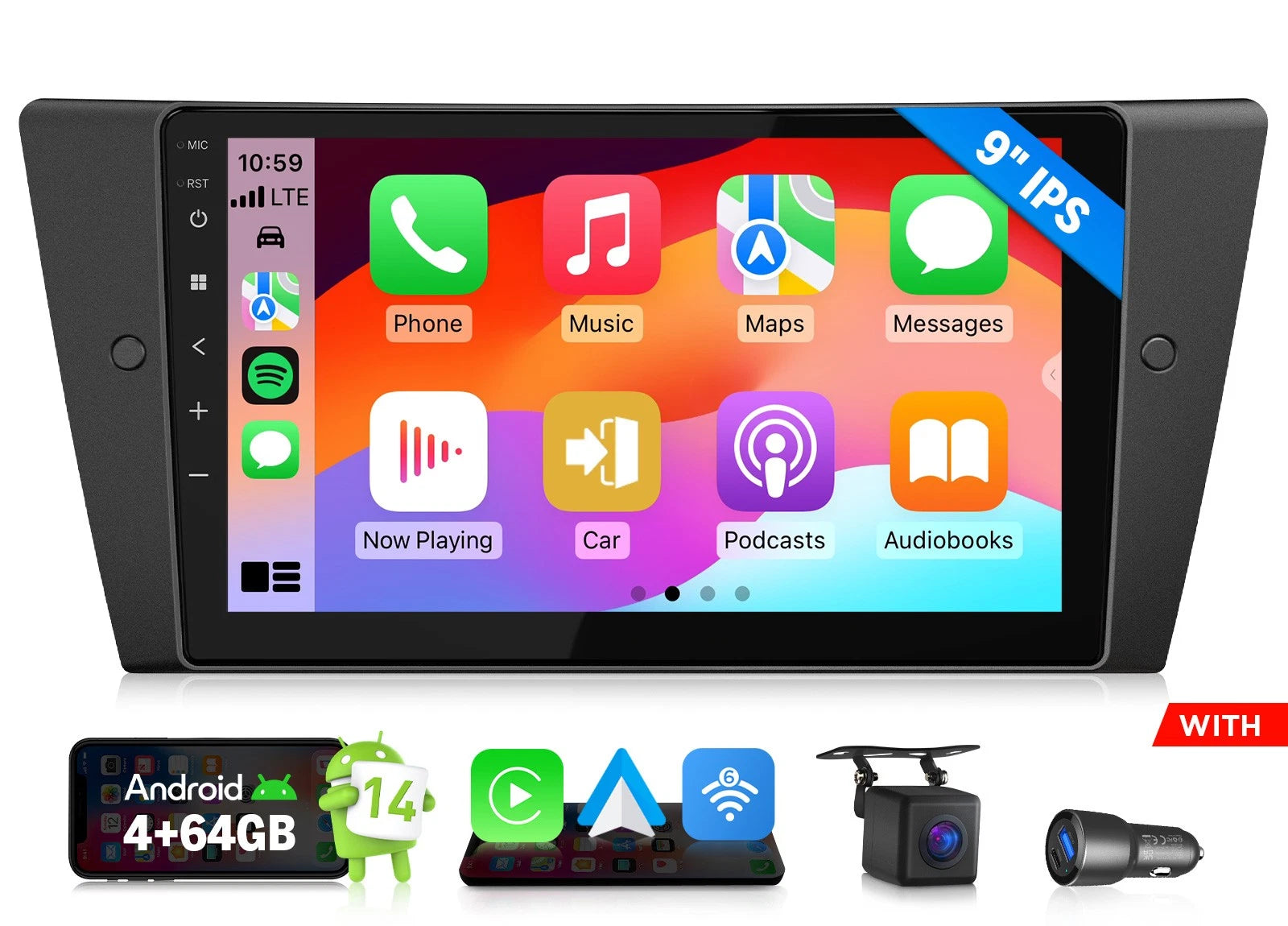

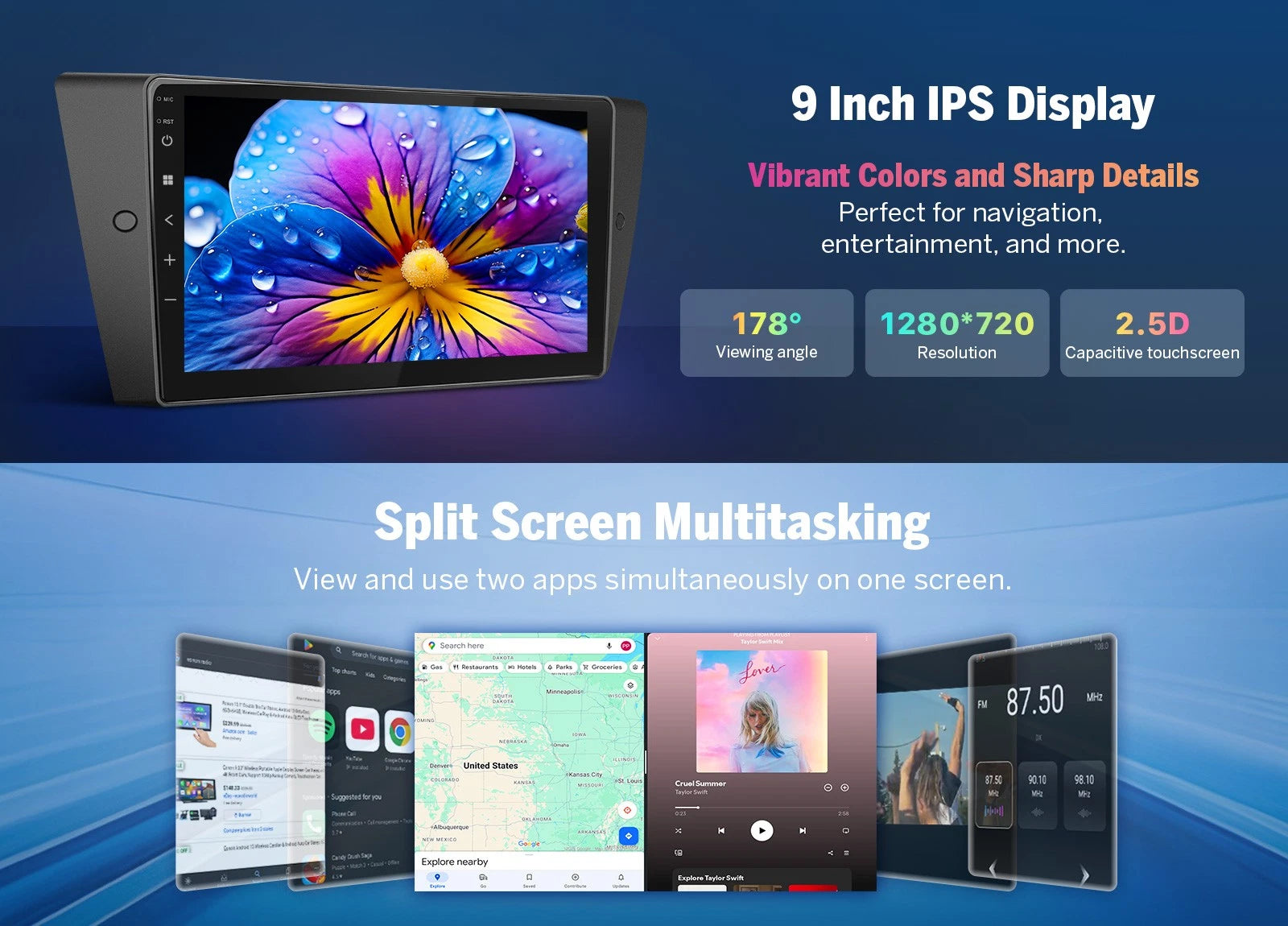

9" IPS HD Touchscreen

The 9" 1280 × 720 IPS touchscreen gives your BMW a larger interface for navigation, music, Android apps and supported vehicle information.

Wide viewing angles and the larger screen area make commonly used controls easier to see and access during daily driving.

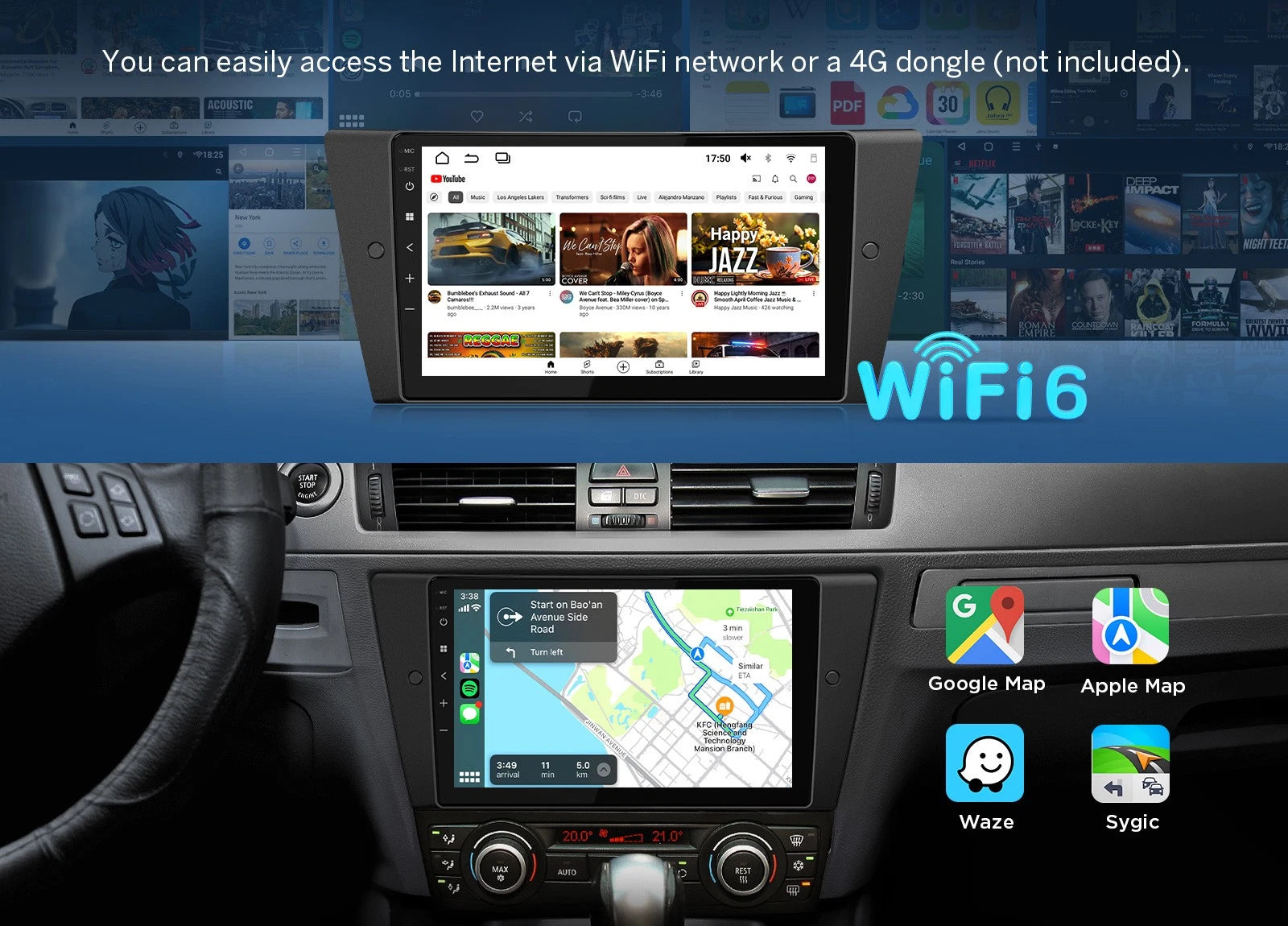

WiFi 6 + Bluetooth 5.4

Built-in WiFi 6 supports both 2.4GHz and 5GHz networks, allowing the stereo to connect to a smartphone hotspot or another available Wi-Fi connection.

Bluetooth 5.4 supports compatible phone and wireless audio connections.

Please note: Built-in 4G LTE is not included. Mobile-network access requires a compatible external 4G dongle.

Built-In GPS Navigation

The integrated GPS receiver allows compatible navigation apps to run directly from the E90X7A.

You can use:

• Online navigation
• Compatible offline maps
• Navigation while playing music
• Split-screen navigation and media

Downloaded offline maps can also be used without an active mobile-data connection.

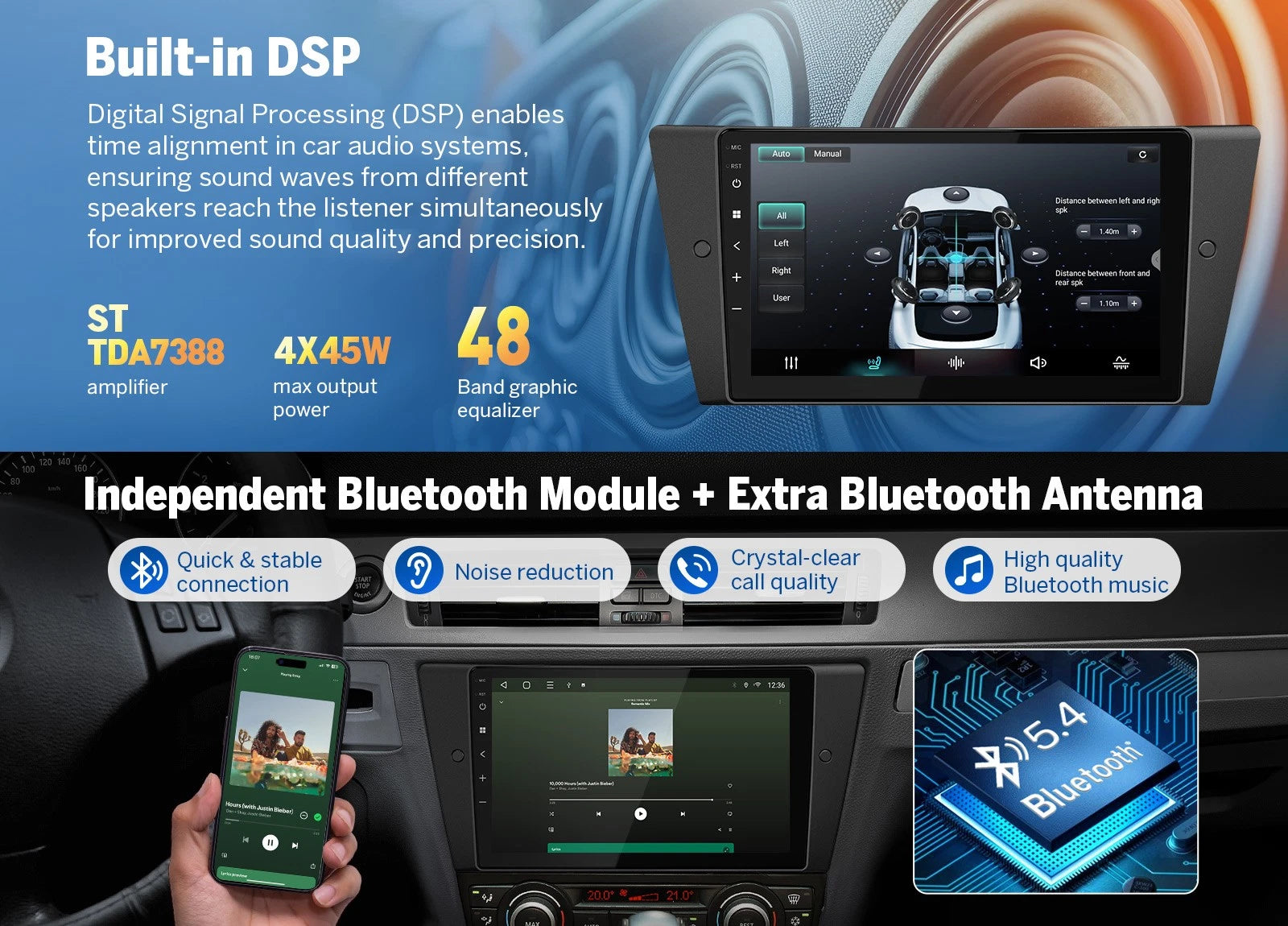

48-Band DSP Audio Control

Built-in DSP gives you detailed control over your BMW's audio settings.

Features include:

• 48-band equalizer
• Custom and preset EQ modes
• HPF / LPF adjustment
• Time alignment
• Subwoofer output
• 5-channel preamp outputs
• 4 RCA audio outputs
• ST TDA7388 amplifier
• 25W RMS manufacturer-rated power
• Up to 4 × 45W maximum amplifier output

Adjust bass, frequency balance and speaker output to suit your audio system and listening preferences.

For additional amplification and tuning, the optional Eonon A304 DSP Amplifier is available separately.

Camera & Parking Support

The E90X7A supports compatible camera equipment and supported BMW parking information.

Functions include:

• Front camera input
• Rear-view camera input
• Automatic reverse display
• Parking guidelines
• Supported factory parking sensor information

Camera functionality depends on the original vehicle and camera configuration.

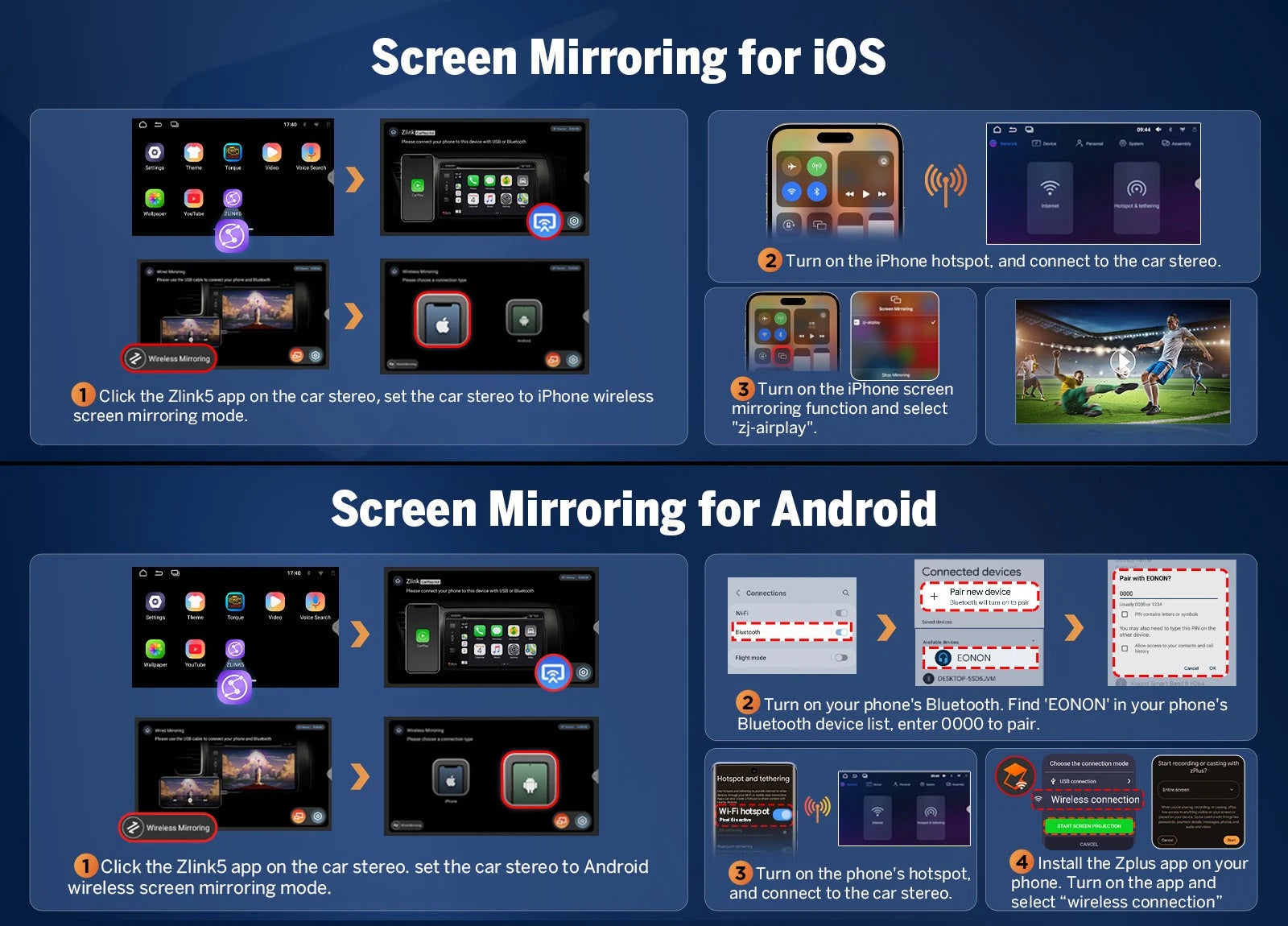

Split Screen & Wireless Screen Mirroring

Split-screen multitasking allows compatible functions such as navigation and music to remain visible together.

Wireless screen mirroring is also supported for compatible iOS and Android devices.

Note: Some DRM-protected streaming content may restrict screen mirroring.

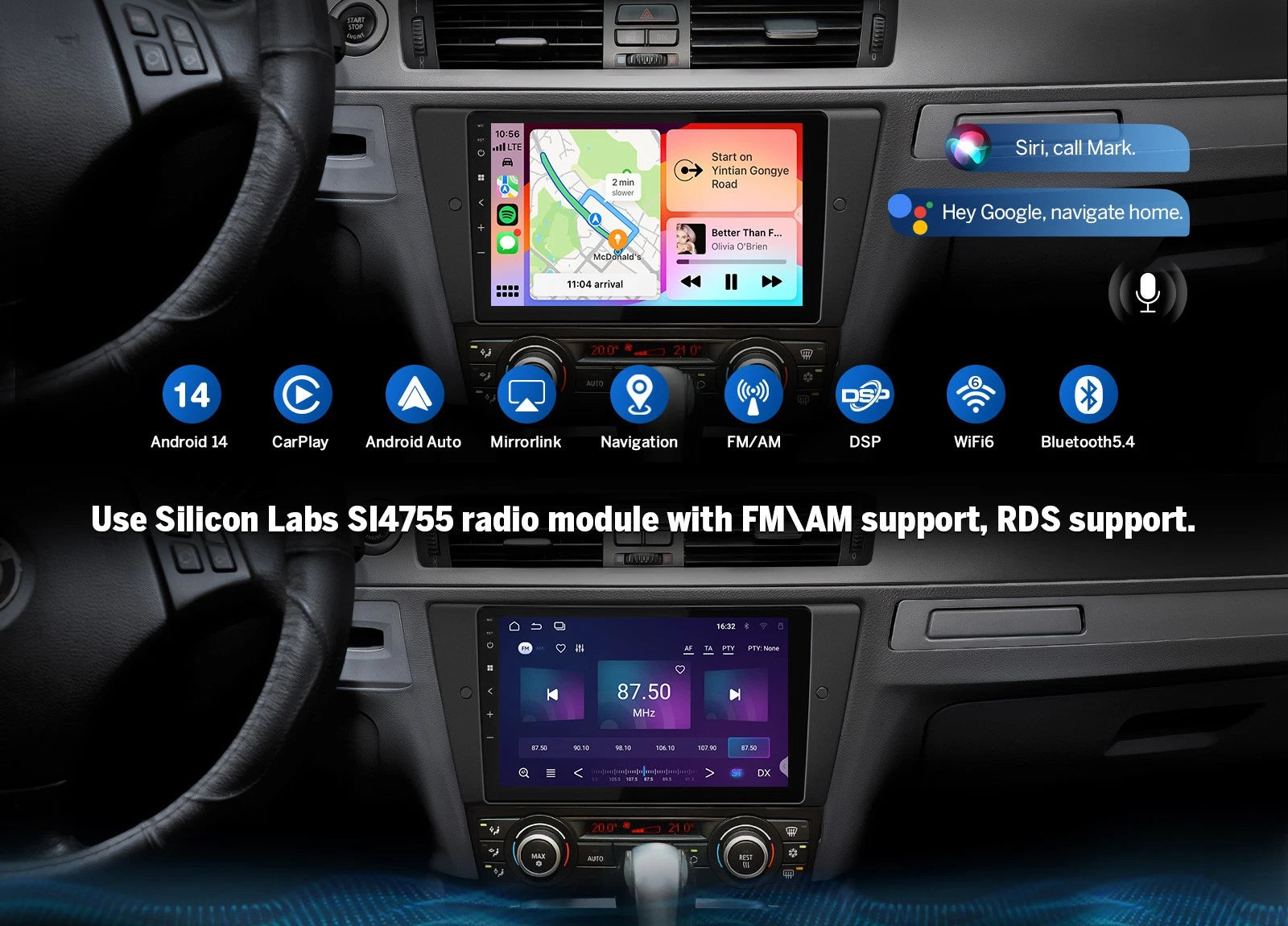

AM/FM Radio & Optional DAB+

The built-in radio provides traditional AM/FM listening without relying on mobile data.

For supported regions, DAB+ digital radio can be added with an optional compatible Eonon DAB+ module.

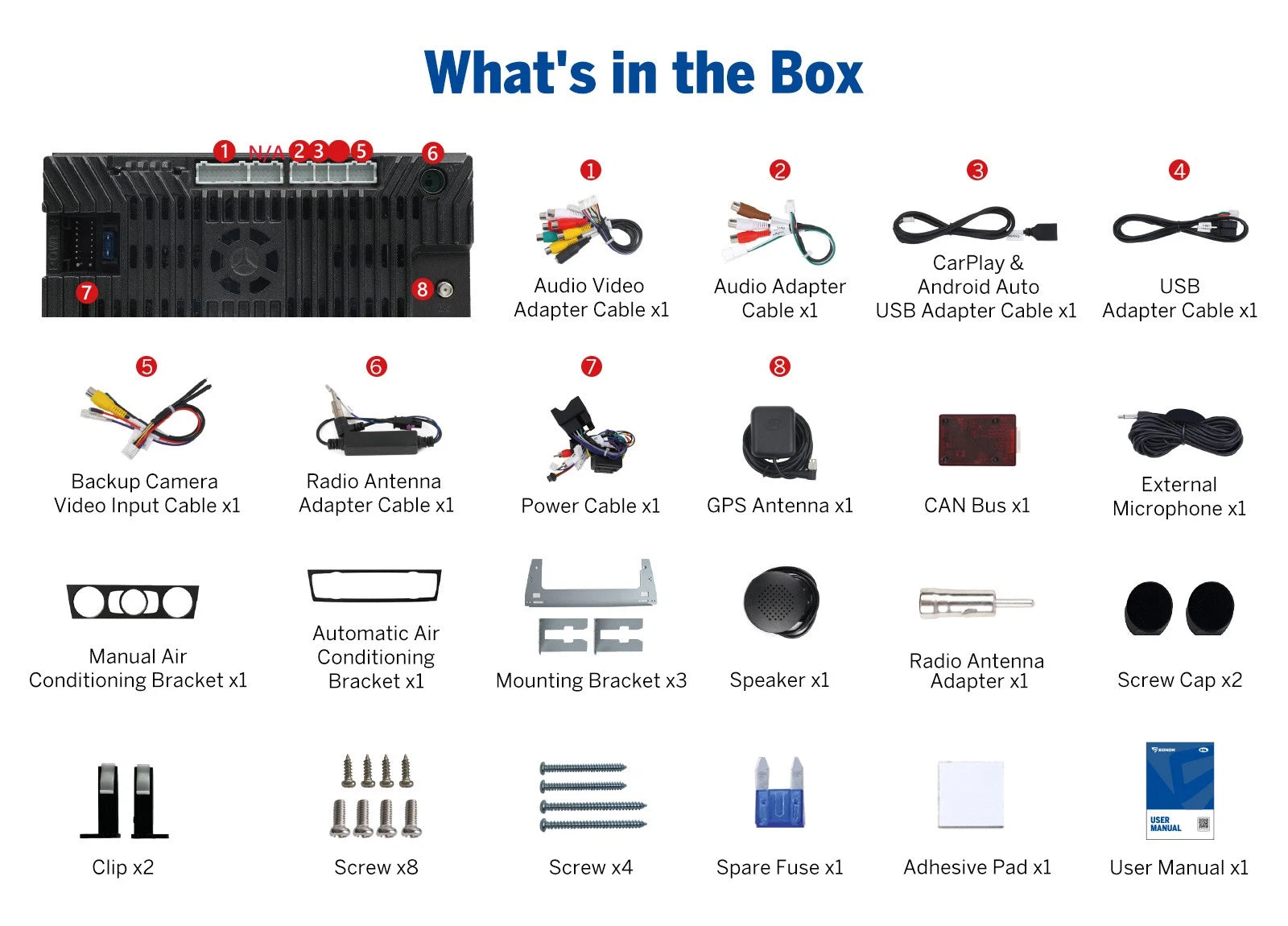

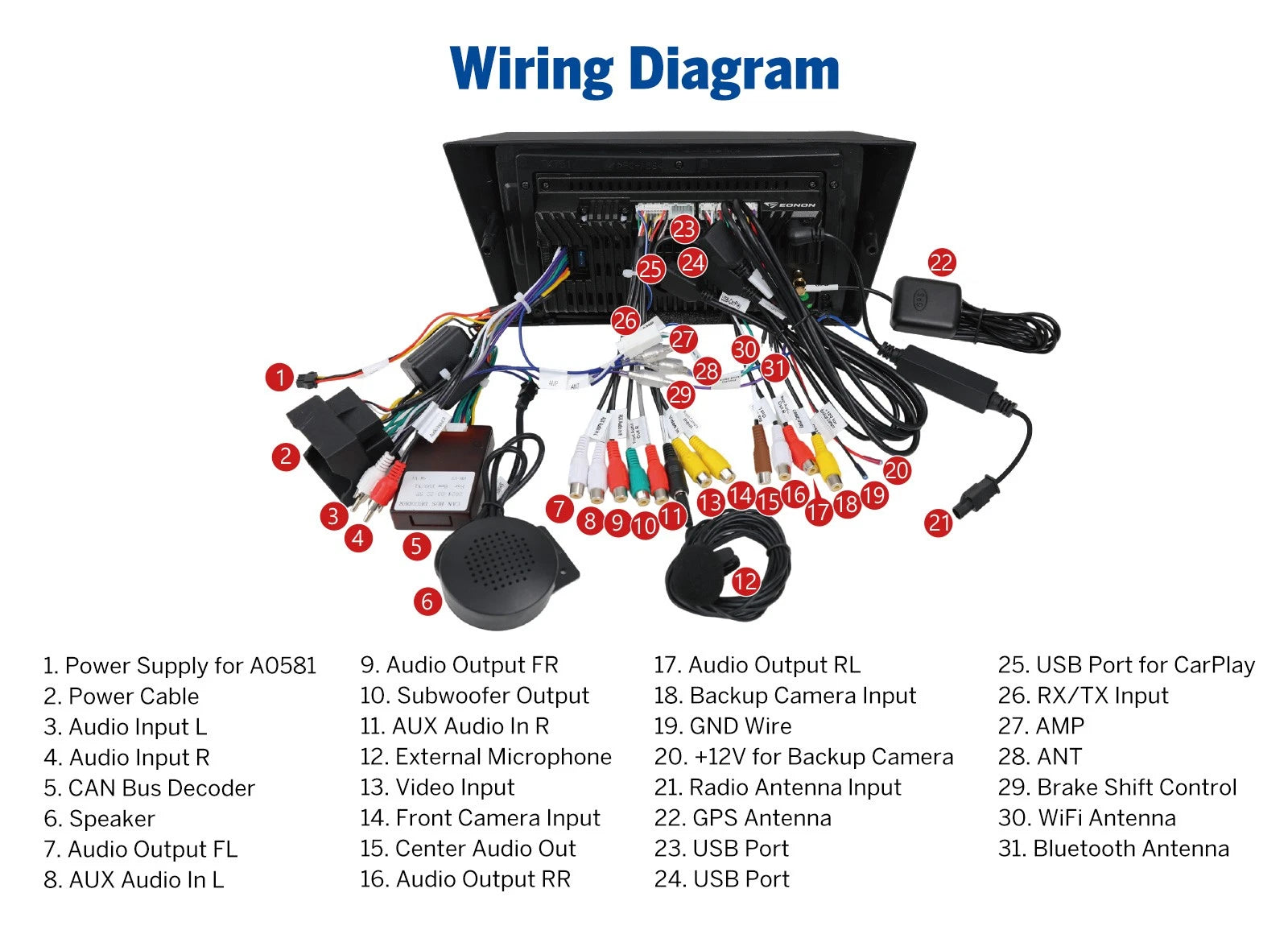

Media & Connections

Supported connections include:

• 3 × USB inputs
• 2 × audio inputs
• 4 × RCA audio outputs
• 5-channel preamp output
• Dedicated subwoofer preamp output
• 1 × video input
• No AUX input
• No video output

The system supports common formats including MP3, FLAC, AAC, MP4, MKV, JPEG and PNG, with up to 1080P video decoding.

Optional Eonon Accessories

A0581 Decoder Box

Required when the factory radio plug does not have the 8 speaker wires shown

Ashtray Button Relocation Kit

Required if retaining applicable factory buttons

A100 Dash Camera
Add compatible front driving recording.

A0125 / A0127 Cameras
Add compatible parking or reversing camera functionality.

V0056 Bluetooth OBD2 Scanner
View supported real-time vehicle diagnostic information through compatible Android apps.

A503/DX2/DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.

A304 DSP Digital Amplifier
Additional amplification and tuning for compatible upgraded audio systems.

Optional accessories are sold separately unless included in the selected package.

Why Upgrade to the E90X7A?

The E90X7A is designed for non-iDrive BMW E90-series owners who want modern infotainment without moving to a generic universal radio.

It combines wireless CarPlay and Android Auto, Android 14 apps, GPS navigation, WiFi 6, a 9" IPS touchscreen and detailed DSP audio adjustment with vehicle-specific BMW integration.

Supported original functions such as Harman Kardon audio, steering wheel controls, parking sensors, heated seats, driving data and door reminders can remain part of the upgraded experience.

Before Ordering, Please Check

1. Confirm your BMW is a compatible E90 / E91 / E92 / E93 model and year.
2. Confirm the vehicle does NOT have factory iDrive with an LCD/navigation screen.
3. Check the factory radio connector: if there are no 8 speaker wires as shown, the separately sold A0581 decoder is required.
4. If the vehicle uses optical fiber, be aware that an SOS prompt may appear after installation.
5. Check whether you need an ashtray button relocation kit to retain applicable factory buttons.
6. The original A/C control panel is relocated below the new stereo using the supplied mounting bracket.

For the E90X7A, confirming the dashboard type and factory audio wiring before purchase is the most important step in avoiding compatibility issues.

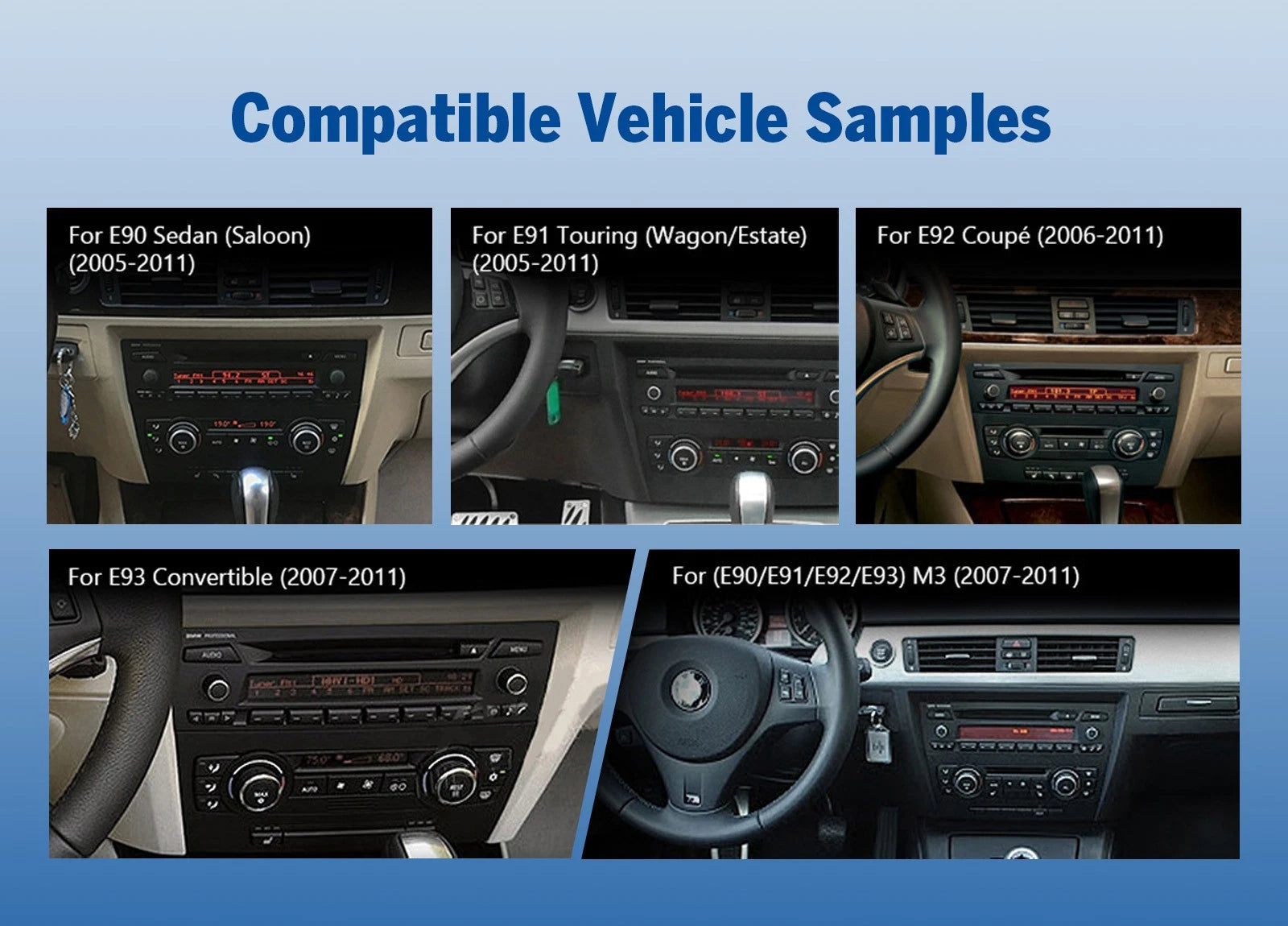

⭐ Vehicle Compatibility

Applicable Models & Years:

E90 4-door Sedan/Saloon (from 2005 to 2011)

E92 2-door Coupé/Coupe (from 2006 to 2013)

E93 2-door Convertible (from 2007 to 2013)

E91 5-door Wagon/Estate (marketed as 'Touring' in Europe and 'Sports Wagon' in the North America) (from 2005 to 2013)

E90 M3 Sedan/E92 M3 Coupe/E93 M3 Convertible (from 2007 to 2012)

Cars Type: 316d, 316i, 318d, 318i, 320d, 320d xDrive, 320i, 320i xDrive, 320si, 323Ci, 323i, 325Ci, 325d, 325i, 325i xDrive, 325xi, 328Ci, 328i, 328i xDrive, 328xi, 330Ci, 330d, 330d xDrive, 330i, 330i xDrive, 330xd, 330xi, 335d, 335i, 335i xDrive, 335is, 335xi, M3, M3 CRT, M3 GTS

Year: 2005 2006 2007 2008 2009 2010 2011 2012 2013

⭐ Specification

• Operation system: Android 14
• Processor: RK3562
• CPU Architecture: 4-core(4xA53@2.0GHz)
• RAM: 4GB
• Storage: 64GB
• Display: 9" IPS
• Resolution: 1280*720
• Operating voltage: DC12V
• CarPlay: Wired & Wireless
• Android Auto: Wired & Wireless
• Split-screen multitasking: Yes
• Screen mirroring: Yes
• 1s fast boot: Yes
• Steering wheel controls: Yes(except voice recognition button)
• Key button color: Variable
• Wi-Fi: Support 2.4G/5G
• 4G Feature: No, 4G dongle needed
• Custom boot logo & changeable wallpapers: Yes
• Built-in UI themes: 3
• Compatible with Harman Kardon: Yes
• Built-in DSP: Yes
• Built-in power amplifier: 4-channel audio output and one subwoofer audio output
• EQ bands: 48
• EQ modes: Custom Standard Popular Rock Classical Jazz
• HPF/LPF adjustment: Yes
• Video input: 1
• Video output: No
• Audio input: 2
• Audio output: 4 RCA
• AUX input: No
• USB input: 3
• RMS power (manufacturer): 25W
• Max amplifier output: 4*45W
• Preamp outputs: 5-channel
• Sub preamp outputs: Yes
• Preamp voltage: 1.0V
• Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
• Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
• Image Formats: Supports JPEG, BMP, PNG, and more

​
