9" Android 14 Car Stereo for 2009-2014 Ford F150 4+64GB CarPlay Touchscreen DSP

$ 349.95

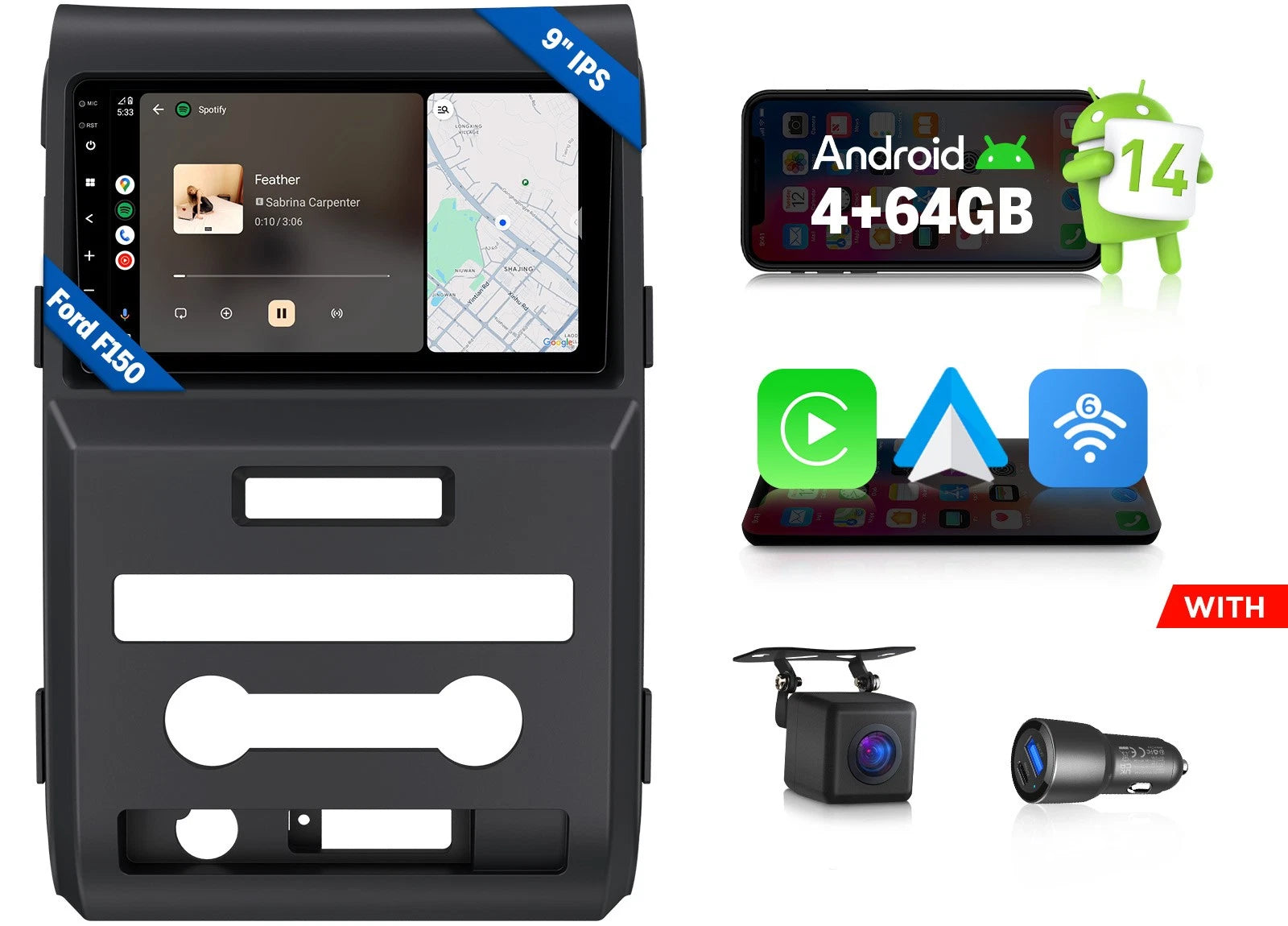

🚗 Eonon FDF1X7A Android 14 Car Stereo for Ford F-150 2009–2014

A Smarter Infotainment Upgrade for Your Ford F-150

Upgrade a compatible 2009–2014 Ford F-150 with the Eonon FDF1X7A, a vehicle-specific Android 14 car stereo designed to add modern smartphone connectivity, navigation and detailed audio control while retaining supported factory functions.

With a 9" IPS HD touchscreen, wireless Apple CarPlay and Android Auto, built-in GPS, WiFi 6 and 48-band DSP, it gives your truck a more capable everyday infotainment system without using a generic universal-radio setup.

Key Upgrade Highlights

Designed for compatible Ford F-150 2009–2014 dashboards
9" IPS HD touchscreen, 1280 × 720
Wireless & wired Apple CarPlay / Android Auto
Android 14 + RK3562 quad-core processor
4GB RAM + 64GB storage
Built-in GPS navigation
WiFi 6 + Bluetooth 5.4
48-band DSP with HPF / LPF adjustment
Factory amplifier support
Steering wheel control & A/C integration
Vehicle-specific wiring & CANBUS

⚠️ Important: Check Your Factory Dashboard

The FDF1X7A is designed for Ford F-150 2009–2014, but not every factory radio configuration from these model years is compatible.

Please compare your original dashboard with the Suitable / Not Suitable examples shown in the product images before ordering.

If your factory dashboard matches one of the Not Suitable versions shown, this stereo is not compatible.

What Happens to the Factory Top LCD?

On compatible F-150 dashboards, installation of the FDF1X7A replaces the original LCD display located at the top of the centre console.

Your supported A/C information is then displayed on the new car stereo screen, giving you access to climate information through the upgraded interface.

This is part of the intended vehicle-specific installation design.

Keep Supported Factory Functions

CANBUS integration helps the FDF1X7A work with important functions already built into compatible F-150 trucks.

Supported features include:

Steering wheel controls
A/C control
A/C information display
Door reminder information
Factory amplifier support

Feature operation may vary depending on the truck's trim level and original factory equipment.

Wireless Apple CarPlay & Android Auto

Connect a compatible smartphone wirelessly and bring commonly used phone functions onto the 9" display.

The FDF1X7A supports both wireless and wired Apple CarPlay and Android Auto, providing access to compatible:

Navigation apps
Music and podcasts
Hands-free calls
Messages
Siri
Google Assistant

Wireless connectivity means you can get into your truck and connect without plugging in your phone for every drive.

Android 14 + 4GB RAM / 64GB Storage

Use compatible Android apps directly from the head unit for navigation, music and other everyday functions.

Also supported:

Split-screen multitasking
OTA firmware updates
Custom boot logo
Changeable wallpapers
3 built-in UI themes
1-second fast boot support

9" IPS HD Touchscreen

The 9" 1280 × 720 IPS touchscreen provides a larger, clearer interface for navigation, audio and vehicle information.

Its wide viewing angles make important on-screen information easier to see from different positions inside the cabin.

The unit uses a touchscreen-focused design without physical buttons or knobs.

WiFi 6 + Bluetooth 5.4

Built-in WiFi 6 supports both 2.4GHz and 5GHz wireless networks, allowing the stereo to connect to a smartphone hotspot or another available Wi-Fi connection.

An independent Bluetooth module with an external Bluetooth antenna supports compatible phone and wireless audio connections.

Please note: Built-in 4G LTE is not included. Mobile-network access requires a compatible external 4G dongle.

Built-In GPS Navigation

The integrated GPS system allows compatible navigation apps to run directly from the stereo without depending entirely on your phone.

You can use:

Online navigation
Compatible offline maps
Navigation while listening to music
Split-screen navigation and media

Offline maps can also be useful when travelling through areas with limited mobile coverage.

48-Band DSP Audio Control

The built-in DSP gives you detailed control over your F-150's audio settings.

Features include:

48-band equalizer
Custom and preset EQ modes
HPF / LPF adjustment
Subwoofer output
5-channel preamp outputs
4 RCA audio outputs
25W RMS manufacturer-rated power
Up to 4 × 45W maximum amplifier output

Adjust frequency balance, bass and speaker output to suit your speakers and listening preferences.

For drivers looking for additional amplification, the Eonon A304 DSP Amplifier is available separately.

Camera Support

The FDF1X7A supports compatible camera equipment for added visibility when parking and reversing.

Supported functions include:

Front camera input
Rear-view camera input
Automatic reverse display
Parking guidelines

Compatibility with factory or aftermarket cameras depends on the original vehicle and camera configuration.

Split Screen & Wireless Screen Mirroring

Split-screen mode allows compatible functions such as navigation and music to remain visible at the same time.

Wireless screen mirroring is also supported for compatible iOS and Android devices.

Note: Some copyrighted video and streaming apps may restrict screen mirroring because of DRM protection.

AM/FM Radio & Optional DAB+

Use traditional AM/FM radio without relying on mobile data.

For supported regions, DAB+ digital radio can be added with the optional Eonon A503/DX2/DX1 module.

Media & Connections

Supported connections include:

3 × USB inputs
2 × audio inputs
4 × RCA audio outputs
5-channel preamp output
Dedicated subwoofer preamp output
1 × video input
No AUX input
No video output

The system supports common formats including MP3, FLAC, AAC, MP4, MKV, JPEG and PNG, with up to 1080P video decoding.

Optional Eonon Accessories

A100 Dash Camera
Add compatible front driving recording.

A0125 / A0127 Cameras
Add compatible parking or reversing camera functionality.

V0056 Bluetooth OBD2 Scanner
View supported real-time vehicle diagnostic information through compatible Android apps.

A503/DX2/DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.

A304 DSP Digital Amplifier
Additional amplification and tuning for compatible upgraded audio systems.

Optional accessories are sold separately unless included in the selected package.

Why Upgrade to the FDF1X7A?

The FDF1X7A is designed for F-150 owners who want more than a simple factory radio replacement.

It combines wireless CarPlay and Android Auto, Android 14 apps, GPS navigation, WiFi 6, detailed DSP sound control and vehicle-specific integration in one 9" touchscreen system.

For compatible dashboards, supported factory functions such as steering wheel controls, climate controls, A/C information, door reminders and the factory amplifier can remain part of the upgraded driving experience.

Before Ordering, Please Check

1. Confirm your vehicle is a Ford F-150 from 2009–2014.
2. Compare your factory centre console with the Suitable / Not Suitable images.
3. Be aware that the original top LCD is replaced, with supported A/C information displayed on the new stereo screen.

Checking your dashboard configuration before purchase is the most important step in choosing the correct FDF1X7A setup.

⭐ Vehicle Compatibility

Designed for 2009 Ford F-150, 2010 Ford F-150, 2011 Ford F-150, 2012 Ford F-150, 2013 Ford F-150, 2014 Ford F-150. Plug & play.

⭐ Specification

Operation system: Android 14
OTA Firmware Update: Yes
CPU: Quad-core (RK3562)
RAM: 4GB
Storage: 64GB
Display: 9" IPS
Resolution: 1280*720
Operating voltage: DC12V
Physical button/knob: No
CarPlay: Wired & Wireless
Android Auto: Wired & Wireless
Screen mirroring: Yes
Steering wheel controls: Yes
Independent Bluetooth module: Yes
Extra Bluetooth antenna: Yes
Custom boot logo: Yes
changeable button color: Yes
changeable wallpapers: Yes
Wi-Fi: Support 2.4G/5G
4G Feature: No, 4G dongle needed
1s fast boot: Yes
Built-in UI themes: 3
Split-screen multitasking: Yes
Built-in DSP: Yes
Built-in power amplifier: 4-channel audio output and one subwoofer audio output
EQ bands: 48
EQ modes: Custom Standard Popular Rock Classical Jazz
HPF/LPF adjustment: Yes
Video input: 1
Video output: No
Audio input: 2
Audio output: 4 RCA
AUX input: No
USB input: 3
RMS power (manufacturer): 25W
Max amplifier output: 4*45W
Preamp outputs: 5-channel
Sub preamp outputs: Yes
Preamp voltage: 1.0V
Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
Image Formats: Supports JPEG, BMP, PNG, and more
