Eonon A100 360° Front Car Dash Cam DVR Camera Video Recorder WaterProof Dashcam
Eonon A100 720P HD Dash Camera for Eonon Android Car Stereos
1280×720 Recording | 120° Wide Angle | 360° Adjustable Lens | Loop Recording | USB Connection
The Eonon A100 Dash Camera is a compact USB driving recorder designed for compatible Eonon Android car stereos.
Connect it directly to a compatible Eonon Android head unit to record driving footage and conveniently view recordings on the stereo's larger touchscreen.
With 720P recording, 120° wide-angle view, 360° adjustable lens and loop recording, the A100 provides a simple way to add a front dash camera without taking up much space on the windscreen.
⚠ Compatibility – Please Check Before Ordering
Compatible with:
✔ Compatible Eonon Android head units currently on sale
NOT compatible with Eonon Linux car stereos, including:
X3 / X3 Plus / X3U / P3 / P4 / P5 / P6 / X20 / X20 Plus / E20 / E20S / MIN SE Plus
Important: The A100 is designed to work together with a compatible Eonon Android head unit. Please confirm your stereo model before ordering.
720P HD Driving Recording
The A100 records video at:
1280 × 720 resolution / 25fps
The 120° wide-angle lens provides a broad forward view, making it suitable for everyday driving recording.
Recorded footage can be viewed through a compatible Eonon Android head unit.
360° Adjustable Lens
The camera lens can be rotated through 360°, allowing you to adjust the recording direction according to the angle of your windscreen and installation position.
Combined with its compact body, the A100 can be positioned with minimal obstruction to the driver's view.
Practical Recording Functions
The A100 supports:
- Loop recording
- Selectable recording duration: 1 / 2 / 3 minutes
- Video playback
- Manual file lock
- Photo capture
- Audio recording ON/OFF
- Time display
Loop recording automatically continues recording when storage becomes full by overwriting older unlocked footage.
Important clips can be manually locked to help prevent them from being overwritten during normal loop recording.
MicroSD Card Support
Supports:
8GB–32GB MicroSD card, Class 10 or above
MicroSD card is not included and must be purchased separately.
For stable recording performance, please use a compatible high-quality memory card.
Simple USB Installation
Installation is straightforward:
- Connect the A100 USB cable to the compatible Eonon Android head unit.
- Remove the protective film from the adhesive pad.
- Attach the camera securely to a suitable position on the front windscreen.
- Adjust the lens angle for the desired forward view.
The 2.7m cable provides flexibility for routing the cable around the dashboard and windscreen area.

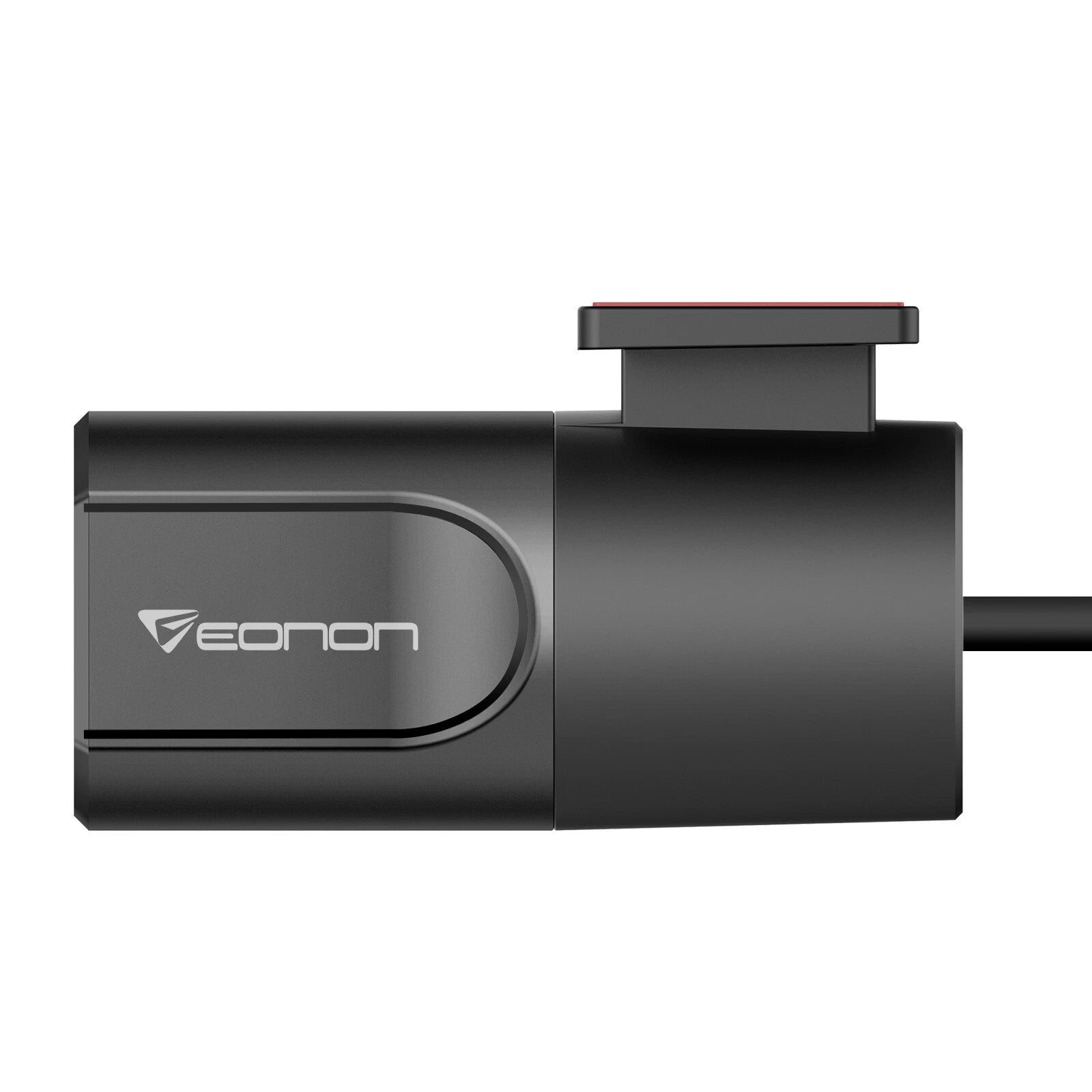

Compact Design
The small camera body helps keep the installation discreet without unnecessarily blocking the driver's forward view.
Camera size: 59 × 28 × 35mm
Weight: approx. 0.1kg
Cable length: 2.7m
