Diagnostic Scanner Tool SRS Transmission ABS Check Engine OBD2 Code Reader Scanner Cadillac General Motors

  • $ 199.95


 iCARSOFT i900 (NEW VERSION)
Multi-System Diagnostic Scan Tool
GM - GENERAL MOTORS



The iCarsoft i900 is a multifunction diagnostic scanner and tester which has been designed specifically for the full line of GM vehicles. This scanner replaces the older version i900. It will enable you to read and clear diagnostic faults from main systems within your vehicle such as SRS airbags, ABS Antilock Brakes, engine, transmission, and body modules. It will also allow you to read live data in real time format. We have tested the scanner on many vehicles with excellent results. Compared to higher priced kits on the market that do exactly the same as this kit, we feel it offers excellent value for its cost. The i900 is an easy to use, stand alone unit that will have you scanning your vehicle within minutes. Simply, plug it into the OBD II port and the device will boot up with step-by-step instructions.

*** NOW INCLUDES OIL SERVICE RESET FUNCTION ***

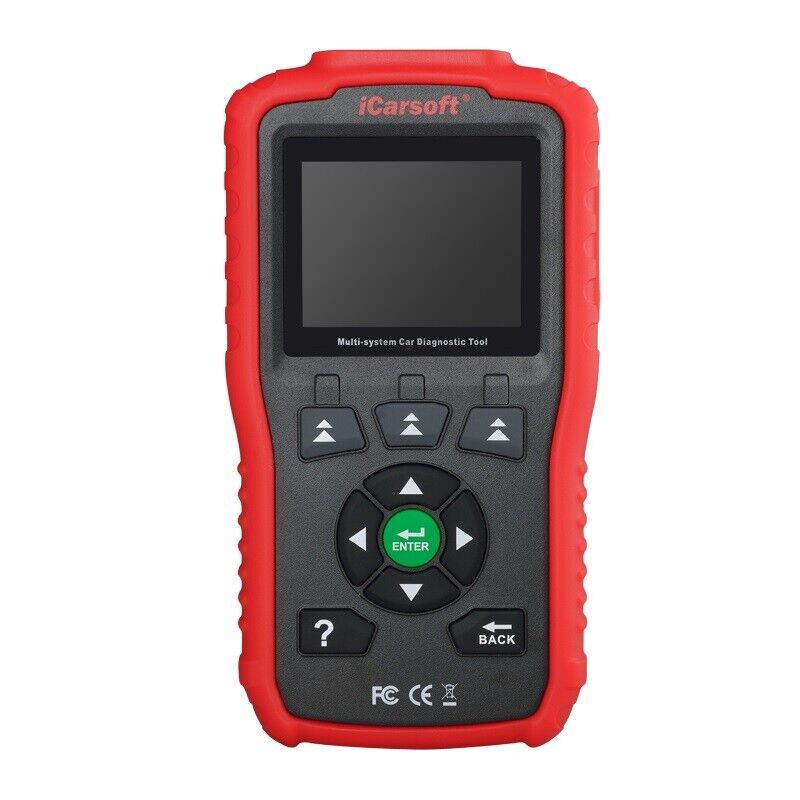

This scanner has a large, easy to read 2.8 inch color display accompanied by a user friendly interface and requires no additional software. We will even upgrade the software to the latest version before shipment. As an added bonus, the scanner is equipped with full OBD II software capabilities that will allow you to scan and clear the check engine light on any make/model vehicle 1996 and newer. This tool will easily pay for itself by avoiding just one trip to the $120/hr dealership.  *Compatibility and System Coverage found below

Functions Include:

Read and clear diagnostic trouble codes from numerous vehicle systems - ABS, Airbag, Engine, Transmission, Air Suspension, Instrument cluster, etc.

Read Live Data Stream Info from numerous vehicle systems (see below)

Fault-Tracing for malfunction indicator lights including check engine, ABS, SRS airbag, etc.

Vehicle and ECU information

Datastream Graph Display

View Freeze Frame Data

COMPATIBILITY
CHEVROLET (1996-2018)
CADILLAC (1996-2018)
BUICK (1996-2018)
GMC (1996-2018)
PONTIAC (1996-2013)
SATURN (1996-2013)
HUMMER (1996-2013)


Universal OBDII Functions Include *Added Bonus*(for all makes and models 96 and newer):

1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data Stream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10.Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
11.Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM datastream
13. Support CAN (Controller Area Network) and all other
14.Multilingual menu and DTC definitions- English, Spanish, and German, etc
15.Read pending DTCs
16.Read permanent DTCs
17. DTCs search
18. Supports all the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on all 2001 and later OBDII compliant PETROL European vehicles (for European buyers)
20. Works on all 2004 and later OBDII compliant DIESEL European vehicles (fpr European buyers)
21. Works on all 1996 and later OBDII compliant US and Asian vehicles (for US buyers)
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More

Live Data Stream Readings Include :

- Calculated load

- Engine Speed

- Coolant temperature

- Fuel System Status

- Vehicle speed

- Short Term Fuel Trim

- long-term Fuel Trim

- Intake manifold pressure

- Timing Advance

- Intake

- Air flow rate

- Absolute Throttle Position

- Oxygen sensor voltages

- Fuel System Status

- Fuel pressure

- and more



System Coverage for GMC

ENGINE
TRANSMISSION
ABS
SIR (SRS)
BCM
IPC
HVAC
VSES
VTD
TPM
RTD/CVRTD
ESC
DRR
DDM
DPM
PDM
RCD
VCIM
TDM
RFA
ISU
IMMO
Radio
Navigation Radio
Amplifier(Bose)
TA
RWS

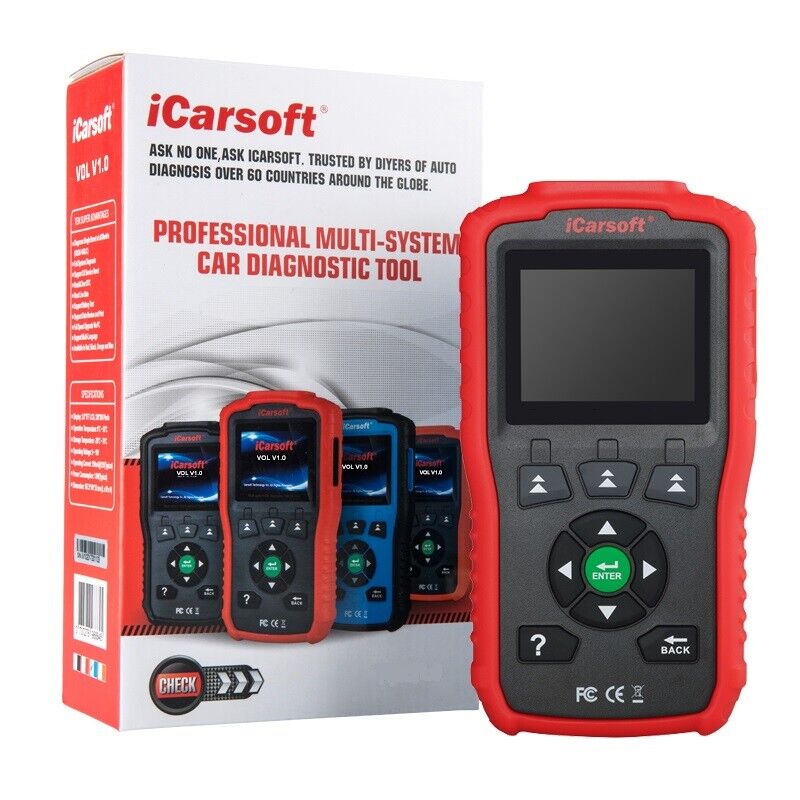

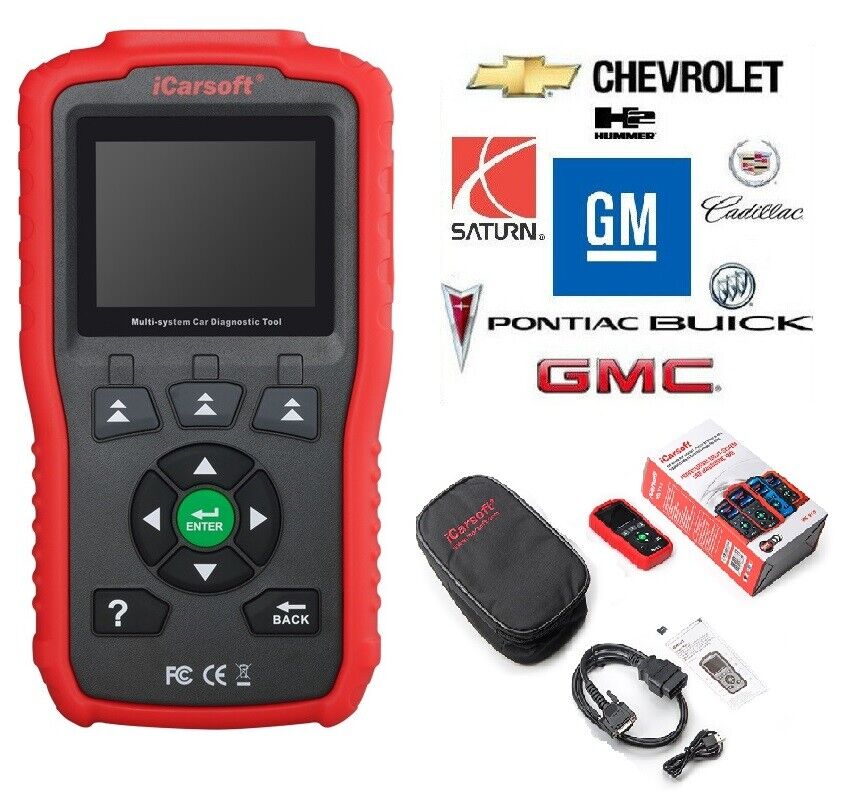

What's included:

iCarsoft i900 Scan Tool

USB Cable (connecting to computer for software updates)
User Manual
Nylon Carry Case

Supports Multiple Languages

English
German
Spanish
French
Portuguese
Russian
Dutch
