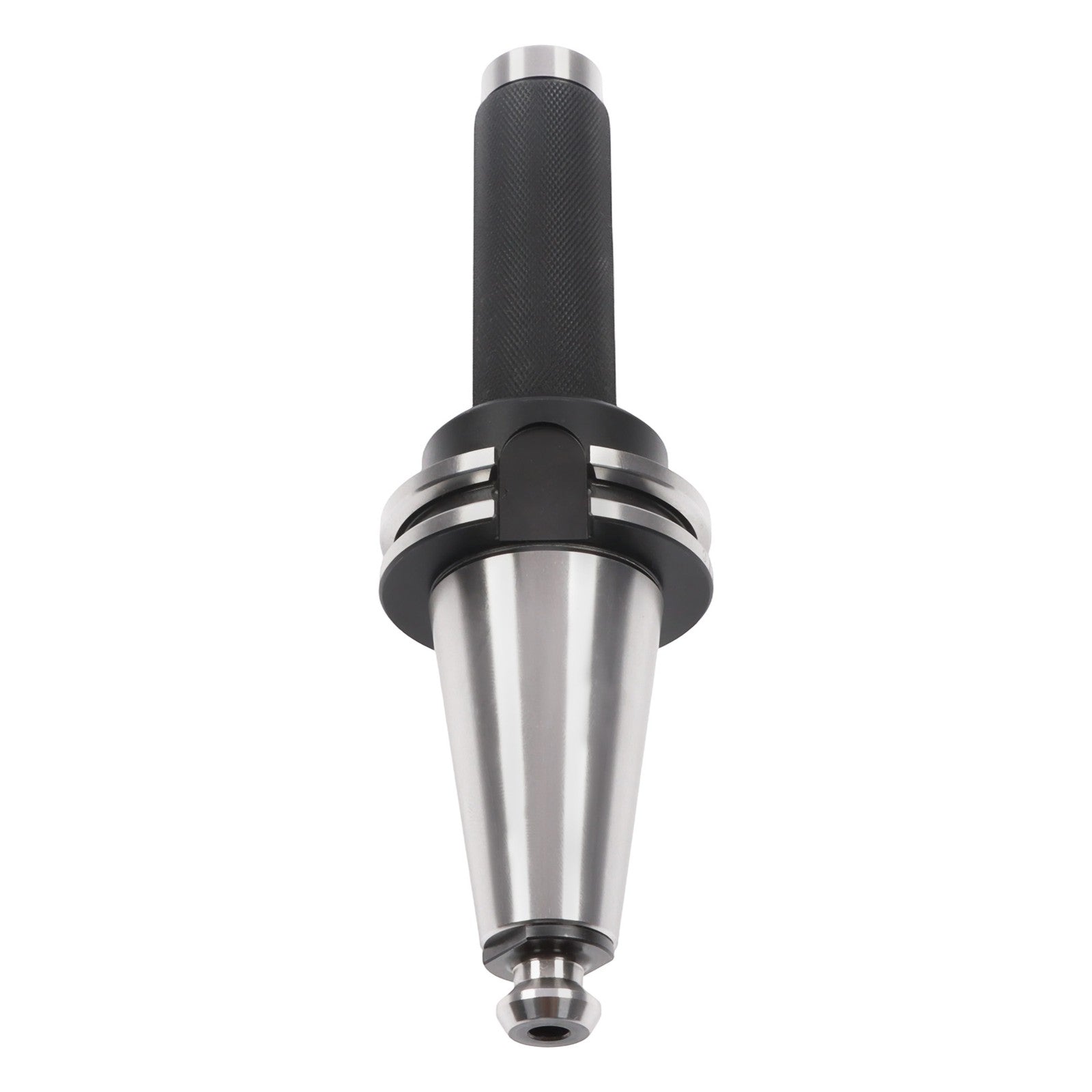

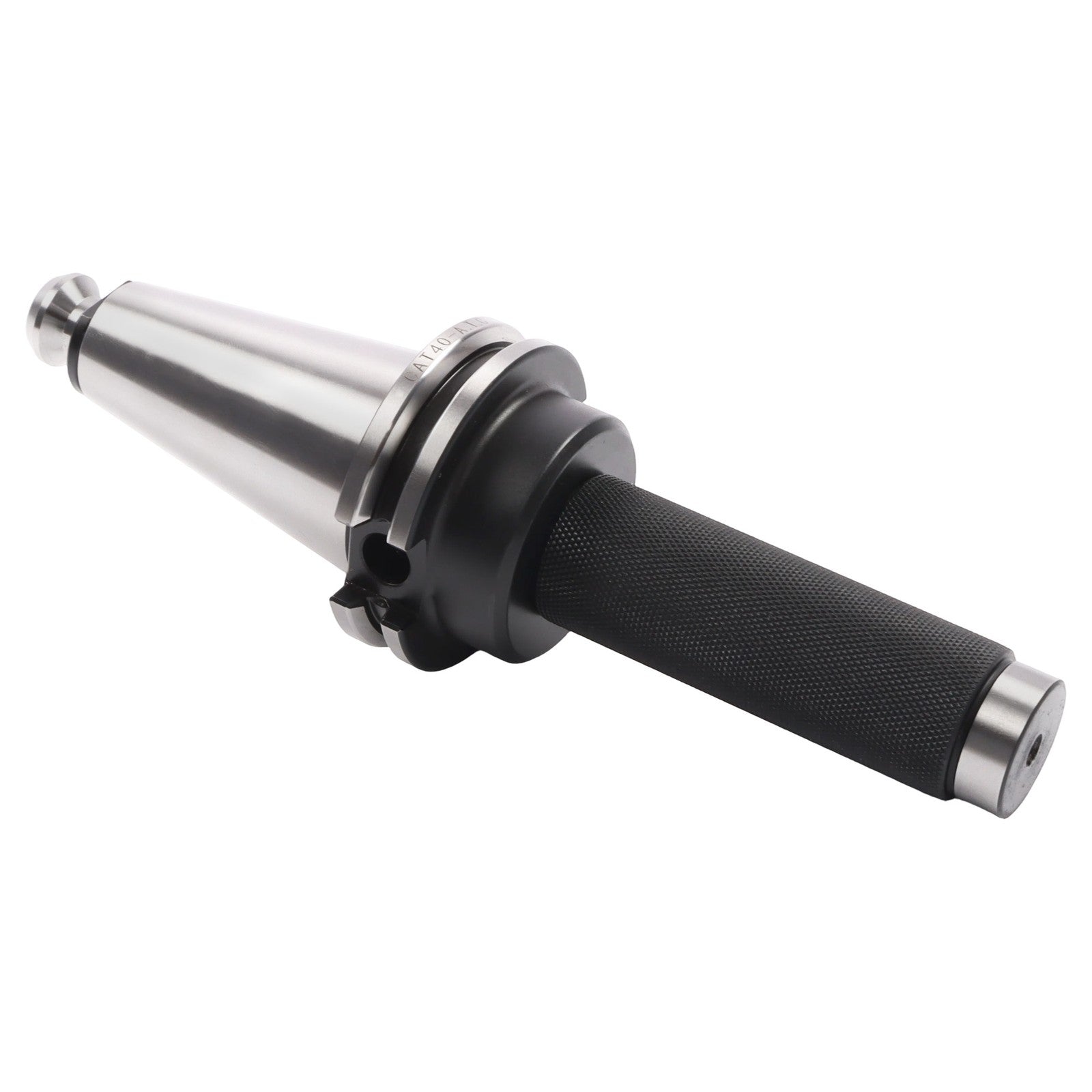

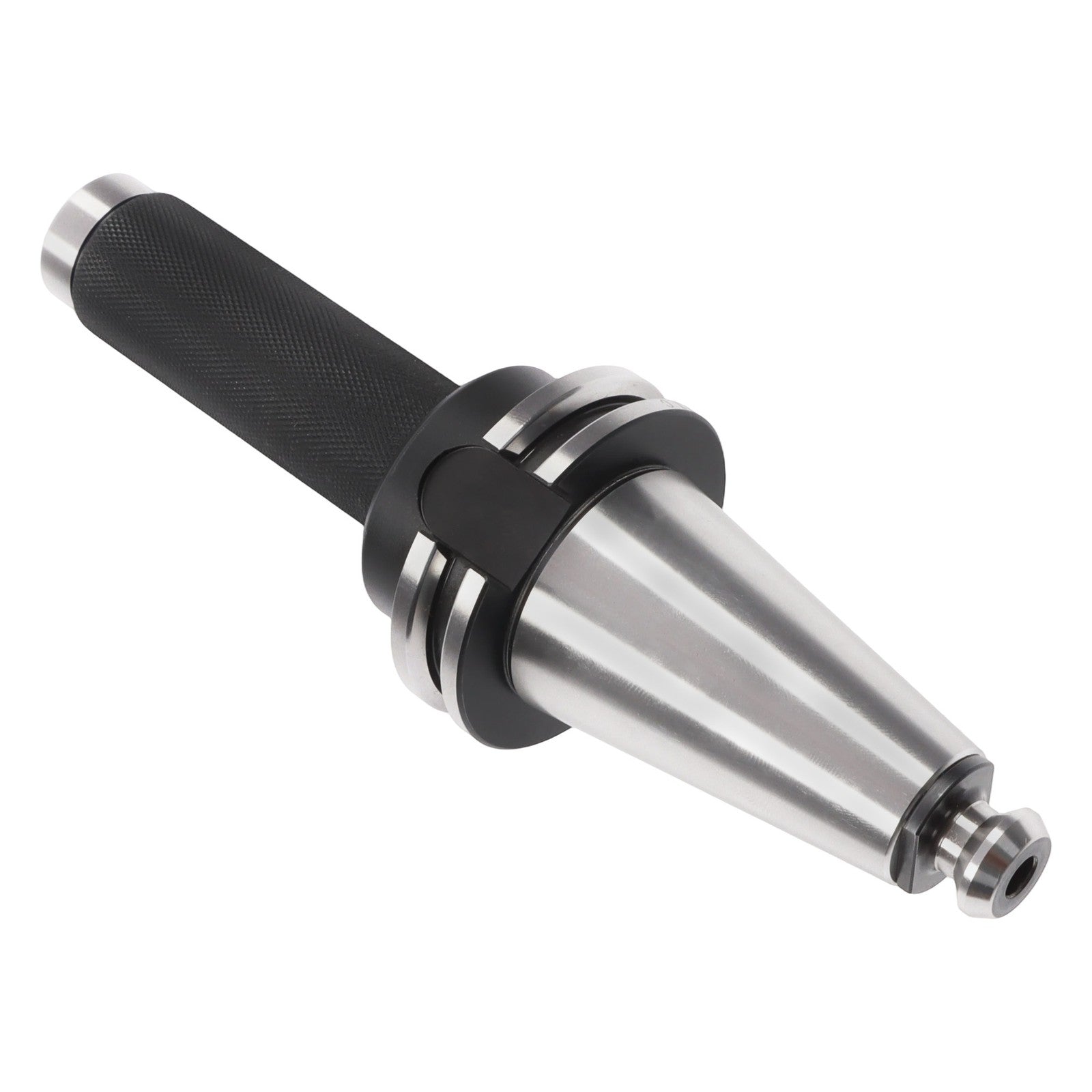

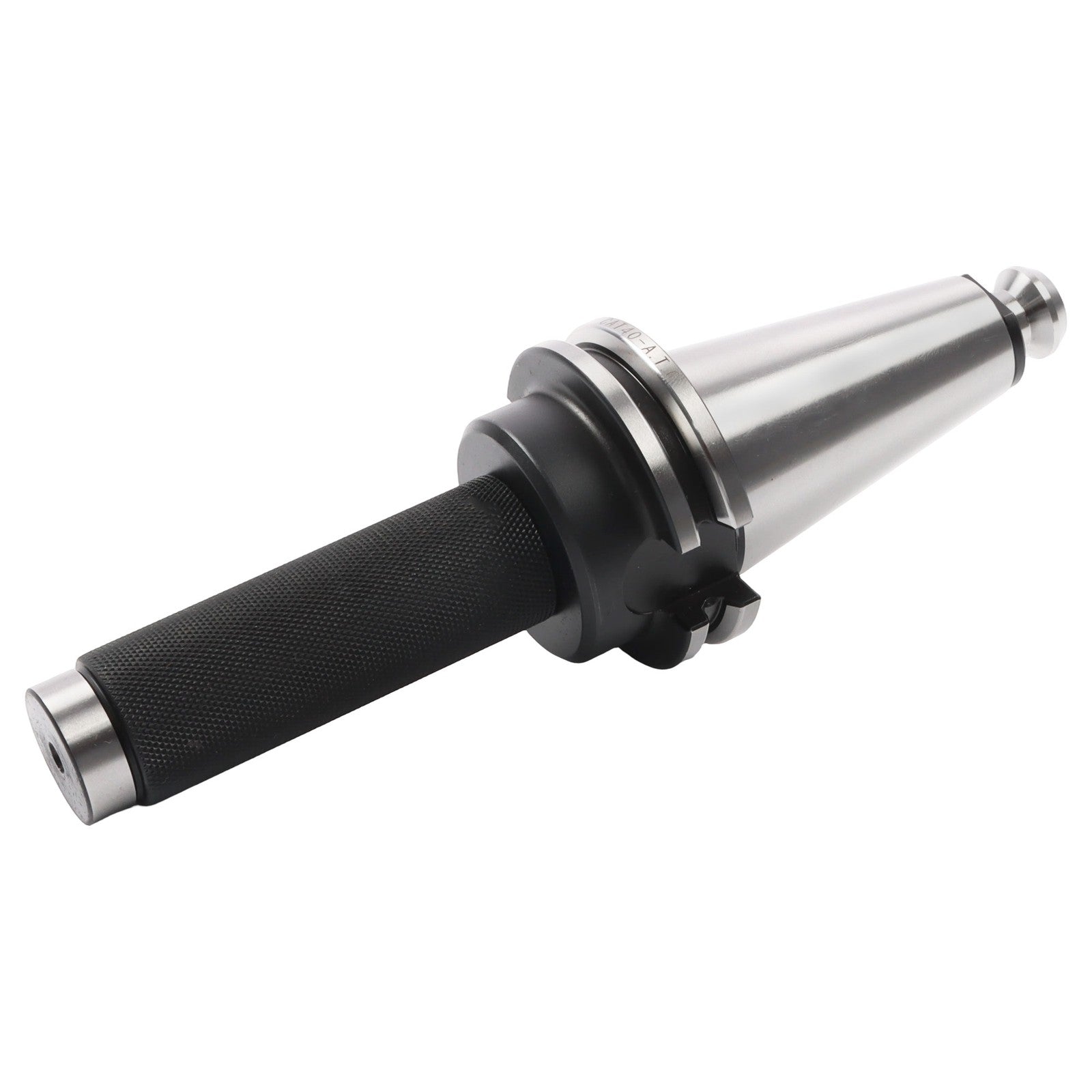

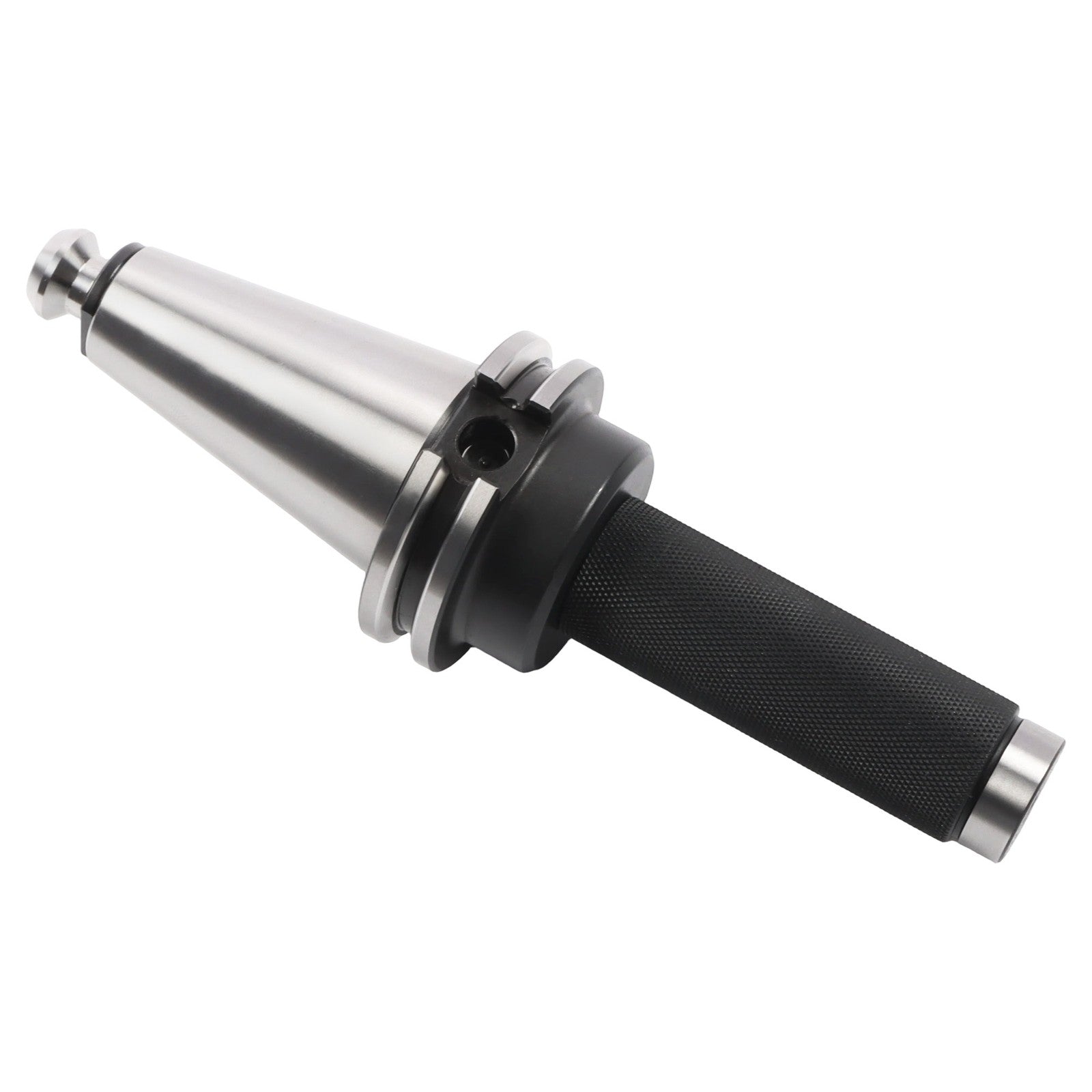

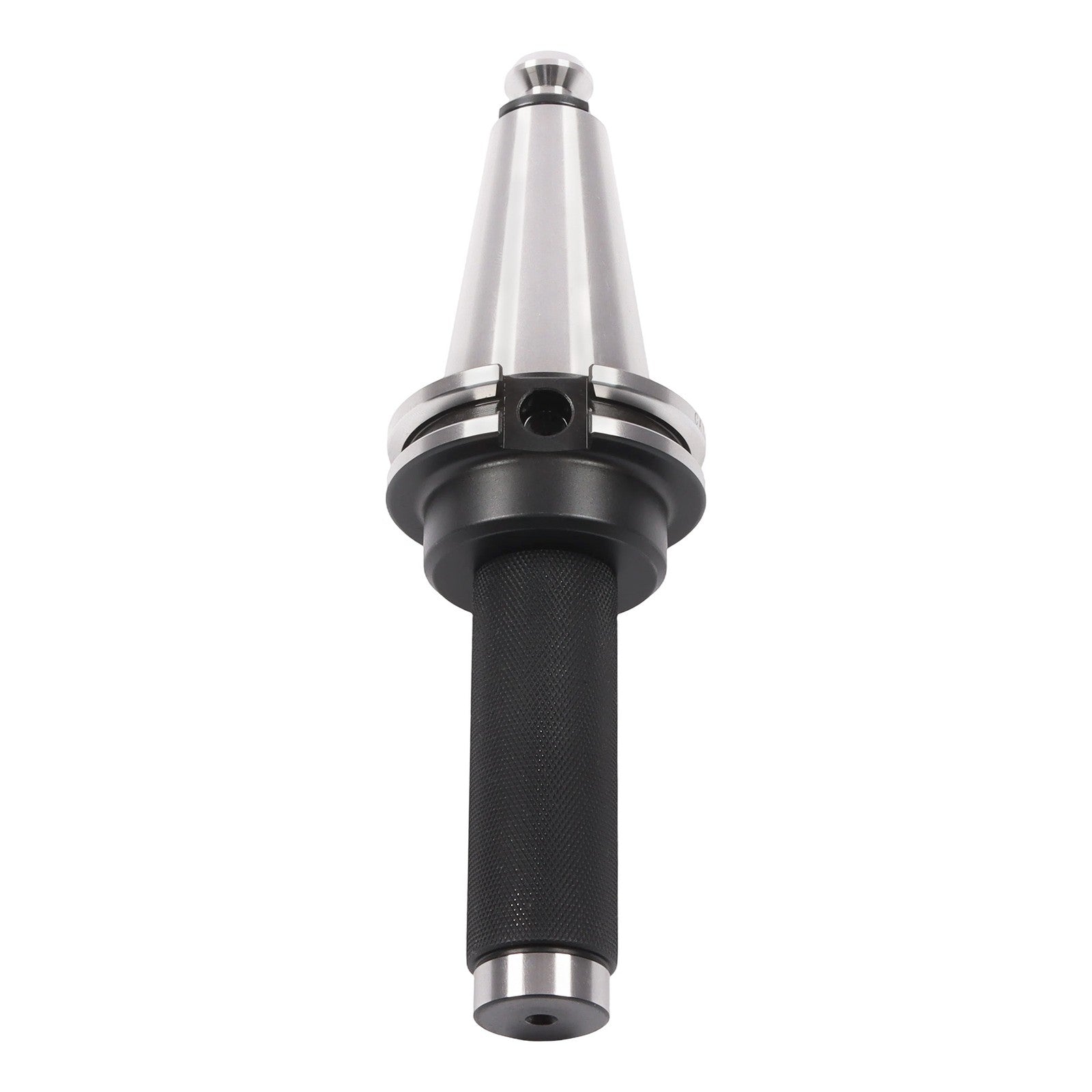

CAT40 Spindle Alignment Gage Tool Holder for CNC Milling Machines

Steel CAT40 alignment gage for checking spindle runout and tramming on CNC mills.

1.0 in arbor, 3.0 in gage length, rated to 0.0001 in TIR.

Product details

• Product: CAT40 spindle alignment test bar
• Condition: New aftermarket replacement
• Country of origin: United States

Specifications

• ARBOR DIAMETER: 1.0"
• Taper Size: CAT40
• HOLDER TYPE: GAGE TOOL
• Shank Type: CAT40
• Type: Face Mill Adapter
• Gage Length: 3.0"
• RUN OUT (TIR): 0.0001"
• DRAWBAR THREAD: 5/8-11″

Fitment and compatibility

For CNC milling machines with CAT40 spindle tapers and 5/8-11 drawbar threads.

Package contents

• One CAT40 alignment gage

Professional installation is recommended.
