Climate Control Illumination Bulb for 1992-95 BMW E36 Analog HVAC 318i 325i M3 63217167000

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

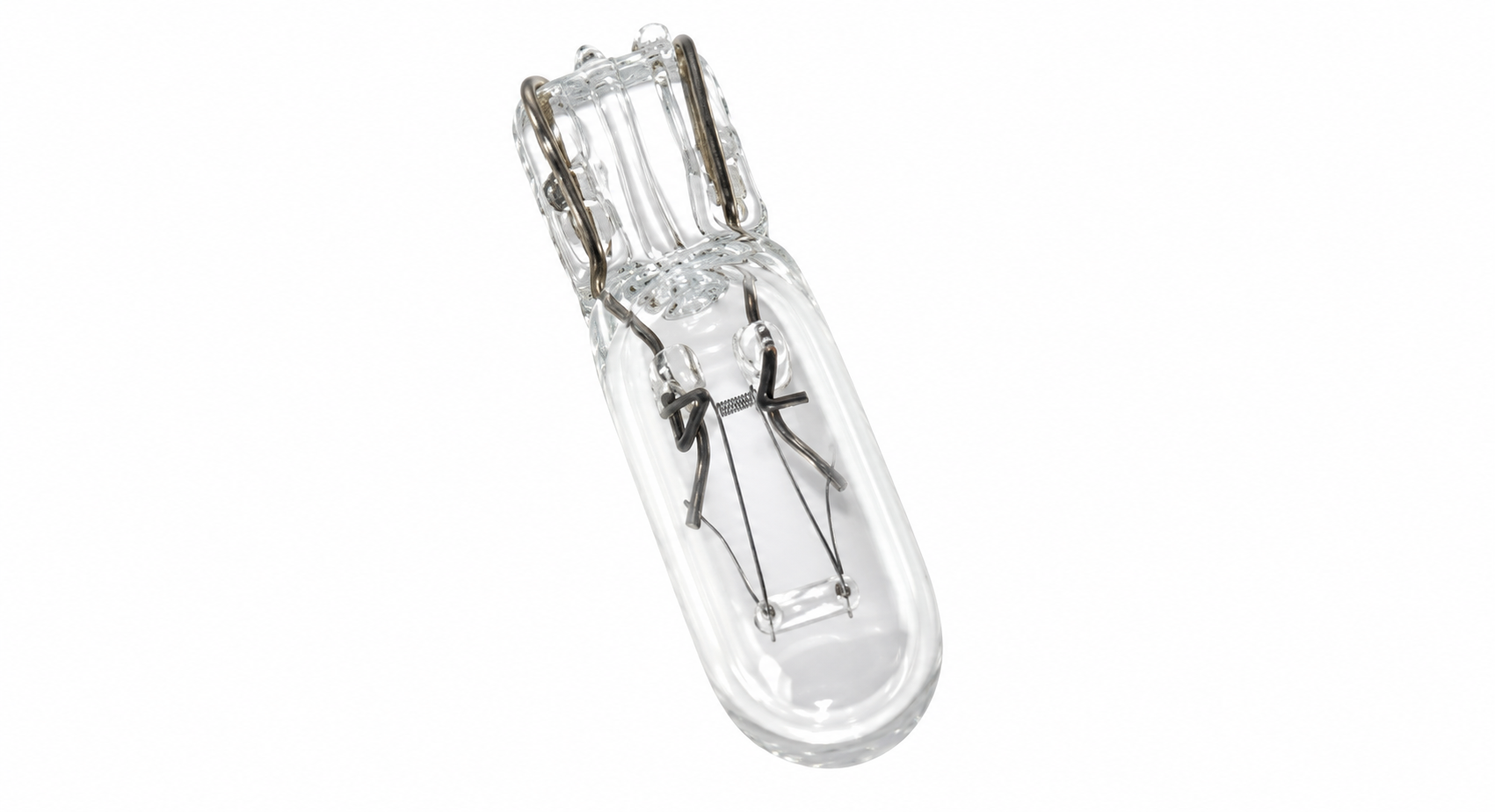

Brand-new OSRAM incandescent wedge bulb for the factory analog heater and air-conditioning control panel in selected 1992–1995 BMW E36 3-Series vehicles.

This bulb installs behind the climate-control faceplate and restores the original warm-white nighttime illumination of the HVAC knobs, settings, and control markings.

One bulb illuminates the manual control panel through its internal light-distribution system.

𝗣𝗮𝗿𝘁 𝗡𝘂𝗺𝗯𝗲𝗿𝘀

• BMW replacement bulb: 63217167000
• Formatted BMW number: 63 21 7 167 000
• Bulb-and-socket assembly through approximately 01/1995: 63311382547
• Later bulb-and-socket assembly: 61138353797
• Seller inventory number: 655693300
• Common bulb specification: W1.2W miniature wedge lamp

The socket assembly numbers are supplied only as fitment references. This listing includes the removable bulb, not a socket or wiring harness.

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

• Brand: OSRAM
• Lighting technology: Incandescent
• Voltage: 12 volts
• Power rating: 1.2 watts
• Bulb style: Clear miniature wedge
• Light color: Factory-style warm white
• Installation location: Analog HVAC control panel
• Quantity: One bulb
• Fitment type: Direct replacement for the original removable bulb

𝗩𝗲𝗵𝗶𝗰𝗹𝗲 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

Fits selected 1992–1995 BMW E36 3-Series vehicles equipped with the corresponding factory analog/manual climate-control panel.

Typical North American applications include:

• BMW 318i E36 sedan and convertible — selected 1992–1995 models
• BMW 318is E36 coupe — selected 1992–1995 models
• BMW 318ti E36 Compact — selected 1995 models
• BMW 325i E36 sedan and convertible — selected 1992–1995 models
• BMW 325is E36 coupe — selected 1992–1995 models
• BMW M3 E36 coupe — selected 1995 models
• BMW M3 Lightweight E36 — 1995

Selected international applications may include:

• BMW 316i
• BMW 318i and 318is
• BMW 318tds
• BMW 320i
• BMW 325i and 325is
• BMW 325td and 325tds
• BMW M3

Body styles may include sedan, coupe, convertible, Touring and Compact, depending on market and installed HVAC equipment.

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗡𝗼𝘁𝗶𝗰𝗲

This bulb is intended for the early E36 analog/manual HVAC panel with four removable rotary knobs and a removable plastic faceplate.

It is not intended for the later electronic automatic climate-control panel with a digital display and push buttons.

BMW used different control panels, bulb sockets, and HVAC configurations during the E36 production run. Production date and installed equipment are more reliable than model year alone.

Before ordering, confirm that:

• The vehicle has the analog four-knob HVAC panel

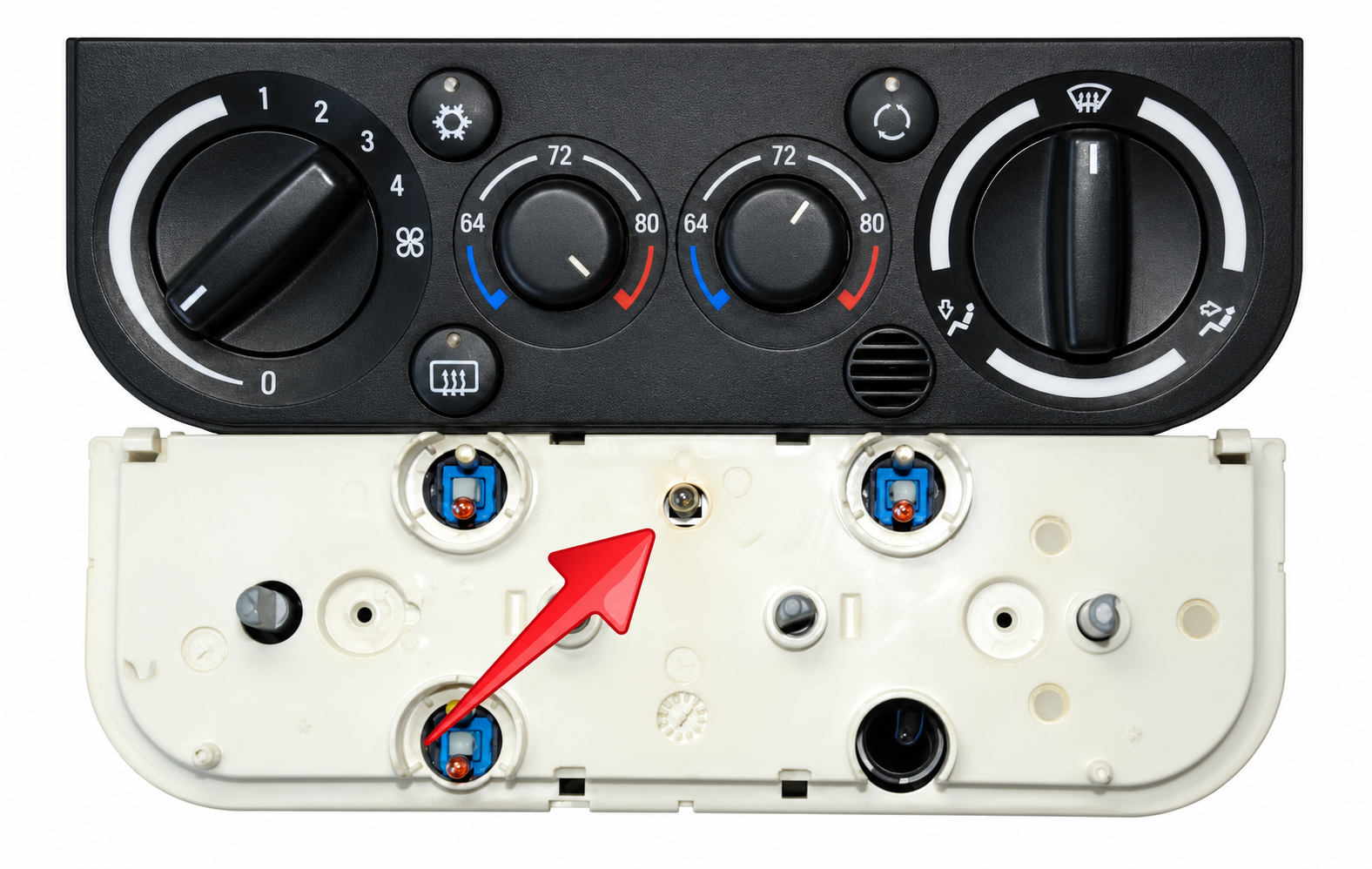

• A removable wedge bulb is located at the upper center of the panel
• The original socket and wiring remain reusable
• The original bulb is rated 12V/1.2W

VIN verification or visual comparison with the listing photographs is recommended.

𝗣𝗿𝗼𝗯𝗹𝗲𝗺𝘀 𝗧𝗵𝗶𝘀 𝗕𝘂𝗹𝗯 𝗠𝗮𝘆 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

• HVAC panel does not illuminate at night
• Climate-control knobs and markings are dark
• Original illumination bulb is burned out
• Panel lighting operates intermittently because of a loose bulb
• HVAC controls function normally but have no backlighting

𝗧𝗵𝗶𝘀 𝗕𝘂𝗹𝗯 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

• Inoperative blower motor or fan-speed switch
• Heating or air-conditioning performance problems
• Defective A/C or recirculation buttons
• Damaged bulb socket, wiring, fuse, or dimmer circuit
• Broken internal illumination guides
• Digital climate-control display or electronic module failures
• Radio, clock, OBC, ashtray, or instrument-cluster lighting problems

If the replacement bulb does not illuminate, inspect the original socket, wiring, fuse, dashboard dimmer, and illumination circuit.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

1. Switch off the ignition and vehicle lighting.

2. Carefully pull the four HVAC control knobs straight off the panel.

3. Remove the two Phillips screws securing the plastic faceplate.

4. Carefully separate the faceplate from the climate-control assembly.

5. Locate the wedge bulb near the upper center of the panel.

6. Pull the old bulb straight out of its original socket.

7. Push the replacement bulb fully into place.

8. Test the illumination before reinstalling the faceplate and knobs.

9. Reassemble the panel and confirm that all controls operate correctly.

Use suitable trim tools and avoid excessive force. Dashboard plastics can become brittle with age. Do not pull on the socket wiring or overtighten the faceplate screws.

𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻

Brand-new original OSRAM incandescent bulb. The bulb may be supplied from bulk manufacturer packaging and may not include an individual retail box.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

• One 12V/1.2W climate-control illumination bulb

Bulb socket, wiring, climate-control panel, knobs, tools, and other dashboard components are not included.
