11-Button OBC On Board Computer Clock BMW E36 318 325 328 M3 OEM 62138357666

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

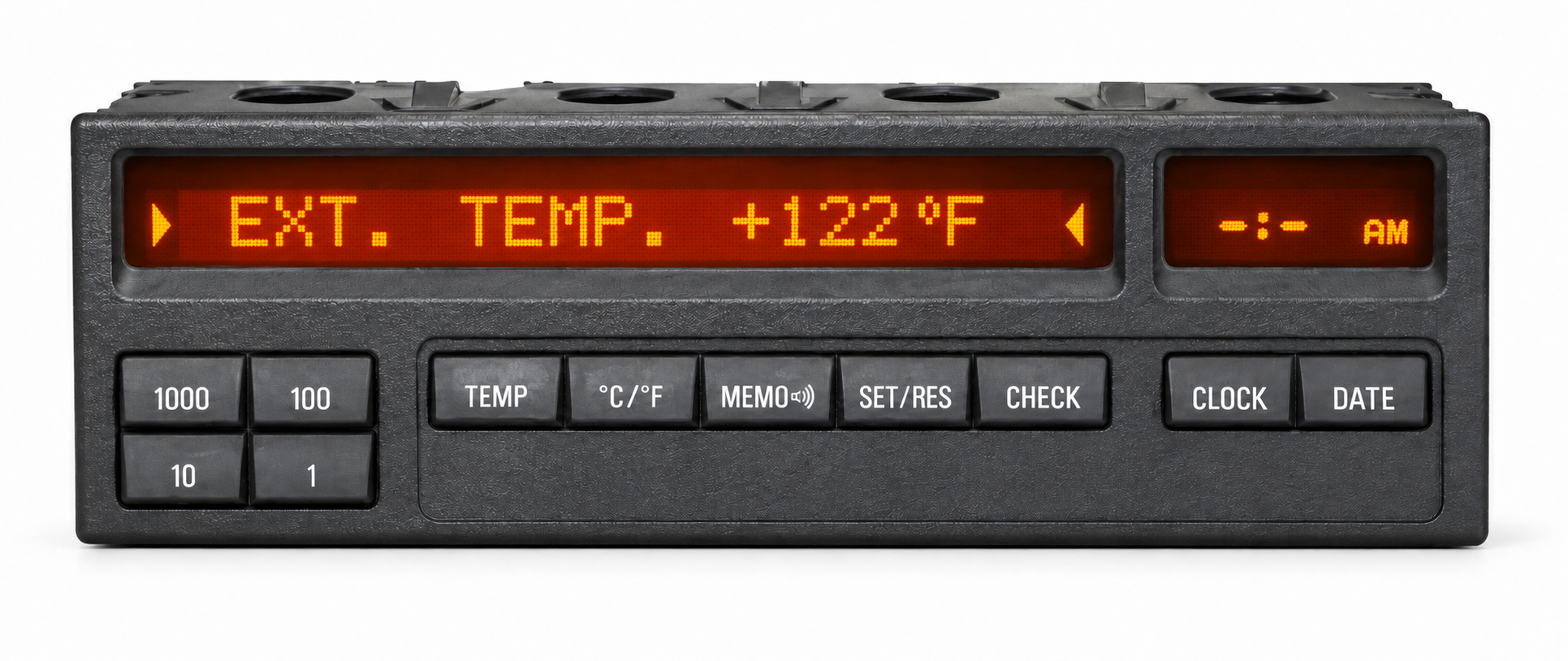

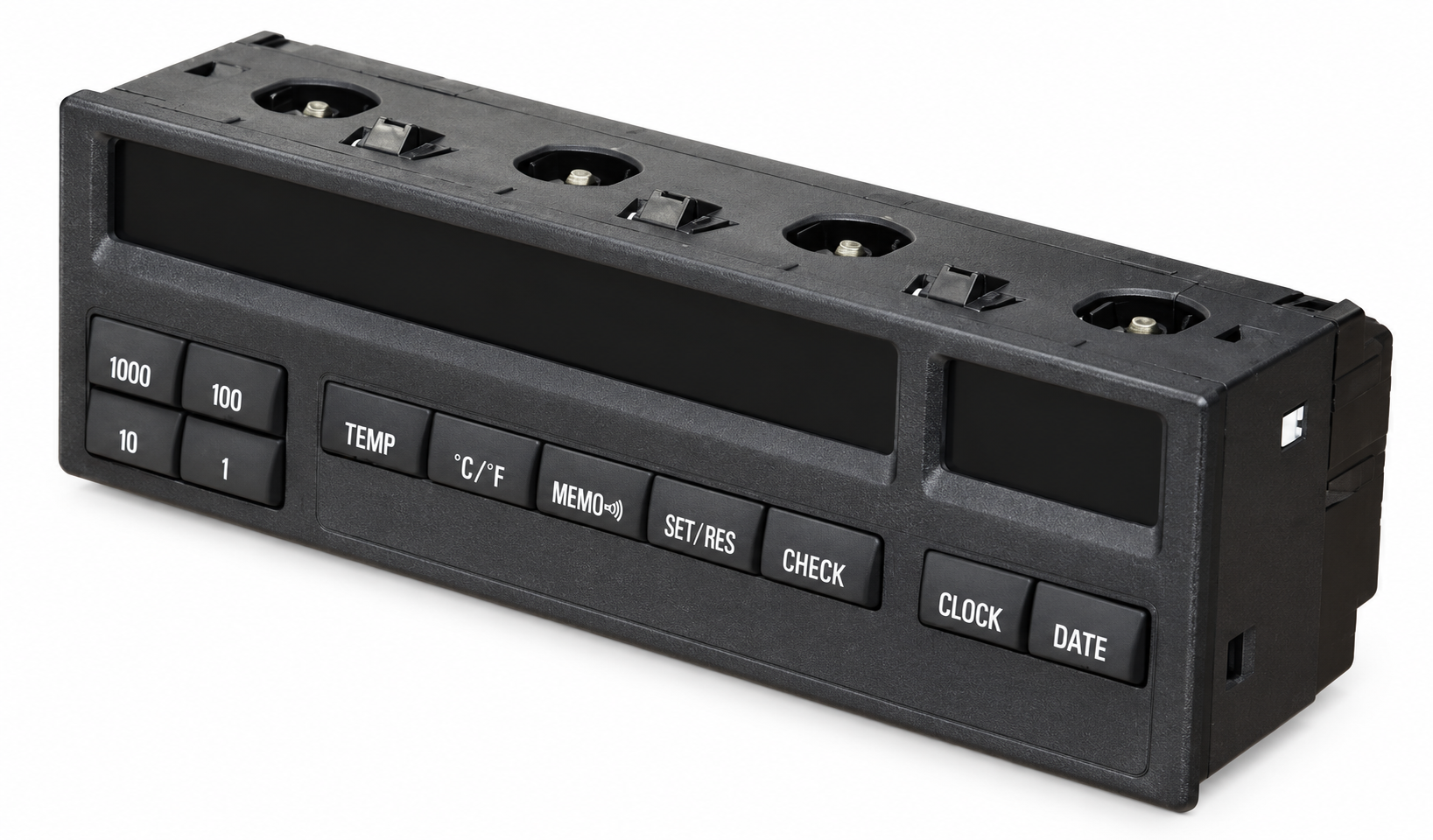

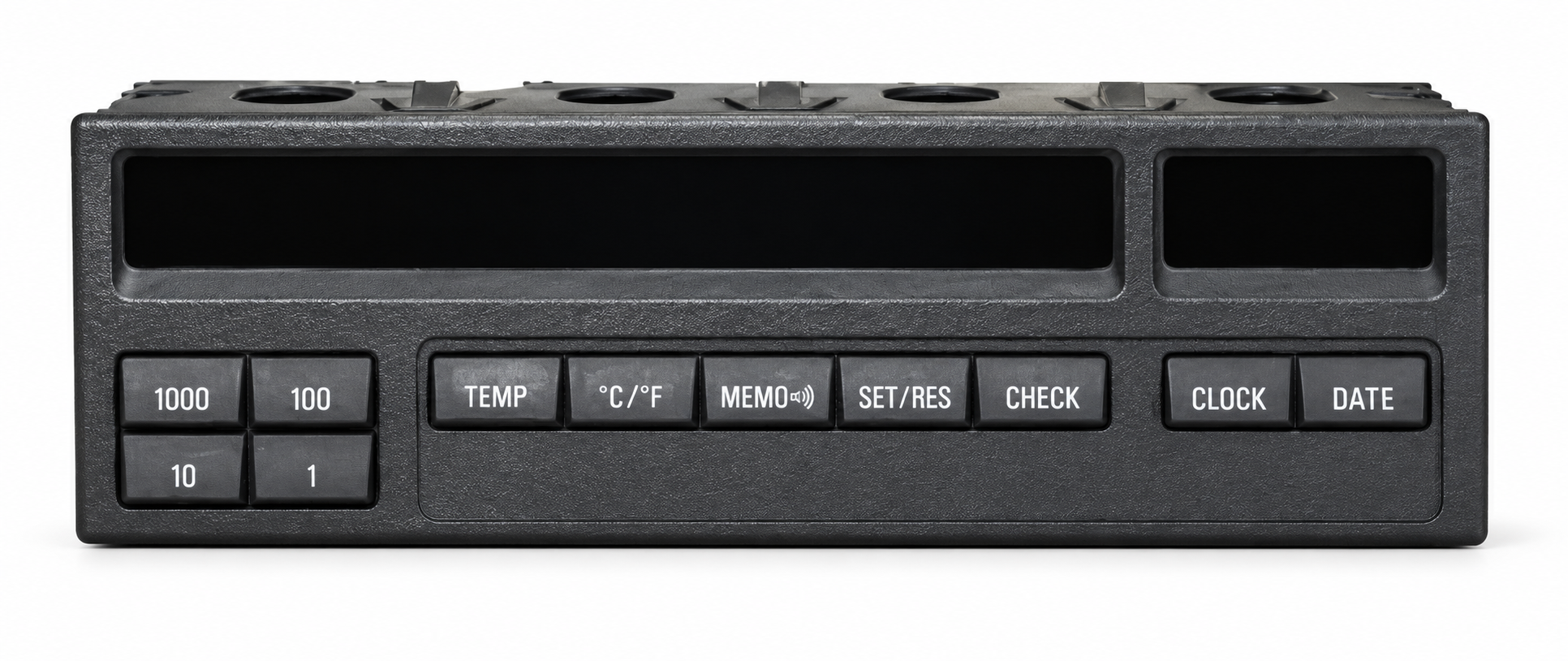

Professionally refurbished BMW E36 11-button On-Board Computer and Check Control display. Each unit is serviced and tested to restore a bright, readable display and dependable button operation.

This complete replacement unit is ideal for an E36 with missing display segments, dark pixels, faded illumination, or non-responsive buttons. It retains the factory appearance and original dashboard fit.

𝗣𝗮𝗿𝘁 𝗡𝘂𝗯𝗲𝗿𝘀

• BMW: 62138357666
• Formatted BMW number: 62 13 8 357 666
• Superseded by: 62136913865
• Formatted supersession: 62 13 6 913 865
• Earlier reference: 62131387892
• Manufacturer: BORG
• BORG reference: 95110-L03

Match the BMW number, button arrangement, connector, and functions to the original unit before ordering.

𝗙𝘂𝗻𝗰𝘁𝗶𝗼𝗻𝘀

Depending on vehicle equipment, the unit supports:

• Digital clock
• Calendar date
• Memo reminder
• Outside-temperature display
• Check Control vehicle messages
• Miles and kilometers selection
• Celsius and Fahrenheit selection
• Numerical entry buttons
• Set and reset functions
• Display-language configuration

Available information depends on the sensors, Check Control system, wiring, and equipment originally installed in the vehicle.

𝗩𝗲𝗵𝗶𝗰𝗹𝗲 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

Designed for selected 1992–1999 BMW E36 vehicles originally equipped with the matching 11-button OBC/Check Control unit.

Documented applications include:

• BMW 318i Sedan
• BMW 318i Convertible
• BMW 318is Coupe
• BMW 320i Sedan
• BMW 323i Coupe
• BMW 323i Convertible
• BMW 323is Coupe
• BMW 325i Sedan
• BMW 325i Convertible
• BMW 325is Coupe
• BMW 328i Sedan
• BMW 328i Convertible
• BMW 328is Coupe
• BMW M3 Coupe
• BMW M3 Sedan
• BMW M3 Convertible

Body styles, engines, model years, languages, and equipment availability differ by market.

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗡𝗼𝘁𝗶𝗰𝗲

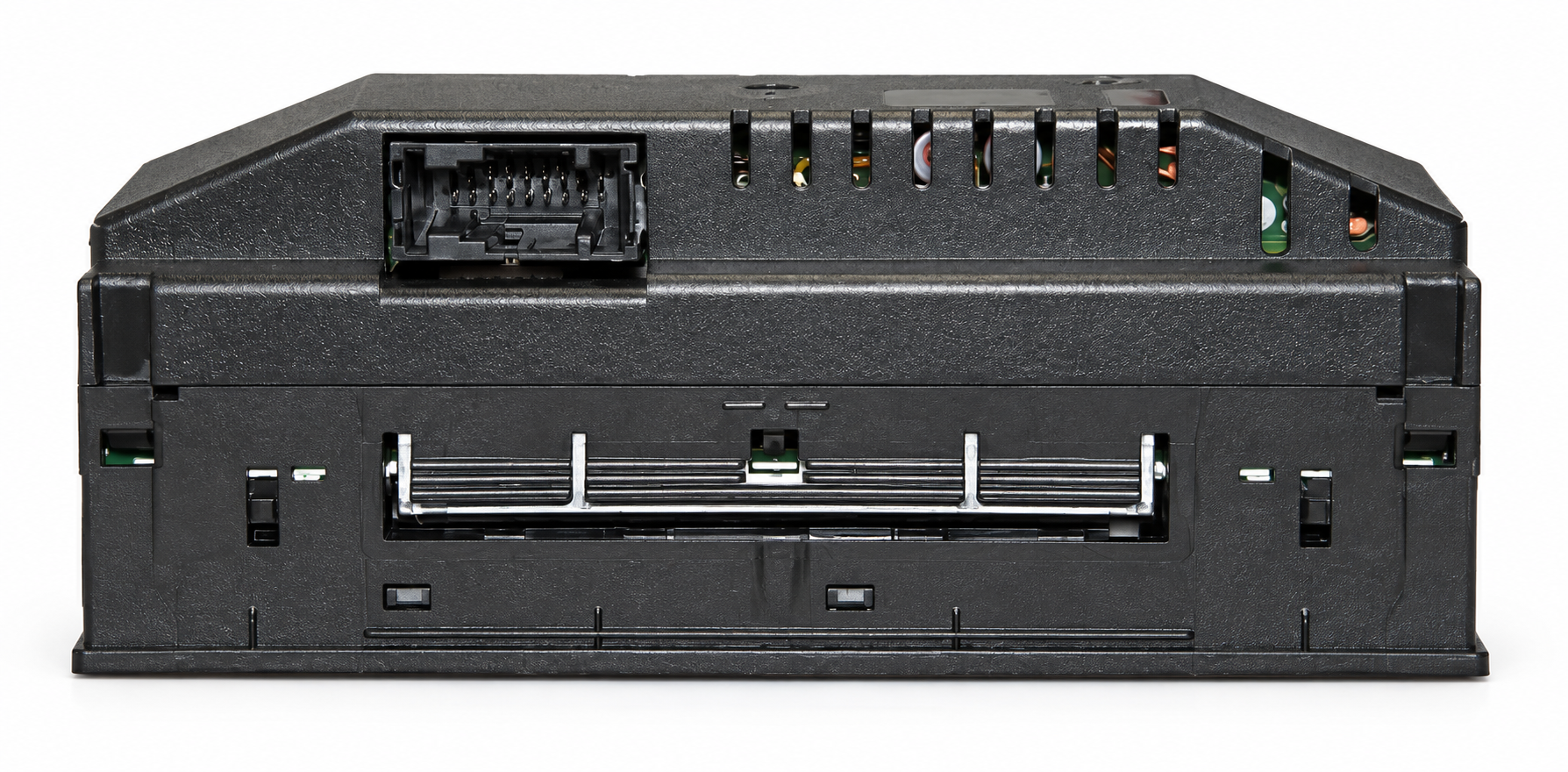

This unit is intended as a replacement for an existing E36 11-button OBC using the matching black 18-pin X1070 connector.

Before ordering, confirm:

• The original unit has the same button arrangement
• The original connector is the black X1070-style connector
• The dashboard opening and housing shape match
• The BMW part number is identical or listed as interchangeable
• The vehicle already has the required Check Control wiring and sensors

This is not automatically interchangeable with:

• Analog dashboard clocks
• Basic digital clock and temperature displays
• 7-button or 8-button displays
• Full 18-button OBC units
• E31 8-Series MID/OBC assemblies

Converting from a different display type may require additional wiring, connectors, sensors, a gong, Check Control components, and vehicle-specific configuration. An 18-button OBC additionally uses a white X1071 connector that this unit does not require.

𝗖𝗼𝗱𝗶𝗻𝗴 𝗔𝗻𝗱 𝗖𝗼𝗻𝗳𝗶𝗴𝘂𝗿𝗮𝘁𝗶𝗼𝗻

A same-number replacement in an already compatible vehicle may operate after installation. However, language, regional units, temperature units, or vehicle-specific configuration may need to be adjusted.

Because BMW identifies this component family as an uncoded input unit, professional coding or configuration may be required when the replacement unit’s existing settings do not match the vehicle.

𝗣𝗿𝗼𝗯𝗹𝗲𝗺𝘀 𝗜𝘁 𝗠𝗮𝘆 𝗖𝗼𝗿𝗿𝗲𝗰𝘁

• Missing or incomplete LCD segments/pixel loss failure
• Dark or difficult-to-read display
• Intermittent display operation
• Non-responsive or sticking buttons
• Dim internal illumination
• Internal OBC electronic failure
• An existing unit that no longer powers on, when the unit itself is defective

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

• Switch off the ignition
• Disconnect the battery according to BMW service procedures
• Remove the lower storage tray as required
• Release the existing OBC from the dashboard
• Disconnect the black wiring connector
• Compare the original and replacement units
• Connect the wiring harness securely
• Install the replacement unit and test every function
• Configure language and measurement units if required

Professional installation or BMW-compatible diagnostic support is recommended if coding, wiring repair, or a retrofit is required.

𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻

• Professionally refurbished original BMW/BORG component
• Fully tested before shipment
• Display restored for clear readability
• Buttons tested for proper operation
• Normal light cosmetic wear may be present
• Stock photographs may represent the available inventory

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

• One refurbished BMW E36 11-button OBC/Check Control unit
• Wiring harness, connectors, temperature sensor, gong, mounting hardware and conversion components are not included unless pictured
