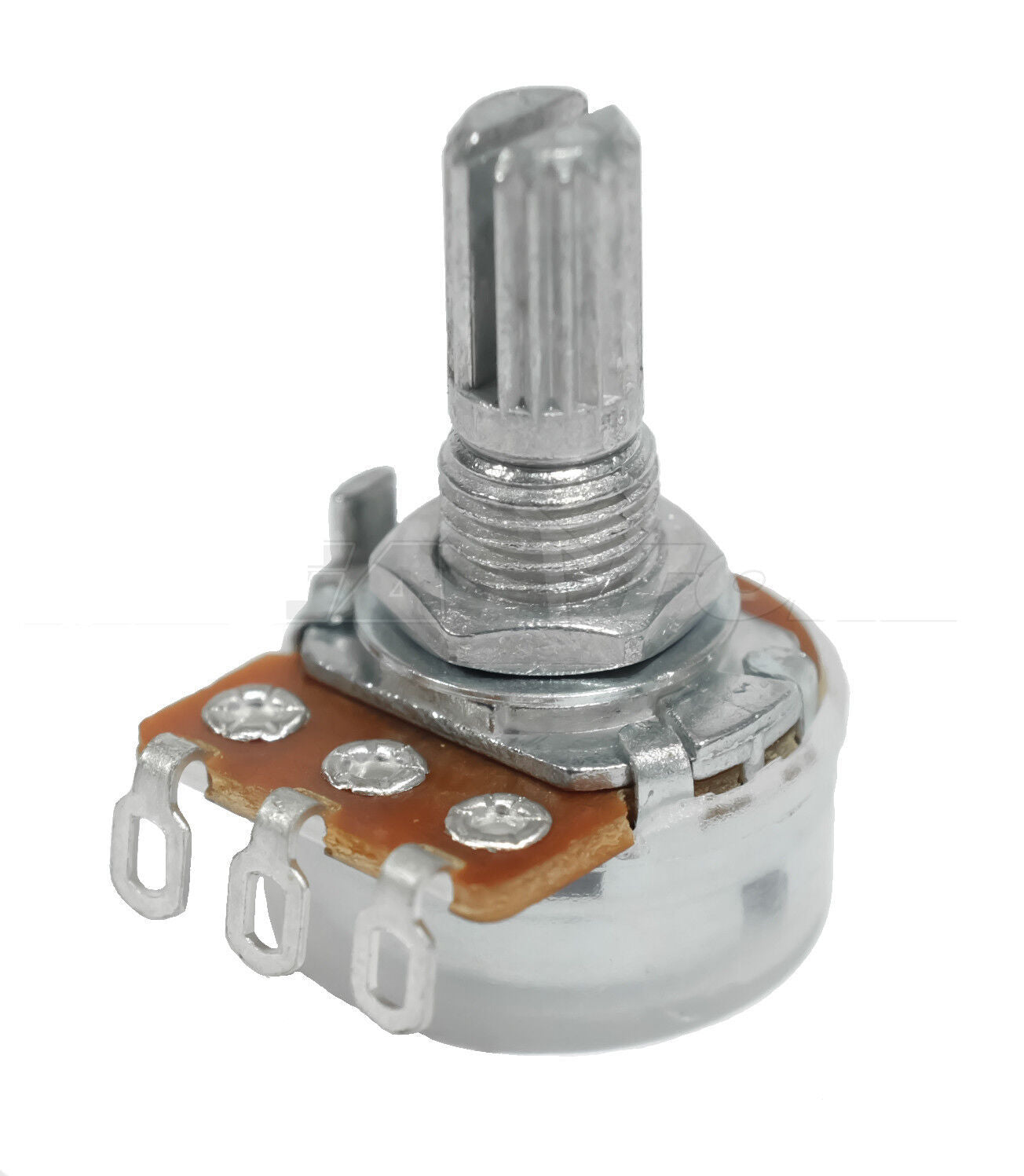

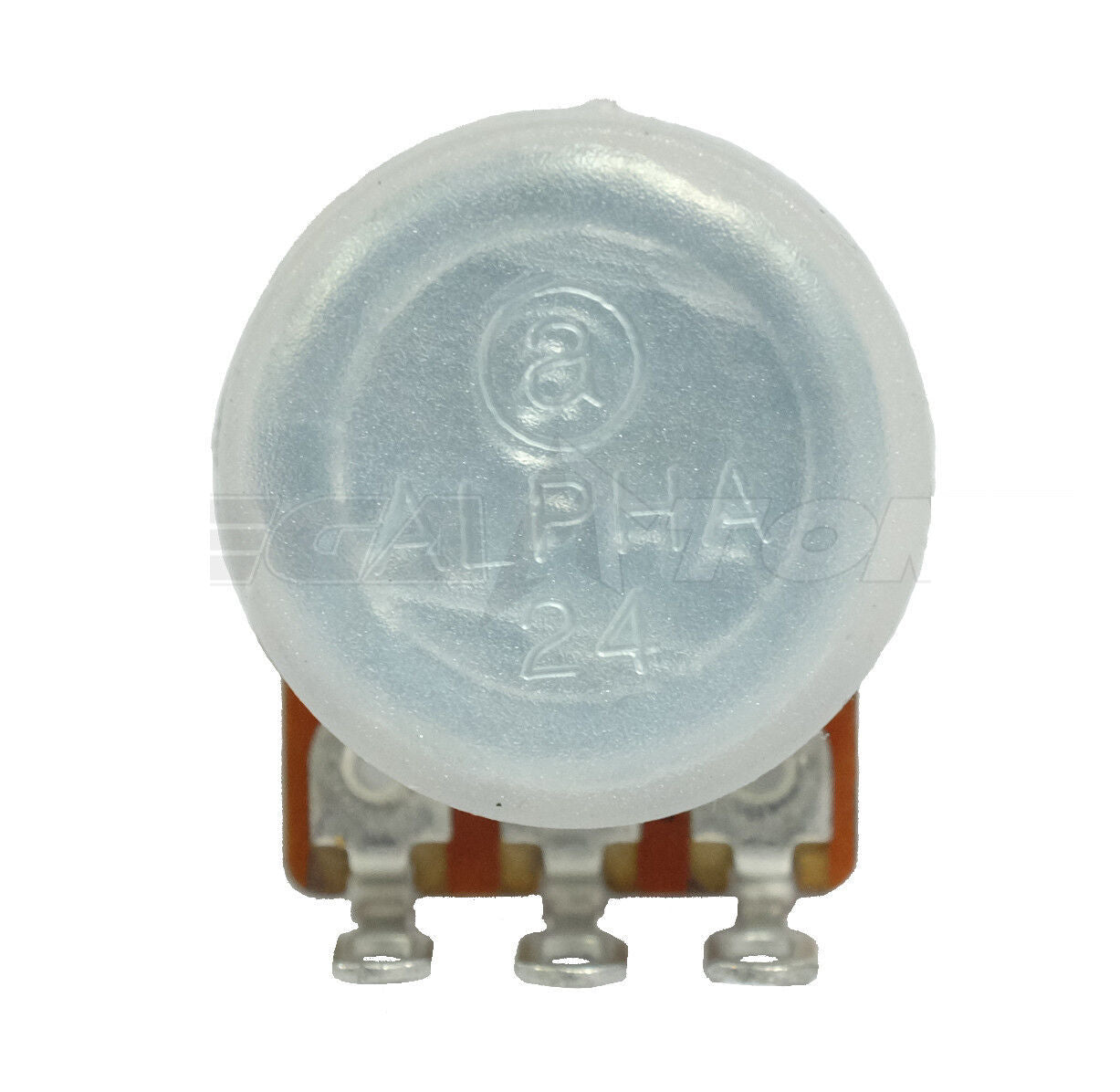

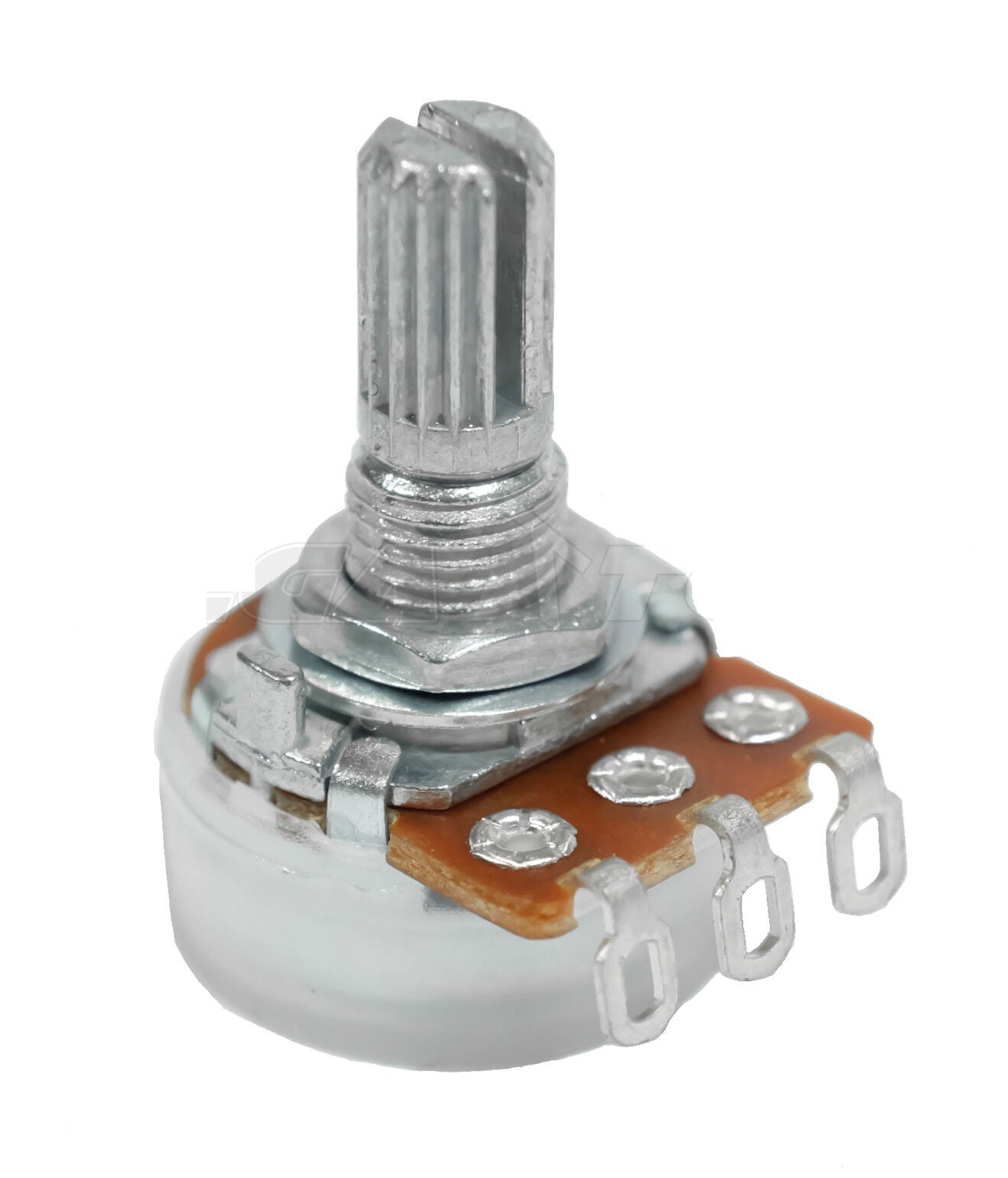

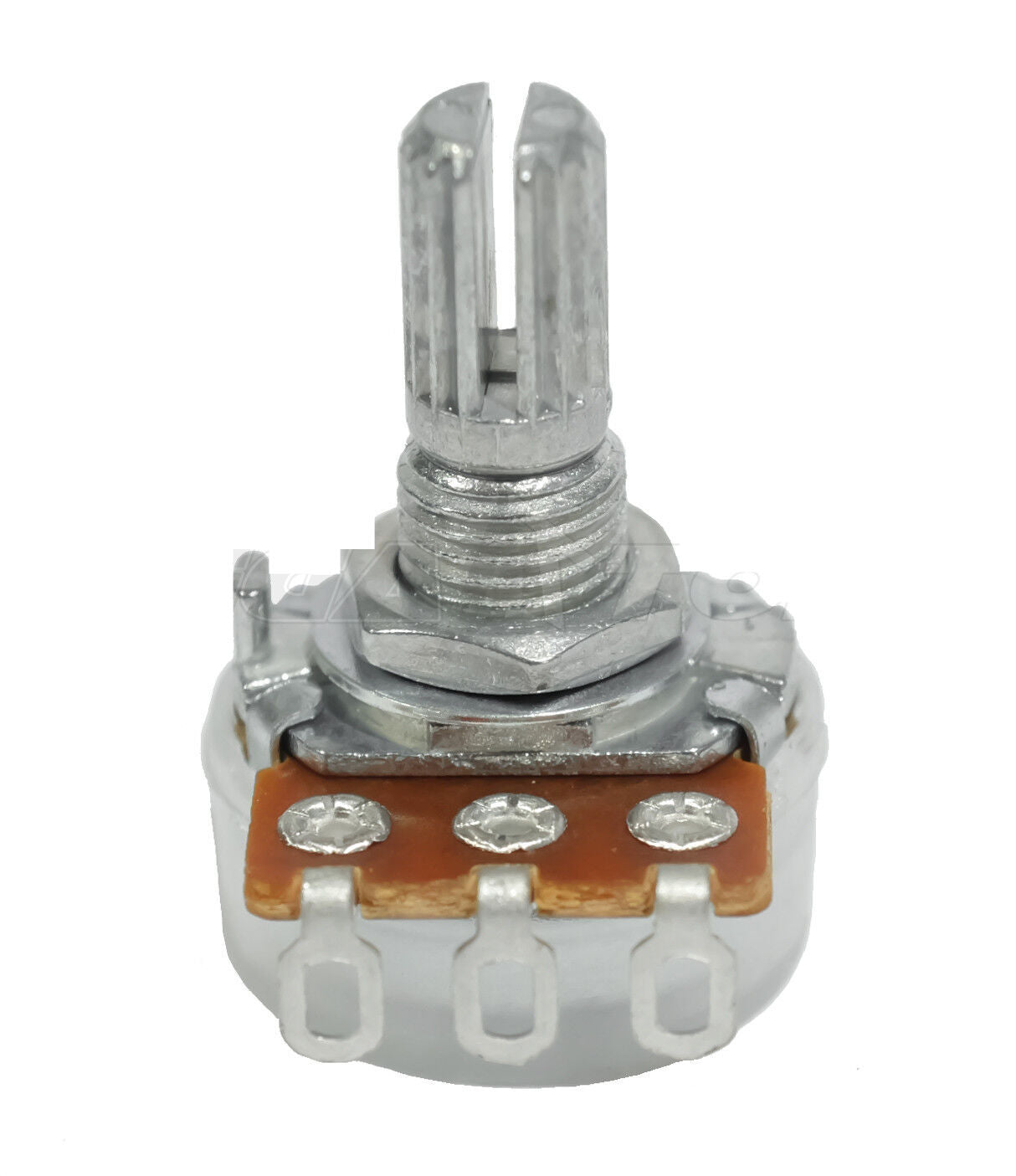

25K Ohm Linear Potentiometer with Dust Seal Alpha B25K
. New Alpha B25K linear potentiometer with solder-lug terminals, a knurled split shaft and a protective dust seal. Suitable for compatible guitars, effects pedals, amplifiers and DIY electronics.
Product Details
- Resistance: 25K ohms
- Taper: Linear / B25K
- Power rating: 0.5W
- Body diameter: 16mm
- Shaft: 10mm long × 6mm diameter
- Mounting-hole requirement: Approximately 7.5mm
- Terminals: Solder lug
- Shaft style: Knurled, split and threaded
- Condition: New
Fitment and Compatibility
This is a general-purpose component. Confirm the 25K linear value, body size, shaft dimensions, terminal layout and available mounting clearance before ordering. It accepts many compatible push-on knobs; a knob is not included.
Part Number Information
Electrical value/reference: B25K. No separate manufacturer catalog number is provided in the source listing.
Package Contents
Includes one Alpha-brand B25K potentiometer with dust seal and mounting hardware shown in the photographs.
Installation Notes
Soldering is required. Disconnect equipment from power and avoid prolonged heat at the terminals during installation.
