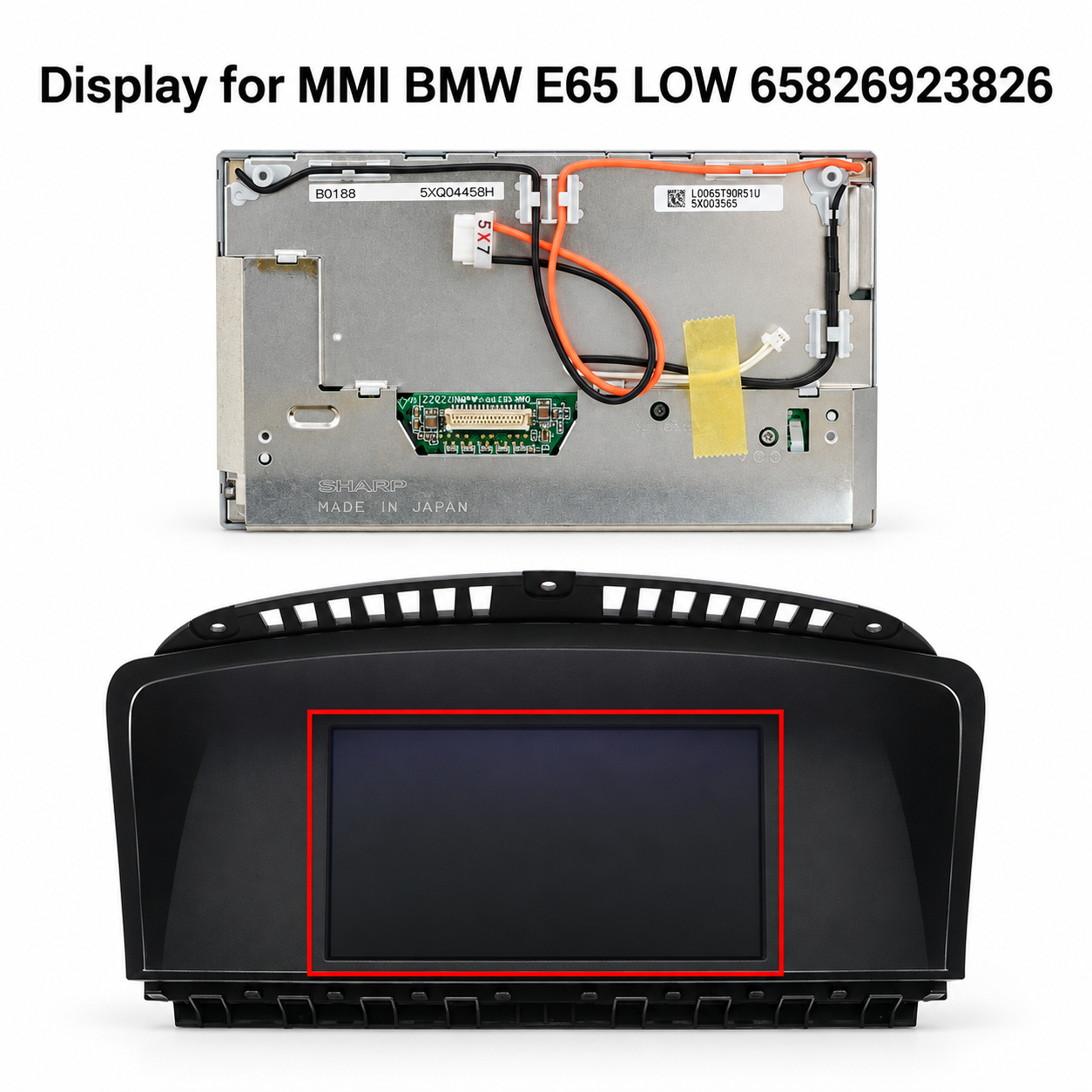

6.5in LCD Display for 2002-2005 BMW E65 E66 E67 Low MMI LQ065T9DR51U

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

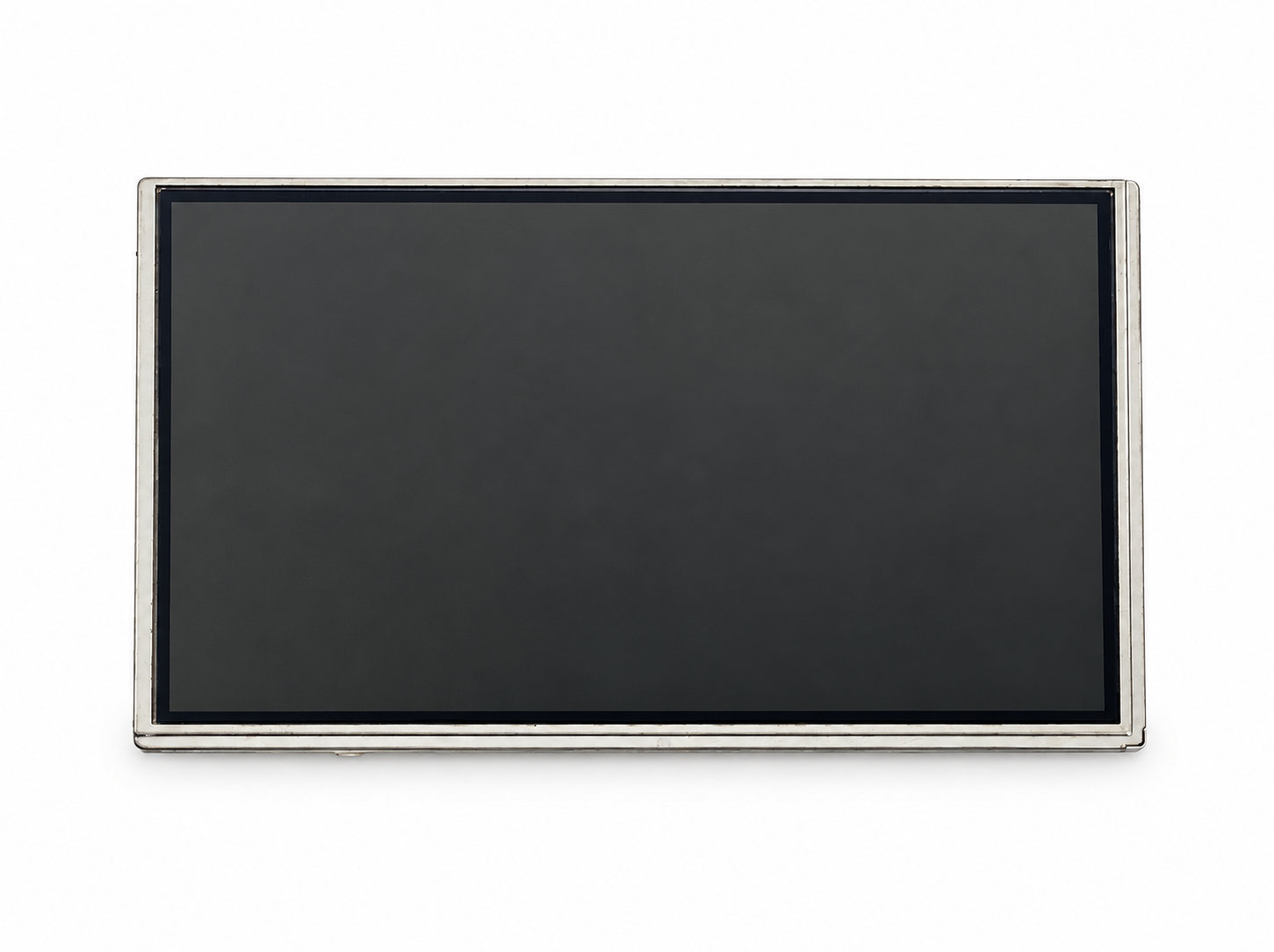

New 6.5-inch TFT LCD replacement panel for select 2002–2005 BMW 7-Series E65, E66 and E67 factory Low MMI control displays.

This is the internal LCD module used to repair an existing Harman/Becker dashboard monitor. It is not a complete dashboard monitor, navigation computer, MMI control unit, housing or touchscreen assembly.

The replacement corresponds to LCD reference LQ065T9DR51U. Compare the part number, dimensions, electrical connections and photographs with the original screen before ordering.

𝗦𝗰𝗿𝗲𝗲𝗻 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲

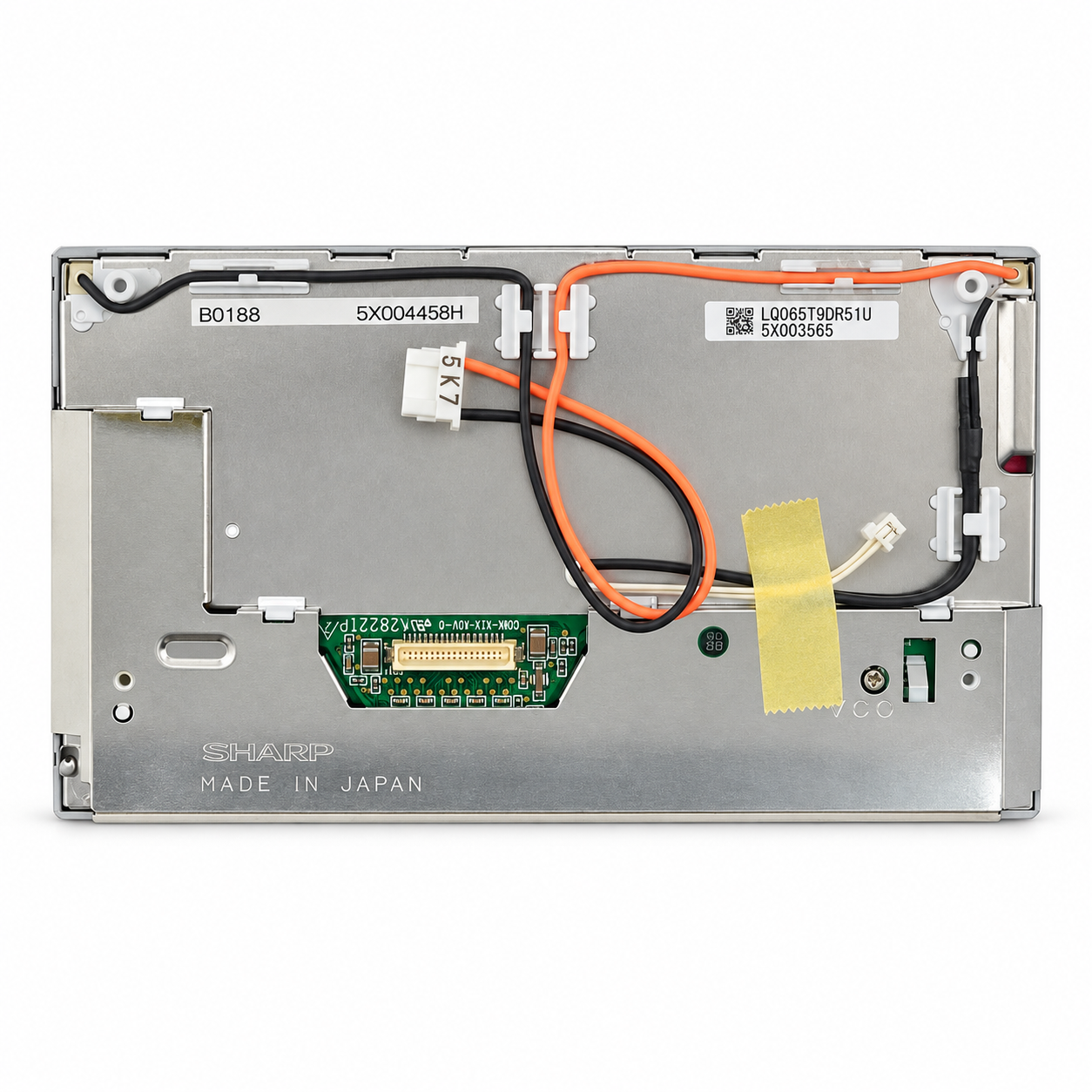

• LCD reference: LQ065T9DR51U
• Original manufacturer reference: Sharp LQ065T9DR51U
• Display type: TFT LCD
• Screen size: 6.5 inches
• Aspect ratio: 16:9
• Approximate visible area: 144 × 79.5mm
• Original-system resolution: 400 × 240 pixels
• Touchscreen: No

This product should only be advertised as a genuine Sharp component if the supplied screen carries the corresponding Sharp markings.

𝗕𝗠𝗪 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲 𝗡𝘂𝗺𝗯𝗲𝗿𝘀

• 65 82 6 923 826
• 65 82 6 929 481
• 65 82 6 933 164
• 65826923826
• 65826929481
• 65826933164

These BMW numbers identify compatible monitor assemblies and are provided for cross-reference purposes. They are not necessarily printed directly on the replacement LCD panel.

𝗕𝗠𝗪 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

Compatible with select 2002–2005 BMW 7-Series vehicles equipped with the factory 6.5-inch Low MMI Harman/Becker control display:

• BMW 7-Series E65 short-wheelbase sedan
• BMW 7-Series E66 long-wheelbase sedan
• BMW 7-Series E67 armored sedan

Depending on market and equipment, potential applications include:

• BMW 730i and 730Li
• BMW 730d and 730Ld
• BMW 735i and 735Li
• BMW 740d and 740Ld
• BMW 745i and 745Li
• BMW 760i and 760Li

Model and engine designation alone do not confirm compatibility. The vehicle must have the correct 6.5-inch Low MMI display and matching original screen or monitor number.

𝗔𝗱𝗱𝗶𝘁𝗶𝗼𝗻𝗮𝗹 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻

The same LQ065T9DR51U LCD is also documented for:

• 2003–2004 Porsche Cayenne equipped with the factory PCM 2 navigation monitor

For Porsche applications, compare screen number LQ065T9DR51U and monitor reference 7L5 035 191G.

Not suitable for the later DVD-based PCM 2.1 system.

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗡𝗼𝘁𝗲𝘀

• Fits the 6.5-inch Low MMI display only.
• Does not fit the BMW 8.8-inch widescreen monitor.
• Does not fit every E65, E66 or E67 produced through 2009.
• Does not fit later display assemblies merely because their exterior housings appear similar.
• Does not fit the rear-seat entertainment display unless its internal LCD number independently matches.
• Does not convert a 6.5-inch system to an 8.8-inch system.
• Does not add navigation, touchscreen operation or updated software.
• Confirm the original LCD number before disassembling the monitor.
• VIN verification alone may identify the monitor assembly but may not identify the internal LCD manufacturer or revision.

𝗖𝗼𝗺𝗺𝗼𝗻 𝗦𝘆𝗺𝗽𝘁𝗼𝗺𝘀 𝗧𝗵𝗶𝘀 𝗟𝗖𝗗 𝗠𝗮𝘆 𝗥𝗲𝗽𝗮𝗶𝗿

Replacement may be appropriate when the existing LCD has:

• Cracked or physically damaged glass
• Permanent horizontal or vertical lines
• Large black or discolored areas
• Dead or stuck pixels
• Color distortion
• Image fading or uneven contrast
• Internal liquid-crystal damage
• An image that is present but visually damaged

The monitor should be professionally diagnosed before ordering.

𝗪𝗵𝗮𝘁 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗙𝗶𝘅

Replacing the LCD will not correct faults caused by:

• A failed MMI or navigation computer
• Loss of vehicle power or ground
• Damaged monitor wiring
• Failed video or communication cables
• Defective display control electronics
• Backlight power-supply or inverter faults outside the LCD
• Water-damaged circuit boards
• Software or coding problems
• A completely different display system
• Damage to the exterior housing, bezel or mounting frame

A blank screen does not automatically indicate a failed LCD panel.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

Installation requires removal and disassembly of the factory control display.

• Disconnect the vehicle battery according to the BMW service procedure.
• Use an anti-static work surface and suitable ESD protection.
• Remove the monitor without damaging the dashboard trim or connectors.
• Photograph cable routing and connector orientation before disassembly.
• Handle flexible ribbon cables and connector locks carefully.
• Never pull a ribbon cable without releasing its locking connector.
• Avoid touching the visible LCD surface or internal electronic contacts.
• Transfer brackets, insulation, shielding and mounting components from the original assembly as required.
• Test the display before completely reinstalling the dashboard trim.

Professional automotive-electronics installation is strongly recommended.

𝗖𝗼𝗱𝗶𝗻𝗴 𝗡𝗼𝘁𝗲

Replacing only the internal LCD with an identical compatible panel normally does not change the vehicle’s coding configuration.

Coding, programming or additional diagnosis may still be required if the complete monitor assembly, MMI computer or other system components are replaced.

𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻

• New replacement LCD module
• Country of origin stated by the seller: China
• Inspect the screen immediately after delivery
• Do not remove protective films until fitment has been confirmed
• Test the panel before final dashboard reassembly

𝗪𝗮𝗿𝗿𝗮𝗻𝘁𝘆

The referenced listing advertises a one-year warranty. Coverage, installation requirements and exclusions are controlled by the seller. Physical damage, torn ribbon cables, incorrect installation or use in an incompatible monitor may not be covered.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

• One 6.5-inch LQ065T9DR51U-compatible LCD display module

The dashboard housing, bezel, MMI computer, navigation computer, radio, wiring, mounting hardware and touchscreen are not included.
