577.75436 Camshaft Speed Sensor Ford Volvo Paccar MX13 1607436PE 1607436 0281002676

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

New aftermarket engine-position sensor for select DAF, Temsa and Solaris commercial vehicles.

This sensor monitors camshaft position or engine rotational speed and sends the resulting signal to the engine control module. The control module uses this information to coordinate fuel injection and engine timing.

Commercial-parts catalogs primarily identify this component as a camshaft-position or RPM sensor. Some catalogs describe it as a crankshaft impulse sensor. Always match the OE number, connector and physical design with the original sensor.

Part Numbers

• DAF OE number: 1607436
• DAF replacement number: 2326770
• PACCAR reference: 2326770PE
• Bosch reference: 0 281 002 676
• Bosch condensed number: 0281002676
• Solaris reference: 0120.302.838
• Temsa reference: 1607436
• Cojali reference: 2260494
• DT Spare Parts reference: 5.44035
• Febi Bilstein reference: 183901
• Sampa reference: 093.253
• Herth+Buss reference: 70630900
• NRF reference: 754070

• 577.75436 - Camshaft Speed Sensor Paccar MX13
• Applications: Paccar, Kenworth, Peterbilt
• OEM Reference: 1607436PE, 1607436, 0 281 002 676, 0281002676

Part numbers are provided for identification and cross-reference purposes. This listing is for an aftermarket replacement component and should not be described as a genuine Bosch, DAF or PACCAR part unless the supplied item and packaging are marked accordingly.

Fitment:

• Factory-Spec Direct Fit




  Engineered as a direct replacement for factory part #1607436 & #0281002676, with full cross-compatibility for 1607436A, 0281002675, 0281002677. Precision-matched to original factory mounting, electrical, and signal specs for a seamless fit.

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

• Product type: Camshaft-position or engine-speed sensor

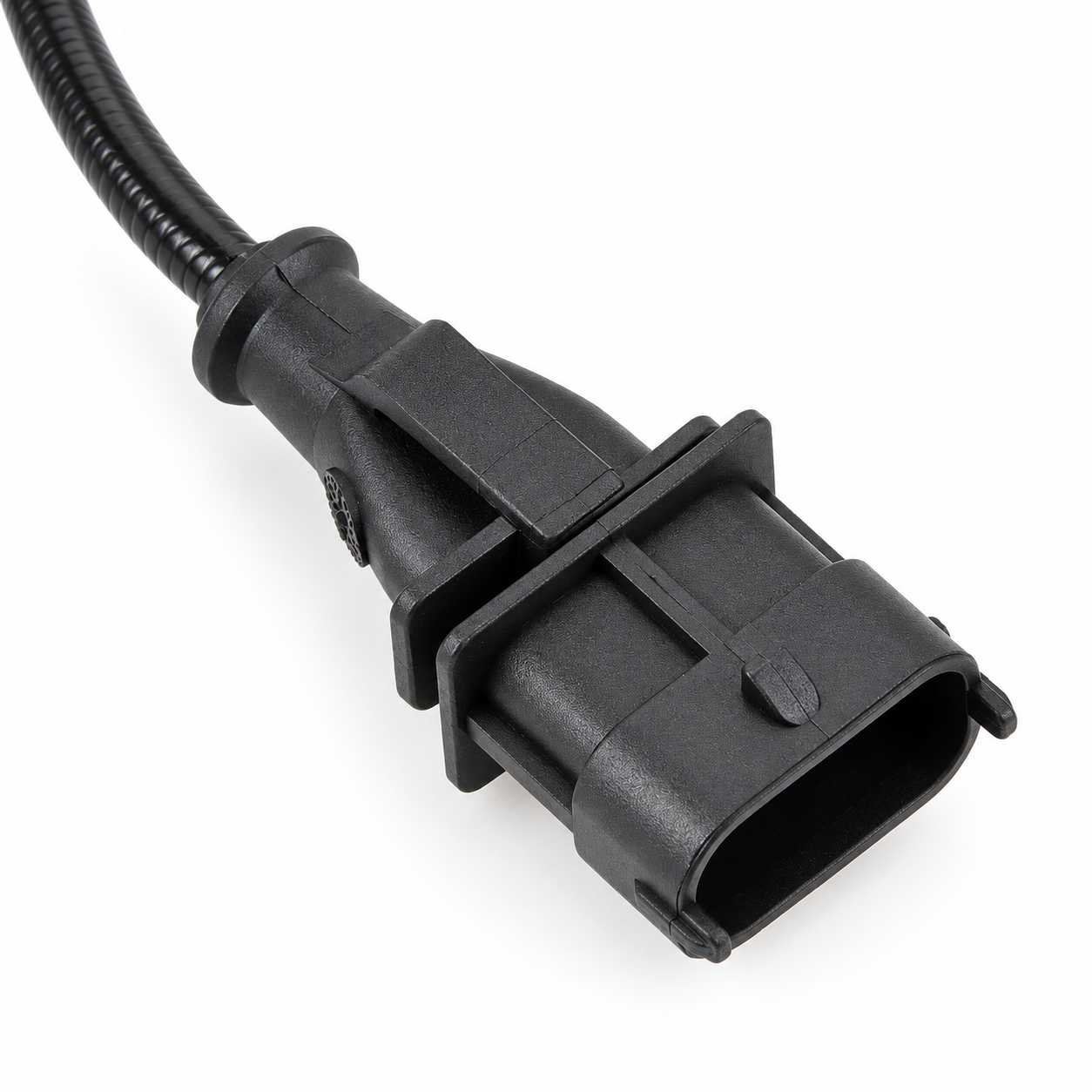

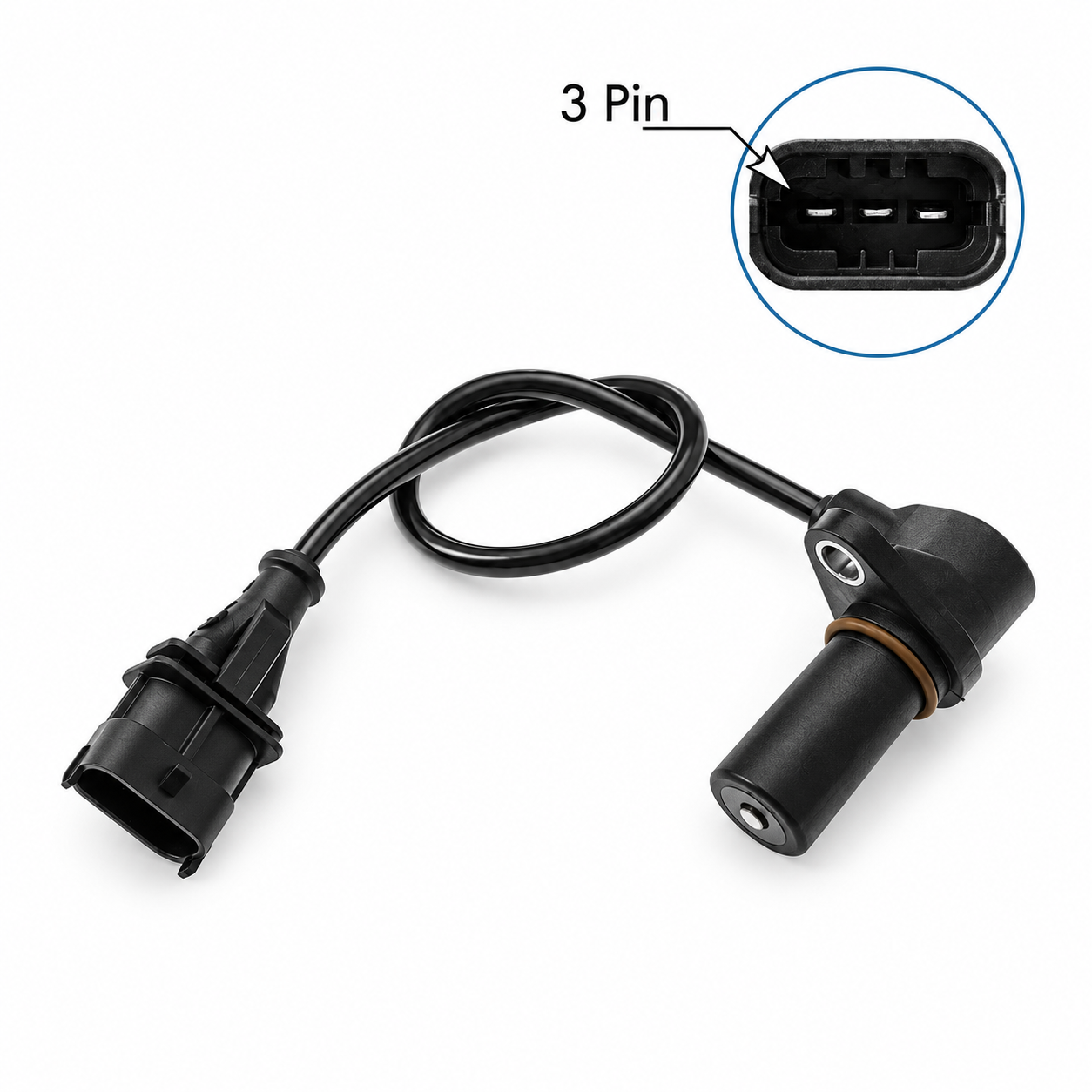

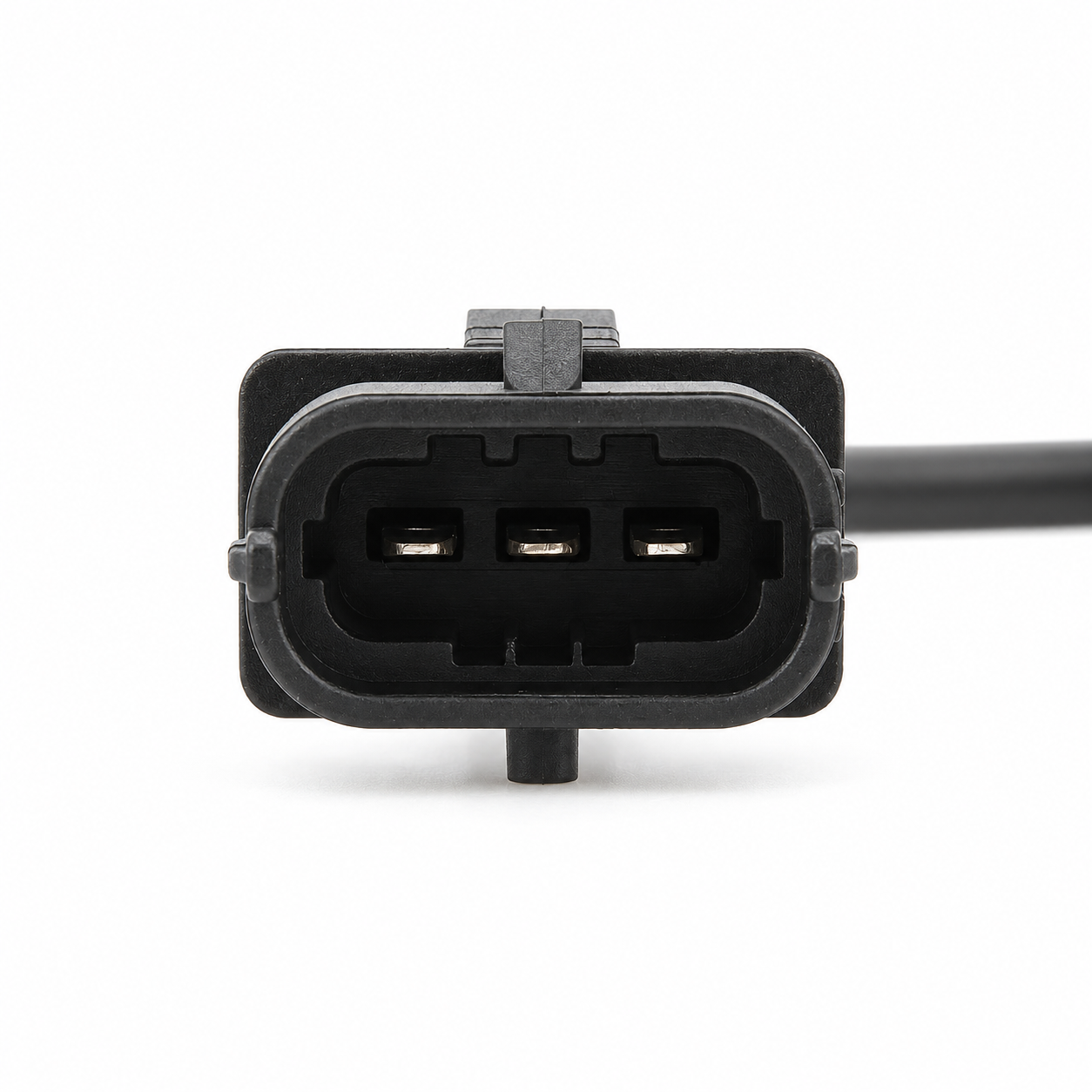

• Electrical connection: Three-pin plug
• Installation type: Direct replacement
• Vehicle class: Heavy-duty truck and bus
• Condition: New
• Quantity: One sensor

𝗗𝗔𝗙 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

Cataloged for select configurations of the following DAF commercial vehicles:

• DAF CF
• DAF CF85
• DAF CF85 II
• DAF CF85 IV
• DAF CF Euro 6
• DAF CF with MX-11 engine
• DAF CF with MX-13 engine
• DAF XF95
• DAF XF105
• DAF XF106
• DAF XF Euro 6
• DAF SB Series

The suggested title emphasizes the commonly cataloged 2002–2014 XF95 and XF105 applications. Production dates, engine configurations and installed sensor numbers can vary.

𝗧𝗲𝗺𝘀𝗮 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

Cataloged for certain configurations of:

• Temsa Safir
• Temsa Safir Plus
• Temsa HD Series
• Temsa LD Series
• Temsa Maraton

Verify that the original sensor carries Temsa number 1607436 or Bosch number 0 281 002 676.

𝗔𝗱𝗱𝗶𝘁𝗶𝗼𝗻𝗮𝗹 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

• Select Solaris buses using OE number 0120.302.838
• Select Tatra Phoenix applications using the corresponding Bosch or DAF reference

Vehicle model alone is not sufficient to confirm compatibility.

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗡𝗼𝘁𝗲𝘀

• This sensor is not verified for Ford Transit, Ford Ranger or Volvo XC90 applications.
• Toyota number 90919-05085 should not be included as an interchange for this DAF/Temsa sensor without additional manufacturer documentation.
• Compare OE number 1607436 or 2326770 with the removed sensor.
• Confirm the three-pin connector, cable arrangement, mounting point and sensor-tip dimensions.
• Different engine-position sensors can appear similar but produce different electrical signals.
• Do not order solely by vehicle model or engine displacement.
• VIN-based verification through a DAF, Temsa or commercial-vehicle parts catalog is recommended.

𝗖𝗼𝗺𝗺𝗼𝗻 𝗦𝘆𝗺𝗽𝘁𝗼𝗺𝘀 𝗢𝗳 𝗔 𝗙𝗮𝗶𝗹𝗲𝗱 𝗦𝗲𝗻𝘀𝗼𝗿

A defective camshaft-position or engine-speed sensor may contribute to:

• Extended cranking or difficult starting
• Intermittent no-start condition
• Engine stalling
• Rough or unstable operation
• Reduced engine power
• Irregular fuel-injection timing
• Engine warning light
• Stored camshaft-position, synchronization or engine-speed fault codes
• Intermittent operation when the engine is hot

Proper diagnosis is recommended before replacing the sensor. Similar symptoms can result from damaged wiring, a poor connector, incorrect mechanical timing, low supply voltage, control-module faults or another engine-position sensor.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

• Switch off the ignition and isolate the vehicle batteries according to the service manual.
• Inspect the wiring connector for corrosion, damaged terminals or oil contamination.
• Clean the mounting surface before installing the replacement sensor.
• Confirm that the sensor is fully seated and correctly aligned.
• Route the cable away from exhaust components, sharp edges and moving parts.
• Clear stored fault codes and confirm a valid engine-speed or position signal after installation.

Professional installation and diagnostic verification are recommended.

𝗪𝗵𝗮𝘁 𝗧𝗵𝗶𝘀 𝗣𝗮𝗿𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗙𝗶𝘅

This sensor will not correct problems caused by:

• Broken or shorted wiring
• Corroded electrical terminals
• Incorrect mechanical timing
• Damaged camshaft or crankshaft trigger components
• Faulty engine control module
• Fuel-delivery problems
• An unrelated crankshaft or camshaft sensor

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

• One aftermarket engine-position sensor

Mounting hardware, wiring harnesses and additional components are not included unless shown in the listing photographs.
