5.7-inch Resistive Touch Screen Digitizer for Korg M3

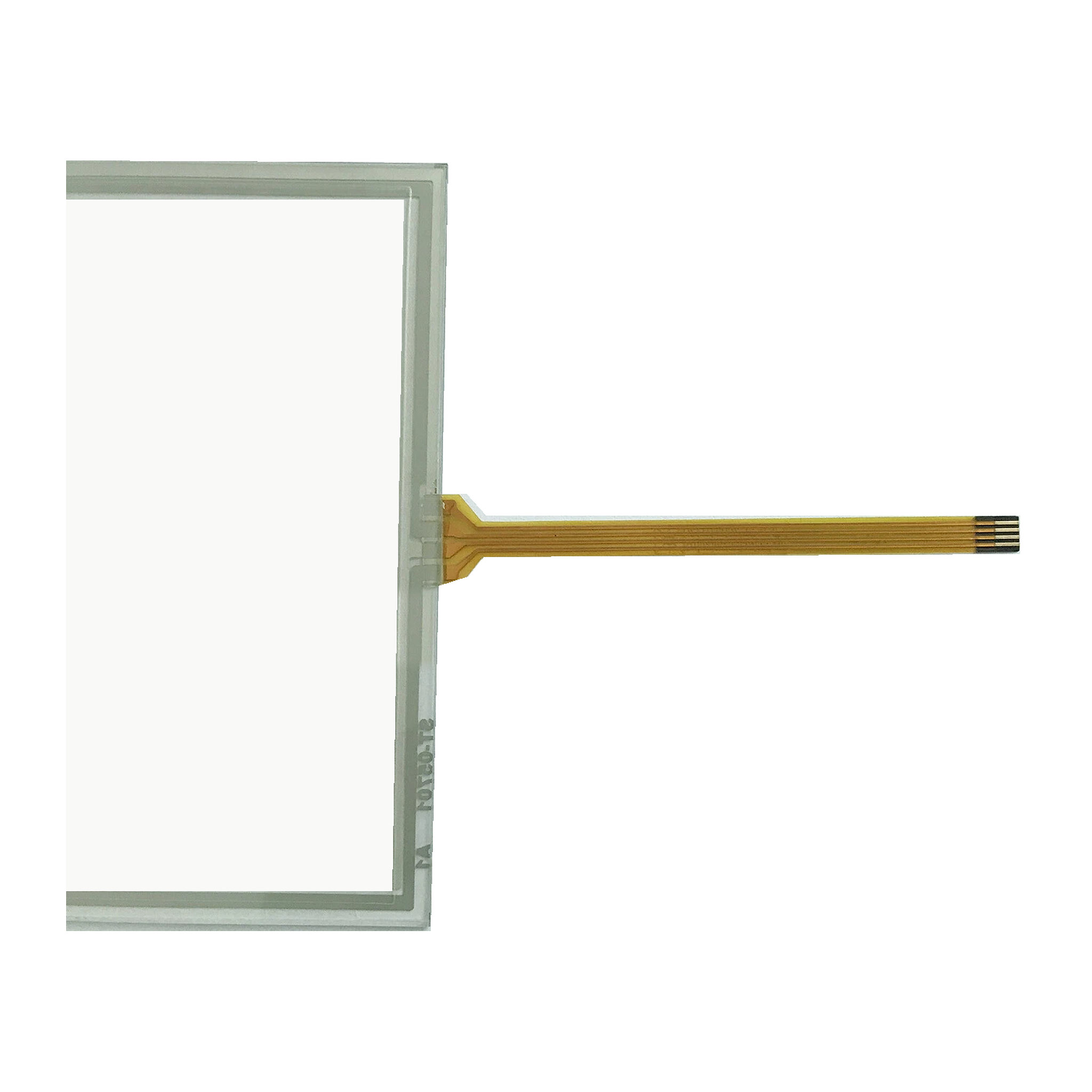

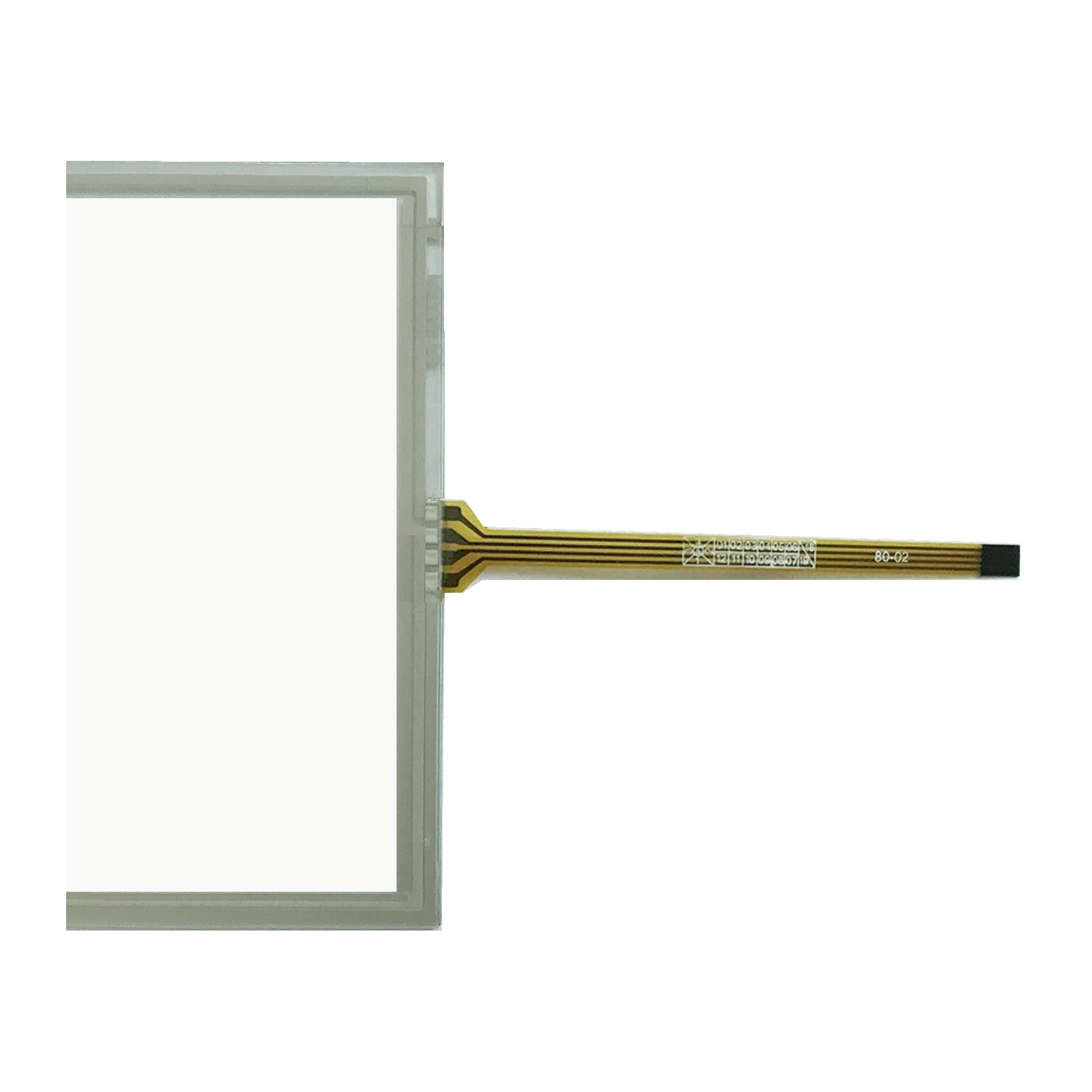

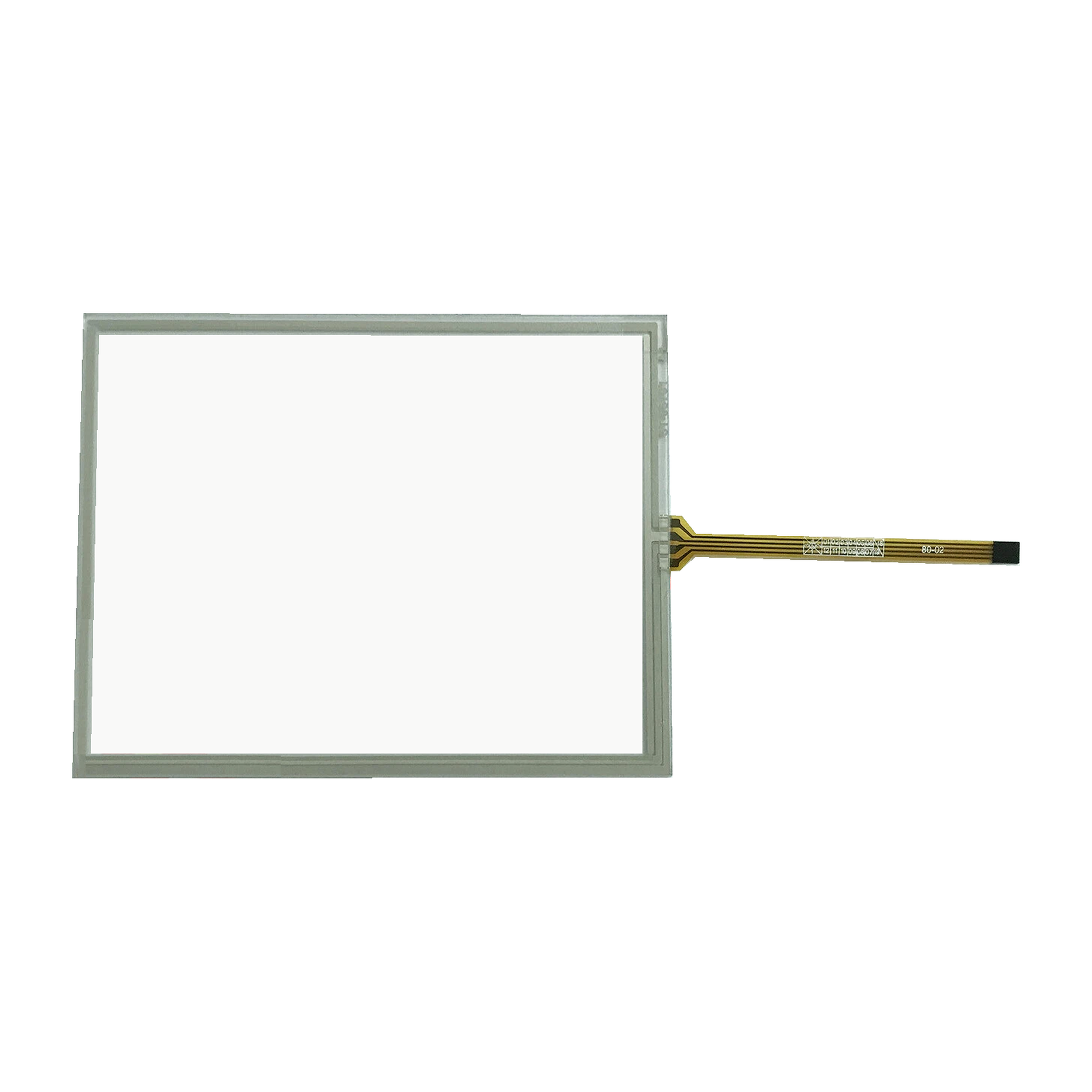

Replacement 5.7-inch four-wire resistive touch digitizer for the Korg M3. This clear touch-sensing glass is supplied with its attached ribbon cable and replaces the touch layer separately from the LCD screen.
Product details
- Application: Korg M3
- Nominal screen size: 5.7 inches
- Overall glass dimensions: Approximately 132 × 105 mm
- Ribbon length: Approximately 80 mm
- Connection: Four-contact flexible ribbon
- Condition: New
- Country of origin: China
Compatibility
Check your original glass outline, dimensions, side-exiting ribbon, contact orientation and cable length against all photographs before ordering. Hardware revisions can differ, and a matching screen diagonal alone does not confirm a fit. This is not a complete Korg display module.
Included
One touch digitizer with attached ribbon cable as pictured. LCD display, instrument, controller, housing, adhesive and installation tools are not included. Professional installation is recommended. Test touch response before securing the panel in the enclosure.
