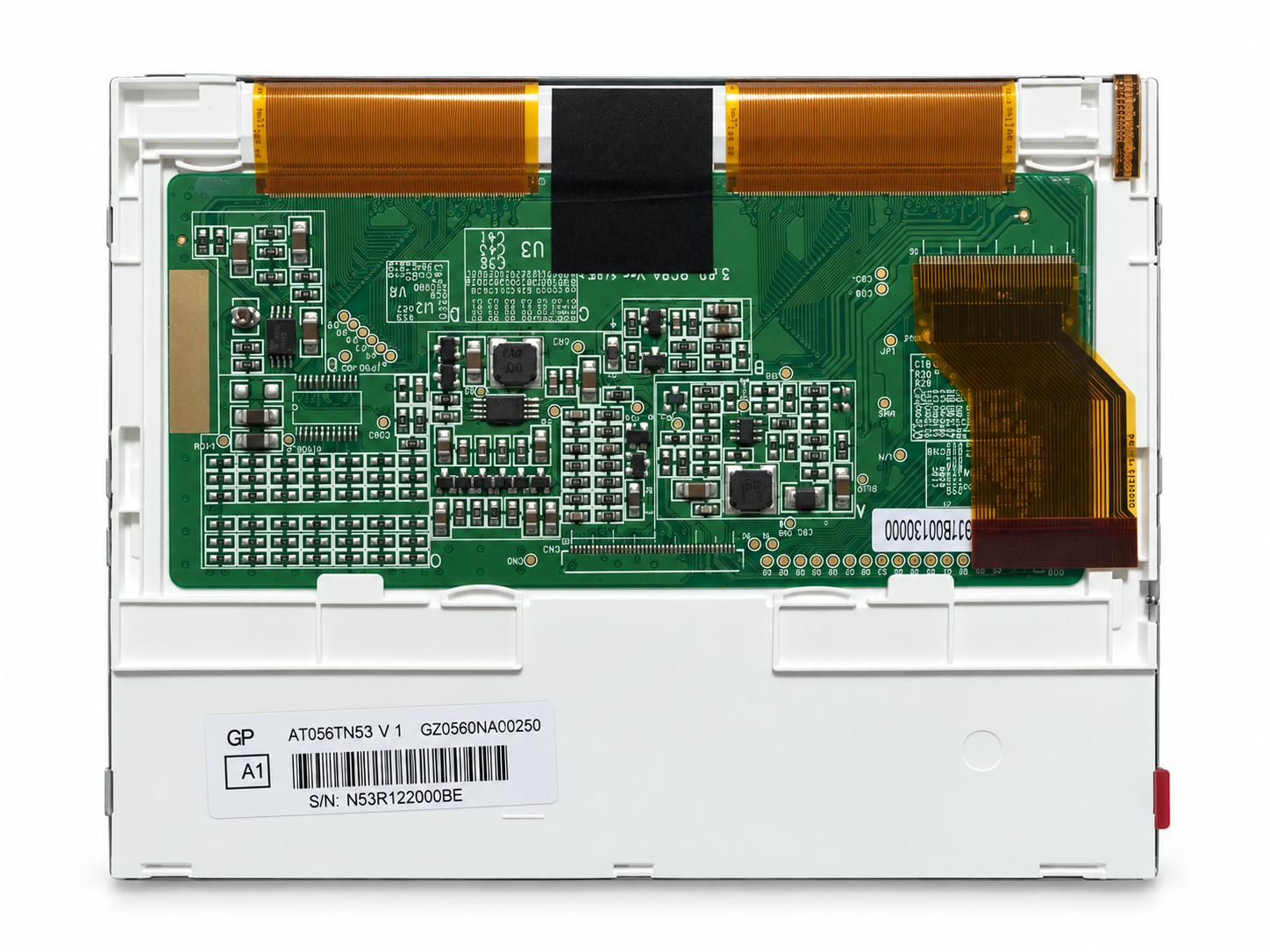

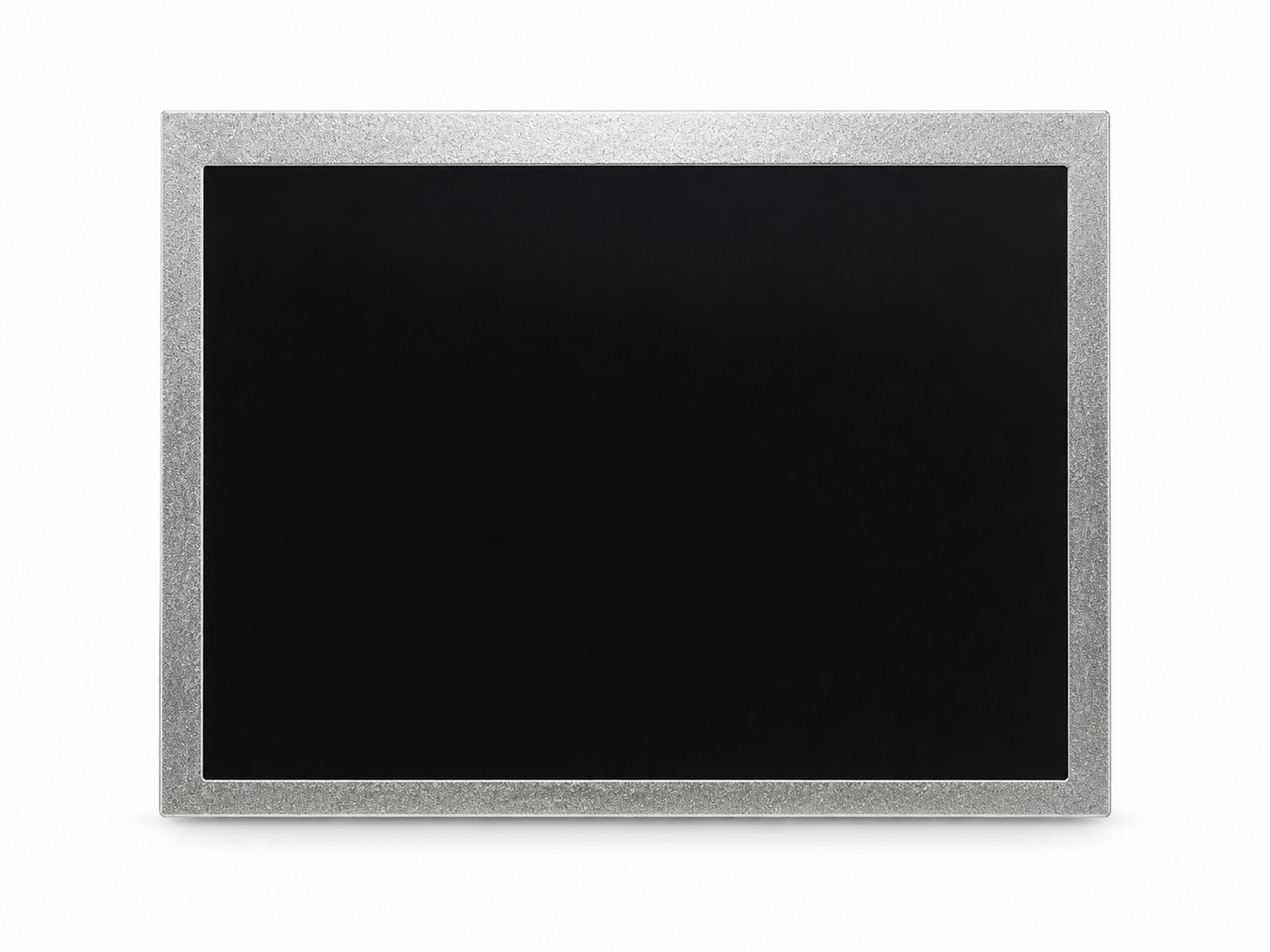

5.6" TFT LCD Display for Innolux AT056TN53 V.1 640×480 40-Pin RGB
Restore a compatible display assembly with this replacement 5.6-inch TFT LCD panel. This screen is intended to replace an Innolux AT056TN53 V.1 display with matching dimensions, connector, pin configuration and electrical specifications.
𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀
• Manufacturer: Innolux / Chimei Innolux
• Model number: AT056TN53 V.1
• Display type: a-Si TFT-LCD module
• Screen size: 5.6 inches
• Resolution: 640 × 480 pixels, VGA
• Aspect ratio: 4:3
• Display mode: TN, normally white, transmissive
• Surface treatment: Anti-glare
• Color depth: 262,000 colors, 6-bit
• Backlight: WLED with integrated LED driver
• Touchscreen: No
• Orientation: Landscape
𝗘𝗹𝗲𝗰𝘁𝗿𝗶𝗰𝗮𝗹 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
• Signal interface: Parallel RGB, single-channel 6-bit
• Connector type: 40-pin FPC
• Pin pitch: 0.5 mm
• Panel input voltage: 3.3V typical
• Backlight supply: 5.0V typical
• Refresh rate: 60 Hz
• Typical power consumption: Approximately 2.56W
𝗢𝗽𝘁𝗶𝗰𝗮𝗹 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀
• Typical brightness: 350 cd/m²
• Typical contrast ratio: 500:1
• Viewing angles: 70° left, 70° right, 50° up and 70° down
• Active display area: 112.896 × 84.672 mm
• Typical response time: 10 ms rise / 15 ms fall
𝗗𝗶𝗺𝗲𝗻𝘀𝗶𝗼𝗻𝘀
• Overall size: Approximately 126.5 × 100 × 5.7 mm
• Operating temperature: -20°C to 70°C
• Storage temperature: -30°C to 80°C
𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆
This panel is compatible with equipment originally fitted with an Innolux AT056TN53 V.1 LCD module.
It may be used in industrial controls, monitoring equipment, portable video products, photo displays and other electronic equipment when every specification matches.
𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗙𝗶𝘁𝗺𝗲𝗻𝘁 𝗡𝗼𝘁𝗲
Match the complete number AT056TN53 V.1 before purchasing. Screen size and resolution alone do not confirm compatibility.
Compare all of the following with the original panel:
• Complete model number and revision
• 40-pin connector
• Connector position and orientation
• Panel dimensions
• Mounting points
• 3.3V input
• RGB signal interface
Different revisions of a similarly numbered screen may not be interchangeable.
𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻
Professional installation is recommended. Disconnect power before installation and use appropriate electrostatic-discharge precautions. Damage caused by an incorrect connection, reversed cable or incompatible equipment is not considered a panel defect.
𝗪𝗵𝗮𝘁’𝘀 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱
• One 5.6-inch AT056TN53 V.1 TFT LCD display module
Touchscreen, controller board, cables, mounting hardware and surrounding equipment are not included unless pictured or specifically stated.
