3-Piece Instrument LCD Display Set for Ford New Holland Case IH Fiat 82014687

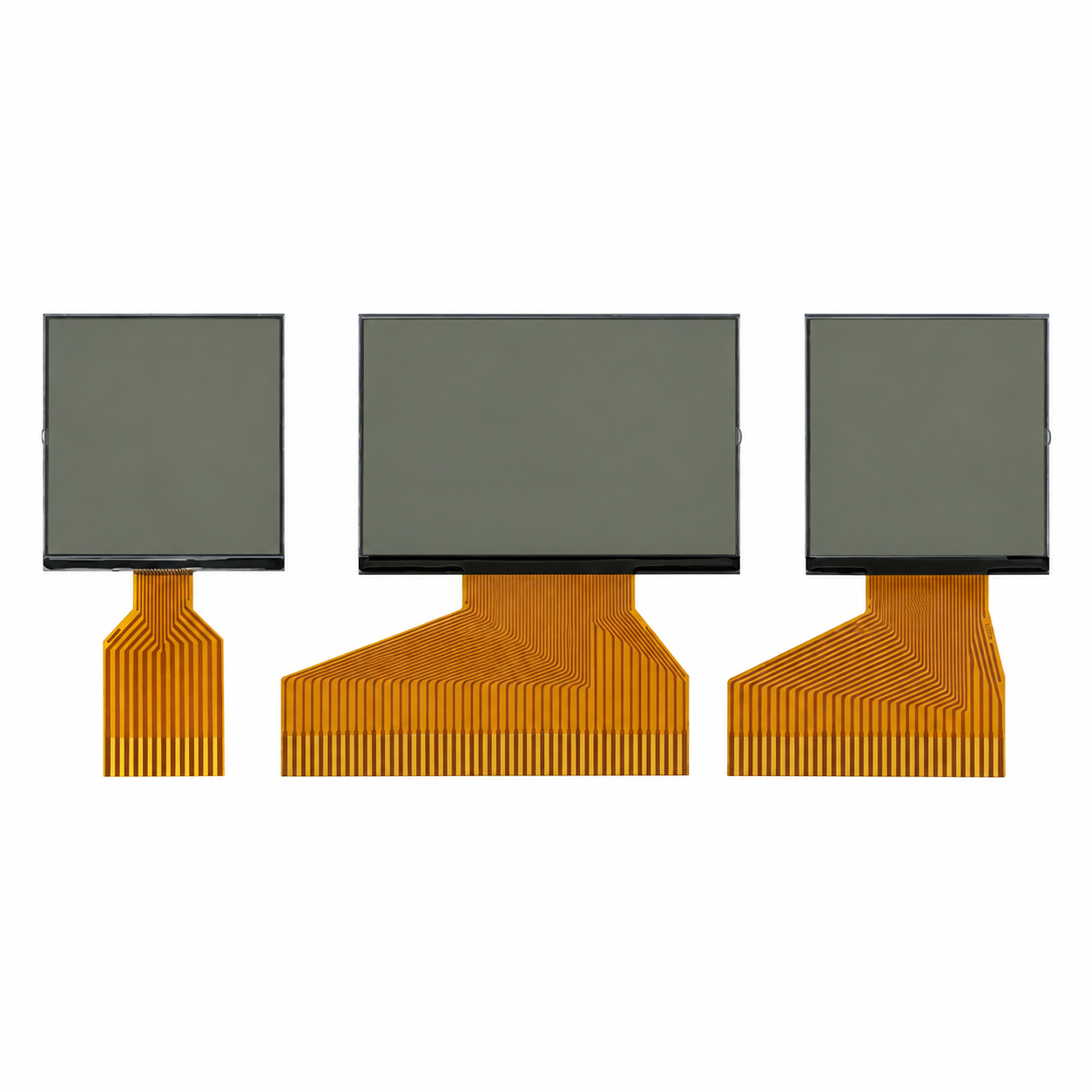

Restore all three information displays in a compatible Ford, New Holland, Fiat or Case IH tractor instrument cluster. This complete replacement set includes the left, center and right LCD panels while retaining the tractor’s original circuit board, housing and electronics.

𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗗𝗲𝘁𝗮𝗶𝗹𝘀

• Product type: Instrument-cluster LCD replacement set
• Application: Agricultural tractor dashboard
• Number of displays: Three

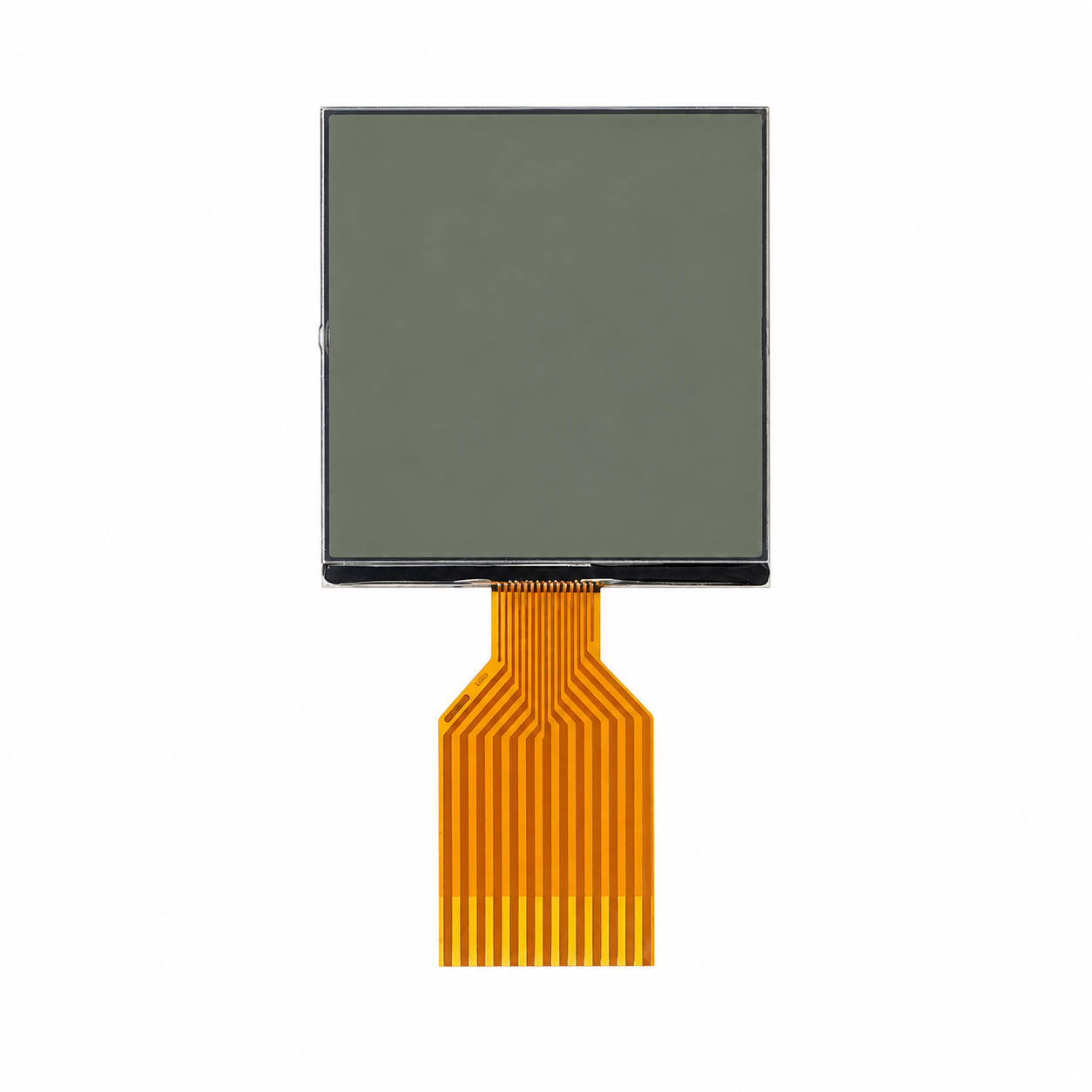

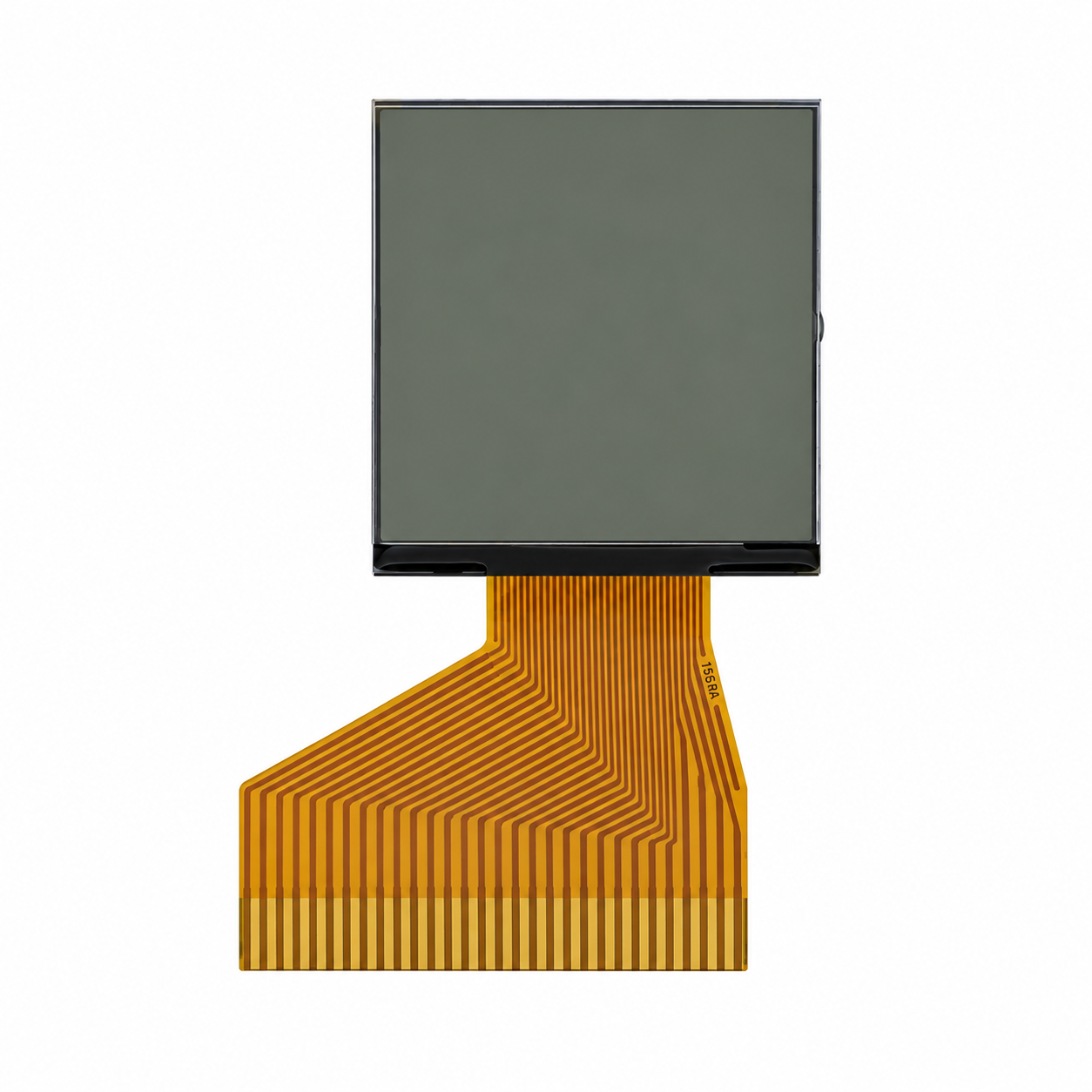

• Display positions: Left, center and right

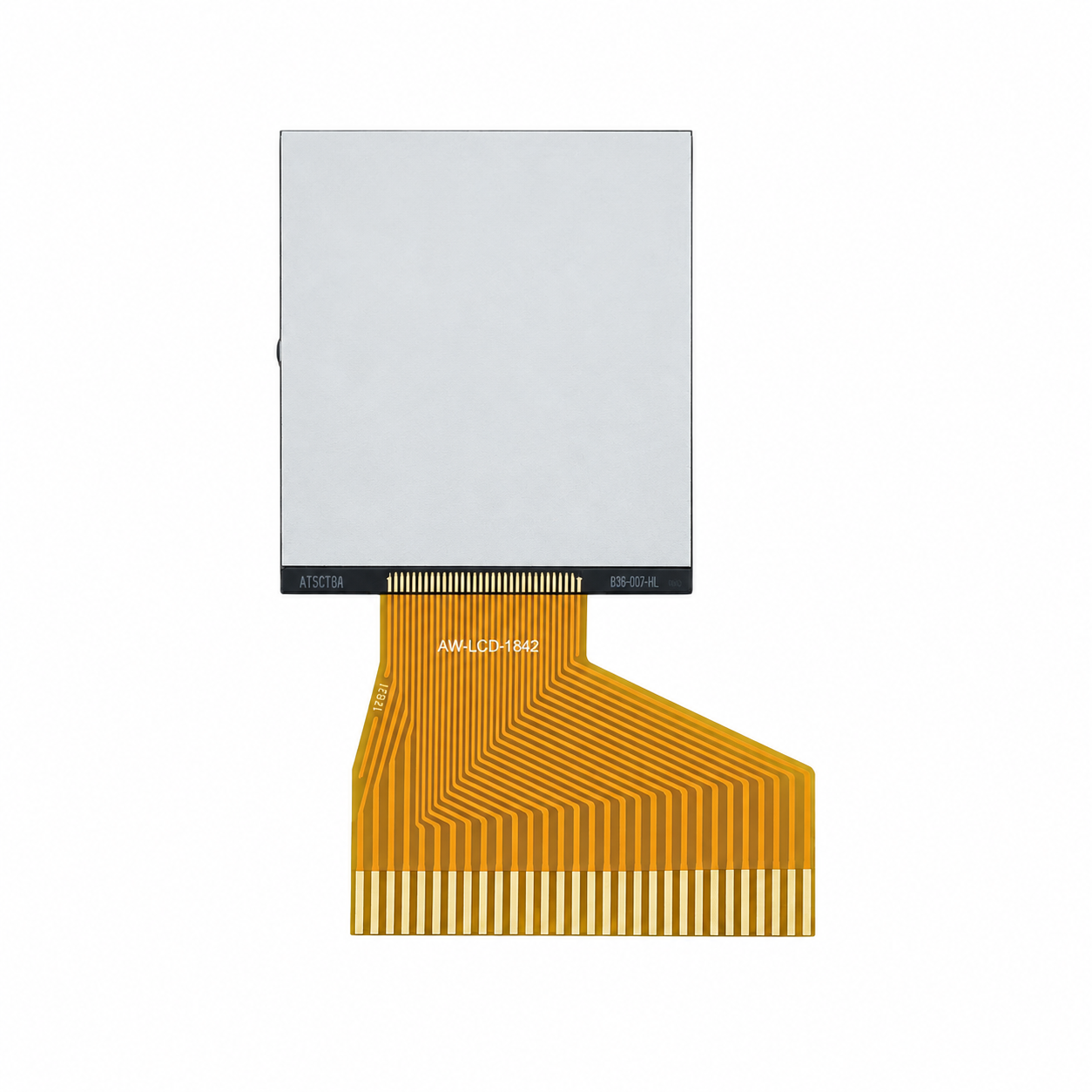

• Connection type: Flexible printed-circuit connections

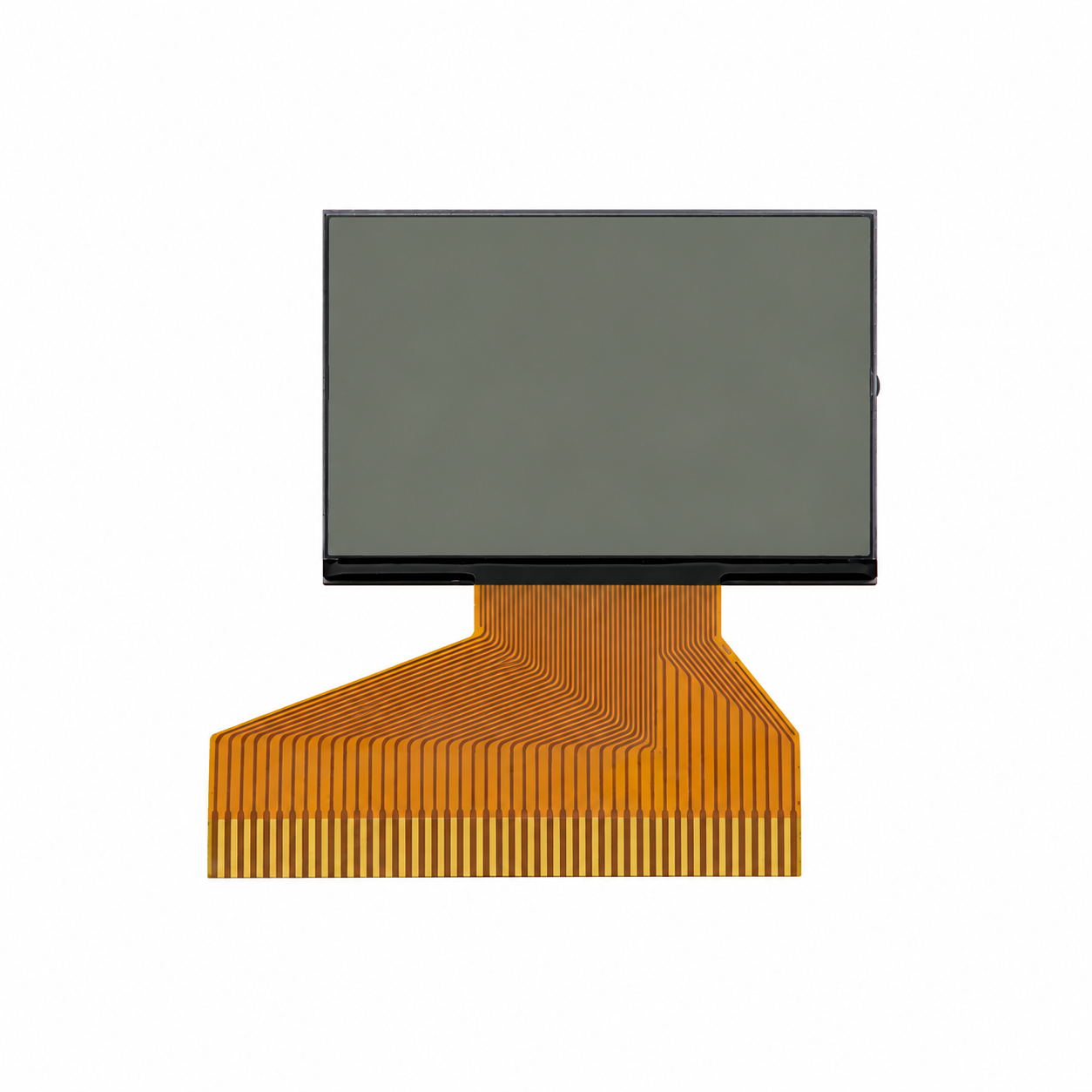

• Listed large-display dimensions: Approximately 76 × 67 mm
• Condition: New aftermarket replacement parts
• Warranty: One year
• Programming: Normally not required when retaining the original cluster electronics

This listing is for the LCD panels only. It is not a complete instrument cluster.

𝗩𝗲𝗿𝗶𝗳𝗶𝗲𝗱 𝗡𝗲𝘄 𝗛𝗼𝗹𝗹𝗮𝗻𝗱 𝗧𝗠 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

• 2002–2007 New Holland TM120
• 2000–2002 New Holland TM125
• 2000–2007 New Holland TM130
• 2000–2002 New Holland TM135
• 2002–2007 New Holland TM140
• 2000–2002 New Holland TM150
• 2002–2007 New Holland TM155
• 2002–2007 New Holland TM165
• 2002–2007 New Holland TM175
• 2002–2007 New Holland TM190

𝗩𝗲𝗿𝗶𝗳𝗶𝗲𝗱 𝗡𝗲𝘄 𝗛𝗼𝗹𝗹𝗮𝗻𝗱 𝗧𝗦 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

• 1999–2003 New Holland TS90
• 1999–2003 New Holland TS100
• 1999–2003 New Holland TS110
• 1998–2003 New Holland TS115

𝗩𝗲𝗿𝗶𝗳𝗶𝗲𝗱 𝗙𝗼𝗿𝗱 𝗡𝗲𝘄 𝗛𝗼𝗹𝗹𝗮𝗻𝗱 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

• 1996–1998 Ford New Holland 5640
• 1996–1998 Ford New Holland 6640
• 1996–1997 Ford New Holland 7740
• 1996–1998 Ford New Holland 7840
• 1996–1999 Ford New Holland 8160
• 1996–1997 Ford New Holland 8240
• 1996–1999 Ford New Holland 8260
• 1996–1997 Ford New Holland 8340
• 1996–1999 Ford New Holland 8360
• 1996–1999 Ford New Holland 8560

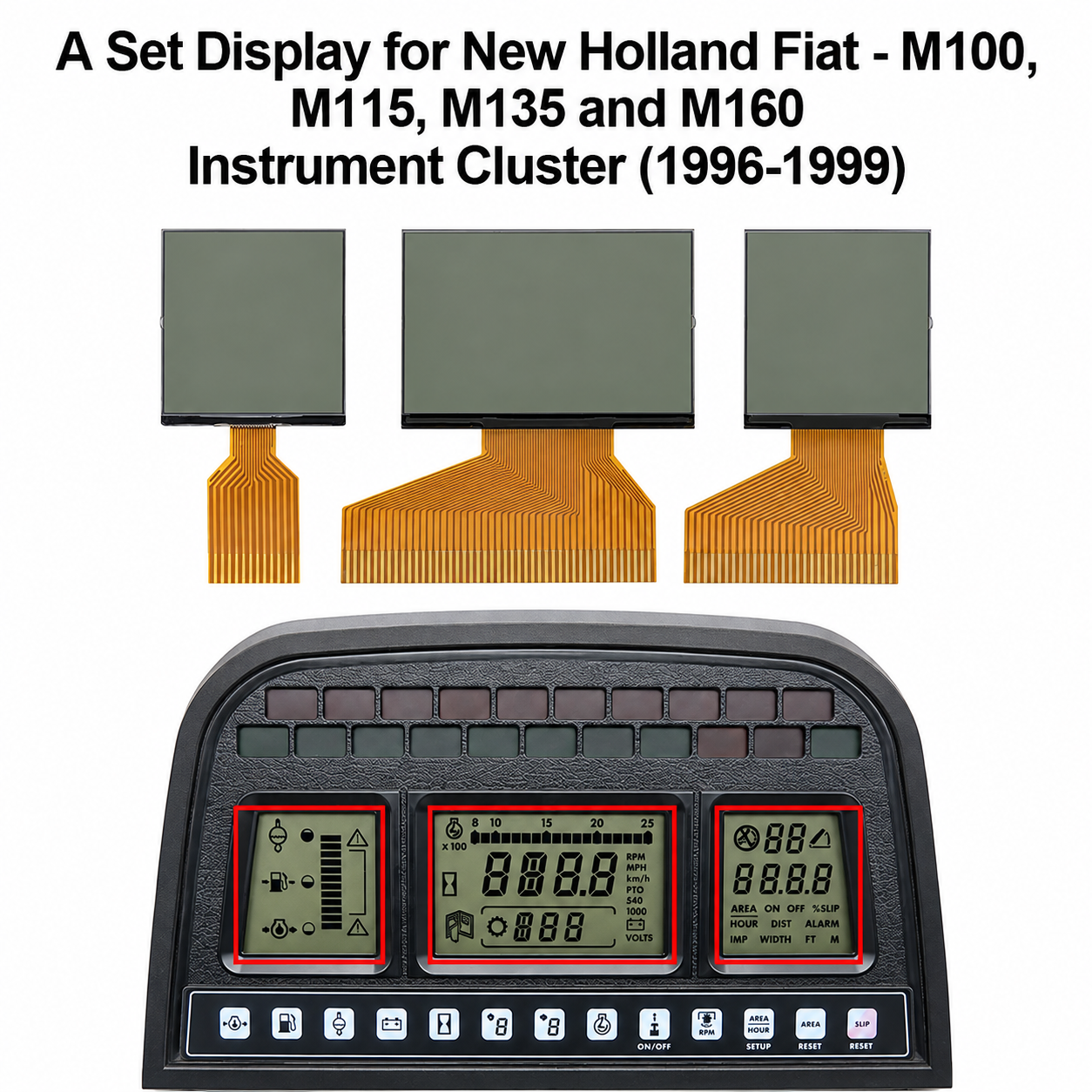

𝗩𝗲𝗿𝗶𝗳𝗶𝗲𝗱 𝗙𝗶𝗮𝘁 𝗠-𝗦𝗲𝗿𝗶𝗲𝘀 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

• 1996–1999 Fiat M100
• 1996–1999 Fiat M115
• 1996–1999 Fiat M135
• 1996–1999 Fiat M160

These models may also be branded or documented as New Holland/Fiat tractors depending on the market.

𝗩𝗲𝗿𝗶𝗳𝗶𝗲𝗱 𝗖𝗮𝘀𝗲 𝗜𝗛 𝗠𝗫𝗠 𝗙𝗶𝘁𝗺𝗲𝗻𝘁

• 2002–2007 Case IH MXM120
• 2002–2008 Case IH MXM130
• 2002–2008 Case IH MXM140
• 2002–2008 Case IH MXM155
• 2002–2007 Case IH MXM175
• 2002–2007 Case IH MXM190

𝗔𝗱𝗱𝗶𝘁𝗶𝗼𝗻𝗮𝗹 𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻𝗮𝗹 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀

Related aftermarket instrument-cluster catalogs also associate the 82014687 cluster family with selected:

• New Holland TS80
• New Holland TM115
• Brazilian-market TM110, TM120, TM130 and TM135
• Brazilian-market TM140, TM150, TM165 and TM180

These additional applications are conditional. Order only after confirming the original cluster number, display dimensions, flex-cable arrangement and printed symbols.

𝗜𝗻𝘀𝘁𝗿𝘂𝗺𝗲𝗻𝘁 𝗖𝗹𝘂𝘀𝘁𝗲𝗿 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲𝘀

• 82000504
• 82004870
• 82007804
• 82011377
• 82011705
• 82014687
• 82014688
• 82014689
• 82014944
• 82021168
• 82021170
• 82031046
• 82031048
• 82031665
• 82035717
• 82036342
• 87749730
• 87749731
• 81864685
• 81869092
• 81869095
• 06050579901
• 60.5039.003.0/-

The seller also lists 820146889 as a reference. Because this may be a market-specific number or typographical variation, compare it directly with the label on the original cluster.

𝗙𝗼𝗿𝗱 𝗥𝗲𝗳𝗲𝗿𝗲𝗻𝗰𝗲𝘀

• F0NN10849BA
• F0NN10849BB
• F0NN10849BC
• F0NN10849BD

These numbers identify compatible instrument-cluster families, not the individual replacement LCD panels.

𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗶𝗹𝗶𝘁𝘆 𝗪𝗮𝗿𝗻𝗶𝗻𝗴

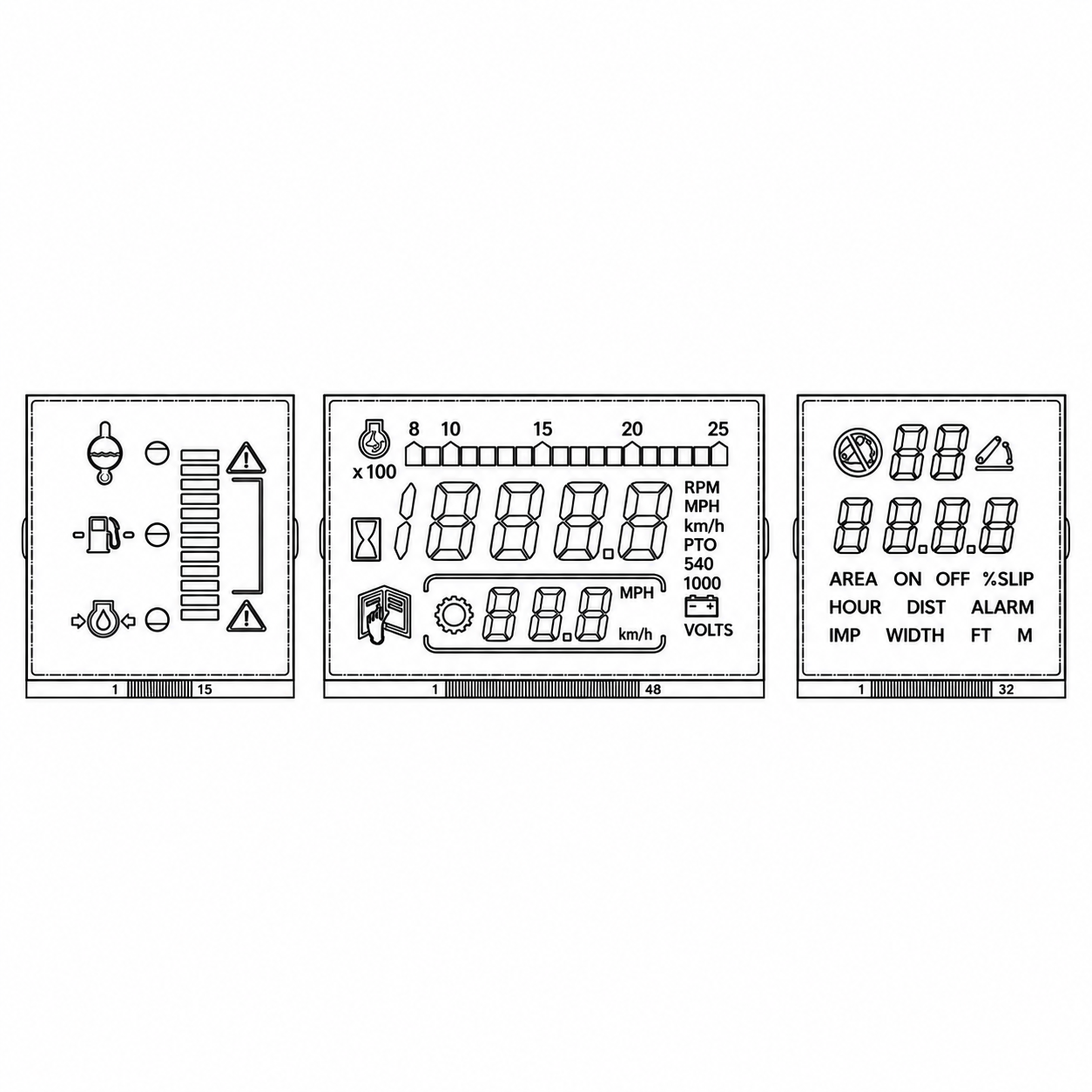

Multiple display versions were used within these instrument-cluster families. Similar-looking LCD panels may have different:

• Warning symbols
• Indicator positions
• Printed segments
• Flex-cable arrangements
• Electrical contact assignments
• Mounting configurations

Carefully compare all three original displays with the listing photographs. The symbol layout must match—not just the tractor model or cluster number.

𝗖𝗼𝗺𝗺𝗼𝗻 𝗦𝘆𝗺𝗽𝘁𝗼𝗺𝘀 𝗧𝗵𝗶𝘀 𝗦𝗲𝘁 𝗠𝗮𝘆 𝗥𝗲𝗽𝗮𝗶𝗿

• Missing or incomplete LCD segments
• Faded or low-contrast information
• Unreadable operating data
• Black spots or liquid-crystal bleeding
• Cracked LCD glass
• Distorted or tilted display information
• Temperature-related display failure
• One or more physically damaged dashboard screens

𝗧𝗵𝗶𝘀 𝗦𝗲𝘁 𝗪𝗶𝗹𝗹 𝗡𝗼𝘁 𝗥𝗲𝗽𝗮𝗶𝗿

• Failed instrument-cluster illumination
• Burned bulbs or damaged backlighting circuits
• Failed gauges, needles or stepper motors
• Cluster power or ground problems
• Damaged circuit boards
• Defective membrane buttons or keypad strips
• Sensor, sender or wiring faults
• Incorrect readings caused by vehicle systems
• Completely dead clusters requiring electronic repair

Proper diagnosis is recommended before replacing the displays.

𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻

The instrument cluster must be removed from the tractor and carefully disassembled. The original left, center and right displays are then released from their connectors and replaced in the correct positions and orientations.

A specialist supplier identifies a 13-contact flexible connection on the large display and states that soldering is not required for that version. Because cluster revisions differ, inspect all three original connections before beginning installation.

Recommended precautions:

• Disconnect the battery before removing the cluster
• Photograph the cluster and cable routing before disassembly
• Use ESD protection when handling the circuit board
• Do not crease, scratch or sharply bend the flex cables
• Confirm the orientation of every display before locking the connectors
• Avoid fingerprints, dust and cleaning chemicals on the LCD polarizers
• Test all displays before fully reassembling the dashboard

Professional instrument-cluster installation is strongly recommended.

𝗣𝗿𝗼𝗴𝗿𝗮𝗺𝗺𝗶𝗻𝗴

Replacing only the LCD panels normally retains the tractor’s original circuit board, operating hours and configuration. Programming should not ordinarily be required.

If the cluster has communication, calibration or memory faults, replacing the LCD panels will not correct those problems.

𝗖𝗼𝗻𝗱𝗶𝘁𝗶𝗼𝗻

New aftermarket replacement displays. Minor differences in background shade or contrast may be visible compared with aged original screens.

𝗣𝗮𝗰𝗸𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗲𝗻𝘁𝘀

• 1 × Left instrument-cluster LCD
• 1 × Center instrument-cluster LCD
• 1 × Right instrument-cluster LCD

Instrument cluster, circuit board, housing, keypad, warning-light panel, bulbs, gauges and installation service are not included.

𝗜𝗺𝗽𝗼𝗿𝘁𝗮𝗻𝘁 𝗕𝘂𝘆𝗲𝗿 𝗩𝗲𝗿𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻

Before ordering, confirm:

• Tractor model and production year
• Complete instrument-cluster part number
• All three display shapes and dimensions
• Warning-symbol and segment layouts
• Flex-cable positions and contact arrangements
• Physical appearance against the listing photographs

Matching only one reference number is not sufficient when the original display symbols or connections differ.
