2022-2023 Hyundai Kona OEM Manual HVAC Control Aux Heater 97250-J9AF0-TMT

Genuine Hyundai OEM center-dash heater and air-conditioning control panel for select 2022–2023 Hyundai Kona models. This is the manual temperature-control version designed for vehicles equipped with a gasoline PTC auxiliary heater.

This is not a roof-mounted climate control. It installs in the center instrument panel and operates the vehicle’s front HVAC system.

Product Details

• Genuine Hyundai OEM used component

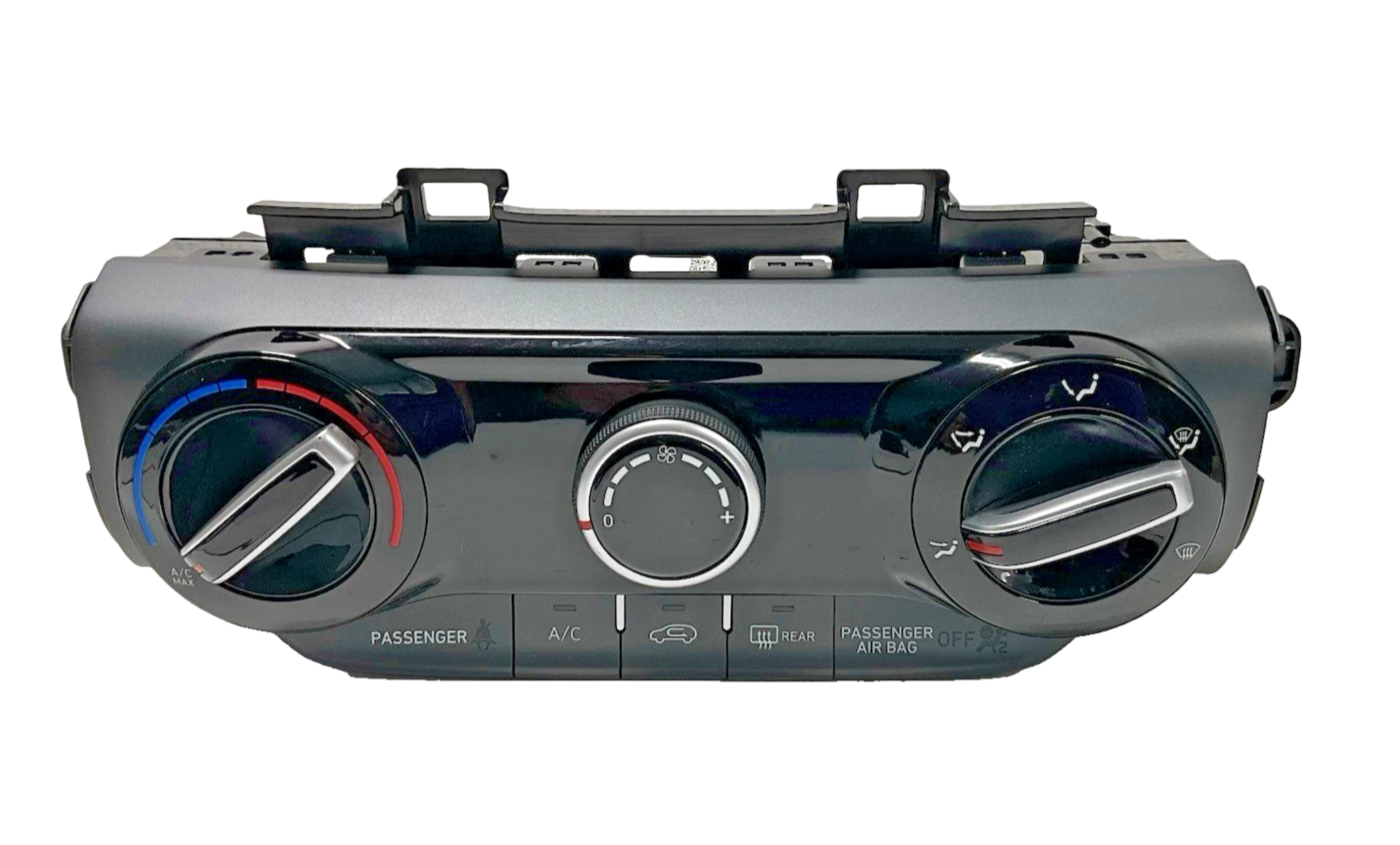

• Product type: manual HVAC temperature-control panel

• Complete Hyundai part number: 97250-J9AF0-TMT

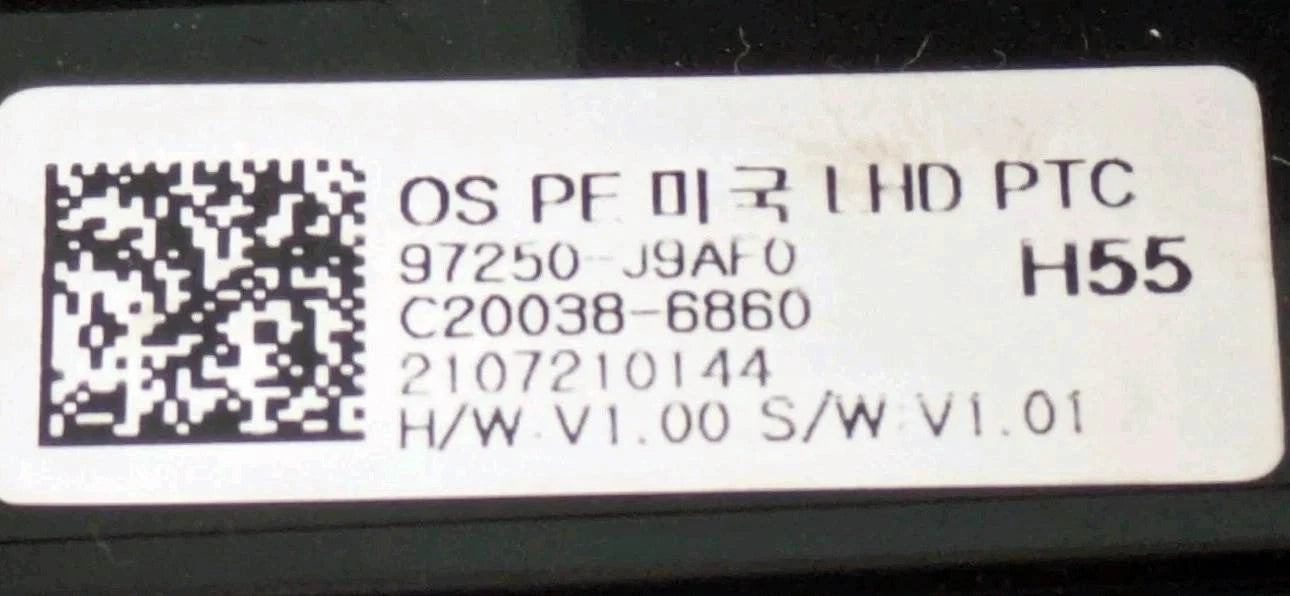

• Base number shown on the component: 97250-J9AF0

• Alternate format: 97250J9AF0TMT

• Additional label/reference number: C20038-6860

• Hollander interchange number: 655-11656

• Hyundai part code: 97250A

• Factory description: Control Assembly–Heater

• Other names: temperature control, dash control unit and A/C switch

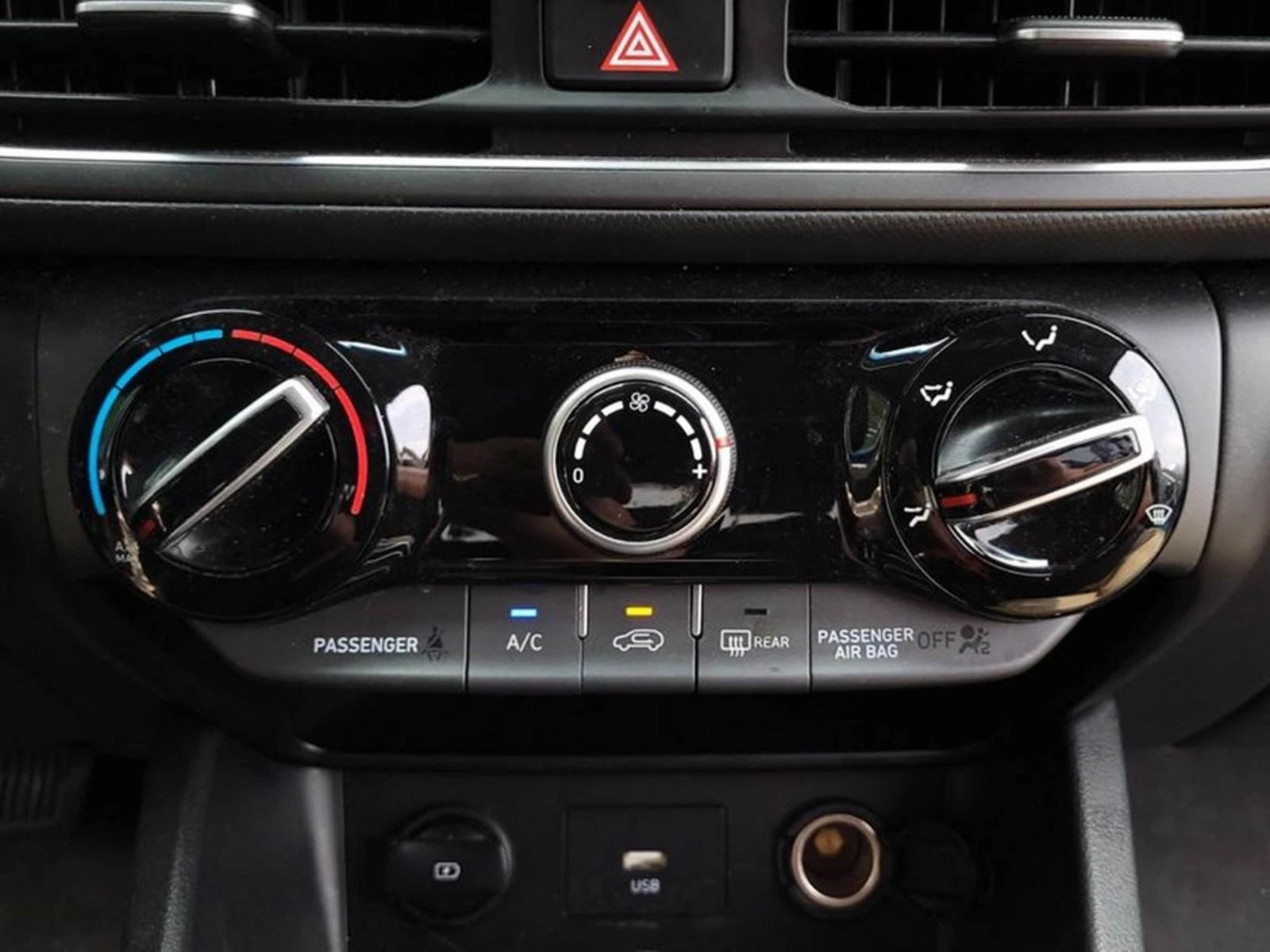

• Installation location: center instrument panel

• Climate system: manual temperature control

• Heater configuration: with gasoline PTC auxiliary heater

• Drive position: left-hand drive

• Color: black with silver control accents

The code “XER82” in the original listing title is a seller inventory identifier, not a Hyundai OEM part number.

Control Functions

Depending on the vehicle’s original equipment, this panel provides controls for:

• Cabin temperature

• Fan speed

• Air-distribution mode

• Air-conditioning activation

• Cabin-air recirculation

• Front windshield defrost

• Rear-window defrost

• HVAC system operation

• Gasoline PTC auxiliary-heater integration

Compatibility

Fits select 2022–2023 Hyundai Kona gasoline models equipped with manual temperature control and a PTC auxiliary heater:

• 2022 Hyundai Kona

• 2023 Hyundai Kona

Most salvage interchange information associates this control with 2.0L gasoline Kona models, including appropriately equipped SE and SEL applications. Manufacturer catalogs also place the part within the MPI and turbo-GDI Kona parts family, so any 1.6L turbocharged application must be confirmed by VIN and complete part number.

Fitment may include front-wheel-drive and all-wheel-drive vehicles. Trim level and drivetrain alone do not confirm compatibility.

Required Vehicle Equipment

The vehicle must have:

• Factory manual temperature control

• Gasoline engine

• Factory PTC auxiliary heater

• Left-hand-drive dashboard

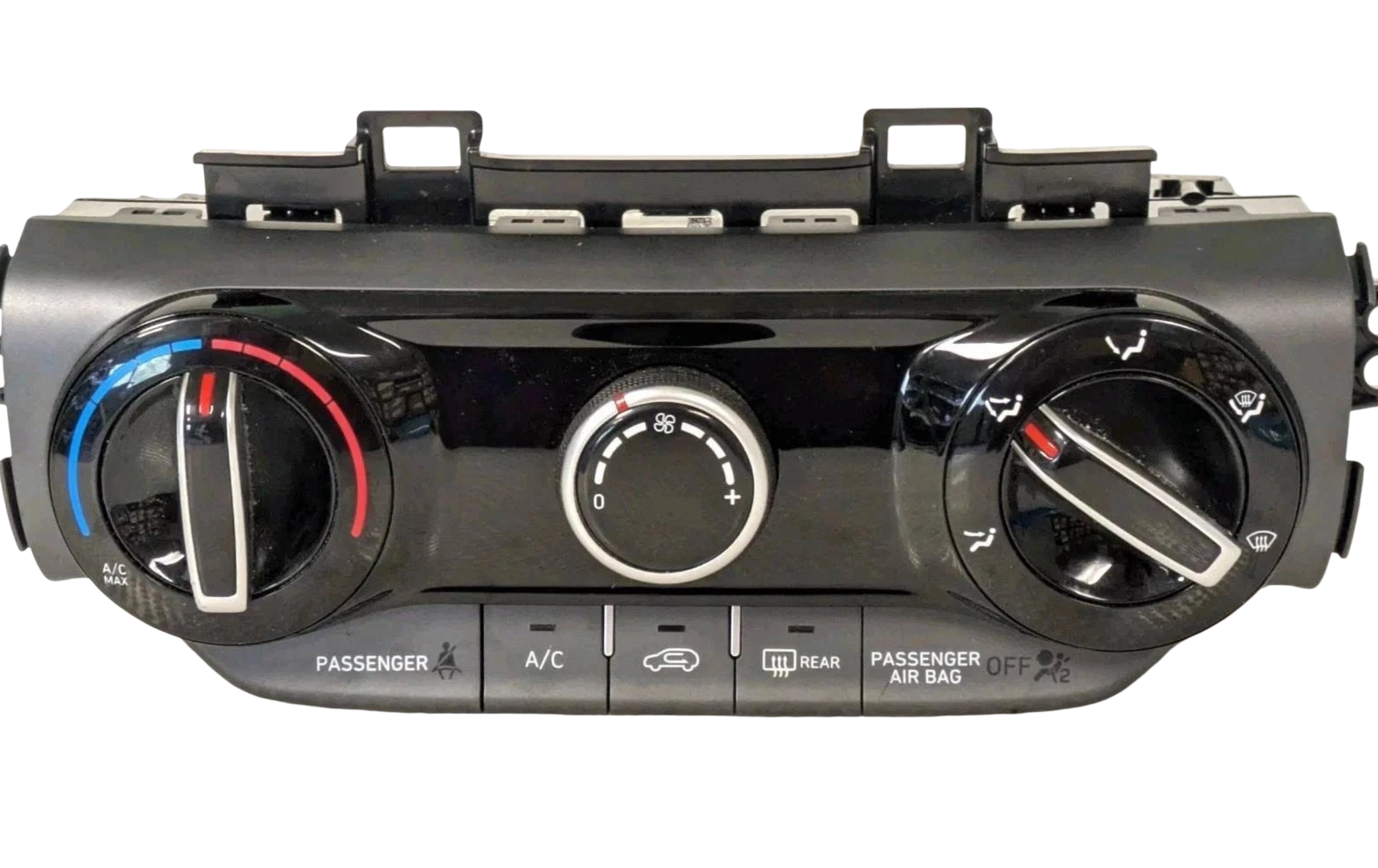

• Matching three-dial control layout

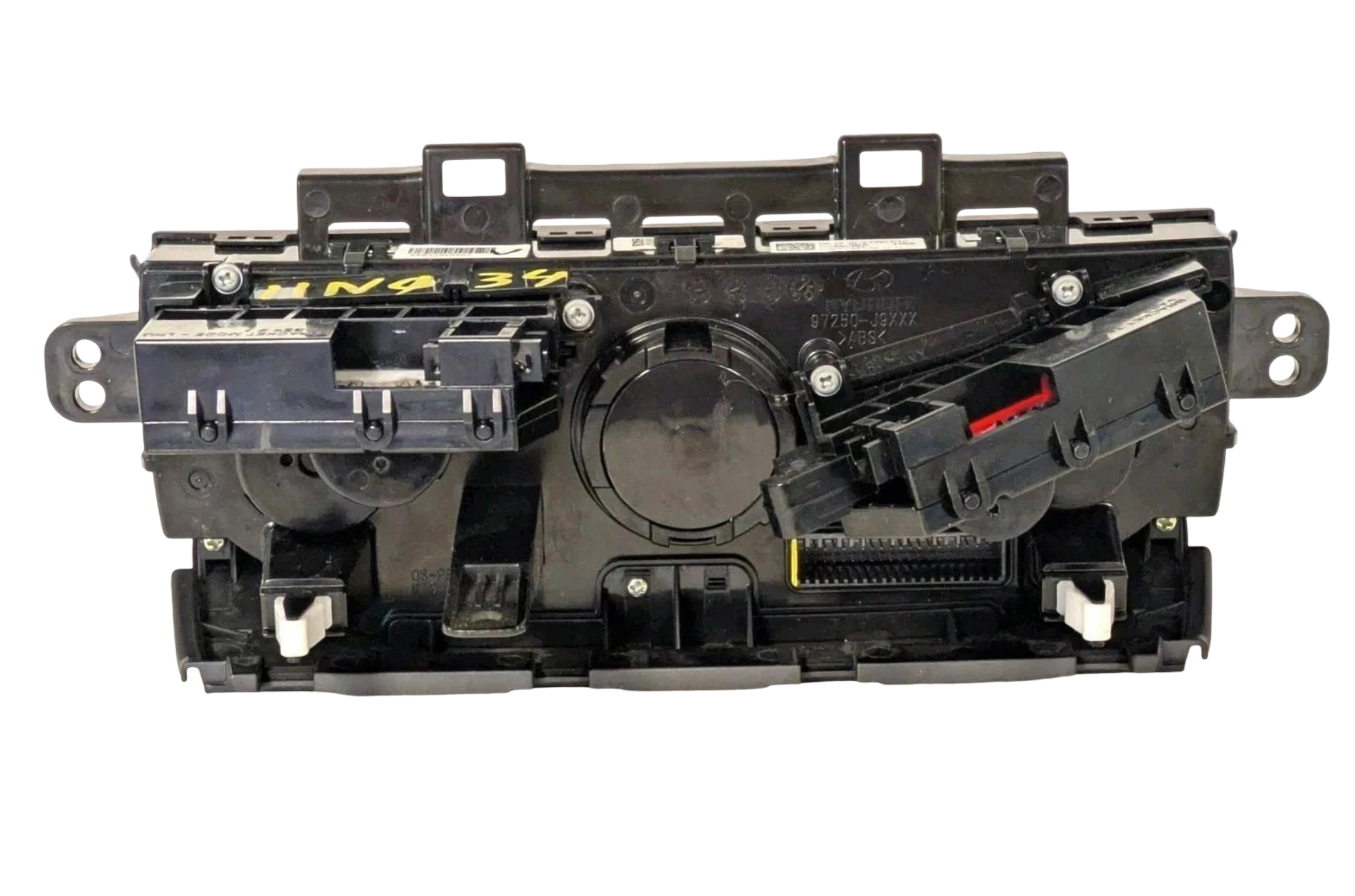

• Matching rear electrical connectors

• Original number 97250-J9AF0-TMT or a Hyundai-authorized supersession

Not Compatible With

• Hyundai Kona Electric or EV

• Hyundai Kona N

• Vehicles with automatic temperature control

• Vehicles without the PTC auxiliary heater

• 2021 and earlier Kona control systems

• 2024 and newer second-generation Kona models

• Right-hand-drive vehicles

• Rear or roof-mounted climate-control systems

• Similar-looking panels with a different identification number

Part-Number Differences

Hyundai used several similar HVAC controls in the 2022–2023 Kona:

• 97250-J9AF0-TMT: manual control with PTC auxiliary heater

• 97250-J9AE0-TMT: manual control without auxiliary heater

• 97250-J9DT0-TMT: automatic control without auxiliary heater

• 97250-J9DV0-TMT: automatic control with auxiliary heater

Certain 2023 vehicles may carry later revision numbers such as 97250-J9AF1-TMT. Do not assume that a different revision is interchangeable without confirmation from Hyundai using the vehicle’s VIN.

Important Fitment Notice

The front appearance alone is not sufficient to confirm compatibility. A panel for a vehicle without the PTC heater may look nearly identical but use different internal electronics or programming.

Match the complete number 97250-J9AF0-TMT, the rear connectors and the vehicle’s heater equipment before purchasing.

Condition

Used OEM component in overall good condition. Normal marks, scratches and cosmetic blemishes may be present from previous installation, removal and storage. Review all listing photographs for the exact condition of the control knobs, buttons, faceplate, mounting tabs and connectors.

What Is Included

• One Hyundai manual HVAC control-panel assembly

Dashboard trim, wiring harnesses, mounting hardware, sensors, actuators, heater components and other accessories are not included unless specifically pictured.

Installation

This component is intended as a replacement for a matching factory-installed control panel. It will not convert an automatic climate-control vehicle to manual control or add a PTC heater to a vehicle that was not originally equipped with one.

Professional installation is recommended. Depending on the vehicle, electronic initialization, calibration or diagnostic procedures may be required after installation.

Buyer Verification

Before ordering, compare:

1. Complete OEM part number

2. Manual versus automatic climate control

3. PTC auxiliary-heater equipment

4. Front dial and button arrangement

5. Rear electrical connectors

6. Mounting-tab positions

7. Vehicle VIN and market specification

If the original number is missing or different, have a Hyundai parts department verify compatibility using the VIN.
