2021-2023 Ford F-150 12" SYNC 4 LCD Touch Screen LS120M5LX02A/U

$ 249.95

Product Description

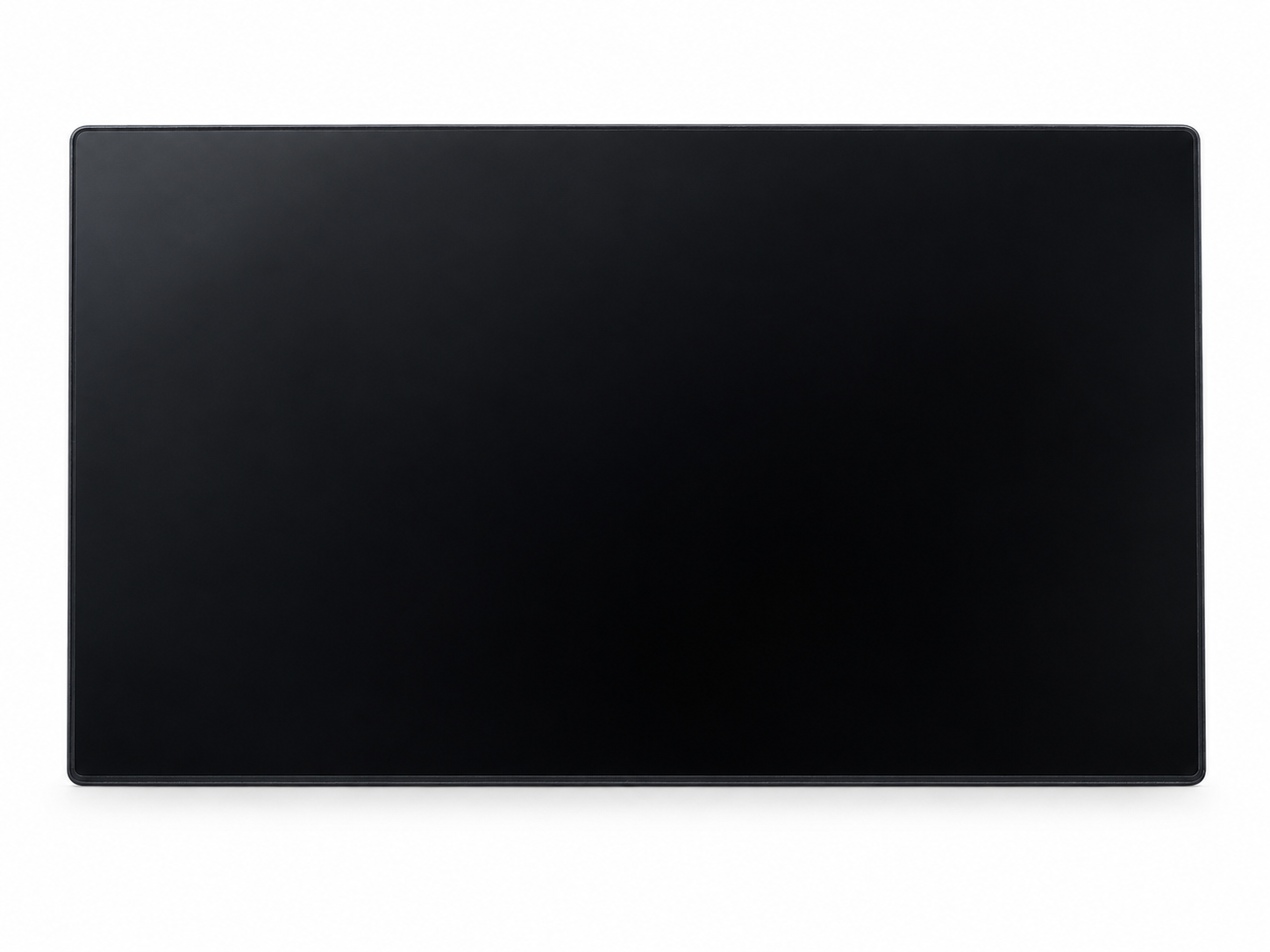

Restore the factory infotainment display in your Ford F-150 with this 12-inch LCD touchscreen assembly for selected SYNC 4 systems.

This replacement display is identified by panel numbers LS120M5LX02A and LS120M5LX02U. The LS120M5LX02A panel has been documented in the 2021 Ford F-150, while Ford confirms that the redesigned F-150 offered a landscape-oriented 12-inch SYNC 4 center touchscreen. Ford 2021 F-150 specifications, panel application reference

This is a replacement screen assembly only. It is not a complete radio, APIM module, control panel or dashboard bezel.

Product Details

Screen size: 12 inches
Panel numbers: LS120M5LX02A / LS120M5LX02U
Display type: Automotive a-Si TFT LCD
Reported resolution: 1920 × 1200 WUXGA
Touch technology: Projected capacitive touchscreen
Backlight: WLED
Display mode: Normally black, transmissive
Reported interface: FPD-Link III
Orientation: Landscape
Intended system: Ford SYNC 4
Condition: New
One-year seller warranty, if applicable

A panel-industry specification reference describes the LS120M5LX02 family as a 12-inch, 1920 × 1200 automotive display with capacitive touch and WLED illumination. LS120M5LX02 specifications

Compatibility

Designed for selected:

2021 Ford F-150 with factory 12-inch SYNC 4 center display
2022 Ford F-150 with factory 12-inch SYNC 4 center display
2023 Ford F-150 with factory 12-inch SYNC 4 center display

Possible additional applications may include certain later F-150, F-150 Lightning and Super Duty systems, but compatibility must be confirmed by matching the original panel and engineering numbers.

Reported Reference Numbers

Compare the original screen with the following commonly associated references:

LS120M5LX02A
LS120M5LX02U
LS120M5LX02
LS120M5LX08
ML3T-18B955-AE
ML3T-18B955-AF
ML3T18B955AE
ML3T18B955AF
NL1T-14F180-FB
ML3Z-10D885-B

These references may represent the display panel or a larger Ford display assembly. Match the number printed directly on the original LCD whenever possible.

Important Fitment Notice

Vehicle year and screen size alone do not guarantee compatibility. Before ordering:

Confirm the vehicle has the factory 12-inch landscape SYNC 4 center touchscreen.
Remove the original display and locate its panel number.
Confirm LS120M5LX02A, LS120M5LX02U, or an explicitly interchangeable number.

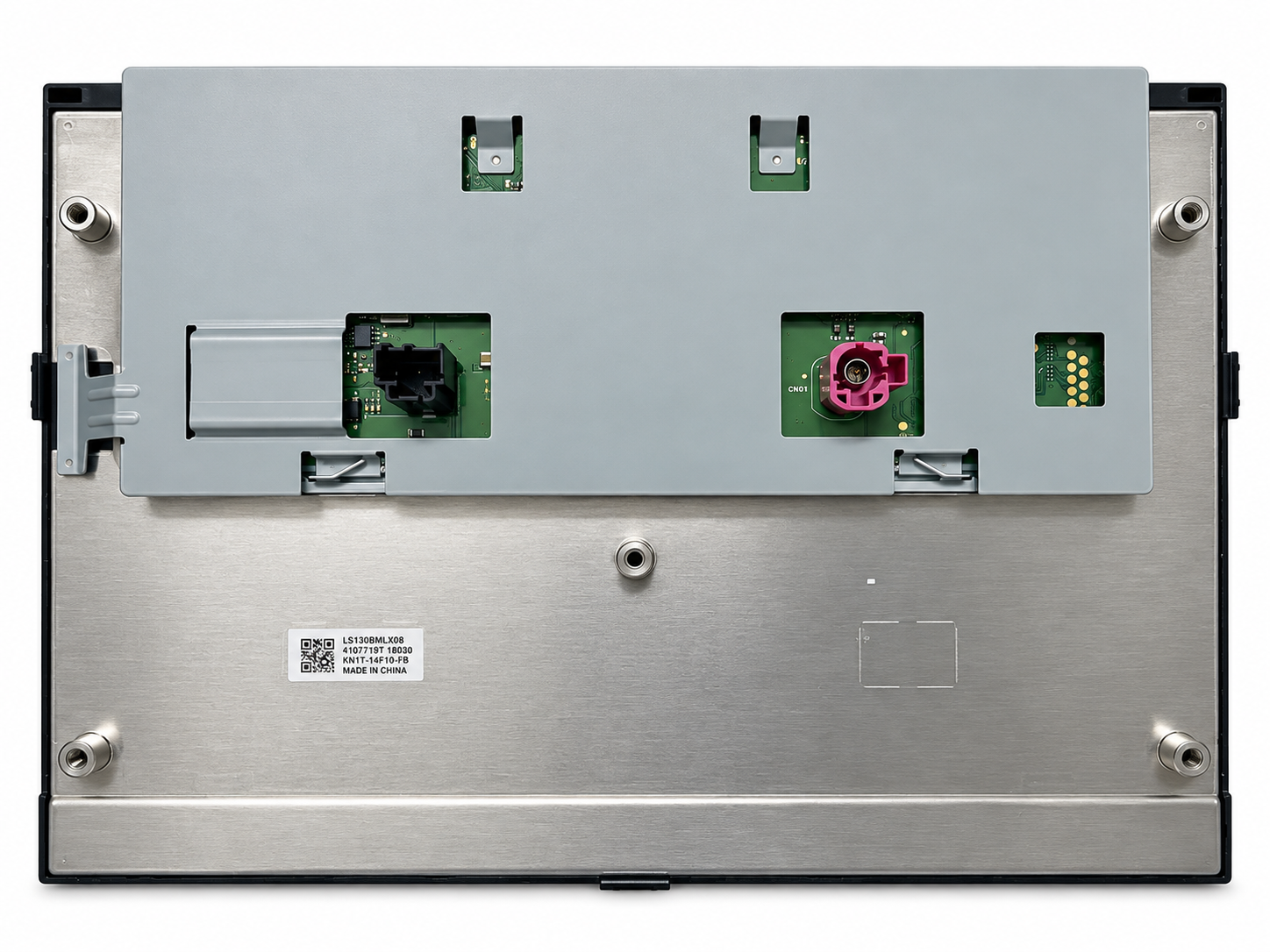

Compare the connectors, ribbon cables, mounting points and rear housing with the listing photographs.

This part is not intended for:

Vehicles with the factory 8-inch screen
SYNC 3 systems
12-inch digital instrument clusters
Vertical 15.5-inch SYNC 4A displays
Aftermarket Android radio systems

Common Problems This Part May Address

Cracked or physically damaged screen
Blank or dark display
Lines, discoloration or image distortion
Failed or intermittent touch response
Dead pixels or display spots
Backlight failure

Similar symptoms may also be caused by the APIM, radio module, wiring, power supply or software. Proper diagnosis is recommended before replacing the display.

Package Includes

One 12-inch LS120M5LX02A/LS120M5LX02U LCD touchscreen assembly

Radio receiver, APIM, dashboard bezel, mounting brackets, wiring and installation instructions are not included unless specifically pictured.

Installation Notice

Professional installation is strongly recommended. Installation requires dashboard and display disassembly, handling delicate connectors and protecting the electronics from static discharge. Disconnect vehicle power and follow the appropriate Ford service procedure.

Replacing the screen normally does not replace or reprogram the APIM, but additional calibration or diagnostic procedures may be required depending on the vehicle and repair performed.
